  1. Lecture 13: Population Structure February 24, 2014

  2. Last Time • Effective population size calculations • Historical importance of drift: shifting balance or noise? • Population structure

  3. Today • The F-Statistics • Sample calculations of FST • Defining populations on genetic criteria

  4. Hartl and Clark 1997 Wahlund Effect Trapped mice will always be homozygous even though HE = 0.5

  5. What happens if you remove the cats and the mice begin randomly mating?

  6. T S F-Coefficients • Quantification of the structure of genetic variation in populations: population structure • Partition variation to the Total Population (T), Subpopulations (S), and Individuals (I)

  7. F-Coefficients and Deviations from Expected Heterozygosity • Recall the fixation index from inbreeding lectures and lab: • Rearranging: • Within a subpopulation: • FIS: deviation from H-W proportions in subpopulation

  8. F-Coefficients and Deviations from Expected Heterozygosity • FIS: deviation from H-W proportions in subpopulation • FST: genetic differention over subpopulations • FIT: deviation from H-W proportions in the total population

  9. F-Coefficients • Combine different sources of reduction in expected heterozygosity into one equation: Deviation due to inbreeding within populations Overall deviation from H-W expectations Deviation due to subpopulation differentiation

  10. T S F-Coefficients • Quantification of the structure of genetic variation in populations: population structure • Partition variation to the Total Population (T), Subpopulations (S), and Individuals (I)

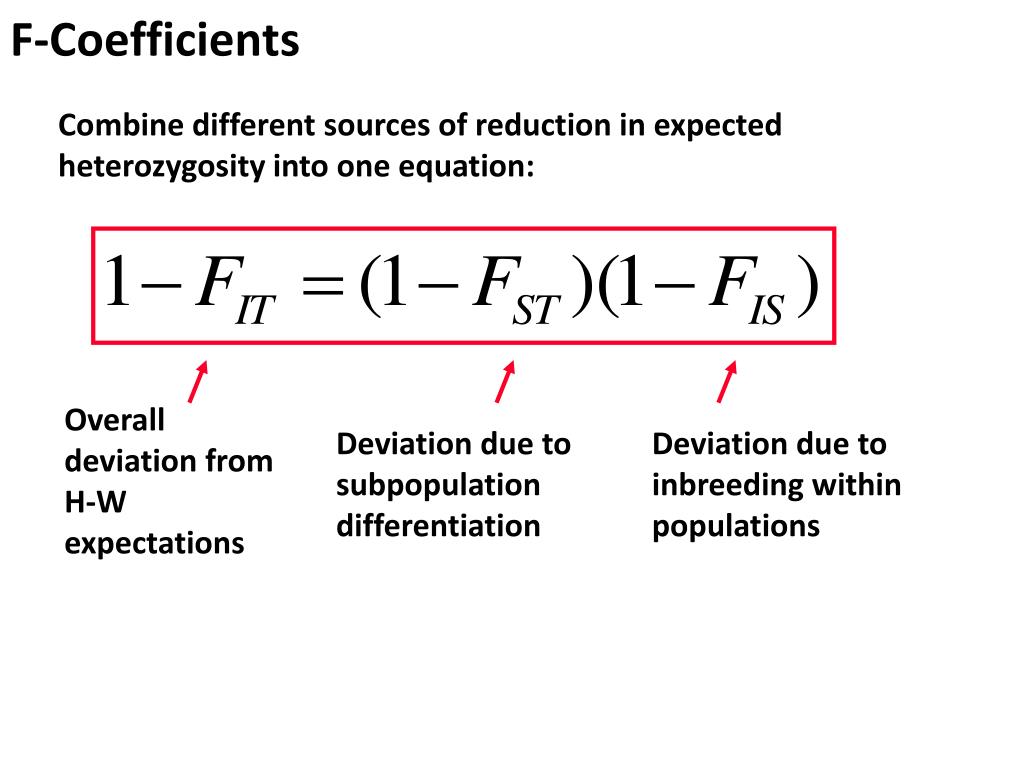

  11. F-Coefficients Combine different sources of reduction in expected heterozygosity into one equation: Deviation due to inbreeding within populations Overall deviation from H-W expectations Deviation due to subpopulation differentiation

  12. F-Coefficients and IBD • View F-statistics as probability of Identity by Descent for different samples Probability of IBD within an individual Overall probability of IBD Probability of IBD for 2 individuals in a subpopulation

  13. F-Statistics Can Measure Departures from Expected Heterozygosity Due to Wahlund Effect where HT is the average expected heterozygosity in the total population HS is the average expected heterozygosity in subpopulations HI is observed heterozygosity within a subpopulation

  14. B2B2 = white; B1B1 and B1B2 = dark pink Subpopulation 1: F(white) = 10/20 = 0.5 F(B2)1 = q1= 0.5 = 0.707 p1=1-0.707 = 0.293 Subpopulation 2: F(white)=2/20=0.1 F(B2)2 = q2 = 0.1 = 0.32 p2 = 1-0.32 = 0.68 Calculating FST Recessive allele for flower color White: 10, Dark: 10 White: 2, Dark: 18

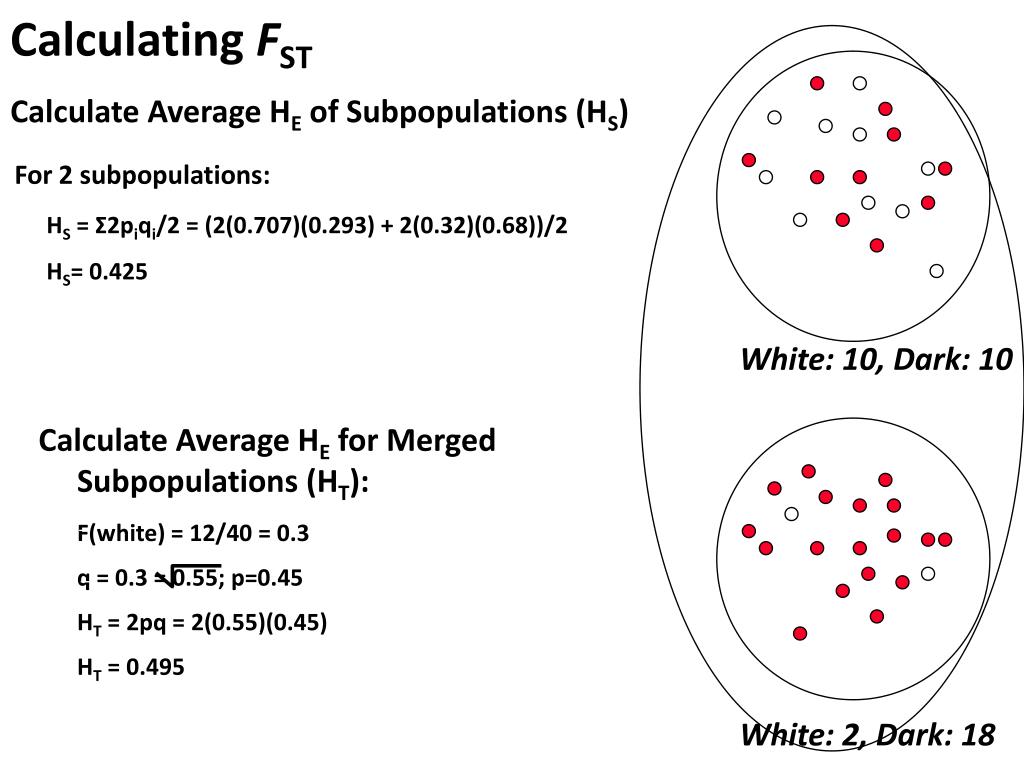

  15. Calculate Average HE of Subpopulations (HS) For 2 subpopulations: HS = Σ2piqi/2 = (2(0.707)(0.293) + 2(0.32)(0.68))/2 HS= 0.425 Calculate Average HE for Merged Subpopulations (HT): F(white) = 12/40 = 0.3 q = 0.3 = 0.55; p=0.45 HT= 2pq = 2(0.55)(0.45) HT= 0.495 Calculating FST White: 10, Dark: 10 White: 2, Dark: 18

  16. Bottom Line: • FST = (HT-HS)/HT = • (0.495 - 0.425)/ 0.495 = 0.14 • 14% of the total variation in flower color alleles is due to variation among populations AND • Expected heterozygosity is increased 14% when subpopulations are merged (Wahlund Effect) White: 10, Dark: 10 White: 2, Dark: 18

  17. Nei's Gene Diversity: GST Nei's generalization of FST to multiple, multiallelic loci Where HS is mean HE of m subpopulations, calculated for n alleles with frequency of pj Where pj is mean allele frequency of allele j over all subpopulations

  18. Unbiased Estimate of FST • Weir and Cockerham's (1984) Theta • Compensates for sampling error, which can cause large biases in FST or GST (e.g., if sample represents different proportions of populations) • Calculated in terms of correlation coefficients Calculated by FSTAT software: http://www2.unil.ch/popgen/softwares/fstat.htm Goudet, J. (1995). "FSTAT (Version 1.2): A computer program to calculate F- statistics." Journal of Heredity 86(6): 485-486. Often simply referred to as FST in the literature Weir, B.S. and C.C. Cockerham. 1984. Estimating F-statistics for the analysis of population structure. Evolution 38:1358-1370.

  19. Schemske and Bierzychudek 2007 Evolution Linanthus parryae population structure • Annual plant in Mojave desert is classic example of migration vs drift • Allele for blue flower color is recessive • Use F-statistics to partition variation among regions, subpopulations, and individuals • FST can be calculated for any hierarchy: • FRT: Variation due to differentiation of regions • FSR: Variation due to differentiation among subpopulations within regions

  20. Linanthus parryae population structure

  21. Hartl and Clark 2007

  22. FST as Variance Partitioning • Think of FST as proportion of genetic variation partitioned among populations where V(q) is variance of q across subpopulations • Denominator is maximum amount of variance that could occur among subpopulations

  23. Analysis of Molecular Variance (AMOVA) • Analogous to Analysis of Variance (ANOVA) • Use pairwise genetic distances as ‘response’ • Test significance using permutations • Partition genetic diversity into different hierarchical levels, including regions, subpopulations, individuals • Many types of marker data can be used • Method of choice for dominant markers, sequence, and SNP

  24. Correlation of random pairs of haplotypes drawn from a region relative to pairs drawn from the whole population (FRT) Correlation of random pairs of haplotypes drawn from an individual subpopulation relative to pairs drawn from the whole population (FST) Correlation of random pairs of haplotypes drawn from an individual subpopulation relative to pairs drawn from a region (FSR) Phi Statistics from AMOVA http://www.bioss.ac.uk/smart/unix/mamova/slides/frames.htm

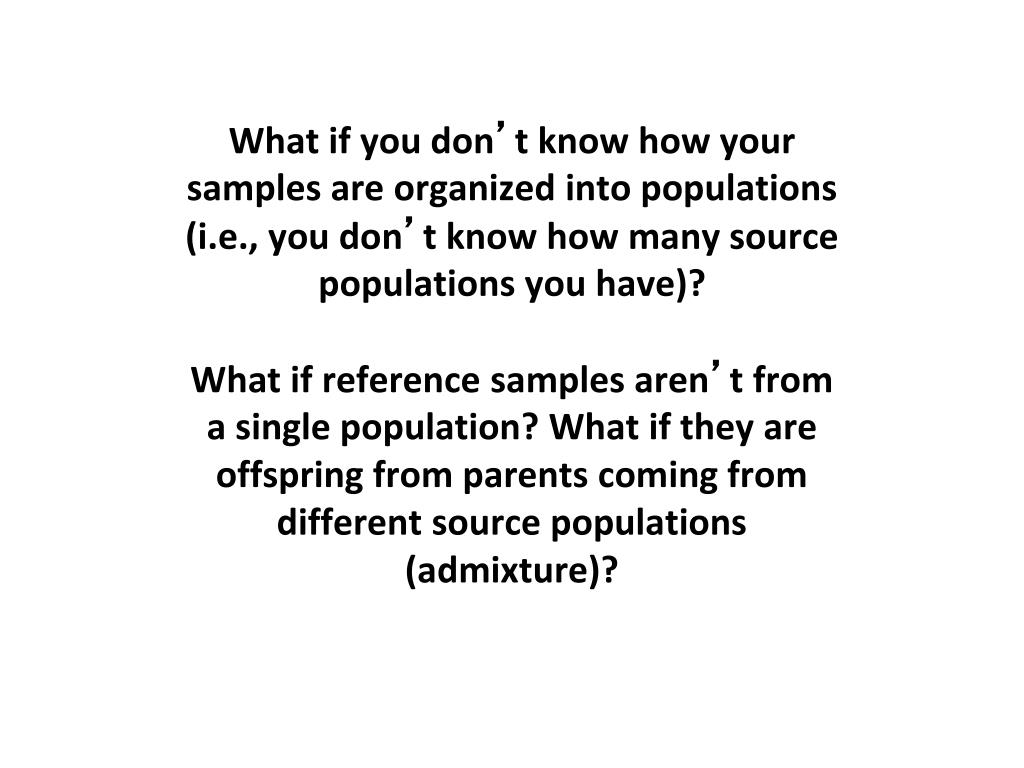

  25. What if you don’t know how your samples are organized into populations (i.e., you don’t know how many source populations you have)?What if reference samples aren’t from a single population? What if they are offspring from parents coming from different source populations (admixture)?

  26. What’s a population anyway?

  27. Londo and Schaal 2007 Mol Ecol 16:4523 Defining populations on genetic criteria • Assume subpopulations are at Hardy-Weinberg Equilibrium and linkage equilibrium • Probabilistically ‘assign’ individuals to populations to minimize departures from equilibrium • Can allow for admixture (individuals with different proportions of each population) and geographic information • Bayesian approach using Monte-Carlo Markov Chain method to explore parameter space • Implemented in STRUCTURE program: • http://pritch.bsd.uchicago.edu/structure.html

  28. Example: Taita Thrush data* • Three main sampling locations in Kenya • Low migration rates (radio-tagging study) • 155 individuals, genotyped at 7 microsatellite loci Slide courtesy of Jonathan Pritchard

  29. Estimating K • Structure is run separately at different values of K. The program computes a statistic that measures the fit of each value of K (sort of a penalized likelihood); this can be used to help select K. Posterior probability of K Assumed value of K ~0 ~0 0.993 0.007 0.00005 12345 • Taita thrush data

  30. Another method for inference of K • The K method of Evanno et al. (2005, Mol. Ecol. 14: 2611-2620): Eckert, Population Structure, 5-Aug-2008 46

  31. Inferred population structure Africans Europeans MidEast Cent/S Asia Asia Oceania America Each individual is a thin vertical line that is partitioned into K colored segments according to its membership coefficients in K clusters. Rosenberg et al. 2002 Science 298: 2381-2385

  32. Inferred population structure – regions Rosenberg et al. 2002 Science 298: 2381-2385
