  1. HPC Checkers By Andy Block Ryan Egan

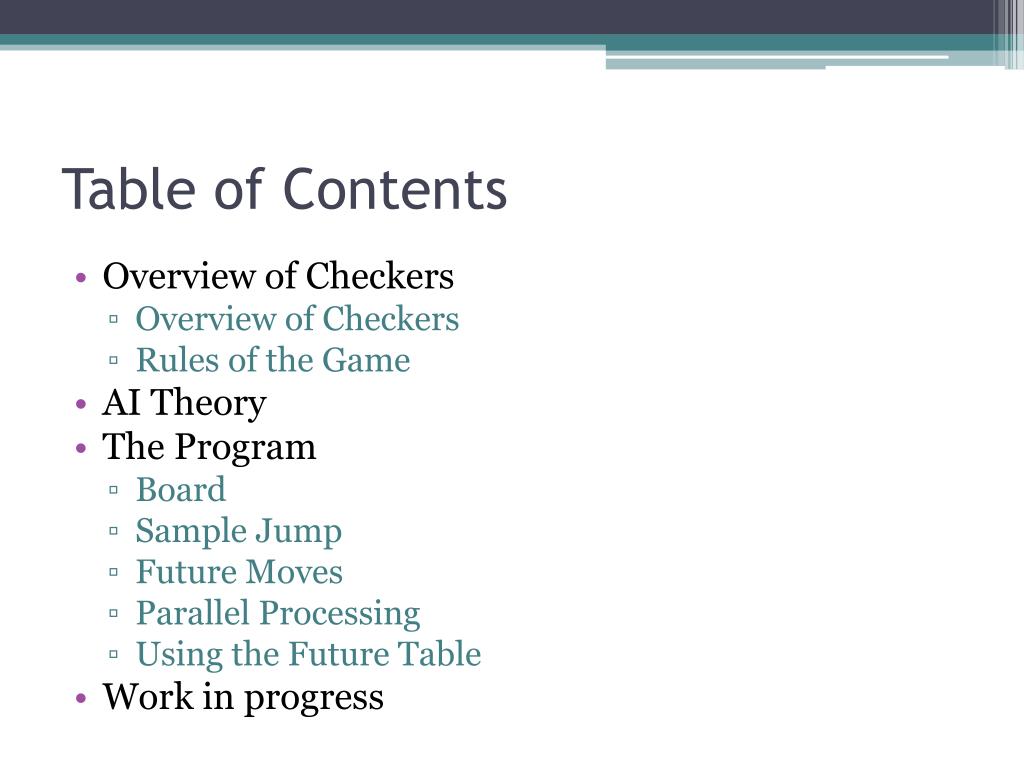

  2. Table of Contents • Overview of Checkers • Overview of Checkers • Rules of the Game • AI Theory • The Program • Board • Sample Jump • Future Moves • Parallel Processing • Using the Future Table • Work in progress

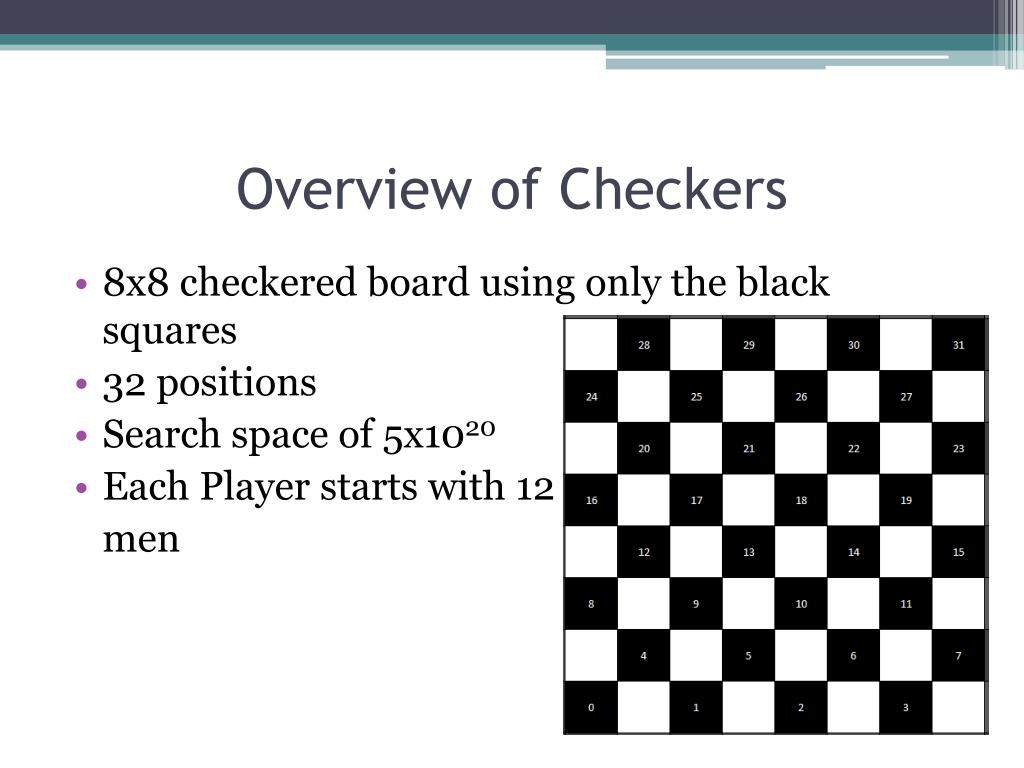

  3. Overview of Checkers • 8x8 checkered board using only the black squares • 32 positions • Search space of 5x1020 • Each Player starts with 12 men

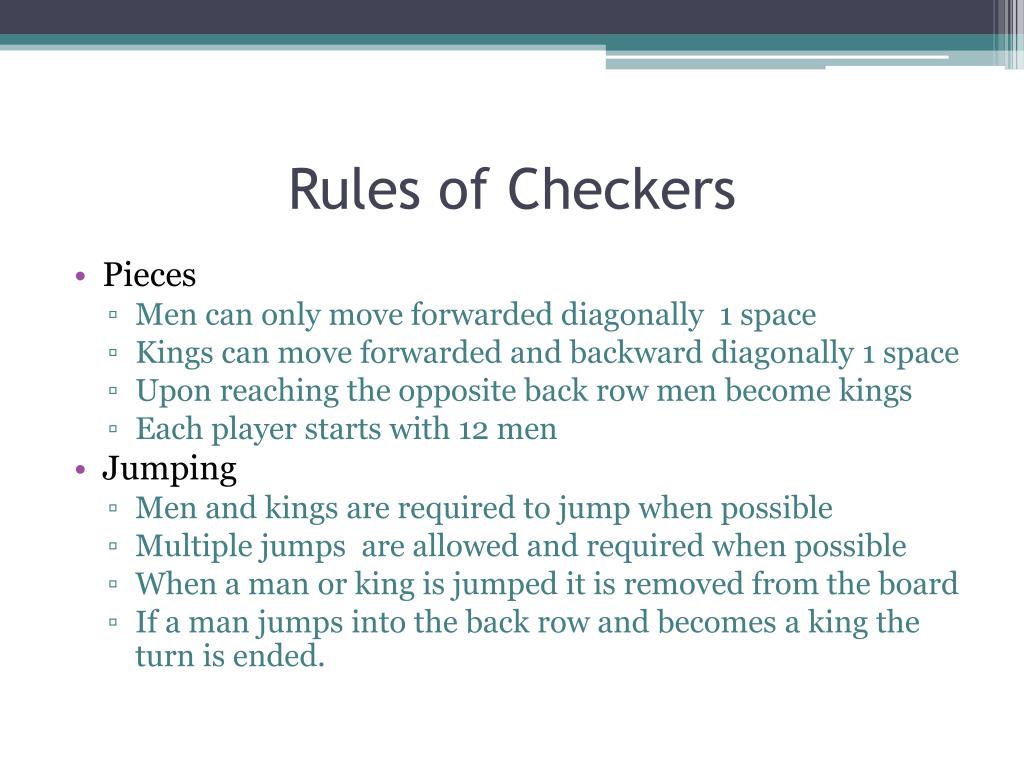

  4. Rules of Checkers • Pieces • Men can only move forwarded diagonally 1 space • Kings can move forwarded and backward diagonally 1 space • Upon reaching the opposite back row men become kings • Each player starts with 12 men • Jumping • Men and kings are required to jump when possible • Multiple jumps are allowed and required when possible • When a man or king is jumped it is removed from the board • If a man jumps into the back row and becomes a king the turn is ended.

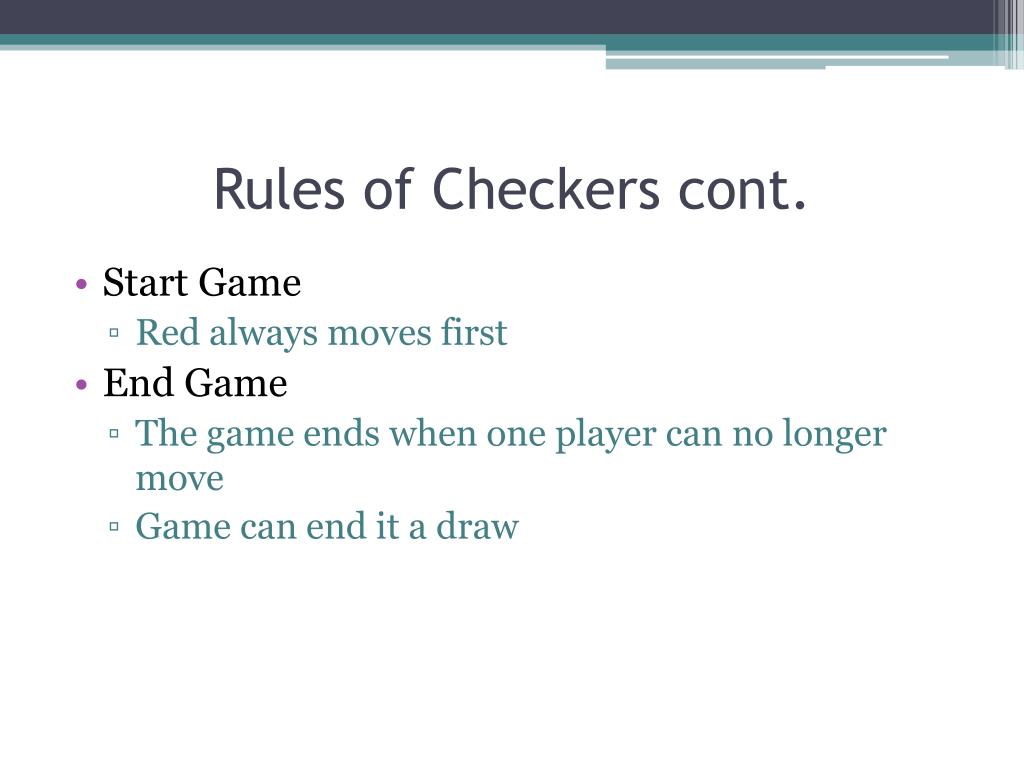

  5. Rules of Checkers cont. • Start Game • Red always moves first • End Game • The game ends when one player can no longer move • Game can end it a draw

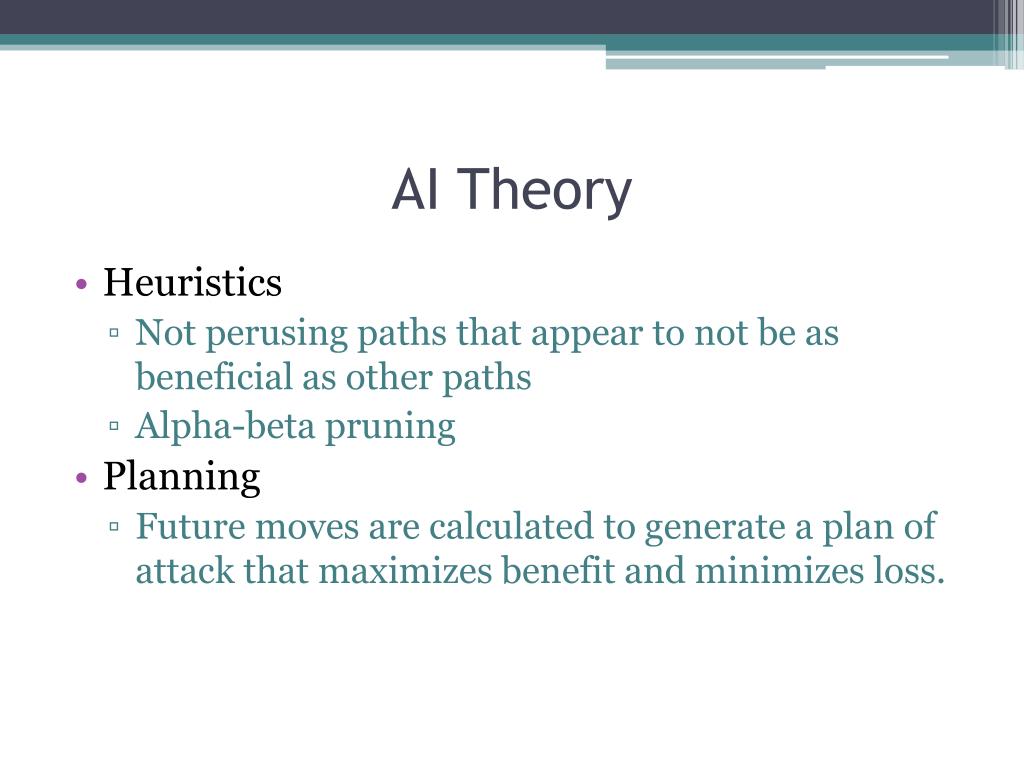

  6. AI Theory • Heuristics • Not perusing paths that appear to not be as beneficial as other paths • Alpha-beta pruning • Planning • Future moves are calculated to generate a plan of attack that maximizes benefit and minimizes loss.

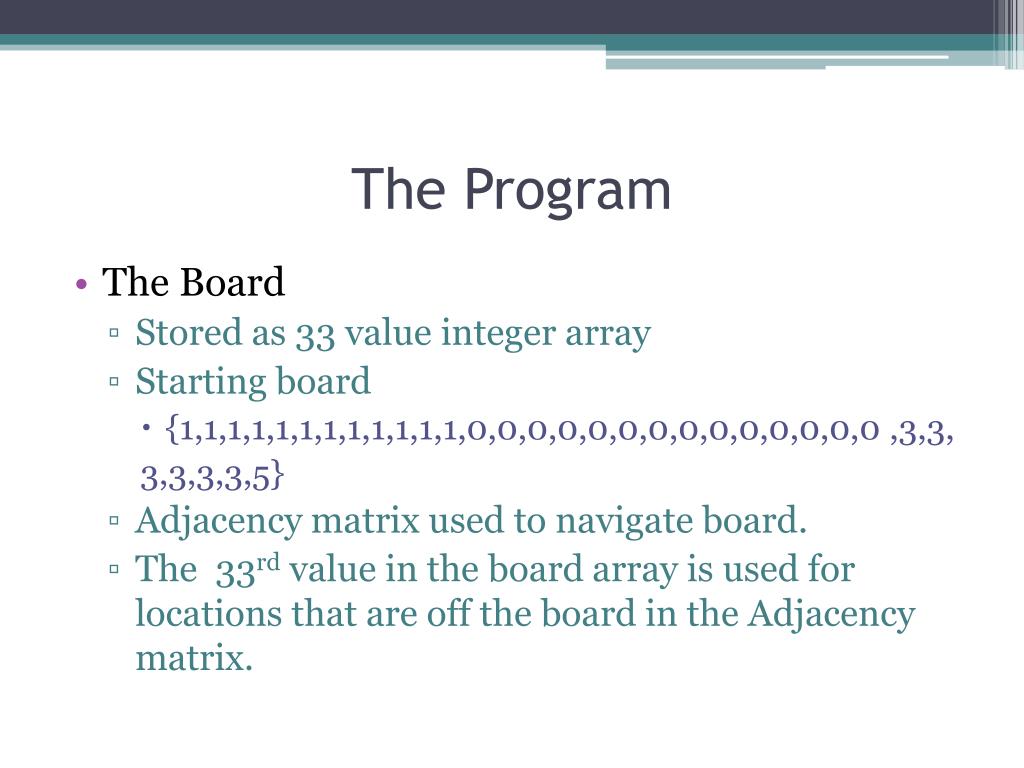

  7. The Program • The Board • Stored as 33 value integer array • Starting board • {1,1,1,1,1,1,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0 ,3,3, 3,3,3,3,5} • Adjacency matrix used to navigate board. • The 33rd value in the board array is used for locations that are off the board in the Adjacency matrix.

  8. The Program cont. • Jumps • For men jumps form a directed and acyclic graph (DAG) • A breadth first search is used to build a list of adjacent jumpable locations • Starting from the last found location the adjacency list is traversed in reverse to find the longest path. • This will return the greatest number of possible jumps. • Issue: This may miss jumps that would have better outcomes later on.

  9. Sample Jump 2 {2 Enqueue Root (2)

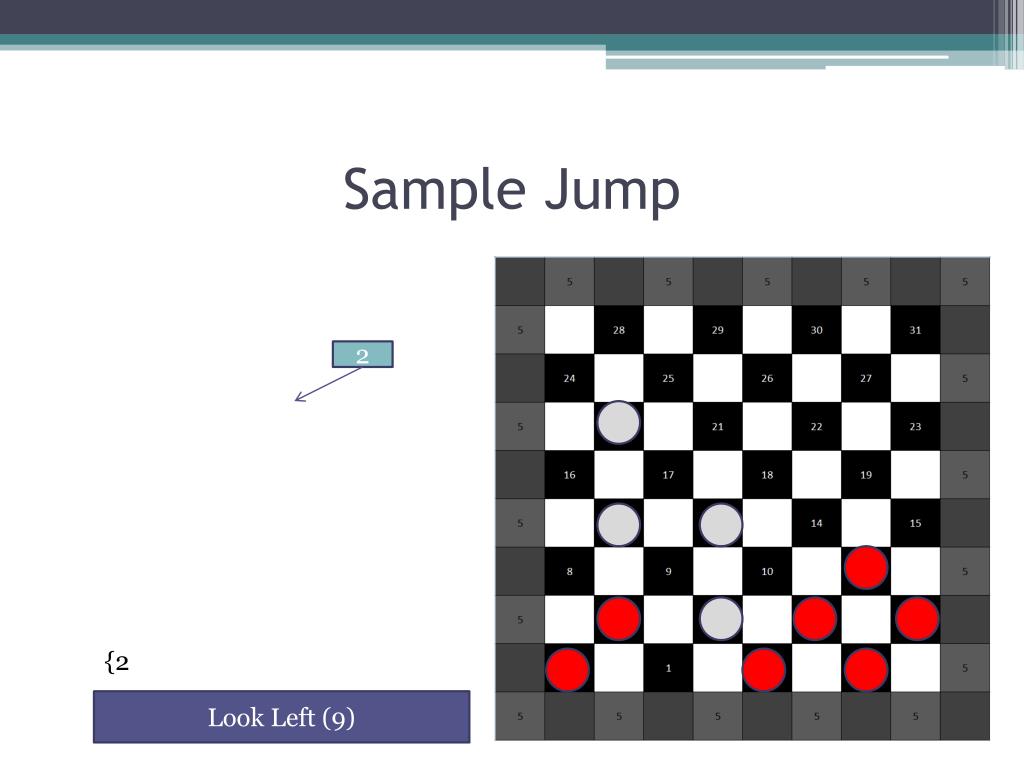

  10. Sample Jump 2 {2 Look Left (9)

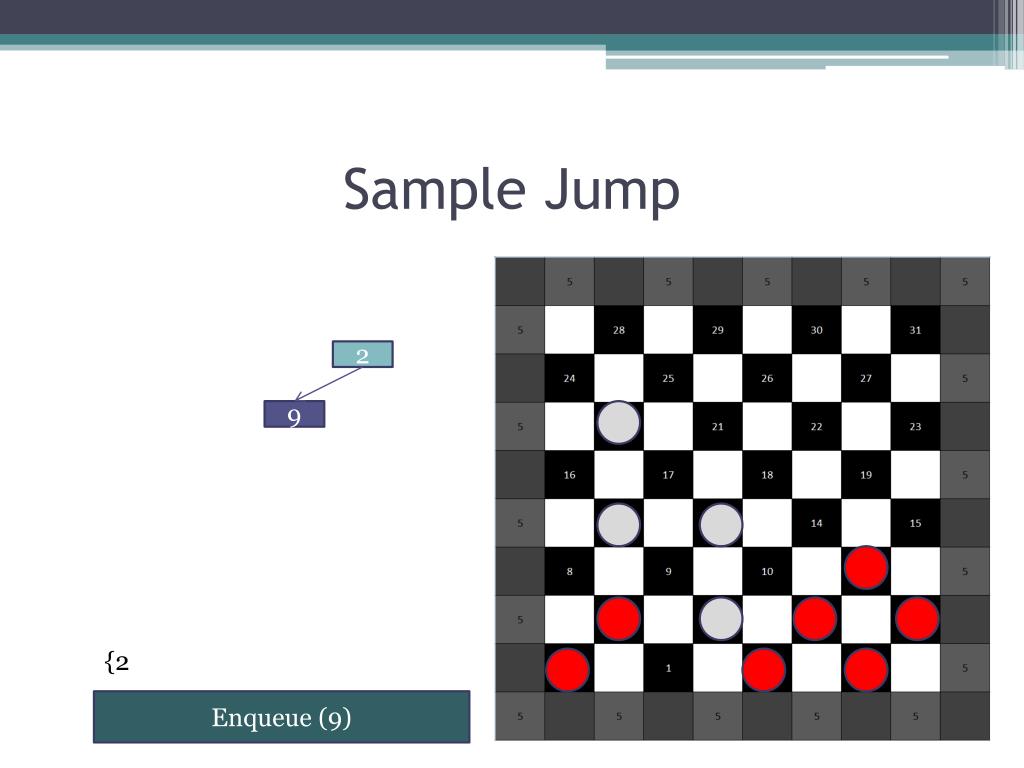

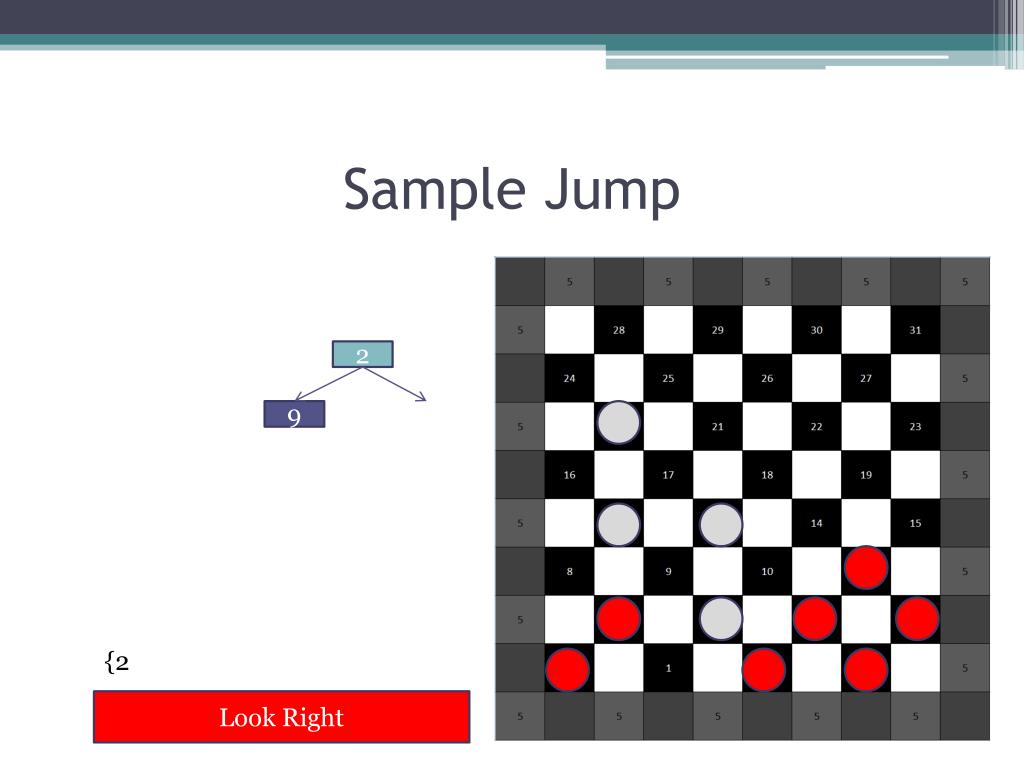

  11. Sample Jump 2 9 {2 Enqueue (9)

  12. Sample Jump 2 9 {2 Look Right

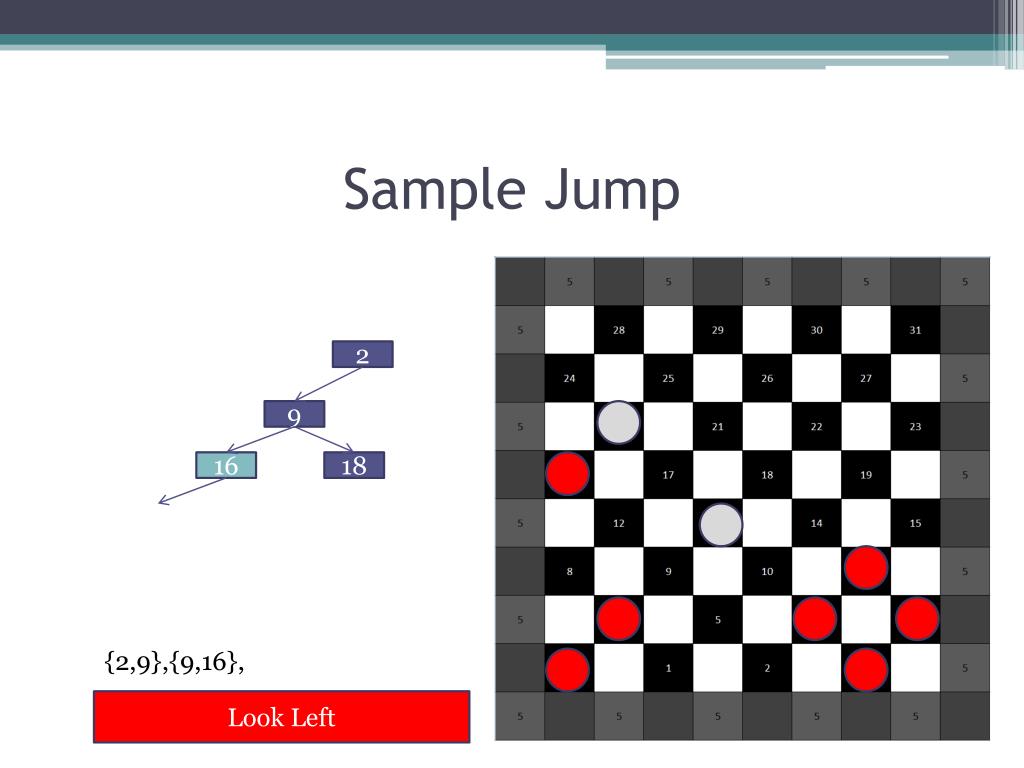

  13. Sample Jump 2 9 {2,9}, Look Left (16)

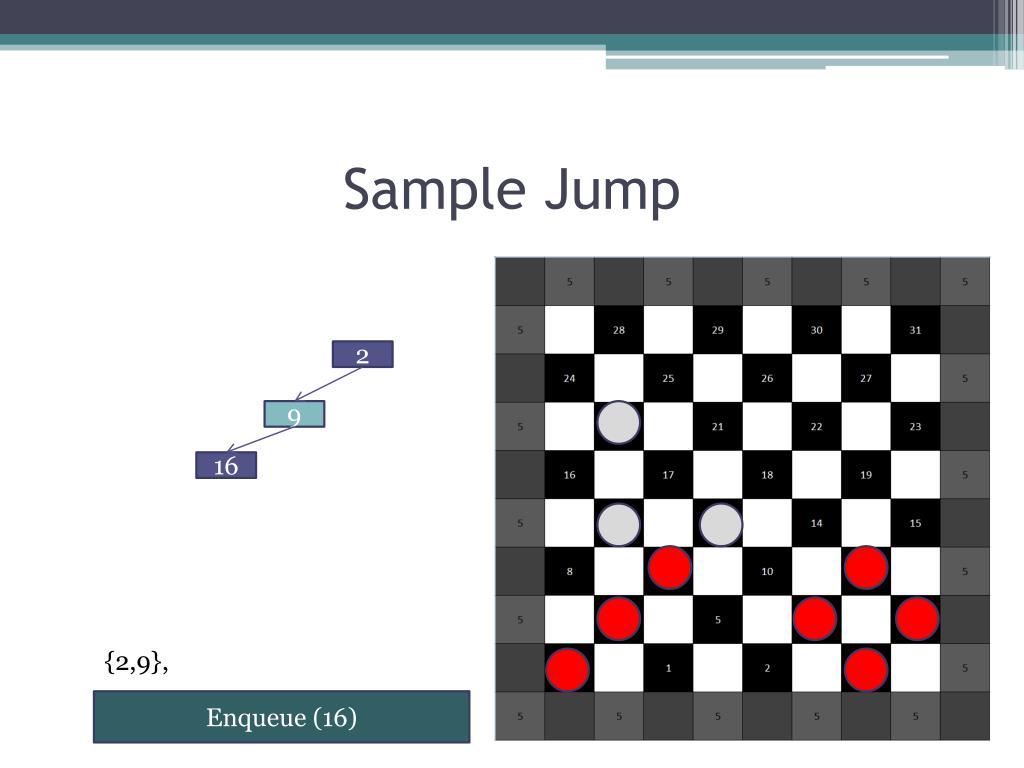

  14. Sample Jump 2 9 16 {2,9}, Enqueue (16)

  15. Sample Jump 2 9 16 {2,9}, Look Right (18)

  16. Sample Jump 2 9 16 18 {2,9}, Enqueue (18)

  17. Sample Jump 2 9 16 18 {2,9},{9,16}, Look Left

  18. Sample Jump 2 9 16 18 {2,9},{9,16}, Look Right (25)

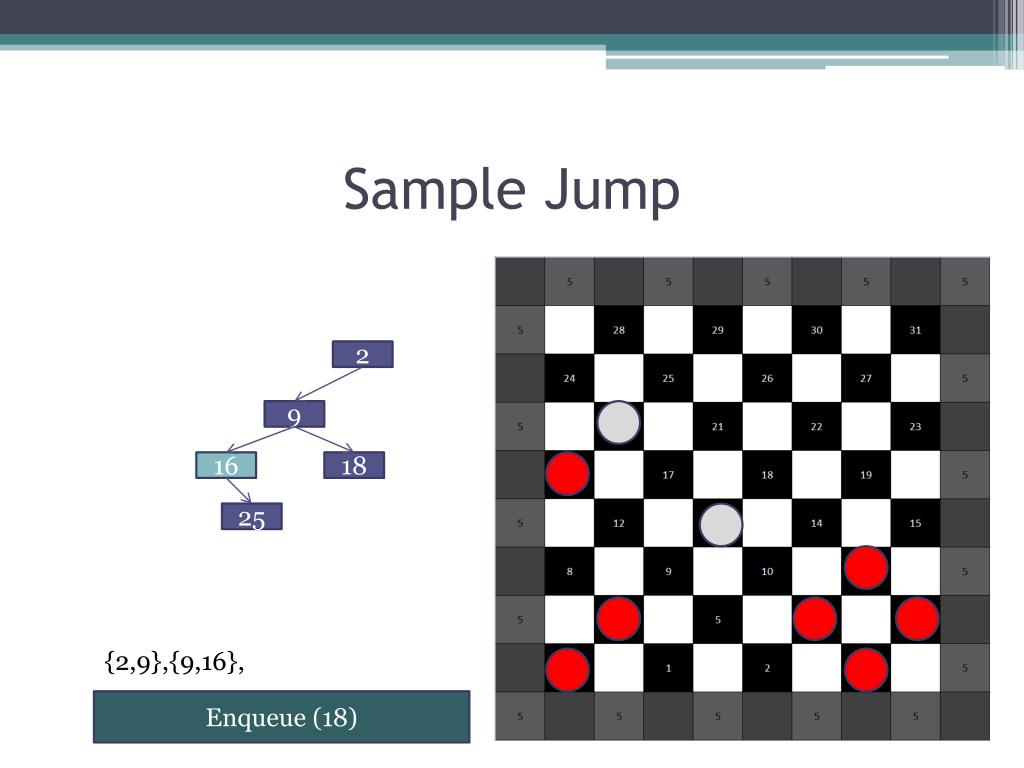

  19. Sample Jump 2 9 16 18 25 {2,9},{9,16}, Enqueue (18)

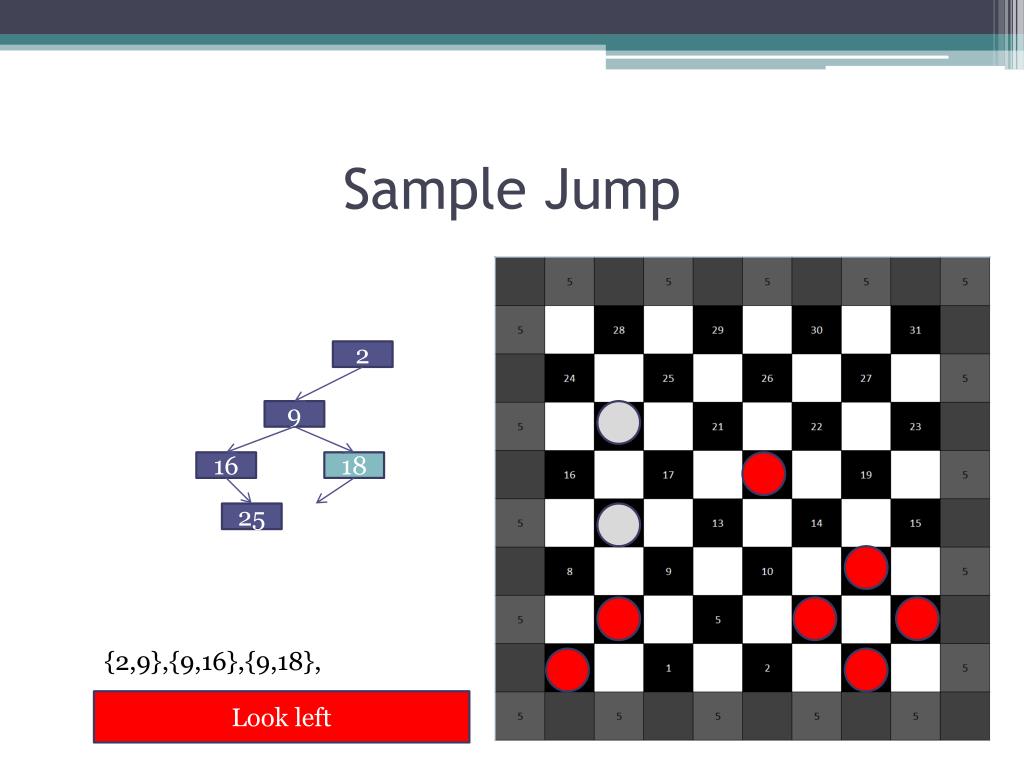

  20. Sample Jump 2 9 16 18 25 {2,9},{9,16},{9,18}, Look left

  21. Sample Jump 2 9 16 18 25 {2,9},{9,16},{9,18}, Look Right

  22. Sample Jump 2 9 16 18 25 {2,9},{9,16},{9,18},{16,25} Look Left

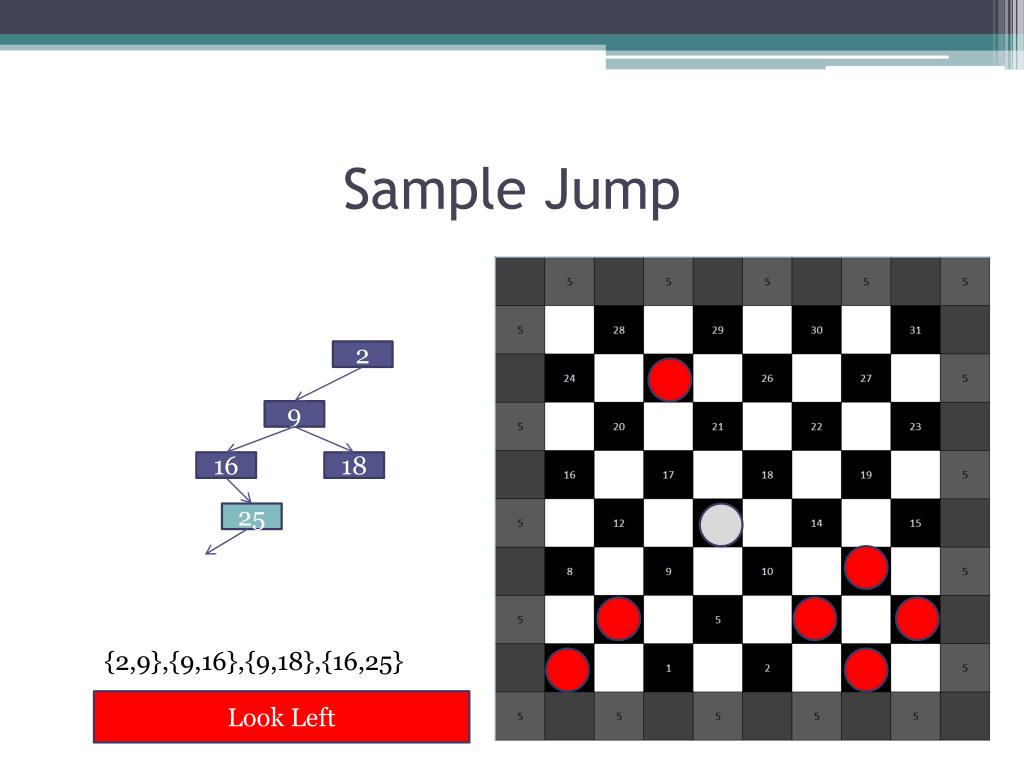

  23. Sample Jump 2 9 16 18 25 {2,9},{9,16},{9,18},{16,25} Look Right

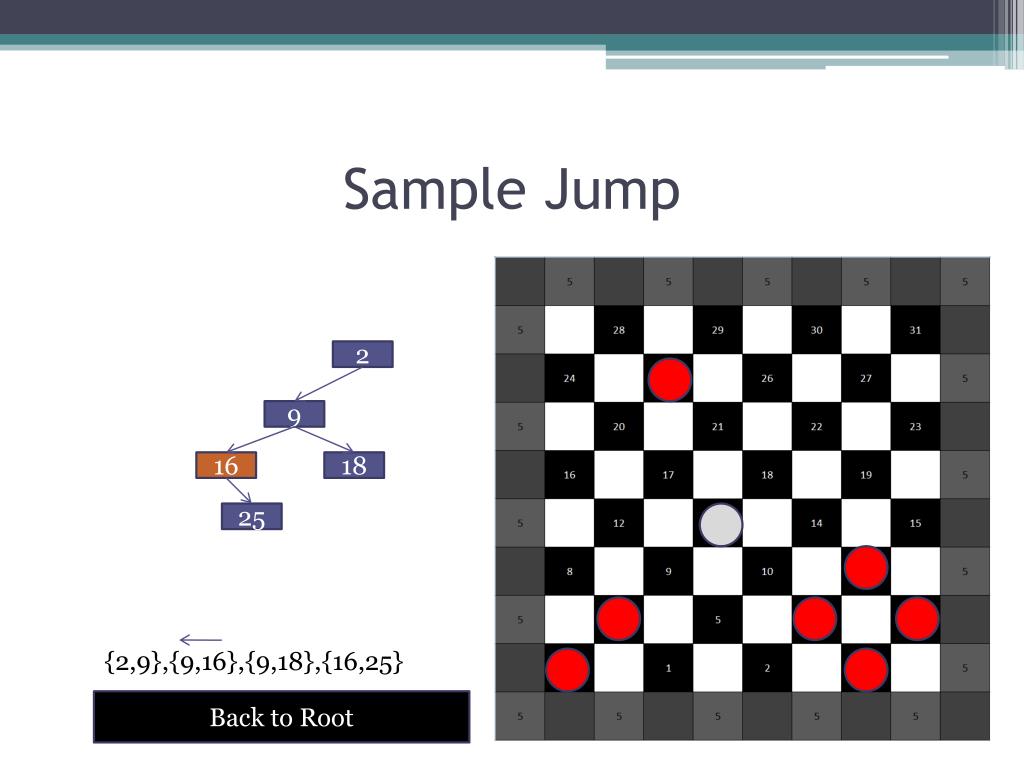

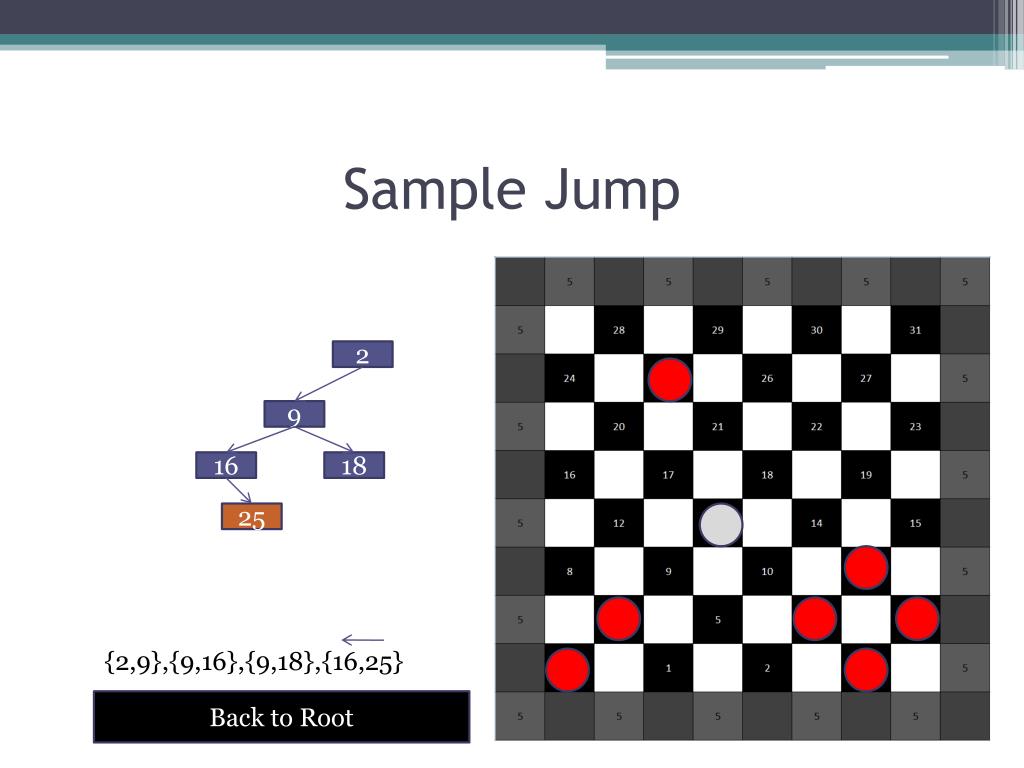

  24. Sample Jump 2 9 16 18 25 {2,9},{9,16},{9,18},{16,25} Back to Root

  25. Sample Jump 2 9 16 18 25 {2,9},{9,16},{9,18},{16,25} Back to Root

  26. Sample Jump 2 9 16 18 25 {2,9},{9,16},{9,18},{16,25} Back to Root

  27. Sample Jump 2 9 16 18 25 {2,9},{9,16},{9,18},{16,25} Back to Root

  28. Sample Jump 2 9 16 18 25 {2,9},{9,16},{9,18},{16,25} Back to Root

  29. Future Moves • For each move of player 1 each possible move of player 2 is calculated • For each move of player 2 each possible move of player 1 is calculated • This is repeated until a given search depth is reached. • Very quickly this can result in very large search area.

  30. Future Moves • To improve the play of the AI the benefit of possible moves is calculated. • For each move of player 1 each possible move of player 2 is calculated • For each move of player 2 each possible move of player 1 is calculated • This is repeated until a given search depth is reached. • When a given depth is reached the value of that path is calculated. • Very quickly this can result in very large search area.

  31. Future Moves For all Red

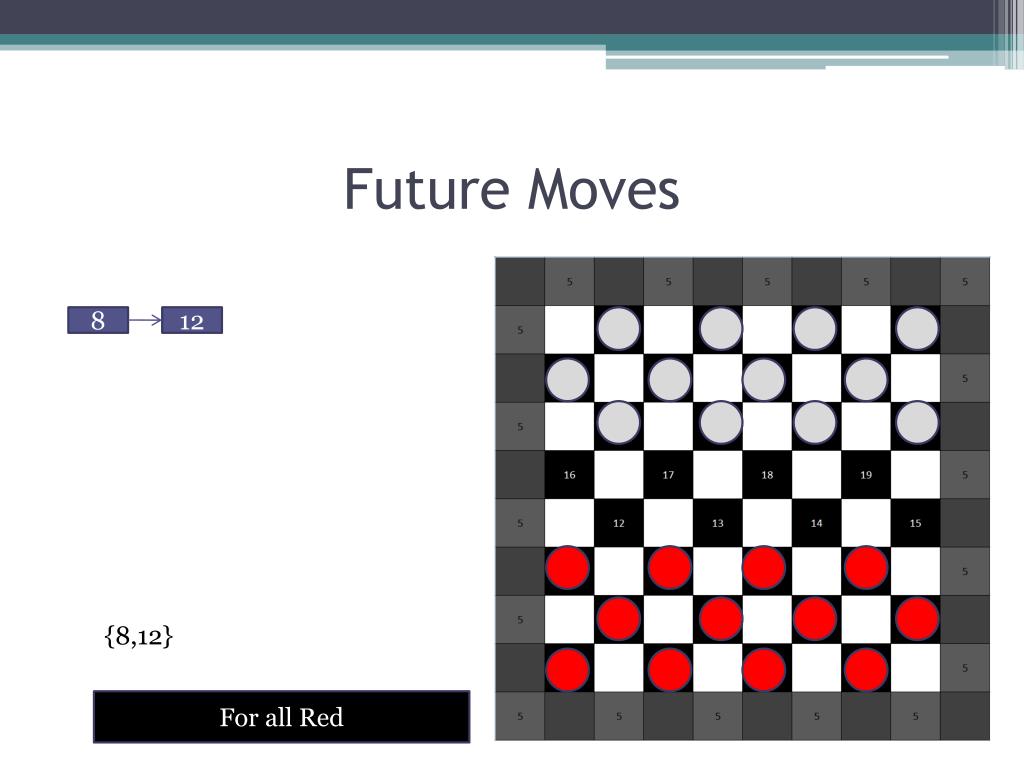

  32. Future Moves 8 12 {8,12} For all Red

  33. Future Moves 8 12 9 12 {8,12},{9,12} For all Red

  34. Future Moves 8 12 9 12 9 13 {8,12},{9,12},{9,13} For all Red

  35. Future Moves 8 12 9 12 9 13 10 13 {8,12},{9,12},{9,13},{10,13}, For all Red

  36. Future Moves 8 12 9 12 9 13 10 13 10 14 {8,12},{9,12},{9,13},{10,13}, {10,14} For all Red

  37. Future Moves 8 12 9 12 9 13 10 13 10 14 11 14 {8,12},{9,12},{9,13},{10,13}, {10,14} ,{11,14} For all Red

  38. Future Moves 8 12 9 12 9 13 10 13 10 14 11 14 11 15 {8,12},{9,12},{9,13},{10,13}, {10,14} ,{11,14} For all Red

  39. Future Moves RED WHITE 8 12 20 16 20 17 21 17 21 18 22 18 22 19 23 19 {8,12},{9,12},{9,13},{10,13}, {10,14} ,{11,14},{11,15} White’s counter move

  40. Future Moves RED WHITE 8 12 20 16 20 17 21 17 21 18 22 18 22 19 23 19 {8,12},{9,12},{9,13},{10,13}, {10,14} ,{11,14},{11,15} White’s counter move

  41. Future Moves RED WHITE 8 12 20 16 20 17 21 17 21 18 22 18 22 19 23 19 {8,12},{9,12},{9,13},{10,13}, {10,14} ,{11,14},{11,15} White’s counter move

  42. Future Moves RED WHITE 8 12 20 16 20 17 21 17 21 18 22 18 22 19 23 19 {8,12},{9,12},{9,13},{10,13}, {10,14} ,{11,14},{11,15} White’s counter move

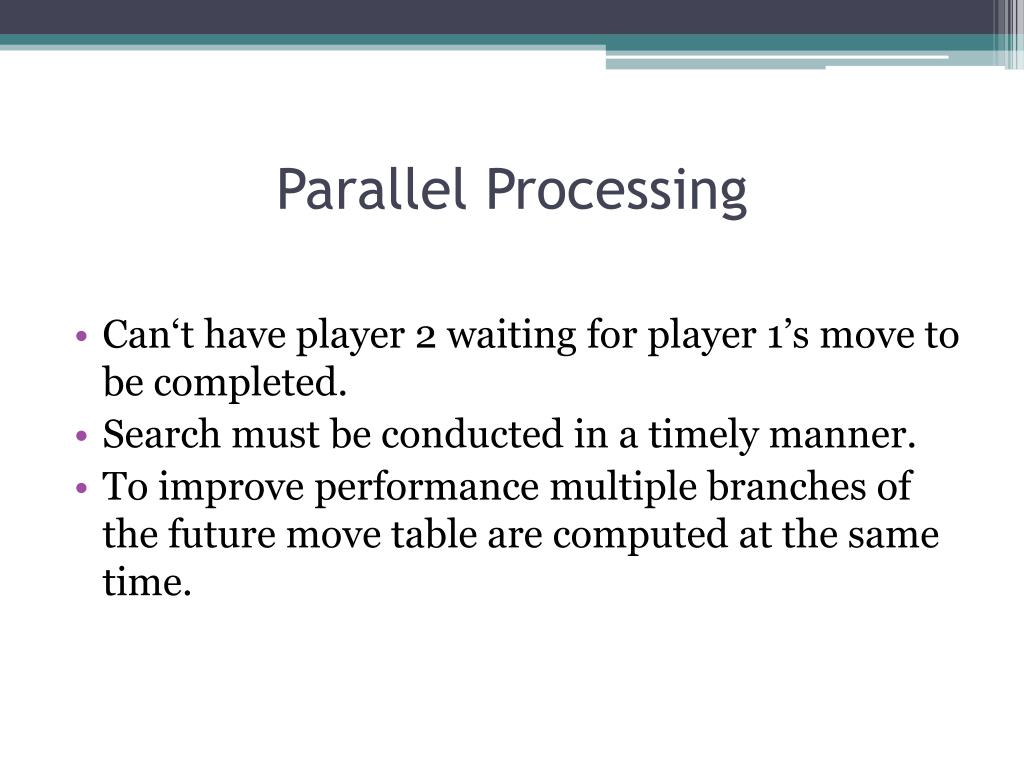

  43. Parallel Processing • Can‘t have player 2 waiting for player 1’s move to be completed. • Search must be conducted in a timely manner. • To improve performance multiple branches of the future move table are computed at the same time.

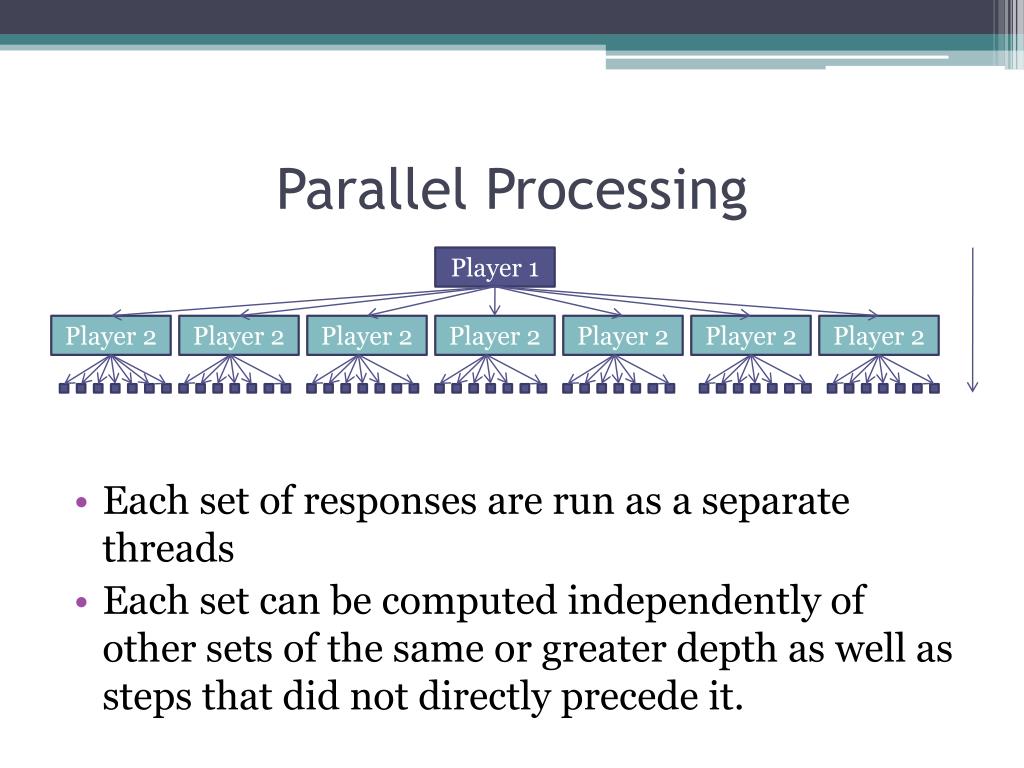

  44. Parallel Processing Player 1 • Each set of responses are run as a separate threads • Each set can be computed independently of other sets of the same or greater depth as well as steps that did not directly precede it. Player 2 Player 2 Player 2 Player 2 Player 2 Player 2 Player 2

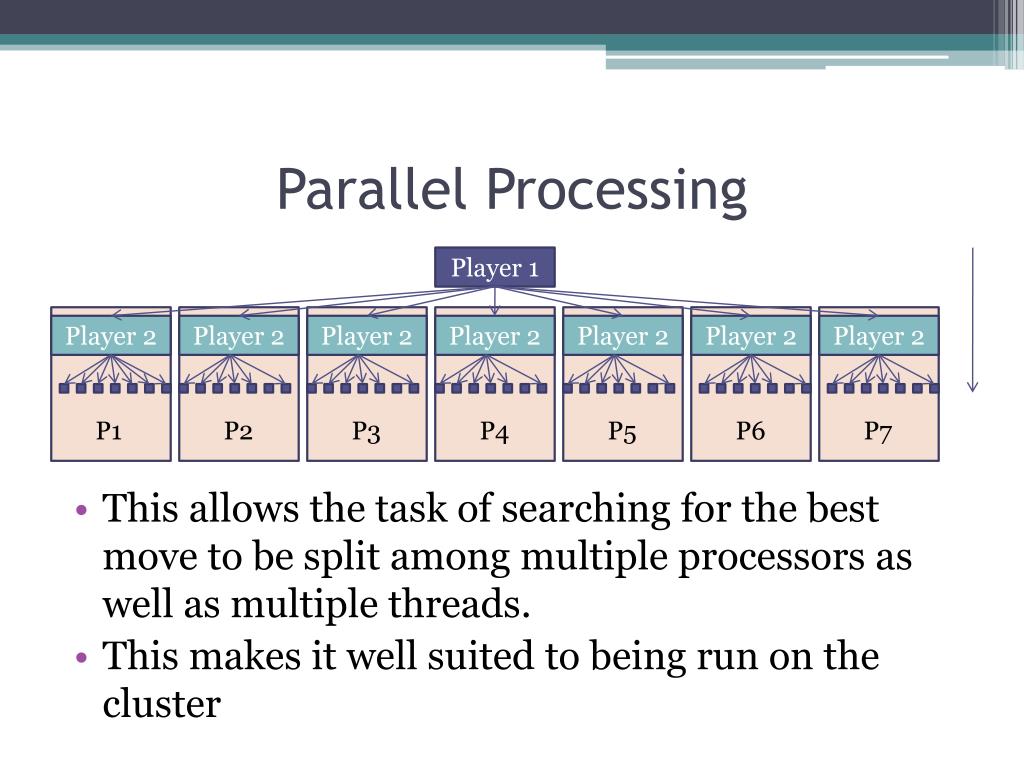

  45. Parallel Processing Player 1 • This allows the task of searching for the best move to be split among multiple processors as well as multiple threads. • This makes it well suited to being run on the cluster Player 2 Player 2 Player 2 Player 2 Player 2 Player 2 Player 2 P1 P2 P3 P4 P5 P6 P7

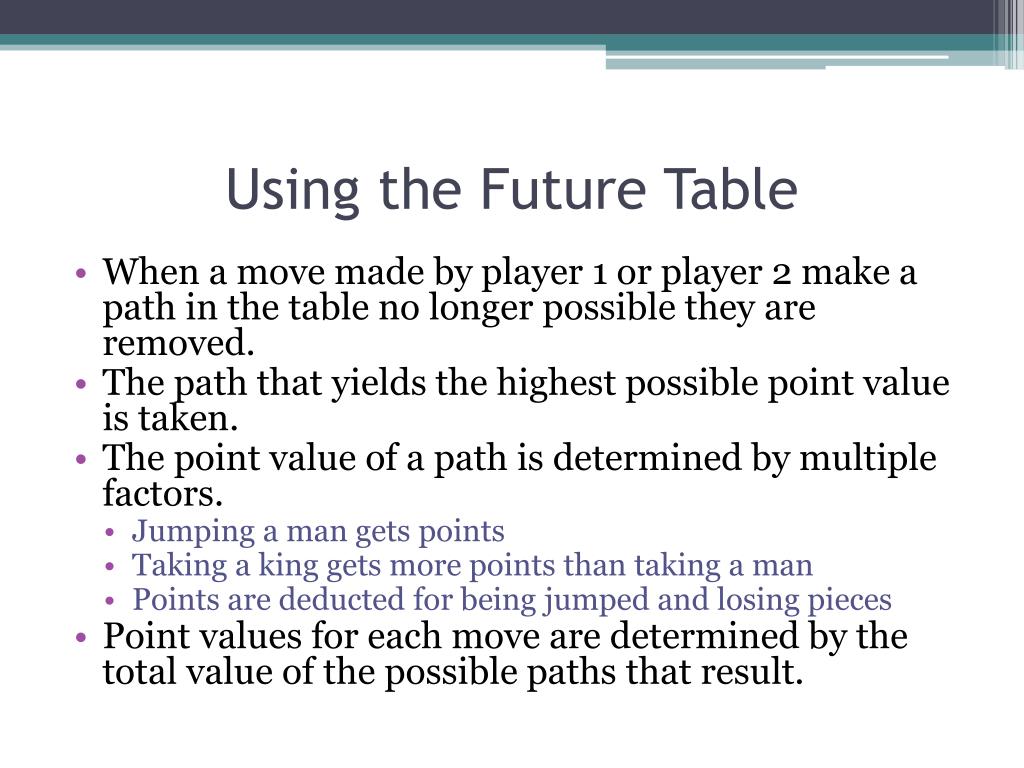

  46. Using the Future Table • When a move made by player 1 or player 2 make a path in the table no longer possible they are removed. • The path that yields the highest possible point value is taken. • The point value of a path is determined by multiple factors. • Jumping a man gets points • Taking a king gets more points than taking a man • Points are deducted for being jumped and losing pieces • Point values for each move are determined by the total value of the possible paths that result.

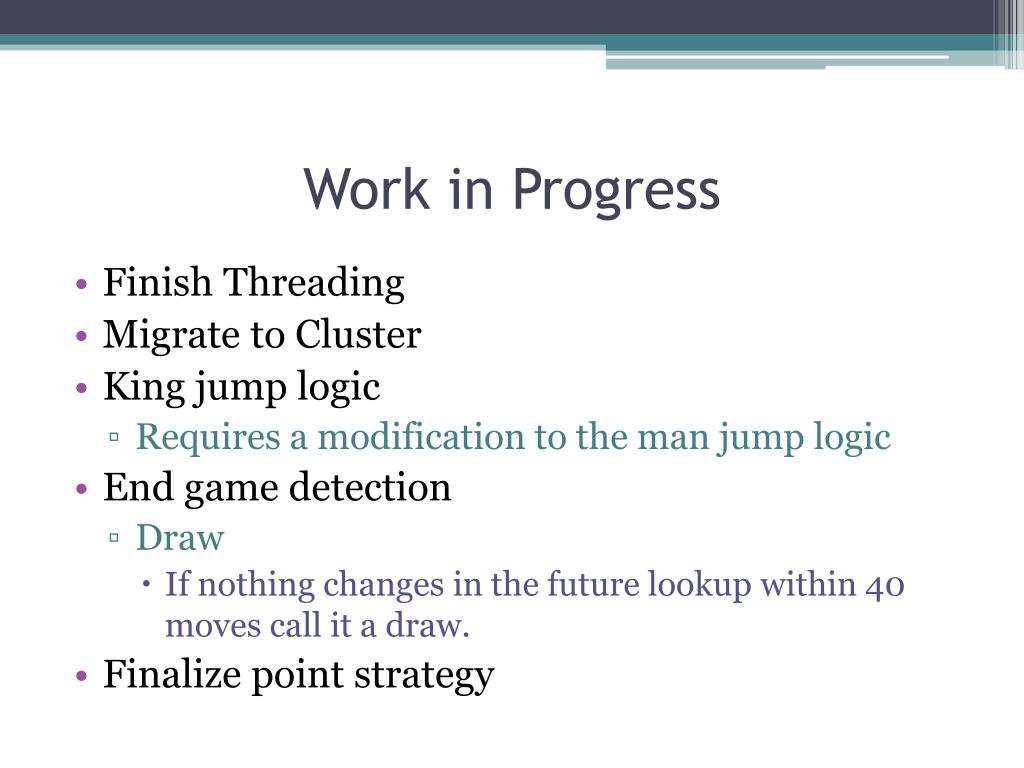

  47. Work in Progress • Finish Threading • Migrate to Cluster • King jump logic • Requires a modification to the man jump logic • End game detection • Draw • If nothing changes in the future lookup within 40 moves call it a draw. • Finalize point strategy
