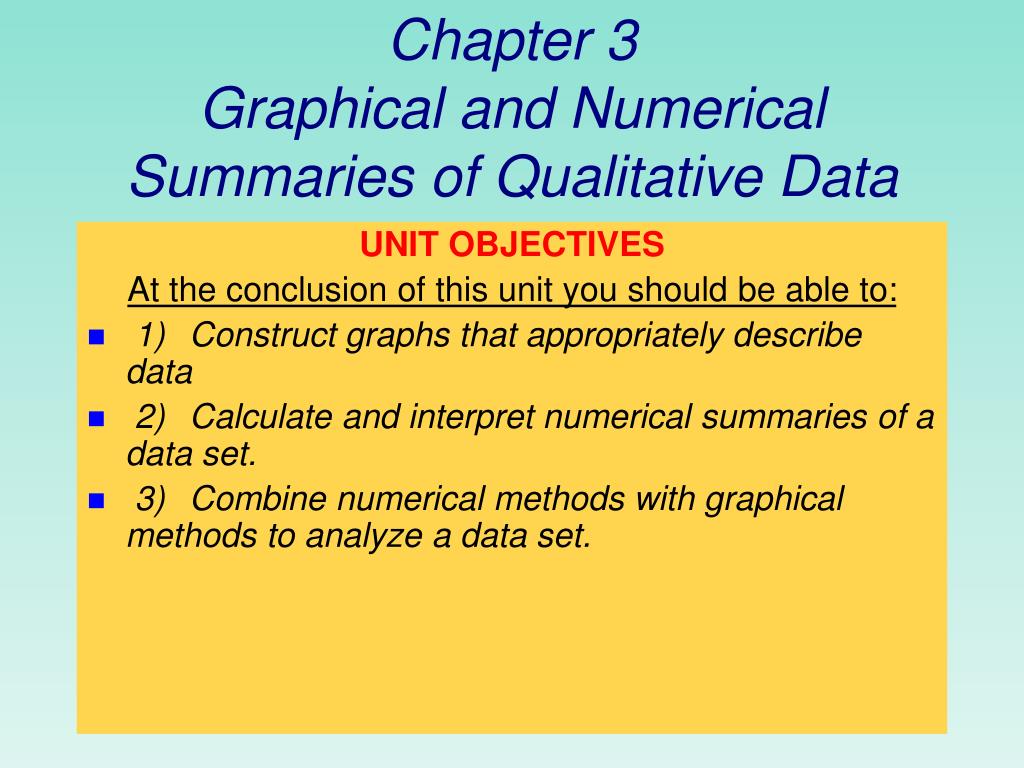

  1. Chapter 3Graphical and Numerical Summaries of Qualitative Data UNIT OBJECTIVES At the conclusion of this unit you should be able to: • 1) Construct graphs that appropriately describe data • 2) Calculate and interpret numerical summaries of a data set. • 3) Combine numerical methods with graphical methods to analyze a data set.

  2. Displaying Qualitative Data “Sometimes you can see a lot just by looking.” Yogi Berra Hall of Fame Catcher, NY Yankees

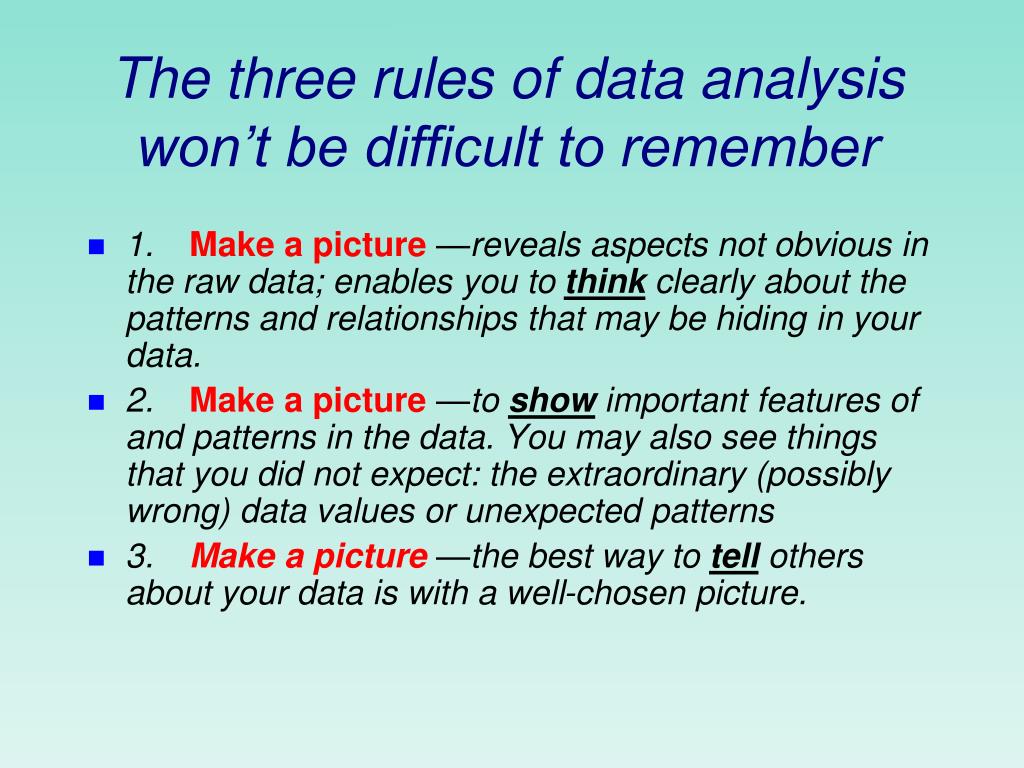

  3. The three rules of data analysis won’t be difficult to remember • 1. Make a picture—reveals aspects not obvious in the raw data; enables you to think clearly about the patterns and relationships that may be hiding in your data. • 2. Make a picture —to show important features of and patterns in the data. You may also see things that you did not expect: the extraordinary (possibly wrong) data values or unexpected patterns • 3. Make a picture —the best way to tellothers about your data is with a well-chosen picture.

  4. Bar Charts: show counts or relative frequency for each category • Example: Titanic passenger/crew distribution

  5. Pie Charts: shows proportions of the whole in each category • Example: Titanic passenger/crew distribution

  6. Example: Top 10 causes of death in the United States 2001 For each individual who died in the United States in 2001, we record what was the cause of death. The table above is a summary of that information.

  7. The number of individuals who died of an accident in 2001 is approximately 100,000. Top 10 causes of death: bar graph Each category is represented by one bar. The bar’s height shows the count (or sometimes the percentage) for that particular category. Top 10 causes of deaths in the United States 2001

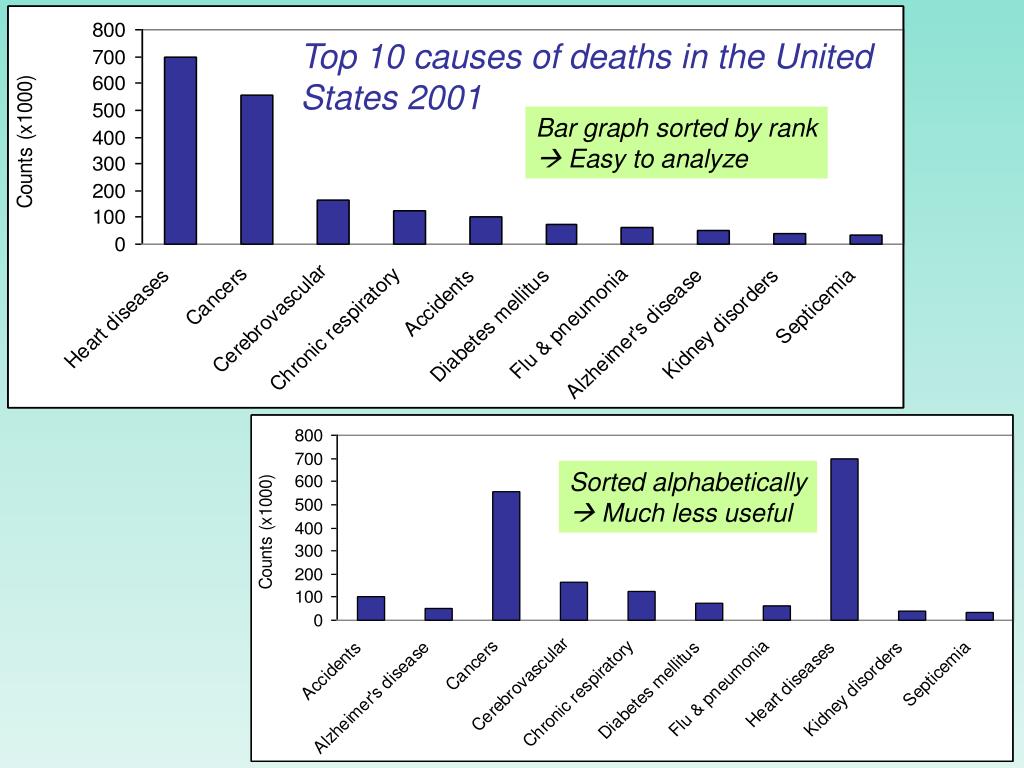

  8. Top 10 causes of deaths in the United States 2001 Bar graph sorted by rank  Easy to analyze Sorted alphabetically  Much less useful

  9. Top 10 causes of death: pie chart Each slice represents a piece of one whole. The size of a slice depends on what percent of the whole this category represents. Percent of people dying from top 10 causes of death in the United States in 2001

  10. Make sure your labels match the data. Make sure all percents add up to 100. Percent of deaths from top 10 causes Percent of deaths from all causes

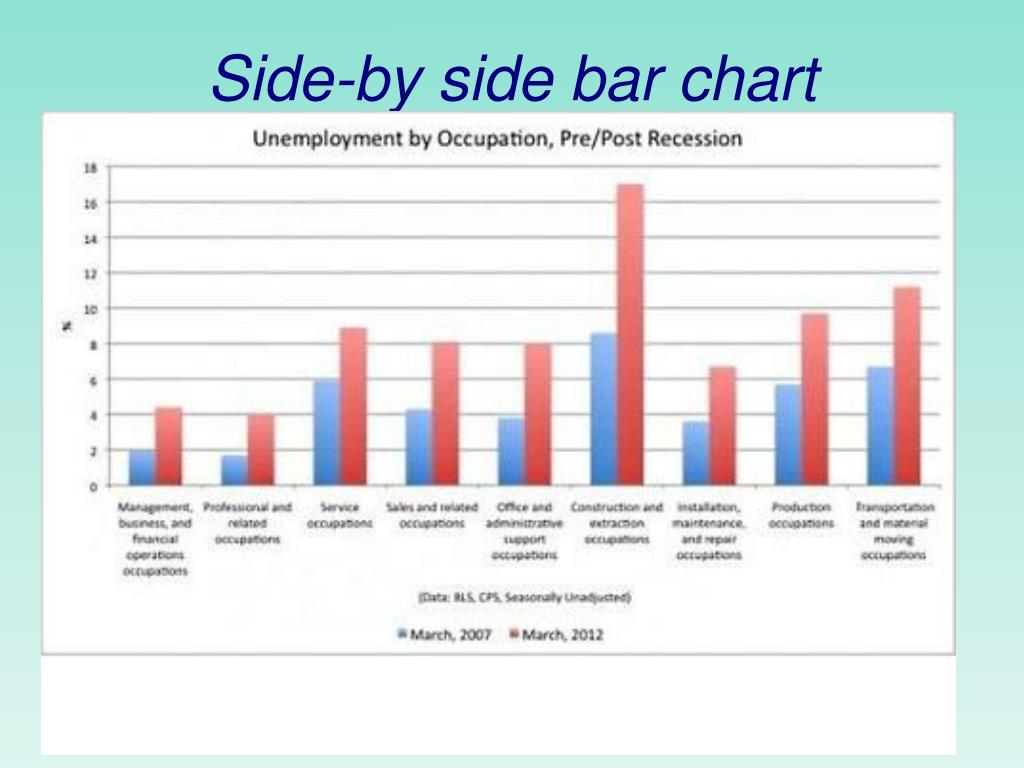

  11. Side-by side bar chart

  12. Student Debt North Carolina Schools

  13. marg. dist. of survival 710/2201 32.3% 1491/2201 67.7% 885/2201 40.2% 325/2201 14.8% 285/2201 12.9% 706/2201 32.1% marg. dist. of class Contingency Tables: Categories for Two Variables • Example: Survival and class on the Titanic Marginal distributions

  14. Marginal distribution of class.Bar chart.

  15. Marginal distribution of class: Pie chart

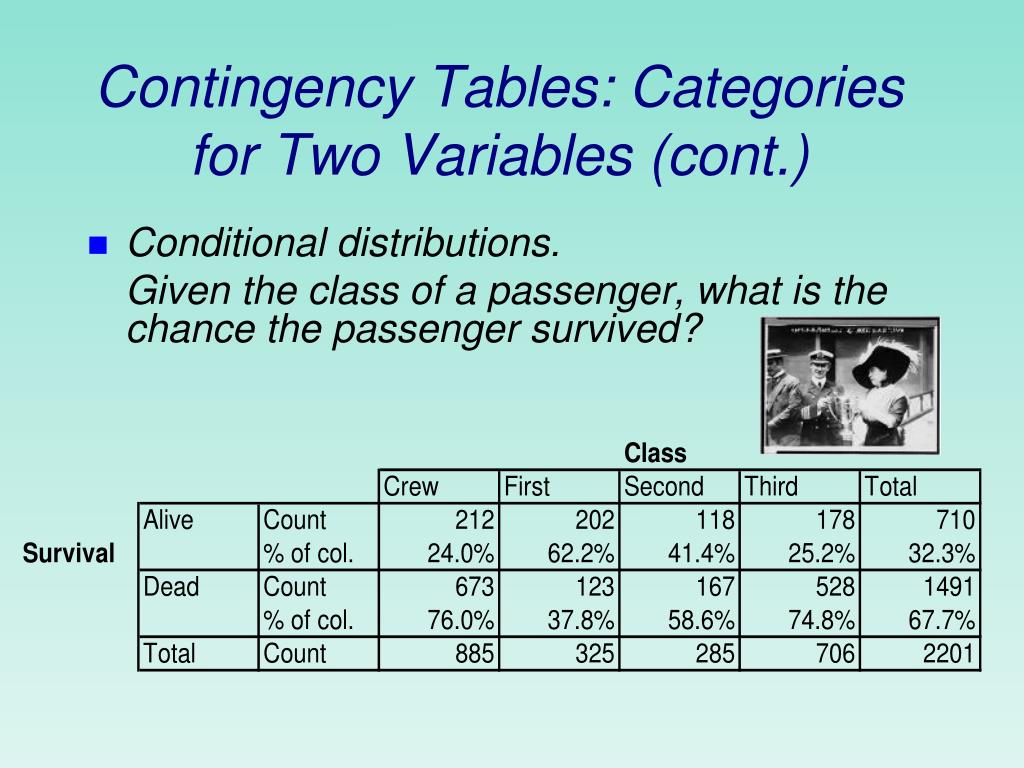

  16. Contingency Tables: Categories for Two Variables (cont.) • Conditional distributions. Given the class of a passenger, what is the chance the passenger survived?

  17. Conditional distributions: segmented bar chart

  18. Contingency Tables: Categories for Two Variables (cont.) Questions: • What fraction of survivors were in first class? • What fraction of passengers were in first class and survivors ? • What fraction of the first class passengers survived? 202/710 202/2201 202/325

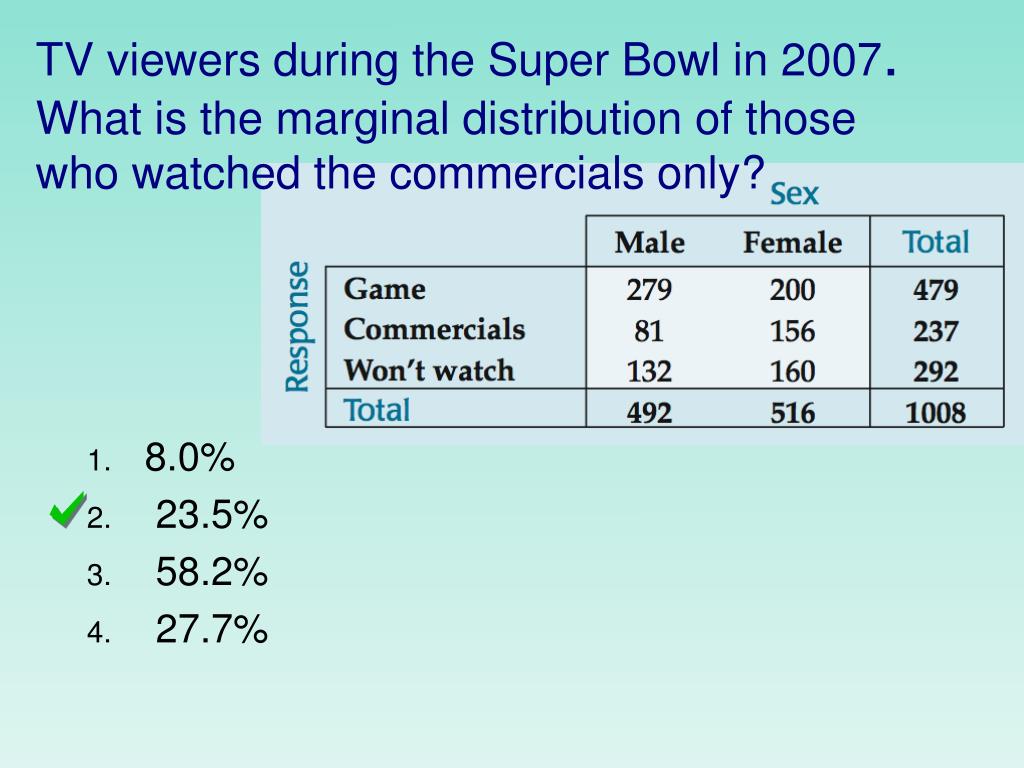

  19. TV viewers during the Super Bowl in 2007. What is the marginal distribution of those who watched the commercials only? • 8.0% • 23.5% • 58.2% • 27.7% 0

  20. TV viewers during the Super Bowl in 2007. What percentage watched the Game and were Female? • 41.8% • 38.8% • 51.2% • 19.8% 0

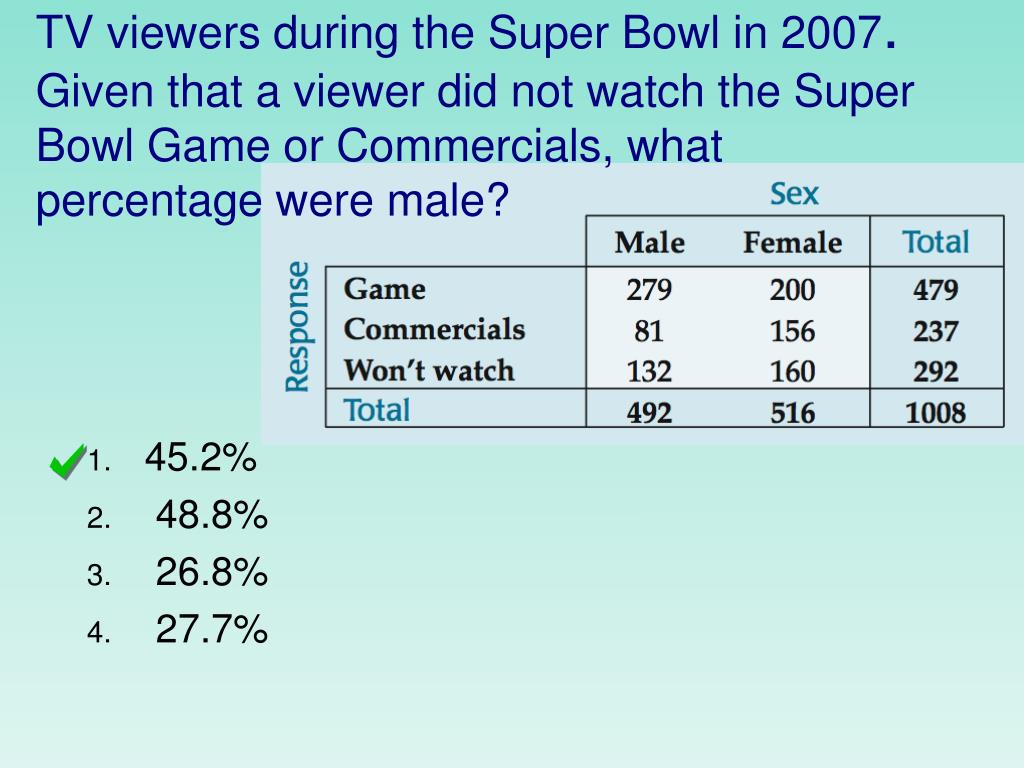

  21. TV viewers during the Super Bowl in 2007. Given that a viewer did not watch the Super Bowl Game or Commercials, what percentage were male? • 45.2% • 48.8% • 26.8% • 27.7% 0

  22. 3-Way Tables • Example: Georgia death-sentence data

  23. UC Berkeley Lawsuit

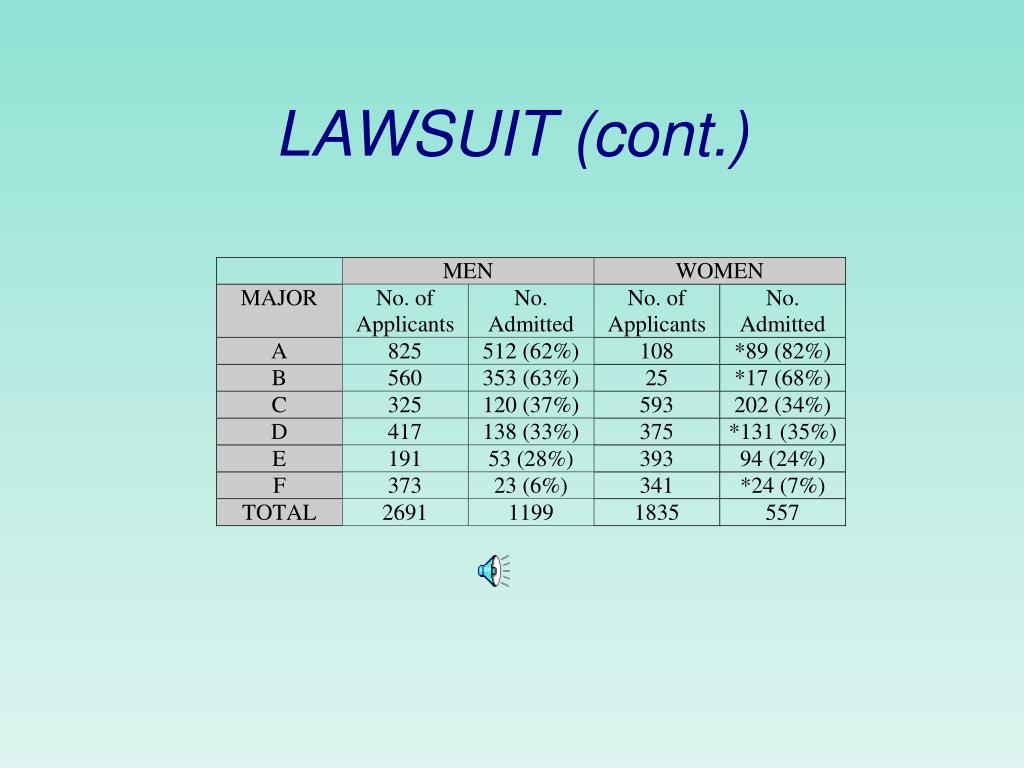

  24. LAWSUIT (cont.)

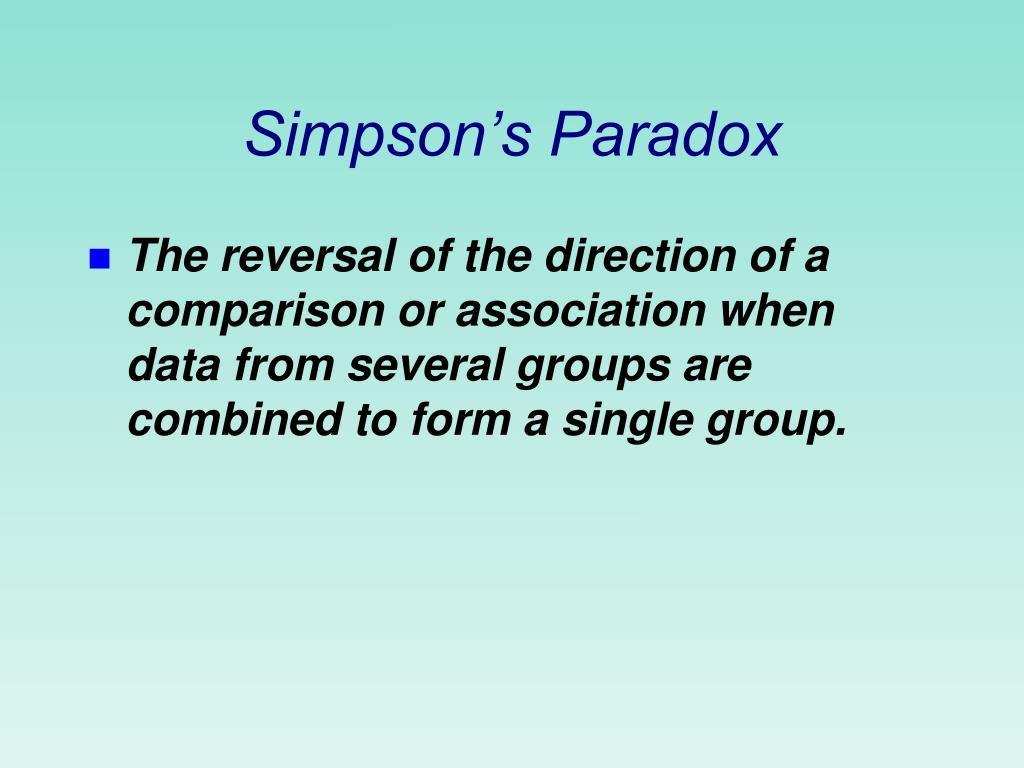

  25. Simpson’s Paradox • The reversal of the direction of a comparison or association when data from several groups are combined to form a single group.

  26. Fly Alaska Airlines, the on-time airline!

  27. American West Wins!You’re a Hero!

  28. End of Chapter 3
