  1. An Update on Hearing Aid Testing Reading Speech-Maps or SPLograms Niki Timar, Audiologist Vancouver Island Health Authority – South Island

  2. Background • Audiologists used to routinely test hearing aids in the booth, using aided audiograms

  3. Background • Research has shown aided audiograms are not a good way to test modern hearing aids • BC Public Health is switching over to the newer way of testing, using Real-Ear or simulated Real-Ear measures • This is why you might not be receiving aided audiograms recently

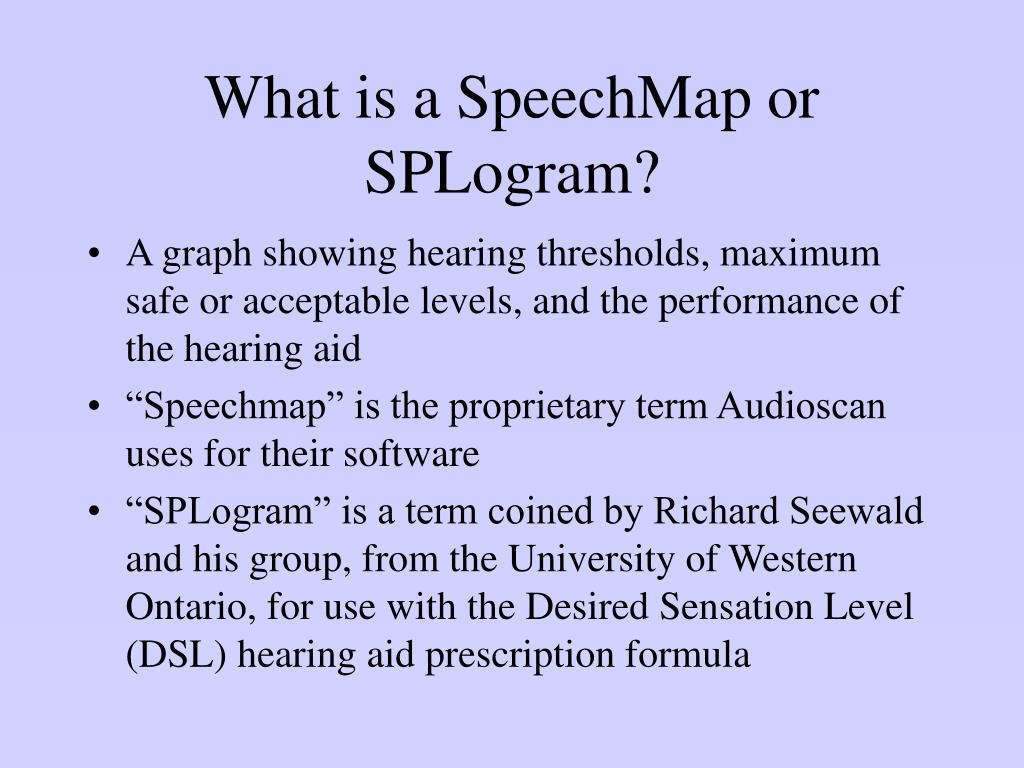

  4. What is a SpeechMap or SPLogram? • A graph showing hearing thresholds, maximum safe or acceptable levels, and the performance of the hearing aid • “Speechmap” is the proprietary term Audioscan uses for their software • “SPLogram” is a term coined by Richard Seewald and his group, from the University of Western Ontario, for use with the Desired Sensation Level (DSL) hearing aid prescription formula

  5. Audiogram on Speechmap Screen In dB Hearing Level (HL) Normal Hearing “Speech Banana” Hearing Thresholds

  6. Speechmap or SPL-o-gram In dB Sound Pressure Level (SPL) Hearing Thresholds “Speech Banana” Normal Hearing

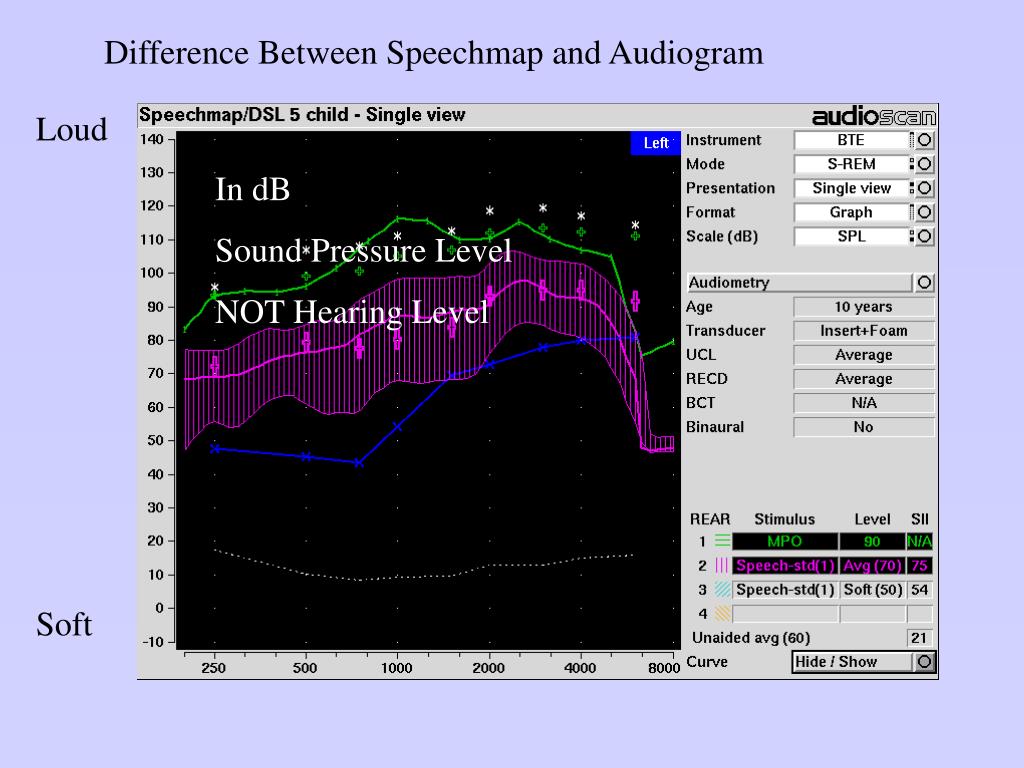

  7. Difference Between Speechmap and Audiogram Loud In dB Sound Pressure Level NOT Hearing Level Soft

  8. Too Loud Aided “Speech Banana” Inaudible

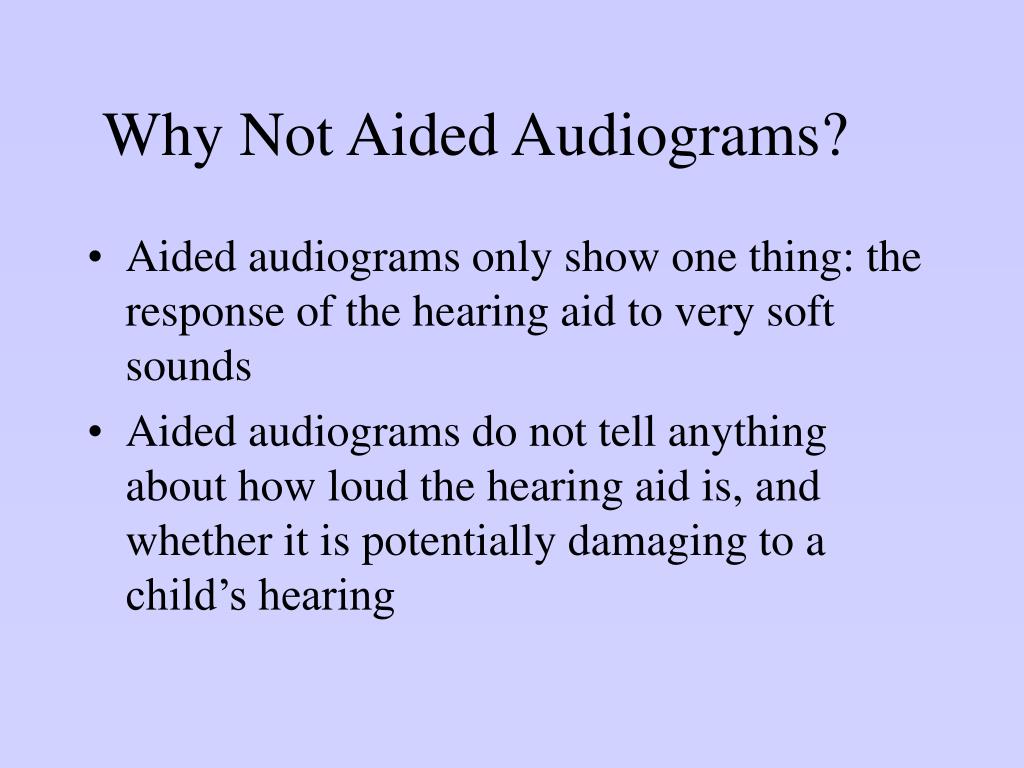

  9. Why Not Aided Audiograms? • Aided audiograms only show one thing: the response of the hearing aid to very soft sounds • Aided audiograms do not tell anything about how loud the hearing aid is, and whether it is potentially damaging to a child’s hearing

  10. Real-Ear Testing • Instead of Aided testing in the booth, we now rely on Real-Ear Testing as our main hearing aid test

  11. What is Real-Ear Testing? • Real-Ear testing is objective testing with the hearing aid in the ear. • Basically, we place a microphone in the ear just past the hearing aid, and measure what the actual output of the hearing aid is, close to the eardrum

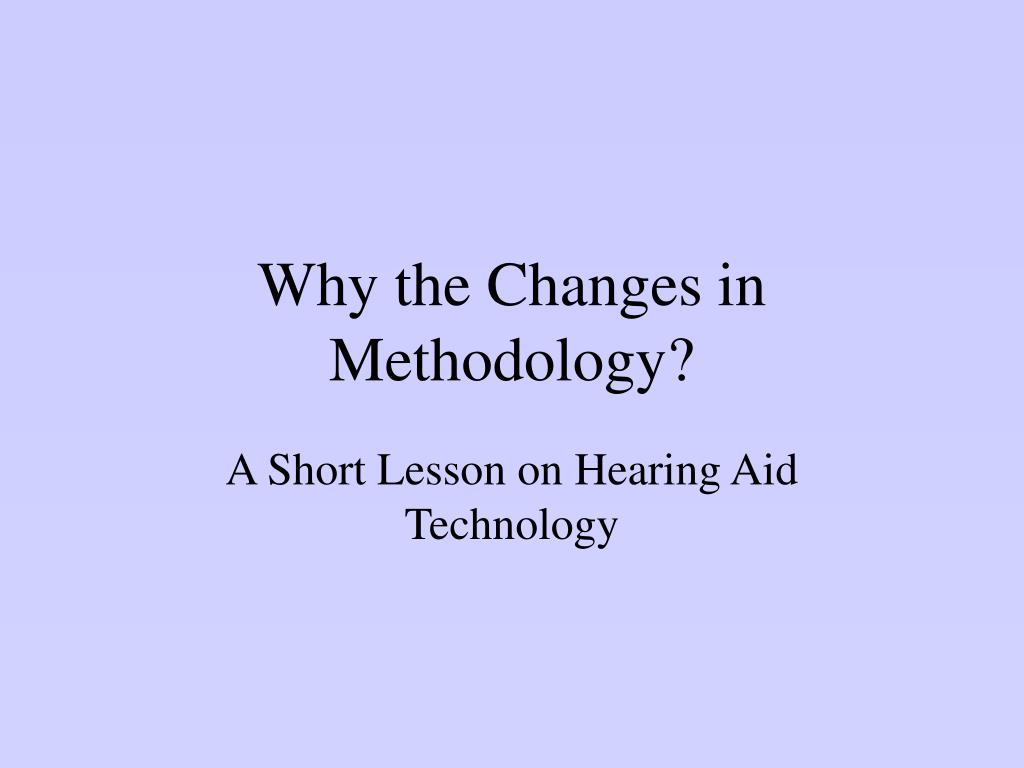

  12. Why the Changes in Methodology? A Short Lesson on Hearing Aid Technology

  13. Hearing Aids • Hearing aids are now digital • Hearing Aids are no longer linear, they use COMPRESSION

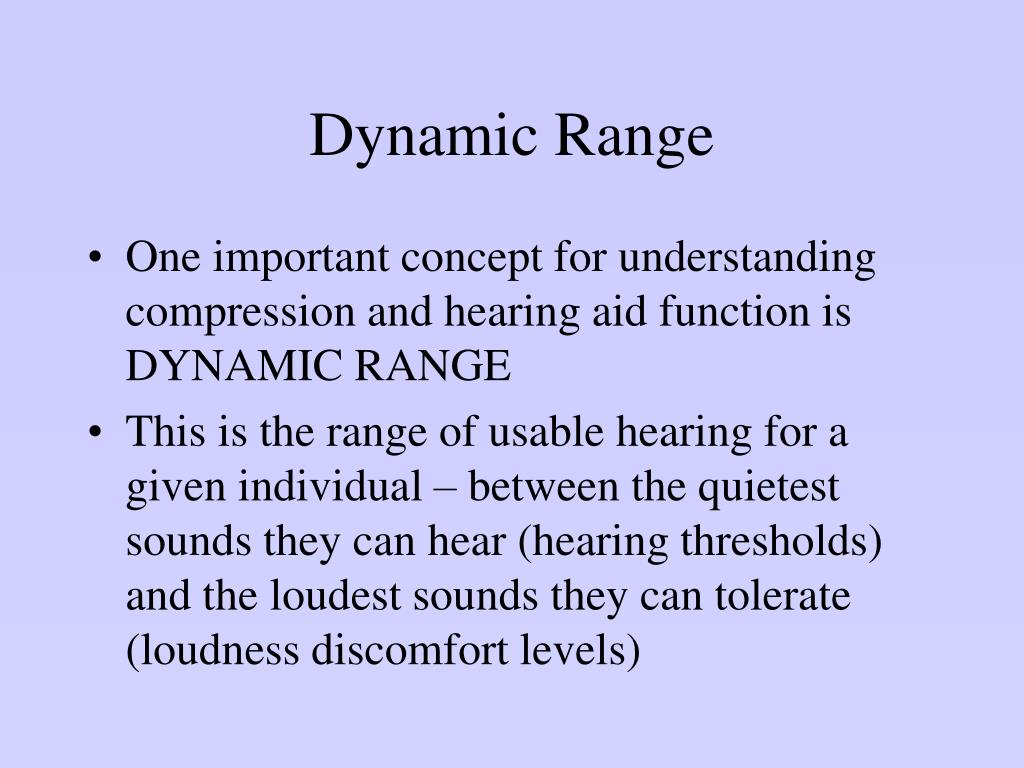

  14. Dynamic Range • One important concept for understanding compression and hearing aid function is DYNAMIC RANGE • This is the range of usable hearing for a given individual – between the quietest sounds they can hear (hearing thresholds) and the loudest sounds they can tolerate (loudness discomfort levels)

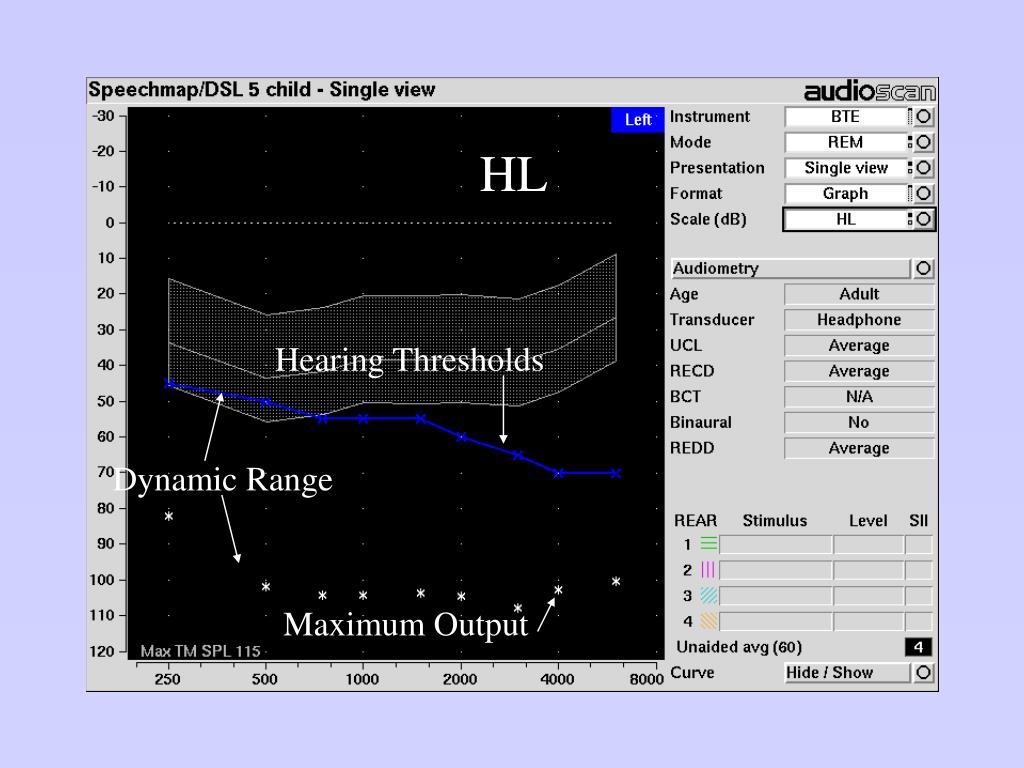

  15. HL Hearing Thresholds Dynamic Range Maximum Output

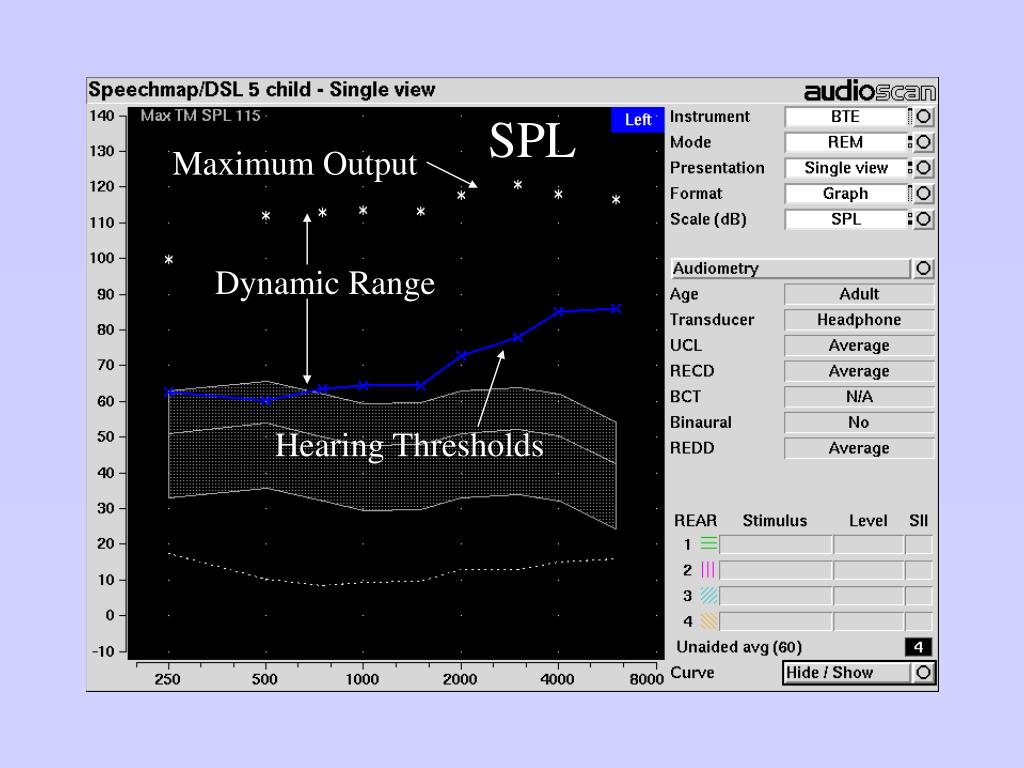

  16. SPL Maximum Output Dynamic Range Hearing Thresholds

  17. Linear Hearing Aids • Until the 1980’s, hearing aids were linear • They added the same amount of amplification, no matter how loud the input sound

  18. Linear Amplification • 140 • 120 • 100 • 80 • 60 • 40 • 20

  19. Peak Clipping • 140 dB is dangerously loud for most people • To keep the sound levels safe, hearing aids used Peak Clipping – they just stopped at a given level – for example, they wouldn’t make anything louder than 120 dB • This caused DISTORTION in the hearing aids

  20. Peak Clipping • 140 • 120 • 100 • 80 • 60 • 40 • 20

  21. Compression • In the 1980s, as a way to keep sounds comfortable but undistorted, manufacturers started using compression limiting • Instead of amplifying the same amount no matter what the input, for sounds approaching the limit, less amplification would be used

  22. Compression • 140 • 120 • 100 • 80 • 60 • 40 • 20

  23. Even Newer Advances • As technology advanced, it became possible to have different compression levels for different frequency ranges, and for different intensities • This is where digital hearing aids shine, as more capability can be added in these functions, without adding size or battery drain

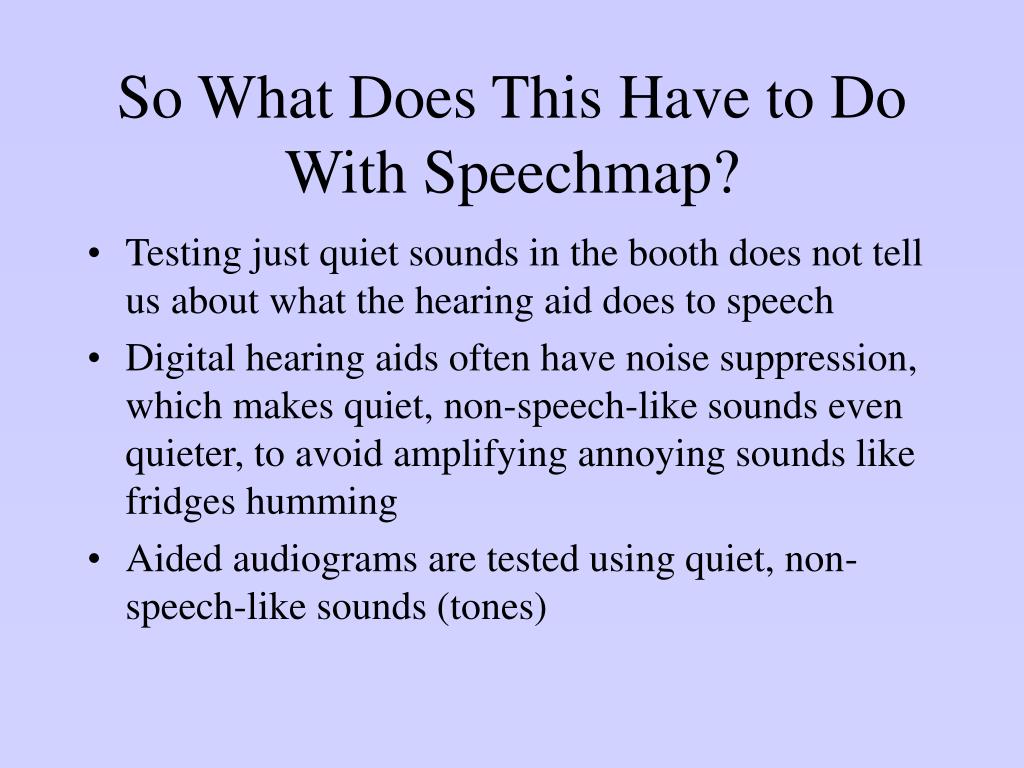

  24. So What Does This Have to Do With Speechmap? • Testing just quiet sounds in the booth does not tell us about what the hearing aid does to speech • Digital hearing aids often have noise suppression, which makes quiet, non-speech-like sounds even quieter, to avoid amplifying annoying sounds like fridges humming • Aided audiograms are tested using quiet, non-speech-like sounds (tones)

  25. Limitation of Aided Audiogram • This slide shows the hearing aid’s response to quiet non-speech tones • We can infer how much speech the child can hear, but it does not show differing performance for soft, versus loud, speech • It does not tell us if the hearing aid is too loud, or if there is distortion • There are no targets, so we don’t know if this is a “good” fitting

  26. The Speechmap shows soft speech, loud speech and very loud sounds, showing, in this case, that they all give acceptable responses • It also shows Speech Intelligibility Index (SII), which predicts how much of the speech signal is audible for a given input

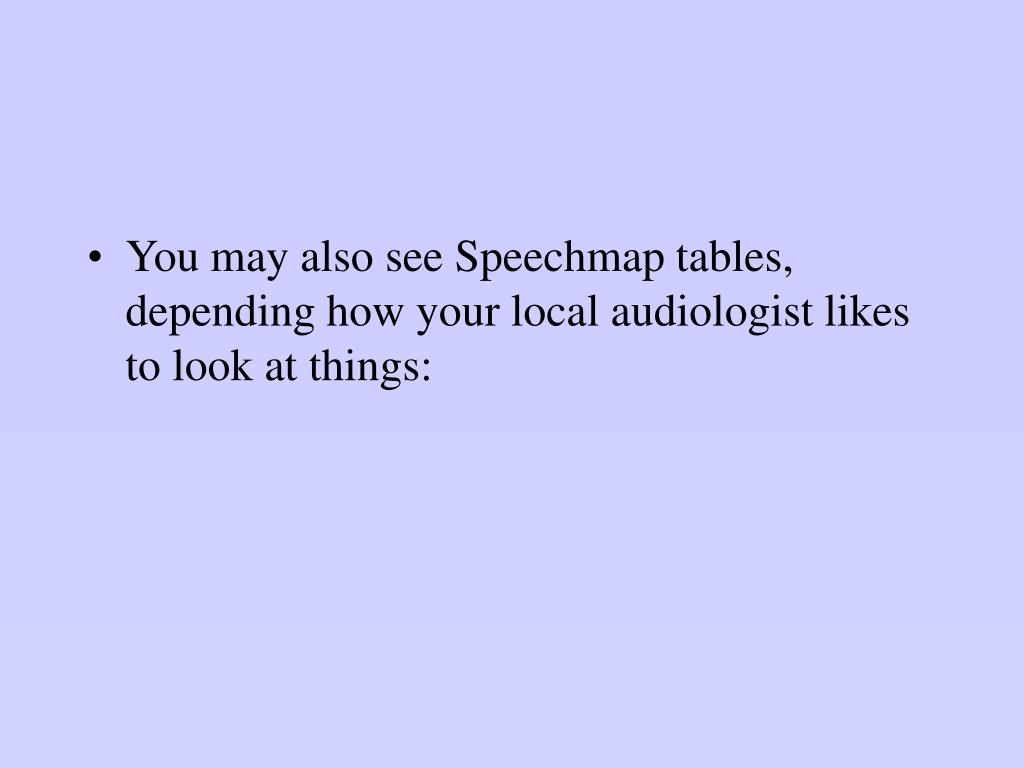

  27. You may also see Speechmap tables, depending how your local audiologist likes to look at things:

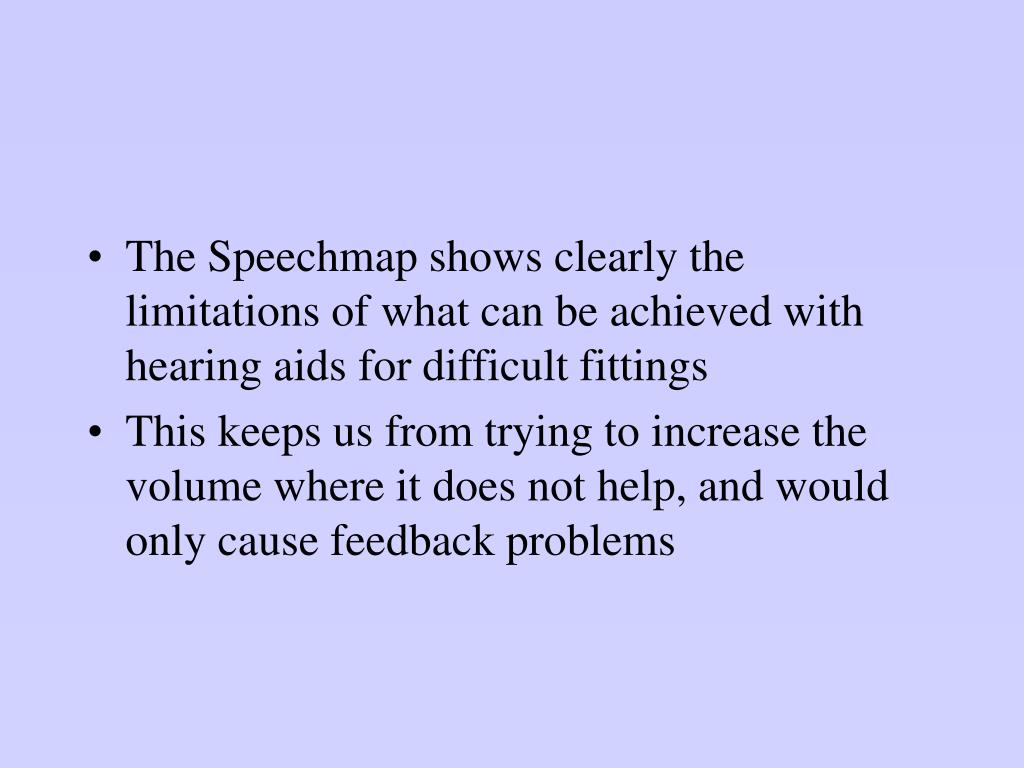

  28. The Speechmap shows clearly the limitations of what can be achieved with hearing aids for difficult fittings • This keeps us from trying to increase the volume where it does not help, and would only cause feedback problems

  29. The End
