Multiplexer as a Universal Element

Multiplexer as a Universal Element. Discussion D2.6 Example 9. MUX as a Universal Element. Example. f = x*~y + x*z + ~y*z. Step 1. f = x*~y + x*z + ~y*z. If x = 0. f = v = ~y*z. If x = 1. f = w = ~y + z + ~y*z. Step 2. If x = 0. f = v = ~y*z. If y = 0. v = z. If y = 1. v = 0.

gudrun
Télécharger la présentation

Multiplexer as a Universal Element

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Multiplexer as a Universal Element Discussion D2.6 Example 9

  2. MUX as a Universal Element

  3. Example f = x*~y + x*z + ~y*z

  4. Step 1 f = x*~y + x*z + ~y*z If x = 0 f = v = ~y*z If x = 1 f = w = ~y + z + ~y*z

  5. Step 2 If x = 0 f = v = ~y*z If y = 0 v = z If y = 1 v = 0 If x = 1 f = w = ~y + z + ~y*z If y = 0 f = x*~y + x*z + ~y*z w = 1 If y = 1 w = z

  6. f = x*~y + x*z + ~y*z

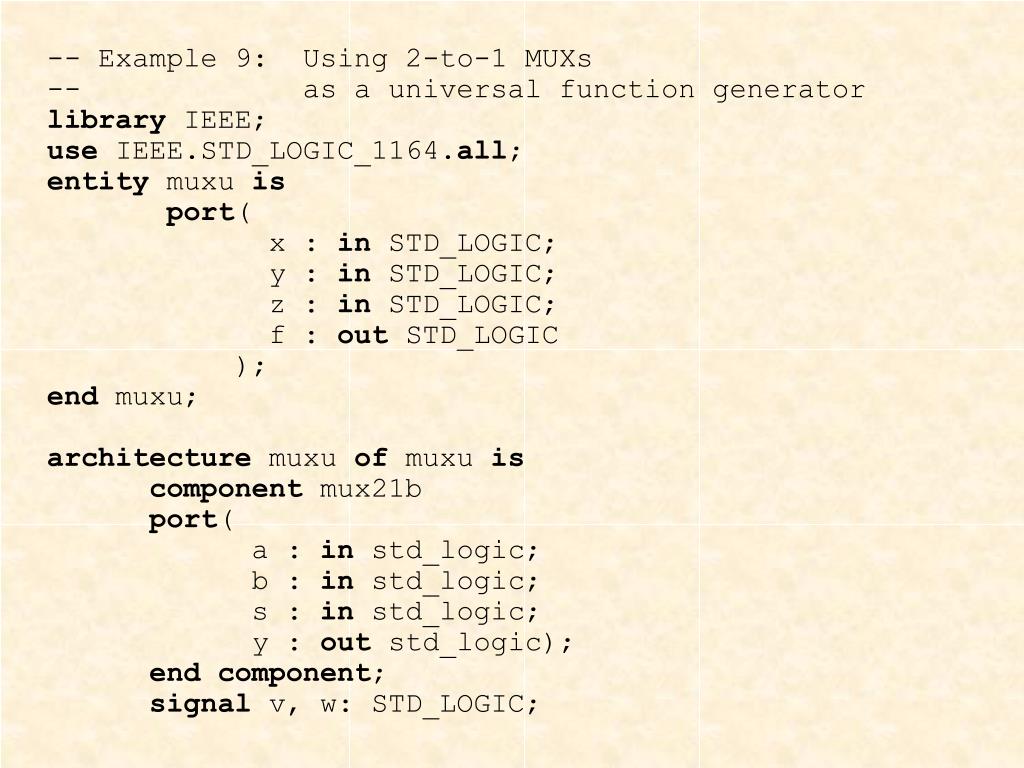

  7. -- Example 9: Using 2-to-1 MUXs -- as a universal function generator library IEEE; use IEEE.STD_LOGIC_1164.all; entity muxu is port( x : in STD_LOGIC; y : in STD_LOGIC; z : in STD_LOGIC; f : out STD_LOGIC ); end muxu; architecture muxu of muxu is component mux21b port( a : in std_logic; b : in std_logic; s : in std_logic; y : out std_logic); end component; signal v, w: STD_LOGIC;

  8. begin M1 : mux21b port map( a => z, b => '0', s => y, y => v ); M2 : mux21b port map( a => '1', b => z, s => y, y => w ); M3 : mux21b port map( a => v, b => w, s => x, y => f ); end muxu;

  9. Aldec Active-HDL Simulation
