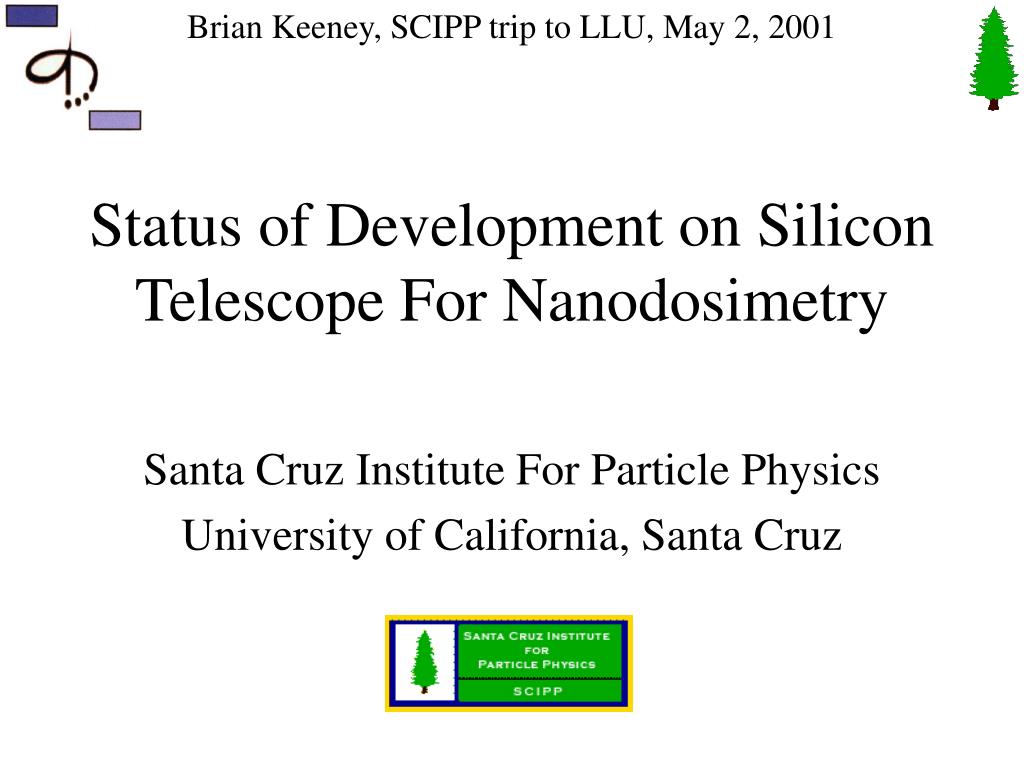

  1. Status of Development on Silicon Telescope For Nanodosimetry Santa Cruz Institute For Particle Physics University of California, Santa Cruz

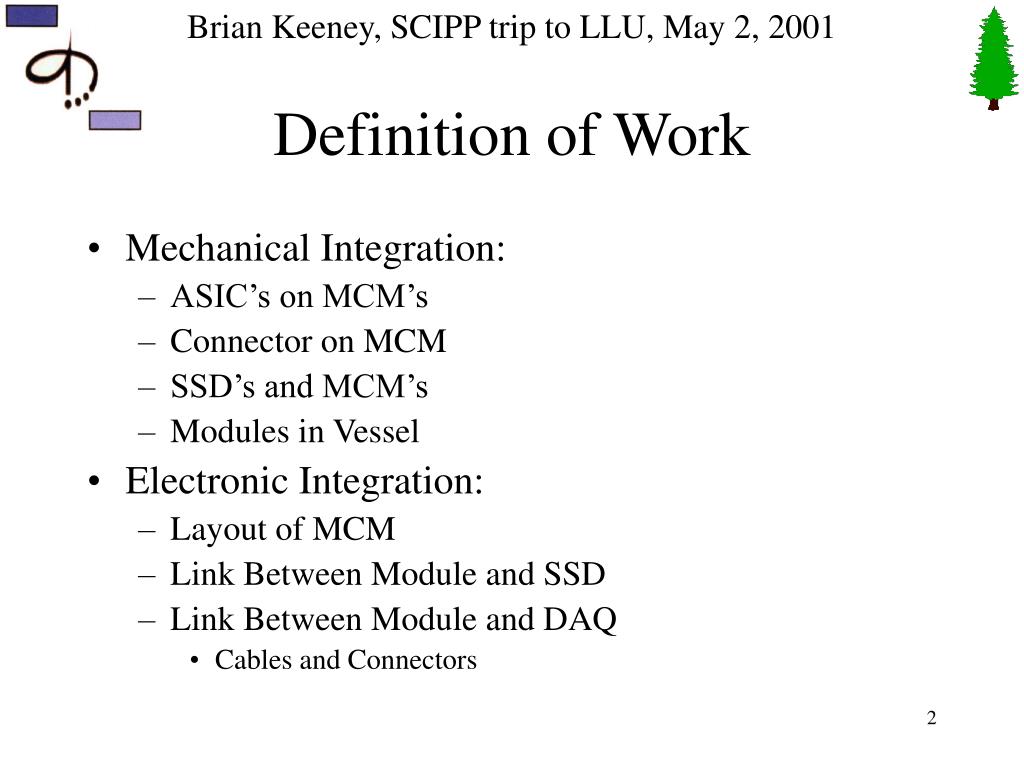

  2. Definition of Work • Mechanical Integration: • ASIC’s on MCM’s • Connector on MCM • SSD’s and MCM’s • Modules in Vessel • Electronic Integration: • Layout of MCM • Link Between Module and SSD • Link Between Module and DAQ • Cables and Connectors

  3. Components of Telescope

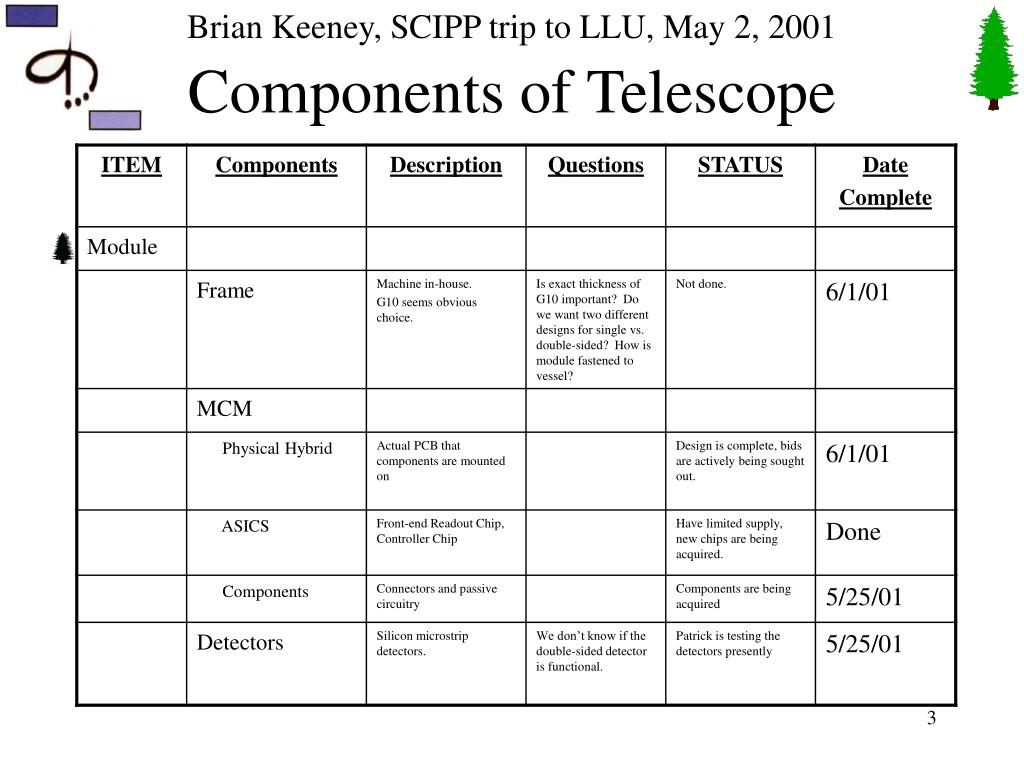

  4. Components of Telescope

  5. Module Frame

  6. Module Overview .8 2.7 PCB 10cm 9.1 6.4

  7. Components of Telescope

  8. GLAST Tracker

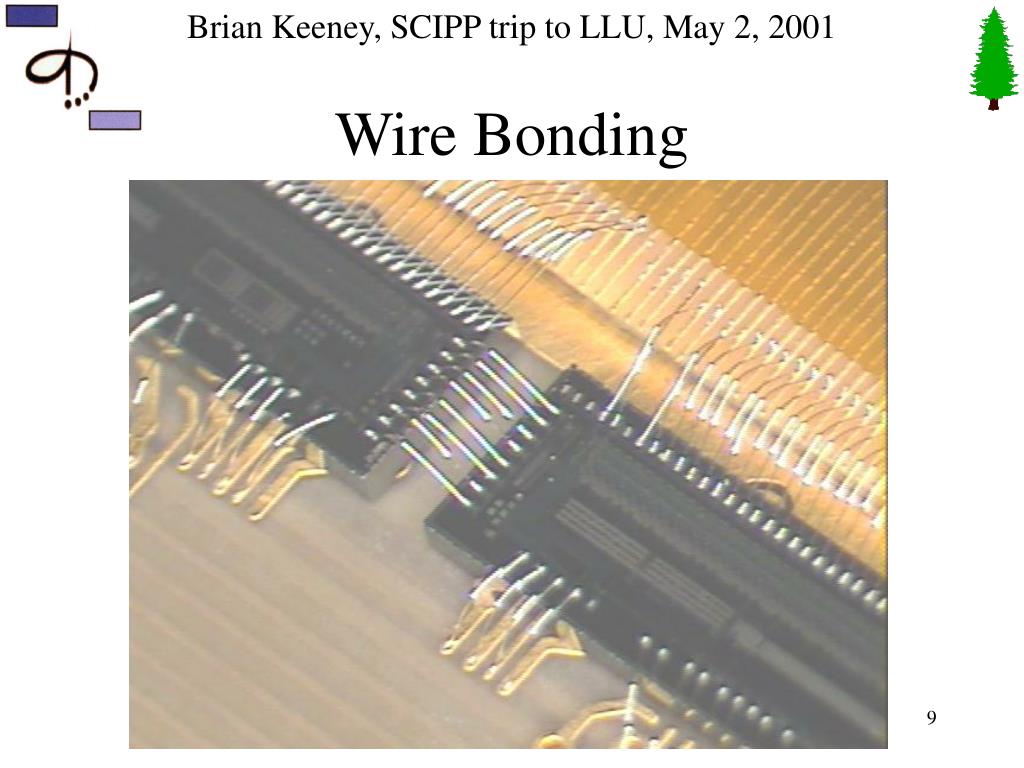

  9. Wire Bonding

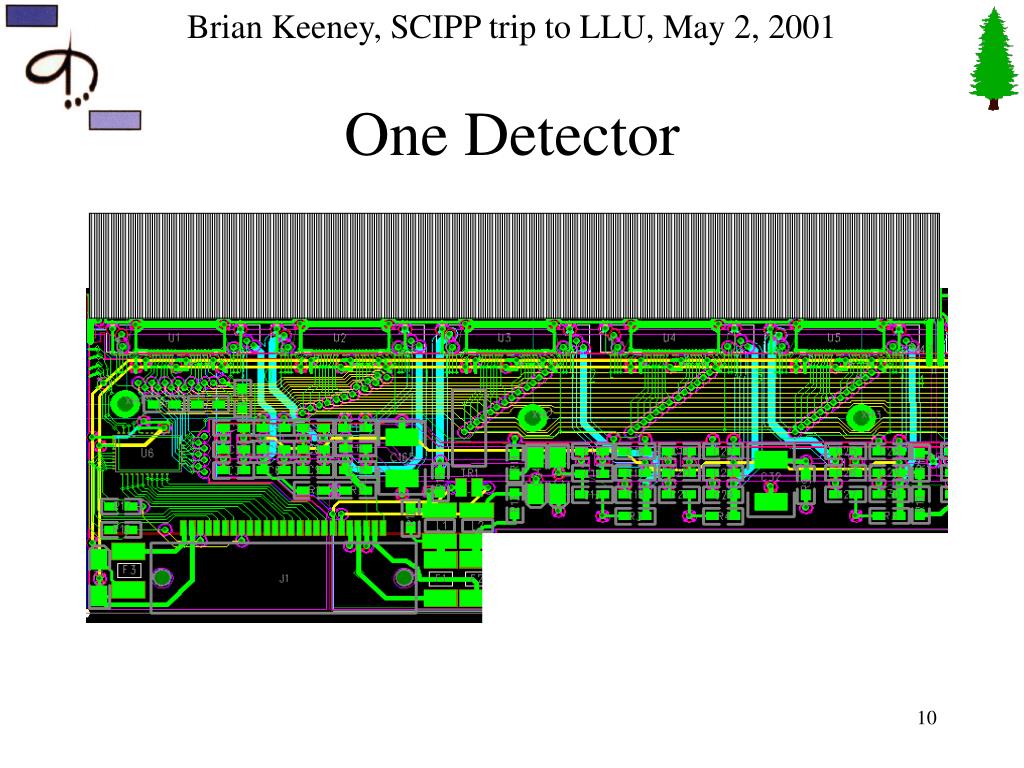

  10. One Detector

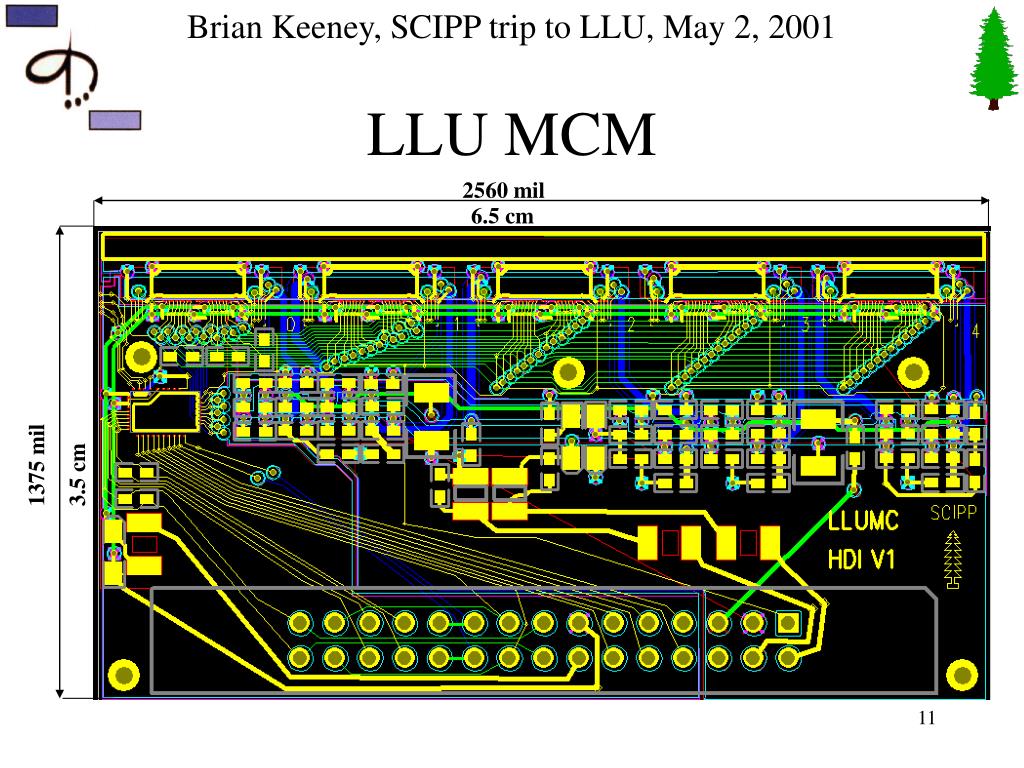

  11. LLU MCM 2560 mil 6.5 cm 1375 mil 3.5 cm

  12. Components of Telescope

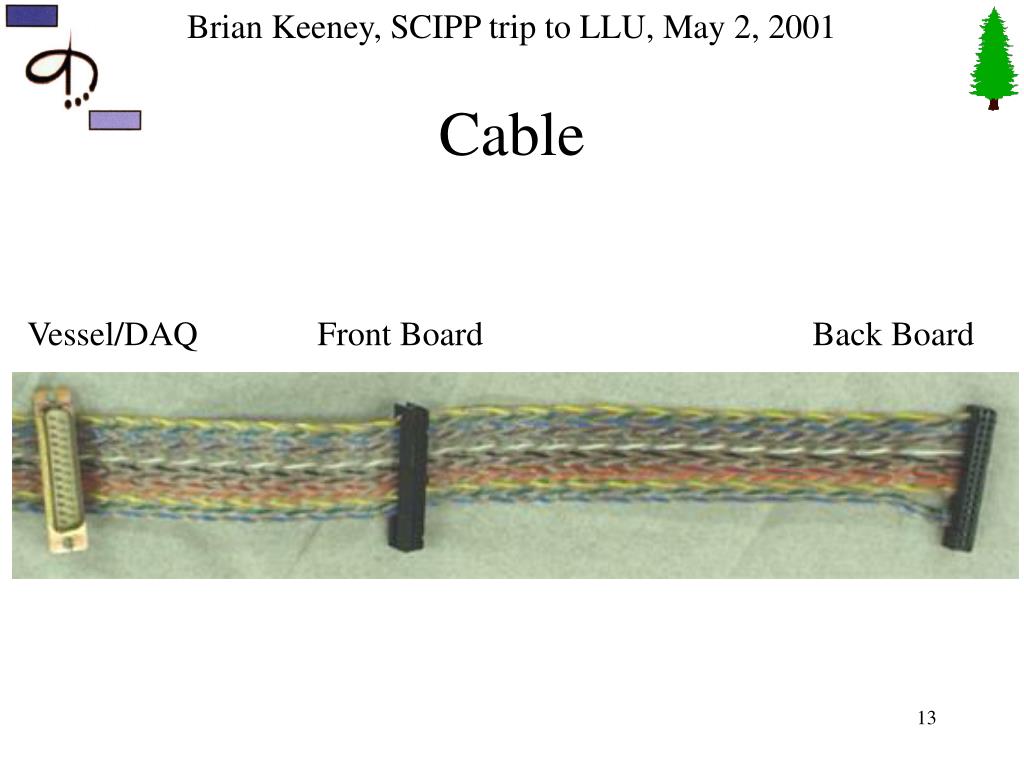

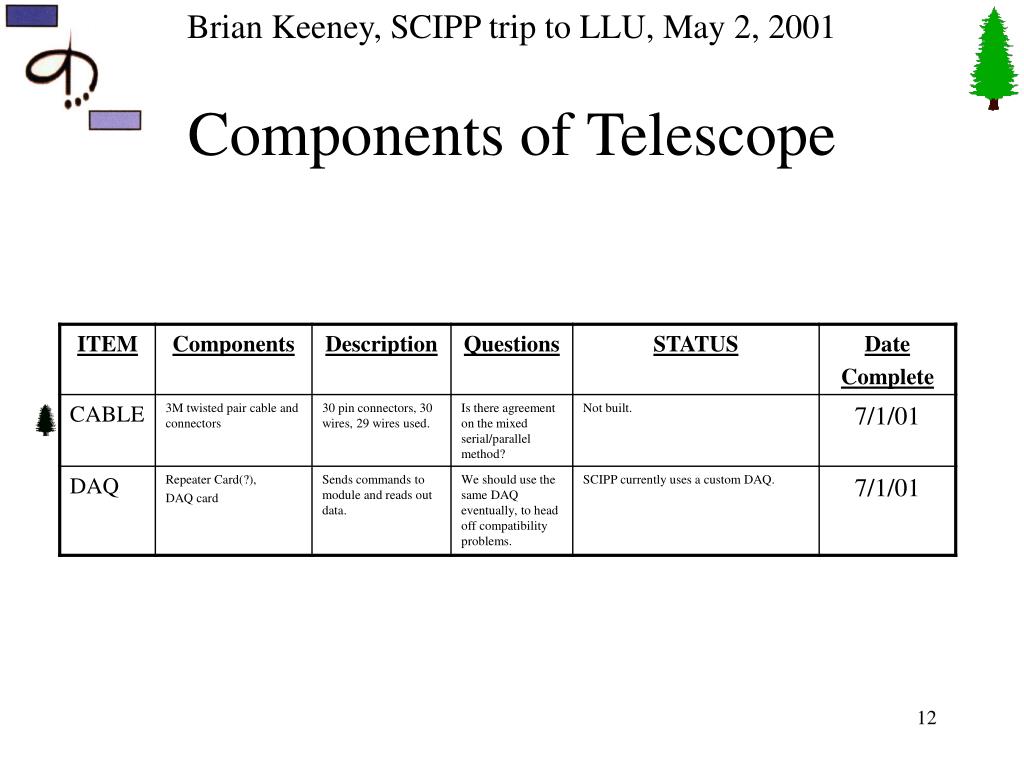

  13. Cable Vessel/DAQ Front Board Back Board

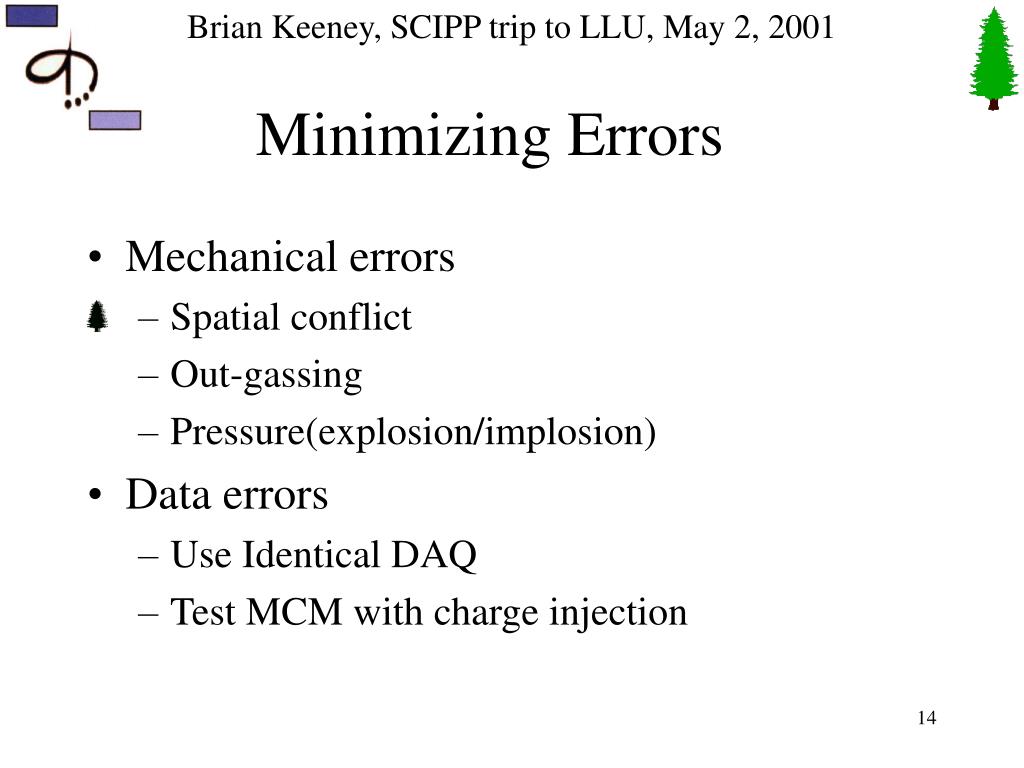

  14. Minimizing Errors • Mechanical errors • Spatial conflict • Out-gassing • Pressure(explosion/implosion) • Data errors • Use Identical DAQ • Test MCM with charge injection

  15. Minimizing Errors • Avoid Mechanical errors • Spatial conflict • Out-gassing • Pressure(explosion/implosion) • How big do ventilation holes need to be? • Avoid hardware errors • Use Identical DAQ • Test MCM with charge injection

  16. = Air Hole

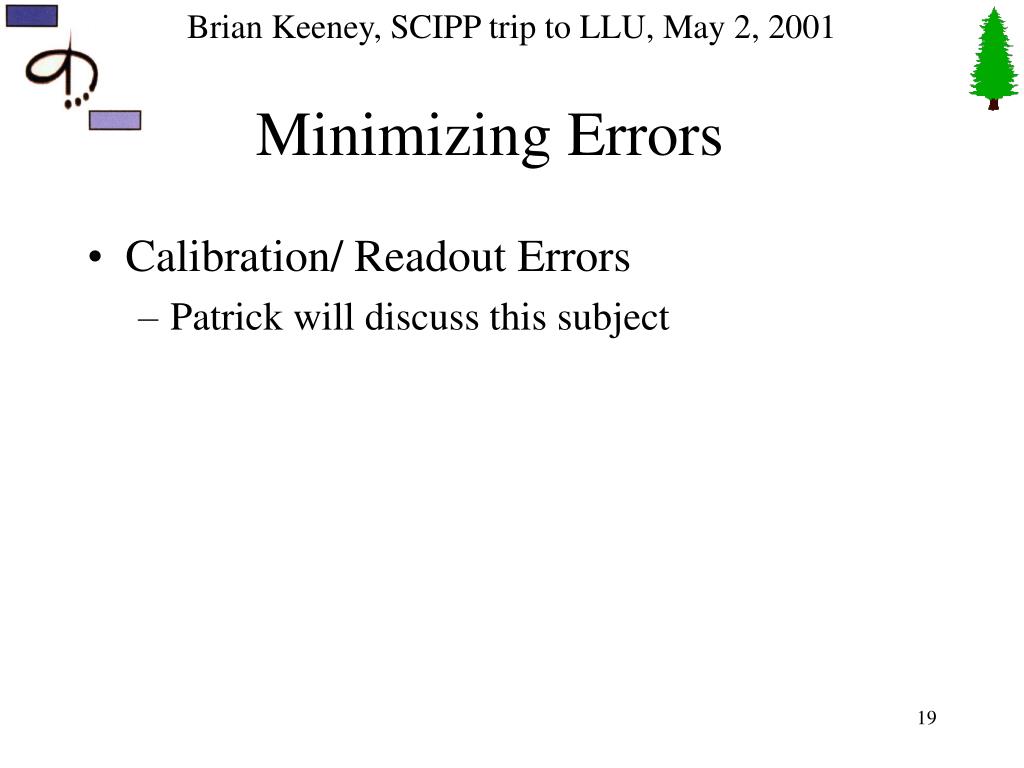

  17. Minimizing Errors • Calibration/ Readout Errors • Patrick will discuss this subject

  18. Schedule

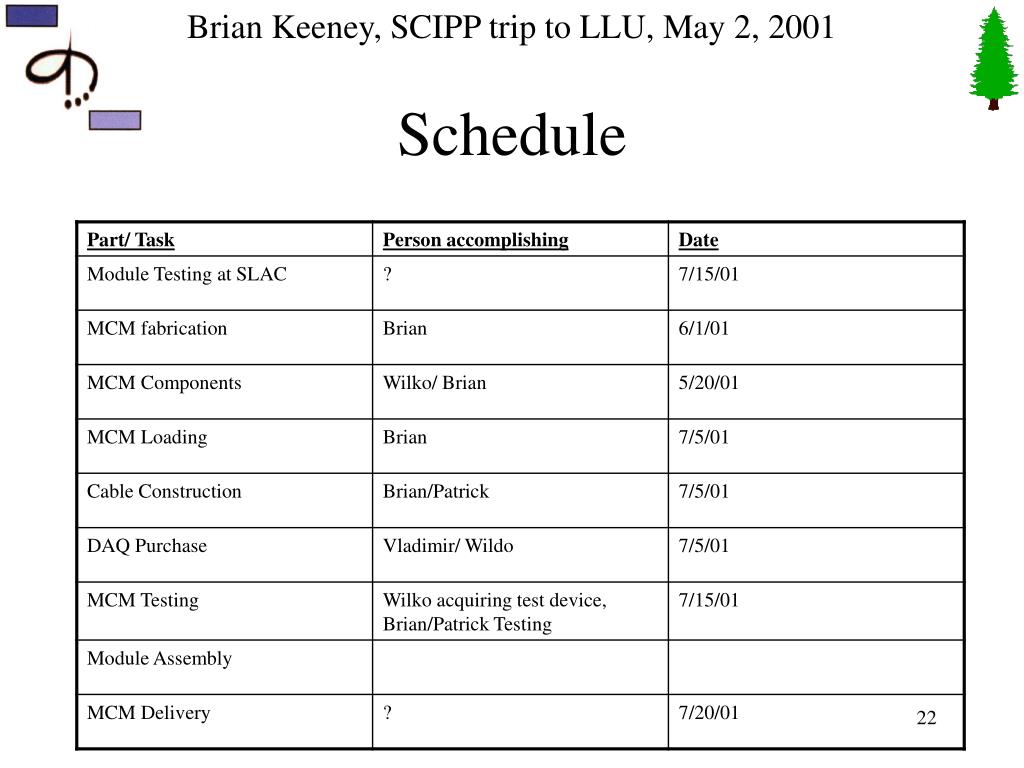

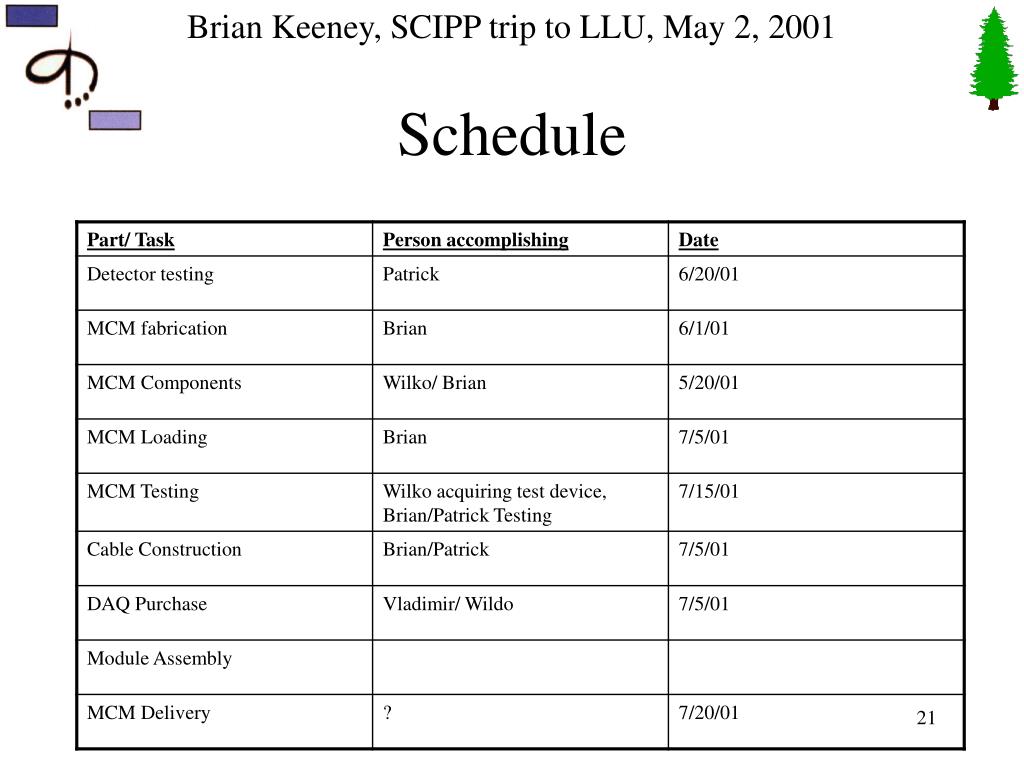

  19. Schedule

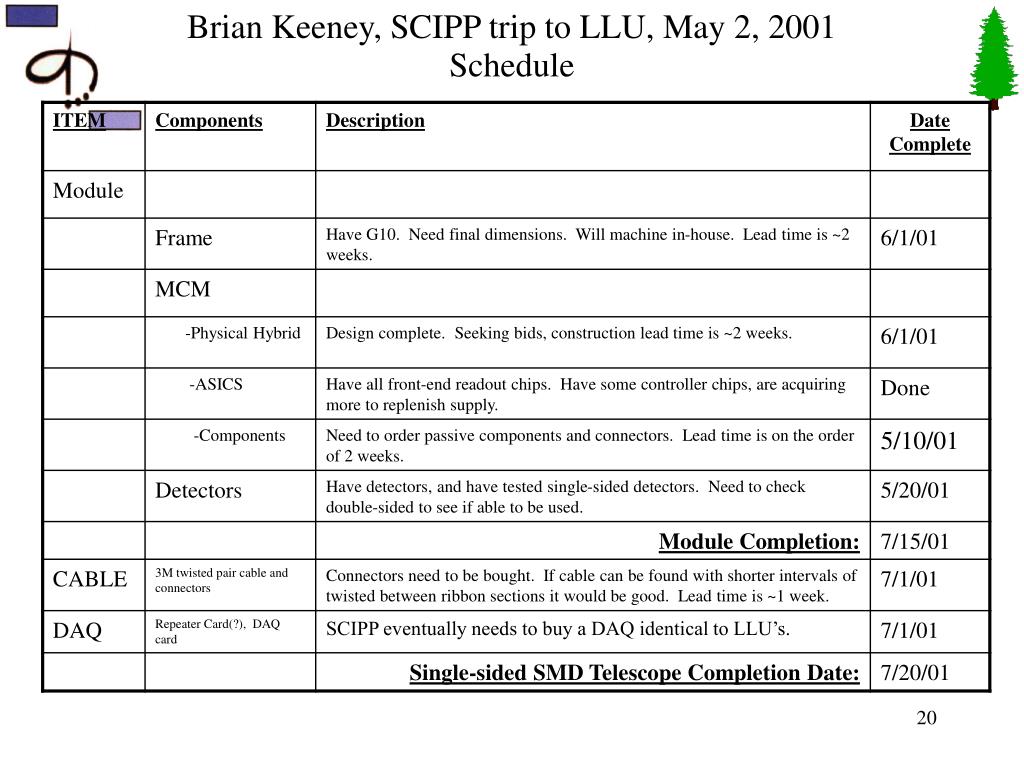

  20. Schedule
