Milap Thaker - Genetics - Harvard University - Molecular

My powerpoint for a presentation to the Graduate Proseminar at Harvard University, 2007.

guest14193
Télécharger la présentation

Milap Thaker - Genetics - Harvard University - Molecular

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. DNA Damage Checkpoints Inhibit Mitotic Exit by Two Different Mechanisms Fengshan Liang and Yanchang Wang MOLECULAR AND CELLULAR BIOLOGY, July 2007, p. 5067–5078 Presenter: MilapThaker Proseminar in Molecular and Cellular Biology Harvard University Date 11/29/2007

  2. Key Point 1: Two Different Mechanisms Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  3. Key Point 1: Two Different Mechanisms Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  4. Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

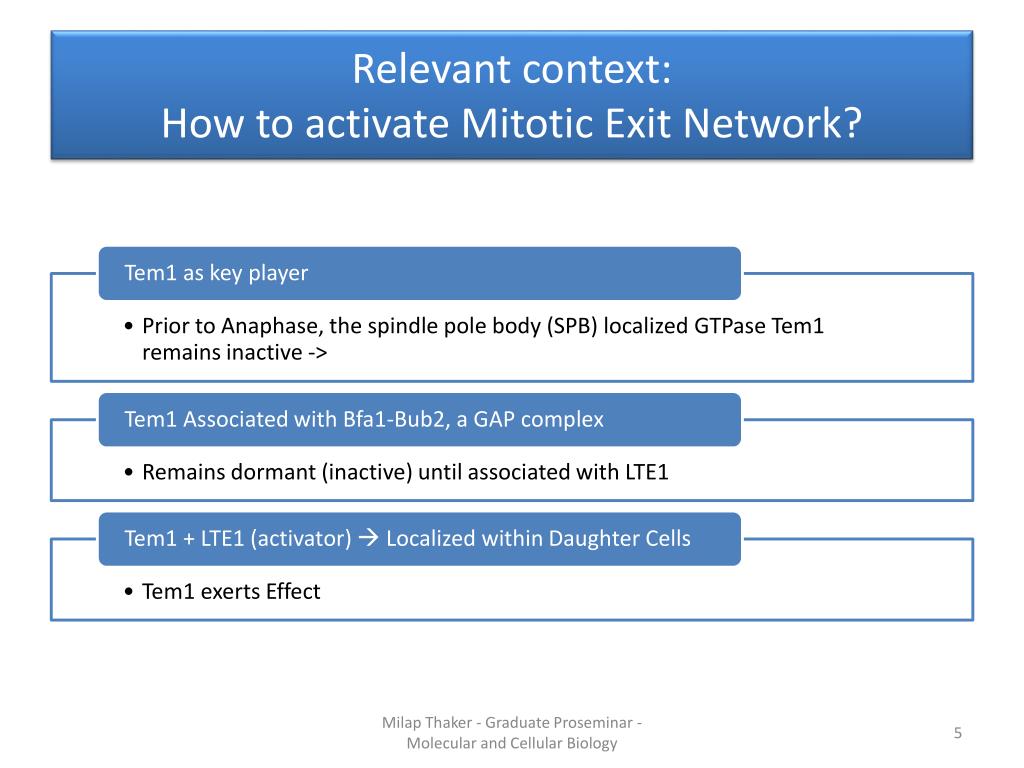

  5. Relevant context: How to activate Mitotic Exit Network? Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  6. Mitotic Exit Network: Take 2 MilapThaker - Graduate Proseminar - Molecular and Cellular Biology

  7. Alternate Mechanism: The FEAR Pathway Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  8. MEN VS. FEAR: Specific Temporal Differences Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  9. Materials and Methods • Yeast Strains grown in YPD (standard yeast-extract-peptone-dextrose) medium • Arrested in G1 by 5 µg/ml α-factor • After 2 hours, washed 2x with water • Cytology: Cells fixed with 3.7% formaldehyde for 5 min at RT, then washed twice with PBS buffer (phosphate buffered saline) and resuspended in PBS Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  10. DAPI Staining Technique • Cells fixed with 100% MeOH at -20 Celsius for 30 mins. • Cells pelleted, resuspended in DAPI at a final concentration of 2.5µg/ml for 1 min at RT • Cells finally resuspended in 1X PBS • Fluorescence microscopy used to examine GFP and DNA Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  11. Protein Techniques For Immunoprecipitation, cells harvested (50 ml) and protein extracts are prepared with RIPA RIPA = Radioimmunoprecipitation Assay Incubated with Anti-HA (hemagglutinin) antibody Washed in SDS (sodium dodecyl sulfate) protein-loading buffer Boiled 5 mins, resolved with 8% SDS gel

  12. Results 1a KEY ELEMENTS TO NOTE: WILD TYPE HIGH COLONIZATION LANE 2 NO COLONIZATION ALSO, NOTE LANE 6 HIGH COLONIZATION (rad53) Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  13. Results 2 – short spindling Fig 1b Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  14. Results 3 – Rebudding Fig 1c Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  15. Re-Incubated Cells Fig 1c Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  16. Results 4 – cdc 14 release Fig 2a Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  17. Cdc 14 Localization - Images Fig 2a(2) Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  18. Cdc 14 Release Fig 2B Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  19. Rebudding of Cells (2) Fig 3a Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  20. Rebudding of Cells (3) Fig 3a(2) Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  21. Cdc 14 Release (2) Fig 3B Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  22. Budding, CDC 14 Release (3) Fig 4a,b Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  23. Microcolonies (2) Fig 4C Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  24. Budding, CDC 14 (3) Fig 5a Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  25. Budding, Cdc 14 Release (4) Fig 5B Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  26. Microcolonies (3) Fig 5C Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  27. Budding, Cdc14 Release (5) Fig 6a Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  28. Budding, Cdc 14 Release (6) Fig 6B Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  29. Colonization across states Fig 6C Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  30. Nuclear Localization, Segregation Fig 7a Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  31. Budding, cdc 14 Localization (6) Fig 7b Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  32. Cdc 5-1 mutation vs. Cdc5-1RAD53-21 Fig 7c Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  33. Western Blot, States Figs 8a, 8b Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  34. Master Conclusion Set (1) Fig 8c Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  35. Men & Fear: Proposed Mechanism Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  36. Master Conclusion Set (2) • Rad53 key player in mitotic exit prevention • This is because cdc13-1, rad53021 mutants exhibited cdc14 release • Rad 53 kinase known to phosphorylate Dun1 directly, known activator of Dun1 • Dun1 plays a more direct role in regulating MEN than Rad53 (downstream) • Authors contend possibility that Dun1 kinase phosphorylates Bfa1 and prevents Bfa1/Tem1 dissociation. • Support: Less Bfa1-Tem1 complex in Rad53-21 when DNA damaged Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology

  37. Master Conclusion Set (3) Milap Thaker - Graduate Proseminar - Molecular and Cellular Biology
