  1. CM 690 II(Regular, Plus, Advanced) Sales Kit Colin Chang 12/02/09

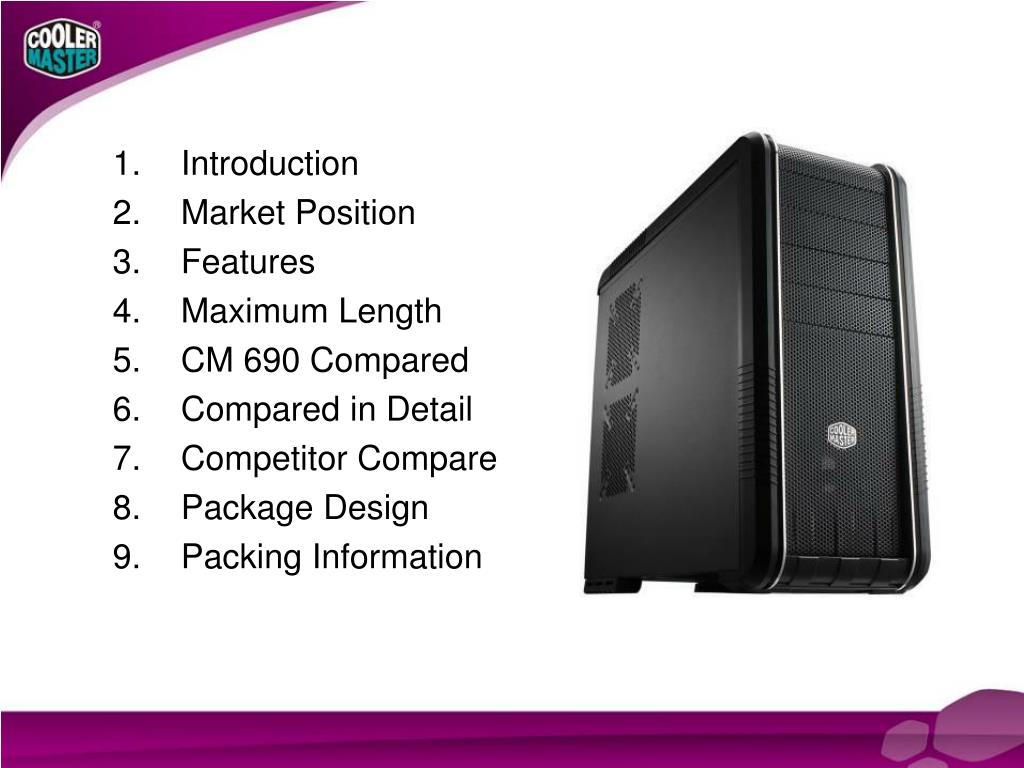

  2. Introduction Market Position Features Maximum Length CM 690 Compared Compared in Detail Competitor Compare Package Design Packing Information

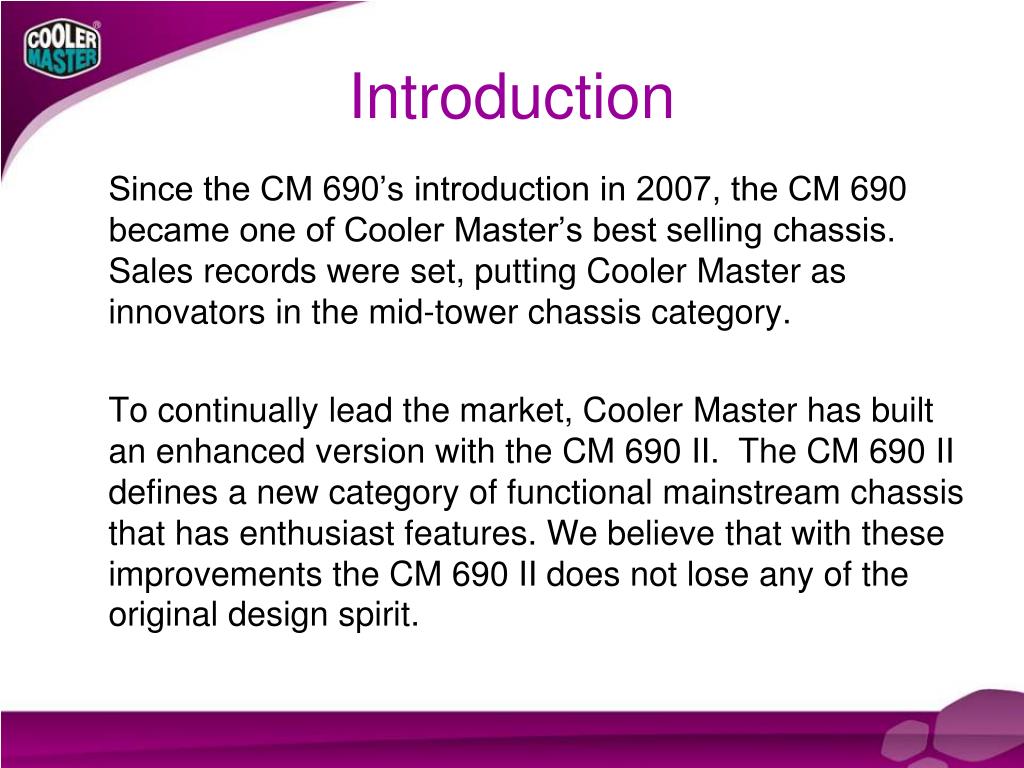

  3. Introduction Since the CM 690’s introduction in 2007, the CM 690 became one of Cooler Master’s best selling chassis. Sales records were set, putting Cooler Master as innovators in the mid-tower chassis category. To continually lead the market, Cooler Master has built an enhanced version with the CM 690 II. The CM 690 II defines a new category of functional mainstream chassis that has enthusiast features. We believe that with these improvements the CM 690 II does not lose any of the original design spirit.

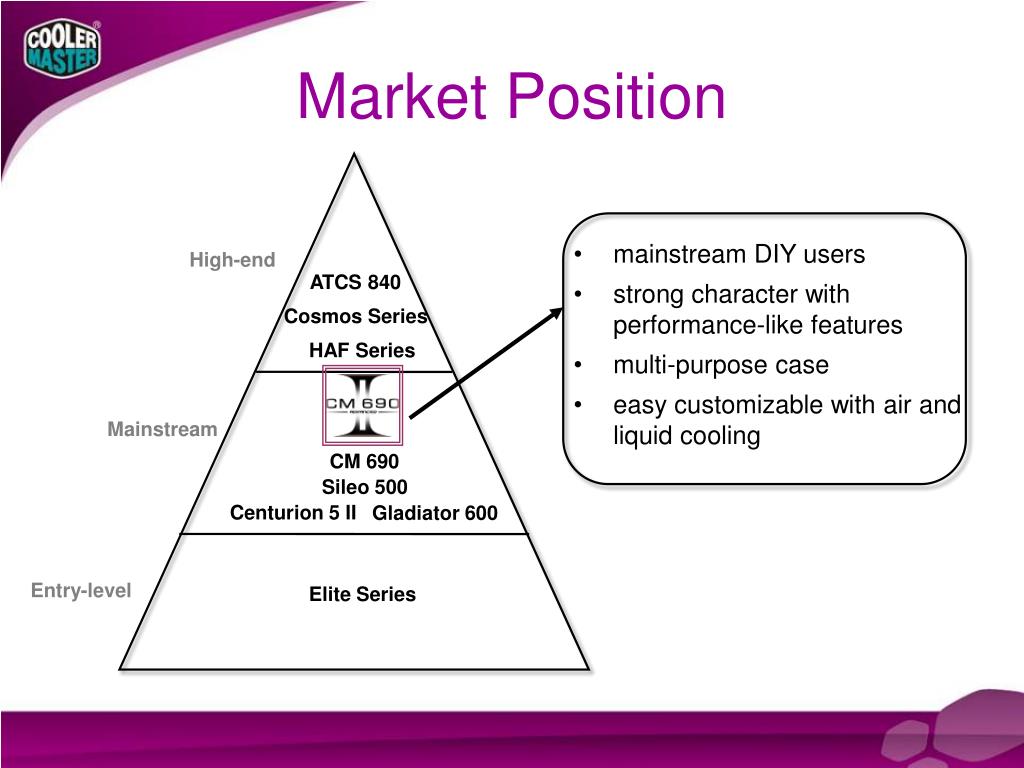

  4. Market Position High-end • mainstream DIY users • strong character with performance-like features • multi-purpose case • easy customizable with air and liquid cooling ATCS 840 Cosmos Series HAF Series Mainstream CM 690 Sileo 500 Centurion 5 II Gladiator 600 Entry-level Elite Series

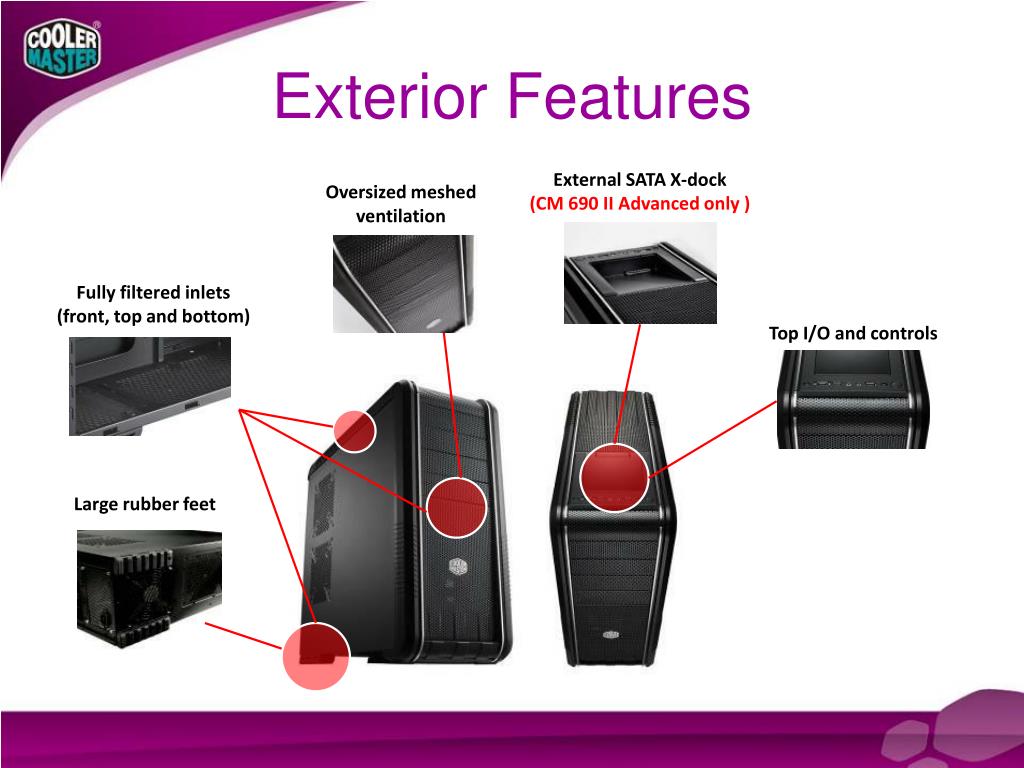

  5. Exterior Features External SATA X-dock (CM 690 II Advanced only ) Oversized meshed ventilation Fully filtered inlets (front, top and bottom) Top I/O and controls Large rubber feet

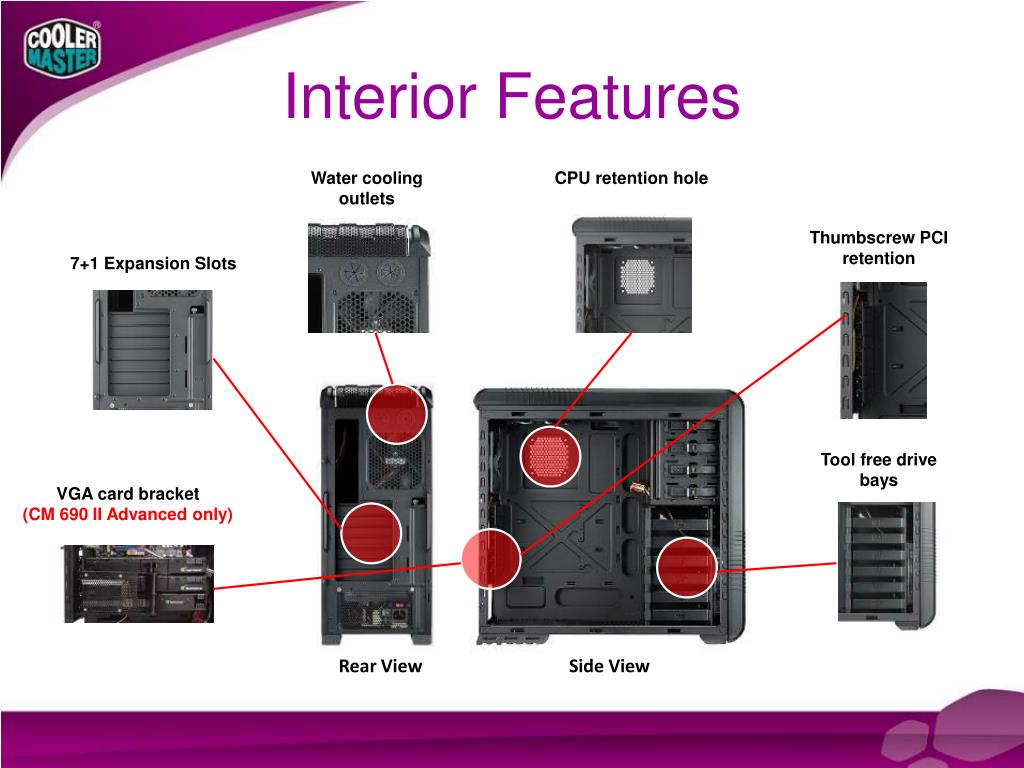

  6. Interior Features Water cooling outlets CPU retention hole Thumbscrew PCI retention 7+1 Expansion Slots Tool free drive bays VGA card bracket (CM 690 II Advanced only) Rear View Side View

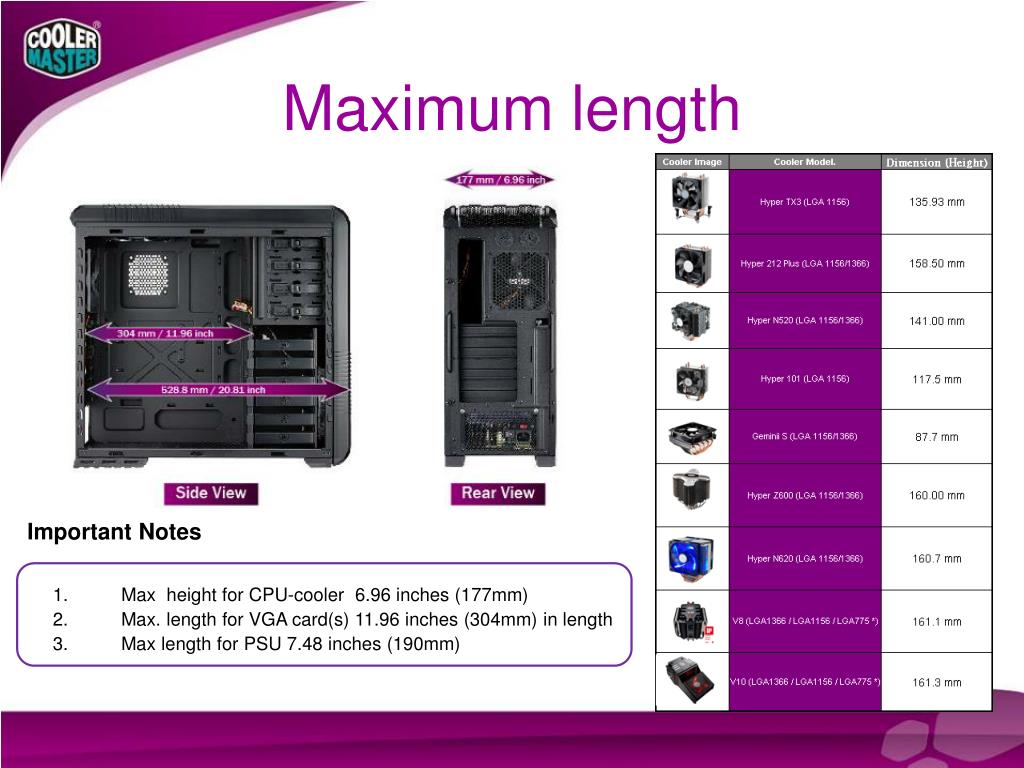

  7. Maximum length Important Notes • Max height for CPU-cooler 6.96 inches (177mm) • Max. length for VGA card(s) 11.96 inches (304mm) in length • Max length for PSU 7.48 inches(190mm)

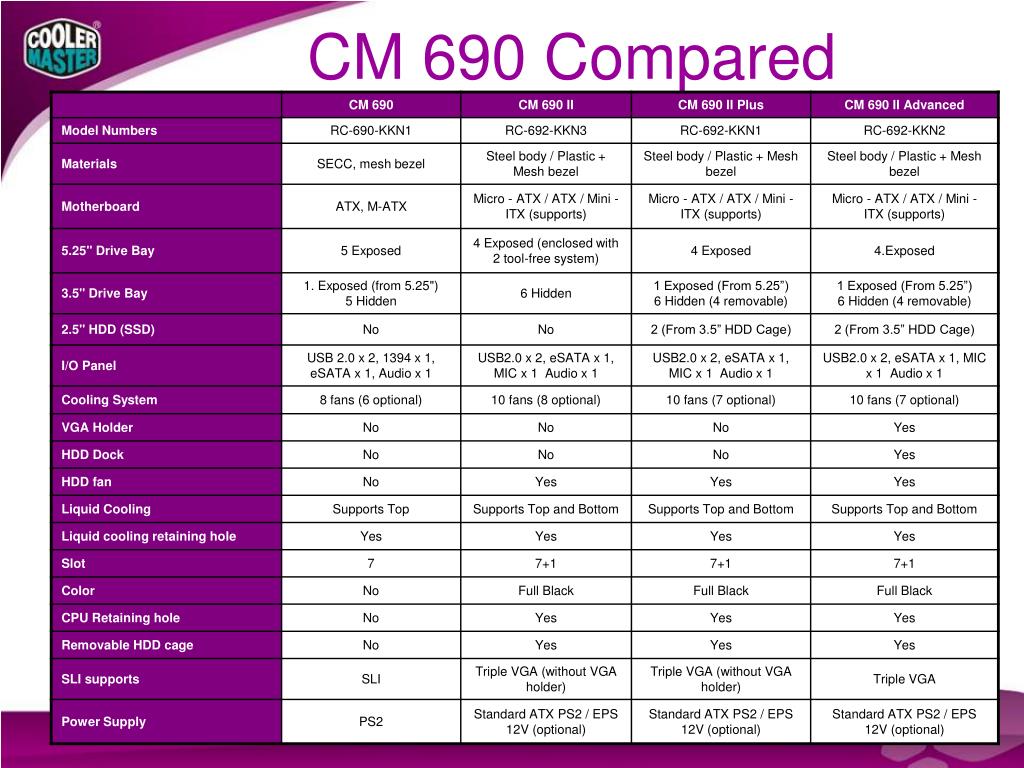

  8. CM 690 Compared

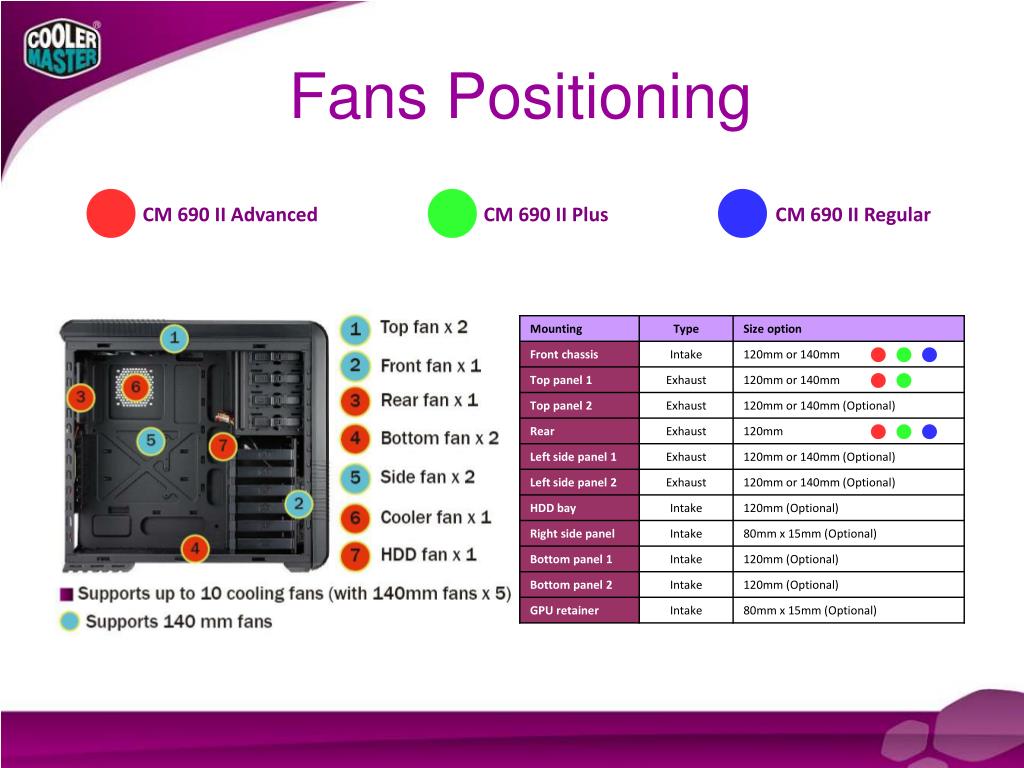

  9. Fans Positioning CM 690 II Advanced CM 690 II Plus CM 690 II Regular

  10. Features Compared 1 (inside) Original CM 690 CM 690 II Advanced External HDD dock 2 in 1 2.5” and 1.8” SSD drive support (CM 690 II Advanced only) Cable organizers minimize cable clutter Tool-free drive bays Top 120mm, 140mm or internal 240/280mm radiator Modular Removable HDD bay / 140 mm LED fan Rear ventilation Improved cable management VGA card bracket Bottom mounted power supply (supports 190mm) Water cooling support for internal 240mm radiators Bottom mounted PSU Removable HDD racks

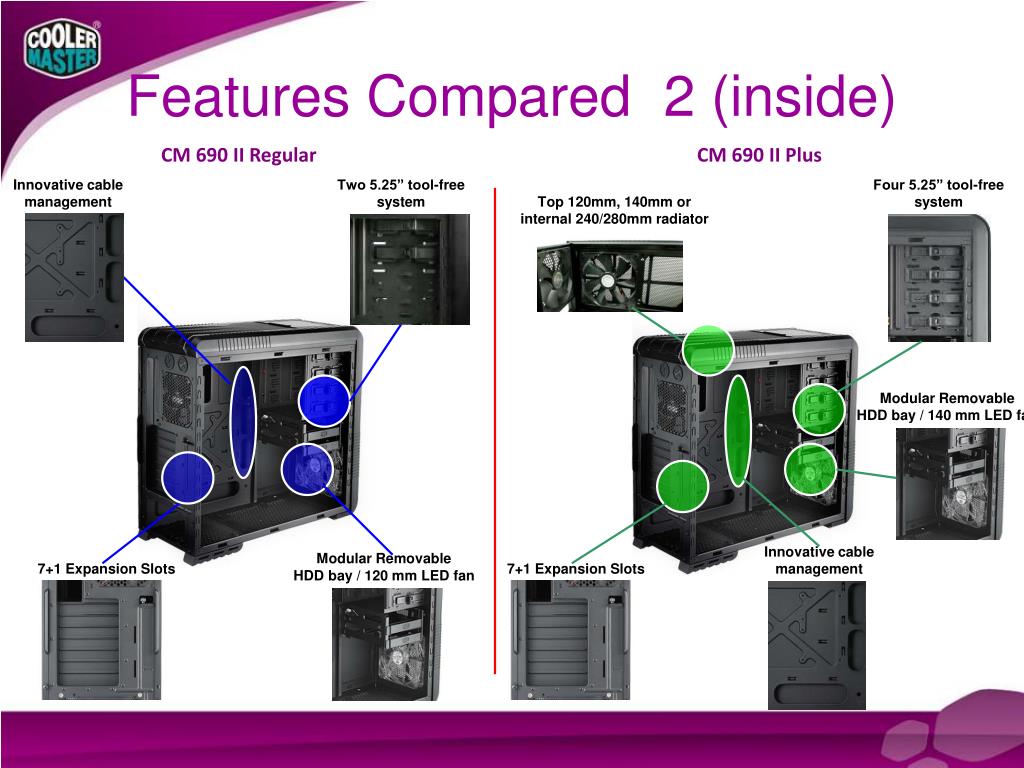

  11. Features Compared 2 (inside) CM 690 II Regular CM 690 II Plus Innovative cable management Two 5.25” tool-free system Four 5.25” tool-free system Top 120mm, 140mm or internal 240/280mm radiator Modular Removable HDD bay / 140 mm LED fan Innovative cable management Modular Removable HDD bay / 120 mm LED fan 7+1 Expansion Slots 7+1 Expansion Slots

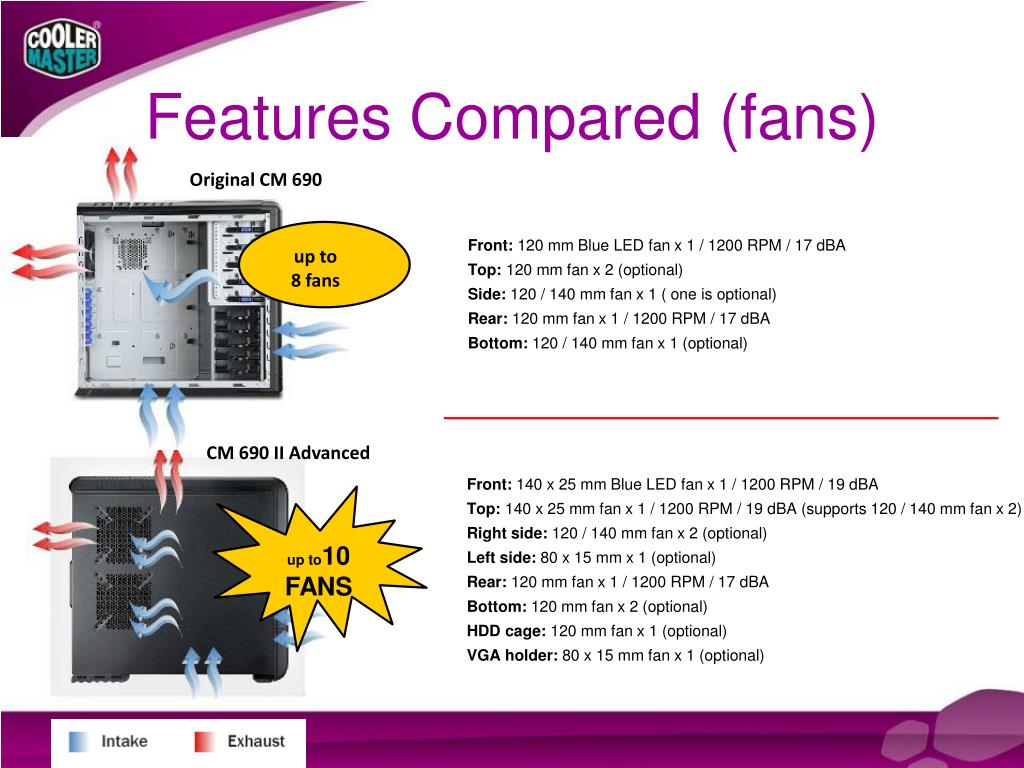

  12. Features Compared (fans) Original CM 690 Front: 120 mm Blue LED fan x 1 / 1200 RPM / 17 dBA Top: 120 mm fan x 2 (optional) Side: 120 / 140 mm fan x 1 ( one is optional) Rear: 120 mm fan x 1 / 1200 RPM / 17 dBA Bottom: 120 / 140 mm fan x 1 (optional) up to 8 fans CM 690 II Advanced Front: 140 x 25 mm Blue LED fan x 1 / 1200 RPM / 19 dBA Top: 140 x 25 mm fan x 1 / 1200 RPM / 19 dBA (supports 120 / 140 mm fan x 2) Right side: 120 / 140 mm fan x 2 (optional) Left side: 80 x 15 mm x 1 (optional) Rear: 120 mm fan x 1 / 1200 RPM / 17 dBA Bottom: 120 mm fan x 2 (optional) HDD cage: 120 mm fan x 1 (optional) VGA holder: 80 x 15 mm fan x 1 (optional) up to10 FANS

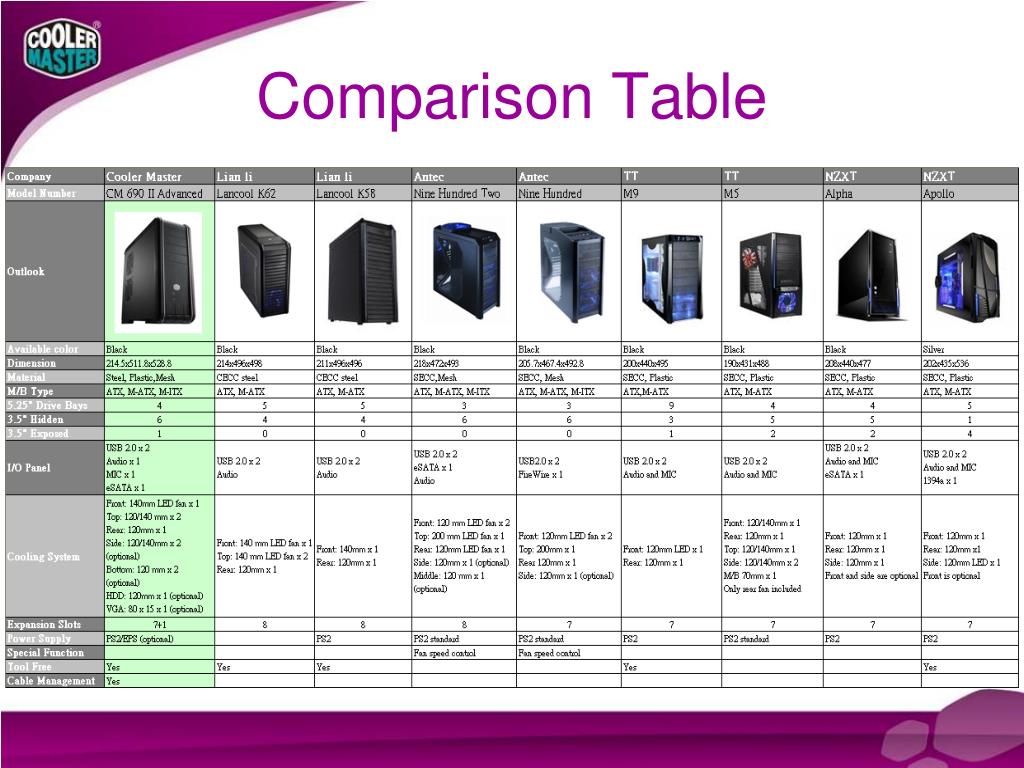

  13. Comparison Table

  14. Package Design CM 690 II version CM 690 II Advanced / Plus version Standard carton box layout The subtle pattern on the front flows into the front fascia, while the top bezel is curved over the rear edge of the chassis. The front bezel also has a series of diagonal character lines indicating speed and suggesting ferocity.

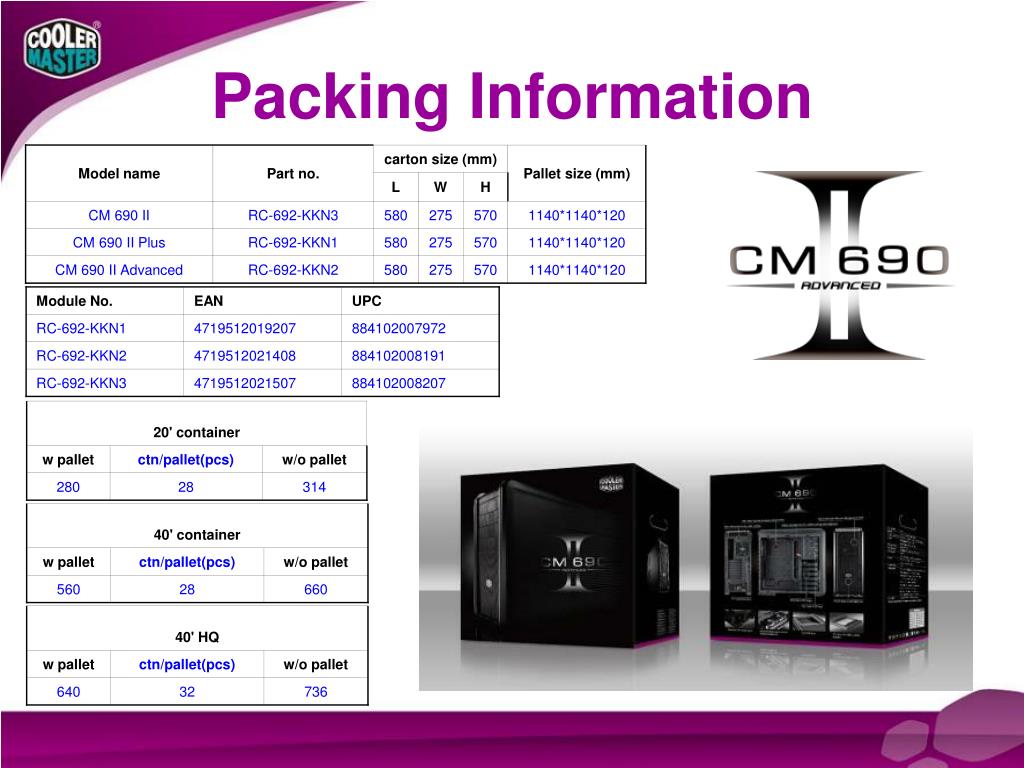

  15. Packing Information
