  1. ATM NETWORK SIMULATOR Mavoungou B. MOUNANGA Network Planning

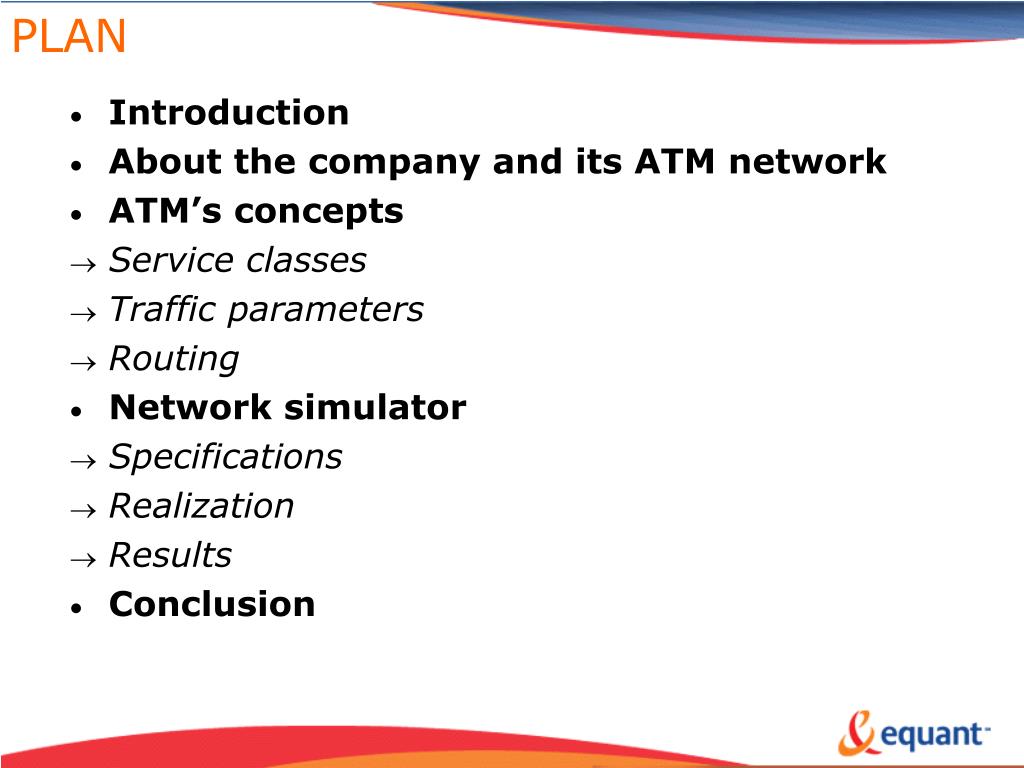

  2. PLAN • Introduction • About the company and its ATM network • ATM’s concepts • Service classes • Traffic parameters • Routing • Network simulator • Specifications • Realization • Results • Conclusion

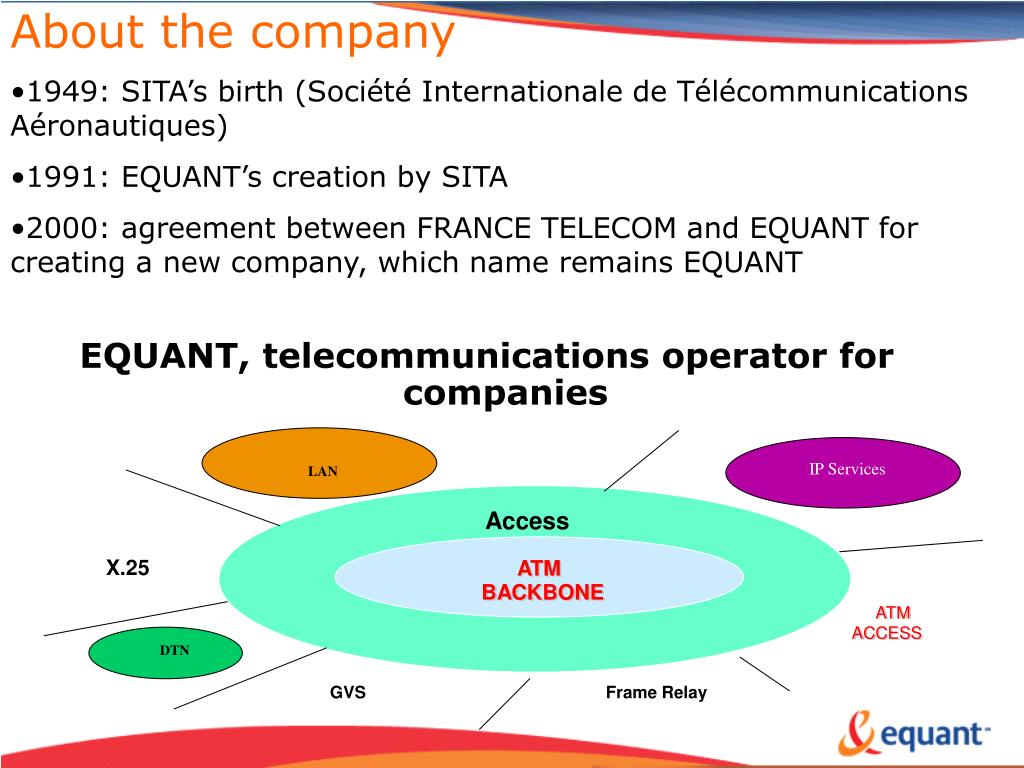

  3. LAN IP Services LAN Access X.25 ATM ATM BACKBONE BACKBONE ATM ATM ACCESS ACCESS DTN GVS Frame Relay About the company • 1949: SITA’s birth (Société Internationale de Télécommunications Aéronautiques) • 1991: EQUANT’s creation by SITA • 2000: agreement between FRANCE TELECOM and EQUANT for creating a new company, which name remains EQUANT EQUANT, telecommunications operator for companies

  4. The MTN (Mega Transport Network) • Backbone level : pure ATM • Access level : ATM + Frame Relay

  5. ATM concepts • Multi-service environment (voice, data, video) • Basic transmission unity: the cell (53 bytes) • High speeds (>34 Mbps) • Connection oriented technology Service classes • CBR: Constant Bit Rate. E.g: voice, video • Rt-VBR: Real time Variable Bit Rate. E.g: compressed video • Nrt-VBR: Non real time Variable Bit Rate. E.g: data • UBR: Unspecified Bit Rate; a service in use for non critical applications. E.g: e-mail

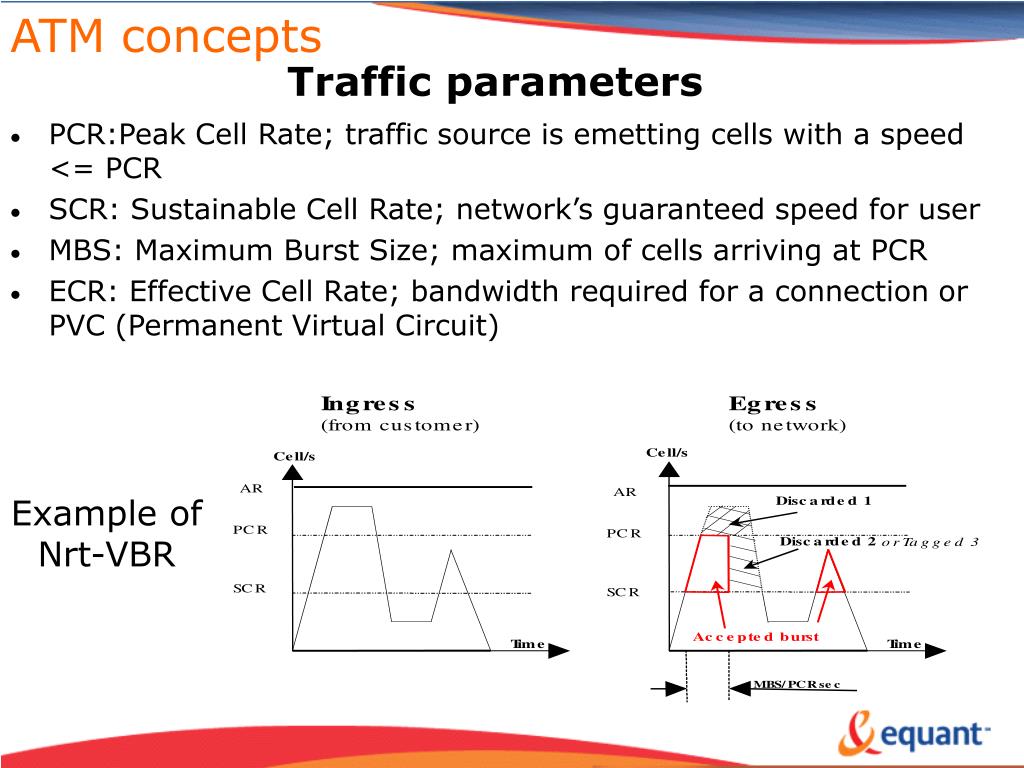

  6. Traffic parameters ATM concepts • PCR:Peak Cell Rate; traffic source is emetting cells with a speed <= PCR • SCR: Sustainable Cell Rate; network’s guaranteed speed for user • MBS: Maximum Burst Size; maximum of cells arriving at PCR • ECR: Effective Cell Rate; bandwidth required for a connection or PVC (Permanent Virtual Circuit) Example of Nrt-VBR

  7. PVC establishment network D S PNNI Passport PASSPORT PASSPORT GCAC CAC CAC CAC CAC and GCAC : connection’s acceptance or rejection depending on the available bandwidth and service quality. . PNNI (Private Node to Node Interface), dynamic routing • Metric: Administrative Weight (AW) • Attribute: Available Cell Rate (AvCR) • GCAC algorithm (Generic Connection Admission Control) • CAC algorithm

  8. PP2 PP1 AW=5040 AW=5040 AW=5040 PP3 AW=5040 AW=5040 Destination AW=5040 AW=5040 AW=5040 PNNI, example of road calculation ECR>AvCR Source PP4 PP5

  9. Present EQUANT network 2 routing types: PNNI + IISP PNNI cloud limited to 255 nodes => necessity to implement hierarchical PNNI by the beginning of 2002

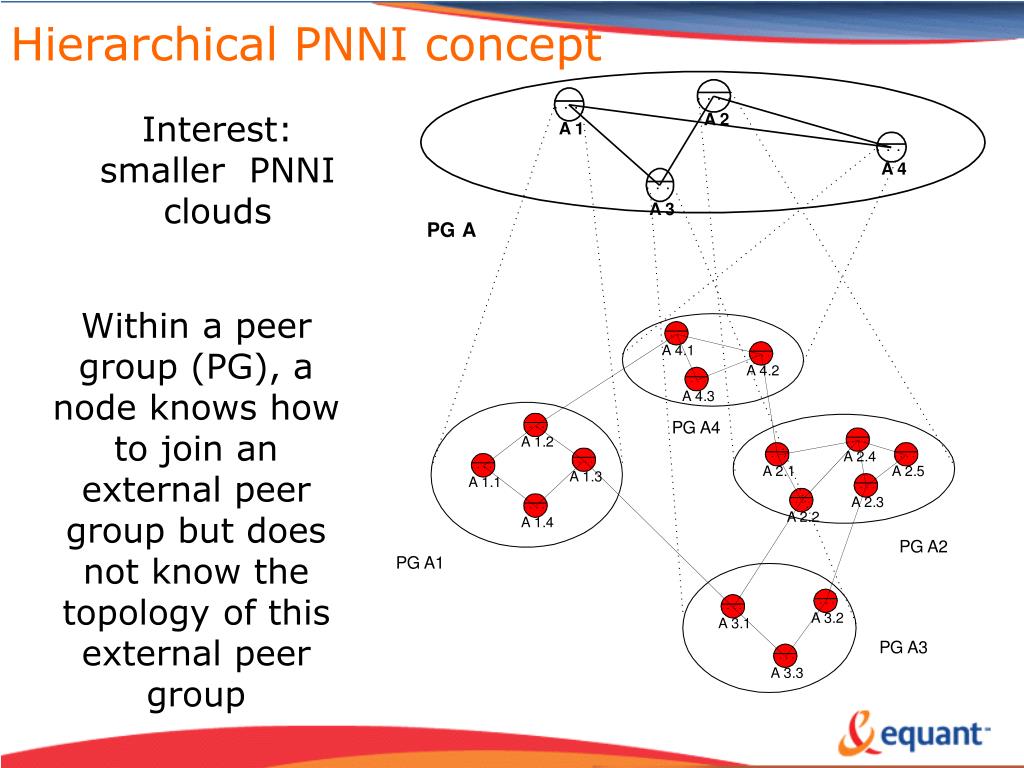

  10. Hierarchical PNNI concept Interest: smaller PNNI clouds Within a peer group (PG), a node knows how to join an external peer group but does not know the topology of this external peer group

  11. The simulator: specifications • Simulate PNNI routing • Simulate IISP routing • Simulate hierarchical PNNI routing • Simulate network’s behaviour in case of equipement failure Development tool • Delphi, based on object technology (Pascal Object language) • Easy build of graphical interfaces

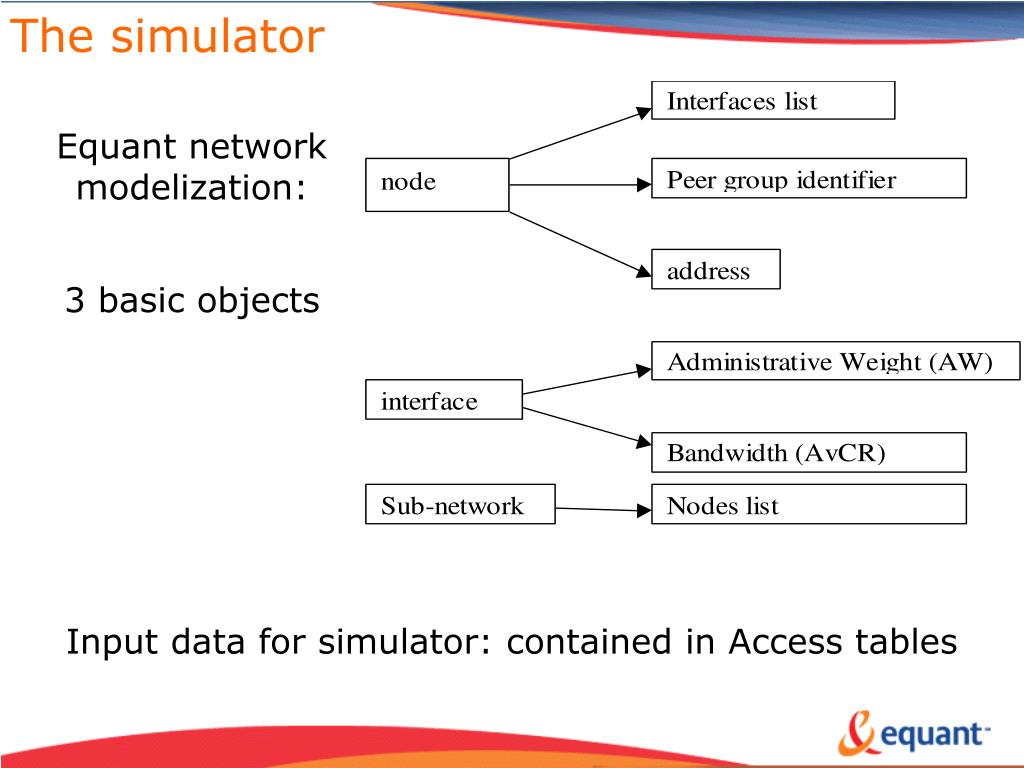

  12. The simulator Equant network modelization: 3 basic objects Input data for simulator: contained in Access tables

  13. The simulator PNNI routing • optimal path choice (minimum cost), with Dijkstra algorithm (GCAC) coded with Delphi • equipment’s failure management (Dijkstra algorithm modification) • optimization of calculation time for simulator • Bandwidth booking management (CAC) for PVC establishment  IISP routing  Hierarchical PNNI routing, extension of PNNI with peer group notion

  14. NetRoute, user interface

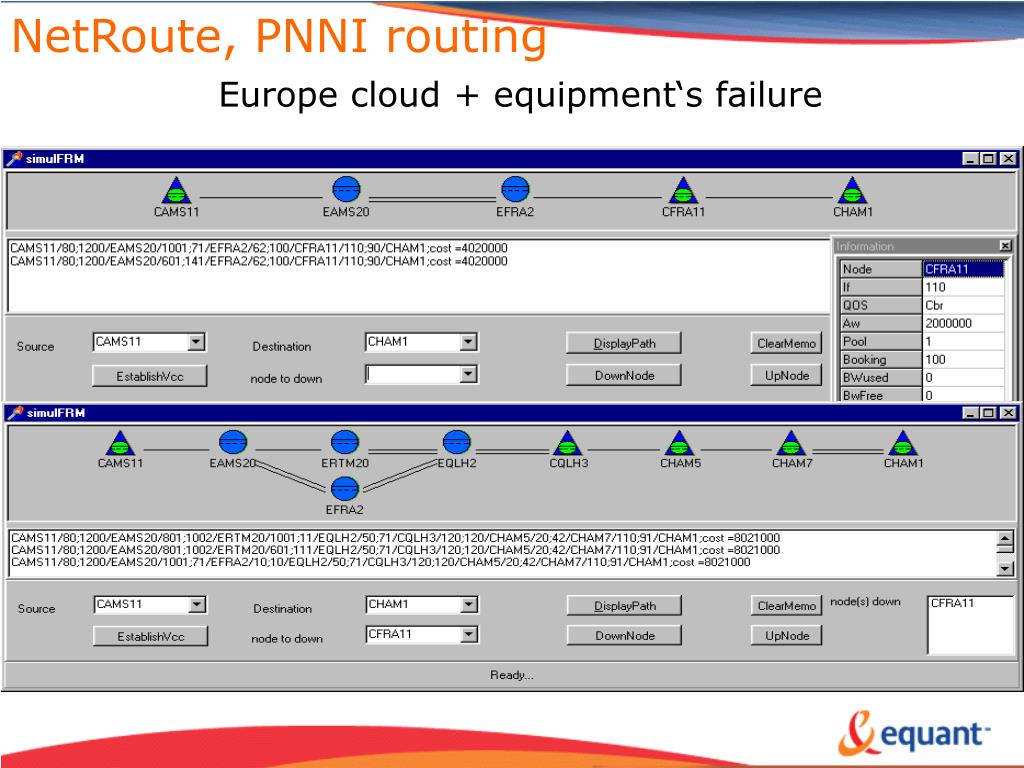

  15. NetRoute, PNNI routing Europe cloud + equipment‘s failure

  16. NetRoute, IISP routing Between Asia and Americas

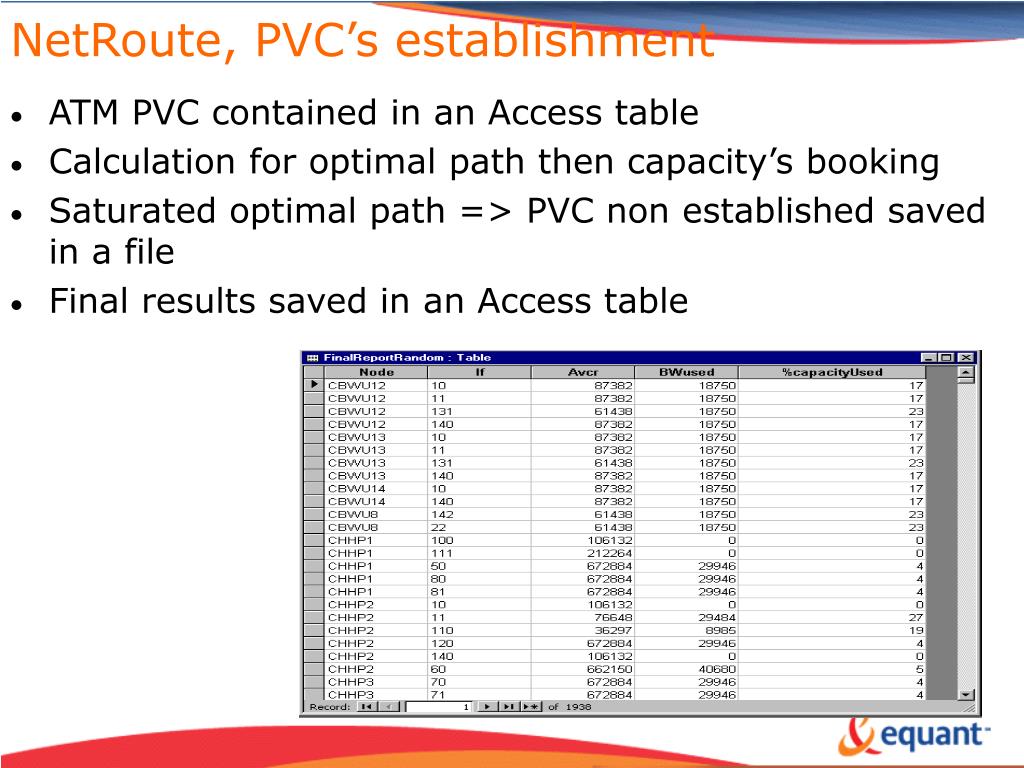

  17. NetRoute, PVC’s establishment • ATM PVC contained in an Access table • Calculation for optimal path then capacity’s booking • Saturated optimal path => PVC non established saved in a file • Final results saved in an Access table

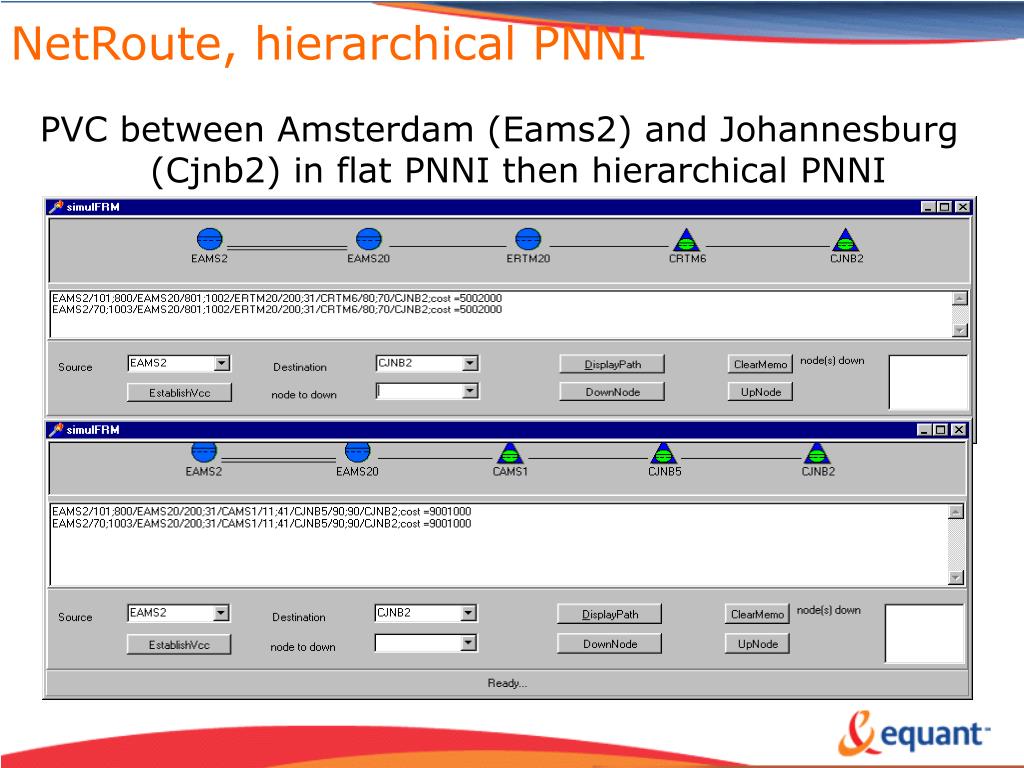

  18. NetRoute, hierarchical PNNI PVC between Amsterdam (Eams2) and Johannesburg (Cjnb2) in flat PNNI then hierarchical PNNI

  19. NetRoute, hierarchical PNNI Explanation for <> paths between Amsterdam and Johannesburg

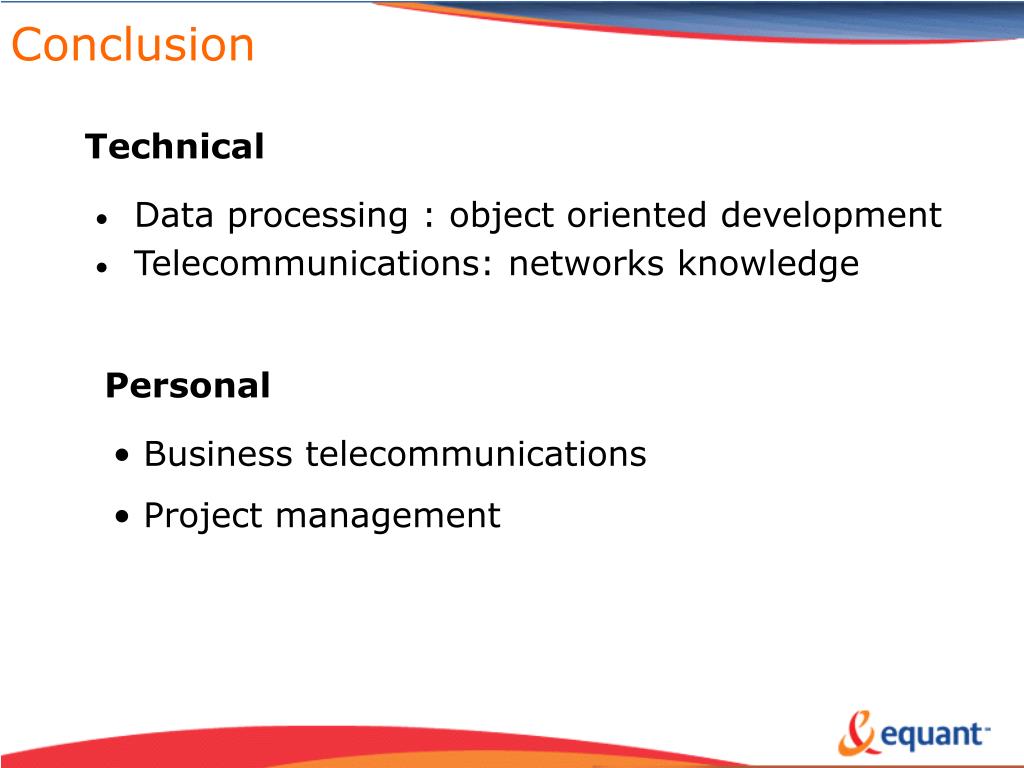

  20. Conclusion Technical • Data processing : object oriented development • Telecommunications: networks knowledge Personal • Business telecommunications • Project management
