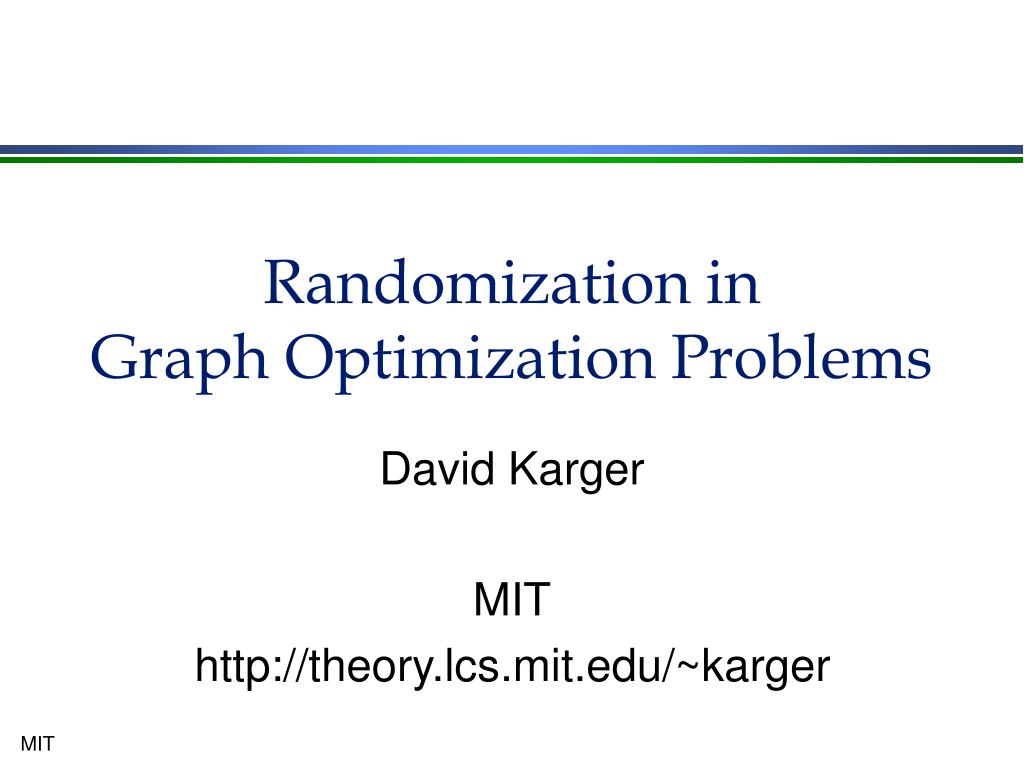

  1. Randomization in Graph Optimization Problems David Karger MIT http://theory.lcs.mit.edu/~karger

  2. Randomized Algorithms • Flip coins to decide what to do next • Avoid hard work of making “right” choice • Often faster and simpler than deterministic algorithms • Different from average-case analysis • Input is worst case • Algorithm adds randomness

  3. Methods • Random selection • if most candidate choices “good”, then a random choice is probably good • Monte Carlo simulation • simulations estimate event likelihoods • Random sampling • generate a small random subproblem • solve, extrapolate to whole problem • Randomized Rounding for approximation

  4. Cuts in Graphs • Focus on undirected graphs • A cut is a vertex partition • Value is number (or total weight) of crossing edges

  5. Optimization with Cuts • Cut values determine solution of many graph optimization problems: • min-cut / max-flow • multicommodity flow (sort-of) • bisection / separator • network reliability • network design Randomization helps solve these problems

  6. Presentation Assumption • For entire presentation, we consider unweighted graphs (all edges have weight/capacity one) • All results apply unchanged to arbitrarily weighted graphs • Integer weights = parallel edges • Rational weights scale to integers • Analysis unaffected • Some implementation details

  7. Basic Probability • Conditional probability • Pr[AÇB] = Pr[A] ×Pr[B | A] • Independent events multiply: • Pr[AÇB] = Pr[A] ×Pr[B] • Linearity of expectation: • E[X + Y] = E[X] + E[Y] • Union Bound • Pr[X ÈY] [ Pr[X] + Pr[Y]

  8. Random Selection forMinimum Cuts Random choices are good when problems are rare

  9. Minimum Cut • Smallest cut of graph • Cheapest way to separate into 2 parts • Various applications: • network reliability (small cuts are weakest) • subtour elimination constraints for TSP • separation oracle for network design • Nots-t min-cut

  10. Max-flow/Min-cut • s-t flow: edge-disjoint packing of s-t paths • s-t cut: a cut separating s and t • [FF]: s-t max-flow = s-t min-cut • max-flow saturates all s-t min-cuts • most efficient way to find s-t min-cuts • [GH]: min-cut is “all-pairs” s-t min-cut • find using n flow computations

  11. Flow Algorithms • Push-relabel [GT]: • push “excess” around graph till it’s gone • max-flow in O*(mn)(note: O* hides logs) • Recent O*(m3/2)[GR] • min-cut in O*(mn2) --- “harder” than flow • Pipelining [HO]: • save push/relabel data between flows • min-cut in O*(mn) --- “as easy” as flow

  12. Contraction • Find edge that doesn’t cross min-cut • Contract (merge) endpoints to 1 vertex

  13. Contraction Algorithm • Repeat n - 2 times: • find non-min-cut edge • contract it (keep parallel edges) • Each contraction decrements #vertices • At end, 2 vertices left • unique cut • corresponds to min-cut of starting graph

  14. Picking an Edge • Must contract non-min-cut edges • [NI]: O(m)time algorithm to pick edge • n contractions: O(mn)time for min-cut • slightly faster than flows If only could find edge faster…. Idea: min-cut edges are few

  15. Randomize Repeat until 2 vertices remain pick a random edge contract it (keep fingers crossed)

  16. Analysis I • Min-cut is small---few edges • Suppose graph has min-cut c • Then minimum degree at least c • Thus at least nc/2 edges • Random edge is probably safe Pr[min-cut edge] £c/(nc/2) = 2/n (easy generalization to capacitated case)

  17. Analysis II • Algorithm succeeds if never accidentally contracts min-cut edge • Contracts #vertices from n down to 2 • When k vertices, chance of error is 2/k • thus, chance of being right is 1-2/k • Pr[always right] is product of probabilities of being right each time

  18. Analysis III …not too good!

  19. Repetition • Repetition amplifies success probability • basic failure probability 1 - 2/n2 • so repeat 7n2 times

  20. How fast? • Easy to perform 1 trial in O(m) time • just use array of edges, no data structures • But need n2 trials: O(mn2) time • Simpler than flows, but slower

  21. An improvement [KS] • When k vertices, error probability 2/k • big when k small • Idea: once k small, change algorithm • algorithm needs to be safer • but can afford to be slower • Amplify by repetition! • Repeat base algorithm many times

  22. (50-50 chance of avoiding min-cut) Recursive Algorithm Algorithm RCA (G, n ) {G has n vertices} repeat twice randomly contract G to n/21/2 vertices RCA(G,n/21/2)

  23. Main Theorem • On any capacitated, undirected graph, Algorithm RCA • runs in O*(n2) time with simple structures • finds min-cut with probability ³ 1/log n • Thus, O(log n) repetitions suffice to find the minimum cut (failure probability 10-6) in O(n2 log2n) time.

  24. Proof Outline • Graph has O(n2)(capacitated) edges • So O(n2) work to contract, then two subproblems of size n/2½ • T(n) = 2 T(n/2½) + O(n2) = O(n2log n) • Algorithm fails if both iterations fail • Iteration succeeds if contractions and recursion succeed • P(n)=1 - [1 - ½ P(n/2½)]2 = W (1 / log n)

  25. Failure Modes • Monte Carlo algorithms always run fast and probably give you the right answer • Las Vegas algorithms probably run fast and always give you the right answer • To make a Monte Carlo algorithm Las Vegas, need a way to check answer • repeat till answer is right • No fast min-cut check known (flow slow!)

  26. How do we verify a minimum cut?

  27. Enumerating Cuts The probabilistic method, backwards

  28. Cut Counting • Original CA finds any given min-cut with probability at least 2/n(n-1) • Only one cut found • Disjoint events, so probabilities add • So at most n(n-1)/2 min-cuts • probabilities would sum to more than one • Tight • Cycle has exactly this many min-cuts

  29. Enumeration • RCA as stated has constant probability of finding any given min-cut • If run O(log n) times, probability of missing a min-cut drops to 1/n3 • But only n2 min-cuts • So, probability miss any at most 1/n • So, with probability 1-1/n, find all • O(n2 log3n) time

  30. Generalization • If G has min-cut c, cut £ac is a-mincut • Lemma: contraction algorithm finds any given a-mincut with probability W (n-2a) • Proof: just add a factor to basic analysis • Corollary: O(n2a)a-mincuts • Corollary: Can find all in O*(n2a) time • Just change contraction factor in RCA

  31. Summary • A simple fast min-cut algorithm • Random selection avoids rare problems • Generalization to near-minimum cuts • Bound on number of small cuts • Probabilistic method, backwards

  32. Network Reliability Monte Carlo estimation

  33. The Problem • Input: • Graph G with n vertices • Edge failure probabilities • For simplicity, fix a single p • Output: • FAIL(p): probability G is disconnected by edge failures

  34. Approximation Algorithms • Computing FAIL(p) is #P complete [V] • Exact algorithm seems unlikely • Approximation scheme • Given G, p, e, outputs e-approximation • May be randomized: • succeed with high probability • Fully polynomial (FPRAS) if runtime is polynomial in n, 1/e

  35. Monte Carlo Simulation • Flip a coin for each edge, test graph • k failures in t trials ÞFAIL(p) »k/t • E[k/t]= FAIL(p) • How many trials needed for confidence? • “bad luck” on trials can yield bad estimate • clearly need at least 1/FAIL(p) • Chernoff bound:O*(1/e2FAIL(p)) suffice to give probable accuracy within e • Time O*(m/e2FAIL(p))

  36. Chernoff Bound • Random variables Xi` [0,1] • Sum X = å Xi • Bound deviation from expectation Pr[ |X-E[X]|me E[X] ] < exp(-e2E[X]/4) • If E[X] m 4(log n)/e2, “tight concentration” • Deviation by eprobability < 1 / n • No one variable is a big part of E[X]

  37. Application • Let Xi=1 if trial i is a failure, else 0 • Let X = X1 + … + Xt • Then E[X] = t FAIL(p) • Chernoff says X within relative e of E[X] with probability 1-exp(e2 t FAIL(p)/4) • So choose t to cancel other terms • “High probability” t =O(log n / e2FAIL(p)) • Deviation by eprobability < 1 / n

  38. Review • Contraction Algorithm • O(n2a)a-mincuts • Enumerate in O*(n2a) time

  39. Network reliability problem • Random edge failures • Estimate FAIL(p) = Pr[graph disconnects] • Naïve Monte Carlo simulation • Chernoff bound---“tight concentration” Pr[ |X-E[X]|me E[X] ] < exp(-e2E[X]/4) • O(log n /e2FAIL(p)) trials expect O(log n /e2) network failures---good for Chernoff • So estimate within e in O*(m/e2FAIL(p)) time

  40. Rare Events • When FAIL(p) too small, takes too long to collect sufficient statistics • Solution: skew trials to make interesting event more likely • But in a way that let’s you recover original probability

  41. DNF Counting • Given DNF formula (OR of ANDs) (e1Ùe2Ùe3) Ú (e1Ù e4) Ú (e2Ùe6) • Each variable set true with probability p • Estimate Pr[formula true] • #P-complete • [KL, KLM] FPRAS • Skew to make true outcomes “common” • Time linear in formula size

  42. Rewrite problem • Assume p=1/2 • Count satisfying assignments • “Satisfaction matrix • Sij=1 if ith assignment satisfies jth clause • We want number of nonzero rows • Randomly sampling rows won’t work • Might be too few nonzeros

  43. New sample space • So normalize every nonzero row to sum to one (divide by number of nonzeros) • Now sum of nonzeros is desired value • So sufficient to estimate average nonzero

  44. Sampling Nonzeros • We know number of nonzeros/column • If satisfy given clause, all variables in clause must be true • All other variables unconstrained • Estimate average by random sampling • Know number of nonzeros/column • So can pick random column • Then pick random true-for-column assignment

  45. Few Samples Needed • Suppose k clauses • Then E[sample] > 1/k • 1£ satisfied clauses £k • 1³ sample value ³1/k • Adding O(k log n /e2) samples gives “large” mean • So Chernoff says sample mean is probably good estimate

  46. Reliability Connection • Reliability as DNF counting: • Variable per edge, true if edge fails • Cut fails if all edges do (AND of edge vars) • Graph fails if some cut does (OR of cuts) • FAIL(p)=Pr[formula true] Problem: the DNF has 2n clauses

  47. Focus on Small Cuts • Fact: FAIL(p) > pc • Theorem: if pc=1/n(2+d) thenPr[>a-mincut fails]< n-ad • Corollary: FAIL(p) » Pr[£ a-mincut fails], where a=1+2/d • Recall: O(n2a)a-mincuts • Enumerate with RCA, run DNF counting

  48. Proof of Theorem • Given pc=1/n(2+d) • At most n2acuts have value ac • Each fails with probability pac=1/na(2+d) • Pr[any cut of value ac fails] = O(n-ad) • Sum over alla > 1

  49. Algorithm • RCA can enumerate all a-minimum cuts with high probability in O(n2a)time. • Given a-minimum cuts, can e-estimate probability one fails via Monte Carlo simulation for DNF-counting (formula size O(n2a)) • Corollary: when FAIL(p)< n-(2+d), can e-approximate it in O (cn2+4/d) time
