  1. DAQ Software for Mini-2 Kenneth Johns, Charlie Armijo, Bill Hart, Karen Palmer, Sarah Jones, Kayla Niu, Jonathan Snavely, Dan Tompkins University of Arizona

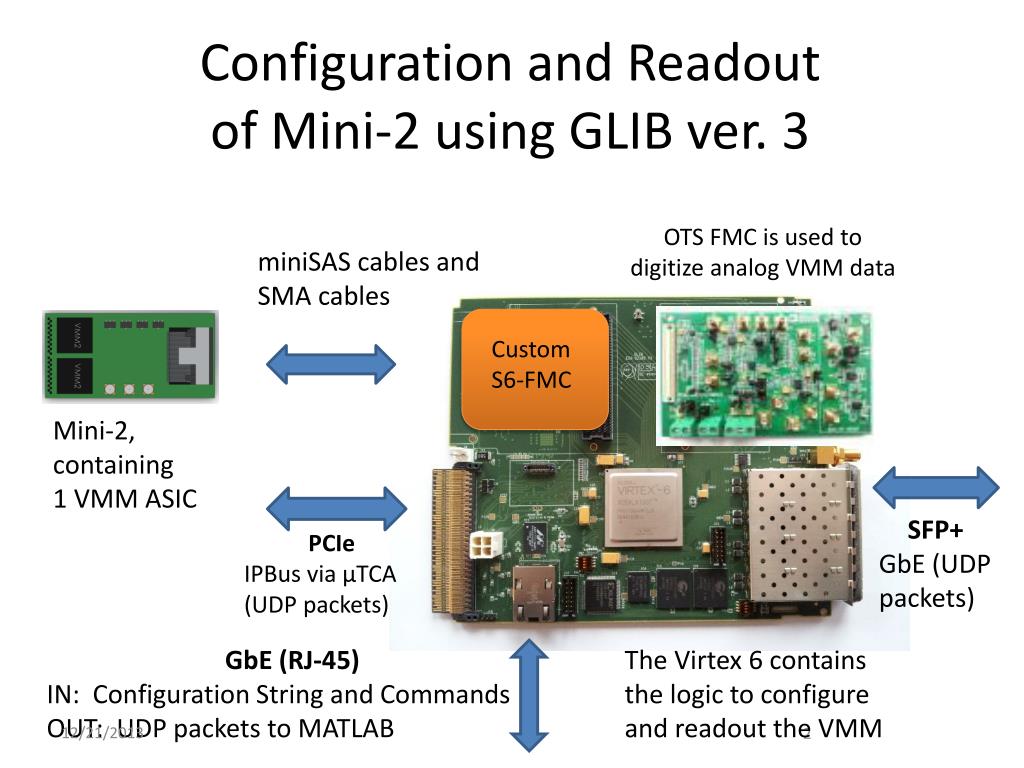

  2. Configuration and Readoutof Mini-2 using GLIB ver. 3 OTS FMC is used to digitize analog VMM data miniSAScables and SMA cables Custom S6-FMC Mini-2, containing 1 VMM ASIC SFP+ GbE (UDP packets) PCIe IPBus via μTCA (UDP packets) The Virtex 6 contains the logic to configure and readout the VMM GbE (RJ-45) IN: Configuration String and Commands OUT: UDP packets to MATLAB

  3. DAQ Software for Mini-2 • IPBus1.3 • Works as fabric for GLIB v3 Firmware System Core – Wishbone • No overall IPBus packet header • Works with PyChips which is no longer supported • UDP • Low overhead • Easy to build client/server in software • Packets can be received out of order and/or lost • Use firmware to build UDP packets or use Microblaze • Matlab • Works well with UDP packets • Easy to set up Runnable Histograms

  4. DAQ Software for Mini-2 • Configuration is via Python GTK gui using PyChips. • Transactions with registers via IPBus/Wishbone bridge

  5. GLIB ver. 3 Firmware Architecture With IPBus 1.3 and PyChips

  6. DAQ Software for Mini-2 • IPBus2.xA Better UDP protocol • Combined Firmware and Software • Uses UDP w/ IPBus 32bit header* • Packet numbering, etc. • Better than UDP alone with less overhead than TCP • Requires RARP (Reverse Address Resolution Protocol) • Software updates are automatically downloaded • Requires a non-trivial rebuild of the GLIB v.3 Firmware System Core • Firmware examples for other Xilinx boards exist • Appears to be the future for ATLAS

  7. DAQ Software for Mini-2 IPBus Packet Header IPBus Packet Type Transaction Header

  8. IPBus 2.x GLIB Virtex 6 Pinout (.ucf) NET gt_clkp LOC=M6 | DIFF_TERM=TRUE | TNM_NET=gtpclk; NET gt_clkn LOC=M5 | DIFF_TERM=TRUE; -- MGTREFCLK1, Bank 115 -- LVDS CLK INST eth/*/gtxe1_i LOC=GTXE1_X0Y9; -- V1, V2, W3, W4 -- PCIe pins, Bank 114 NET leds<0> LOC=AF31 | IOSTANDARD=LVCMOS25; -- on NET leds<1> LOC=AB25 | IOSTANDARD=LVCMOS25; -- heartbeat NET leds<2> LOC=AC25 | IOSTANDARD=LVCMOS25; -- off # interface between FPGA and CPLD NET "v6_cpld[0]" LOC = AE32 ; # IO_L14N_VREF_13 NET "v6_cpld[1]" LOC = AB27 ; # IO_L15P_13 NET "v6_cpld[2]" LOC = AC27 ; # IO_L15N_13 NET "v6_cpld[3]" LOC = AG33 ; # IO_L16P_13 NET "v6_cpld[4]" LOC = AG32 ; # IO_L16N_13 NET "v6_cpld[5]" LOC = AA26 ; # IO_L17P_13

  9. GLIB ver. 3 Firmware Architecture With IPBus 1.3 and PyChips With IPBus 2.x 12/21/2013 9

  10. DAQ Software for Mini-2 • One can use Xilinx V7 or K7 boards in place of the GLIB (Virtex 6) • Output data are UDP packets over GbE • Readout software options • MATLAB (AZ) • QT (G. Iakovidis/NTUA) • LabVIEW (BNL?)

  11. Questions?
