2. Products • Capacity Simulation • Utilize stochastic, discrete event simulation to determine the capacity of a facility. • Investigate product mix, machine setups, policies, staffing and their effect on cycle times, WIP, and throughput • Work Flow Scheduling • Starting with the current state of the factory, provide detailed schedules with which to control material movement over the next 1 to 48 hours • Production Planning • Starting with current factory or enterprise state, analyze the capability to meet demands over period of interest • Utilize backward scheduling of backlog, safety stock, and forecasted demands to determine anticipated ship dates, required start dates • Mapping finished goods and WIP to orders and identify shortages and constraints

3. The Simulation Model Alternatives • Programming the Simulation “From Scratch” • General High Level Language [PASCAL, FORTRAN, C] or Simulation Language [SIMAN,SLAM-II] • Control over Program Logic • ManSim Simulation Software • No programming • Menu-driven, user friendly • Little training required • Easy to maintain • Designed specifically for semiconductor/high tech industry

4. Why Simulate? • Most effective way to develop strategies for reducing cycle time, increasing output, and meeting on-time delivery • Cheaper and faster than monitoring history • Excellent learning tool • What is my capacity and where are the factory bottlenecks? • What will happen with a different product mix? • What will happen to lead-times when we change production facilities? • How can I plan output and equipment needs during a ramp? • Only planning methodology capable of providing feasible capacity loadings and work flow schedules in complex manufacturing environments

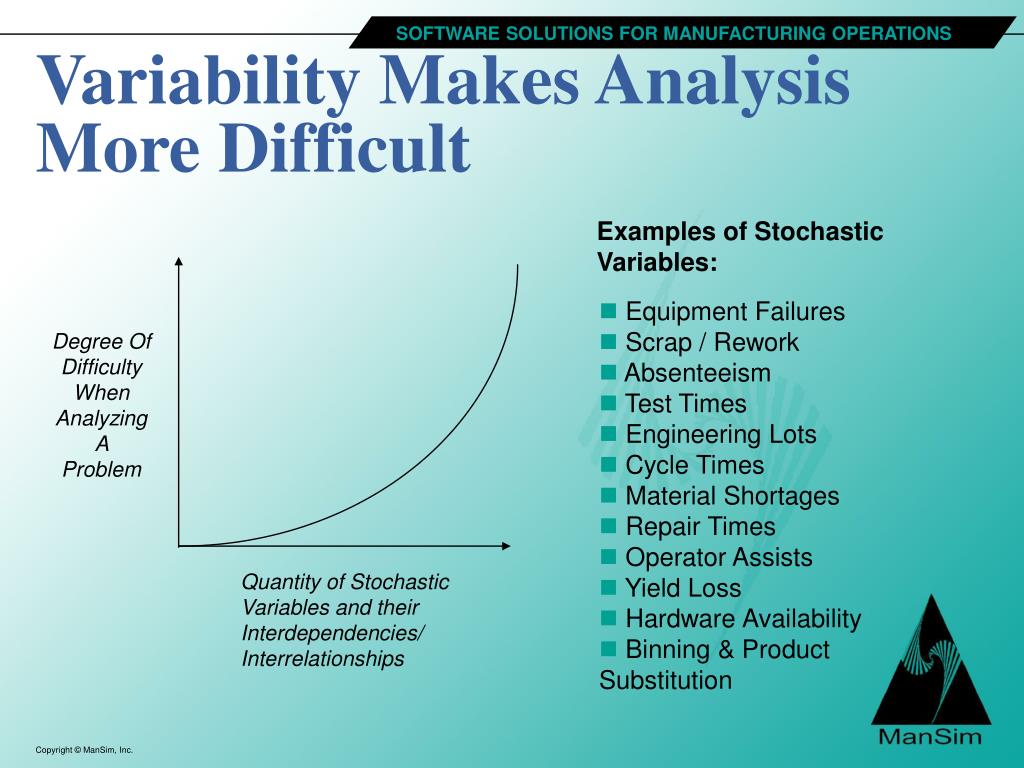

5. Variability Makes Analysis More Difficult Examples of Stochastic Variables: • Equipment Failures • Scrap / Rework • Absenteeism • Test Times • Engineering Lots • Cycle Times • Material Shortages • Repair Times • Operator Assists • Yield Loss • Hardware Availability • Binning & Product Substitution Degree Of Difficulty When Analyzing A Problem Quantity of Stochastic Variables and their Interdependencies/ Interrelationships

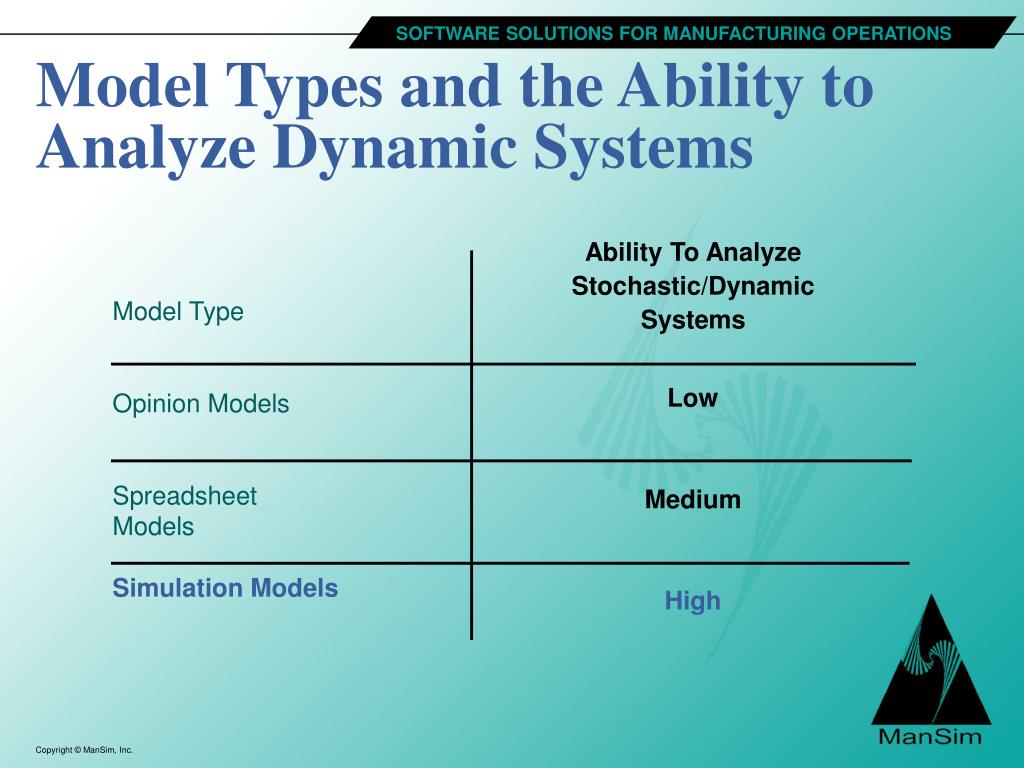

6. Model Types and the Ability to Analyze Dynamic Systems Model Type Opinion Models Spreadsheet Models Simulation Models Ability To Analyze Stochastic/Dynamic Systems Low Medium High

7. Static Models vs. Simulation • Static Models overstate capacity and understate cycle time which can lead to shortages of equipment, high inventories and late shipments • Static models are inadequate to model the coordinated use of multiple resources • Simulation models calculate • Capacity • WIP • Cycle Time All of which take into account the interaction between lots, machines and people.

8. What is a Discrete Event? • A Discrete Eventis an instantaneous action that occurs at a unique point in time. The occurrences of these events may cause the status of one or more resources to change. Such events are: • part arrivals • end of machine cycle • equipment failures • preventive maintenance (PM) • equipment repairs, etc. • operator available • A discrete event simulator is constantly generating and processing events.

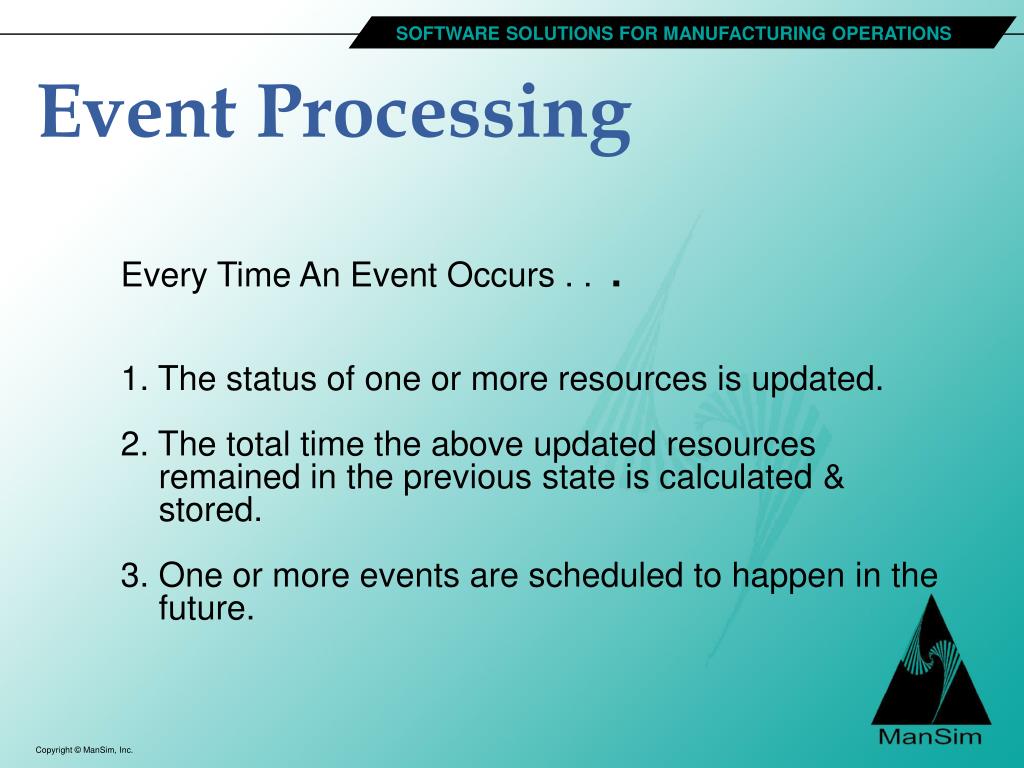

9. Every Time An Event Occurs . . . 1. The status of one or more resources is updated.2. The total time the above updated resources remained in the previous state is calculated & stored.3. One or more events are scheduled to happen in the future. Event Processing

10. Operator Inputs: Recipe & Skills • Products in Q • Selection Rule Load Unload Process 1 2 • Type 1 • Min • UPH • Type 2 • Min. • Min. • Min. or 3 4 • Minutes • Type N • Min. 5 6 Work Station Simulation Clock: Event 3 Event 2 Event 4 Event 1 Simulation Logic: Update Select Prod 3 Reports Based on Priority Add Add Add Add 5 min. 5 min. 45 min. 5 min. Start Next 5 Products in Q Product • Average Times for Each Step and Q (Cycle Time) • Total of 1 Unit/Hour Throughput (Actual Capacity) • Q Size (Size of Overall Capacity Constraint) • Time to Completion or Time to Start (Schedule) • Utilization of Equipment and Operator (% Busy, Idle, Down) • Number of Products in Process (WIP) How Discrete Event Simulation Works How ManSim, TestSim Works (Multiply Times X Work Stations for a Factory Simulation) Next Work Station Outputs:

11. ManSim – InputsFactory Data Model Definitions WORK AREAS • Number of operators by shift • Operator skill levels • Number of maintenance personnel by shift • Maintenance skill levels • Personnel Breaks • Operator Costs • Maintenance Costs WORK STATIONS • Workstation type: Batch, Serial, Part Sequential, Cluster, Tester, Handler/Prober, Burn-in oven, General purpose, Subcontractor • Assigned work areas • Rules Equipment Loading Setup • Max Queue Size/ JIT • Time required to load equipment • Time required to unload equipment • Preventive maintenance schedules • Load tools • Consumables PRODUCTS • Process used • Constant or variable lot size • Starts Constant rate Starts by planning period Demand by planning period Lot starts file Starts by day and time • Product type • Maximum allowable lots in factory • Priority class • Due date calculation factor • Initial WIP by process step • Process time by step • Hardware requirement by step PROCESS • Sequence of steps • Step definitions: Workstation Processing time Rework Percent Rework steps Yield loss Lot Scraps • Define equipment for step • Equipment Groups • Sub processes • Alternate Processing EQUIPMENT SPECIFIC DEFINITIONS • Mean time between failures • Mean time to repair • Load size in lots or parts • Process capacity in parts per hour • Capacity by product • Setup time for specification change • Initial equipment status condition • Engineering shutdowns

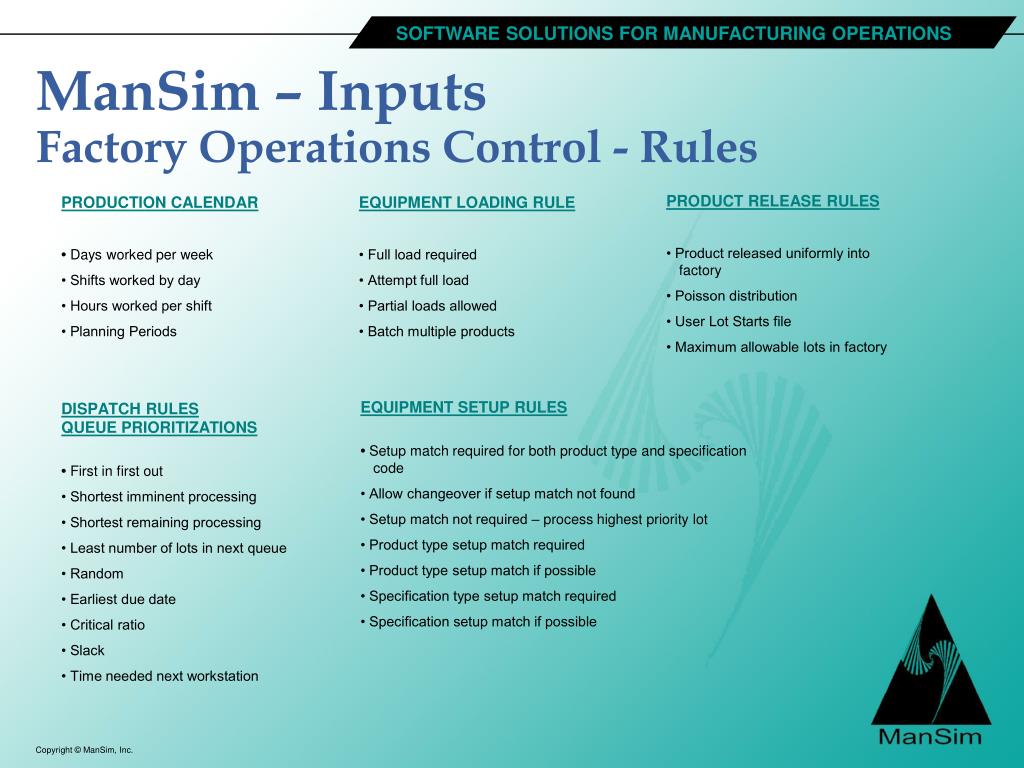

12. ManSim – InputsFactory Operations Control - Rules PRODUCT RELEASE RULES • Product released uniformly into factory • Poisson distribution • User Lot Starts file • Maximum allowable lots in factory PRODUCTION CALENDAR • Days worked per week • Shifts worked by day • Hours worked per shift • Planning Periods EQUIPMENT LOADING RULE • Full load required • Attempt full load • Partial loads allowed • Batch multiple products EQUIPMENT SETUP RULES • Setup match required for both product type and specification code • Allow changeover if setup match not found • Setup match not required – process highest priority lot • Product type setup match required • Product type setup match if possible • Specification type setup match required • Specification setup match if possible DISPATCH RULESQUEUE PRIORITIZATIONS • First in first out • Shortest imminent processing • Shortest remaining processing • Least number of lots in next queue • Random • Earliest due date • Critical ratio • Slack • Time needed next workstation

13. ManSim – InputsFactory Operations Control - Variation STOCHASTIC CAPABILITIES • MTBF/MTTR • MTBA/MTTA (A is Operator Assist) • PARTS PER HOUR • PROCESS TIME • PROCESS DELAY • YIELD • REWORK (% LOTS, %PARTS/LOT) • SCRAP • PM DURATION • LOT SIZE • SETUP TIME (BY TYPE) • SETUP TIME (BY PRODUCT SPEC) • EQUIPMENT PERCENT UP • TRANSPORT TIMES • PERSONNEL ABSENCE STOCHASTIC CAPABILITIES • EQUIPMENT PARAMETERS BY PRODUCT PARTS PER HOUR SETUP MTBA/MTTA • PRODUCT REVENUE/PART COST/PART % HOT LOTS VARIATION DURING SIMULATION TIME PERIODS • YIELD • REWORK • SCRAP • PARTS PER HOUR • PROCESS TIME

14. ManSim – Outputs OPERATIONS • Average daily moves in lots and parts • Average WIP in lots and parts • Maximum WIP in lots and parts • WIP at end of each production period PRODUCTS • Throughput in parts per week • Calendar and production cycle times • Cycle time range/standard deviation • Throughput and cycle time by period • Parts out by planning period • WIP at end of planning periods • Average daily moves in lots and parts • Average WIP in lots and parts • Maximum WIP in lots and parts PROCESS • Cycle time by recipe step • Queue/delay times • Cumulative yield WORKSTATIONS • Throughput in parts per week • Throughput and utilization by period • Average load size • Average queue size • Maximum queue size • Throughput and utilization by product by period EQUIPMENT • Percentage of time busy • Percentage of time in setup • Percentage of time idle • Percentage of time down

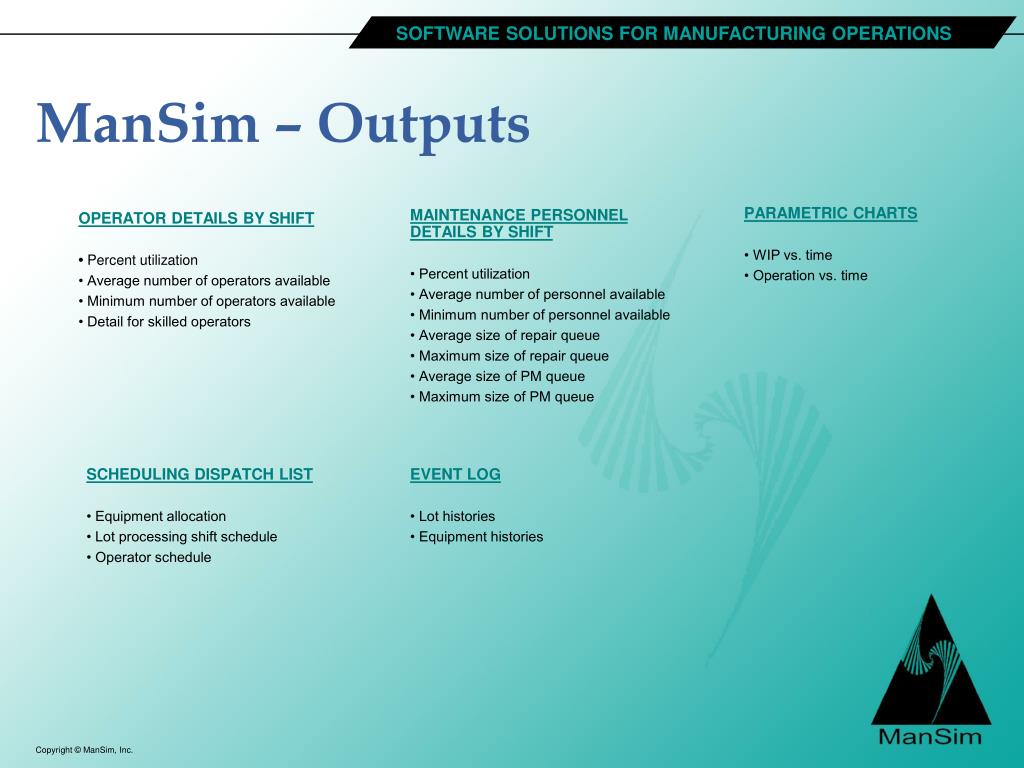

15. ManSim – Outputs PARAMETRIC CHARTS • WIP vs. time • Operation vs. time MAINTENANCE PERSONNELDETAILS BY SHIFT • Percent utilization • Average number of personnel available • Minimum number of personnel available • Average size of repair queue • Maximum size of repair queue • Average size of PM queue • Maximum size of PM queue OPERATOR DETAILS BY SHIFT • Percent utilization • Average number of operators available • Minimum number of operators available • Detail for skilled operators SCHEDULING DISPATCH LIST • Equipment allocation • Lot processing shift schedule • Operator schedule EVENT LOG • Lot histories • Equipment histories

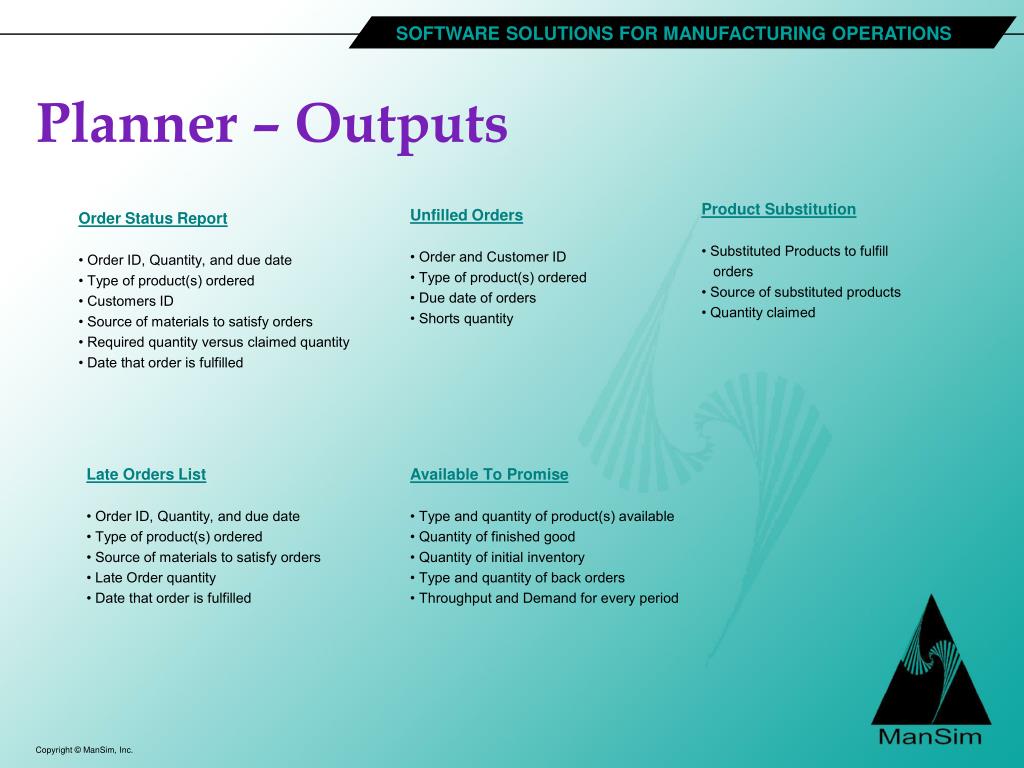

16. Planner – Outputs Product Substitution • Substituted Products to fulfill orders • Source of substituted products • Quantity claimed Unfilled Orders • Order and Customer ID • Type of product(s) ordered • Due date of orders • Shorts quantity Order Status Report • Order ID, Quantity, and due date • Type of product(s) ordered • Customers ID • Source of materials to satisfy orders • Required quantity versus claimed quantity • Date that order is fulfilled Late Orders List • Order ID, Quantity, and due date • Type of product(s) ordered • Source of materials to satisfy orders • Late Order quantity • Date that order is fulfilled Available To Promise • Type and quantity of product(s) available • Quantity of finished good • Quantity of initial inventory • Type and quantity of back orders • Throughput and Demand for every period
