1 / 93

CalNex Forecast

CalNex Forecast. Prepared  Sunday 27 June 2010. Anticipated Flights. NOAA Twin Otter Sun:   two flights Mon:  potentially one flight?  Tue:   transit to LA Wed:  Mexico flight CARES DOE G-1 and NASA B200 Sun:    AM/PM flights likely Mon:   AM/PM flights likely

haley
Télécharger la présentation

CalNex Forecast

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

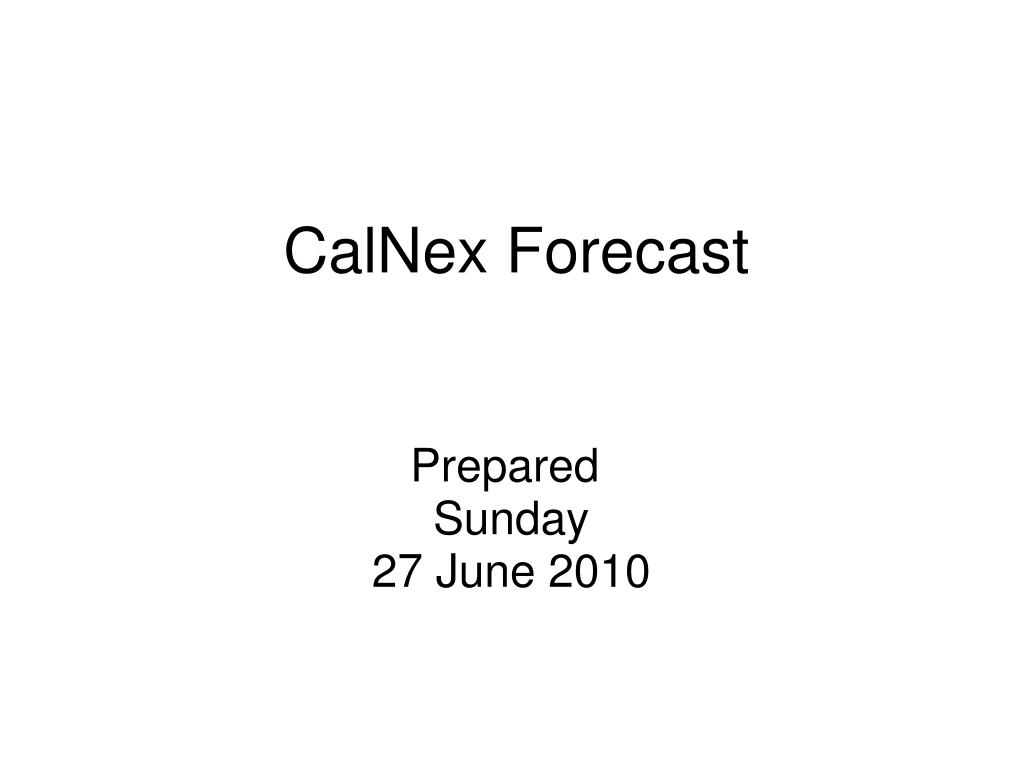

  1. CalNex Forecast Prepared  Sunday27 June 2010

  2. Anticipated Flights NOAA Twin Otter Sun:   two flights Mon:  potentially one flight?  Tue:   transit to LA Wed:  Mexico flight CARES DOE G-1 and NASA B200 Sun:    AM/PM flights likely Mon:   AM/PM flights likely Tue:    MISSION ACCOMPLISHED

  3. Local Features - Sac area focus Sunday - synoptic flow weakens significantly, terrain driven flow with light W delta inflow coupled with upslope flow; pollutant concentrations build (Unhealthy for Sensitive Groups forecast); CANSAC appears better solution than COAMPS today; weak flow to east in Sac (downtown to T0 flow doubtful; urban flow toward T1 with long transport time) but bulk of urban flow south of T1; winds <5 kts. Monday - high pressure ridge lingering - primarily terrain driven flow; light NW to W wind coupled with upslope flow in foothills; no or limited Delta inflow; with light winds, Sac air flows south of T1; USG air quality likely. Tuesday - smoke possible from prescribed burns in Yosemite and Sequoia National Parks.

  4. Synoptic Overview NOTE:  FORECAST NOT UPDATED FROM SATURDAY'S CALL (only change is that ridge slower to break down and Monday will be similar to Sunday)  Sunday June 27 • High Pressure peaks • Light and variable flow • Onshore gradient weakens Monday June 28  • High Pressure breaks down as Trof approaches • Transport flow SW north, Southerly south • Marine layer deepens in the north • Light and variable flow S.CA Tue – Thurs • Tue:   Deep Trof approaches, SW flow throughout • Wed:  Trof axis over N.CA late aftn-eve, SW flow, deeper marine layer • Thurs: Trof axis over Ca, W-NW flow in N.CA, W-SW in S.CA

  5. GFS and ECMWF Updated Sunday, June 27, 2010

  6. Analysis GFS – 00 Z Sunday – Sat 17 PDT

  7. 12 hour GFS – 12 Z Sunday – 05 PDT

  8. 24 hour GFS – 00 Z Monday – Sun 17 PDT

  9. 36 hour GFS – 12 Z Monday – 05 PDT

  10. 48 hour GFS – 00 Z Tuesday – Mon 17 PDT

  11. 60 hour GFS – 12 Z Tuesday – 05 PDT

  12. GFS 3 day – 00 Z Wednesday – Tue 17 PDT

  13. ECMWF 3 day – 00 Z Wednesday – Tue 17 PDT

  14. 3.5 day GFS – 12 Z Wednesday – 05 PDT

  15. 4 day GFS – 00 Z Thursday – Wed 17 PDT

  16. 4 day ECMWF – 00 Z Thursday – Wed 17 PDT

  17. 5 day GFS – 00 Z Friday – Thu 17 PDT

  18. 5 day ECMWF – 00 Z Friday – Thu 17 PDT

  19. 1430 UTC

  20. Large Scale Transport RAQMS FX updated Sunday, June 27

  21. Large Scale Transport focus on Sacramento area 500m RDF FX 00Z 06/27 (Sun Afternoon) Clean air wrt transport over area (low levels of BC_OC, SO4, PM2.5, CO and O3). Moderate (5-10ppbv/day) background O3 P-L. Minimal vertical displacement of air (descent near coast). 500m RDF FX 00Z 06/28 (Mon Afternoon) Clean air wrt transport over area (clean to low levels of BC_OC, SO4, PM2.5, CO and O3). Low (0-5ppbv/day) background O3 P-L. Strong descent of air. focus on San Joaquin Valley500m RDF FX 00Z 06/29 (Tue Afternoon) Generally clean air wrt transport over area (clean to low levels of BC_OC, SO4, PM2.5, CO); O3, BC_OC, and SO4 slightly higher in Kern County). Low (0-5ppbv/day) background O3 P-L. Moderate descent of air; more descent in southern portion of valley. focus on Mexico500m RDF FX 00Z 06/30 (Wed Afternoon) Generally clean air wrt transport over area (clean to low levels of BC_OC, SO4, PM2.5, CO); Note: SO4 very high to SW and E of northern Mexico; moderate O3 levels. Low (0-5ppbv/day) background O3 P-L. Minimal vertical displacement of air.

  22. 500m Black and Organic C - Sunday afternoon

  23. 500m PM2.5 - Sunday afternoon

  24. 500m CO - Sunday afternoon

  25. 500m O3 - Sunday afternoon

  26. 500m O3 Prod-Loss - Sunday afternoon

  27. 500m Vertical Displacement - Sunday afternoon

  28. 500m Black and Organic C - Monday afternoon

  29. 500m PM2.5 - Monday afternoon

  30. 500m CO - Monday afternoon

  31. 500m O3 - Monday afternoon

  32. 500m O3 Prod-Loss - Monday afternoon

  33. 500m Vertical Displacement - Monday afternoon

  34. 500m Black and Organic C - Tuesday afternoon

  35. 500m PM2.5 - Tuesday afternoon

  36. 500m CO - Tuesday afternoon

  37. 500m O3 - Tuesday afternoon

  38. 500m O3 Prod-Loss - Tuesday afternoon

  39. 500m Vertical Displacement - Tuesday afternoon

  40. 500m Black and Organic C - Wednesday afternoon

  41. 500m PM2.5 - Wednesday afternoon

  42. 500m CO - Wednesday afternoon

  43. 500m O3 - Wednesday afternoon

  44. 500m O3 Prod-Loss - Wednesday afternoon

  45. 500m Vertical Displacement - Wednesday afternoon

  46. Sulphate Large Scale Transport

  47. 500m SO4 - Sunday afternoon

  48. 500m SO4 - Monday afternoon

  49. 500m SO4 - Tuesday afternoon

  50. 500m SO4 - Wednesday afternoon
