  1. INSULATION TESTER CALIBRATIONUsing the 3200 Electrical Test Calibrator

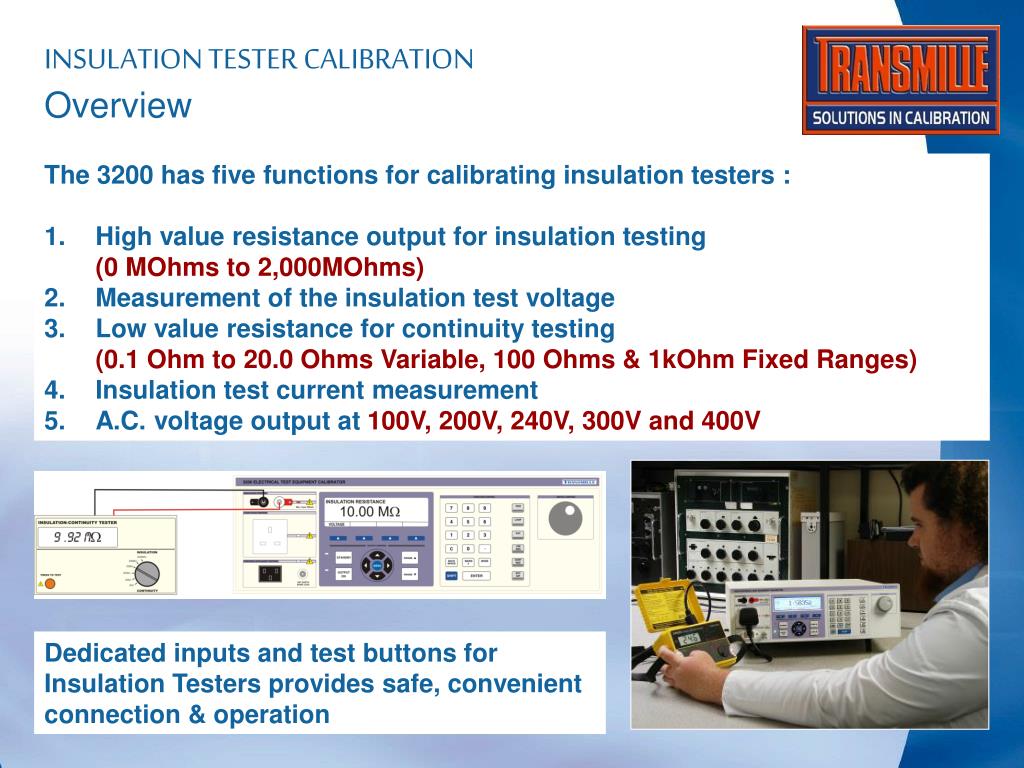

  2. INSULATION TESTER CALIBRATIONOverview • The 3200 has five functions for calibrating insulation testers : • High value resistance output for insulation testing • (0 MOhms to 2,000MOhms) • 2. Measurement of the insulation test voltage • 3. Low value resistance for continuity testing • (0.1 Ohm to 20.0 Ohms Variable, 100 Ohms & 1kOhm Fixed Ranges) • 4. Insulation test current measurement • 5. A.C. voltage output at 100V, 200V, 240V, 300V and 400V Dedicated inputs and test buttons for Insulation Testers provides safe, convenient connection & operation

  3. INSULATION TESTER CALIBRATIONContinuity Resistance • CONNECT TESTER TO INSULATION TESTER TERMINALS • SET CONTINUITY RANGE ON TESTER • SET CONTINUITY RESISTANCE ON • 3200, EG. 1 OHM • MEASURE RESISTANCE USING TESTER

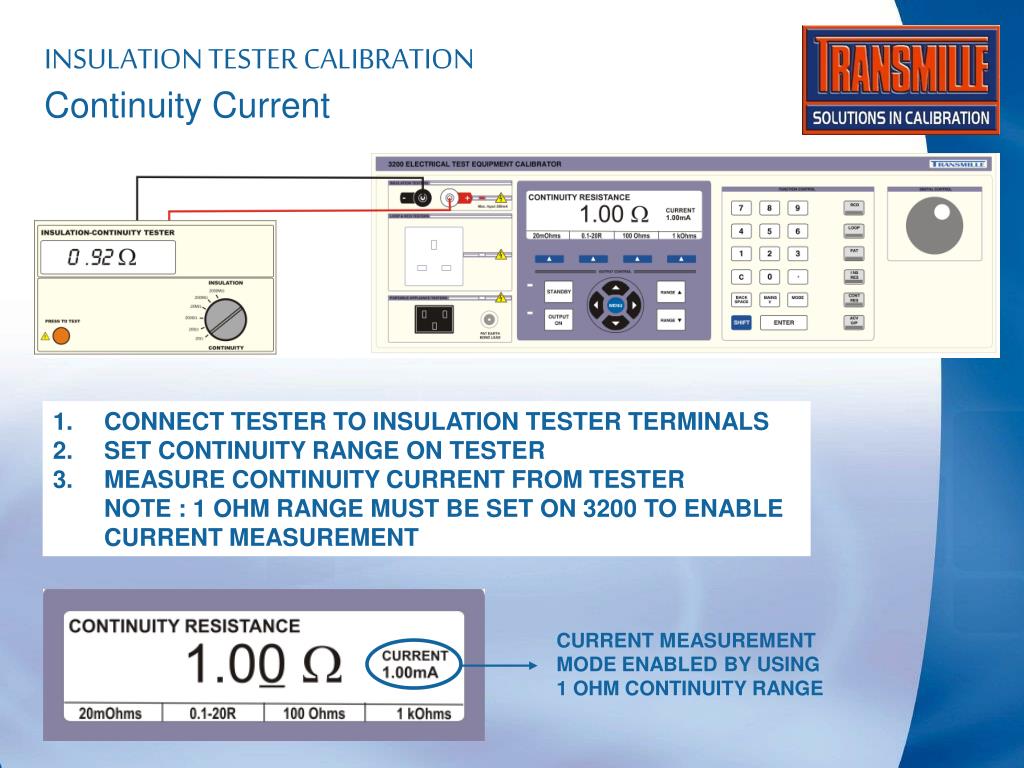

  4. INSULATION TESTER CALIBRATIONContinuity Current • CONNECT TESTER TO INSULATION TESTER TERMINALS • SET CONTINUITY RANGE ON TESTER • MEASURE CONTINUITY CURRENT FROM TESTER • NOTE : 1 OHM RANGE MUST BE SET ON 3200 TO ENABLE • CURRENT MEASUREMENT CURRENT MEASUREMENT MODE ENABLED BY USING 1 OHM CONTINUITY RANGE

  5. INSULATION TESTER CALIBRATIONInsulation Resistance • CONNECT TESTER TO INSULATION TESTER TERMINALS • SET INSULATION RANGE ON TESTER • SET INSULATION RESISTANCE ON 3200, EG. 10 MOHM • MEASURE RESISTANCE USING TESTER

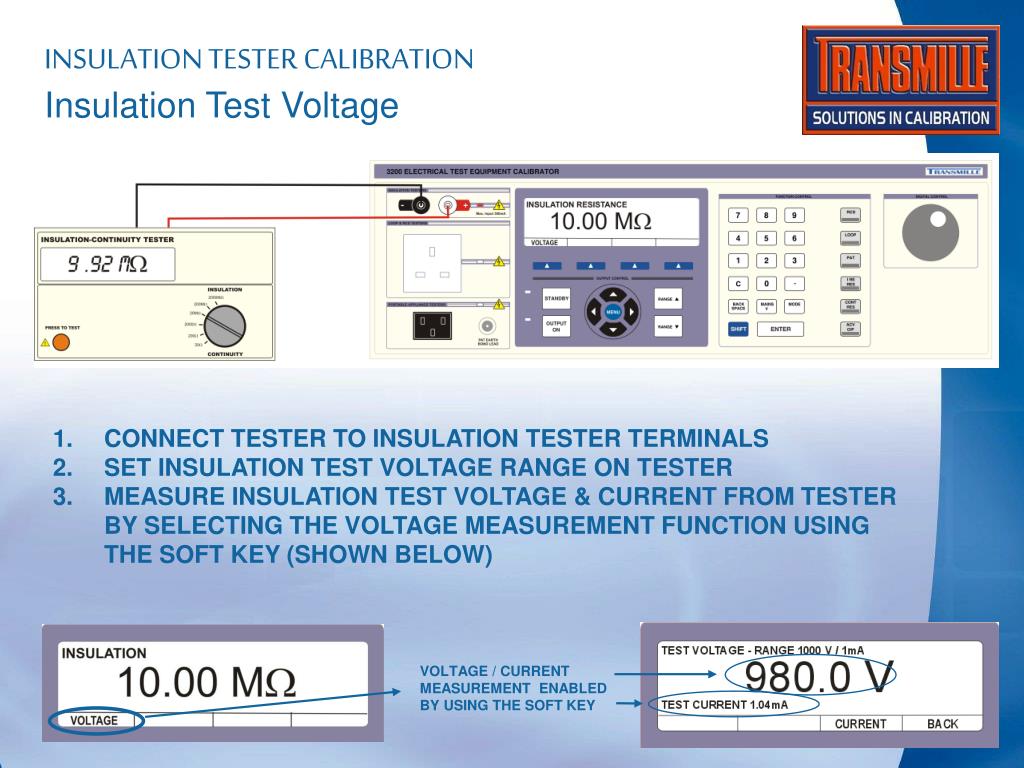

  6. INSULATION TESTER CALIBRATIONInsulation Test Voltage • CONNECT TESTER TO INSULATION TESTER TERMINALS • SET INSULATION TEST VOLTAGE RANGE ON TESTER • MEASURE INSULATION TEST VOLTAGE & CURRENT FROM TESTER • BY SELECTING THE VOLTAGE MEASUREMENT FUNCTION USING • THE SOFT KEY (SHOWN BELOW) VOLTAGE / CURRENT MEASUREMENT ENABLED BY USING THE SOFT KEY
