  1. Dynamic Light Scattering

  2. Outline • Measurement system • Autocorrelation functions • Coulter N4Plus

  3. DLS Measurement System

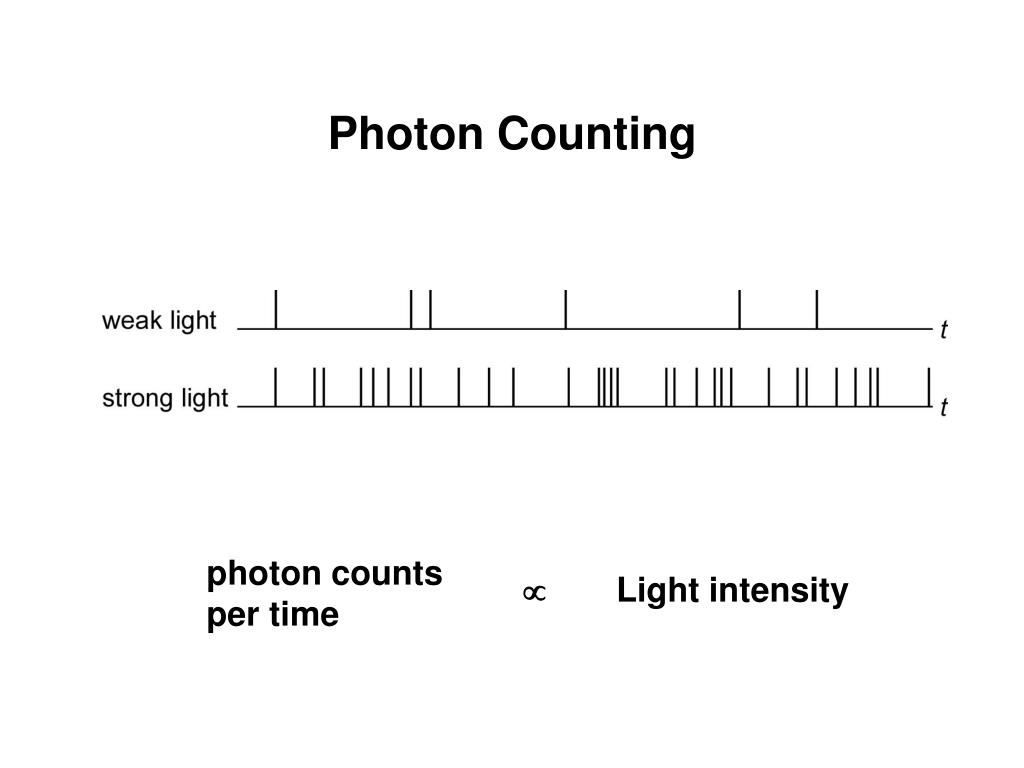

  4. Photon Counting photon counts per time µ Light intensity

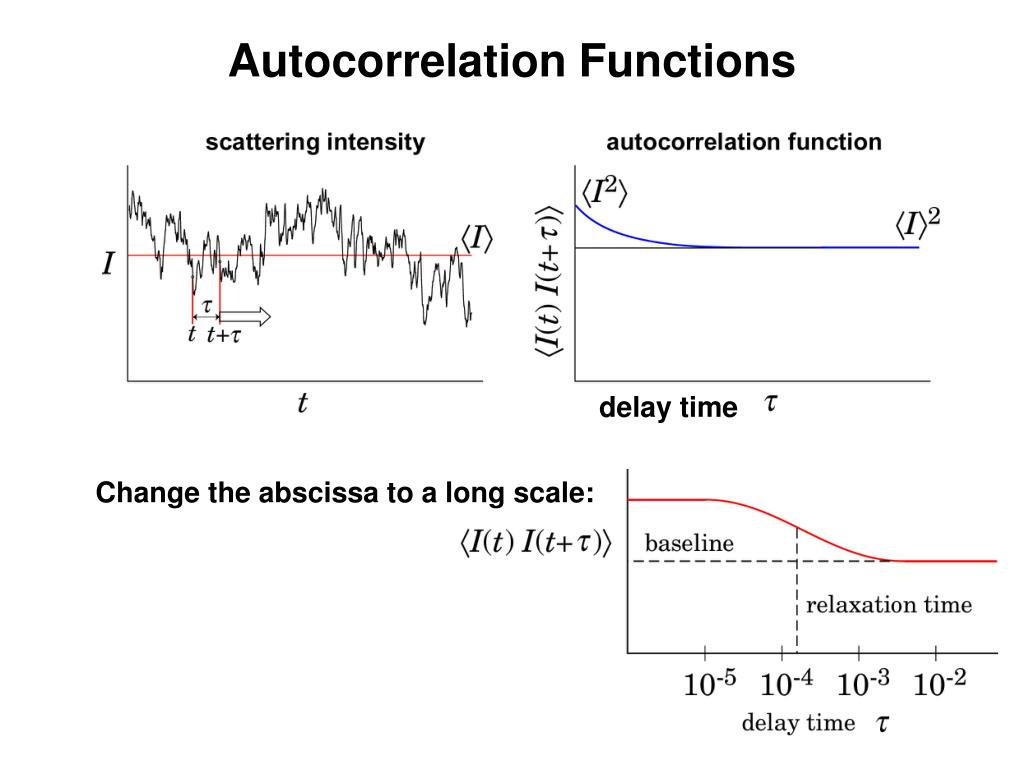

  5. Autocorrelation Functions delay time Change the abscissa to a long scale:

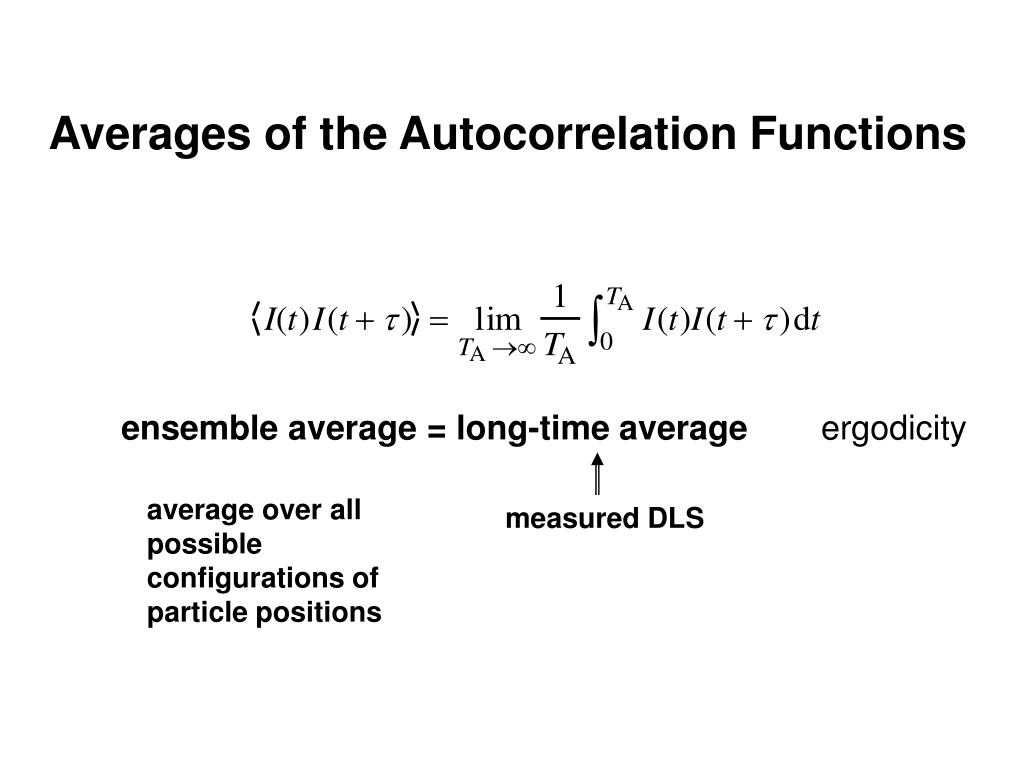

  6. Averages of the Autocorrelation Functions ensemble average = long-time average ergodicity average over all possible configurations of particle positions measured DLS

  7. Two Ways to Estimate the Baseline (average intensity)2 vs. last-channel data in The difference is the baseline error.

  8. Normalized Autocorrelation Function decays to zero. coherence factor baseline-subtracted, normalized intensity autocorrelation function

  9. g2(t) and g1(t) Electric-field autocorrelation function normalized electric-field autocorrelation function

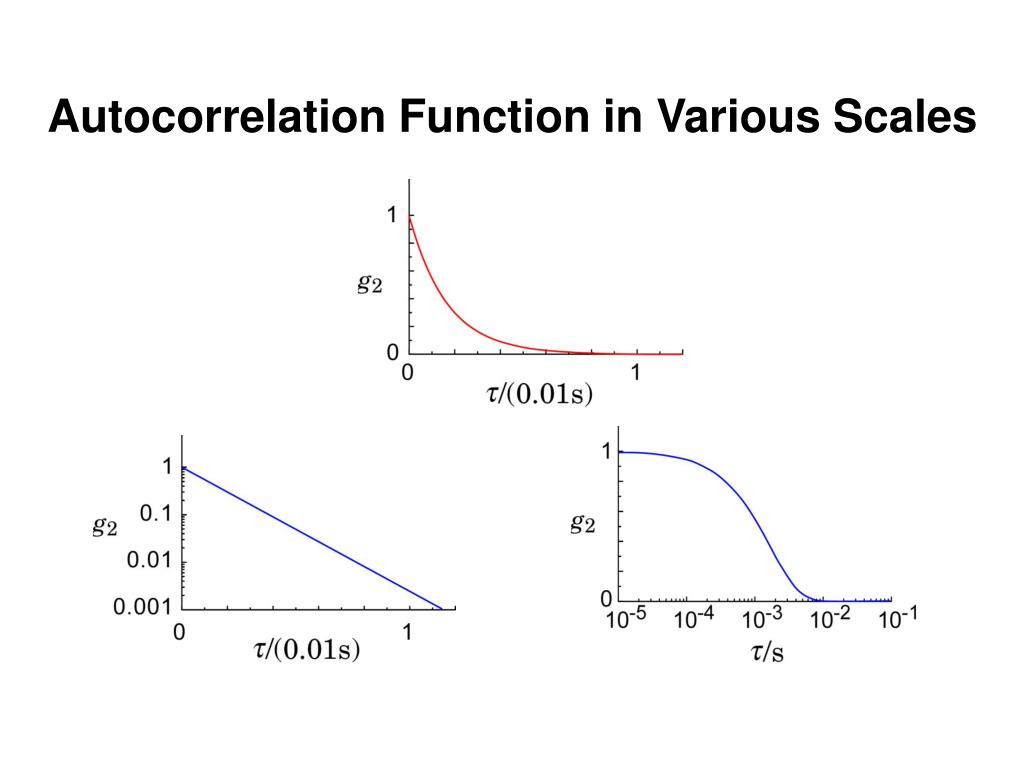

  10. Autocorrelation Function in Various Scales

  11. Coulter N4 Plus particle size range: 3 nm to 3 µm temperature: 0 to 90 °C automatic or manual selection of Dt automatic or manual pre-scaling of photon counting size distribution analysis by CONTIN (Provencher)

  12. Autocorrelator in N4 Plus
