  1. GLD Detector Cost Aki Maki/KEK 03 October 2006

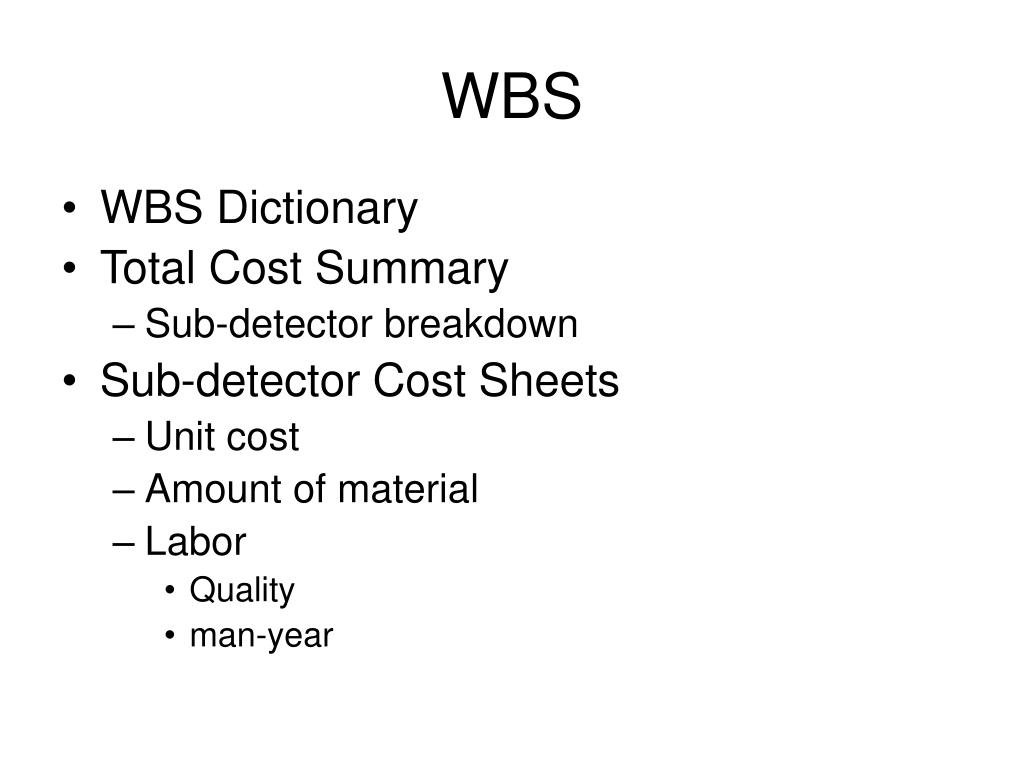

  2. WBS • WBS Dictionary • Total Cost Summary • Sub-detector breakdown • Sub-detector Cost Sheets • Unit cost • Amount of material • Labor • Quality • man-year

  3. GLD Cost Breakdown Not included: ● MDI ●DAQ ●Analysis Not included: ∙Data Acquisition System ∙ Off-line Computing ∙MDI

  4. GLD CAL Cost Breakdown Barrel, Endcap & Electronics ECAL vs HCAL (Barrel)

  5. Magnet Cost

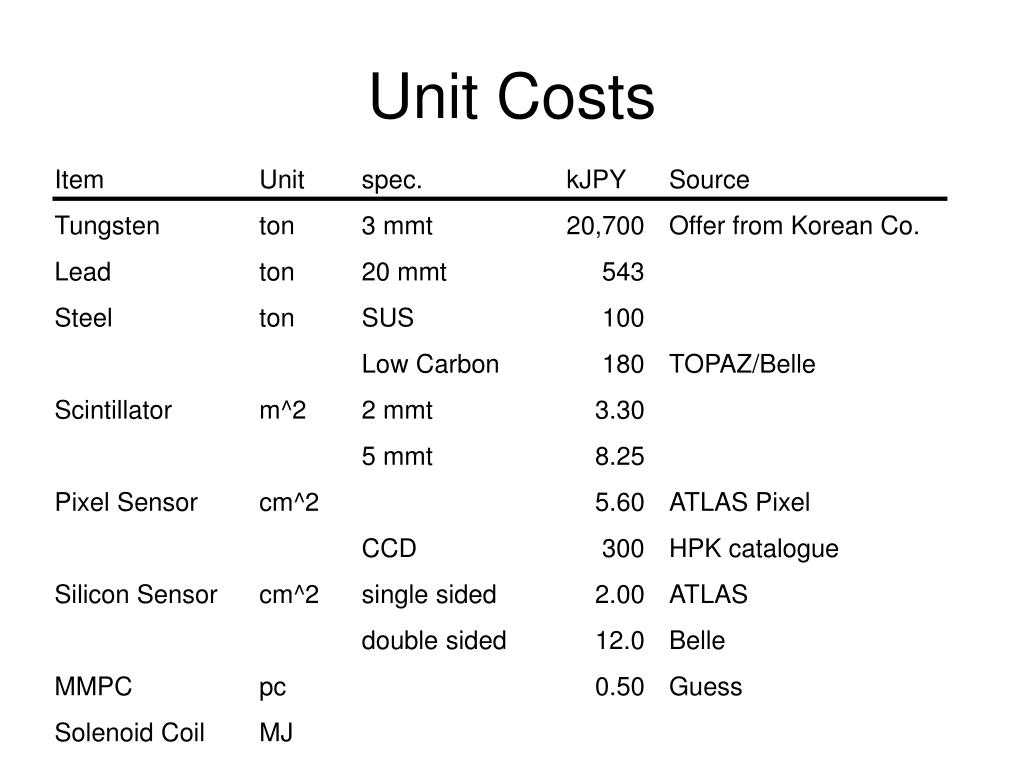

  6. Unit Costs Item Unit spec. kJPY Source Tungsten ton 3 mmt 20,700 Offer from Korean Co. Lead ton 20 mmt 543 Steel ton SUS 100 Low Carbon 180 TOPAZ/Belle Scintillator m^2 2 mmt 3.30 5 mmt 8.25 Pixel Sensor cm^2 5.60 ATLAS Pixel CCD 300 HPK catalogue Silicon Sensor cm^2 single sided 2.00 ATLAS double sided 12.0 Belle MMPC pc 0.50 Guess Solenoid Coil MJ

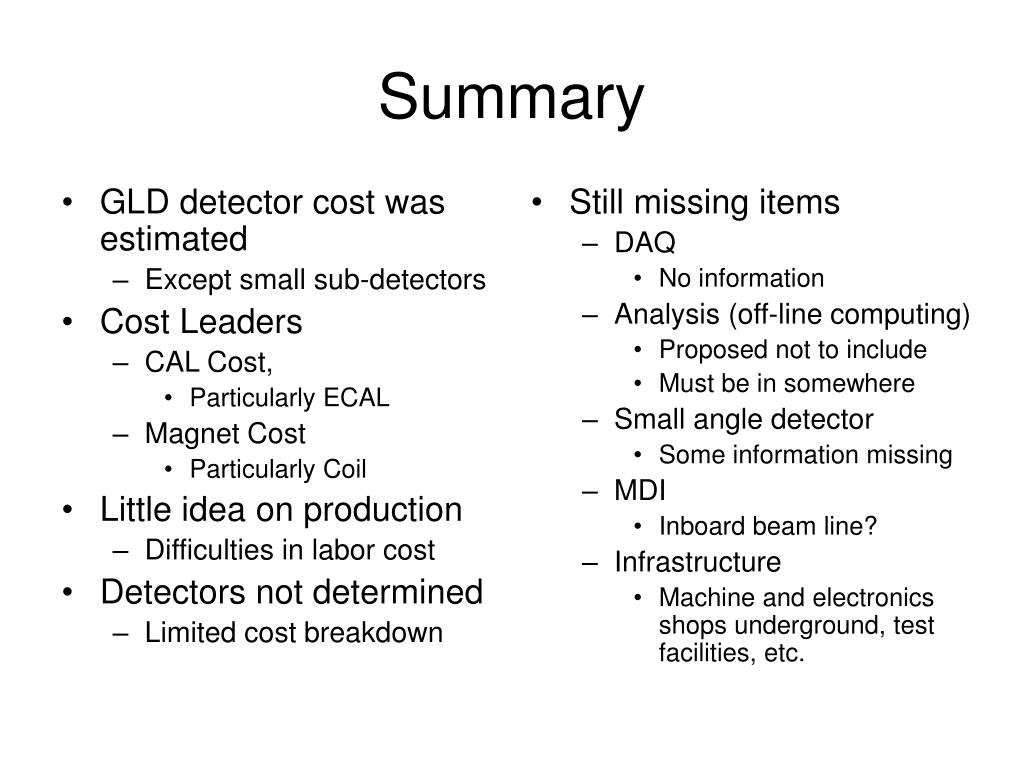

  7. GLD detector cost was estimated Except small sub-detectors Cost Leaders CAL Cost, Particularly ECAL Magnet Cost Particularly Coil Little idea on production Difficulties in labor cost Detectors not determined Limited cost breakdown Still missing items DAQ No information Analysis (off-line computing) Proposed not to include Must be in somewhere Small angle detector Some information missing MDI Inboard beam line? Infrastructure Machine and electronics shops underground, test facilities, etc. Summary
