  1. CURVE TRACING

  2. Different forms of CURVES • CARTESIAN FORM: • POLAR FORM: • PARAMETRIC FORM: • PEDAL FORM: • INTRINSIC FORM: Prepared by Dr. C. Mitra

  3. CARTESIAN CURVES Prepared by Dr. C. Mitra

  4. SOAP Symmetry: • About X axis : Every where in the equation powers of y are even. • About Y axis : Every where in the equation powers of x are even. • In opposite quadrants or with respect to origin : On replacing x by –x and y by -y in the equation of the curve, no change in the equation. • About the line y = x : Replace x by y and y by x no change in the equation. Prepared by Dr. C. Mitra

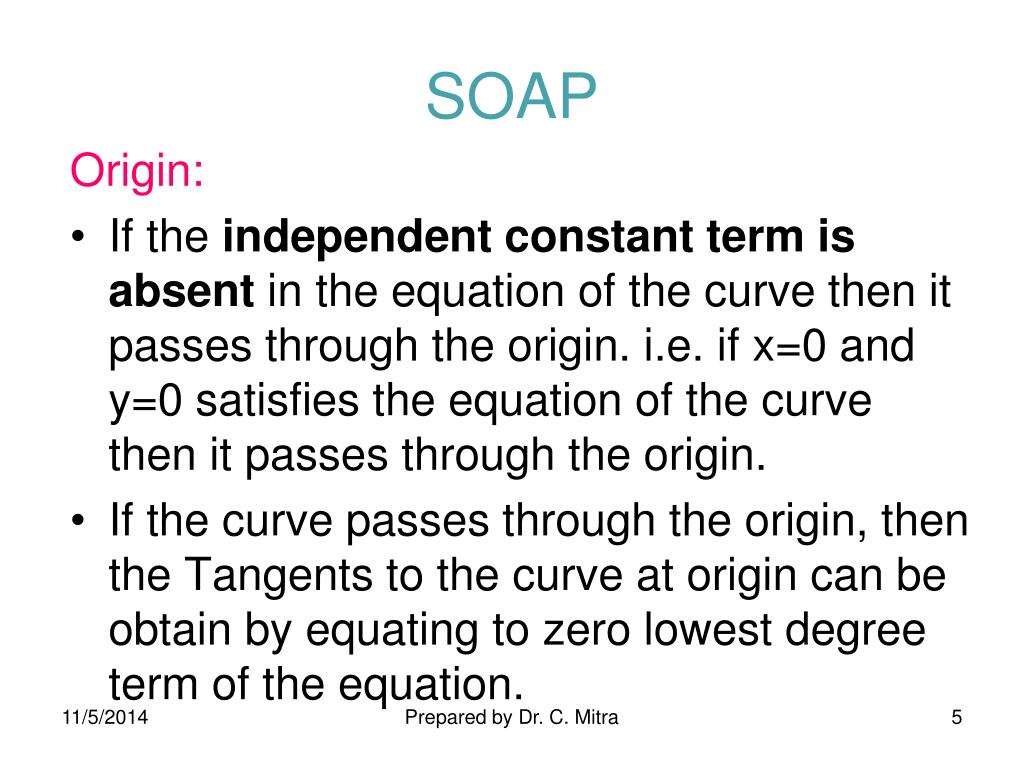

  5. Origin: If the independent constant term is absent in the equation of the curve then it passes through the origin. i.e. if x=0 and y=0 satisfies the equation of the curve then it passes through the origin. If the curve passes through the origin, then the Tangents to the curve at origin can be obtain by equating to zero lowest degree term of the equation. SOAP Prepared by Dr. C. Mitra

  6. Asymptote: A tangent to the curve at infinity is called its asymptote. Asymptote can be classified into two category Parallel to X-axis or parallel to Y-axis. Oblique Asymptote: Neither Parallel to X-axis nor parallel to Y-axis. SOAP Prepared by Dr. C. Mitra

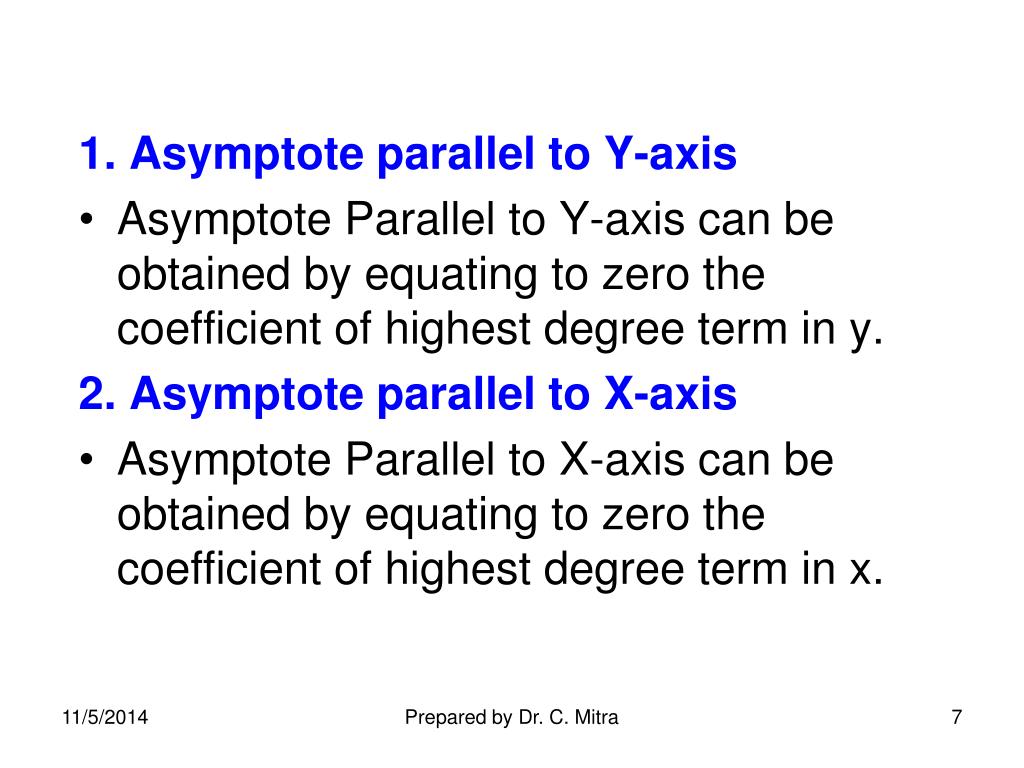

  7. 1. Asymptote parallel to Y-axis • Asymptote Parallel to Y-axis can be obtained by equating to zero the coefficient of highest degree term in y. 2. Asymptote parallel toX-axis • Asymptote Parallel to X-axis can be obtained by equating to zero the coefficient of highest degree term in x. Prepared by Dr. C. Mitra

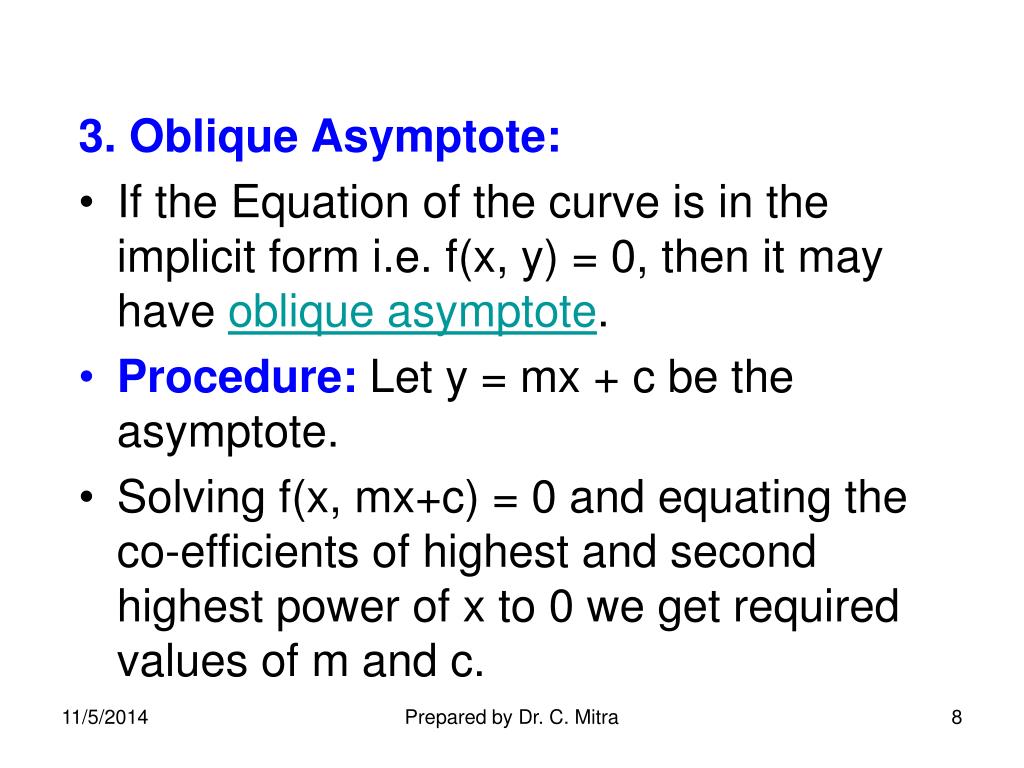

  8. 3. Oblique Asymptote: • If the Equation of the curve is in the implicit form i.e. f(x, y) = 0, then it may have oblique asymptote. • Procedure: Let y = mx + c be the asymptote. • Solving f(x, mx+c) = 0 and equating the co-efficients of highest and second highest power of x to 0 we get required values of m and c. Prepared by Dr. C. Mitra

  9. SOAP POINTS • Find X-Intercept Or Y-Intercept: • X-Intercept can be obtained by putting y = 0 in the equation of curve. • Y-Intercept can be obtained by putting x = 0 in the equation of curve. • For the Curves, Prepared by Dr. C. Mitra

  10. If =0, then tangent will be parallel to X-axis. • If = , then tangent will be parallel to Y-axis. • If > 0, in the Interval a < x < b, then y is increasing function in a < x < b. • If < 0, in the Interval a < x < b, then y is decreasing function in a < x < b. Prepared by Dr. C. Mitra

  11. Region of Absence: • If y2<0, for x < a (x=a is an X-intercept), then there is no curve to the left of the line x=a. • If y2<0, for a < x < b (a and b are X-intercepts) then there is no curve between the lines x = a and x = b. • If y2<0, for x > b ( x = b is an X-intercept) then there is no curve to the right of the line x=b. Prepared by Dr. C. Mitra

  12. Prepared by Dr. C. Mitra

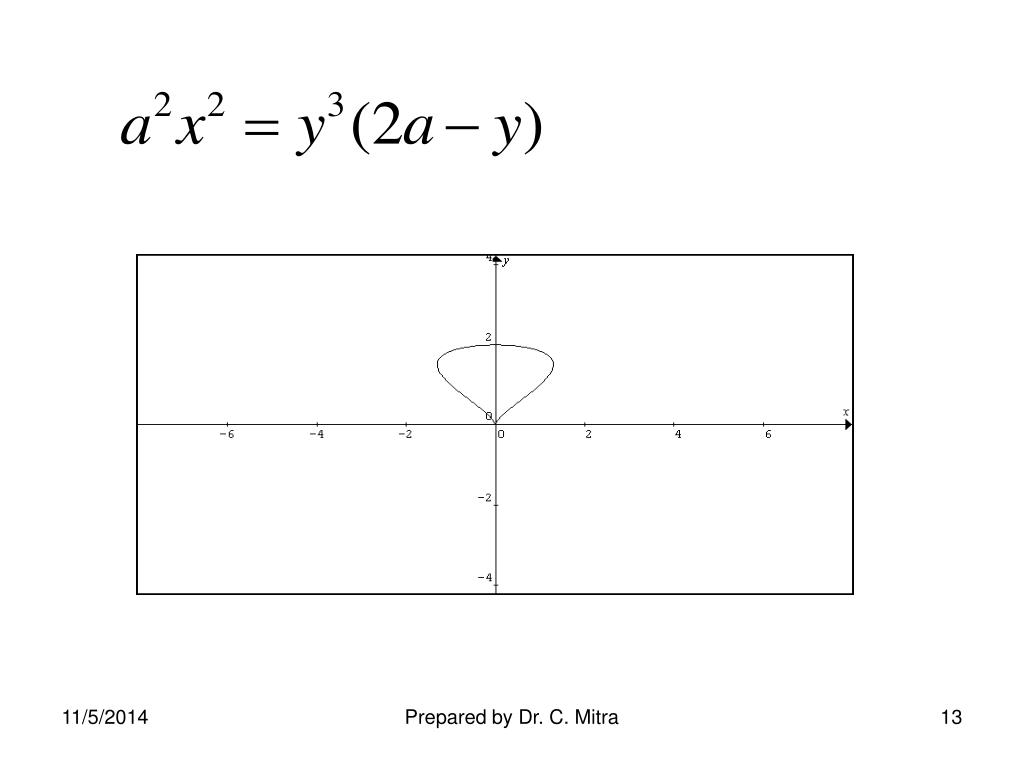

  13. Prepared by Dr. C. Mitra

  14. Prepared by Dr. C. Mitra

  15. Prepared by Dr. C. Mitra

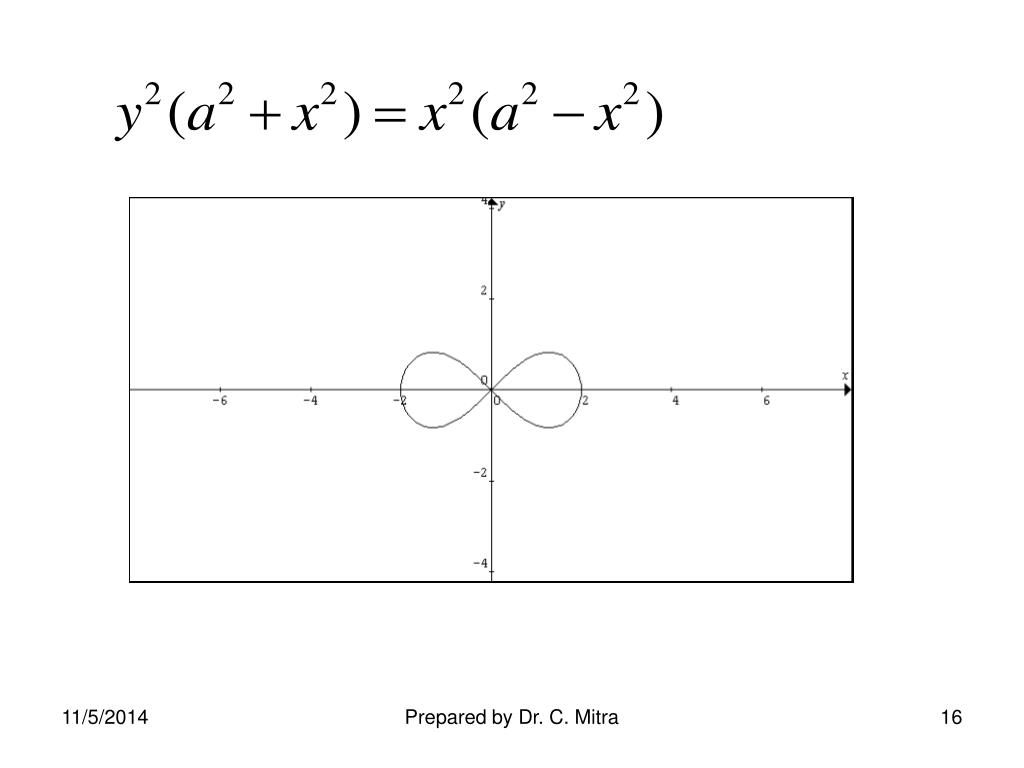

  16. Prepared by Dr. C. Mitra

  17. Prepared by Dr. C. Mitra

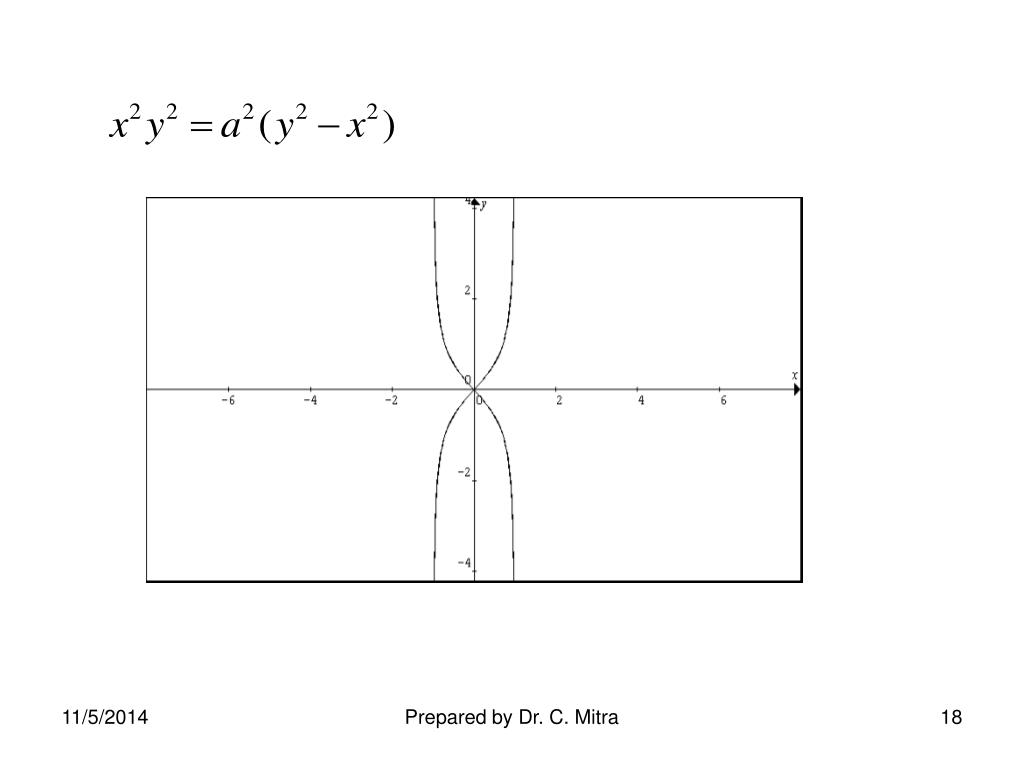

  18. Prepared by Dr. C. Mitra

  19. POLAR CURVES Prepared by Dr. C. Mitra

  20. Symmetry:: • About the initial line: Replace by no change in the equation. • About Pole: Replace r by -r no change in the equation. • About the line perpendicular to the initial line (Y axis): Replace by and r by - r. OR replace by no change in the equation. Prepared by Dr. C. Mitra

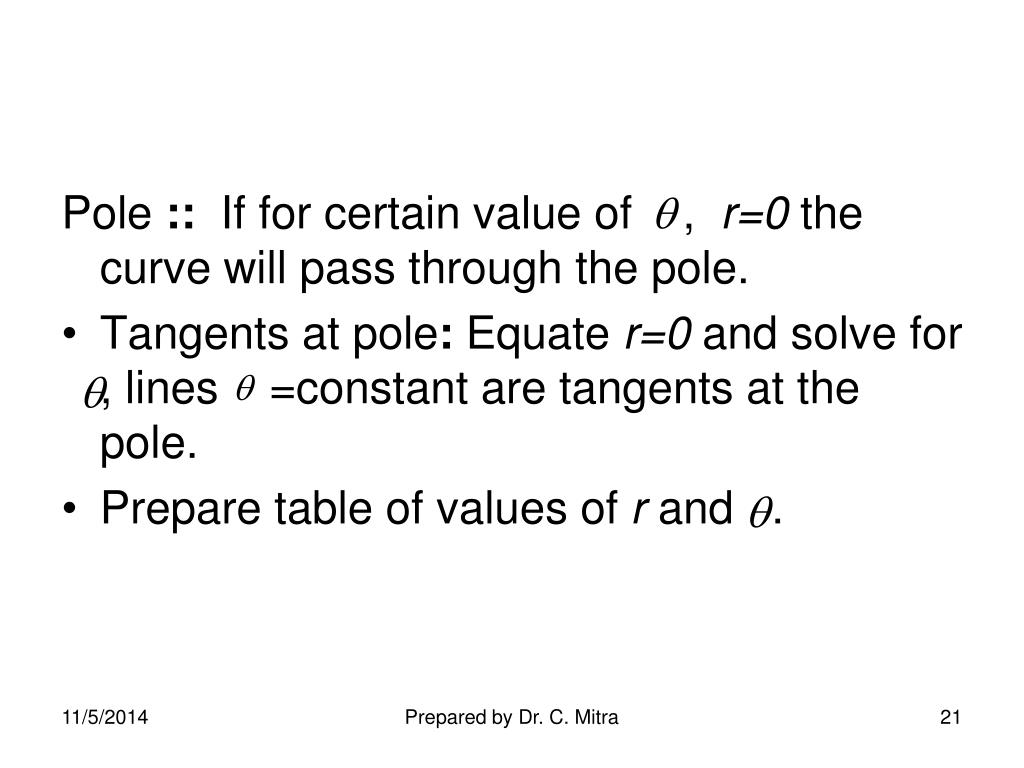

  21. Pole :: If for certain value of , r=0 the curve will pass through the pole. • Tangents at pole: Equate r=0 and solve for , lines =constant are tangents at the pole. • Prepare table of values of r and . Prepared by Dr. C. Mitra

  22. Angle between tangent and radius vector:: beangle between tangent and radius vector then , • tangent and radius vector coincides and • tangent and radius vector are perpendicular. Prepared by Dr. C. Mitra

  23. Region of absence: • If for  <  <, r2 <0, then no curve lie between  = , = . • |sin |  1, |cos  | 1 .So for the curves r = acos n , r = asin n ,r a. So, no curve lies outside the circle of radius r. • In most of the polar equations, only functions sin , cos  occurs and so values of  between 0 to 2 should be considered. The remaining values of , gives no new branch of the curve. Prepared by Dr. C. Mitra

  24. Polar Curves Type I Sine curve can be obtained from corresponding cosine by rotating the plane through an angle /2n. Prepared by Dr. C. Mitra

  25. Prepared by Dr. C. Mitra

  26. n = – ½ Parabola Prepared by Dr. C. Mitra

  27. Prepared by Dr. C. Mitra

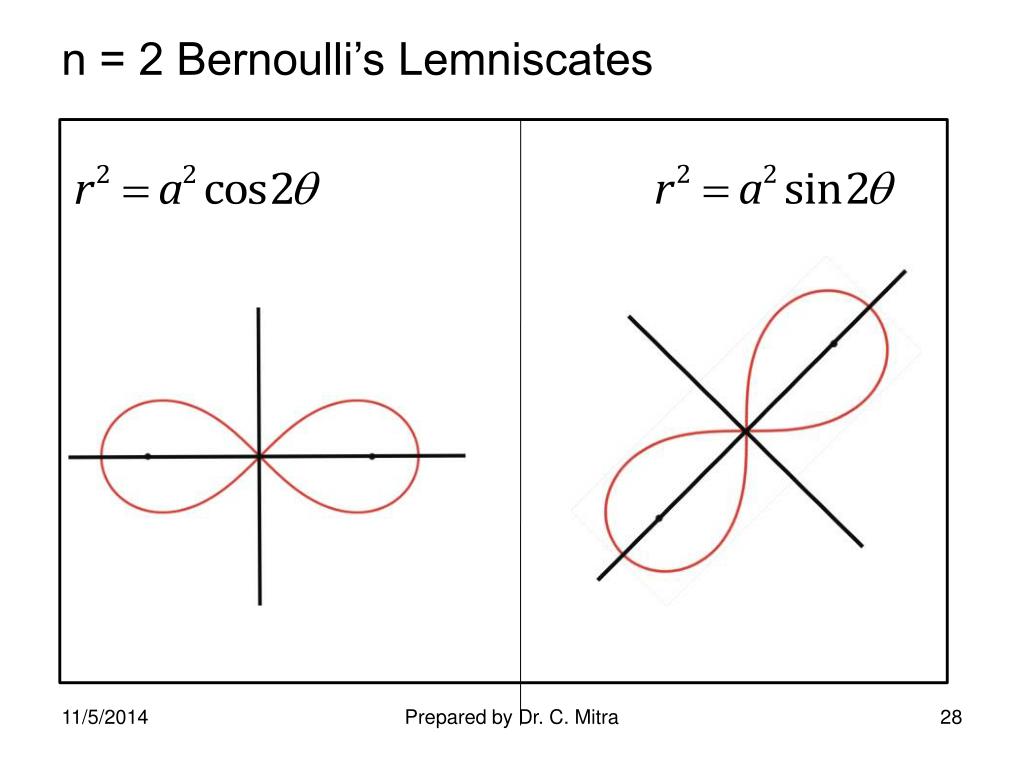

  28. n = 2 Bernoulli’s Lemniscates Prepared by Dr. C. Mitra

  29. n = 1/2 Cardiode Prepared by Dr. C. Mitra

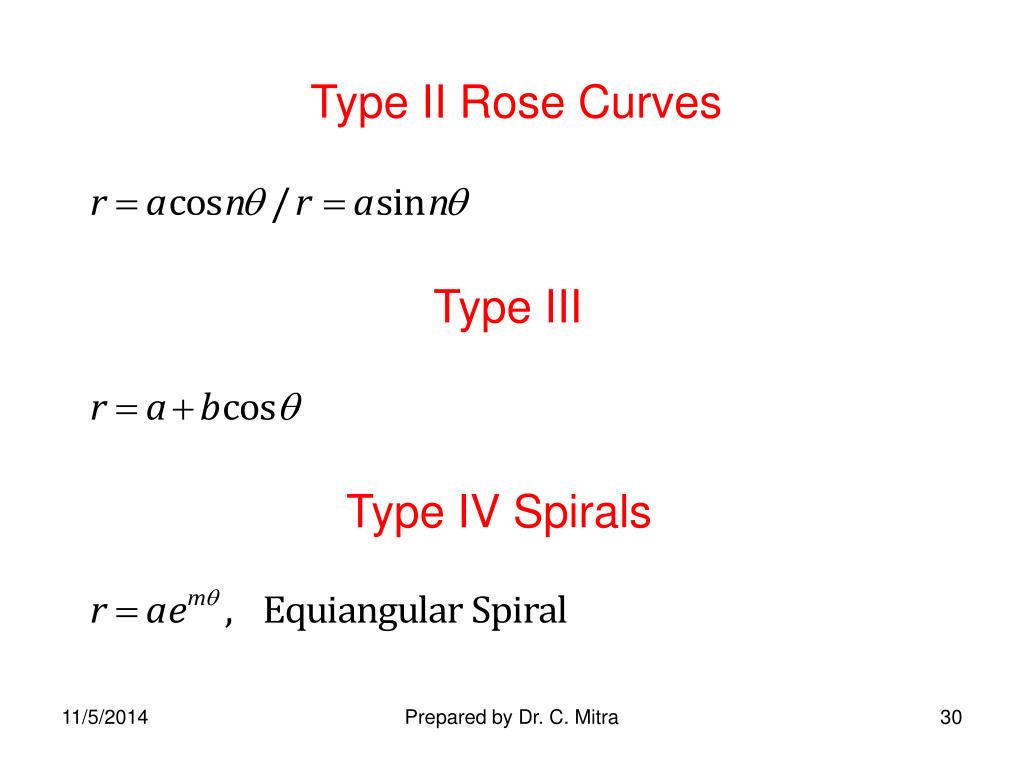

  30. Type II Rose Curves Type III Type IV Spirals Prepared by Dr. C. Mitra

  31. Prepared by Dr. C. Mitra

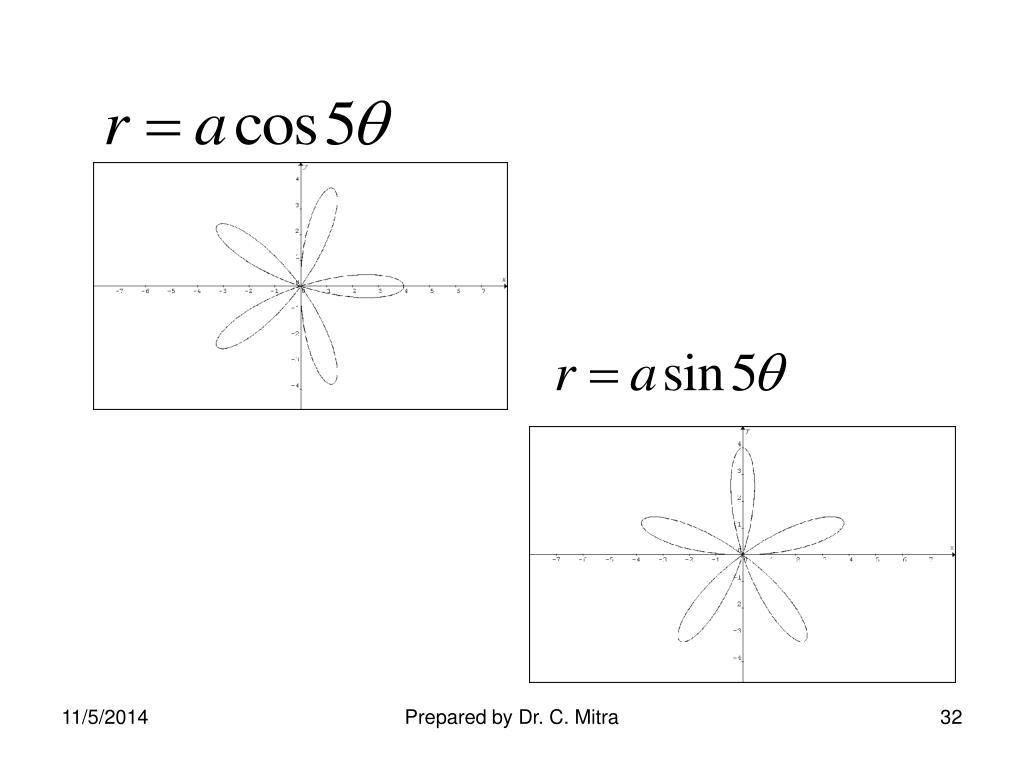

  32. Prepared by Dr. C. Mitra

  33. Prepared by Dr. C. Mitra

  34. Prepared by Dr. C. Mitra

  35. Prepared by Dr. C. Mitra

  36. PARAMETRIC CURVES Prepared by Dr. C. Mitra

  37. Symmetry :: • About X axis – Replace t by –t , x remain unchanged and ychanges the sign then curve is symmetric about X- axis. • About Y axis - Replace t by –t , xchanges the sign and y remain unchanged then curve is symmetric about Y- axis. • Note that :: For trigonometric equation replacing t by , y remains unchanged and x changes the sign curve will be symmetric about Y- axis. • About Origin - Replace t by –t both x and y changes the sign curve is symmetric about origin. Prepared by Dr. C. Mitra

  38. Points of Intersections :: • If for some value of t, both x and y are zero curve passes through origin. • Find X and Y intercepts. • Find asymptotes if any. • Find region of absence. Prepared by Dr. C. Mitra

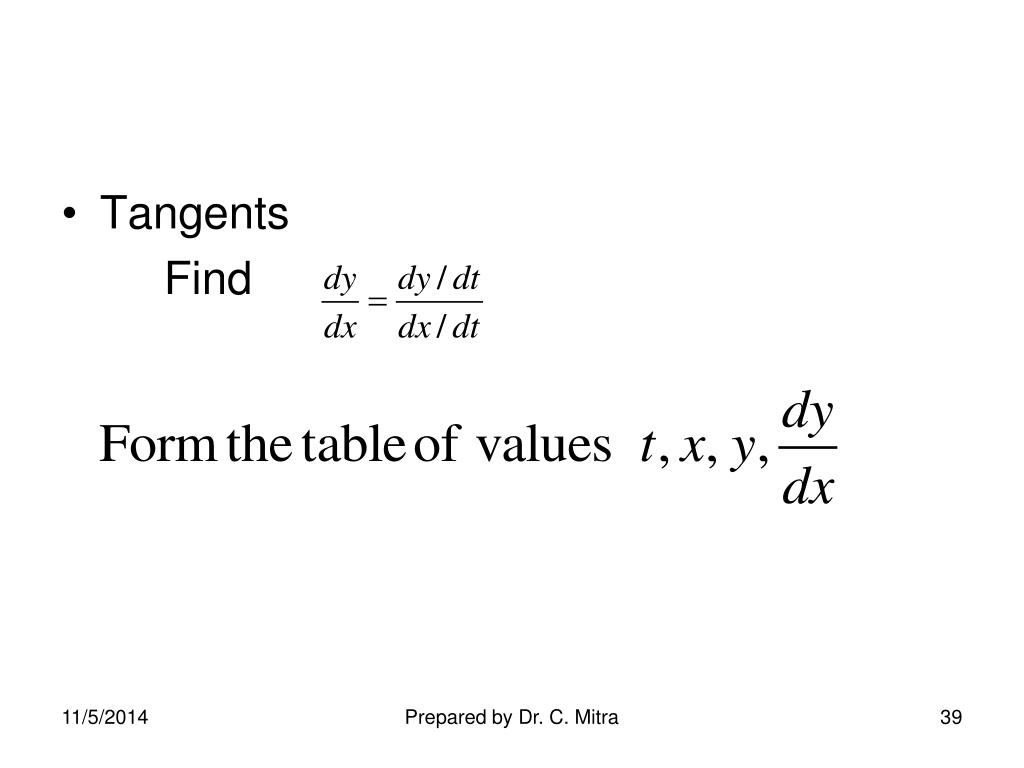

  39. Tangents Find Prepared by Dr. C. Mitra

  40. Prepared by Dr. C. Mitra

  41. Prepared by Dr. C. Mitra

  42. Prepared by Dr. C. Mitra

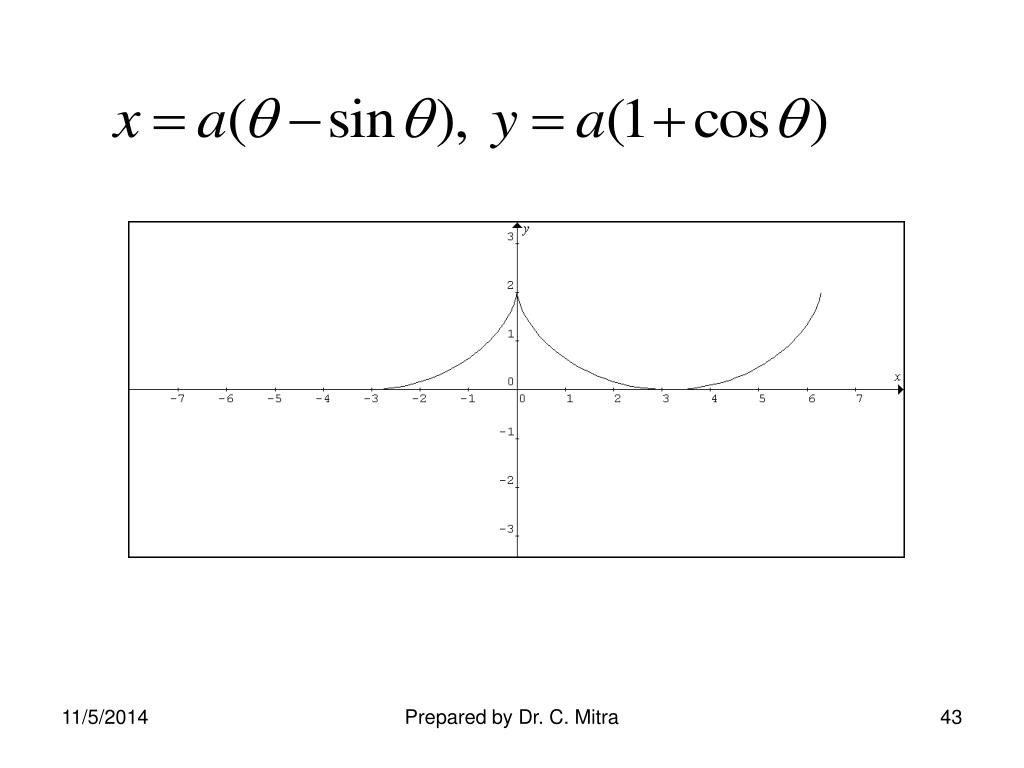

  43. Prepared by Dr. C. Mitra

  44. Prepared by Dr. C. Mitra

  45. WITCHES OF AGNESI The curve is obtained by drawing a line OB from the origin through the circle of radius a and center (0,a), then picking the point with the y coordinate of the intersection with the circle and the x coordinate of the intersection of the extension of line OB with the line y=2a . Prepared by Dr. C. Mitra

  46. CYCLOID Prepared by Dr. C. Mitra

  47. EPICYCLOID Prepared by Dr. C. Mitra

  48. CARDIOID Prepared by Dr. C. Mitra

  49. PASCAL’S LIMACON Prepared by Dr. C. Mitra

  50. PASCAL’S LIMACON Let P be a point and C be a circle whose center is not P. Then the envelope of those circles whose center lies on C and that pass through P is a limaçon. Prepared by Dr. C. Mitra
