  1. Scale Watcher Janice Roscoe Ryan Ayers jroscoe@commandalkon.com ryan.ayers@dividia.net 913-384-0880 817-288-1040

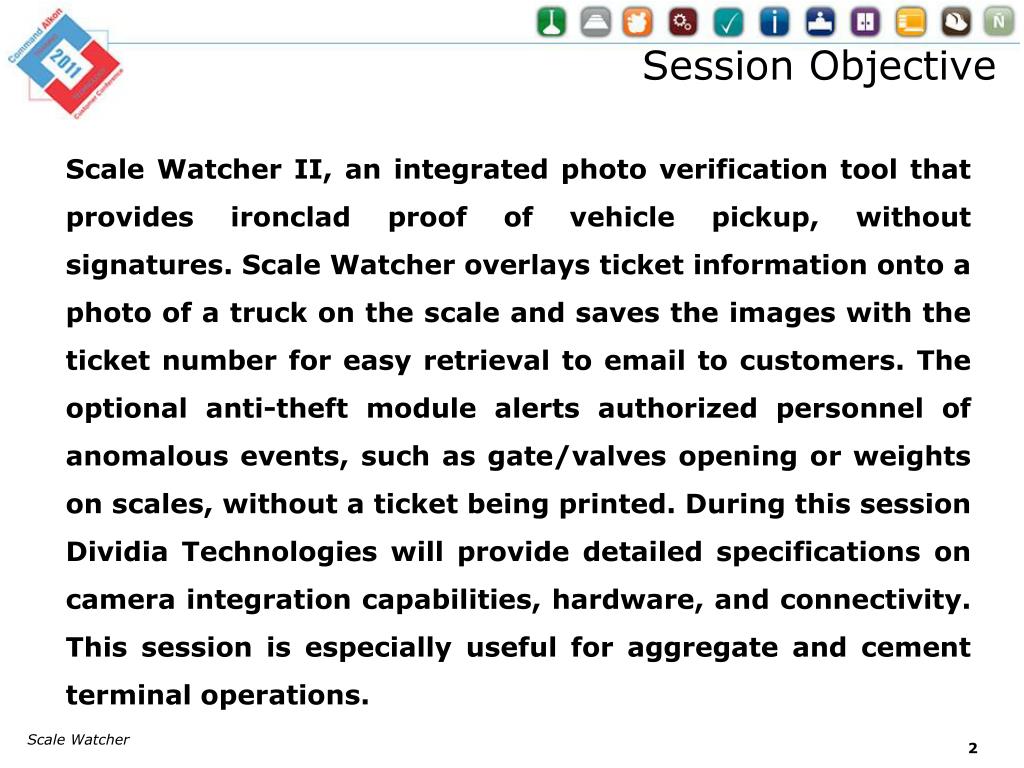

  2. Session Objective Scale Watcher II, an integrated photo verification tool that provides ironclad proof of vehicle pickup, without signatures. Scale Watcher overlays ticket information onto a photo of a truck on the scale and saves the images with the ticket number for easy retrieval to email to customers. The optional anti-theft module alerts authorized personnel of anomalous events, such as gate/valves opening or weights on scales, without a ticket being printed. During this session Dividia Technologies will provide detailed specifications on camera integration capabilities, hardware, and connectivity. This session is especially useful for aggregate and cement terminal operations. Scale Watcher

  3. Ticket Video Capture Ticket number saved with imageEasy retrieval byticket number Scale Watcher

  4. Ticket Inquiry Retrieves Images Scale Watcher

  5. Special License Plate Cameras High resolution for clear images Scale Watcher

  6. Special License Plate Cameras Read license tags in the dark, even with bright head lights. The more light, the better. Don’t be blind Scale Watcher

  7. Multiple Cameras / Angles in one pdf Scale Watcher

  8. 15 – 30 Days Streaming Video Scale Watcher

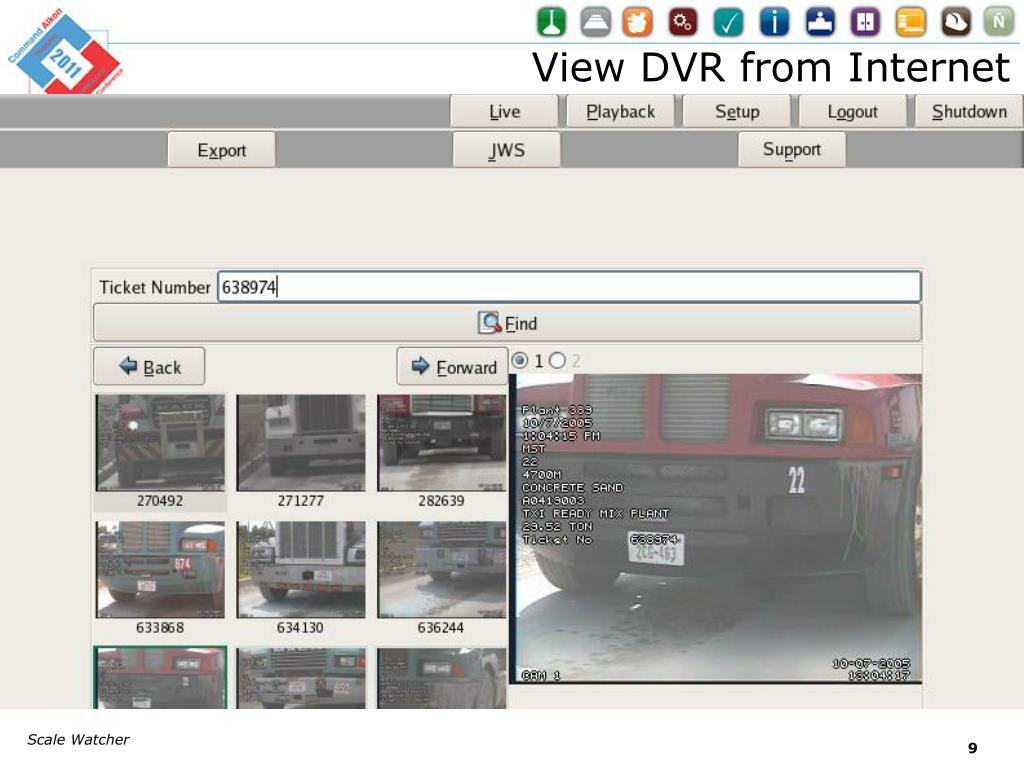

  9. View DVR from Internet Scale Watcher

  10. Anti-Theft Option This is what we want . . . But, this is what we fear . . . Scale Watcher

  11. Minimize Shrinkage • Anomalous events trigger photo capture. • Photo taken, real time alerts sent and/or report created. • Valve Alerts: silo gate opens ≠ no ticket. (interfaces with Loadout PLC). • Scale Sensing: weight detected on scale ≠ no ticket. • Connection to scale is lost (or restored). • Gross weight mismatch: scale weight ≠ ticket weight. • Tare weight contamination: compares average max tare weight to verify potential tare weight contamination. Scale Watcher

  12. Real –Time Reports DIVIDIA System [TSM] Report [Scale Report] Tues 02 Sept 2010 08:42:04 AM CDT Generated From dvs@dividia .net To: ryan.ayers@dividia .net A Scale Report report was generated on Tues Sept 2 08:42:04 at TSM Gross ticket weight did not match weight on scale [Scale 1]. Tare Weight [8000] Max Weight [56000] Ticket Weight [50260] This is an automated message generated by DIVIDIA (866-348-4342) Scale Watcher

  13. Summary Report DIVIDIA System [TSM] Report [Daily] Generated Tues 02 Sept 2010 08:43:36 AM CDT From dvs@dividia .net To: ryan.ayers@dividia .net A Daily Report report was generated on Tues Sept 2 08:42:04 at TSM Reports Processed (Total) Created (1) Type [Lost Connection with Scale] Created (2) Type [Restored Connection with Scale] Created (1) Type [Gross Ticket Weight Mismatch] Apex Reports Date Time Type Scale Tare Wt Gross Wt Ticket Wt 09/02/2010 08:40:39 Restored Connection 1 09/02/2010 08:51:26 Gross Ticket Weight 1 12000 73000 50260 09/02/2010 08:56:35 Lost Connection with 1 This is an automated message generated by DIVIDIA (866-348-4342) Scale Watcher

  14. Scale Watcher DemoDividia Technologies DVR&Apex Software

  15. “Mr. Truck” captured during demo Scale Watcher

  16. Cameras Close range license plate camera – day or night Pan, Tilt, Zoom camera for multi-silo truck positioning Scale Watcher

  17. Summary • Up to 16 cameras per DVR • Each camera creates jpeg image for text overlay • Multiple camera images per ticket stored in 1 PDF • Photo is stored each time ticket is printed (new or corrected) • Apex auxiliary ticket used to capture overlay data • Moxa Nport convert serial to Ethernet • Moxa Vport video Server connects distant cameras • Pan, Tilt, Zoom cameras capture images from multiple positions • Anti-theft options for scales and silo gates Scale Watcher

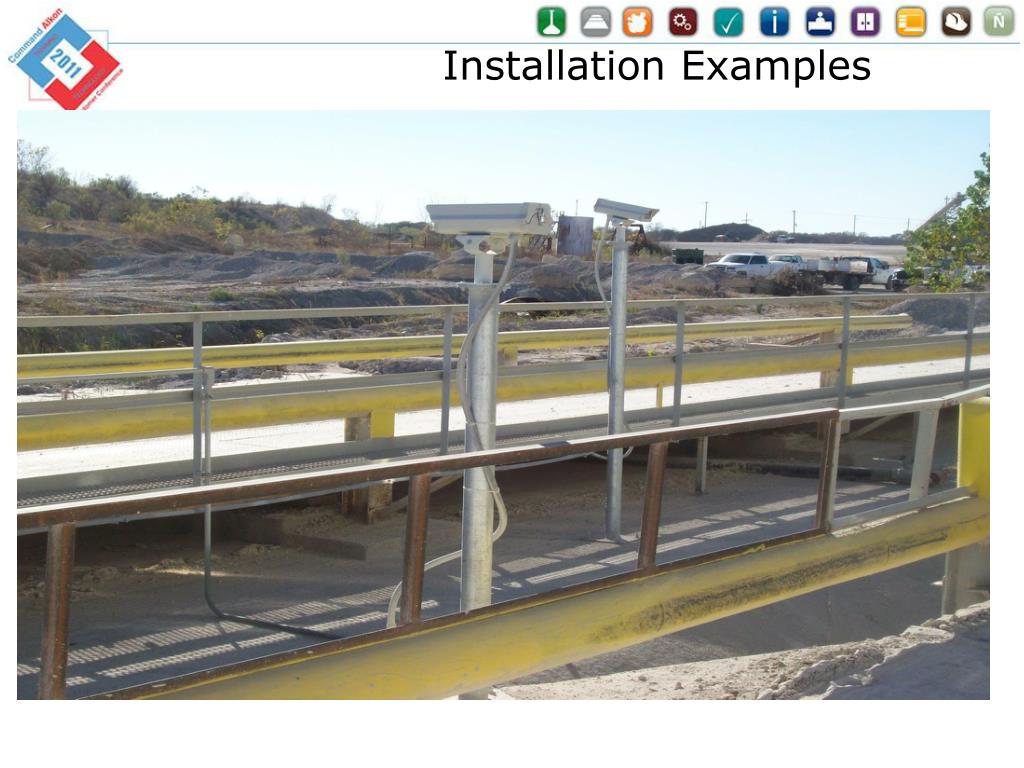

  18. Installation Examples

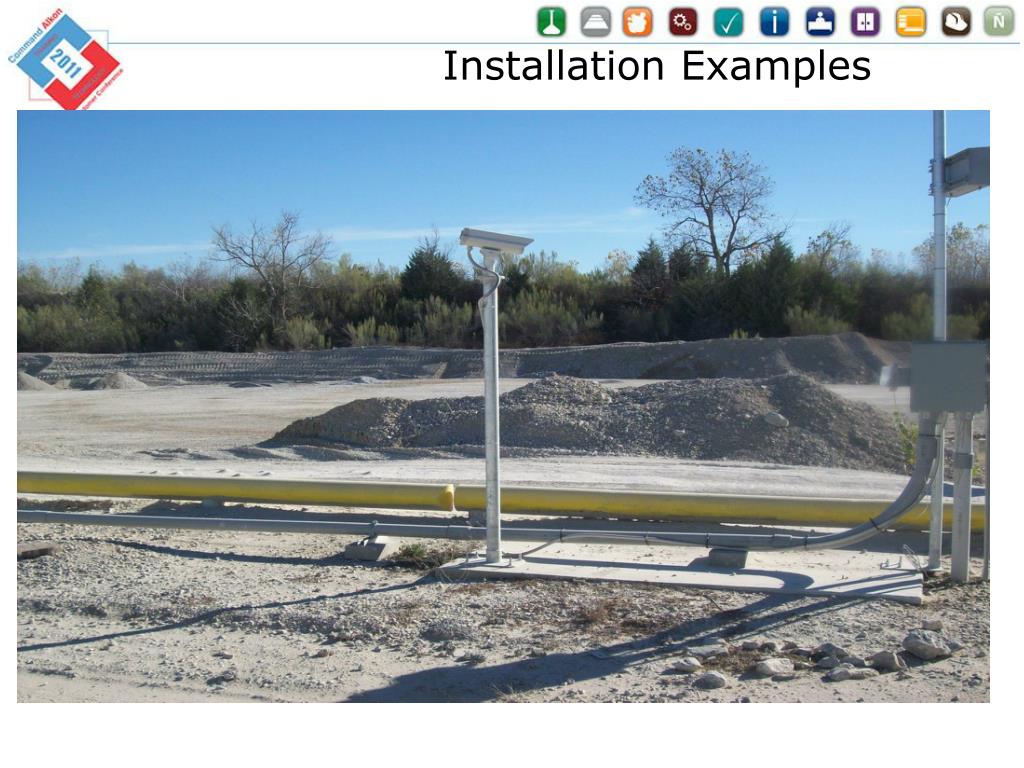

  19. Installation Examples

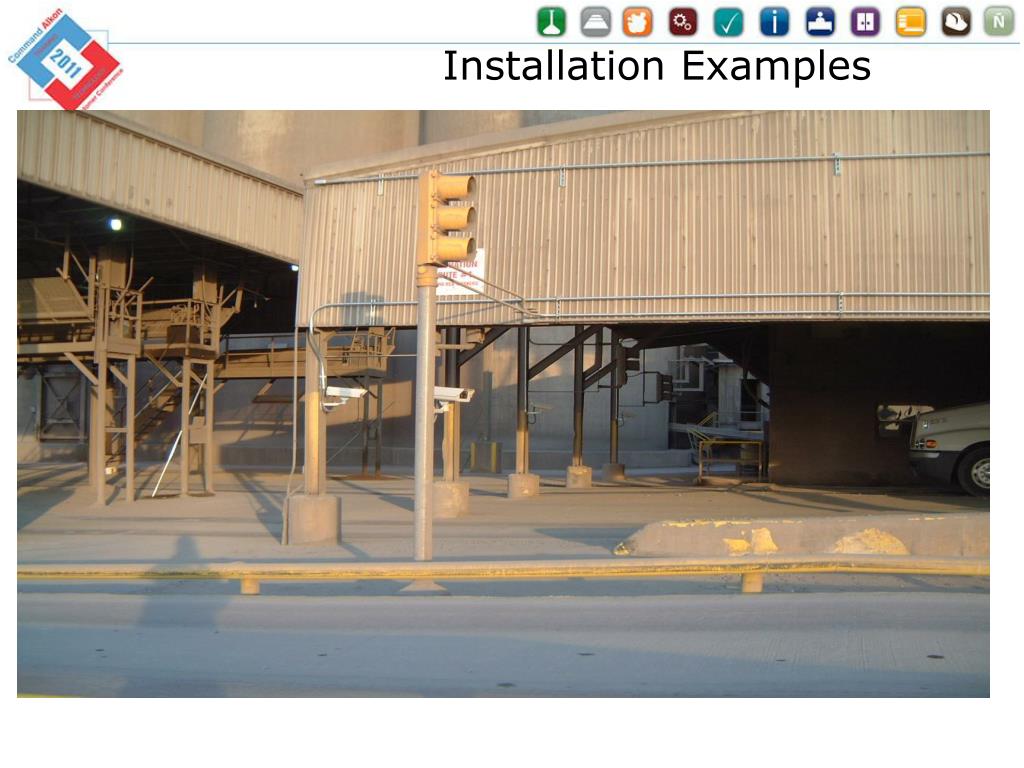

  20. Installation Examples

  21. Installation Examples

  22. Please Complete Your Evaluation • Be sure to circle the session you are evaluating on the back of your card • Bulk Materials Track • BLK - 007 • Scale Watcher All breakout session materials can be accessed at: www.commandalkon.com/cc2011/update/index.htm • Thank You! Scale Watcher
