Scalable Absolute Magnetometry Using Weakly Spin-Coupled Polaron Pair States

This research presents a cutting-edge absolute magnetometer based on organic spintronics, designed for scalability to micron dimensions with a low-cost framework that minimizes environmental interference. The device utilizes an integrated bipolar MEH-PPV polymer positioned above magnetic field strip lines, allowing for measurement of magnetic fields through spin-dependent current changes during magnetic resonance. The achieved absolute sensitivity of <50 nT/Hz^-1/2 surpasses by a factor of 1000 the Earth's magnetic field sensitivity, showcasing the potential for precise magnetometry applications.

hans
Télécharger la présentation

Scalable Absolute Magnetometry Using Weakly Spin-Coupled Polaron Pair States

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

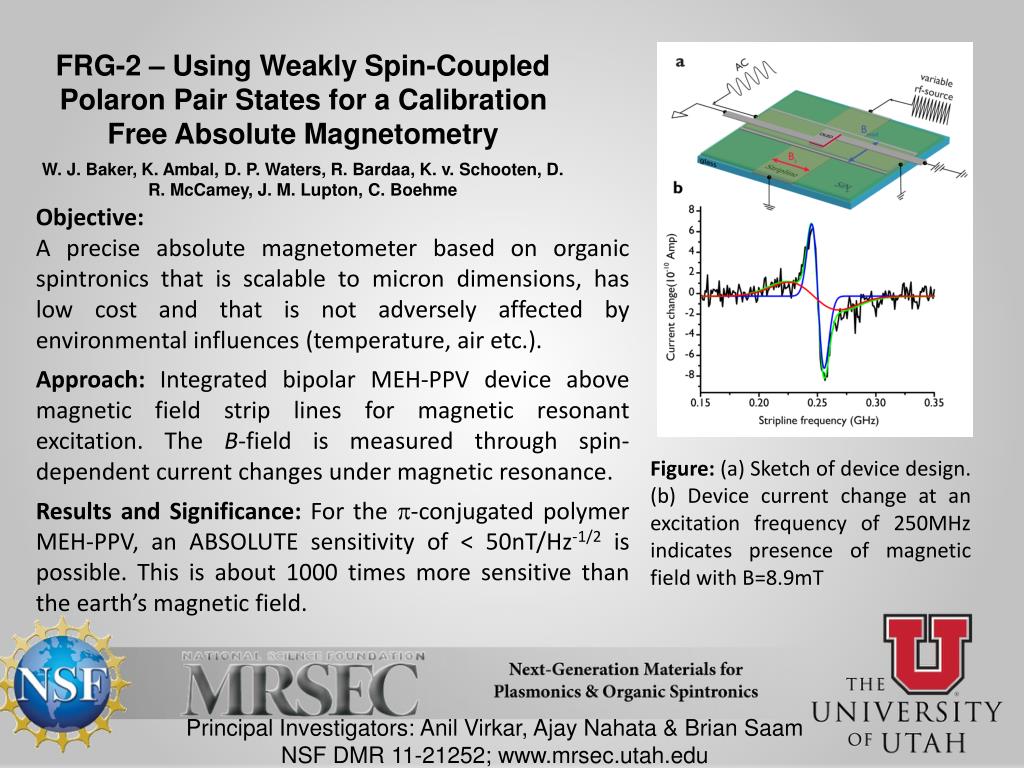

  1. FRG-2 – Using Weakly Spin-Coupled Polaron Pair States for a Calibration Free Absolute Magnetometry W. J. Baker, K. Ambal, D. P. Waters, R. Bardaa, K. v. Schooten, D. R. McCamey, J. M. Lupton, C. Boehme Objective: A precise absolute magnetometer based on organic spintronics that is scalable to micron dimensions, has low cost and that is not adversely affected by environmental influences (temperature, air etc.). Approach: Integrated bipolar MEH-PPV device above magnetic field strip lines for magnetic resonant excitation. The B-field is measured through spin-dependent current changes under magnetic resonance. Results and Significance: For the p-conjugated polymer MEH-PPV, an ABSOLUTE sensitivity of < 50nT/Hz-1/2 is possible. This is about 1000 times more sensitive than the earth’s magnetic field. Figure: (a) Sketch of device design. (b) Device current change at an excitation frequency of 250MHz indicates presence of magnetic field with B=8.9mT Principal Investigators: Anil Virkar, Ajay Nahata & Brian Saam NSF DMR 11-21252; www.mrsec.utah.edu
