1. Applications of Bernoulli’s Principle

2. P+ ρgy + ½ ρv2 = constant If no change in height: P + ½ρv2 = constant slower speed faster speed more pressure less pressure

3. As the speed of a fluid increases, the pressure in the fluid decreases. P α 1/v

4. kinetic energy Motion of fluid Pressure in fluid energy potential KE + PE is constant

5. v d/4 d If incompressible fluid (density = ρ), change in pressure?

6. Bernoulli & Flight • Bernoulli’s Principle is what allows birds and planes to fly. • The secret behind flight is ‘under the wings.’

7. AIRFOIL On top: greater air speed and less air pressure On bottom: less air speed and more air pressure

8. LIFT THRUST DRAG GRAVITY

9. v2 v1 Net force on wing? ½ Aρ(v22 – v12) ρair = 1.29 kg/m3

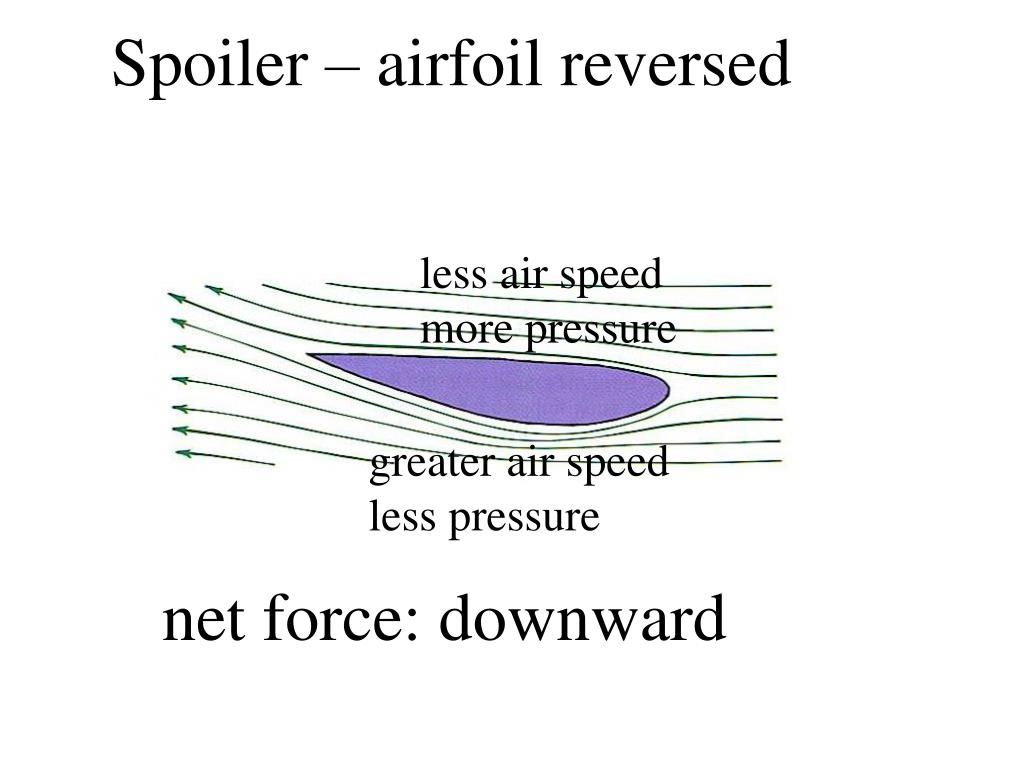

10. Spoiler – airfoil reversed less air speed more pressure greater air speed less pressure net force: downward

11. Racecar Spoiler provides better traction and avoids lift

12. Wind over a roof Patm = Proof + ½ ρv2 v proof v = 0 patm

13. slow air speed fast air speed

14. Curve Ball

15. Golf ball dimples

16. Winds over a mountain

17. Shower Curtain

18. Atomizer – As air passes at top of tube, the pressure decreases and fluid is drawn up the tube.
