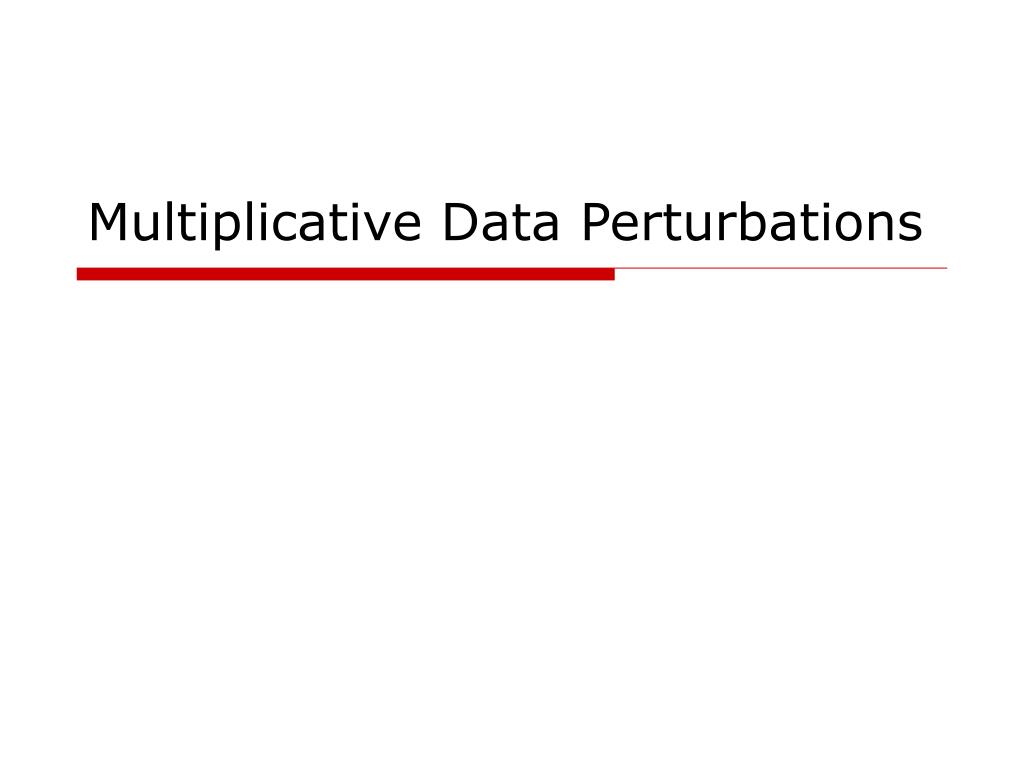

  1. Multiplicative Data Perturbations

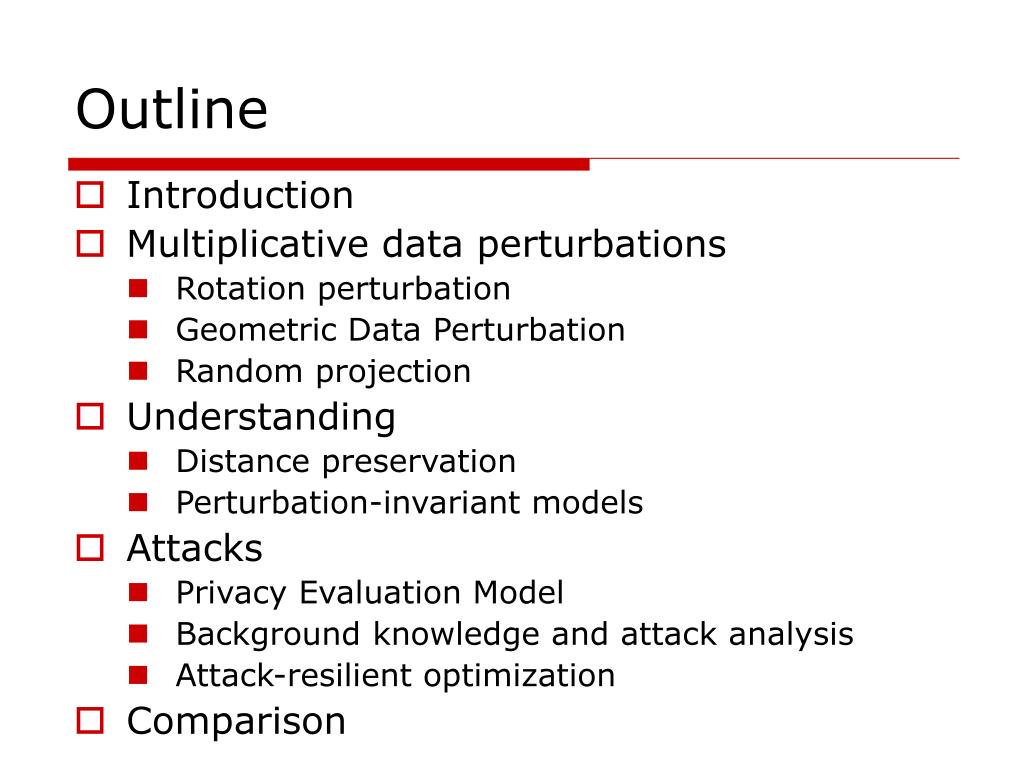

  2. Outline • Introduction • Multiplicative data perturbations • Rotation perturbation • Geometric Data Perturbation • Random projection • Understanding • Distance preservation • Perturbation-invariant models • Attacks • Privacy Evaluation Model • Background knowledge and attack analysis • Attack-resilient optimization • Comparison

  3. Summary on additive perturbations • problems • Weak to various attacks • Need to publish noise distribution • The column distribution is known • Need to develop/revise data mining algorithms in order to utilize perturbed data • So far, we have only seen that decision tree and naïve bayes classifier can utilize additive perturbation. • Benefits • Can be applied to both the Web model and the corporate model • Low cost

  4. 1. Preserve Privacy Hide the original data not easy to estimate the original values from the perturbed data Protect from data reconstruction techniques The attacker has prior knowledge on the published data More thoughts about perturbation 2. Preserve Data Utility for Tasks • Single-dimensional info • column data distribution, etc. • Multi-dimensional info • Cov matrix, distance, etc

  5. Privacy guarantee Data utility/ Model accuracy For most PP approaches… ? Data Utility/ Model accuracy Privacy guarantee • Difficult to balance the two factors • Subject to attacks • May need new DM algorithms: randomization, cryptographic approaches

  6. Multiplicative perturbations • Geometric data perturbation (GDP) • Rotation data perturbation • Translation data perturbation • Noise addition • Random projection perturbation(RPP)

  7. Definition of Geometric Data Perturbation • G(X) = R*X + T + D R: random rotation T: random translation D: random noise, e.g., Gaussian noise Characteristics: R&T preserving distance, D slightly perturbing distance Example: = + + * * Each component has its use to enhance the resilience to attacks!

  8. Benefits of Geometric Data Perturbation decoupled Data Utility/ Model accuracy Privacy guarantee • Make optimization and balancing easier! • -Almost fully preserving model accuracy - we optimize privacy only • Applicable to many DM algorithms • Distance-based Clustering • Classification: linear, KNN, Kernel, SVM,… • Resilient to Attacks • -the result of attack research

  9. Definition of Random Projection Perturbation • F(X) = P*X • X is m*n matrix: m columns and n rows • P is a k*m random matrix, k <= m • Johnson-Lindenstrauss Lemma There is a random projection F() with e is a small number <1, so that (1-e)||x-y||<=||F(x)-F(y)||<=(1+e)||x-y|| i.e. distance is approximately preserved.

  10. Comparison between GDP and RPP • Privacy preservation • Subject to similar kinds of attacks • RPP is more resilience to distance-based attacks • Utility preservation(model accuracy) • GDP preserves distances well • RPP approximately preserves distances • Model accuracy is not guaranteed

  11. Illustration of multiplicative data perturbation Preserving distances while perturbing each individual dimensions

  12. Class 1 Class 1 Class 2 Class 2 Classification boundary A Model “invariant” to GDP … • If distance plays an important role • Class/cluster members and decision boundaries are correlated in terms of distance, not the concrete locations 2D Example: Rotation and translation Classification boundary Class 1 Distance perturbation (Noise addition) Slightly changed Classification boundary Class 2

  13. Applicable DM algorithms • Modeling methods that depend on Euclidean geometric properties • Models “invariant” to GDP • all Euclidean distance based clustering algorithms • Classification algorithms • K Nearest Neighbors • Kernel methods • Linear classifier • Support vector machines • Most regression models • And potentially more …

  14. When to Use Multiplicative Data Perturbation Service Provider/data user Data Owner G(X)=RX+T+D G(X) Apply F to G(Xnew) F(G(X), ) Mined models/patterns Good for the corporate model or dataset publishing. Major issue!! curious service providers/data users try to break G(X)

  15. Major issue: attacks!! • Many existing PP methods are found not so effective • when attacks are considered • Ex: various data reconstruction algorithms to the random noise addition approach [Huang05][Guo06] • Prior knowledge • Service provider Y has “PRIOR KNOWLEDGE” about X’s domain and nothing stops Y from using it to infer information in the sanitized data

  16. Knowledge used to attack GDP • Three levels of knowledge • Know nothing  naïve estimation • Know column distributions  Independent Component Analysis • Know specific points (original points and their images in perturbed data)  distance inference

  17. Methodology of attack analysis • An attack is an estimate of the original data Original O(x1, x2,…, xn) vs. estimate P(x’1, x’2,…, x’n) How similar are these two series? One of the effective methods is to evaluate the variance/standard deviation of the difference [Rakesh00] Var (P–O) or std(P-O), P: estimated, O: original

  18. Two multi-column privacy metrics qi : privacy guarantee for column i qi = std(Pi–Oi), Oinormalized column values, Pi estimated column values Min privacy guarantee: the weakest link of all columns  min { qi, i=1..d} Avg privacy guarantee: overall privacy guarantee  1/d qi

  19. Class 1 Class 1 Class 1 Class 2 Class 2 Class 2 Classification boundary Classification boundary Classification boundary Attack 1: naïve estimation • Estimate original points purely based on the perturbed data If using “random rotation” only • Intensity of perturbation matters • Points around origin Y X

  20. Counter naïve estimation • Maximize intensity • Based on formal analysis of “rotation intensity” • Method to maximize intensity • Fast_Opt algorithm in GDP • “Random translation” T • Hide origin • Increase difficulty of attacking! • Need to estimate R first, in order to find out T

  21. Attack 2: ICA based attacks • Independent Component Analysis (ICA) • Try to separate R and X from Y= R*X

  22. Characteristics of ICA 1. Ordering of dimensions is not preserved. 2. Intensity (value range) is not preserved • Conditions of effective ICA-attack • Knowing column distribution • Knowing value range.

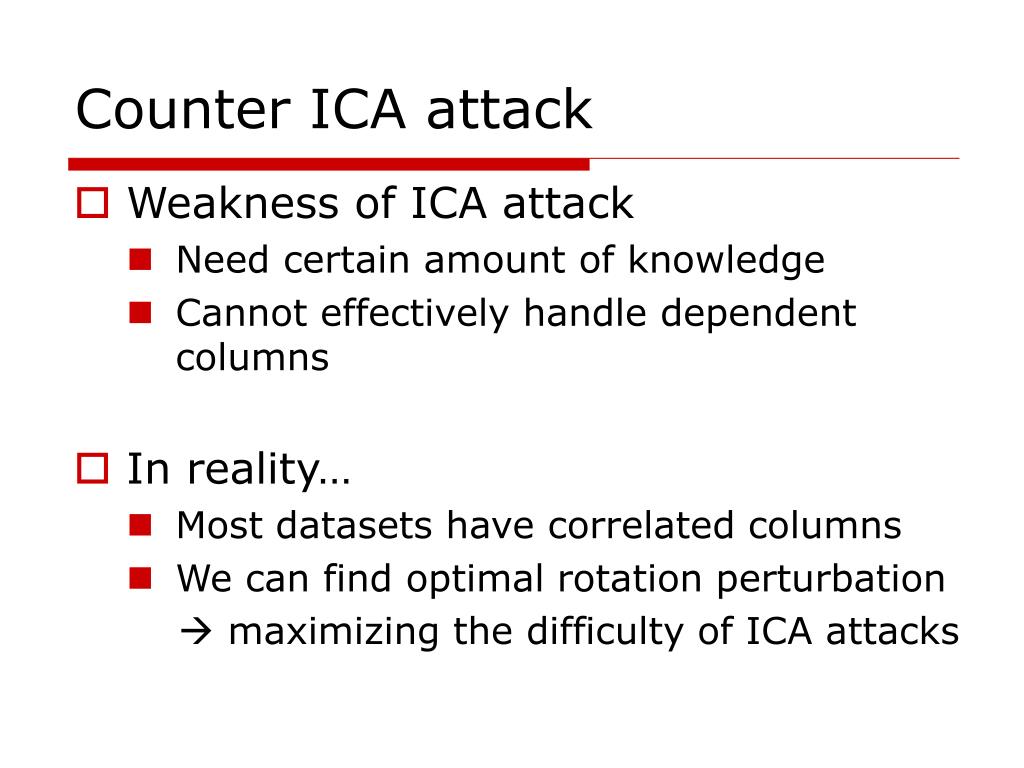

  23. Counter ICA attack • Weakness of ICA attack • Need certain amount of knowledge • Cannot effectively handle dependent columns • In reality… • Most datasets have correlated columns • We can find optimal rotation perturbation  maximizing the difficulty of ICA attacks

  24. Attack 3: distance-inference attack If with only rotation/translation perturbation, when the attacker knows a set of original points and their mapping… image Known point Perturbed Original

  25. How is the Attack done … • Knowing points and their images … • find exact images of the known points • Enumerate pairs by matched distances … Less effective for large data … • we assume pairs are successfully identified • Estimation 1. Cancel random translation T from pairs (x, x’) 2. calculate R with pairs: Y=RX  R = Y*X-1 3. calculate T with R and known pairs

  26. Counter distance-inference: Noise addition • Noise brings enough variance in estimation of R and T • Now the attacker has to use regression to estimate R • Then, use approximate R to estimate T  increase uncertainty • Can the noise be easily filtered? • Need to know noise distribution, • Need to know distribution of RX + T, • Both distributions are not published, however. Note: It is very different from the attacks to noise addition data perturbation [Kargupta03, Huang05]

  27. Attackers with more knowledge? • What if attackers know large amount of original records? • Able to accurately estimate covariance matrix, column distribution, and column range, etc., of the original data • Methods PCA, AK_ICA, …,etc can be used • What do we do? You have released so much original information… Stop releasing any kind of data anymore 

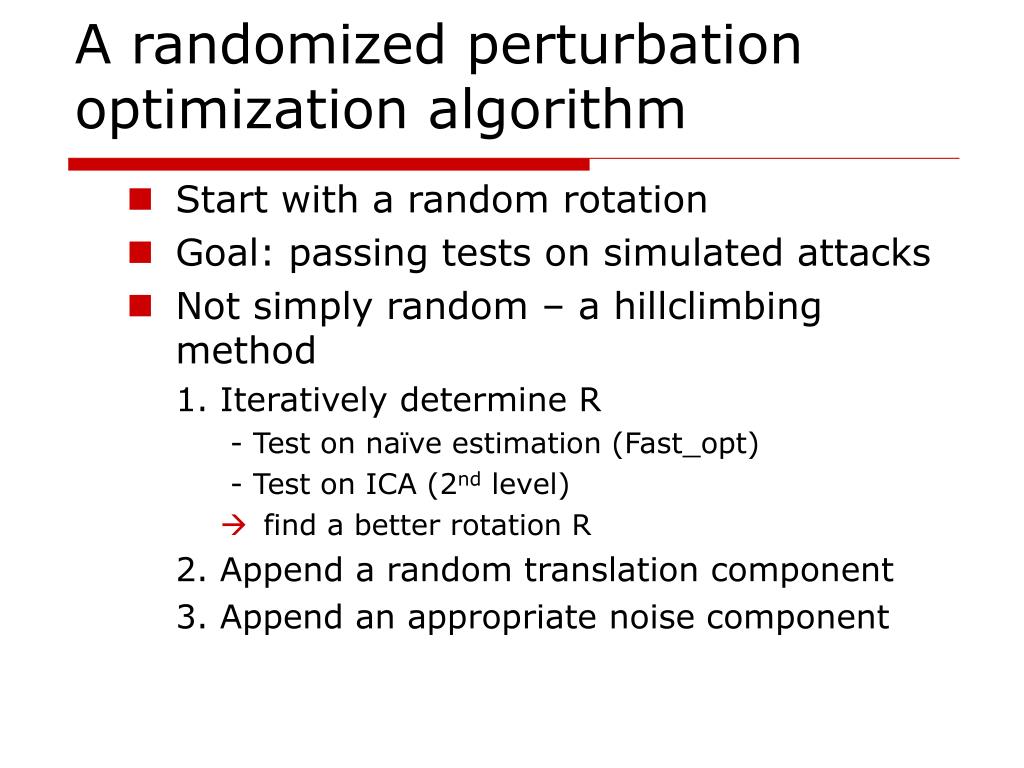

  28. A randomized perturbation optimization algorithm • Start with a random rotation • Goal: passing tests on simulated attacks • Not simply random – a hillclimbing method 1. Iteratively determine R - Test on naïve estimation (Fast_opt) - Test on ICA (2nd level) • find a better rotation R 2. Append a random translation component 3. Append an appropriate noise component

  29. Comparison on methods • Privacy preservation • In general, RPP should be better than GDP • Evaluate the effect of attacks for GDP • ICA and distance perturbation need experimental evaluation • Utility preservation • GDP: • R and T exactly preserve distances, • The effect of D needs experimental evaluation • RPP • # of perturbed dimensions vs. utility • Datasets • 12 datasets from UCI Data Repository

  30. Privacy guarantee:GDP • In terms of naïve estimation and ICA-based attacks • Use only the random rotation and translation (R*X+T) components Optimized perturbation for both attacks Optimized for Naïve estimation only Worst perturbation (no optimization)

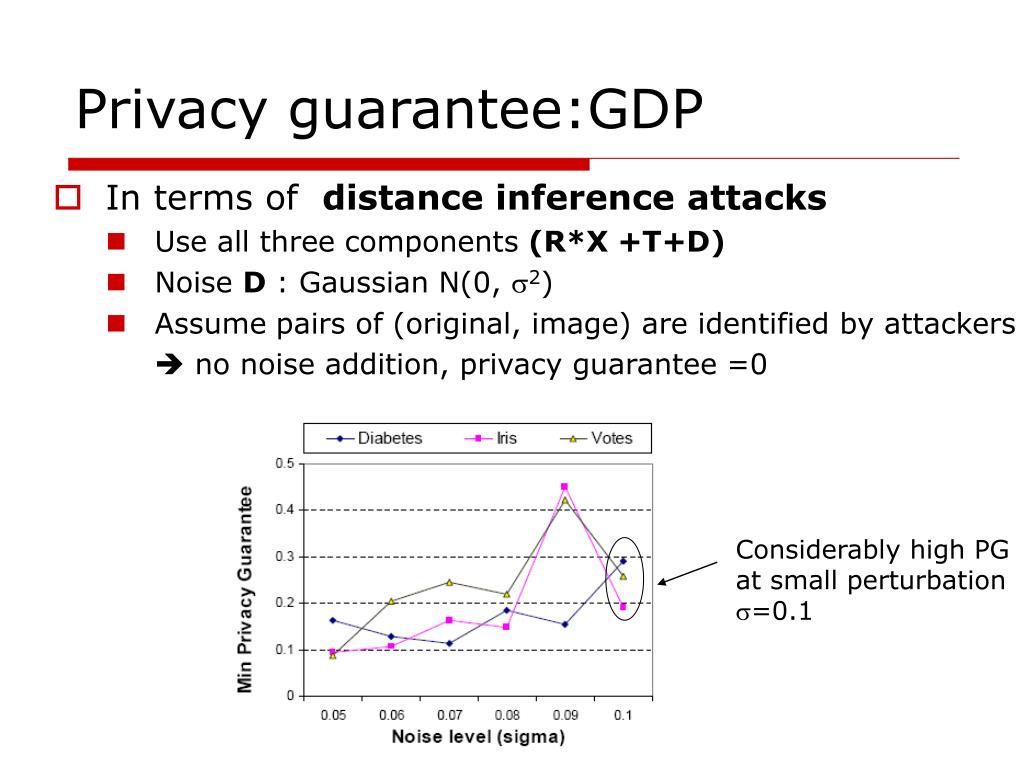

  31. Privacy guarantee:GDP • In terms of distance inference attacks • Use all three components (R*X +T+D) • Noise D : Gaussian N(0, 2) • Assume pairs of (original, image) are identified by attackers  no noise addition, privacy guarantee =0 Considerably high PG at small perturbation =0.1

  32. Data utility : GDP with noise addition • Noise addition vs. model accuracy - noise: N(0, 0.12) Boolean data is more sensitive to distance perturbation

  33. Data Utility: RPP • Reduced # of dims vs. model accuracy KNN classifiers SVMs

  34. Perceptrons
