SLIDE SHOW III Rescuing E325D

SLIDE SHOW III Rescuing E325D. A. Mutant E325D is partially uncoupled and has lower K D for substrate. +. -. -. -. IX. R 302. D 325. X. H 322. VIII. K 319. H + o. E 269. +. D 240. R. +. C. 144. VII. 148. -. V. E 126. IV. +. -. -. -. -. +. +.

harding-raymond
Télécharger la présentation

SLIDE SHOW III Rescuing E325D

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. SLIDE SHOW III Rescuing E325D

  2. A. Mutant E325D is partially uncoupled and has lower KD for substrate. + - - - IX R302 D325 X H322 VIII K319 H+o E269 + D240 R + C 144 VII 148 - V E126 IV

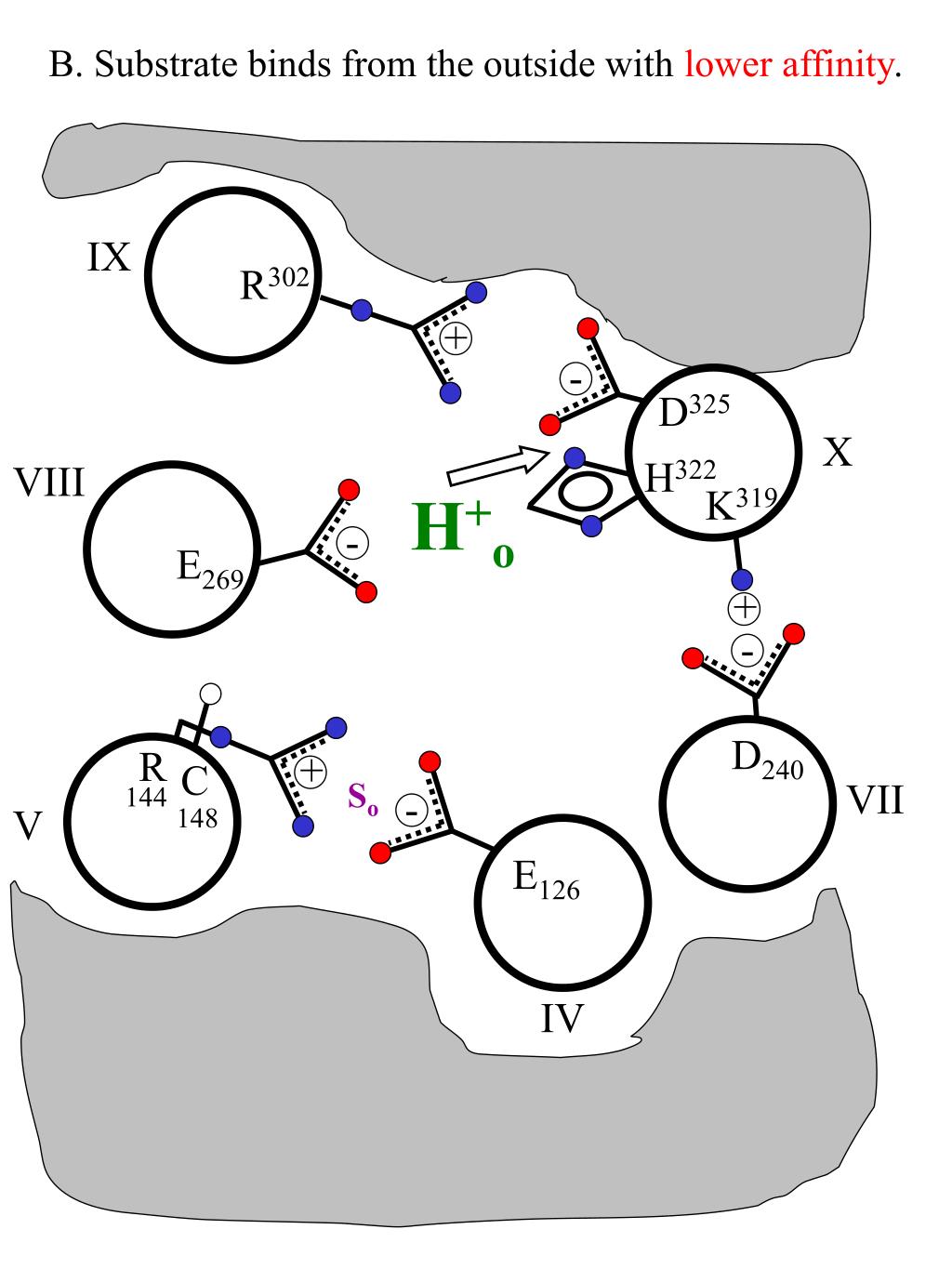

  3. + - - - - + + B. Substrate binds from the outside with lower affinity. IX R302 D325 X H322 VIII K319 H+o E269 D240 R C 144 VII So 148 V E126 IV

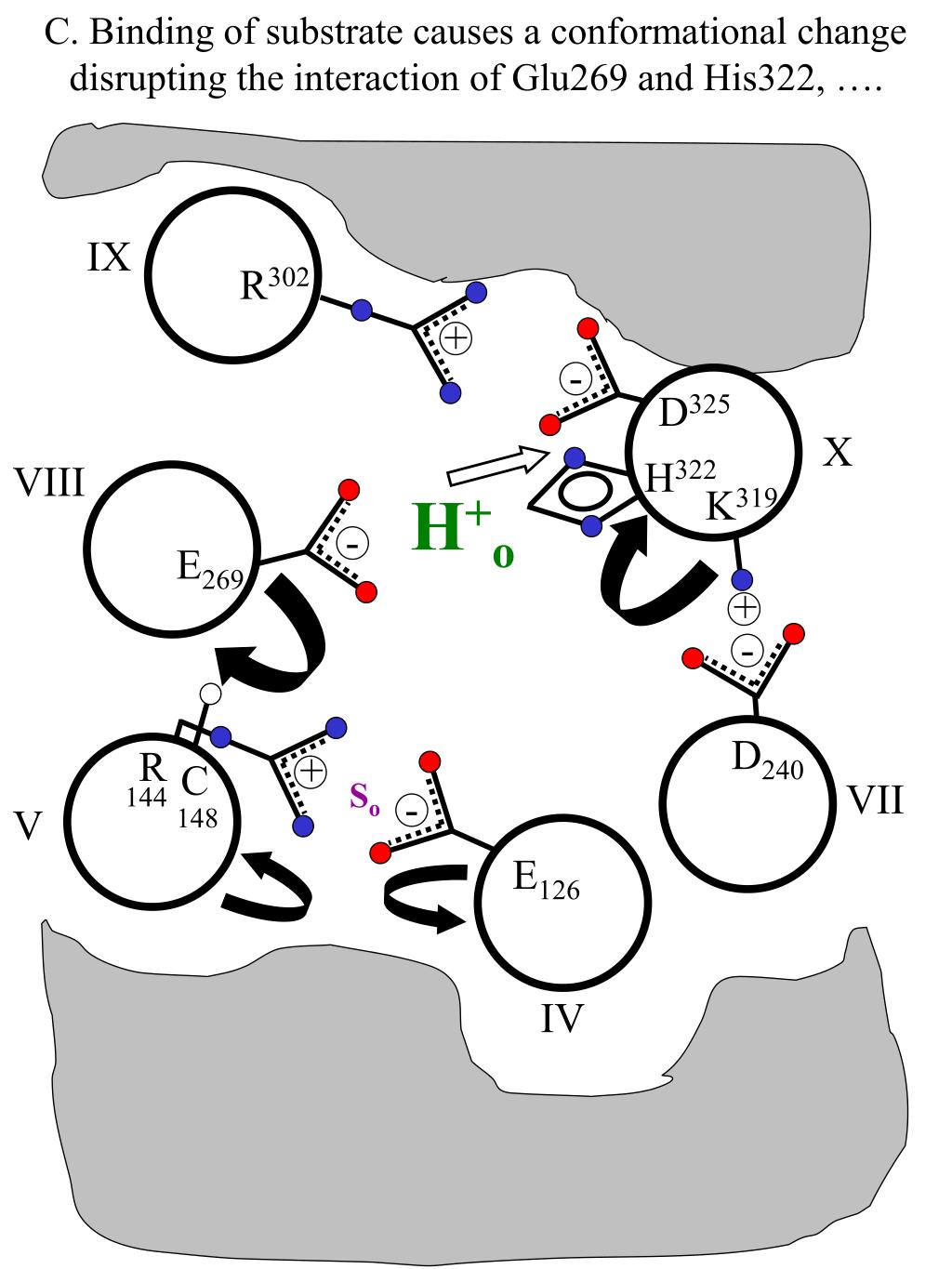

  4. C. Binding of substrate causes a conformational change disrupting the interaction of Glu269 and His322, …. + - - - - + IX R302 D325 X H322 VIII K319 H+o E269 + D240 R C 144 VII So 148 V E126 IV

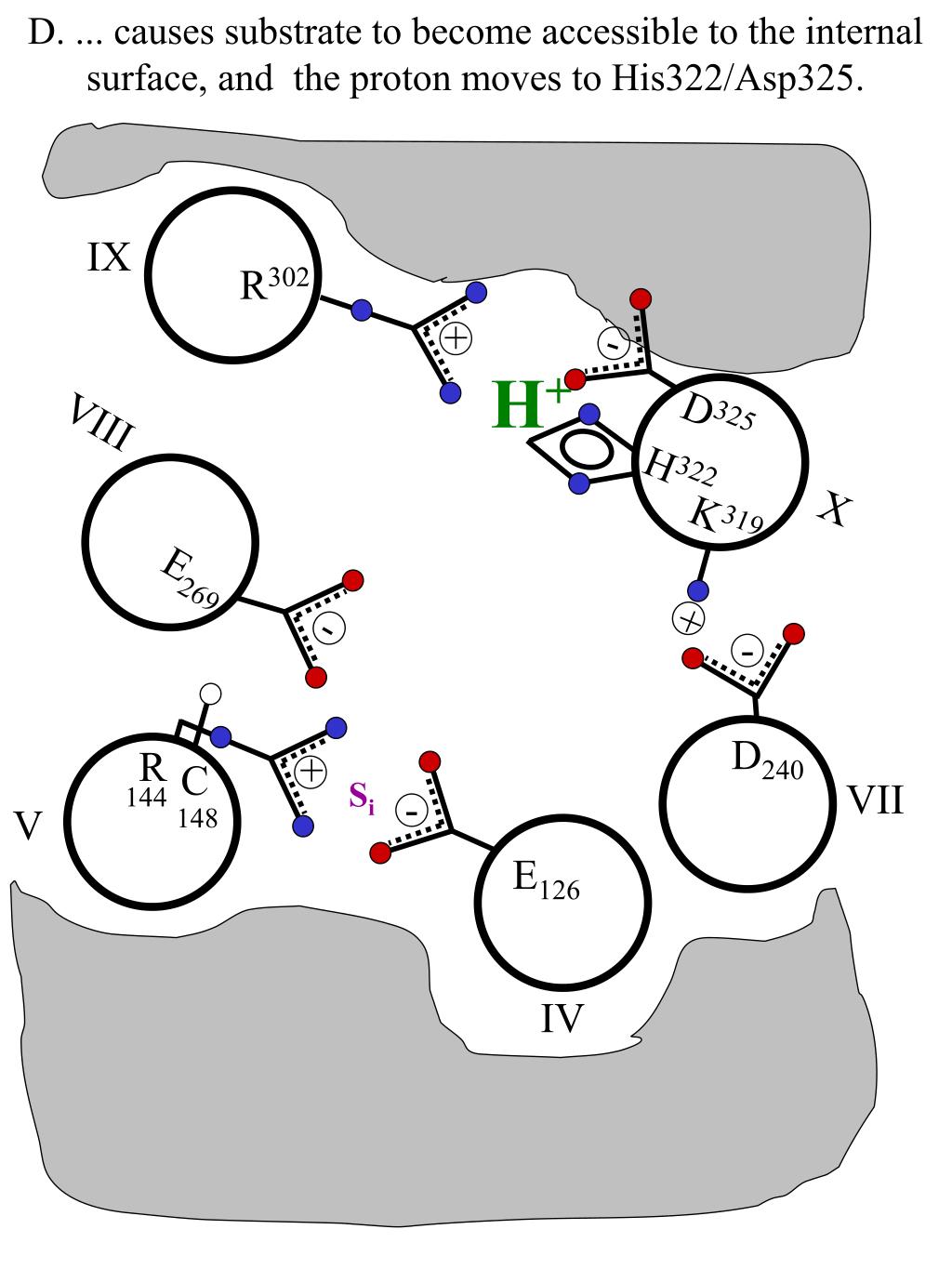

  5. D. ... causes substrate to become accessible to the internal surface, and the proton moves to His322/Asp325. + - - - IX R302 H+ D325 VIII H322 X K319 E269 + D240 R + C 144 Si VII 148 - V E126 IV

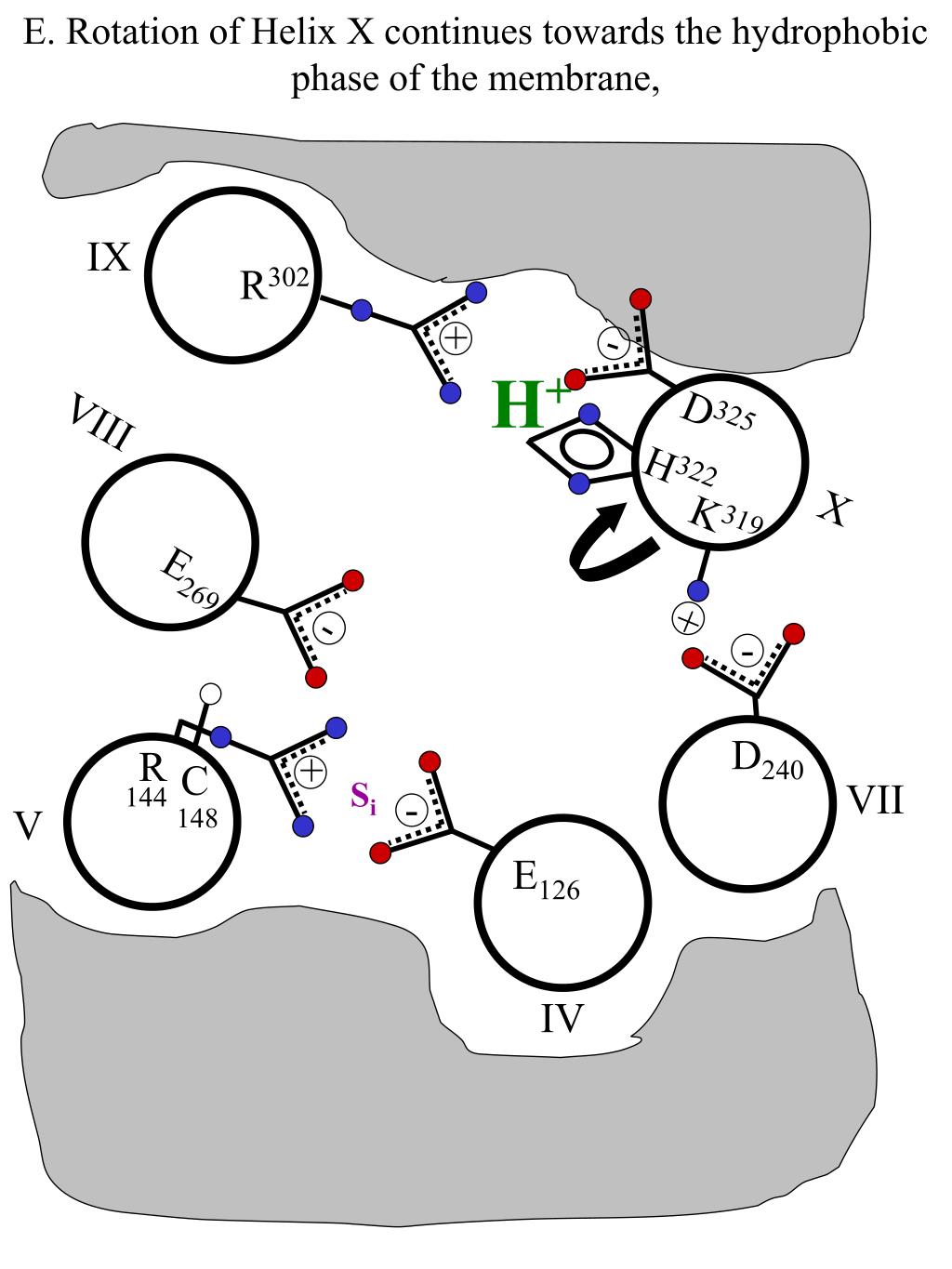

  6. E. Rotation of Helix X continues towards the hydrophobic phase of the membrane, + - - - IX R302 H+ D325 VIII H322 X K319 E269 + D240 R + C 144 Si VII 148 - V E126 IV

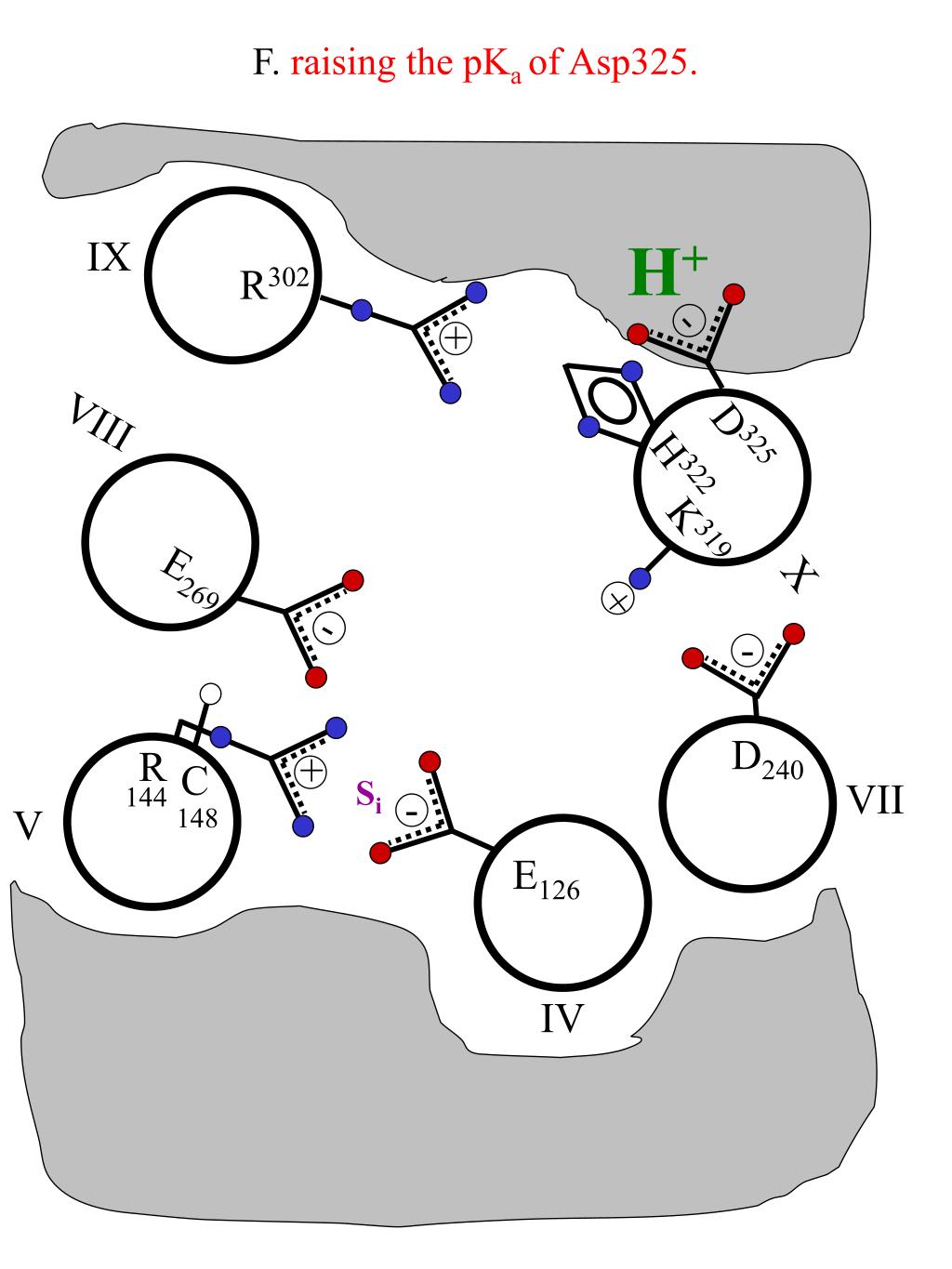

  7. + - - - F. raising the pKa of Asp325. H+ IX R302 VIII D325 H322 K319 X E269 + D240 R + C 144 Si VII 148 - V E126 IV

  8. - - - G. Substrate dissociates. H+ IX R302 + VIII D325 H322 K319 X E269 + - Si D240 R + C Si Si 144 VII 148 V E126 IV

  9. H. By introducing a Gly or Ala residue at the periplasmic end of helix X, Asp325 re-juxtaposes with Arg302 without improving affinity for substrate. + - - - H+ IX R302 D325 VIII H322 K319 X E269 + V316G/A D240 R + C 144 VII 148 - V E126 IV

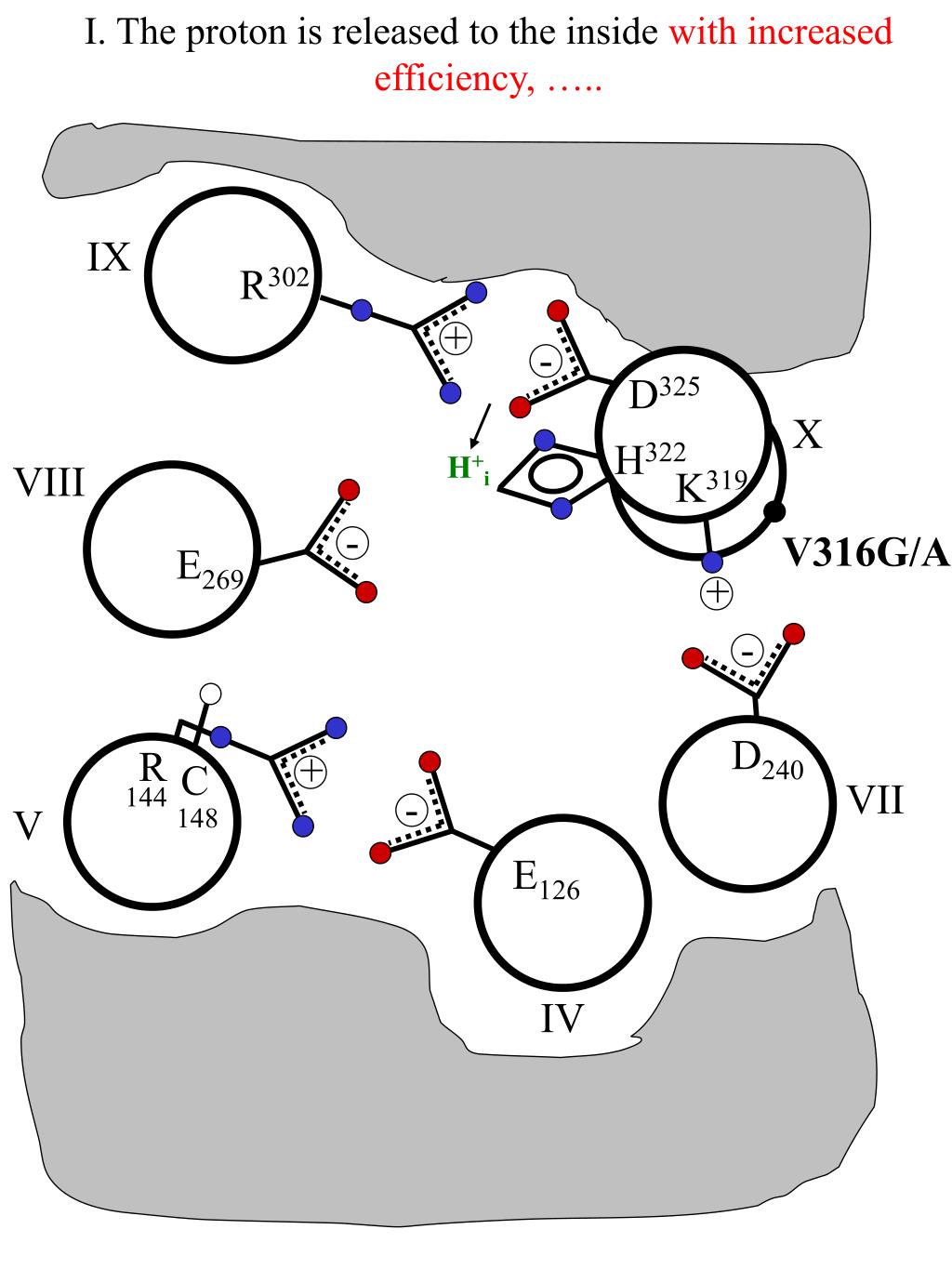

  10. I. The proton is released to the inside with increased efficiency, ….. + - - - - + + IX R302 D325 X H322 H+i VIII K319 V316G/A E269 D240 R C 144 VII 148 V E126 IV

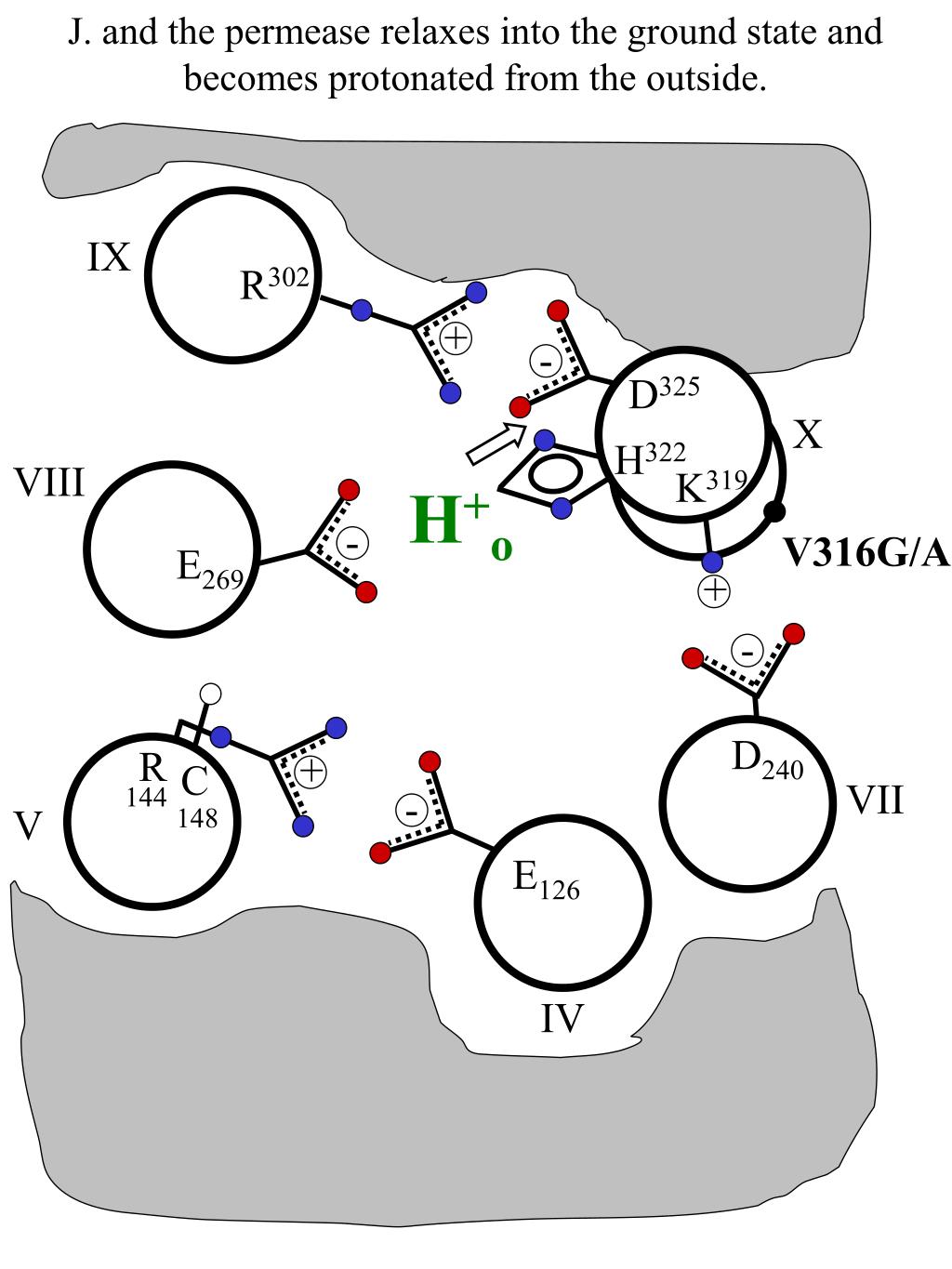

  11. J. and the permease relaxes into the ground state and becomes protonated from the outside. + - - - + IX R302 D325 X H322 VIII K319 H+o V316G/A E269 D240 R + C 144 VII 148 - V E126 IV
