  1. Shoulder Problems Fractures Instability Impingement Miscellaneous

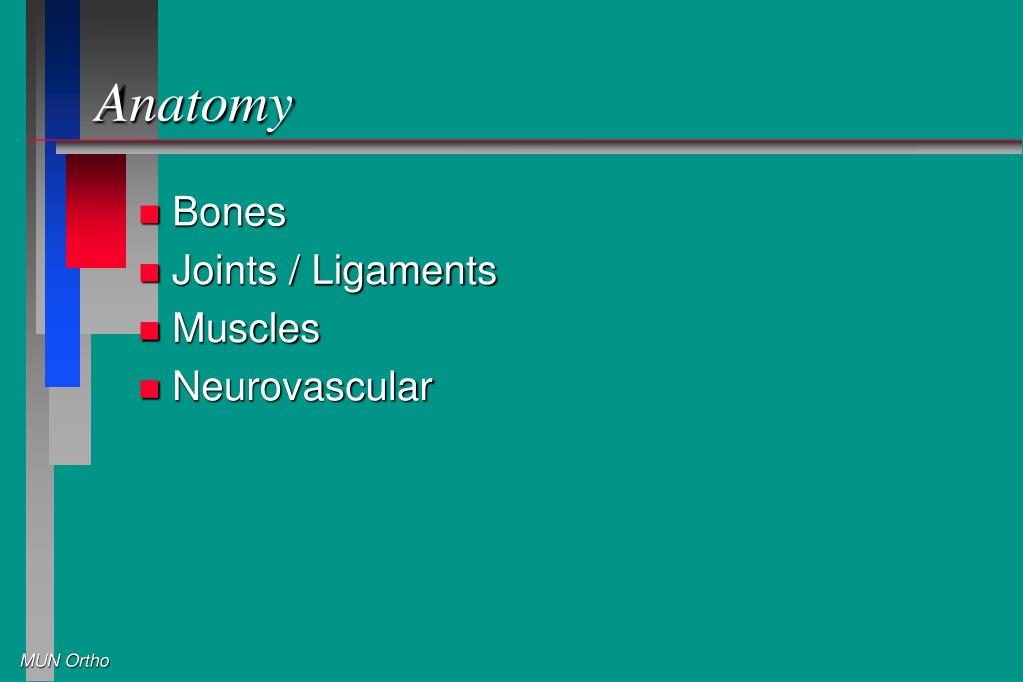

  2. Anatomy • Bones • Joints / Ligaments • Muscles • Neurovascular

  3. Anatomy

  4. Anatomy Supraspinatus Anterior Posterior

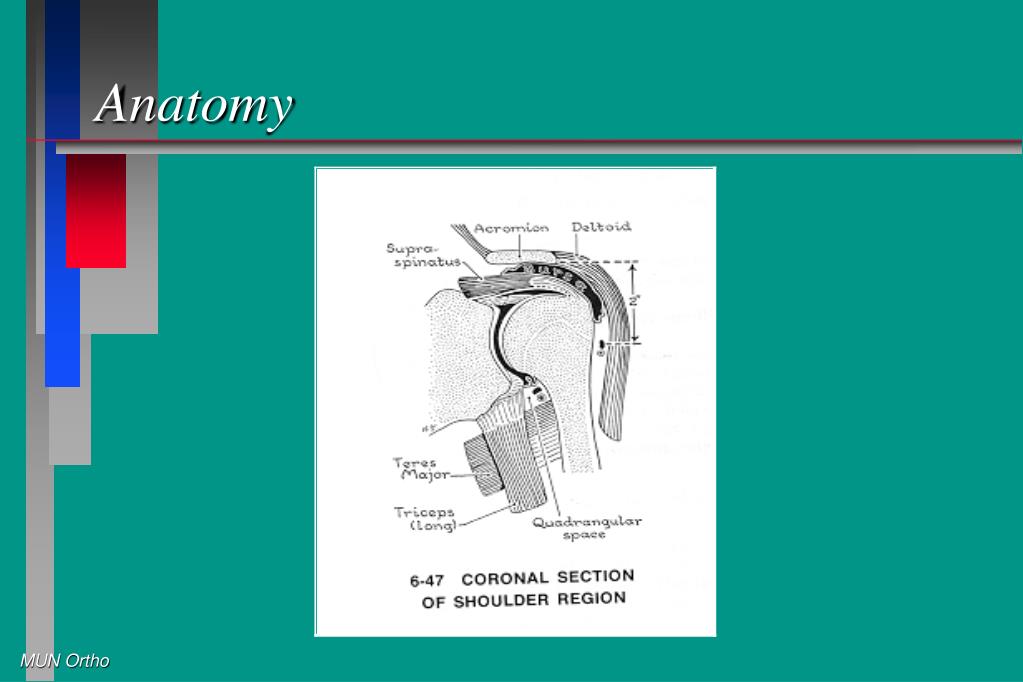

  5. Anatomy

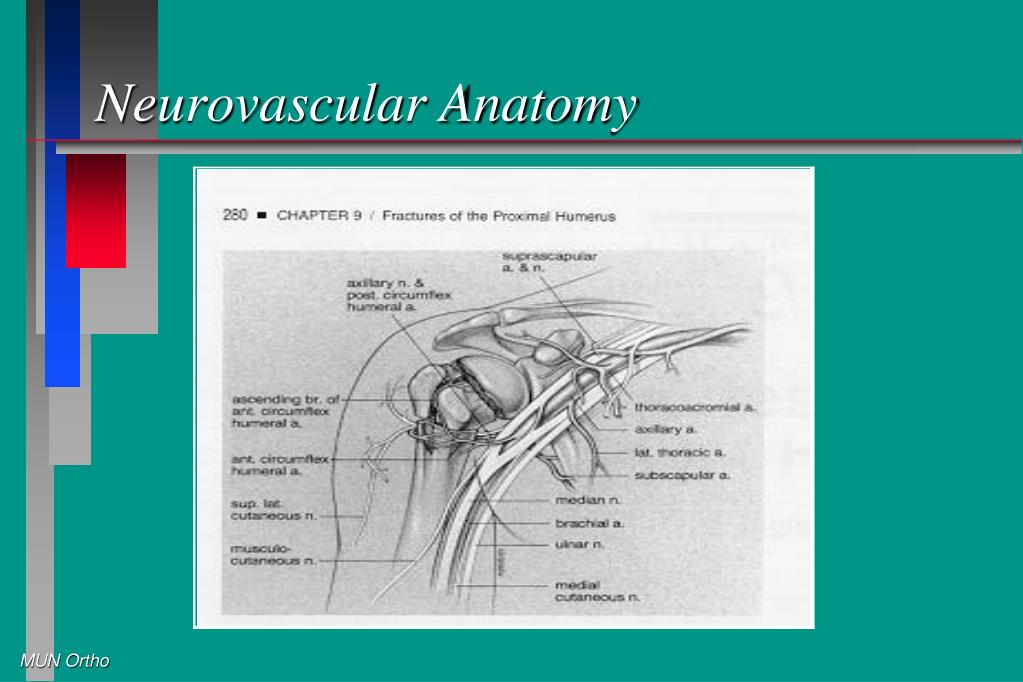

  6. Neurovascular Anatomy

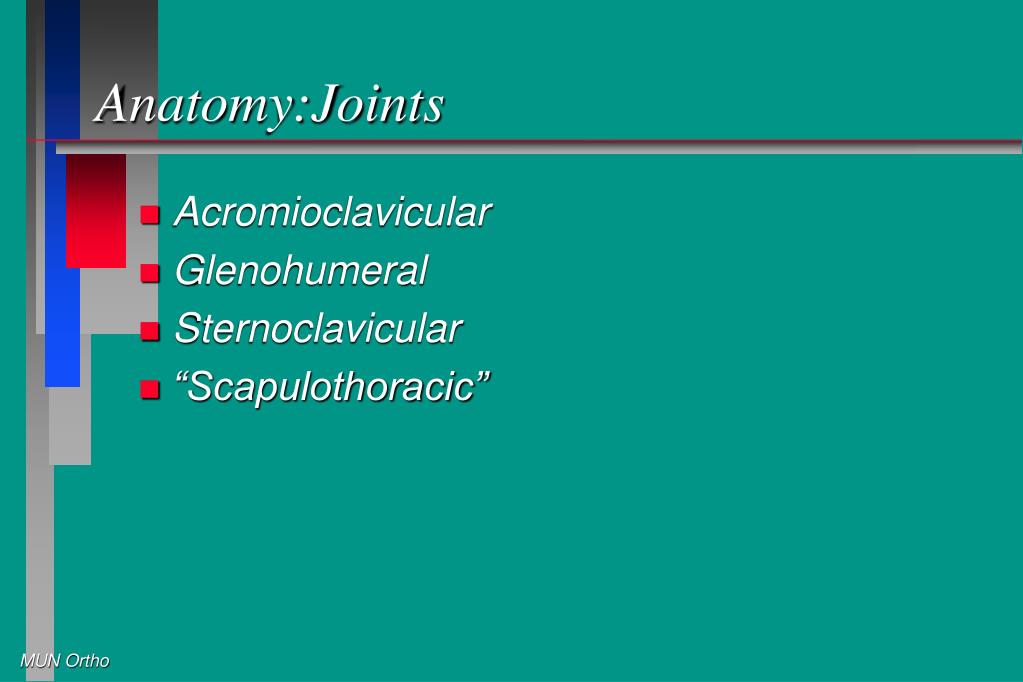

  7. Anatomy:Joints • Acromioclavicular • Glenohumeral • Sternoclavicular • “Scapulothoracic”

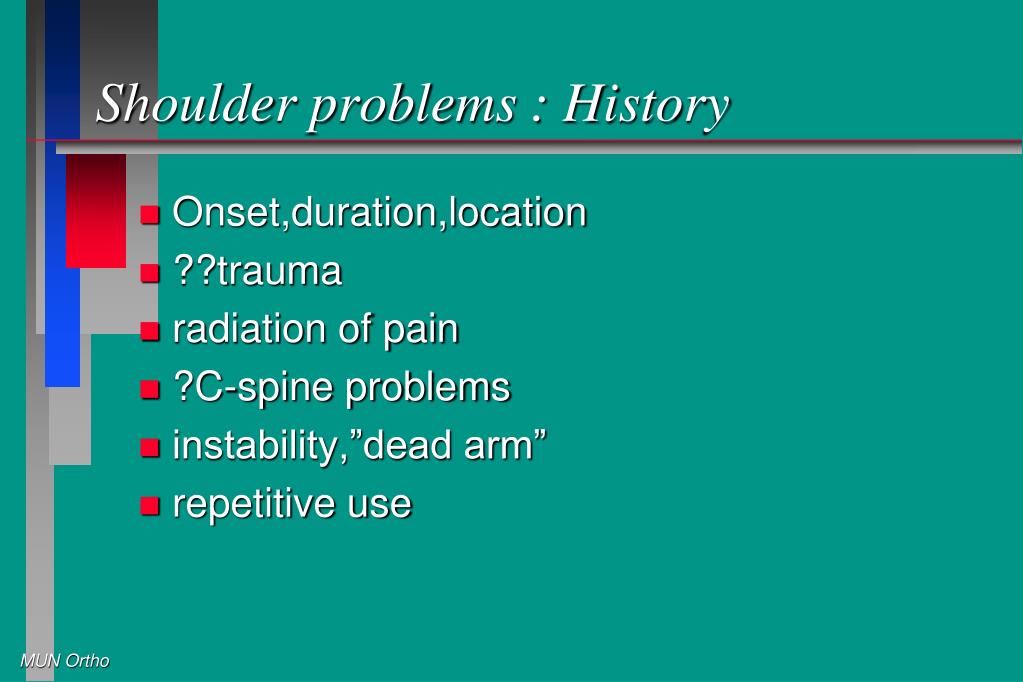

  8. Shoulder problems : History • Onset,duration,location • ??trauma • radiation of pain • ?C-spine problems • instability,”dead arm” • repetitive use

  9. Physical Examination • deformity eg AC sep’n • ROM passive & active • Impingement tests • Instability tests • neurovascular exam

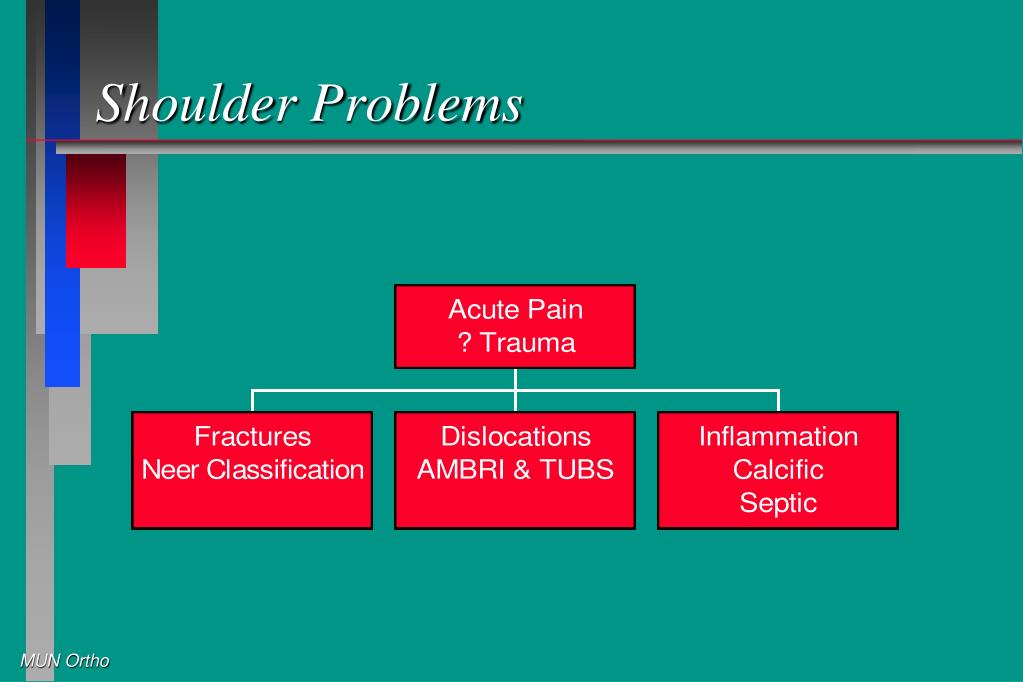

  10. Shoulder Problems

  11. Trauma !!

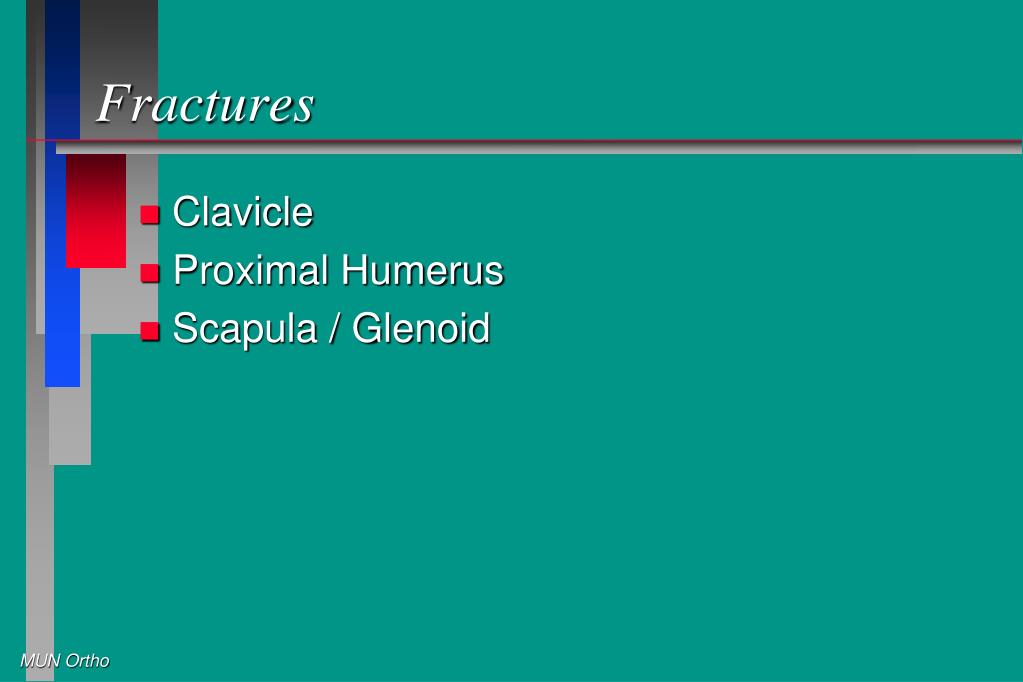

  12. Fractures • Clavicle • Proximal Humerus • Scapula / Glenoid

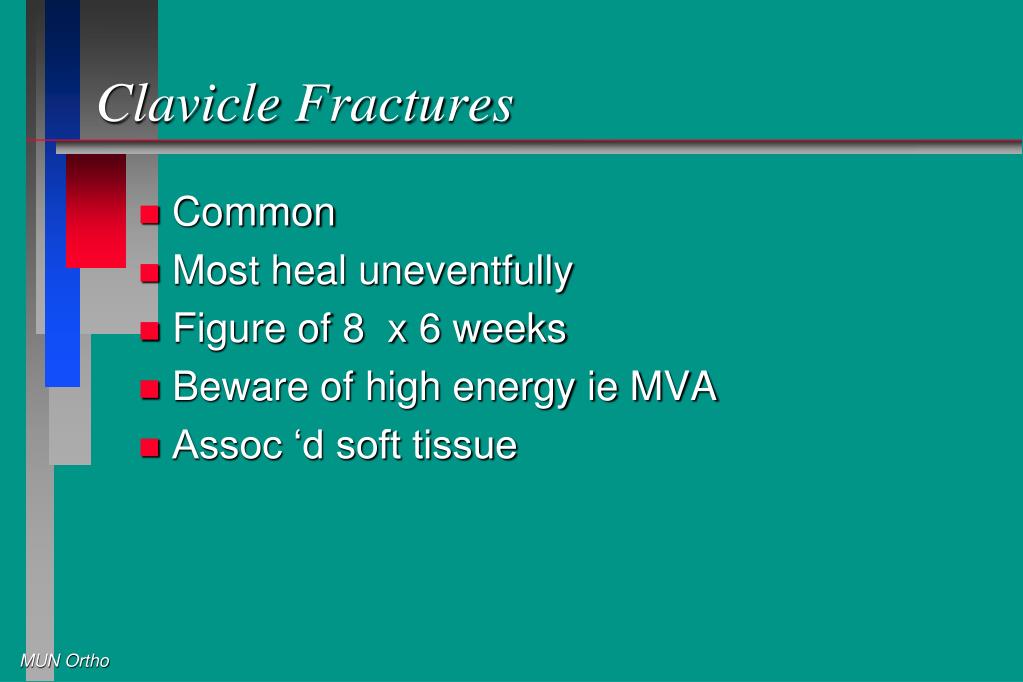

  13. Clavicle Fractures • Common • Most heal uneventfully • Figure of 8 x 6 weeks • Beware of high energy ie MVA • Assoc ‘d soft tissue

  14. CLAVICLE FRACTURE

  15. Clavicle Fractures : Figure 8 bandage

  16. Proximal Humerus Fractures • Neer- 4 parts • Vascularity of articular fragment • Displacement > 1 cm • Angulation > 45 degrees • Xray vs. CT scan • Interobserver variability

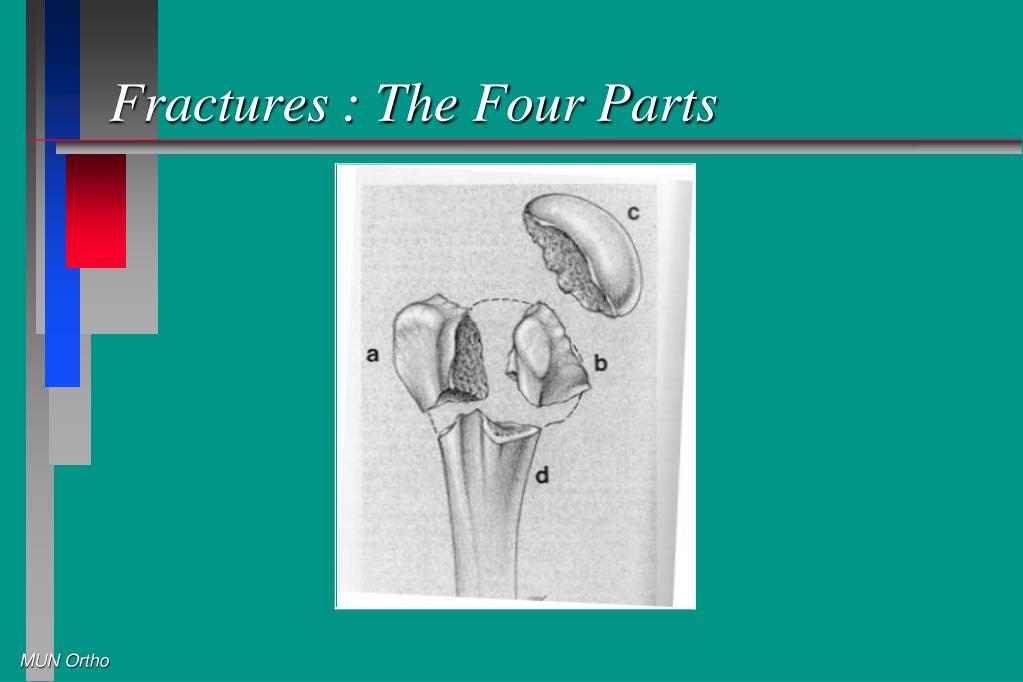

  17. Fractures : The Four Parts

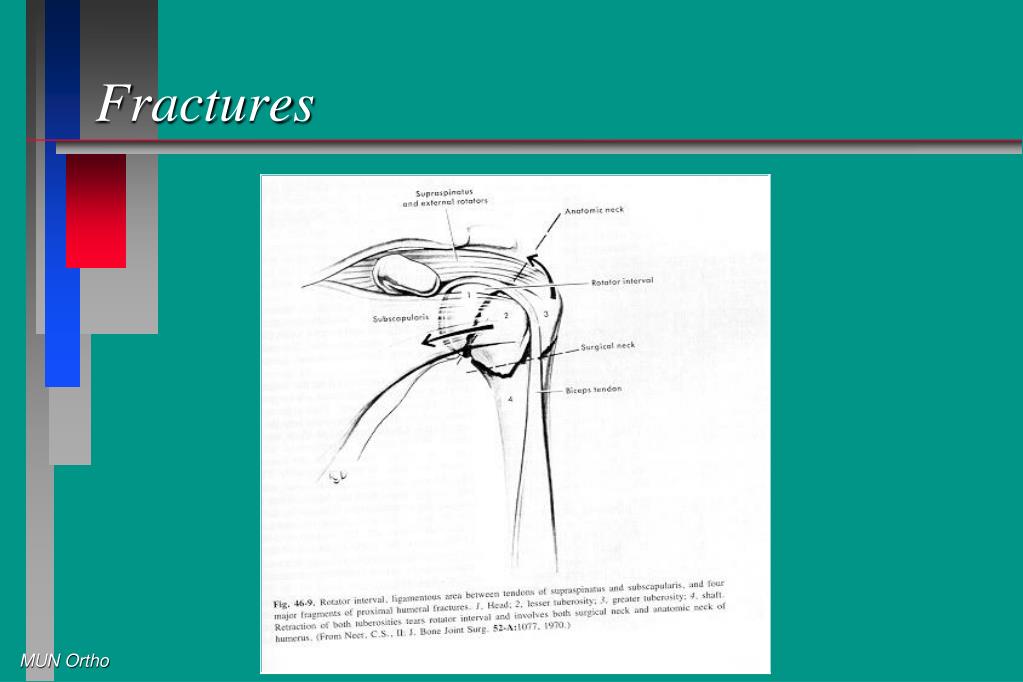

  18. Fractures

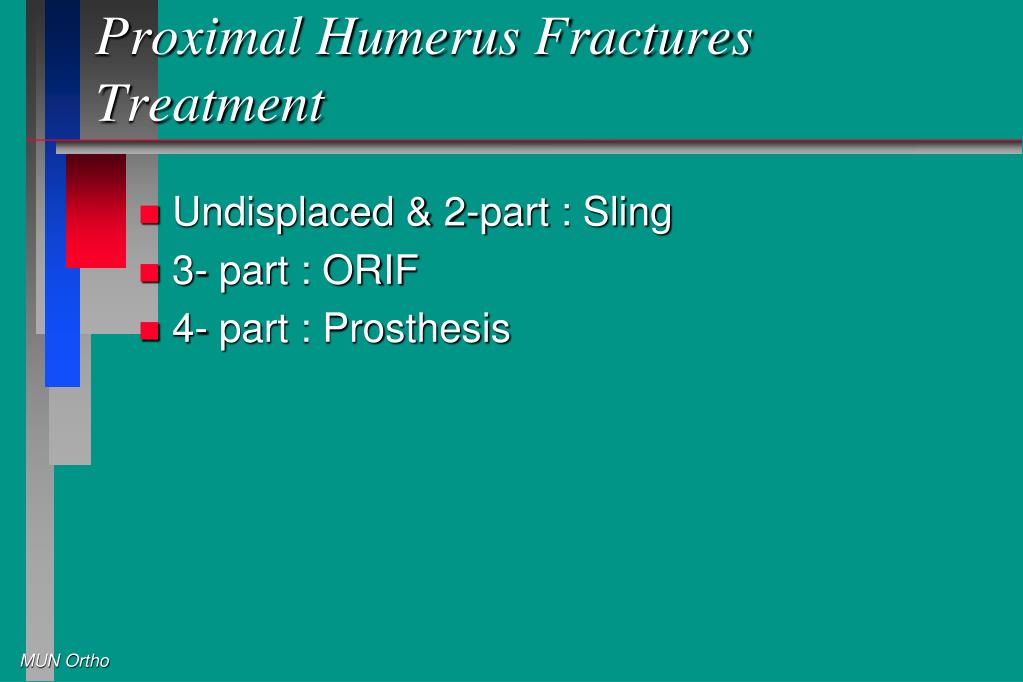

  19. Proximal Humerus FracturesTreatment • Undisplaced & 2-part : Sling • 3- part : ORIF • 4- part : Prosthesis

  20. 4 PART FRACTURE

  21. NEER PROSTHESIS

  22. 3 PART FRACTURE

  23. ORIF 3 PART

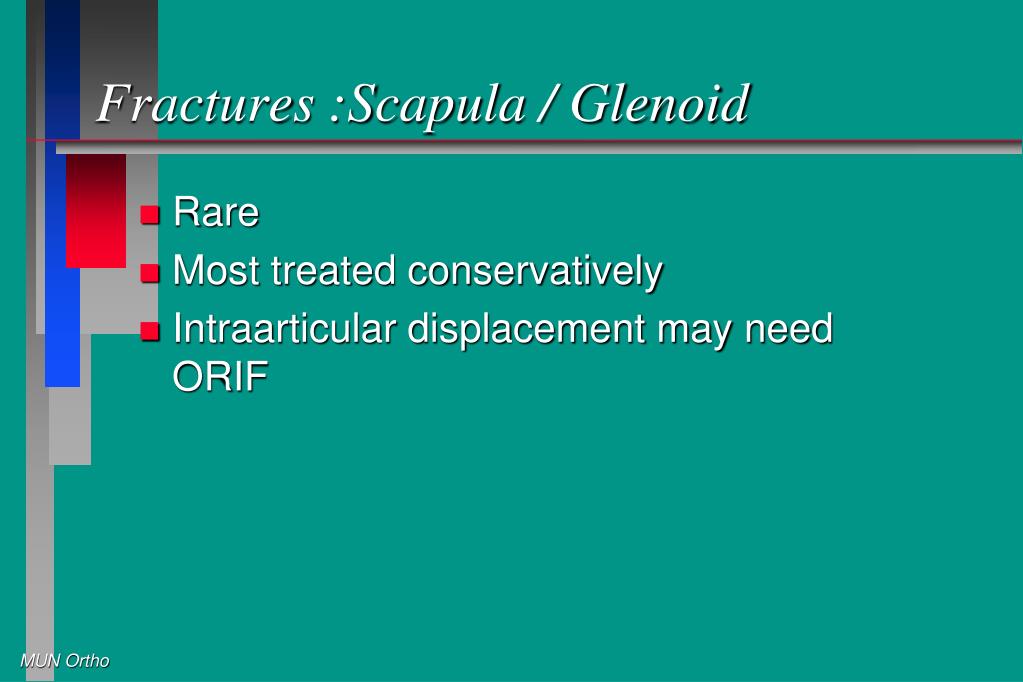

  24. Fractures :Scapula / Glenoid • Rare • Most treated conservatively • Intraarticular displacement may need ORIF

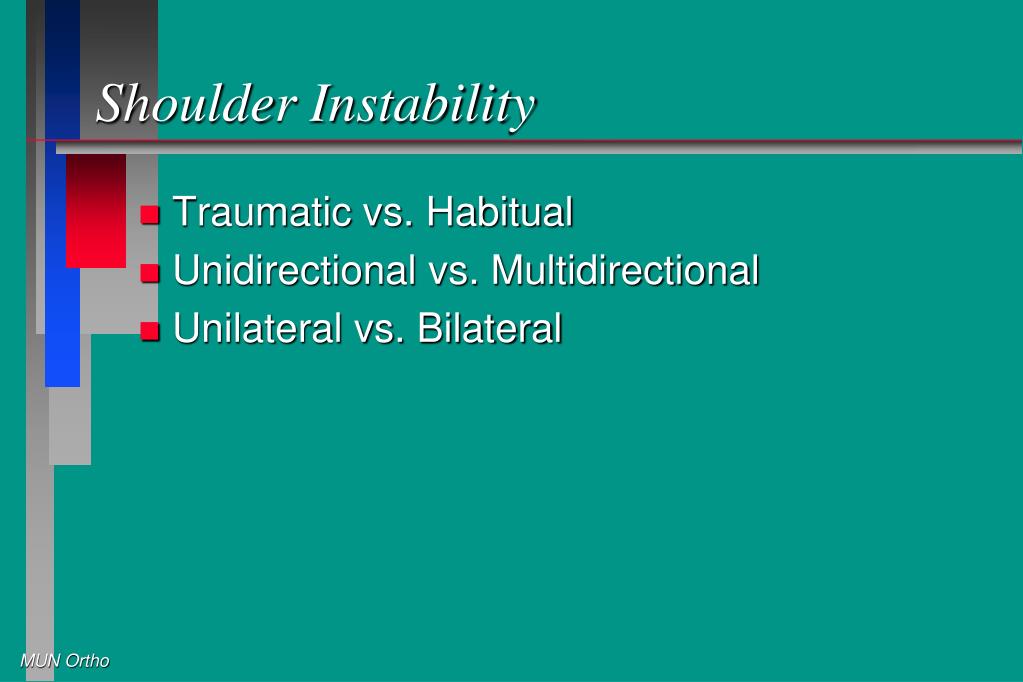

  25. Shoulder Instability • Traumatic vs. Habitual • Unidirectional vs. Multidirectional • Unilateral vs. Bilateral

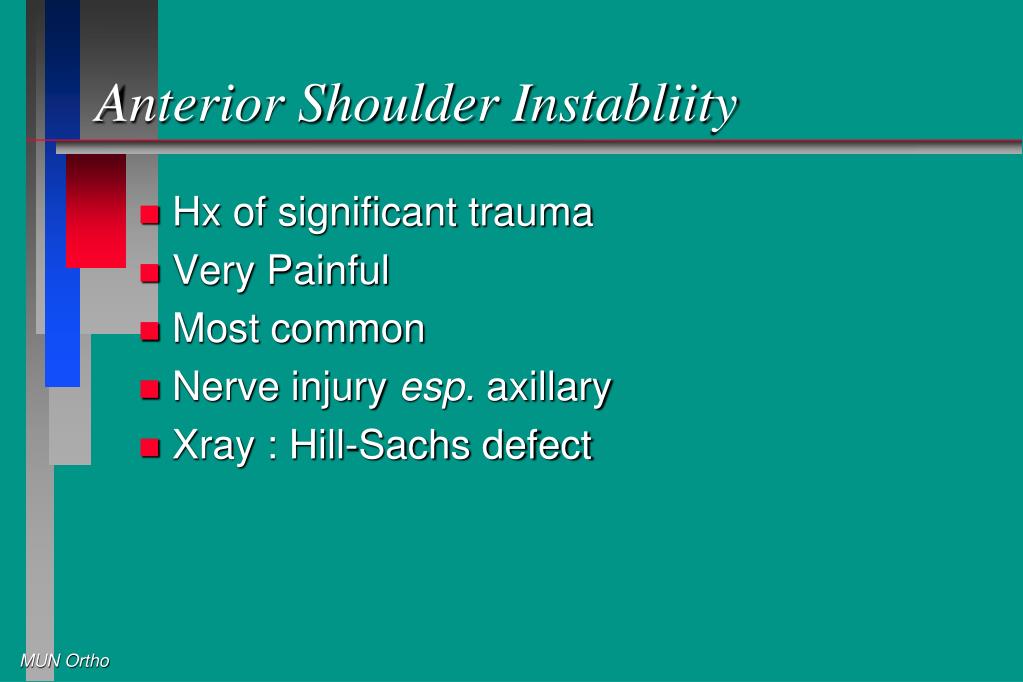

  26. Anterior Shoulder Instabliity • Hx of significant trauma • Very Painful • Most common • Nerve injury esp. axillary • Xray : Hill-Sachs defect

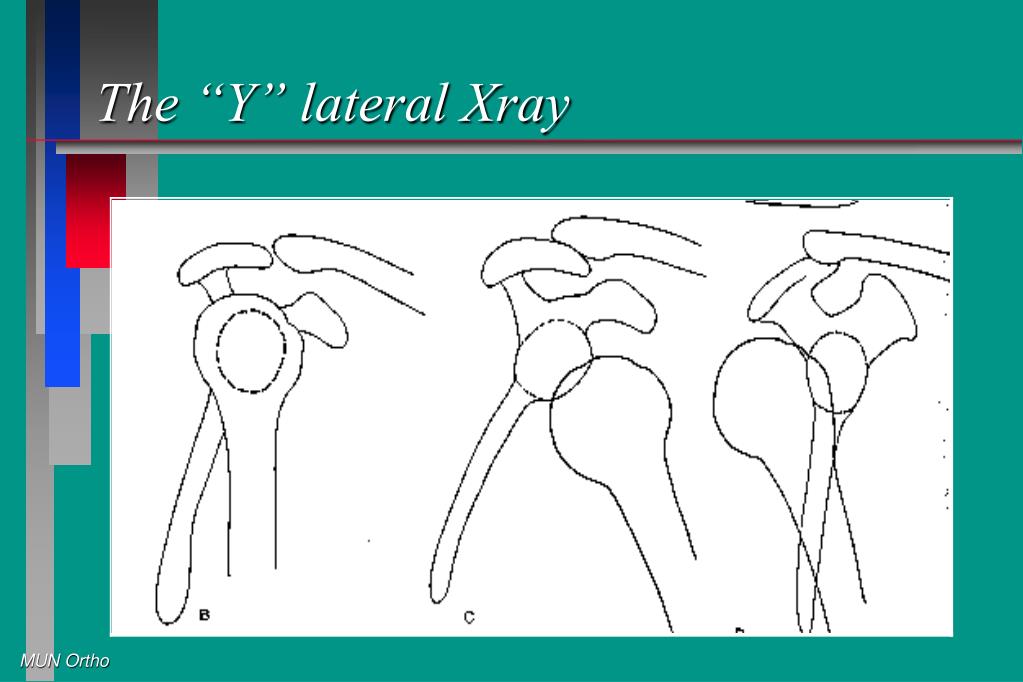

  27. The “Y” lateral Xray

  28. The “Y” lateral Xray

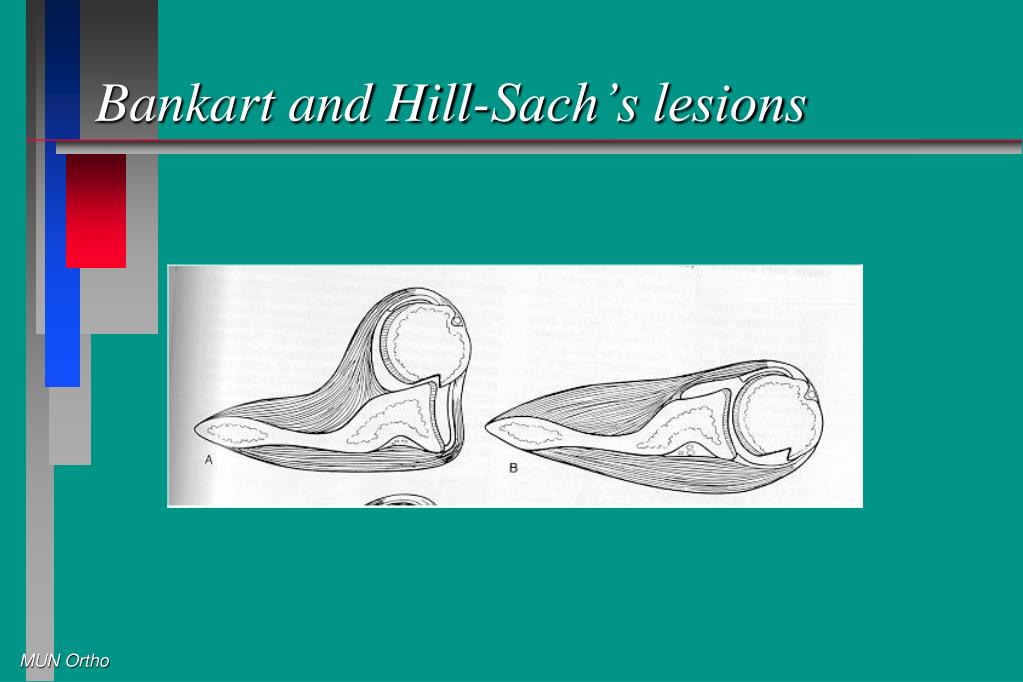

  29. Bankart and Hill-Sach’s lesions

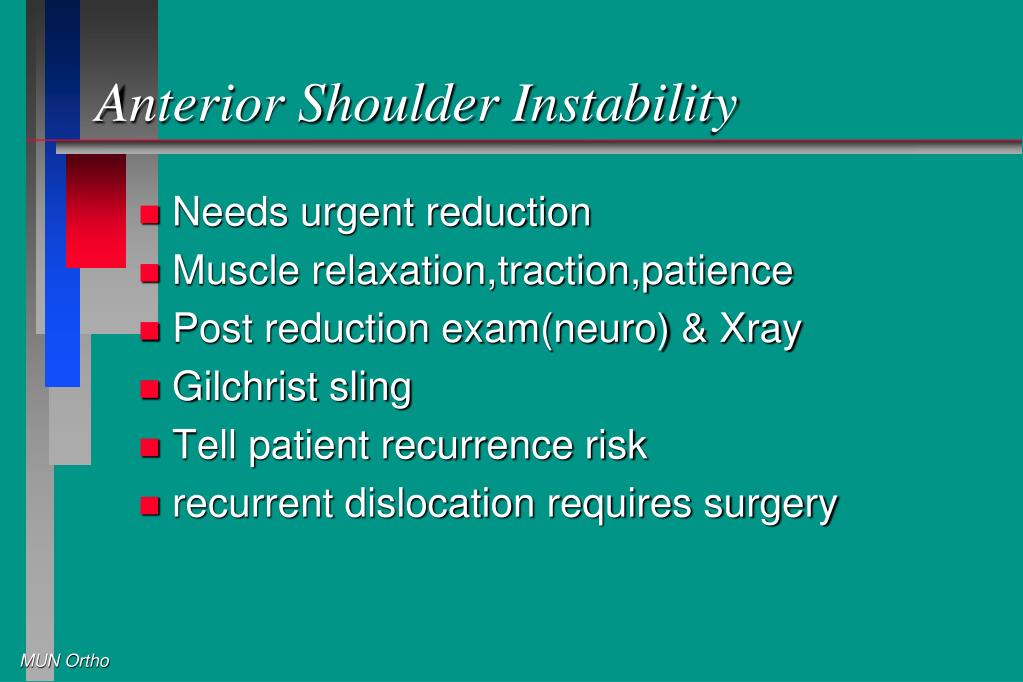

  30. Anterior Shoulder Instability • Needs urgent reduction • Muscle relaxation,traction,patience • Post reduction exam(neuro) & Xray • Gilchrist sling • Tell patient recurrence risk • recurrent dislocation requires surgery

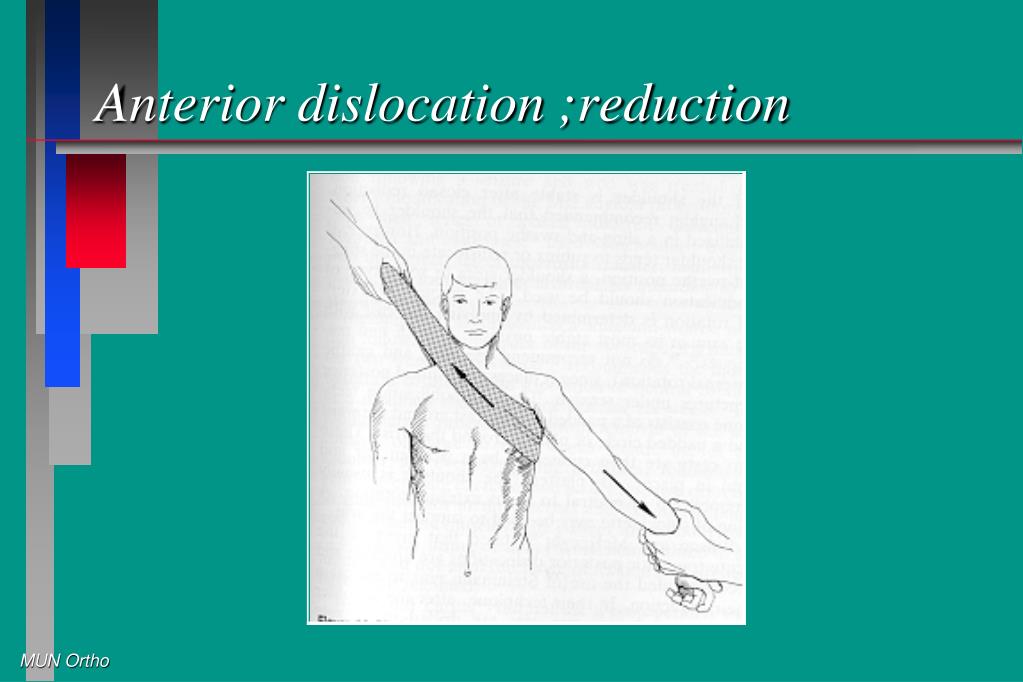

  31. Anterior dislocation ;reduction

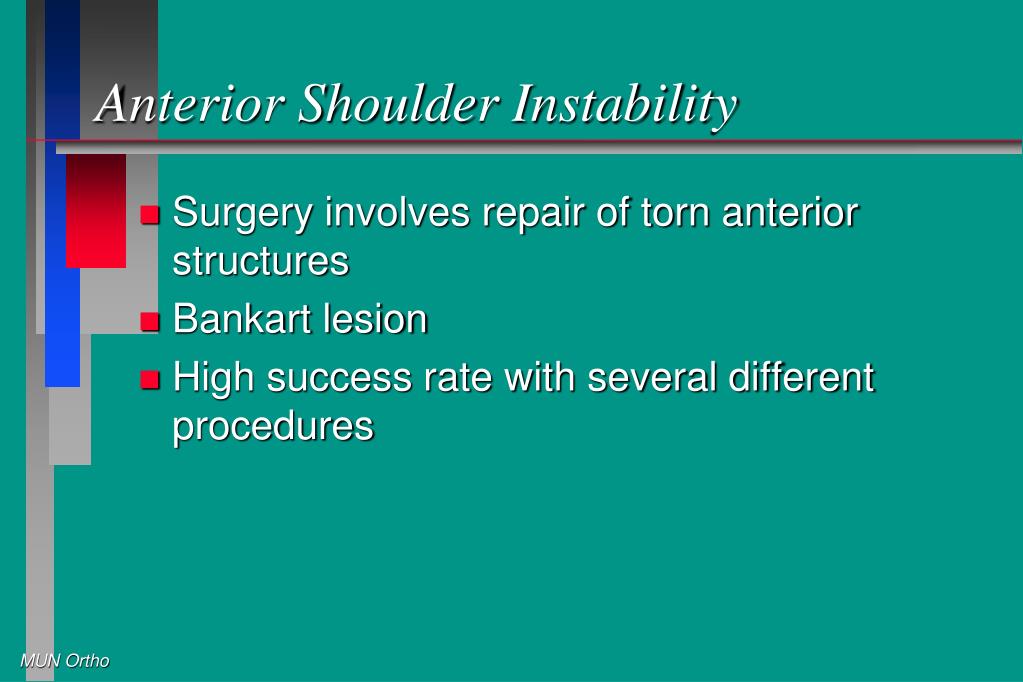

  32. Anterior Shoulder Instability • Surgery involves repair of torn anterior structures • Bankart lesion • High success rate with several different procedures

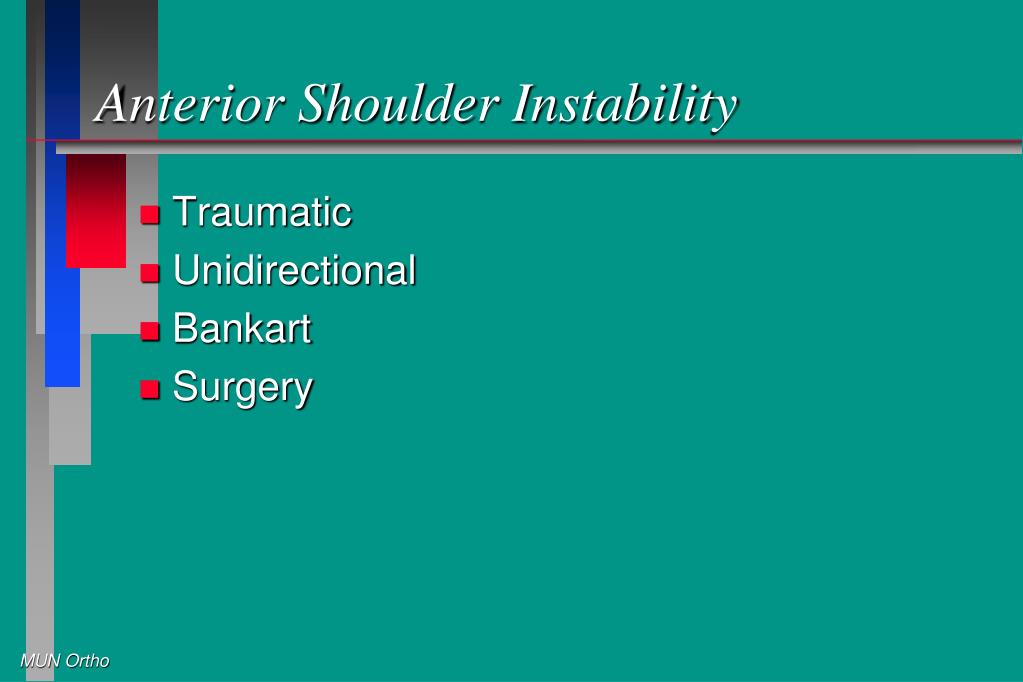

  33. Anterior Shoulder Instability • Traumatic • Unidirectional • Bankart • Surgery

  34. Multidirectional Instability • anterior,posterior,inferior • voluntary • atraumatic • ligament laxity • some are assoc’d with psychological problems

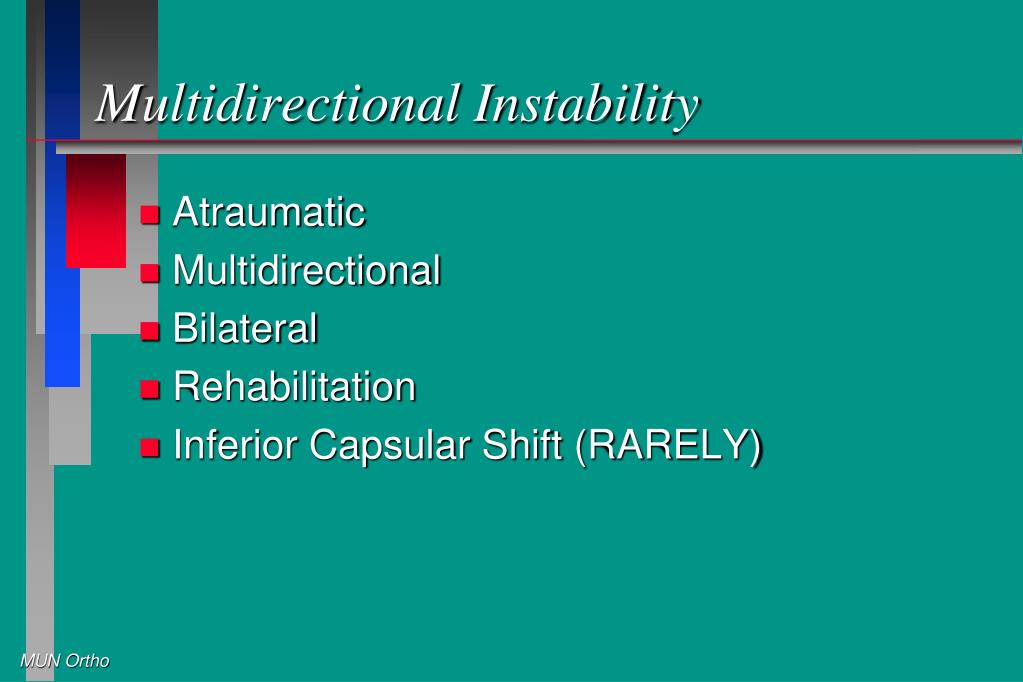

  35. Multidirectional Instability • Atraumatic • Multidirectional • Bilateral • Rehabilitation • Inferior Capsular Shift (RARELY)

  36. Acromioclavicular Separations • Hockey , bikes • Coracoclavicular & Acromioclavicular ligaments • Grade 1-6 • Most treated conservatively • Late excision of outer end of clavicle

  37. The Clavicular Ligaments

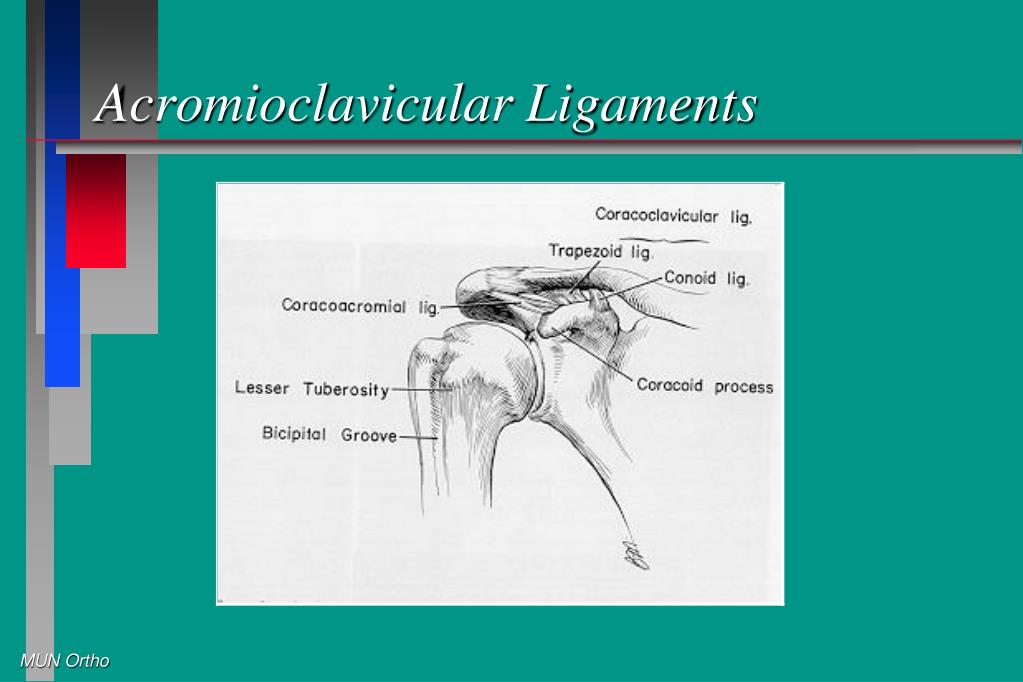

  38. Acromioclavicular Ligaments

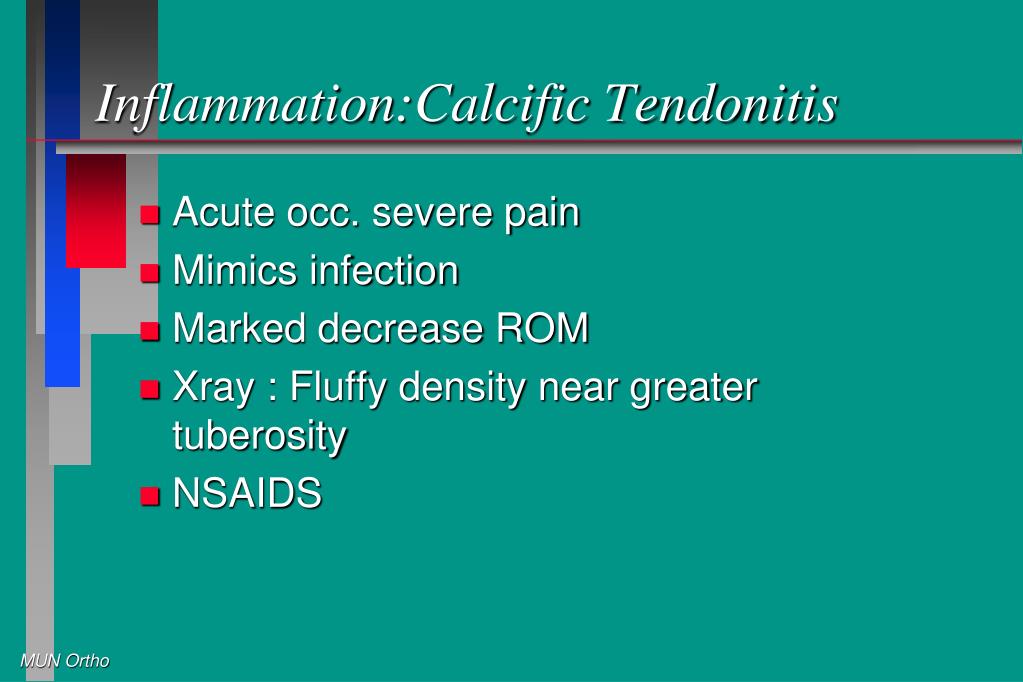

  39. Inflammation:Calcific Tendonitis • Acute occ. severe pain • Mimics infection • Marked decrease ROM • Xray : Fluffy density near greater tuberosity • NSAIDS

  40. Calcific Tendonitis

  41. Inflammation • Septic • Gout • RA flare-up

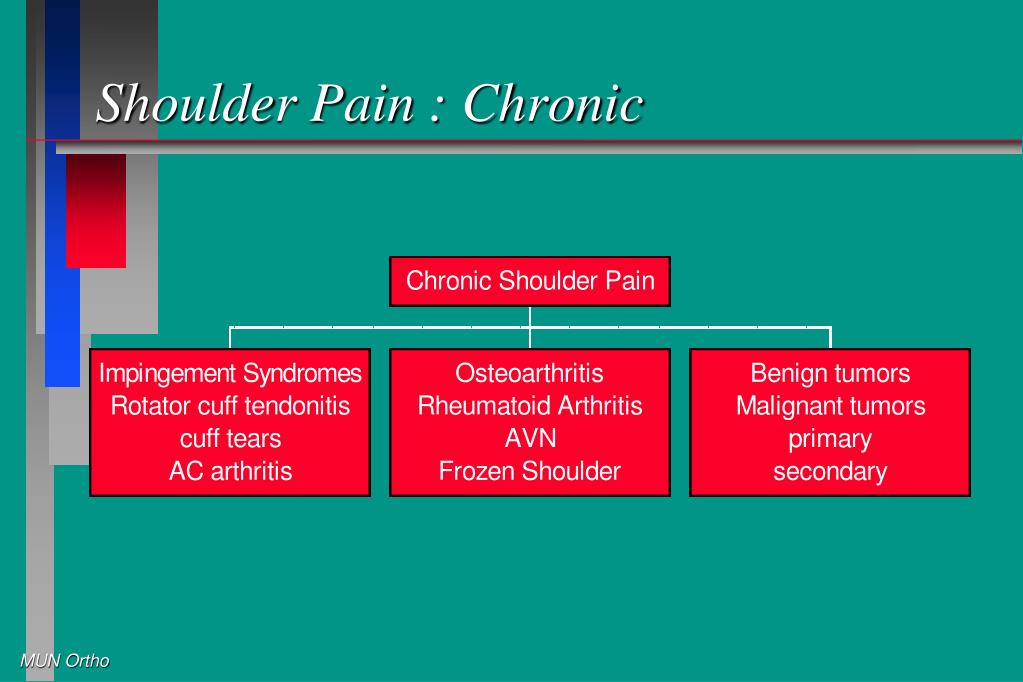

  42. Shoulder Pain : Chronic

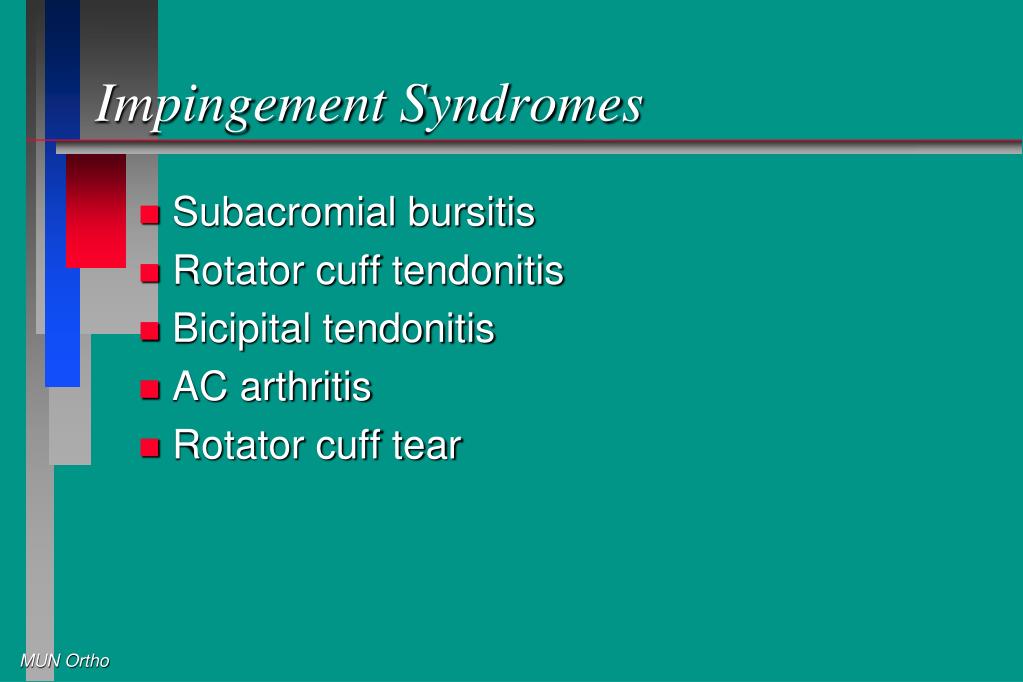

  43. Impingement Syndromes • Subacromial bursitis • Rotator cuff tendonitis • Bicipital tendonitis • AC arthritis • Rotator cuff tear

  44. Impnigement : Anatomy

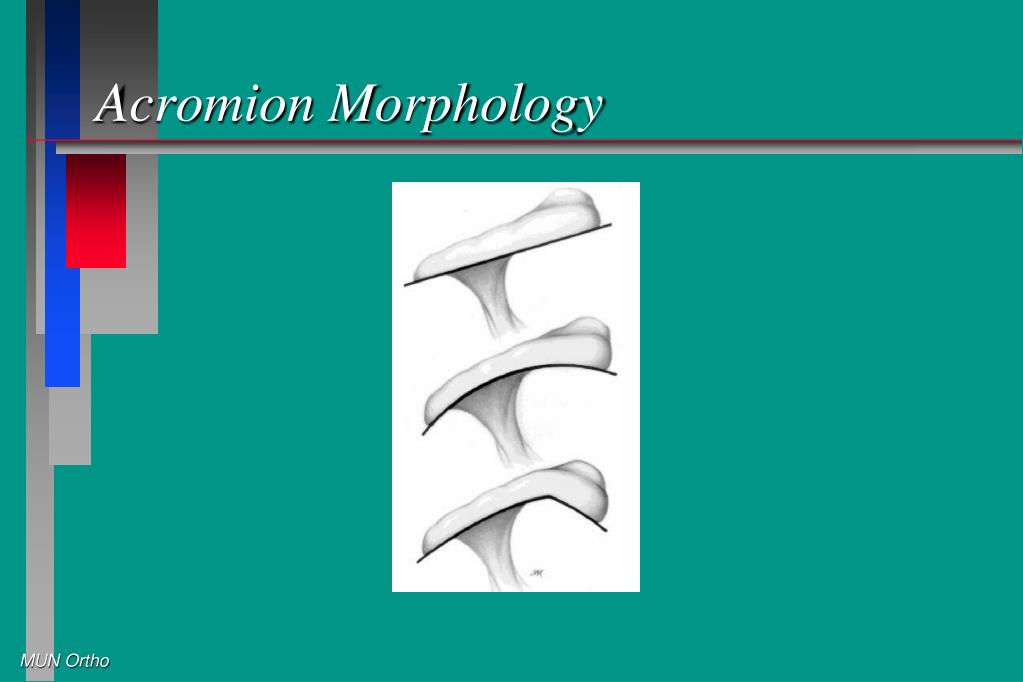

  45. Acromion Morphology

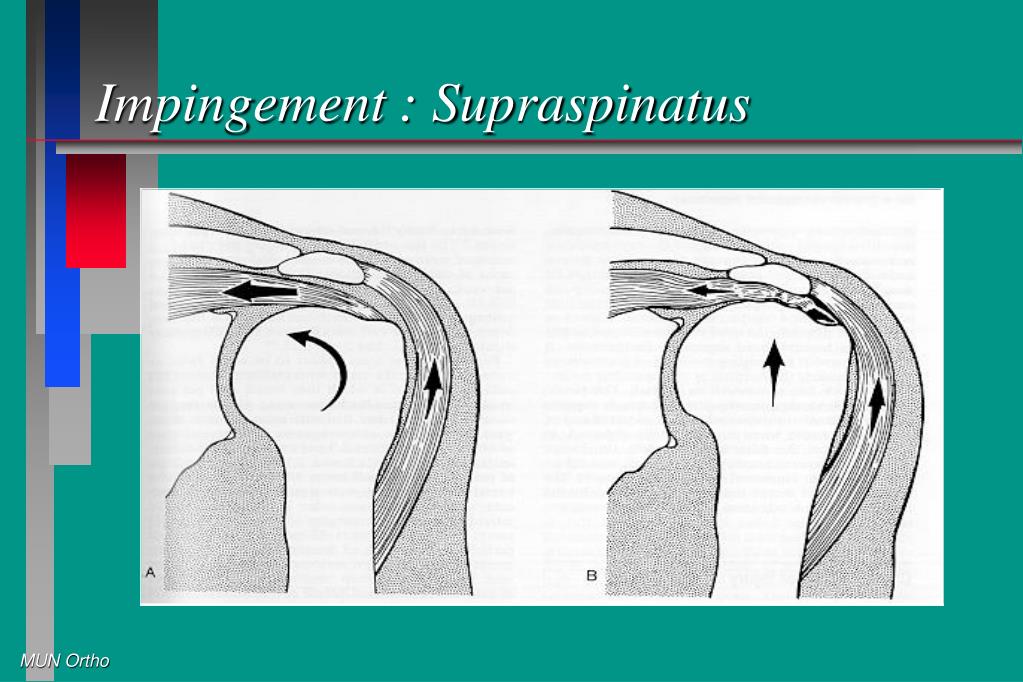

  46. Impingement : Supraspinatus

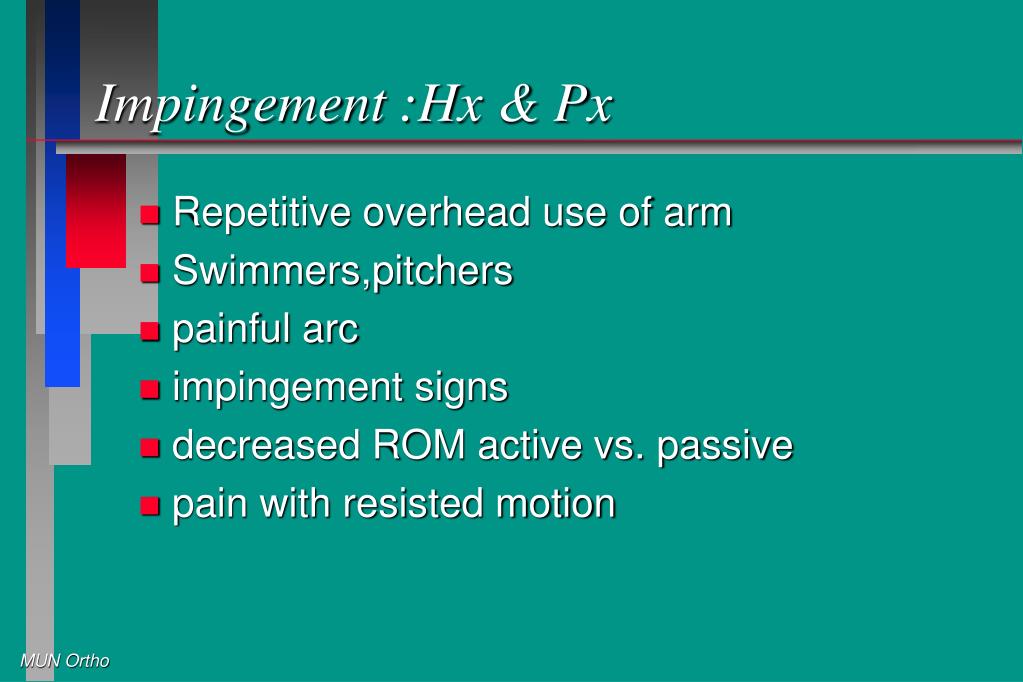

  47. Impingement :Hx & Px • Repetitive overhead use of arm • Swimmers,pitchers • painful arc • impingement signs • decreased ROM active vs. passive • pain with resisted motion

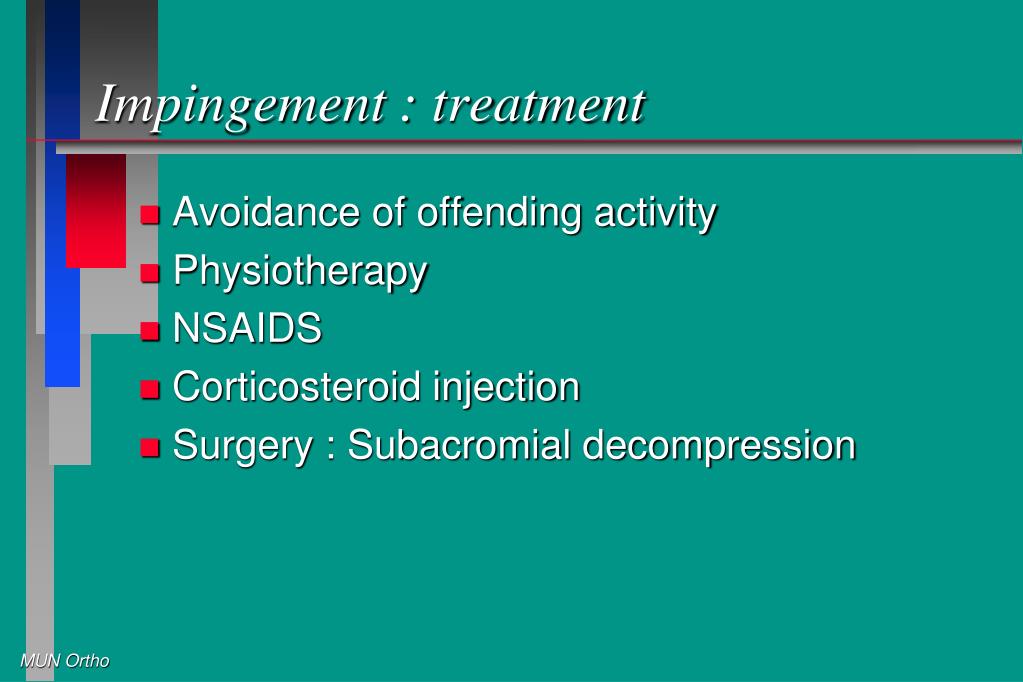

  48. Impingement : treatment • Avoidance of offending activity • Physiotherapy • NSAIDS • Corticosteroid injection • Surgery : Subacromial decompression

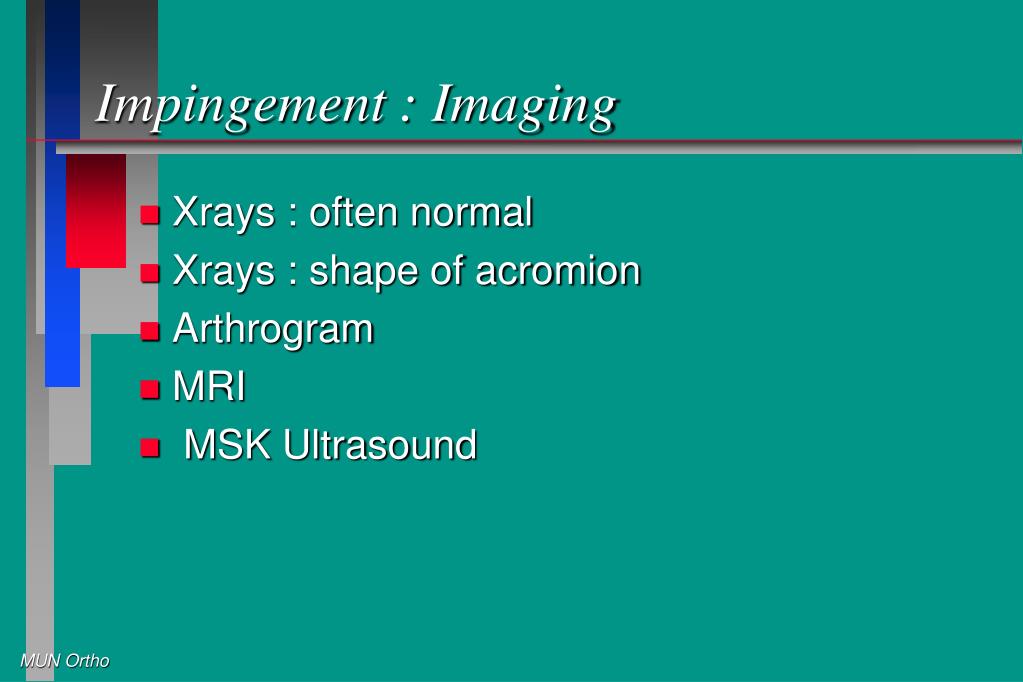

  49. Impingement : Imaging • Xrays : often normal • Xrays : shape of acromion • Arthrogram • MRI • MSK Ultrasound
