Translation Validation

Translation Validation. A.Pnueli M.Siegel E.Singerman. Motivation. Prove that high level specification is correctly implemented in low level code. Verifying compiler is not feasible. Development freezing. Solution: Translation Validation. Translation Validation.

harley
Télécharger la présentation

Translation Validation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Translation Validation A.Pnueli M.Siegel E.Singerman

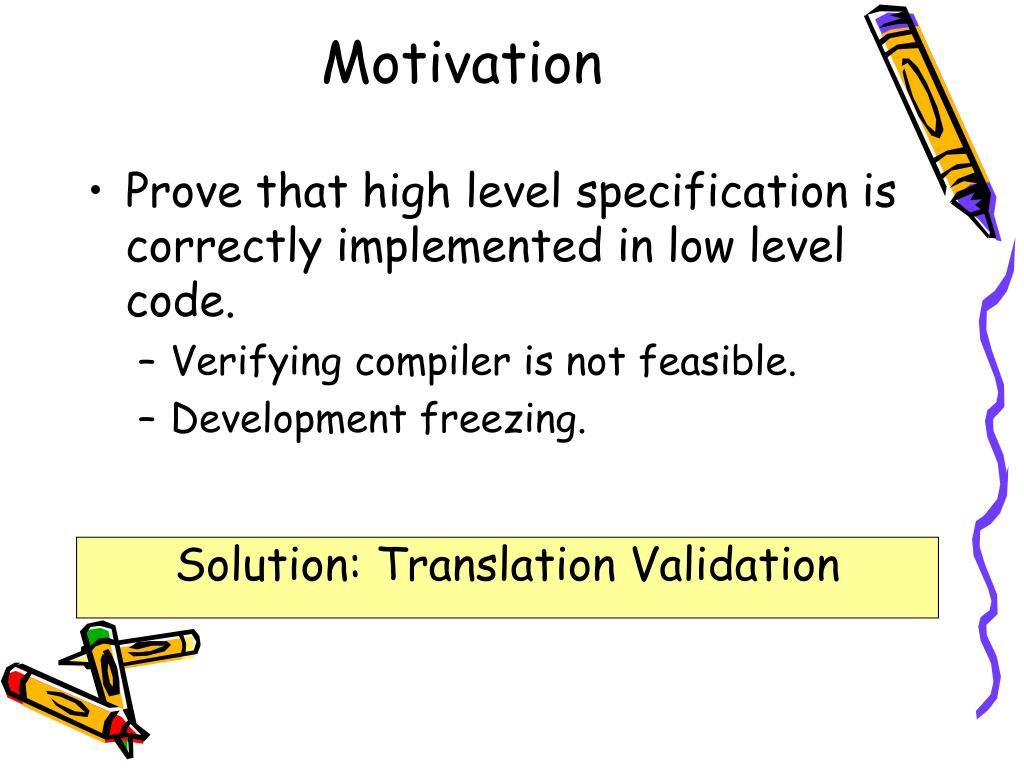

  2. Motivation • Prove that high level specification is correctly implemented in low level code. • Verifying compiler is not feasible. • Development freezing. Solution: Translation Validation

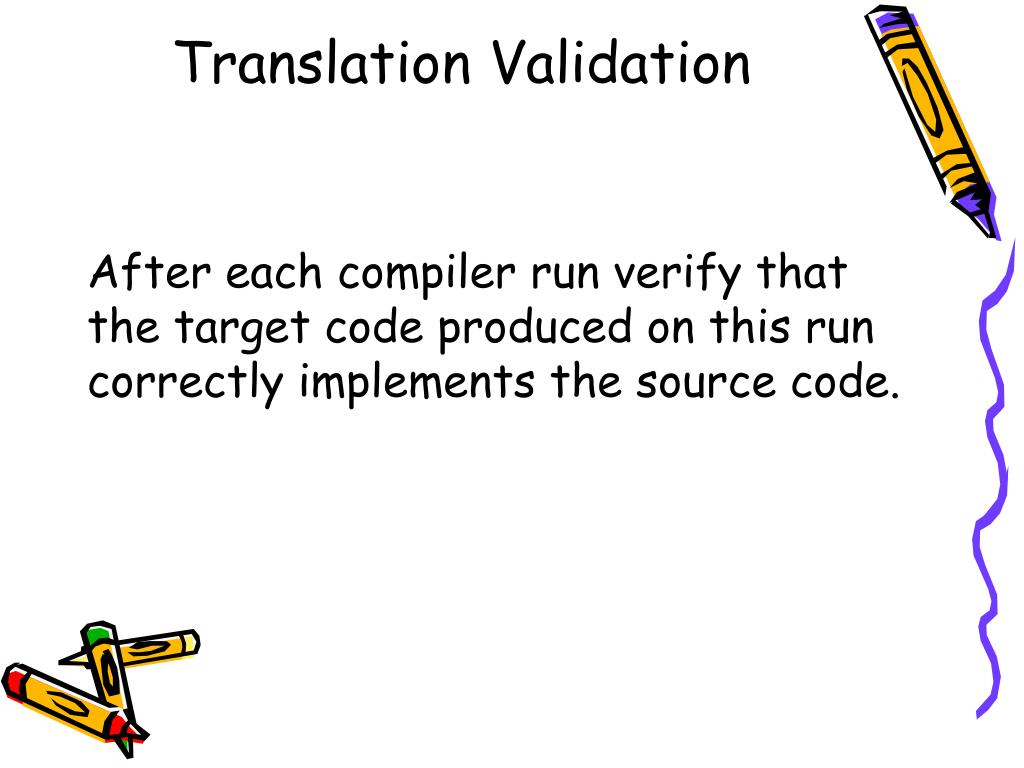

  3. Translation Validation After each compiler run verify that the target code produced on this run correctly implements the source code.

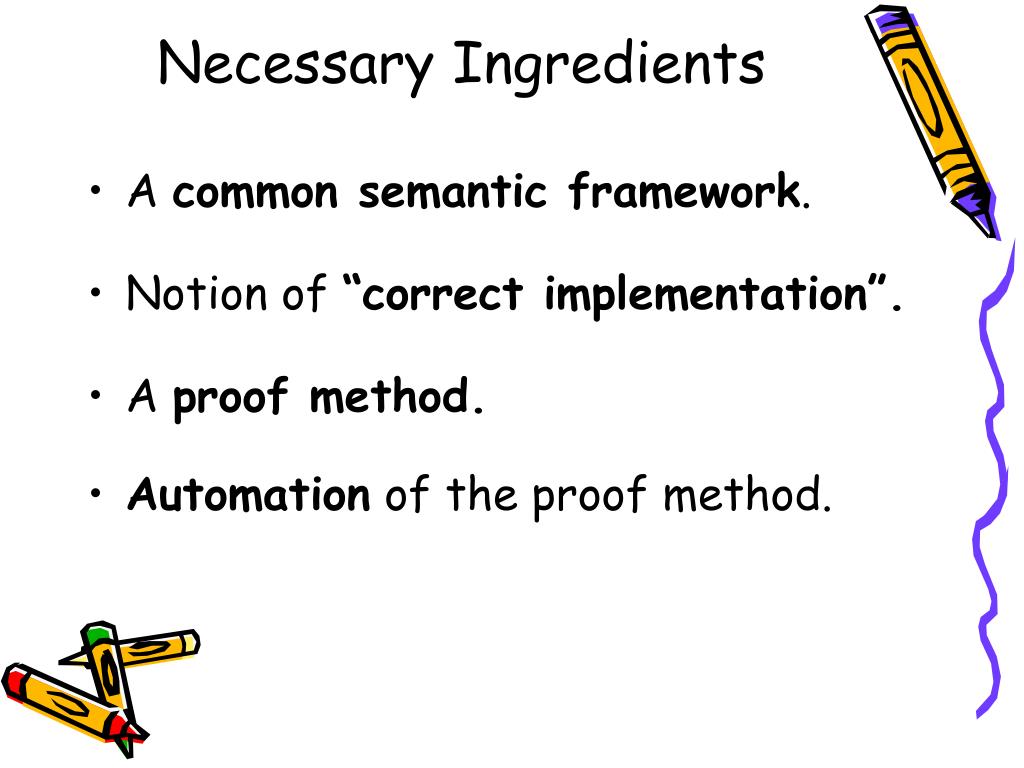

  4. Necessary Ingredients • A common semantic framework. • Notion of “correct implementation”. • A proof method. • Automation of the proof method.

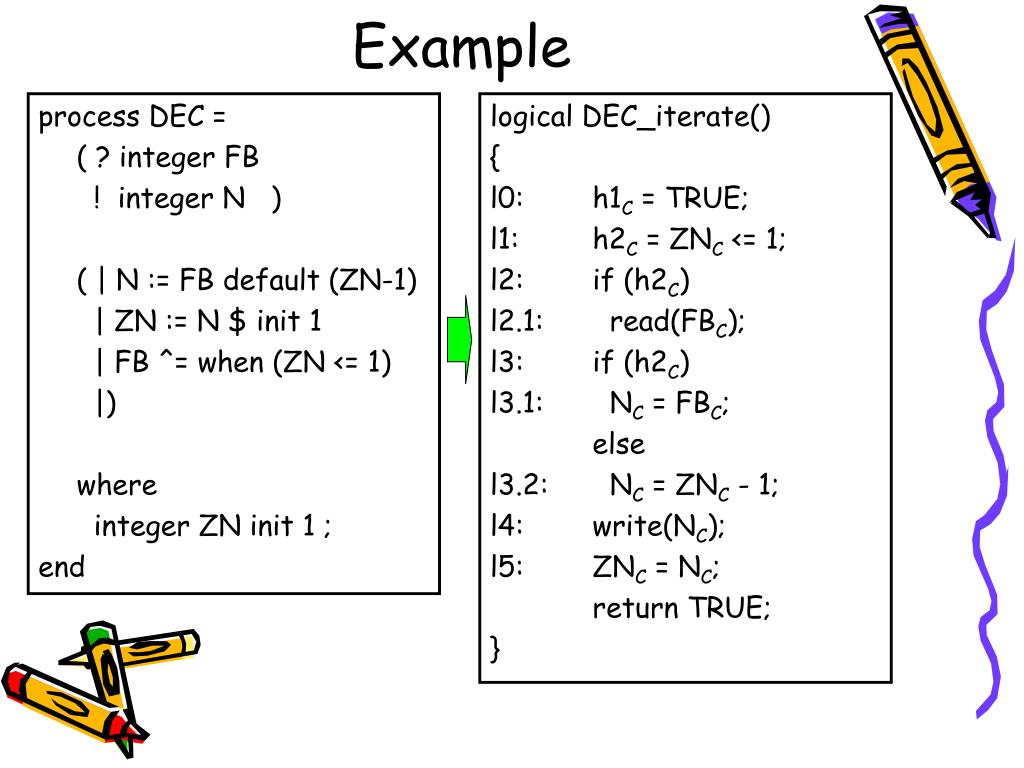

  5. Example logical DEC_iterate() { l0: h1C = TRUE; l1: h2C = ZNC <= 1; l2: if (h2C) l2.1: read(FBC); l3: if (h2C) l3.1: NC = FBC; else l3.2: NC = ZNC - 1; l4: write(NC); l5: ZNC = NC; return TRUE; } process DEC = ( ? integer FB ! integer N ) ( | N := FB default (ZN-1) | ZN := N $ init 1 | FB ^= when (ZN <= 1) |) where integer ZN init 1 ; end

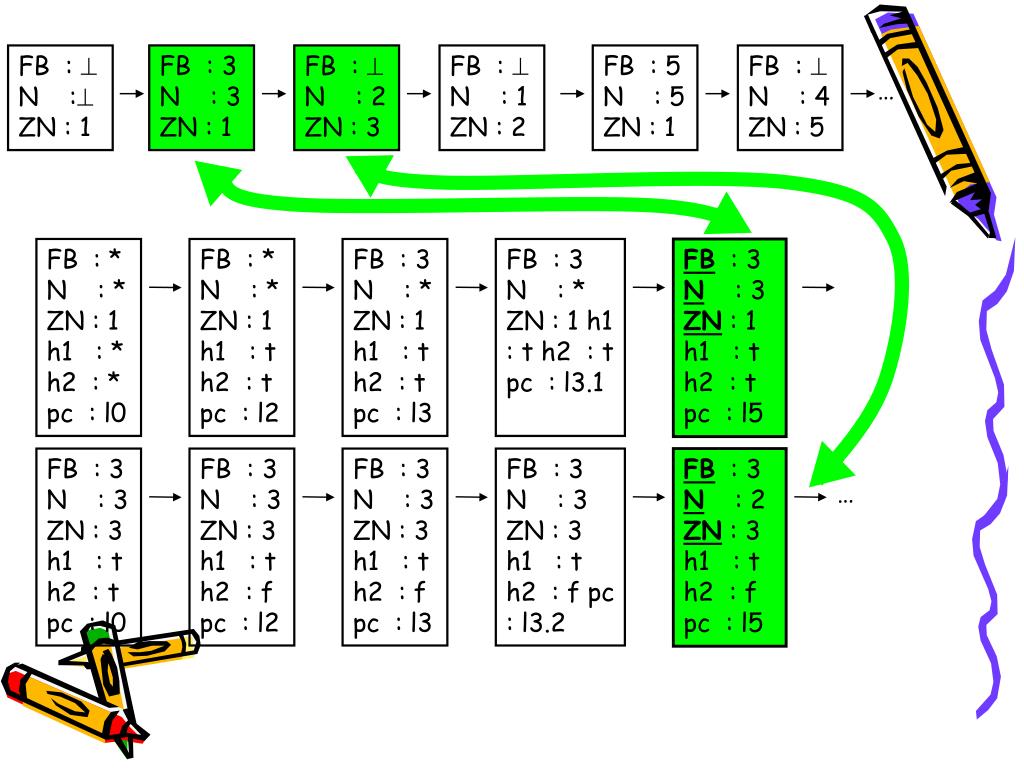

  6. FB :  N : ZN : 1 FB : 3 N : 3 ZN : 1 FB :  N : 2 ZN : 3 FB :  N : 1 ZN : 2 FB : 5 N : 5 ZN : 1 FB :  N : 4 ZN : 5 … FB : * N : * ZN : 1 h1 : * h2 : * pc : l0 FB : * N : * ZN : 1 h1 : t h2 : t pc : l2 FB : 3 N : * ZN : 1 h1 : t h2 : t pc : l3 FB : 3 N : * ZN : 1 h1 : t h2 : t pc : l3.1 FB : 3 N : 3 ZN : 1 h1 : t h2 : t pc : l5 … FB : 3 N : 3 ZN : 3 h1 : t h2 : t pc : l0 FB : 3 N : 3 ZN : 3 h1 : t h2 : f pc : l2 FB : 3 N : 3 ZN : 3 h1 : t h2 : f pc : l3 FB : 3 N : 3 ZN : 3 h1 : t h2 : f pc : l3.2 FB : 3 N : 2 ZN : 3 h1 : t h2 : f pc : l5 …

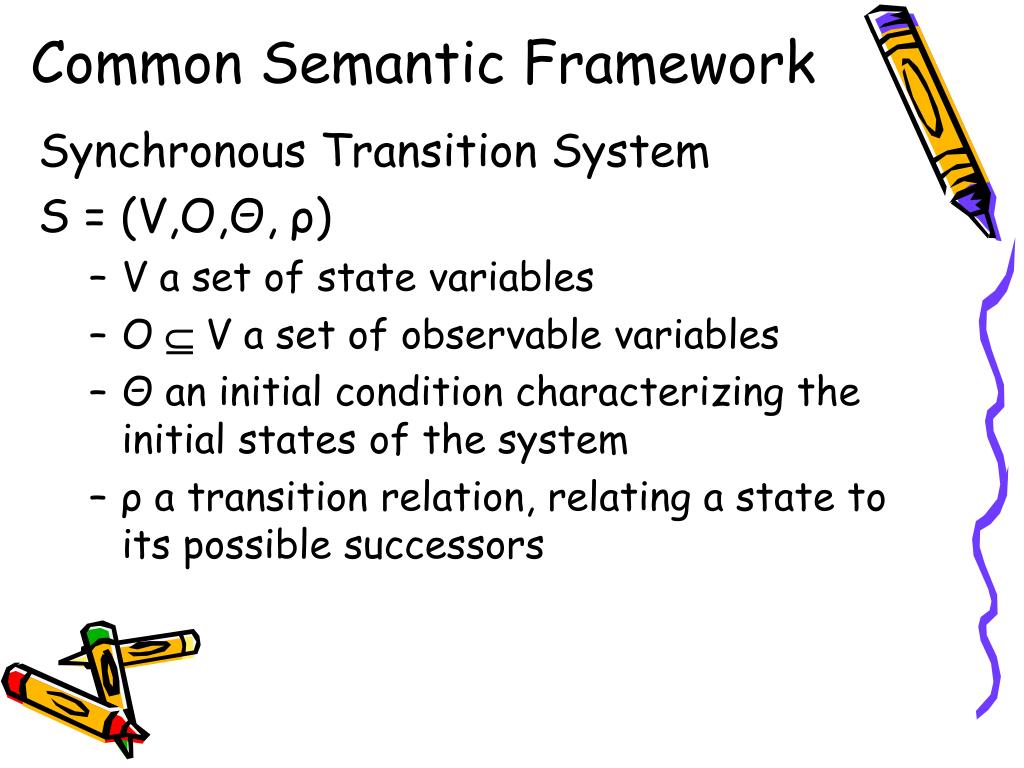

  7. Common Semantic Framework Synchronous Transition System S = (V,O,Θ, ρ) • V a set of state variables • O  V a set of observable variables • Θ an initial condition characterizing the initial states of the system • ρ a transition relation, relating a state to its possible successors

  8. process DEC = ( ? integer FB ! integer N ) ( | N := FB default (ZN-1) | ZN := N $ 1 | FB ^= when (ZN <= 1) |) where integer ZN init 1 ; end V = {FB,N,ZN,m.ZN} Θ = (FB =  N =  ZN =  m.ZN = 1) N’ = if FB’  then FB’ else ZN’ -1  m.ZN’ = if N’  then N’ else m.ZN  ZN’ = if N’  then m.ZN else   ZN’  1  FB’   =

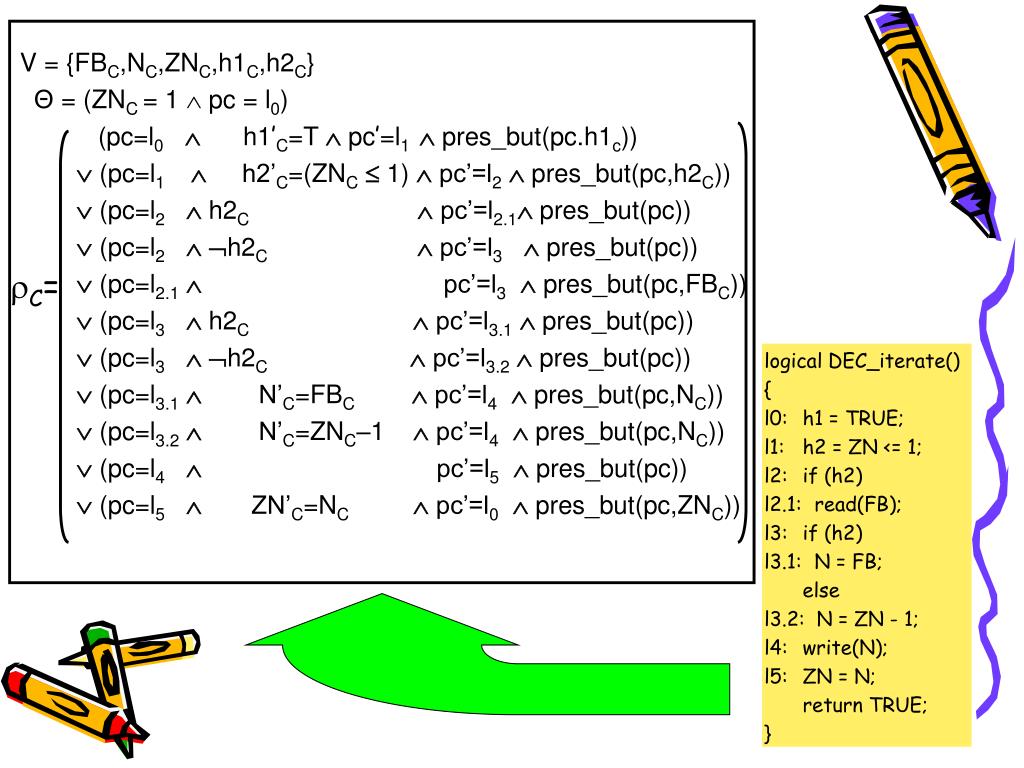

  9. V = {FBC,NC,ZNC,h1C,h2C} Θ = (ZNC = 1  pc = l0) (pc=l0 h1’C=T  pc’=l1  pres_but(pc.h1c))  (pc=l1  h2’C=(ZNC 1)  pc’=l2 pres_but(pc,h2C))  (pc=l2 h2C  pc’=l2.1 pres_but(pc))  (pc=l2h2C pc’=l3 pres_but(pc))  (pc=l2.1 pc’=l3 pres_but(pc,FBC))  (pc=l3 h2C pc’=l3.1 pres_but(pc))  (pc=l3h2C pc’=l3.2 pres_but(pc))  (pc=l3.1 N’C=FBC pc’=l4 pres_but(pc,NC))  (pc=l3.2 N’C=ZNC–1  pc’=l4 pres_but(pc,NC))  (pc=l4 pc’=l5 pres_but(pc))  (pc=l5 ZN’C=NC pc’=l0 pres_but(pc,ZNC)) C= logical DEC_iterate() { l0: h1 = TRUE; l1: h2 = ZN <= 1; l2: if (h2) l2.1: read(FB); l3: if (h2) l3.1: N = FB; else l3.2: N = ZN - 1; l4: write(N); l5: ZN = N; return TRUE; }

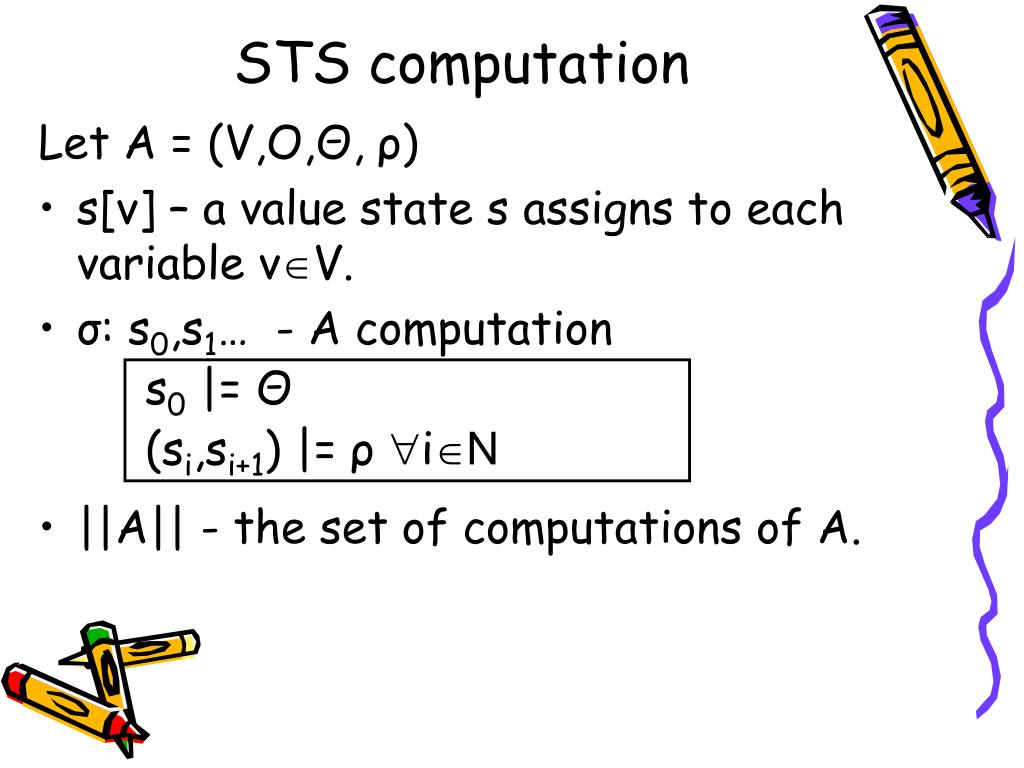

  10. STS computation Let A = (V,O,Θ, ρ) • s[v] – a value state s assigns to each variable vV. • σ: s0,s1… - A computation s0|= Θ (si,si+1) |= ρiN • ||A|| - the set of computations of A.

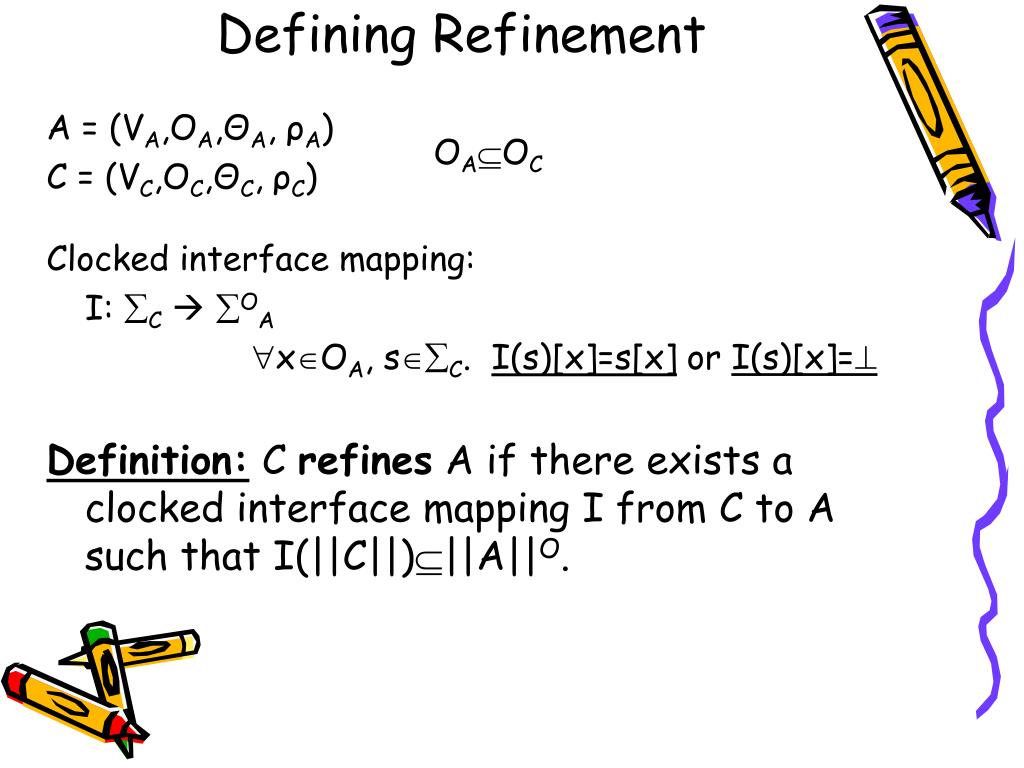

  11. Defining Refinement OAOC A = (VA,OA,ΘA, ρA) C = (VC,OC,ΘC, ρC) Clocked interface mapping: I: C OA xOA, sC. I(s)[x]=s[x] or I(s)[x]= Definition: C refines A if there exists a clocked interface mapping I from C to A such that I(||C||)||A||O.

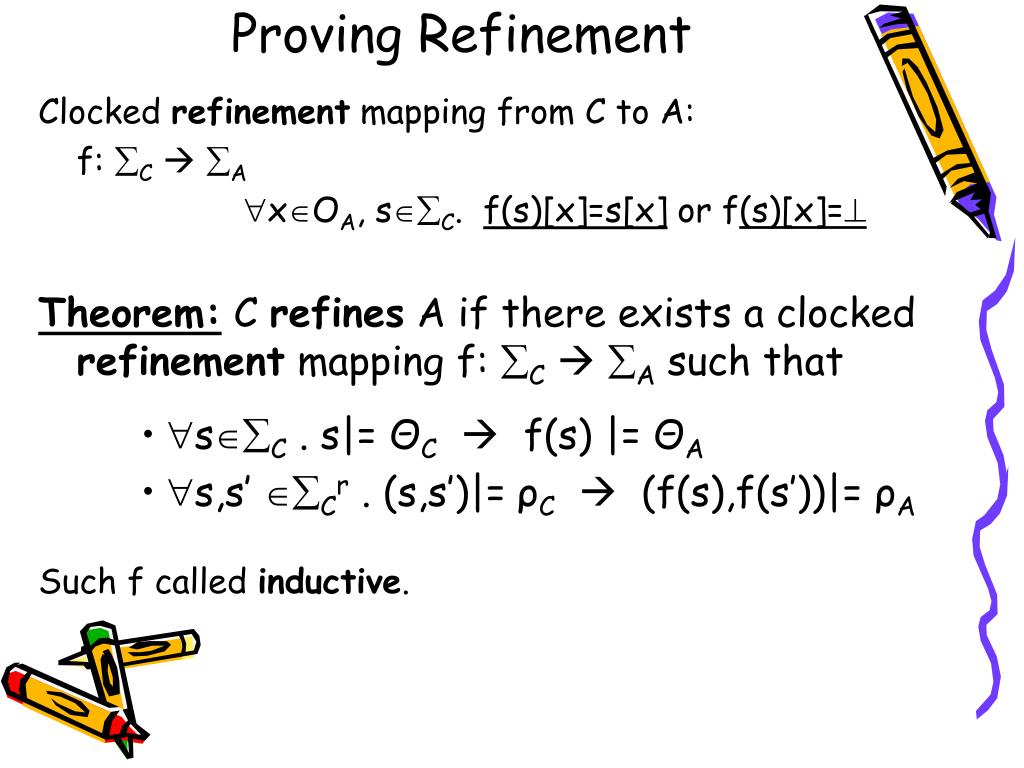

  12. Proving Refinement Clocked refinement mapping from C to A: f: C A xOA, sC. f(s)[x]=s[x] or f(s)[x]= Theorem: C refines A if there exists a clocked refinement mapping f: C A such that • sC . s|= ΘC f(s) |= ΘA • s,s’ Cr . (s,s’)|= ρC (f(s),f(s’))|= ρA Such f called inductive.

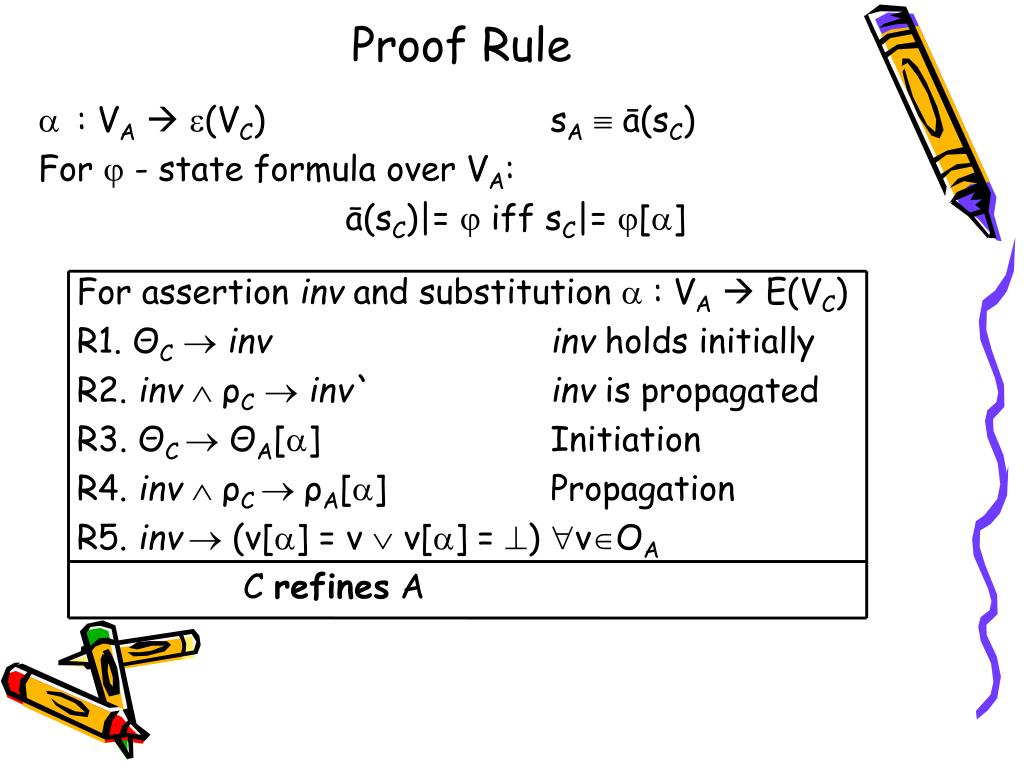

  13. Proof Rule • : VA (VC) sA  ā(sC) For  - state formula over VA: ā(sC)|=  iff sC|= [] For assertion inv and substitution  : VA E(VC) R1. ΘC inv inv holds initially R2. inv  ρC inv` inv is propagated R3. ΘC  ΘA[] Initiation R4. inv  ρC  ρA[] Propagation R5. inv (v[] = v  v[] = ) vOA C refines A

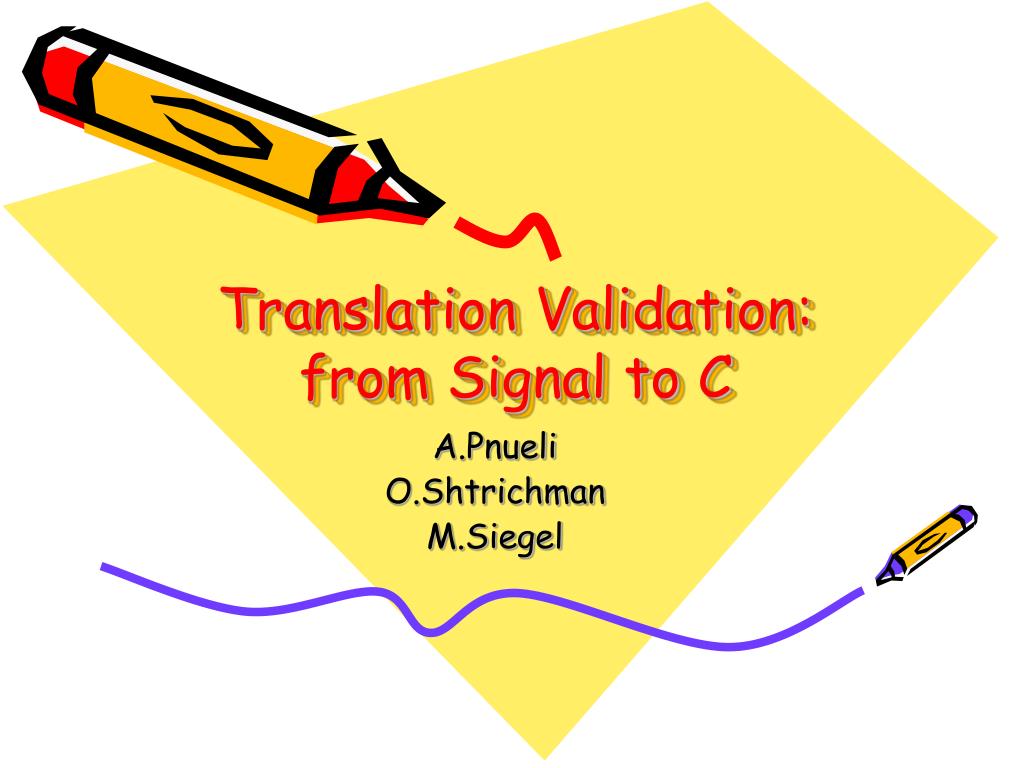

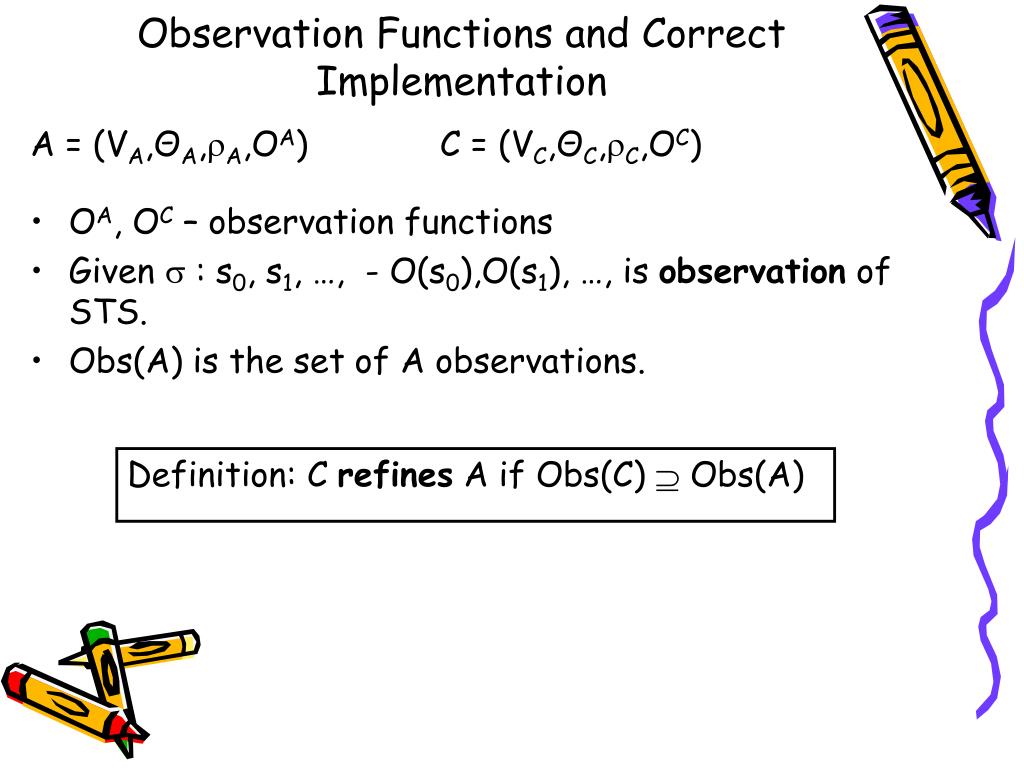

  14. Translation Validation: from Signal to C A.Pnueli O.Shtrichman M.Siegel

  15. Observation Functions and Correct Implementation A = (VA,ΘA,A,OA) C = (VC,ΘC,C,OC) • OA, OC – observation functions • Given  : s0, s1, …, - O(s0),O(s1), …, is observation of STS. • Obs(A) is the set of A observations. Definition: C refines A if Obs(C)  Obs(A)

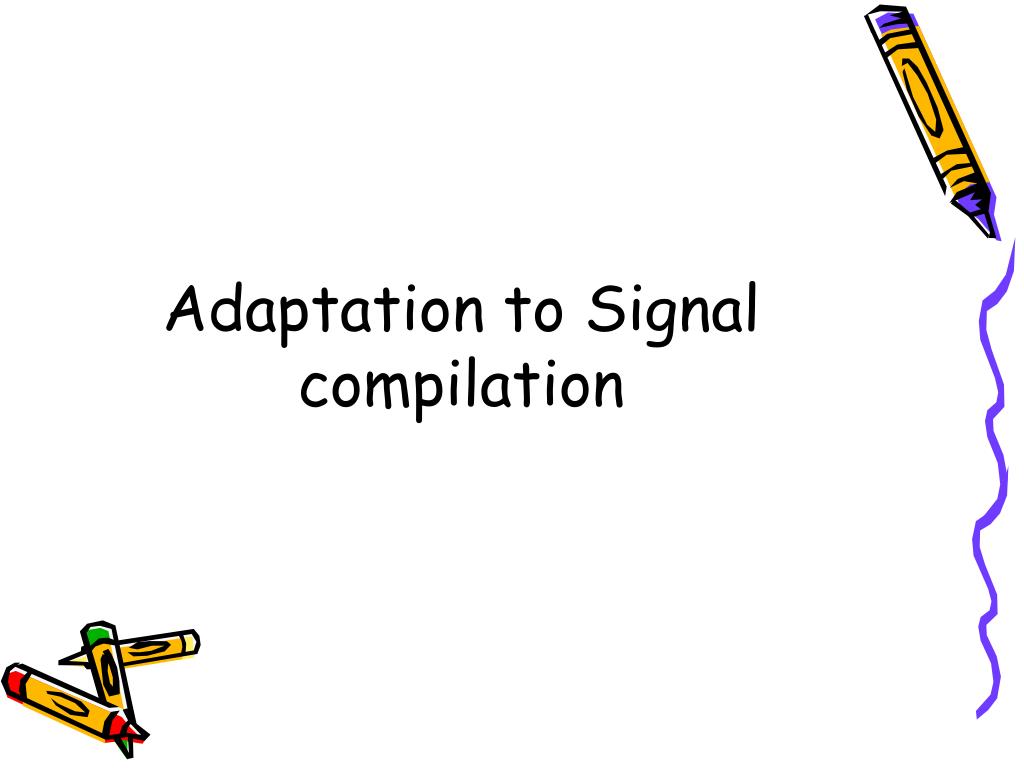

  16. Adaptation to Signal compilation

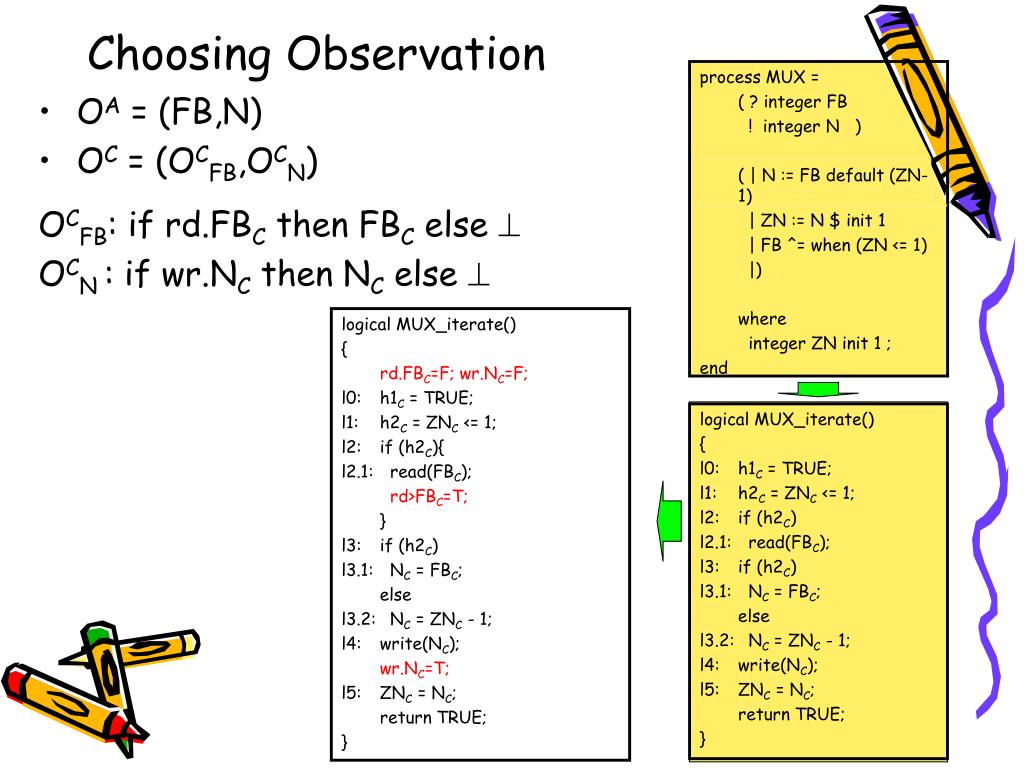

  17. Choosing Observation process MUX = ( ? integer FB ! integer N ) ( | N := FB default (ZN-1) | ZN := N $ init 1 | FB ^= when (ZN <= 1) |) where integer ZN init 1 ; end OCFB: if rd.FBC then FBC else  OCN : if wr.NC then NC else  • OA = (FB,N) • OC = (OCFB,OCN) logical MUX_iterate() { rd.FBC=F; wr.NC=F; l0: h1C = TRUE; l1: h2C = ZNC <= 1; l2: if (h2C){ l2.1: read(FBC); rd>FBC=T; } l3: if (h2C) l3.1: NC = FBC; else l3.2: NC = ZNC - 1; l4: write(NC); wr.NC=T; l5: ZNC = NC; return TRUE; } logical MUX_iterate() { l0: h1C = TRUE; l1: h2C = ZNC <= 1; l2: if (h2C) l2.1: read(FBC); l3: if (h2C) l3.1: NC = FBC; else l3.2: NC = ZNC - 1; l4: write(NC); l5: ZNC = NC; return TRUE; }

  18. FB :  N : ZN : 1 FB : 3 N : 3 ZN : 1 FB :  N : 2 ZN : 3 FB :  N : 1 ZN : 2 FB : 5 N : 5 ZN : 1 FB :  N : 4 ZN : 5 … FB : * N : * ZN : 1 h1 : * h2 : * pc : l0 FB : * N : * ZN : 1 h1 : t h2 : t pc : l2 FB : 3 N : * ZN : 1 h1 : t h2 : t pc : l3 FB : 3 N : * ZN : 1 h1 : t h2 : t pc : l3.1 FB : 3 N : 3 ZN : 1 h1 : t h2 : t pc : l5 FB : 3 N : 3 ZN : 3 h1 : t h2 : t pc : l0 FB : 3 N : 3 ZN : 3 h1 : t h2 : f pc : l2 FB : 3 N : 3 ZN : 3 h1 : t h2 : f pc : l3 FB : 3 N : 3 ZN : 3 h1 : t h2 : f pc : l3.2 FB : 3 N : 2 ZN : 3 h1 : t h2 : f pc : l5 …

  19. Composite STS • V : {FBC,NC,ZNC,h1C,h2C,rd.FBC,wr.NC} • Θ : ZNC = 1  pc = l0 • (h1’C=T) • (h2’C=(ZNC 1)) • (h2’C(N’C=FBC) • (h2’C(FB’C=FBC N’C=ZNC–1)) • (ZN’C=N’C) • (rd.FB’C=h2’C) • (wr.N’C=T) • OCFB: if rd.FBC then FBC else  • OCN : if wr.NC then NC else  • Compose the transition relations of the individual statements inside the loop’s body. • no nested loops C :

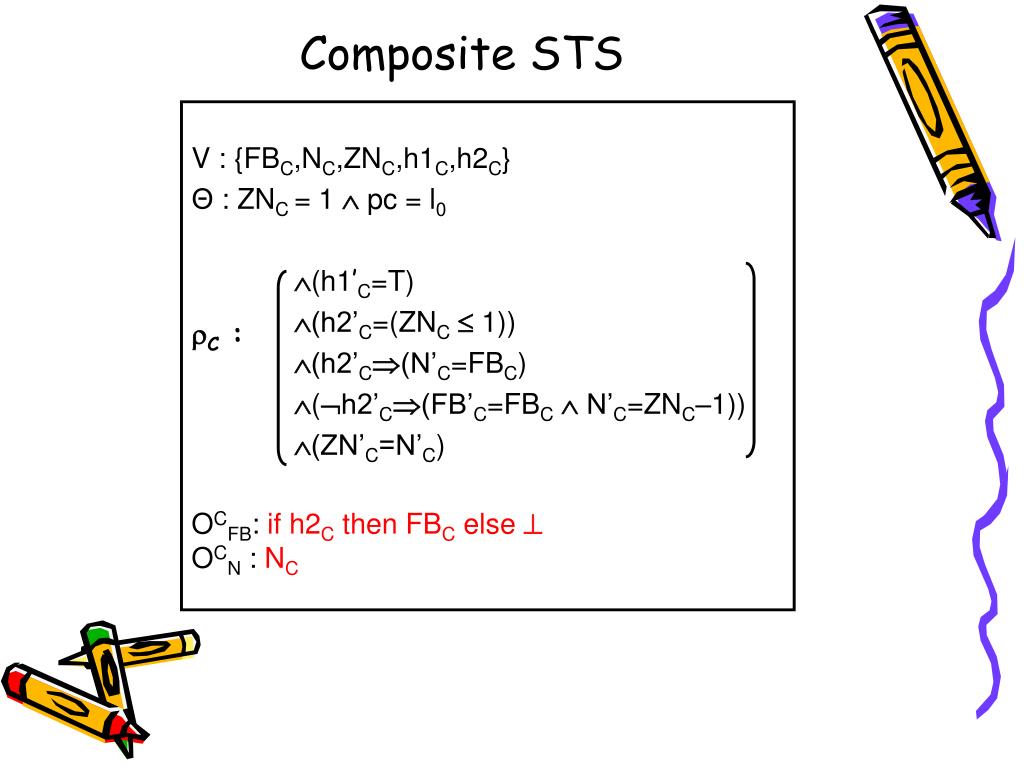

  20. Composite STS • V : {FBC,NC,ZNC,h1C,h2C} • Θ : ZNC = 1  pc = l0 • (h1’C=T) • (h2’C=(ZNC 1)) • (h2’C(N’C=FBC) • (h2’C(FB’C=FBC N’C=ZNC–1)) • (ZN’C=N’C) • OCFB: if h2C then FBC else  • OCN : NC C :

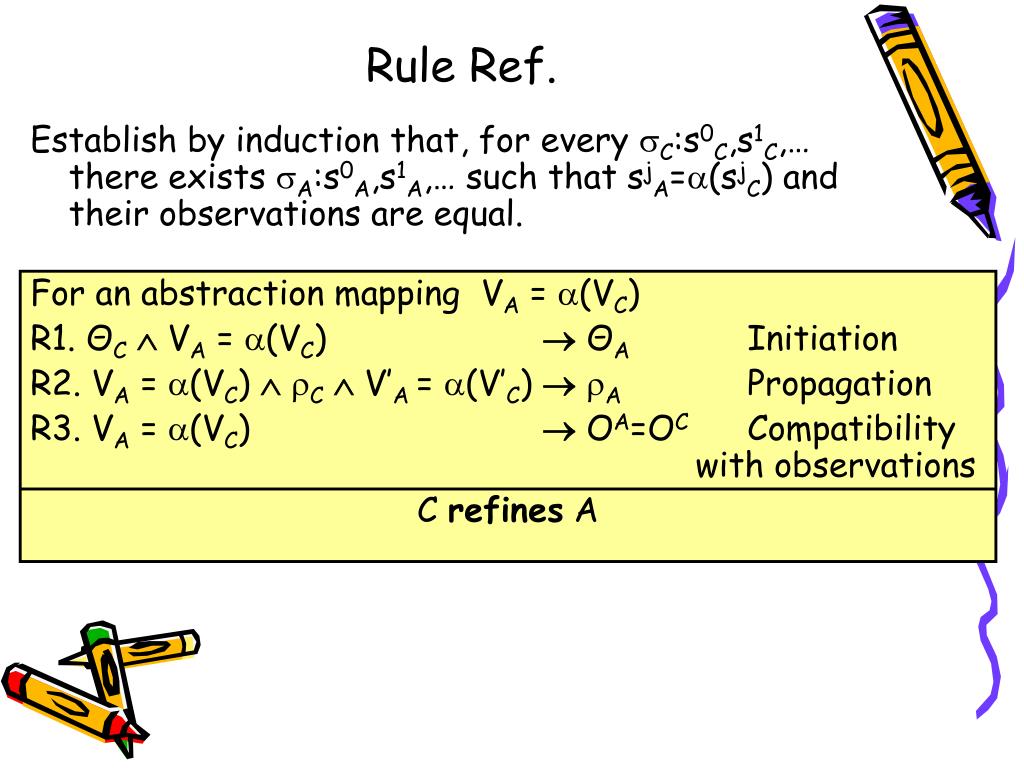

  21. Rule Ref. Establish by induction that, for every C:s0C,s1C,… there exists A:s0A,s1A,… such that sjA=(sjC) and their observations are equal. For an abstraction mapping VA = (VC) R1. ΘC VA = (VC) ΘA Initiation R2. VA = (VC)  C V’A = (V’C)  A Propagation R3. VA = (VC)  OA=OC Compatibility with observations C refines A

  22. Construction of the Mapping  For vVA, v(Vc) – the value of v in sA related to sC. • For v  IO, v(Vc) = OCv(VC) • For each register flow m.r = rC ’m.r = r’C • For each Register or Local variable v’ = eqv  ’v = eqv(determinate programs) W1. ΘC  rR(m.r = rC)  vIORL(v = )  ΘA W2. rR(m.r = rC  m.r’ = r’C)  C  vIO( v’ = (OCv)’ )  vRL(v’ = eqv)  A

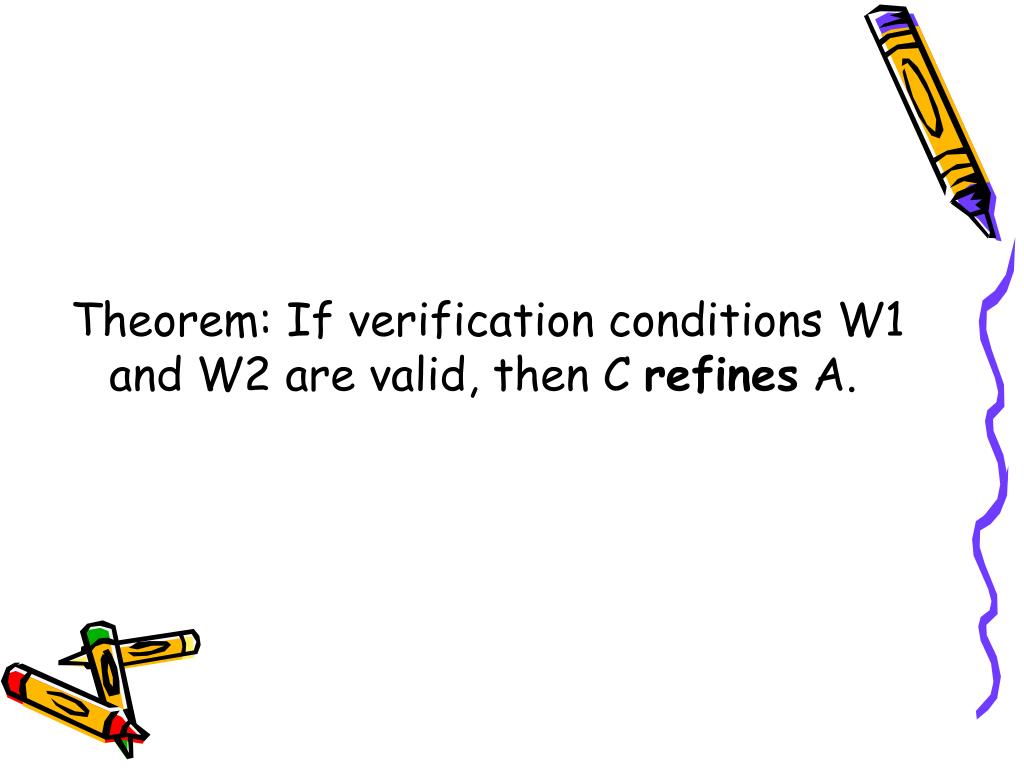

  23. Theorem: If verification conditions W1 and W2 are valid, then C refines A.

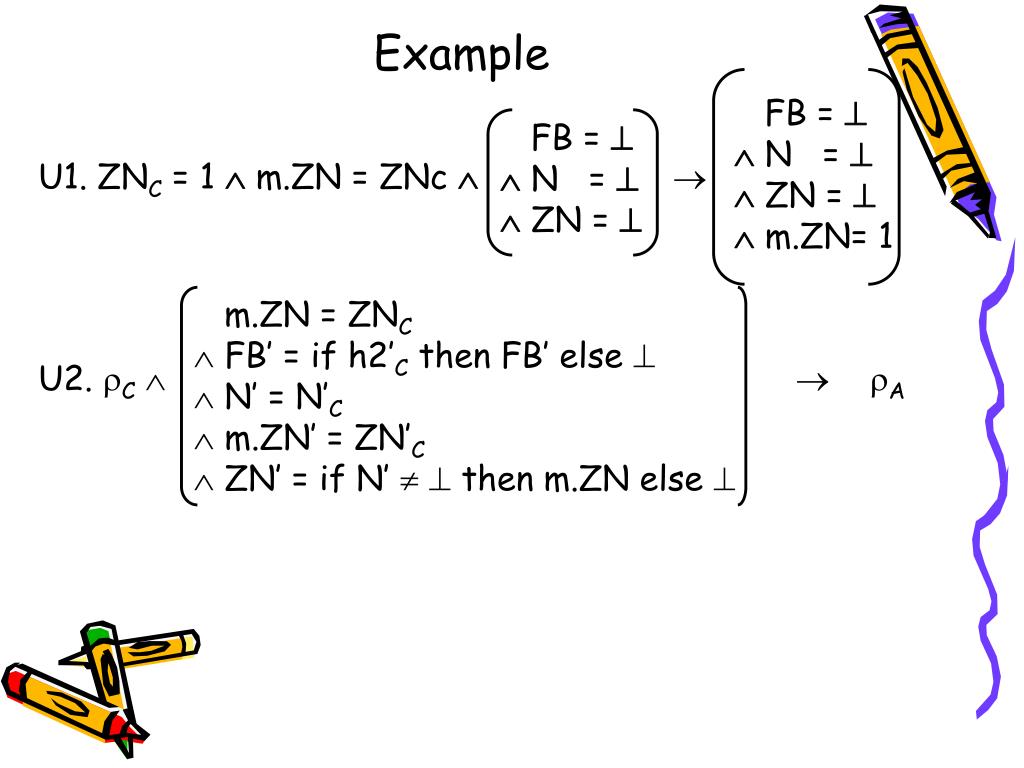

  24. FB =   N =   ZN =   m.ZN= 1 FB =   N =   ZN =  m.ZN = ZNC  FB’ = if h2’C then FB’ else   N’ = N’C  m.ZN’ = ZN’C  ZN’ = if N’   then m.ZN else  Example U1. ZNC = 1  m.ZN = ZNc   U2. C   A

  25. m.ZN = ZNC  FB’ = if h2’C then FB’ else   N’ = N’C  m.ZN’ = ZN’C  ZN’ = if N’   then m.ZN else  m.ZN = ZNC  FB’ = if h2’C then FB’ else   N’ = N’C  m.ZN’ = ZN’C  ZN’ = ZNC Example U2. C   A U2. C   A

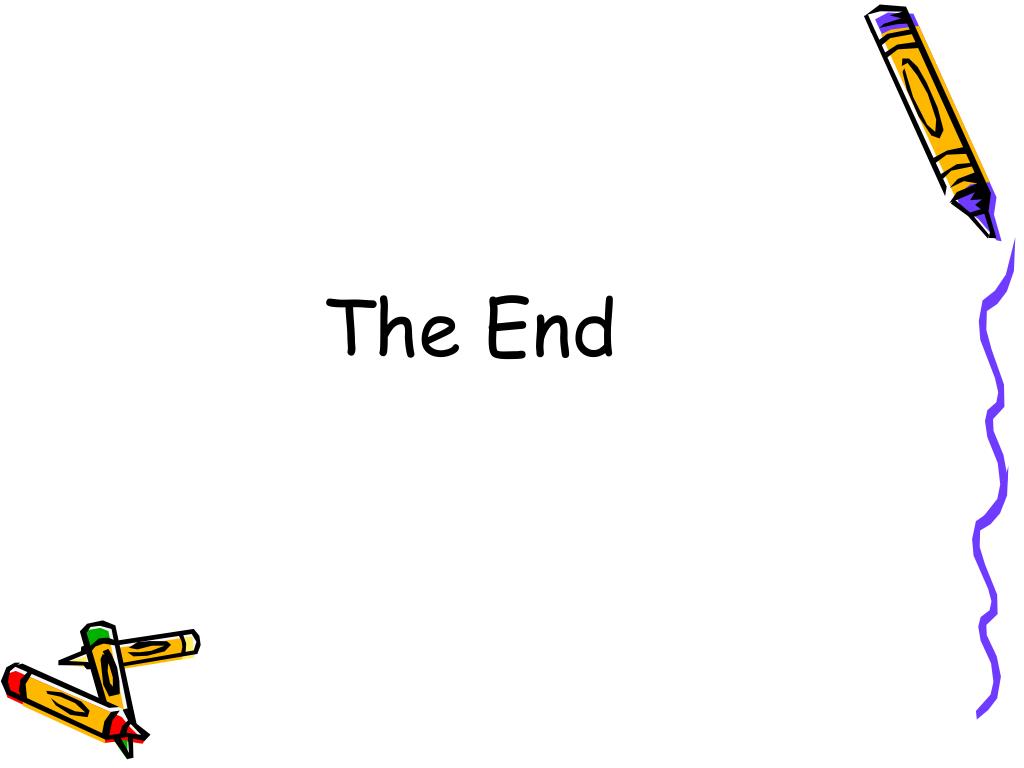

  26. The End
