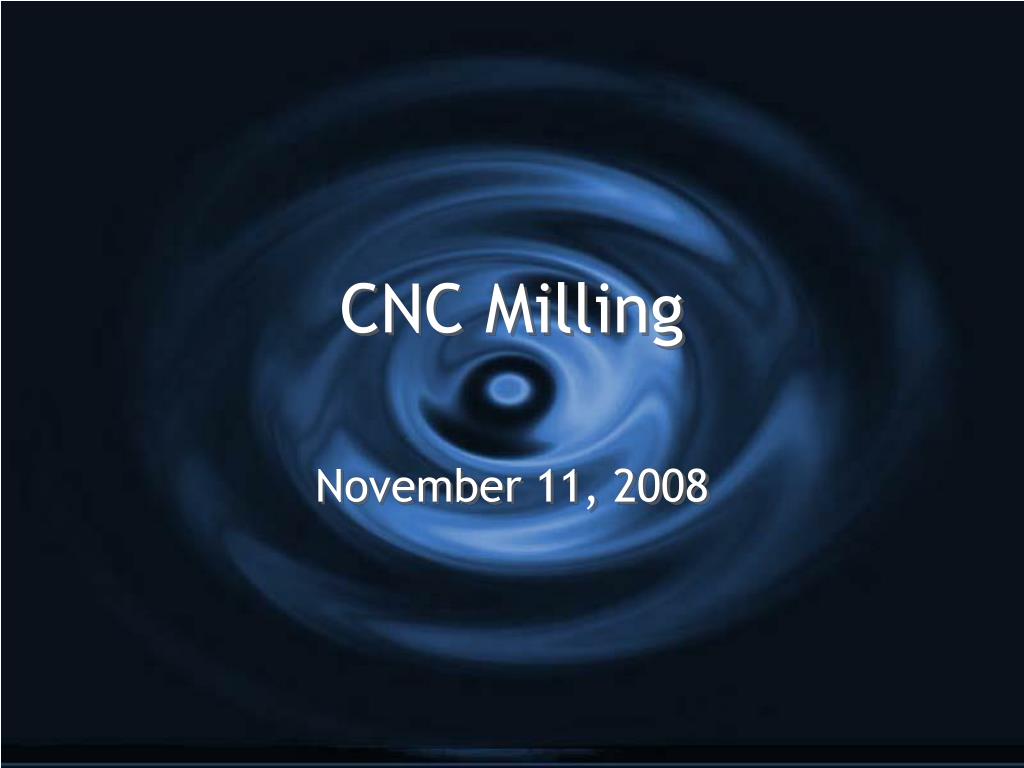

  1. CNC Milling November 11, 2008

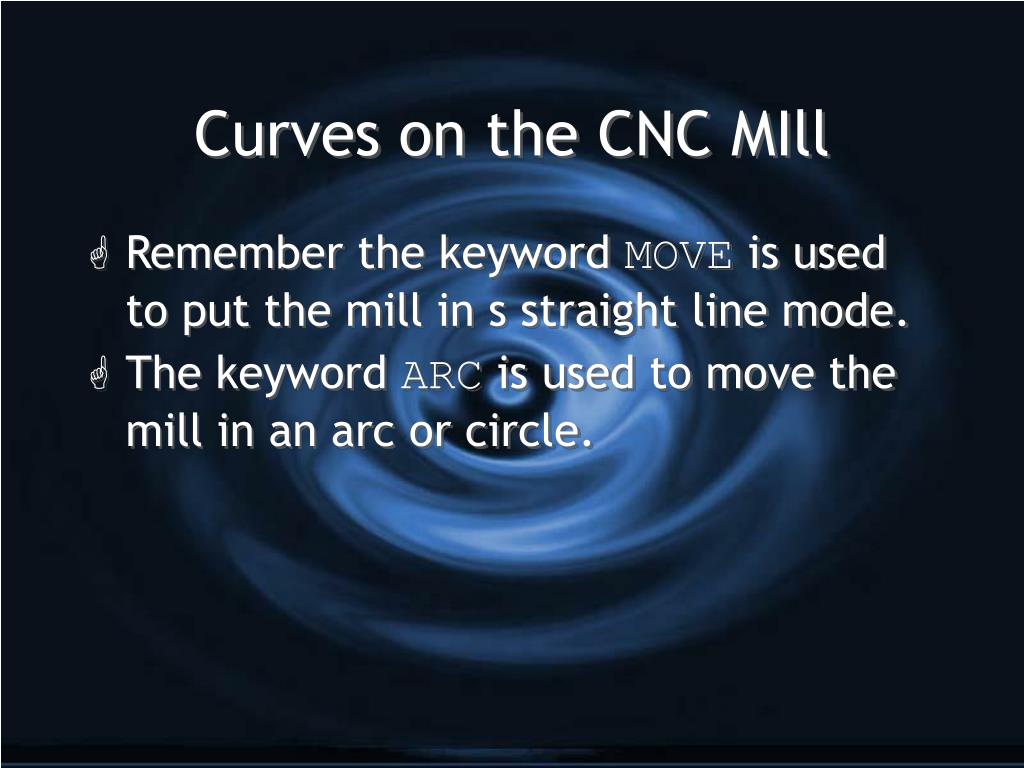

  2. Curves on the CNC MIll • Remember the keyword MOVE is used to put the mill in s straight line mode. • The keyword ARC is used to move the mill in an arc or circle.

  3. CIRCLE • Use the MOVE keyword to position the end mill at the starting point of the circle. • Use the ARC keyword • ARC.CW - for a clockwise move • ARC.CCW - for a counter clockwise move • Specify the center of the circle • End the circle with the ARC keyword

  4. DRAWING A CIRCLE WITH G-CODE Use MOVE to position end mill at arc start ARC.CW or ARC.CCW Define center point ARC completes circle

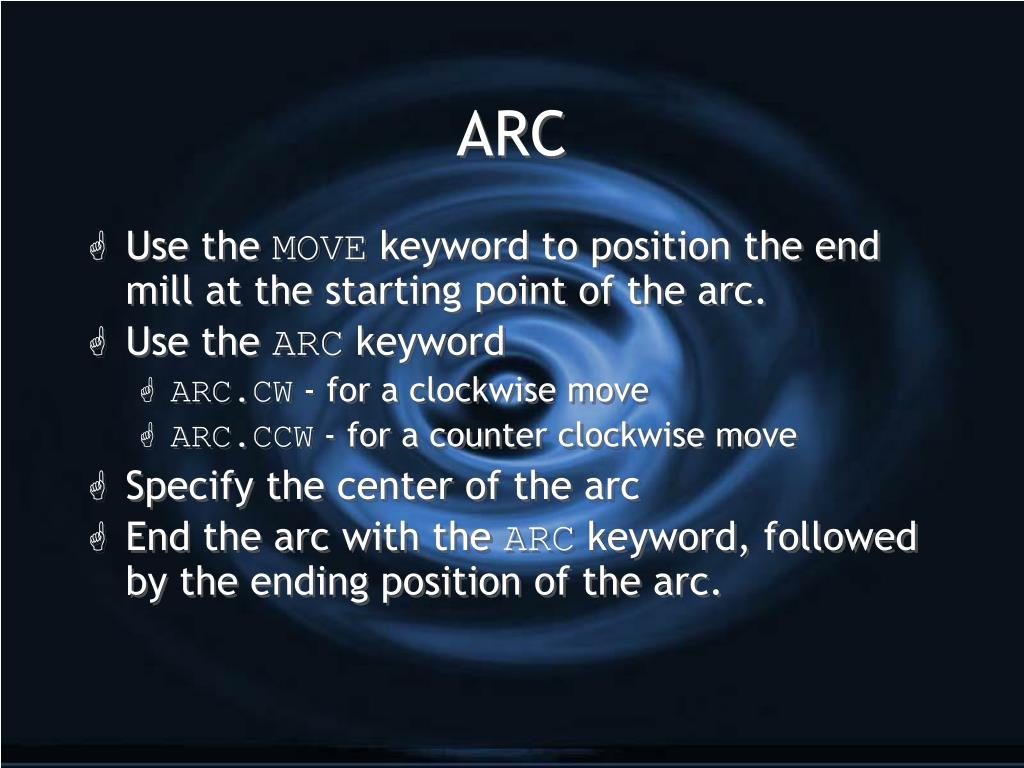

  5. ARC • Use the MOVE keyword to position the end mill at the starting point of the arc. • Use the ARC keyword • ARC.CW - for a clockwise move • ARC.CCW - for a counter clockwise move • Specify the center of the arc • End the arc with the ARC keyword, followed by the ending position of the arc.

  6. Drawing ARCS with G-CODE Use MOVE to position end mill at arc start ARC.CW or ARC.CCW Define center point Define end point n Another Arc? y n New arc start? y
