  1. Topic 13 Collaboration Tools Enabling Objectives 13.1 DISCUSS Collaboration at Sea (CAS) concepts and technologies. 13.2 DISCUSS CENTRIXS architectures and enclaves. 13.3 EXPLAIN the purpose of Defense Connect Online (DCO), including the three major components and the Help Desk resources.

  2. CAS Overview • Standard Knowledge and Information Sharing Platform • Navy-wide Architecture • Navy-wide Web Applications • Centralized Design • Centralized Administration • Coalition Replication

  3. NOCServers ShipServer ShipServer ShipServer ShipServer Ship Users CV Server Shore-basedUsers CV Users CAS Replication • SIPRNET and NIPRNET • NOCs replicate together • Decreased bandwidth needs • Dispersed responsibility • Collaboration servers at each NOC and all CVNs • Connectivity failure = Data accessibility

  4. CAS Web Applications • Baseline Site (Distributed Input) • Content Providers Add, Edit, & Delete via Web into Shared Libraries • Knowledge Web (KWEB) • Organized links to CAS Content used as a briefing tool • Stoplight Charts • Graphical Status Capability • CommandNet • Event Logging tool • Sametime • Chat Client and Meeting Center (Whiteboard and Application Sharing)

  5. CAS II Features • Enhanced Site Customization • Selective Replication • No Distribution • Limited Distribution • Distribute to all (optional) • One-Click Access • Post to Libraries, Browse Libraries, Recent posts List • Enhanced integration with KWEB • Enhanced integration with Stoplight • Max Size Limitation for documents

  6. Collaboration at Sea CAS III roll-out scheduled for FY08 with newly developed CAS III user’s guide (NNWC) PRNOC CAS server refresh planned for FY08 CAS transition to POR scheduled for FY09 Voice and Video IP Circuits VoIP requires ~26Kbps of dedicated BW VTCoIP utilizes between 64-768Kbps High latency and jitter experience with BW constrained users Expect transition to occur in parallel with increased BW availability and ADNS Incremental upgrades CAS Transition to POR in FY09

  7. Strike Group Hub • Links to all CAS sites • Link to Fleet Web Support (FWS) • Link to Sametime web • Link to User Registration

  8. HTML File Attachment Text URL Library Input - Formats

  9. Sametime Center • Meeting Center • Discussion Capabilities • Sametime User Documentation

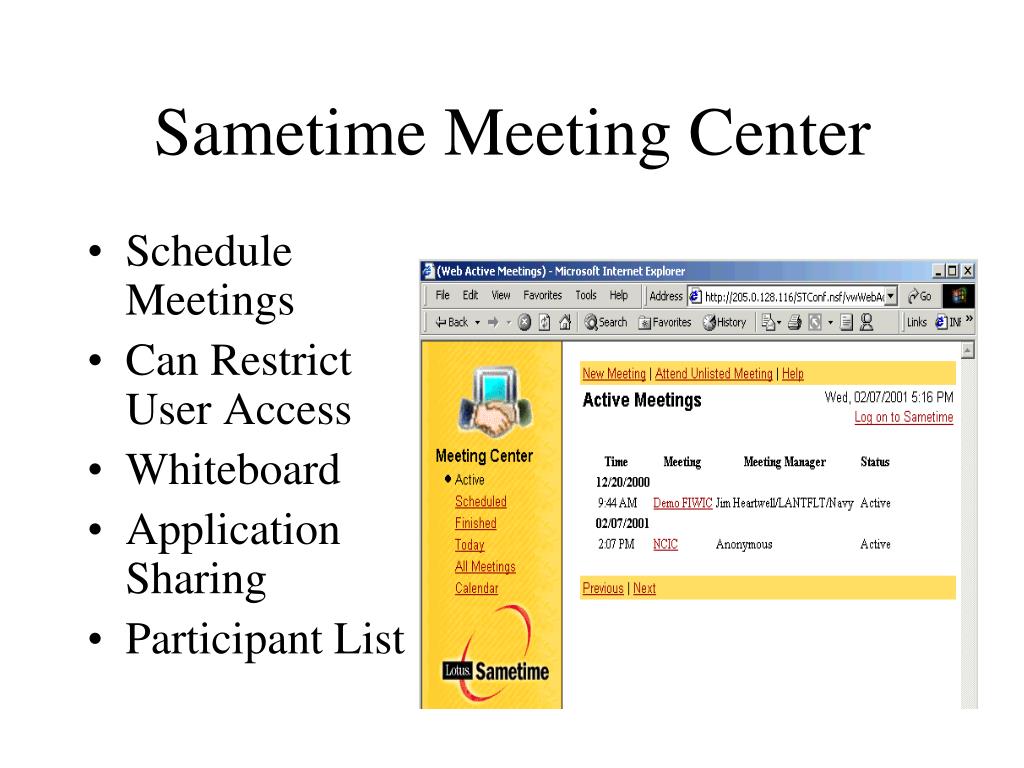

  10. Sametime Meeting Center • Schedule Meetings • Can Restrict User Access • Whiteboard • Application Sharing • Participant List

  11. Sametime Connect Client

  12. User Registration • Sametime Only Access • Web Application Content Provider Access • Web Application Administrator Access • CSG/ESG/FLT CDR POC Access

  13. Fleet Web Support • CAS Documentation • Instructions and Help • FIRST Source for HELP • Items viewable by All

  14. FWS - Requests • Requests Posted by CSG/ESG/FLT POCs Only • POCs Prioritize Command Group Requests • POCs are the definitive Source for Requests

  15. CENTRIXS History • Feb 02, FLTCOMs emergent requirements satisfied with COWAN capability. • Due to funding constraints for POR NIDTS/COWAN, NIDTS/COWAN Lite systems were fielded. • Force Level ships NIDTS Lite • Unit Level ships COWAN Lite • Sep 02, CLF/CPF directed name change from CoWAN/NIDTS Lite to CENTRIXS Blk 0 & 1. Configuration was designed and fielded to support IP connectivity and services for three non-simultaneous, coalition security levels. • CENTRIXS Blk 0 & 1 fielding is in process for deployed ships in PAC & LANT fleets.

  16. CENTRIXS Direction • ASD(NII)/DoD CIO Instruction 8110.1, dated February 6, 2004, directed that each DoD Component shall “plan, program, budget, and execute funding to support the [Multinational Information Sharing] MNIS Program and MNIS CENTRIXS networks used by their organization, forces, or the Combatant Commands.”

  17. Coalition Warfighting • GWOT • Largest Coalition Ever Assembled • 64 Countries represented • at MacDill AFB • [Desert Storm: 36 Nations] “The solidarity and collective will of the Coalition is our strength against the enemy that preys on weakness” General John Abizaid, Commander United States Central Command

  18. CENTRIXSProgram Description CENTRIXS-M provides secure tactical and operational information sharing between U.S. and coalition maritime partners CENTRIXS-M is a key enabler for Command and Control and warfighting readiness in C7F AOR CENTRIXS-M forms the network backbone and global infrastructure for Coalition and Multinational C4I interoperability C4I Interoperability throughout the Coalition and Joint Enterprise Remains Paramount Coalition and Multinational Interoperability is Fleet #1 C4I Priority

  19. Enclave and COI Description

  20. CENTRIXS Variants

  21. CENTRIXS-M Block 0 Single Enclave Access Fielded on 129 Ships Client Expansion +4 Clients CENTRIXS-M Block 0 Components

  22. CENTRIXS-M Block 1 Single Enclave Access Fielded on 20 Large Deck Ships Client Expansion +10 Clients CENTRIXS-M Block 1 Components

  23. Block II and Inc 1 Architecture Serial Ethernet INE INE RTR RTR SWT SWT SVR SVR INE INE RTR RTR SWT SWT SVR SVR Stateless Thin Clients (30) • Multi-Level Thin Client Design • Reduce space, weight, and power (SWAP) MUX KG ADNS • All terminal served to ultra-thin client terminals, Smart card access ISNS SIPRnet • 4 coalition enclaves • + SIPRNET APPS NIC NIC NIC NIC NIC Trusted Session Server NIC • Leverages existing ISNS drops • 30 drops; scaleable to 100 drops Coalition VLAN ISNS SIPRnet

  24. Block II & Inc 1(MLTC)Force Level Rack Multi-level Thin Client architecture Simultaneous access of 4 coalition enclaves, and SIPRNET from a single thin client workstation 30 clients fielded scaleable to 100 Reaccreditation planned with Solaris 10 TX/CONET 2.0 in FY09 Unit Level (MLTC) single rack, 3 coalition enclaves, 15 clients Planned installations: HST, LIN, GW, RR, JCS, ESX Total Objective Inventory: 113 ships including (2) TTE’s Six Block II (MLTC) Installations in FY07

  25. NOC Update UARNOC CENTRIXS-M stand up at Unified Atlantic Region Network Operations Center (UARNOC) - Summer ‘07 Installation HW procurement complete; J and K enclaves planned for FY08 Includes network connectivity, applications, computer network defense, operations and help desk PRNOC FY08: HW Refresh planned on 7 enclaves (CFE, J, K, GCTF, MCFI, GCTF-CNFC, GCTF-CMFP). Install NATO enclave. Upgrade power, KVM's, install new baseline applications for fail-over capability; Baselined with UARNOC installation ISEA responsible for Life Cycle Management, training, and tier 3 and 4 technical support at CENTRIXS-M NOC Full Redundancy w/ Failover for NOC’s Planned

  26. CAS Account Registration

  27. Foreign Disclosure Portal

  28. Mail Guard • For e-mail to pass through the mail guard, it must meet the following criteria: • Both the sender and receiver must be registered in the mail guard • No ‘dirty words’ (classification markings i.e., NOFORN) • Text only - no attachments or HTML (except for authorized accounts) • Classification marking must be present in the first line of the e-mail CLASSIFICATION:CONFIDENTIAL REL “enclave”

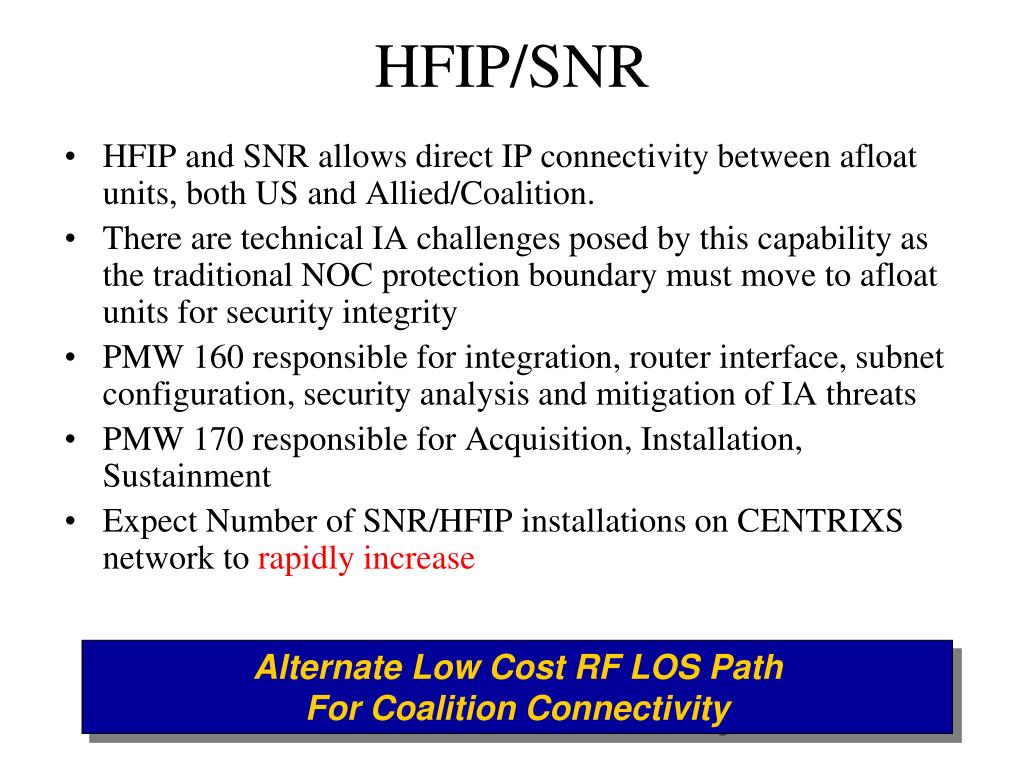

  29. HFIP/SNR HFIP and SNR allows direct IP connectivity between afloat units, both US and Allied/Coalition. There are technical IA challenges posed by this capability as the traditional NOC protection boundary must move to afloat units for security integrity PMW 160 responsible for integration, router interface, subnet configuration, security analysis and mitigation of IA threats PMW 170 responsible for Acquisition, Installation, Sustainment Expect Number of SNR/HFIP installations on CENTRIXS network to rapidly increase Alternate Low Cost RF LOS Path For Coalition Connectivity

  30. Life Cycle Support ISEA in place to provide LCS for all fielded systems Provisioning and Sparing Interactive Electronic Technical Manual (IETM) Planned Maintenance Engineering drawings and Installation docs Configuration Management Training curriculum and products Deliver Capability and ensure Proficiency. Train both System & Operational Employment CBT is being developed and Interactive Courseware is the long term training solution Fleet Services Desk {centrixs@spawar.navy.mil } 24/7/365 Distance Support operation Coordinates PRNOC, UARNOC and CAS Help Desks. On-site support coordinated with RMC and FSET

  31. Major Components: -DCO Portal (entry point) -Adobe’s Acrobat Connect (web conferencing tool) -Jabber/XMPP (instant messaging)

  32. DCO PORTAL • Entry point • Registration • PKI authentication • Set up Connect meetings and IM sessions • View current meetings/sessions • Knowledge base, forum, and on-demand training • Training calendar

  33. ADOBE CONNECT • Flash Player – 98% of all machines worldwide • Single port solution – 443 • Low bandwidth & bandwidth visibility options • Video • VoIP • White boarding • Screen sharing • Application sharing • Persistent and non persistent rooms • Meeting recordings • Real time polling • Notes pod and more…..

  34. JABBER Extensible Communications Platform (XCP) • Extensible Messaging and Presence Protocol (XMPP) Instant Messaging • Multi-user text conferencing • One click access to web conferencing • Compatible with XMPP clients • Capability to bridge to other standards • Ports: 443 & 5222

  35. DCO Support DCO Help Desk nces@csd.disa.mil DSN: 850-3136, Commercial: 614-692-3136 Toll free: 1-800-447-2457 When reporting an issue, please provide Name (including rank or title), Contact Information (phone #, email) and Location.

  36. DCO POCs Cortney Elliott DCO Contract Manager cortney.elliott@carahsoft.com 703.871.8510 Brett Swartz DoD Account Manager bswartz@adobe.com 703.883.2833 Mike Murtha DCO Technical PM mmurtha@adobe.com 440.610.4019 Additional resources: DCO: https://www.dco.dod.mil DCO(S): https://www.dco.dod.smil.mil Connect in DoD Video Overview: http://www.adobe.com/government/breezo/connect_product_tour/dod_demo. html Connect Features Public Site: http://www.adobe.com/products/acrobatconnectpro/productinfo/features/ Jabber Public Site: http://www.jabber.com/CE/JabberXCP General Information: dco@adobe.com
