Marking out tools

Marking out tools. The common tools used for marking out Marking blue Scriber Punch Engineer’s square Surface plate Surface gauge. By Asaad Mohammad Automation and Mechatronics Lead Teacher.

hasad-barnett
Télécharger la présentation

Marking out tools

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Marking out tools The common tools used for marking out • Marking blue • Scriber • Punch • Engineer’s square • Surface plate • Surface gauge By Asaad MohammadAutomation and Mechatronics Lead Teacher

  2. Marking blue is a dye used in metal working to aid in marking out. It is used to paint a metal object with a very thin layer of dye that can be scratched off using a scriber to show the bright metal 1. Marking DYE (blue)

  3. Here are some pictures of marking blue

  4. 2. Scriber Scribers are used in metal working to mark lines on work pieces prior to manufacturing. They are used instead of pencils as the marks from pencils can rub off easily. They consist of a rod of steel that has been sharpened to a point at one or both ends. Scribers are used to draw shallow scratches on the surfaces of the work pieces.

  5. Types of scribers: • One-end scriber as shown below • Double-end scriber as shown below

  6. Are you ready for the first quizQ (1): Marking blue is a dye used in wood working 1- False 2- True

  7. Good job

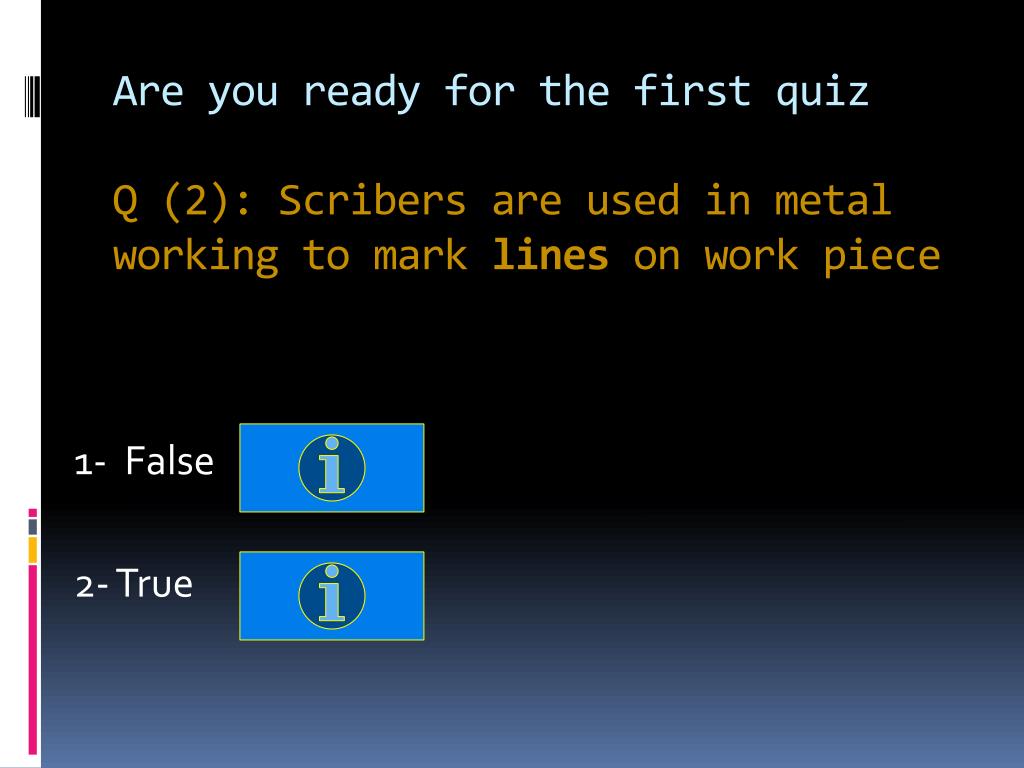

  8. Are you ready for the first quizQ (2): Scribers are used in metal working to mark lines on work piece 1- False 2- True

  9. ExcellentLet us continue

  10. 3. Punch A punch is a hardmetal rod with a shaped tip at one end and a rounded butt at the other end that is usually struck by a hammer Forward

  11. Types of Punches

  12. A-Center punch It is used as an aid to drilling operations. A center punch forms an indent in which the tip of the drill will fit. A center punch has a point angle of 90°

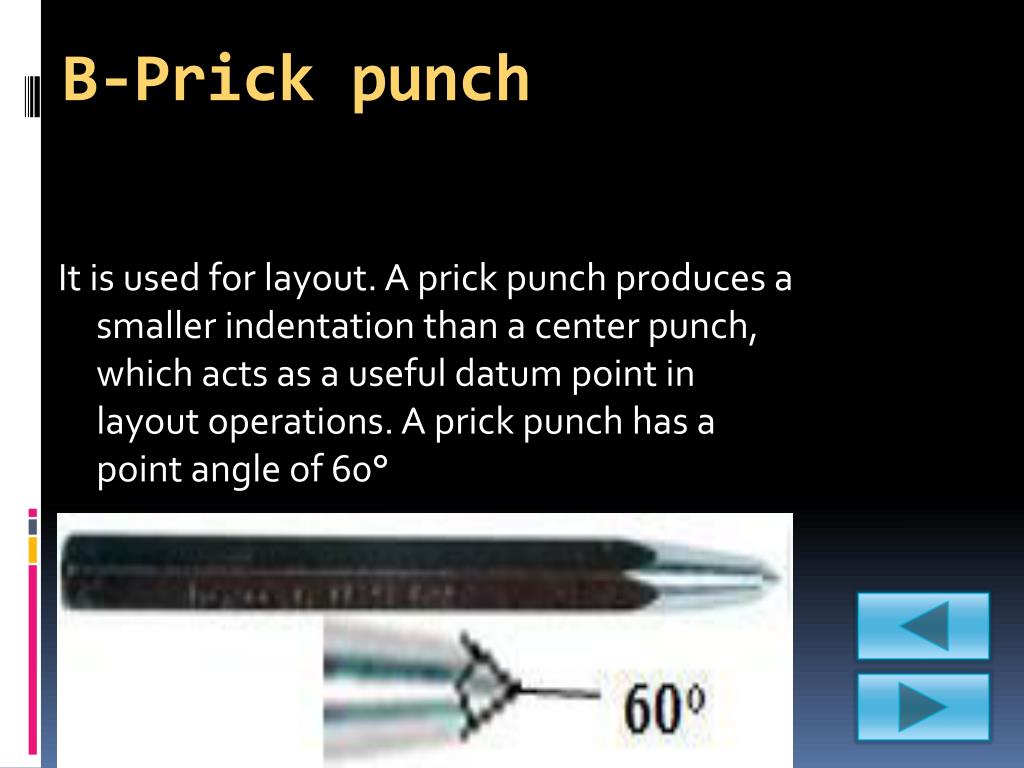

  13. B-Prick punch It is used for layout. A prick punch produces a smaller indentation than a center punch, which acts as a useful datum point in layout operations. A prick punch has a point angle of 60°

  14. C-Letter Stamps - Number Stamps These are used to print (stamp) a letter or number into a work piece

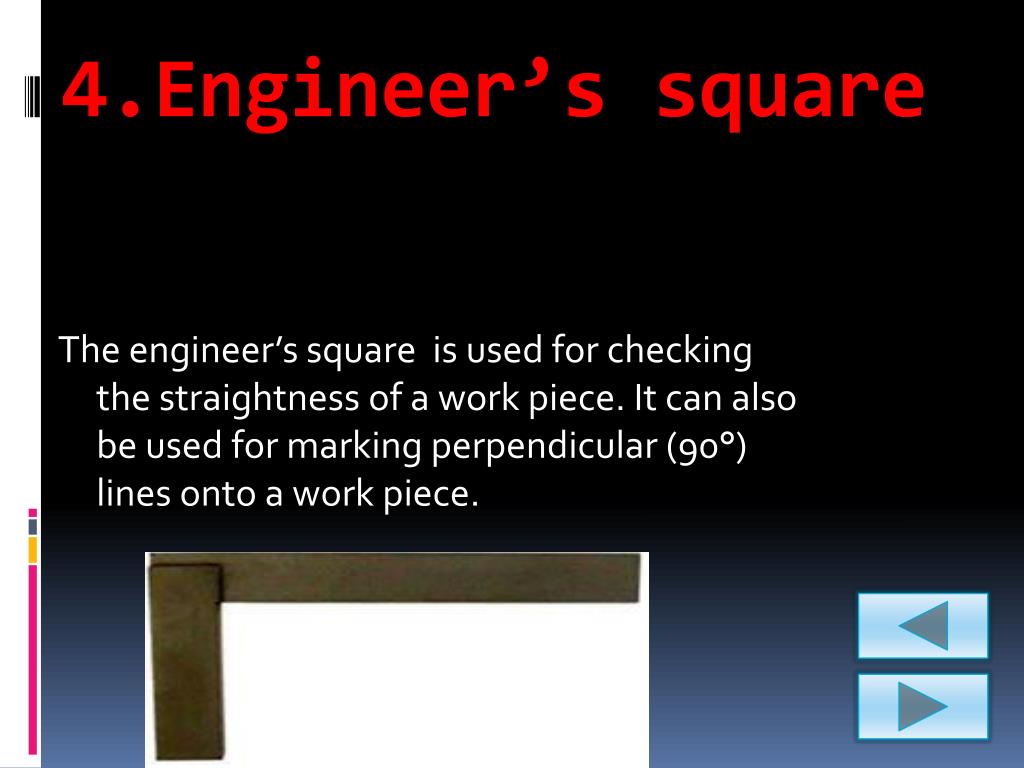

  15. 4.Engineer’s square The engineer’s square is used for checking the straightness of a work piece. It can also be used for marking perpendicular (90°) lines onto a work piece.

  16. 5.Surface plate The surface plate has a high degree of flatness. The flat surface is being used as a datum surface for marking out and for measuring purposes. it is also called surface table If it can stand on the floor

  17. Care to the surface plate YOU MUST • Keep the surface in a good condition. • Keep the surface lightly oiled to prevent corrosion. • Take care when placing marking out tools on the surface. YOU DO NOT • Place anything on the surface that would damage it. • Drop tools on the surface. • Hammer on the surface.

  18. 6. Surface gauge The surface gauge is used on surface plates for scribing lines on work pieces and checking parallel surfaces and heights

  19. 7. Angle plate The angle plate is used to assist in holding the work piece perpendicular to the table. The angle plate is provided with holes and slots to enable the secure attachment or clamping of work pieces.

  20. Last Exam for today Click HERE
