Presentation Transcript

  1. LESSON-13 INTRODUCTION TO THE MEASURING ANDMARKING TOOLS • FOOT RULLAR • “L” SQUARE • MEASURE TAPE • FRENCH CURVE • PATTERN MASTER • DRESS FORM • NOTCHER • PATTERN PANCH

  2. PIN [STAPIER PIN,PUSH PIN] • TAILOR CHALK • TRESSING WHELL • CELLOR TAPE • TRIENGLE • HIP CURVE

  3. FOOT RULLAR • MADE IN WOODEN , PLASTIC AND MATEL. • SIZE - 12” AND 30”. • TO USE FOR DRAW A STRAIGHT LINE.

  4. “L” SQUARE • MADE BY WOODEN AND FIBER • TO MATCH A FABRIC IN 90`CORNER • SIZE :- • LENGTH – 24” AND 60 C.M • WIDTH -12” AND 30 C.M

  5. MEASURE TAPE • MADE IN SMOOTH RUBBER OR FAERIC. • SIZE:- 60” AND 152 C.M. • AVAILABLE IN DIFFERENT COLOUR. • TO USE FOR MEASURMENT.

  6. FRENCH CURVE • MADE IN PLASTIC. • TO GIVE A SHAPE IN ARMHOLE AND NECK LINE. • TO GIVE A SHAPE IN COLLAR,POCKET, • CUFF AND SLEEVE.

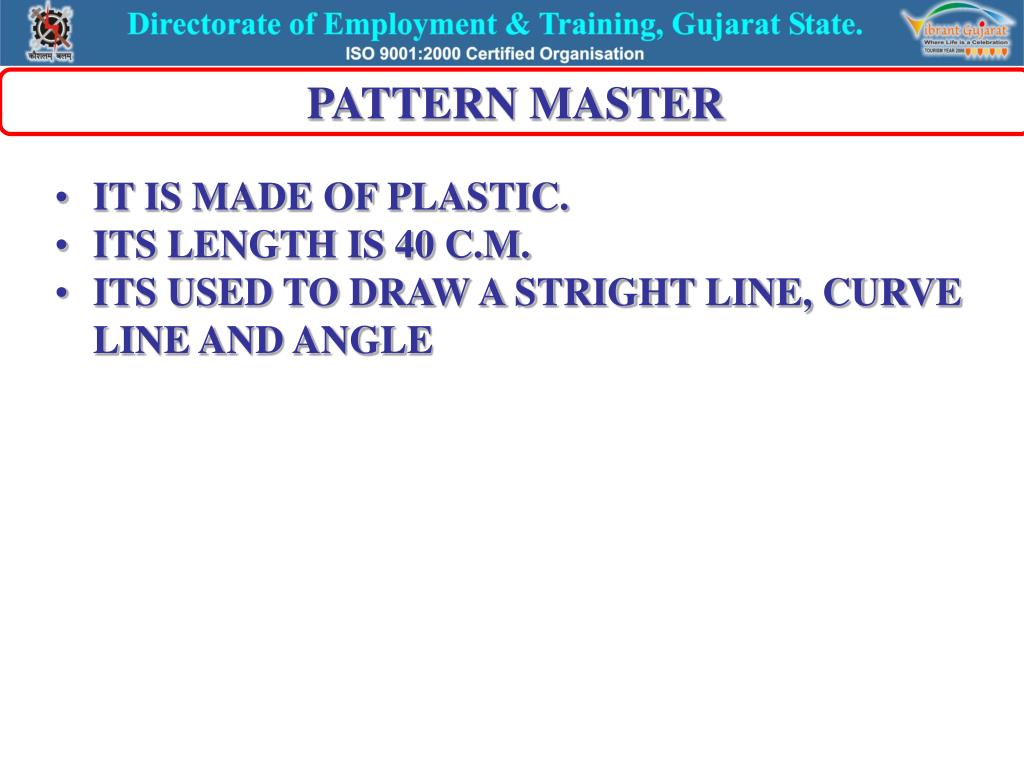

  7. PATTERN MASTER • IT IS MADE OF PLASTIC. • ITS LENGTH IS 40 C.M. • ITS USED TO DRAW A STRIGHT LINE, CURVE LINE AND ANGLE

  8. DRESS FORM • ITS CALLED MODELFORM OR DAMIES. • IT IS TWO TYPES HALF AND FULL • FOR LADIES GARMENT SIZE 8,10,12,14 AND 16. • FOR GENTS GARMENTS SIZE 38,40,42. • FOR CHILDREN GARMENTS SIZE 4,6.

  9. NOTCHER AND PATTERN PANCH • TO USE FOR NOTCH ON PAPER CUTTING. • TO USE FOR PUNCHING THE PATTERN TO MADE FORM THICE PAPER SEET.

  10. PIN • STAPLER PIN:- • VARIOUS TYPES OF PINS- ROUND,SIMPLE,PURL AND T-HEAD. • TO MADE FROM STEEL. • TO USE IN DRAFTING AND DRAPPING. • PUSH PIN:- • LENGTH-1/2” • TO MADE FROM METAL AND PLASTIC.

  11. TAILOR CHALK • VERY SMOOTH AND SHARP. • AVILABLE IN DIFFERENT COLOUR. • TO USE IN DRAW A DIAGRAM ON CLOTH.

  12. TRESSING WHELL • MADE FOR WOODEN AND PLASTIC. • TO USE MARKING FOR ONE PATTERN TO ANOTHER PATTERN.

  13. CELLOR TAPE • TO MADE FROM PLASTICK AND PAPER. • IT IS USE WHEN THE PATTERN IS CUT.

  14. TRIENGLE • THIS IS THREE SIDE’S TOOLS. • TWO SIDE’S LENGTH IS SAME AS. • IT IS MEET ON 90 DEG ANGLE. • USE TO DRAW A BIES LINE AND CORNER ON THE PATTERN.

  15. HIP CURVE • LENGTH-24”,60 C.M • SLIDE ROUND SHAPE • MEASURMENT IN C.M AND INCH • TO USE FOR NECK LINE,ARMHOLE, WEST LINE ETC…
