Types of Communication Links

Types of Communication Links. Modem dial-up Leased Line ISDN Broadband ADSL cable broadband Ethernet broadband. Modem Dial up run-on telephone system no connection until dial-up OK a circuit-switched facility not packet-switched technology

havard
Télécharger la présentation

Types of Communication Links

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Types of Communication Links • Modem dial-up • Leased Line • ISDN • Broadband • ADSL • cable broadband • Ethernet broadband

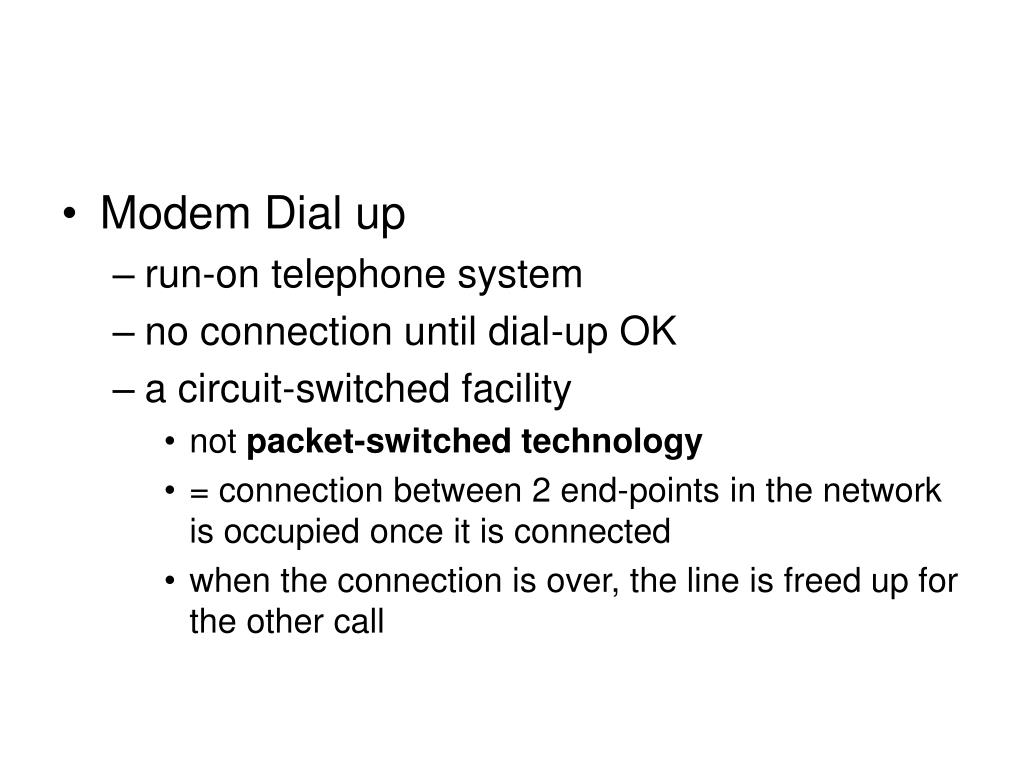

  2. Modem Dial up • run-on telephone system • no connection until dial-up OK • a circuit-switched facility • not packet-switched technology • = connection between 2 end-points in the network is occupied once it is connected • when the connection is over, the line is freed up for the other call

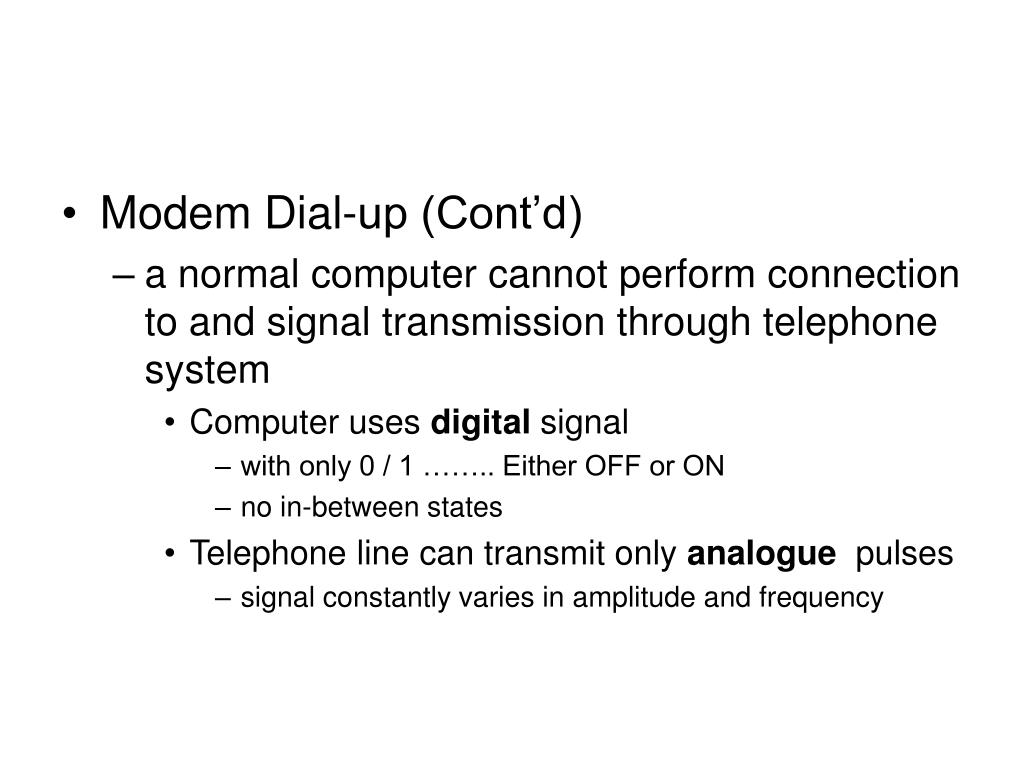

  3. Modem Dial-up (Cont’d) • a normal computer cannot perform connection to and signal transmission through telephone system • Computer uses digital signal • with only 0 / 1 …….. Either OFF or ON • no in-between states • Telephone line can transmit only analogue pulses • signal constantly varies in amplitude and frequency

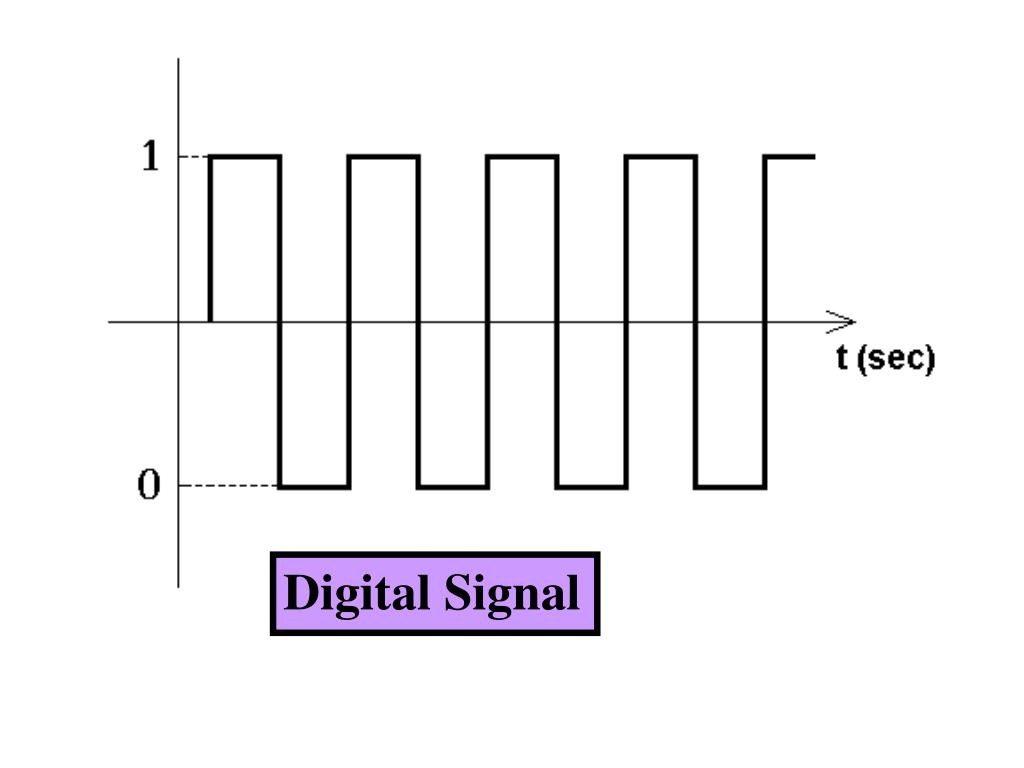

  4. Digital Signal

  5. Analogue Signal

  6. Modem dial-up (cont’d) • In order for the successful transmission of signal • MODEM is required • MODEM = modulator demodulator • Convert Digital Signal to analogue signal and vice versa ? ?

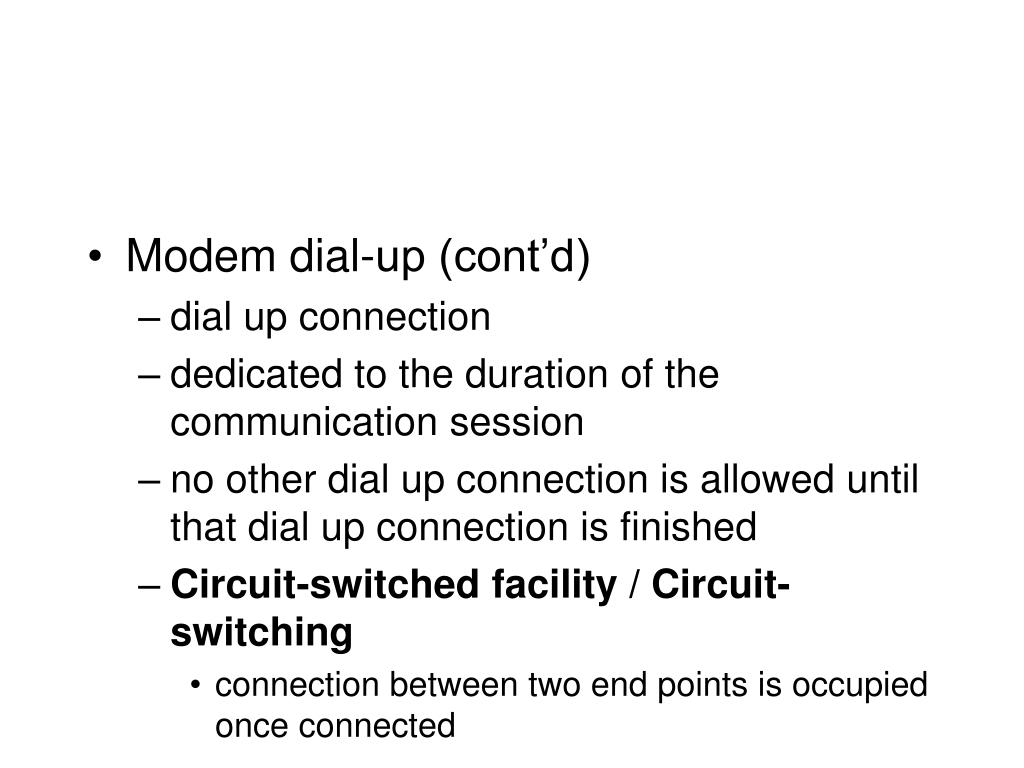

  7. Modem dial-up (cont’d) • dial up connection • dedicated to the duration of the communication session • no other dial up connection is allowed until that dial up connection is finished • Circuit-switched facility / Circuit-switching • connection between two end points is occupied once connected

  8. Leased Lines • a telephone line that has been leased for private use • also circuit-switched facility • adv : • has guaranteed bandwidth • simplify planning • Disadv : • billing is fixed regardless how much bandwidth is used • no capacity to growth

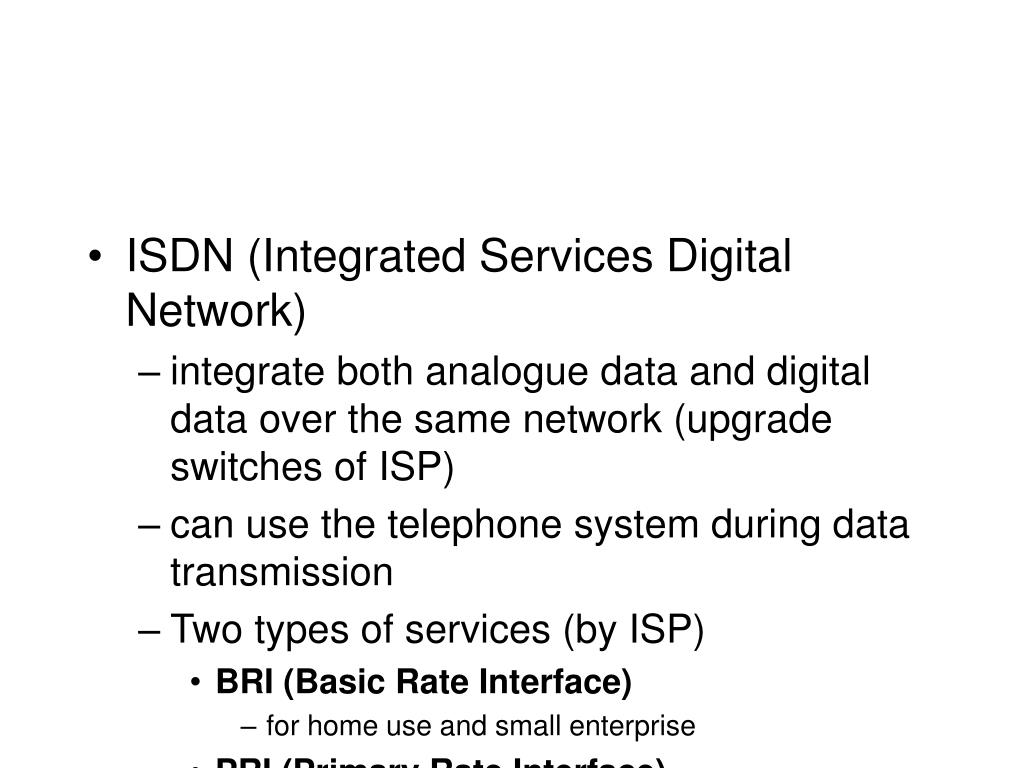

  9. ISDN (Integrated Services Digital Network) • integrate both analogue data and digital data over the same network (upgrade switches of ISP) • can use the telephone system during data transmission • Two types of services (by ISP) • BRI (Basic Rate Interface) • for home use and small enterprise • PRI (Primary Rate Interface) • for large corporation

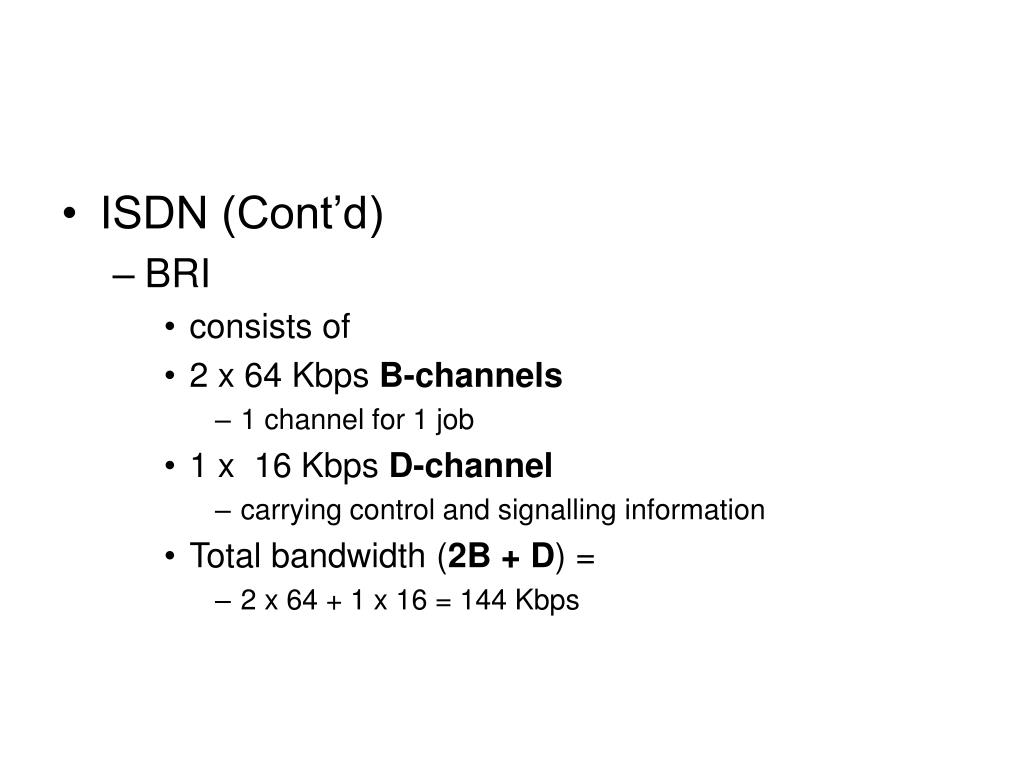

  10. ISDN (Cont’d) • BRI • consists of • 2 x 64 Kbps B-channels • 1 channel for 1 job • 1 x 16 Kbps D-channel • carrying control and signalling information • Total bandwidth (2B + D) = • 2 x 64 + 1 x 16 = 144 Kbps

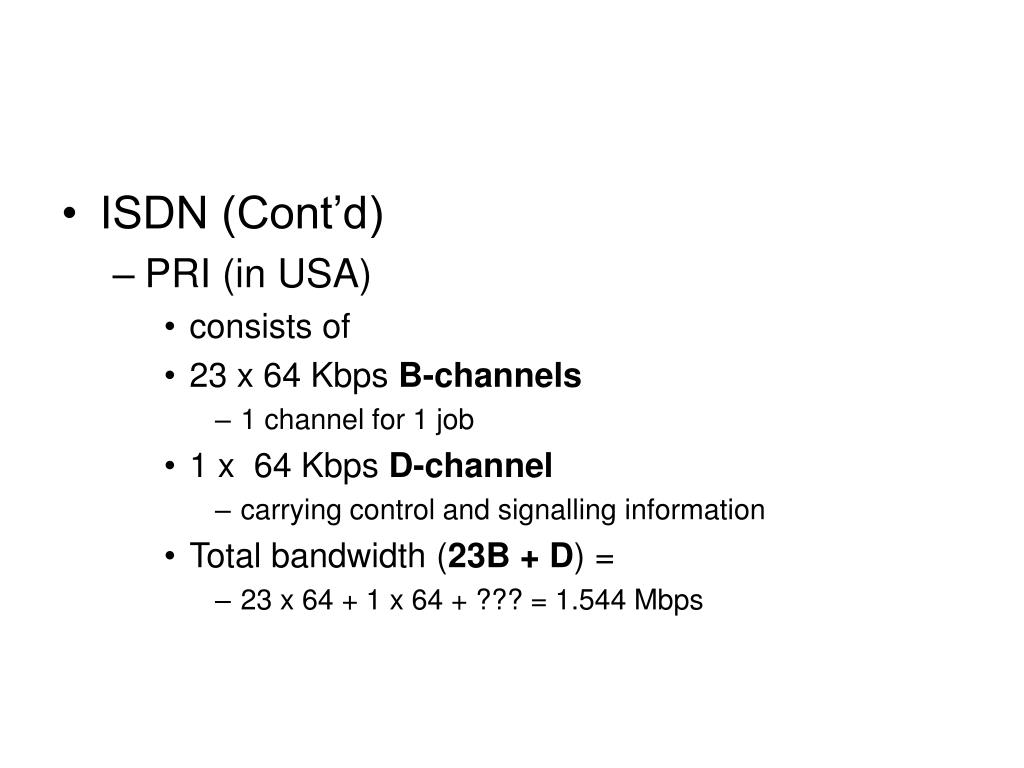

  11. ISDN (Cont’d) • PRI (in USA) • consists of • 23 x 64 Kbps B-channels • 1 channel for 1 job • 1 x 64 Kbps D-channel • carrying control and signalling information • Total bandwidth (23B + D) = • 23 x 64 + 1 x 64 + ??? = 1.544 Mbps

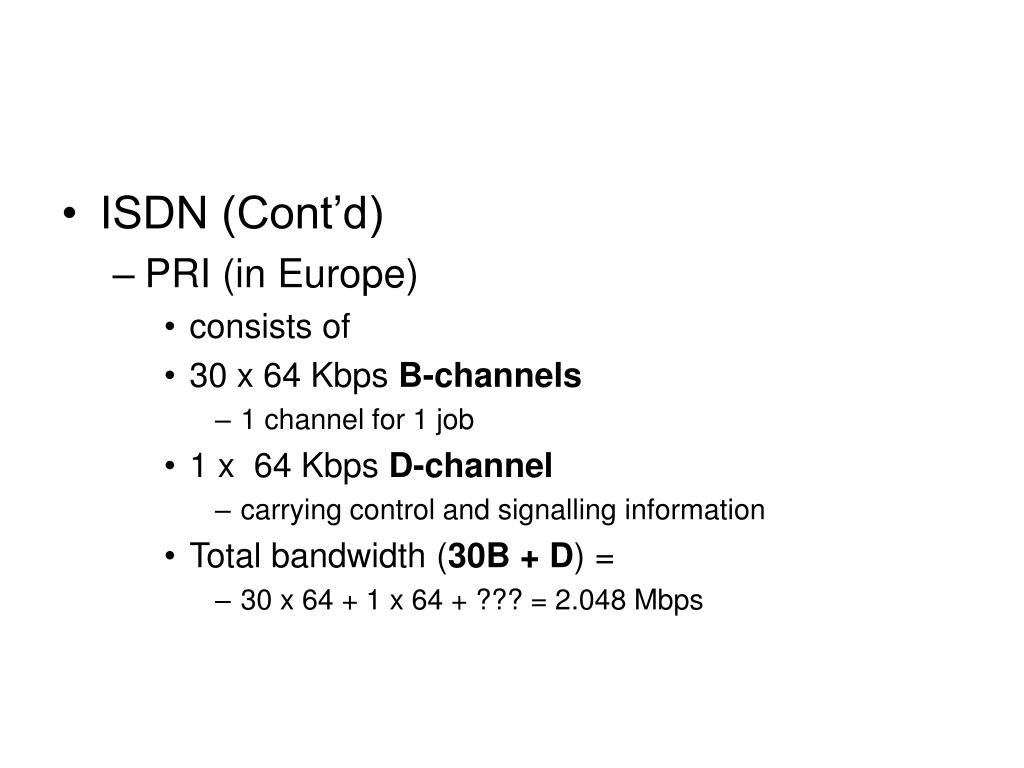

  12. ISDN (Cont’d) • PRI (in Europe) • consists of • 30 x 64 Kbps B-channels • 1 channel for 1 job • 1 x 64 Kbps D-channel • carrying control and signalling information • Total bandwidth (30B + D) = • 30 x 64 + 1 x 64 + ??? = 2.048 Mbps
