  1. Ray Tracing Dynamic Scenes using Selective Restructuring Sung-eui Yoon Sean Curtis Dinesh Manocha Lawrence Livermore National Lab Univ. of North Carolina at Chapel Hill

  2. Motivations • Dynamic scenes are widely used • Movies, VR applications, and games • Complex and large dynamic scenes • E.g, high-resolution explosion, tears, and fractures

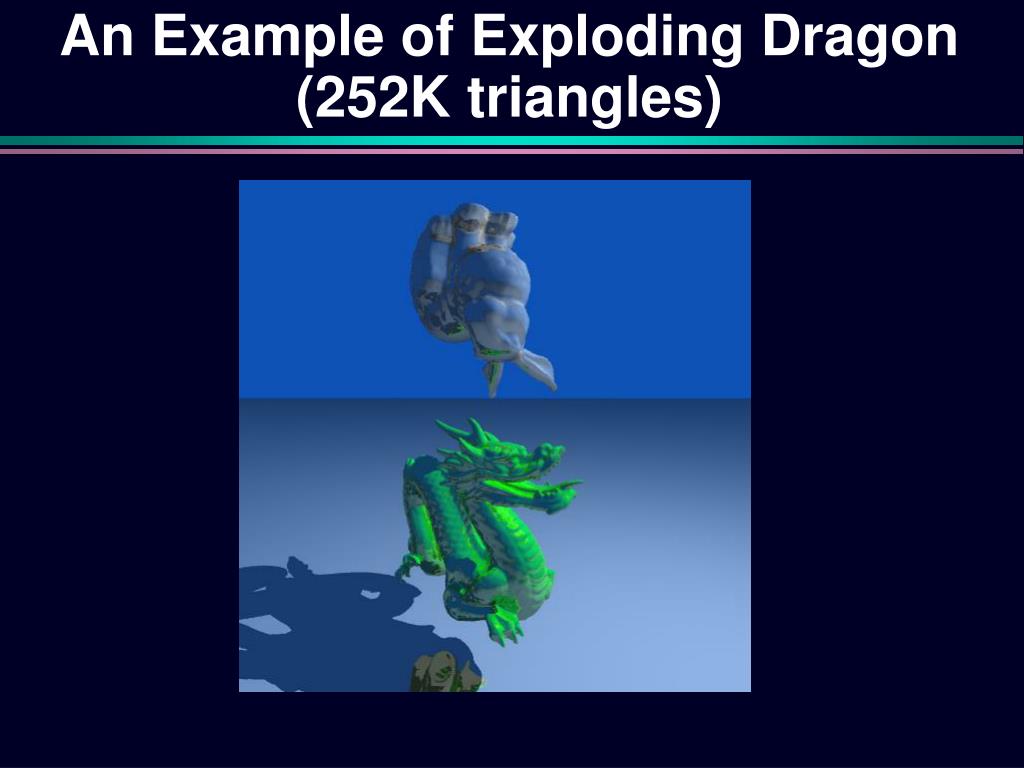

  3. An Example of Exploding Dragon (252K triangles)

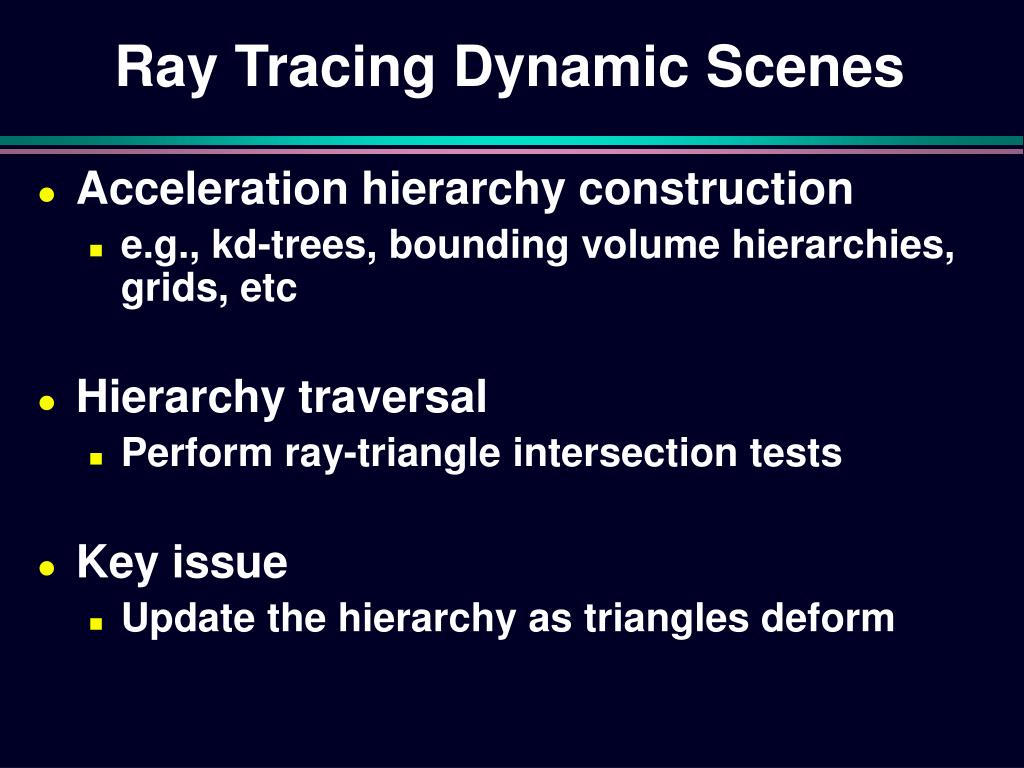

  4. Ray Tracing Dynamic Scenes • Acceleration hierarchy construction • e.g., kd-trees, bounding volume hierarchies, grids, etc • Hierarchy traversal • Perform ray-triangle intersection tests • Key issue • Update the hierarchy as triangles deform

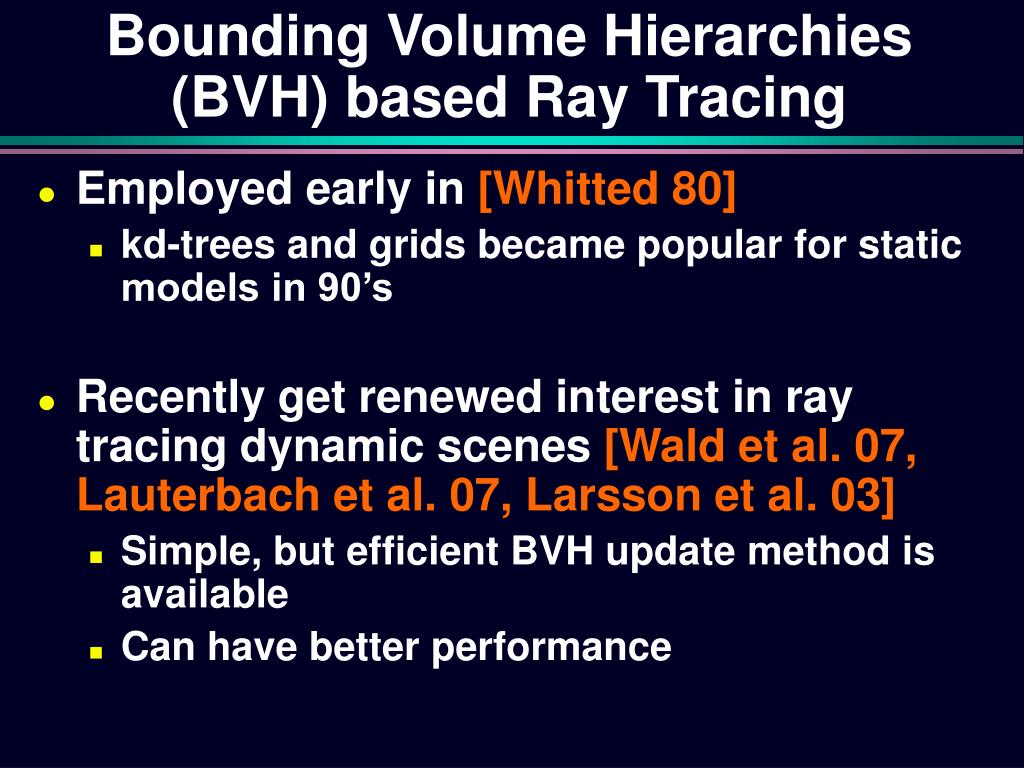

  5. Bounding Volume Hierarchies (BVH) based Ray Tracing • Employed early in [Whitted 80] • kd-trees and grids became popular for static models in 90’s • Recently get renewed interest in ray tracing dynamic scenes [Wald et al. 07, Lauterbach et al. 07, Larsson et al. 03] • Simple, but efficient BVH update method is available • Can have better performance

  6. BVHs • Object partitioning hierarchies • Uses axis-aligned bounding boxes • Considers surface-area heuristic (SAH) [Goldsmith and Salmon 87] A BVH

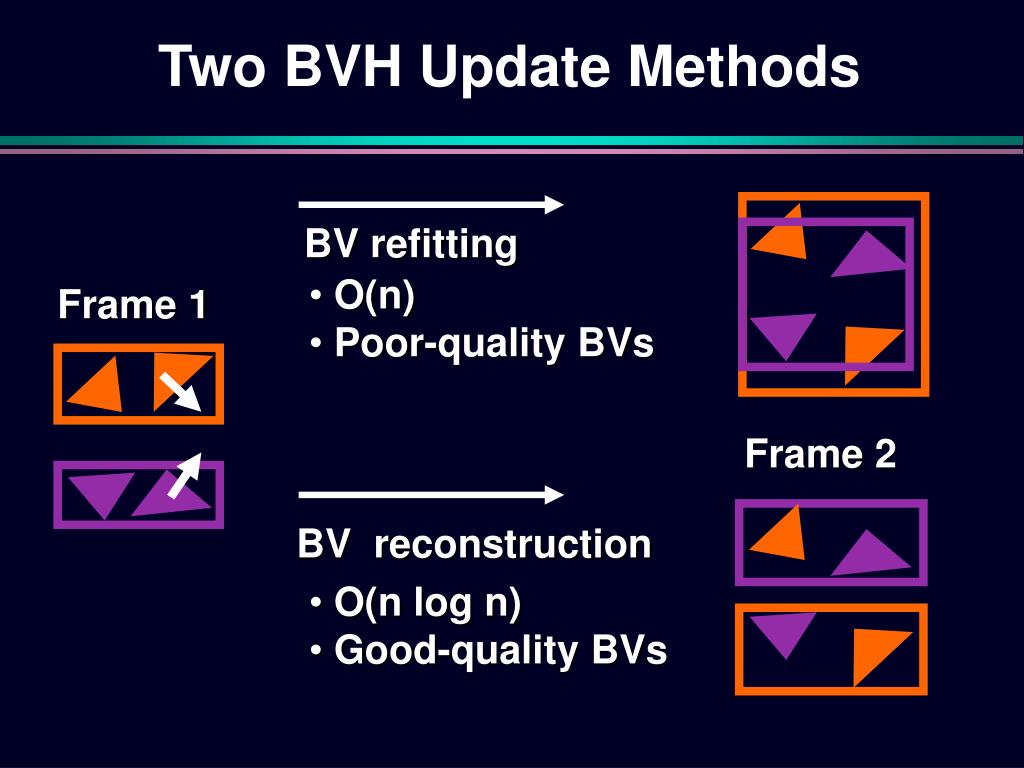

  7. BV refitting Frame 1 BV reconstruction Two BVH Update Methods • O(n) • Poor-quality BVs Frame 2 • O(n log n) • Good-quality BVs

  8. Our Goal • Existing BVH update methods • Work at particular classes of dynamic scenes • Design a robust BVH update method • Works well with wide classes of dynamic scenes • Improves the performance of ray tracing

  9. Our Contributions • Proposes a novel algorithm to selectively restructure BVHs • Selective restructuring operations • Two probabilistic metrics: culling efficiency and restructuring benefit Refit Restructure BVH

  10. Example of Exploding Dragon Model Ray tracing time (sec): construction + traversal # of intersections BV refitting Complete reconstruction Selective restructuring

  11. Runtime Captured Video – BART Model (65K triangles) • Compared with the BV refitting method Enabled primary & shadow rays Single thread

  12. Prior Hybrid BVH Update Methods • Based on simple heuristics • RT-Deform [Lauterbach et al. 06] • LM method [Larsson and Akenine-Möller06] • Hard to see what dynamic scenarios they work with or not

  13. Runtime Captured Video –BART Model • Compared with RT-Deform Single thread

  14. Probabilistic BVH Metrics for Ray Tracing • Culling efficiency • Quantifies the quality of any sub-BVHs • Measures the expected # of intersection tests for a ray • Restructuring benefit • Predicts the performance improvement • Measures improved culling efficiency when restructuring sub-BVHs

  15. Major Observation • Restructuring two nodes with BV overlaps can improve the culling efficiency • Assumes that restructuring operation will remove all the BV overlaps A BVH

  16. Selective Restructuring Operations

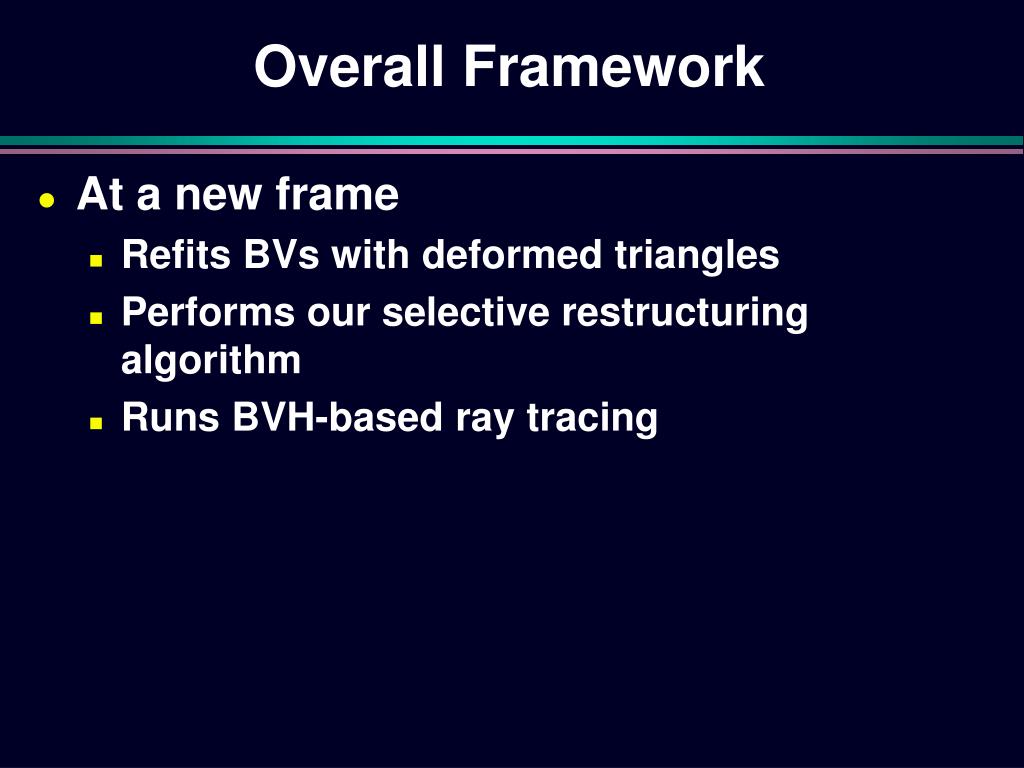

  17. Overall Framework • At a new frame • Refits BVs with deformed triangles • Performs our selective restructuring algorithm • Runs BVH-based ray tracing

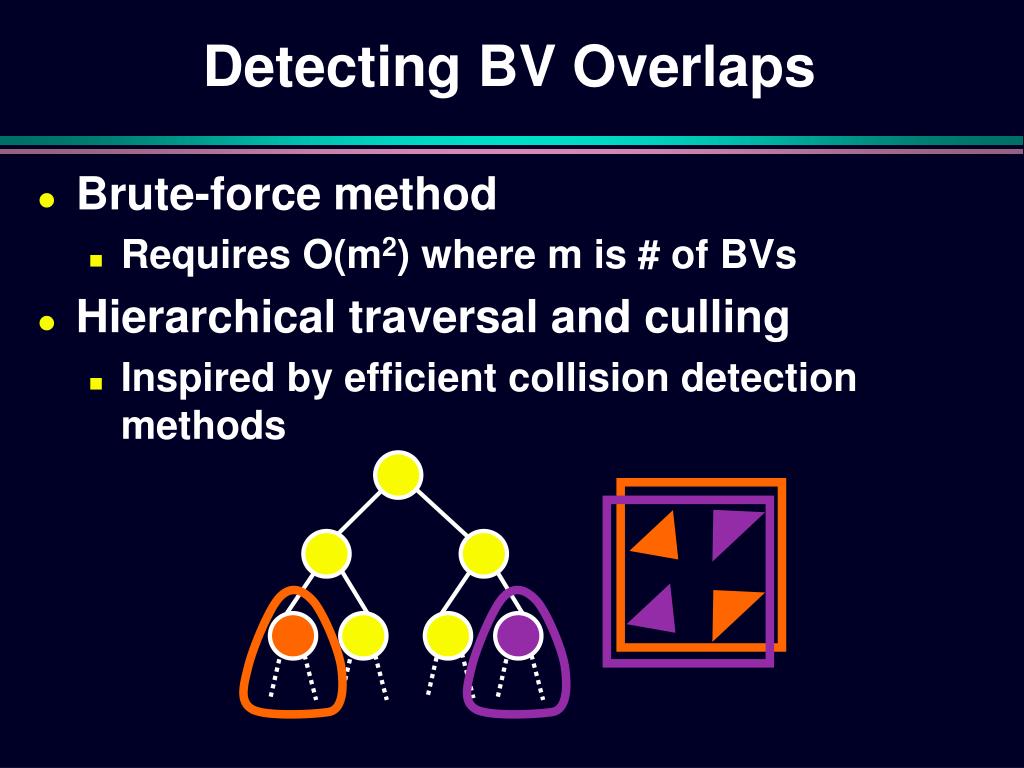

  18. Detecting BV Overlaps • Brute-force method • Requires O(m2) where m is # of BVs • Hierarchical traversal and culling • Inspired by efficient collision detection methods

  19. Overview of Selective Restructuring Algorithm • Computes restructuring candidates • Detects nodes with BV overlaps during hierarchy traversal • Restructure node pairs with higher restructuring benefits greedily • Improves the performance of ray tracing

  20. Evaluating Our Algorithm • Implement BVH-based ray tracer [Lauterbach et al. 06] • Tests with four dynamic scenes having different characteristics

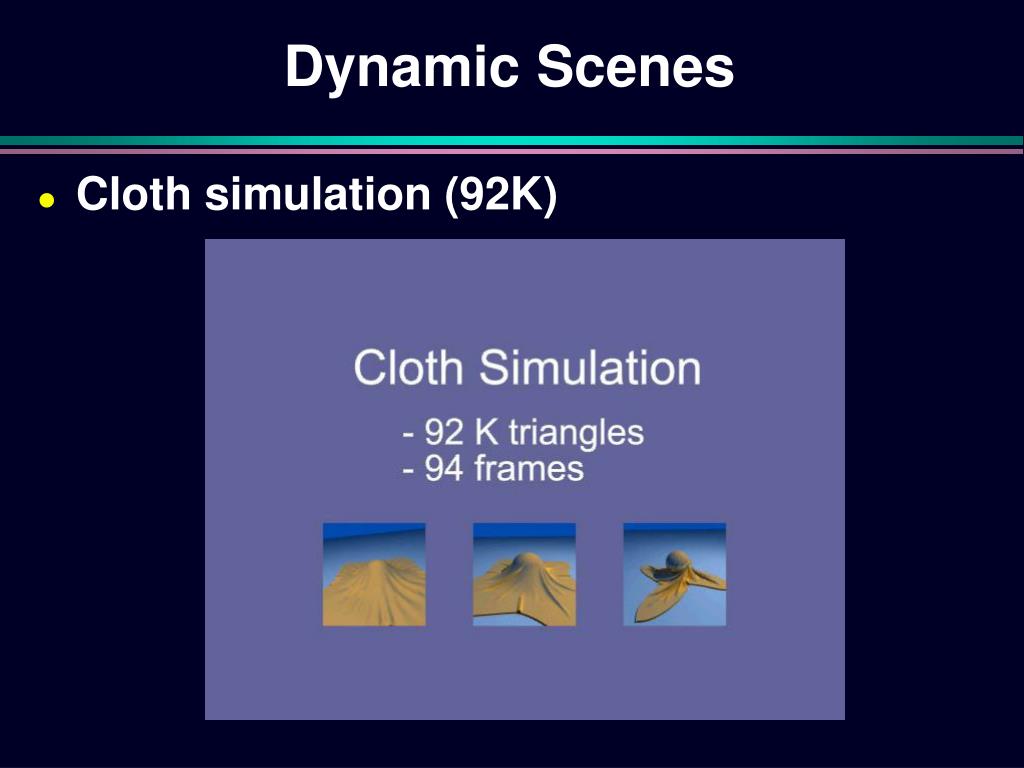

  21. Dynamic Scenes • Cloth simulation (92K)

  22. Dynamic Scenes • N-body simulation (146K)

  23. Dynamic Scenes • Exploding dragon (252K) • BART (65K)

  24. Prior Works • BV Refitting [Wald et al. 07, Bergen 97] • Complete re-construction from scratch • RT-Deform [Lauterbach et al. 06] • LM method [Larsson and Akenine-Möller06]

  25. Performance Improvement Ratio

  26. Image Shots from Cloth Simulation

  27. Performance Improvement Ratio Robust performance improvement across our benchmarks

  28. Conclusions • Novel algorithm to selectively restructure BVHs • Based on selective restructuring operations and two BVH metrics • Has more robustness and deals with bigger scene complexity • Can be used in other applications • Dynamic scenes are available

  29. Acknowledgements • Naga Govindaraju • Christian Lauterbach • Ingo Wald • Ming Jang • Hanan Samet • Peter Lindstrom • Other members of data analysis group • Anonymous reviewers • Our funding agencies
