  1. SksMinusstatus03 HB meeting 2008/5/02 白鳥昂太郎

  2. Contents • Around target • SDC2 position • SDC1 position • SP0 position • Hyperball-J frame position • 4He target • Beam line elements

  3. SDC2 position Original SDC2 position (it means the design position in the Geant4 simulation) Interference of preamp card. ⇒SDC2 to 50 mm upstream But, we can avoid to it by changing preamp arrangement. New SDC2 position

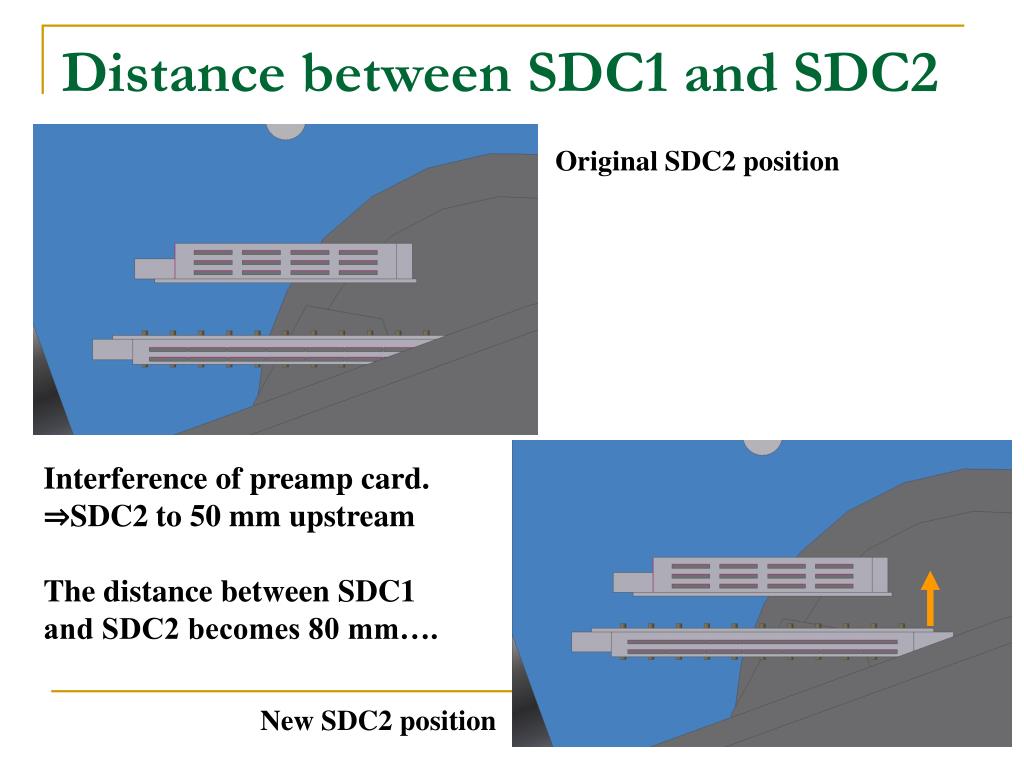

  4. Distance between SDC1 and SDC2 Original SDC2 position Interference of preamp card. ⇒SDC2 to 50 mm upstream The distance between SDC1 and SDC2 becomes 80 mm…. New SDC2 position

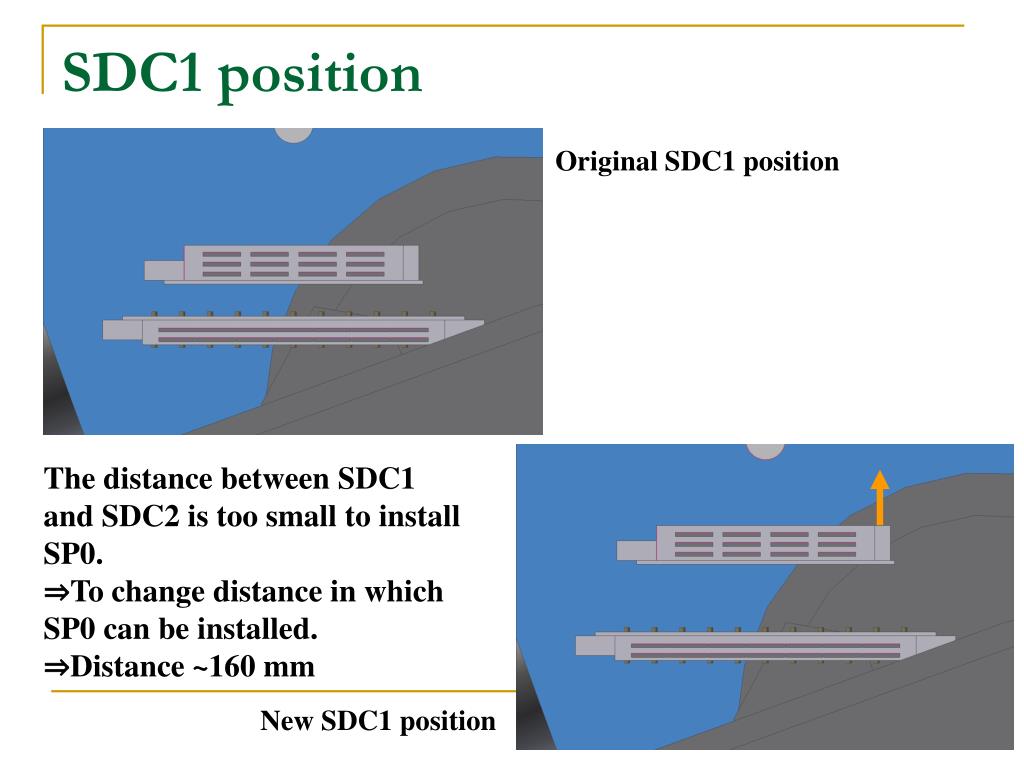

  5. SDC1 position Original SDC1 position The distance between SDC1 and SDC2 is too small to install SP0. ⇒To change distance in which SP0 can be installed. ⇒Distance ~160 mm New SDC1 position

  6. SP0 position (cross section) Interference (just 1 layer)

  7. SP0 position (side view) Very tight space for installing SP0 !

  8. HBJ position (side view) Not to insert SDC1 into Hyperball-J frame ⇒The position of HBJ frame becomes more upstream.

  9. HBJ position (side view) To insert SDC1 into Hyperball-J frame ⇒To install SDC1 as shown in the picture

  10. Information1 • Target⇔SDC2 : 575→525 (-50 mm) • Target⇔SDC1 : 350→260 (-90 mm) • SP0 space : 159 mm • SDC1⇔SP0 (between surface) : 7 mm • SDC2⇔SP0 (between surface) : 7 mm • Target position : Original→Realistic : -90 mm • Target position w/ HBJ frame: -130 mm ⇒less than -100 mm.

  11. Acceptance by changing target position Center : 112 msr Down : 118 msr Up : 107 msr (up to 20 degree scattering angle) ⇒ ~0.5 % / 1 cm ○ : Target center × : Downstream 100 mm □ : Upstream 100 mm

  12. Interference of SKS magnet refrigerator Need to change the SP0 magnetic shield

  13. W/ Beam line elements (FF+600mm)

  14. W/ Beam line elements (FF+0mm)

  15. Information2 • Target ⇔Q magnet : 1900 mm • Q magnet⇔BDC3 : 400 mm (center) • Q magnet⇔BDC4 : 800 mm (center) • BDC4(surface)⇔Target : 1056 mm • BDC4(surface)⇔HBJ (surface) : 621 mm • BDC4(surface)⇔SDC1(surface) : 1272 mm

  16. Summary • The position of the target has to be changed to the upstream direction. • Less than 100 mm • Space between beam line and Hyperball-J frame is large enough. • FF+600 mm is little larger than optimum space ?

  17. Plan • Frame design + Detector position arrangement • SP0 design (by Otani) • 4He target • Arm design, full set size, etc. • SDC2 repair and PreAmp position arrangement
