  1. NCOIC Modeling & Simulation Activities andSOA-Based Interoperability Demonstrations NCOIC Technology Day Dr. Robert Marcus (SRI) Chair, Modeling & Simulation Working Group Approved for Public Release NCOIC Jan 07-110

  2. The Role and Value of theNCOIC Deliverables DomainMissionModels Common Framework of Guidance to AchieveInteroperability Domain GeneralArchitectures Specific NodeArchitectures High Level Models MilitaryImplementation Net-Centric Interoperability Military e.g. Models ofcustomerobjectives Tailored High LevelEnterprise& Reference & Capability Models(e.g. FEA, OSI, etc) Command &Control NIF Net-CentricInteroperability Demos using M&S HomelandSecurity/Police/Fire e.g. NESI,NATO NC3TA Model forAlignment ofBoundaries &Interfaces ofboth Functions and Services Others Others Government/Commercial Implementation e.g. E-commerceWeb Services ….…. ..…… .. .. SCOPE NIF BB NCAT CR The NCOIC Tools work together to assist in achieving interoperable systems

  3. NCOIC Modeling & Simulation Activities • Documenting emerging standards for Modeling & Simulation • Using interoperability demonstrations to evaluate standards • Will produce a set of recommended standards based on testing • Encouraging open sourcing of packages for Modeling & Simulation • Survey of member R & D Labs for participation in testing demos • Customers have requested help in integrating Battle Labs

  4. Modeling, Simulation and Demonstration Solutions to Interoperability Challenges • Systems of systems development presents major challenges to interoperability due to the diverse nature of the multiple systems • The NCOIC Modeling, Simulation and Demonstration Working Group has proposed a testbed combining Live, Virtual and Constructive (LVC) Systems • To implement this testbed, we have surveyed a set of packages with the proven capability to integrate systems using services • These packages can be the basis of future implementations and interoperability demonstrations in specific domains • We are interested in collaborating with industry and government to create demonstrations based on domain-specific scenarios.

  5. Modeling, Simulation and Demonstrationfor Systems of Systems Development Concept Refinement Technology Development System Development and Demonstration System Life Cycle Constructive (A), Virtual (B) and Live (C) System of Systems Testbed Proof of Concept Live System Technology Simulation Technology Emulation Simulations and Systems e.g. A, B,C C B A System of Systems Verification Interface Testing Design Testing System Validation Concept Testing Tests and V & V

  6. SOA Testbed Integration acrossNCOIC Member R&D Labs Service Oriented Architecture Interoperability Links Government R&D Lab Corporate R&D Lab Clients Services, data, and processes can be provided, shared, and composed across R&D Labs

  7. NCOIC Demonstrations • All demonstrations are based on open software packages that have been deployed and could be available for NCOIC demos • It is possible to build implement domain specific scenarios on top of these packages. We are looking for potential collaborators. • Foundation Information Grid – The Storage Resource Broker from UCSD provides global read and write access to large-scale distributed data through multiple interfaces • C2 Information Sharing for SOA – C2 data exchange between distributed centers based on standard data models and the Battle Management Language (BML) enabling web servicesfrom VMASC • Joint MEASURE – Open source library of interoperable, composable C2 models for simulations based on a standard framework used in test and evaluation by Lockheed-Martin. • All slides are from the developers of the software packages.

  8. Examples of Storage Resource Broker Applications:ROADNet and HiSeasNet ROADNET = Real-time Observatories, Applications, Data management Network

  9. Current HISeasNet and ROADnet Scope

  10. HiSeasNet, ROADNet using Storage Resource Broker (SRB) SRB

  11. Example of Model-Based SOA Access to C2 Data Application

  12. Google AdapterC2Linkopping SitaWareC2Norfolk PABSTM&SMeppen WebCOPC2Norfolk SICFC2Paris C-BML Web Services SIMBADM&SMadrid Model-based Data Engineering and SOA Demo Scope

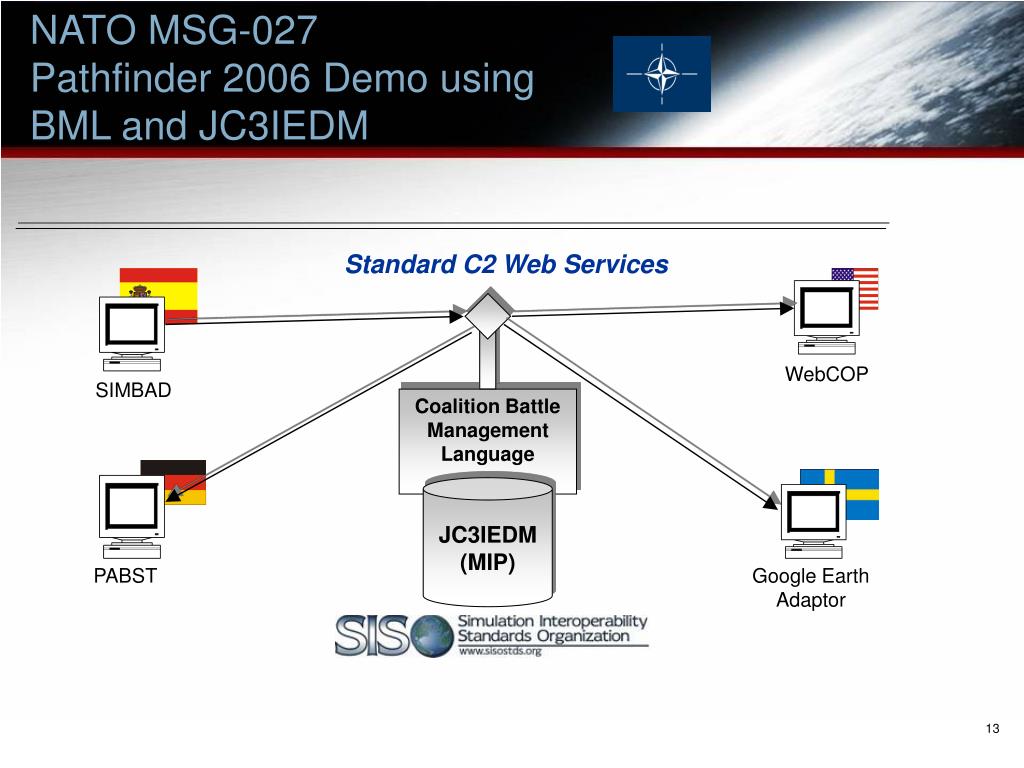

  13. NATO MSG-027Pathfinder 2006 Demo using BML and JC3IEDM Standard C2 Web Services WebCOP SIMBAD Coalition Battle Management Language JC3IEDM (MIP) PABST Google EarthAdaptor

  14. Joint MEASURE Library Applications:Reusable C2 Models for Simulation

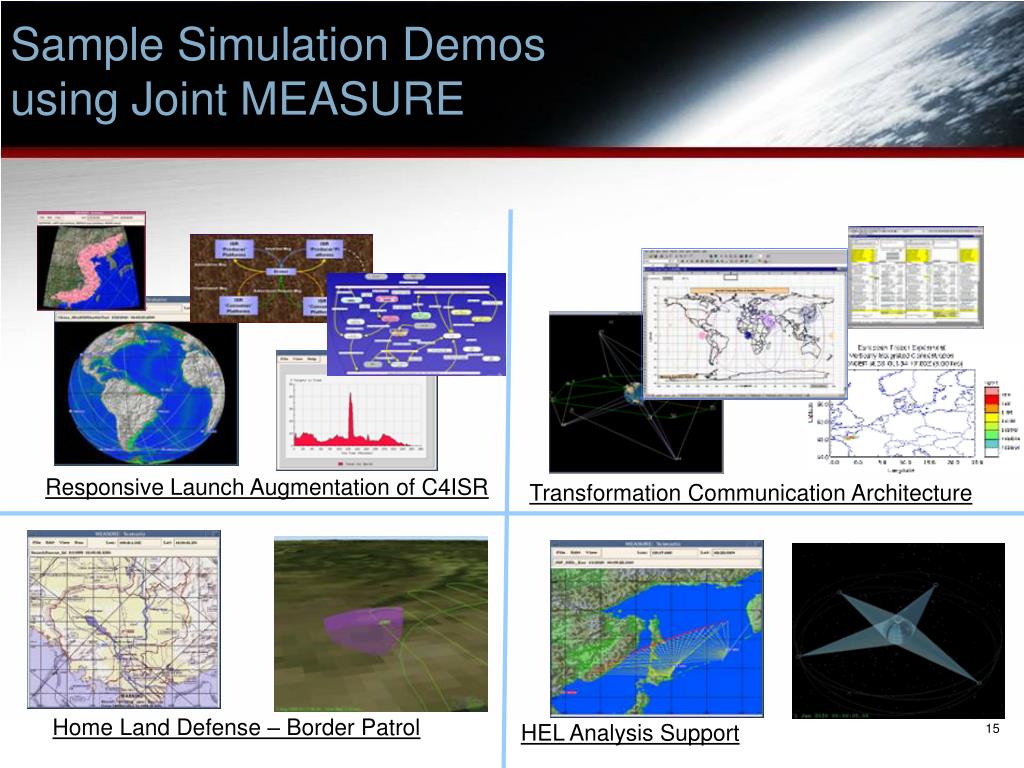

  15. Sample Simulation Demos using Joint MEASURE Responsive Launch Augmentation of C4ISR Transformation Communication Architecture Home Land Defense – Border Patrol HEL Analysis Support

  16. Reusable Models in Joint MEASURE Library Scope • Environment Models and Propagation Models • Platform Models • Behaviors • Routes, Actions, Chain of Command, Performance, Fire Mission • Attributes • Detectability, Vulnerability • Sensors • Fixed-Range, RADAR, SONAR, LADAR, IR, SIGINT • Communication • Navigation (GPS), Data • Weapons • Missiles, Artillery, High Energy Lasers

  17. Let me know if you want to participate in future NCOIC M&S demonstrations and activities. Thanks. Dr. Robert Marcus SRI International robert.marcus@sri.com 720-352-0784
