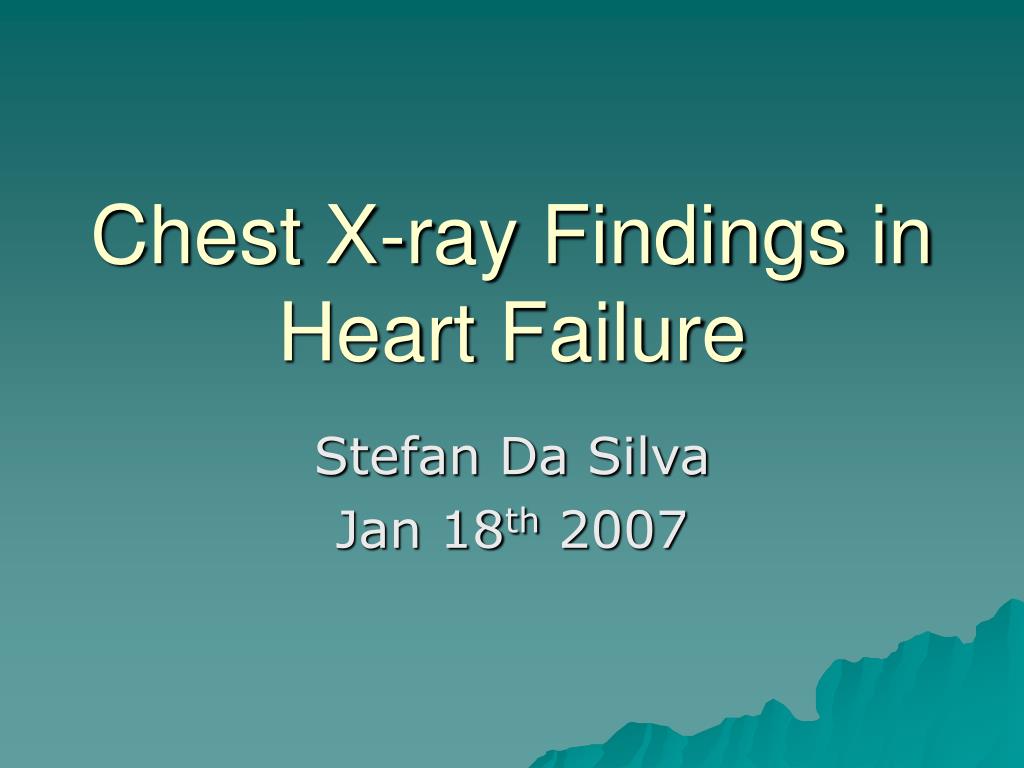

  1. Chest X-ray Findings in Heart Failure Stefan Da Silva Jan 18th 2007

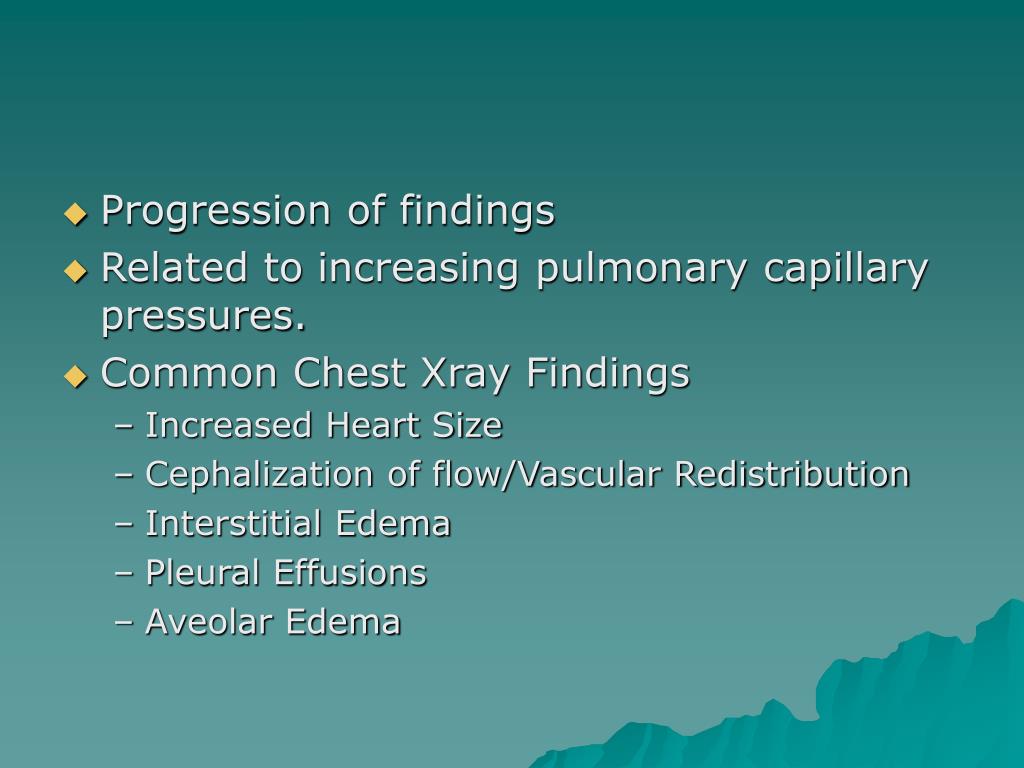

  2. Progression of findings • Related to increasing pulmonary capillary pressures. • Common Chest Xray Findings • Increased Heart Size • Cephalization of flow/Vascular Redistribution • Interstitial Edema • Pleural Effusions • Aveolar Edema

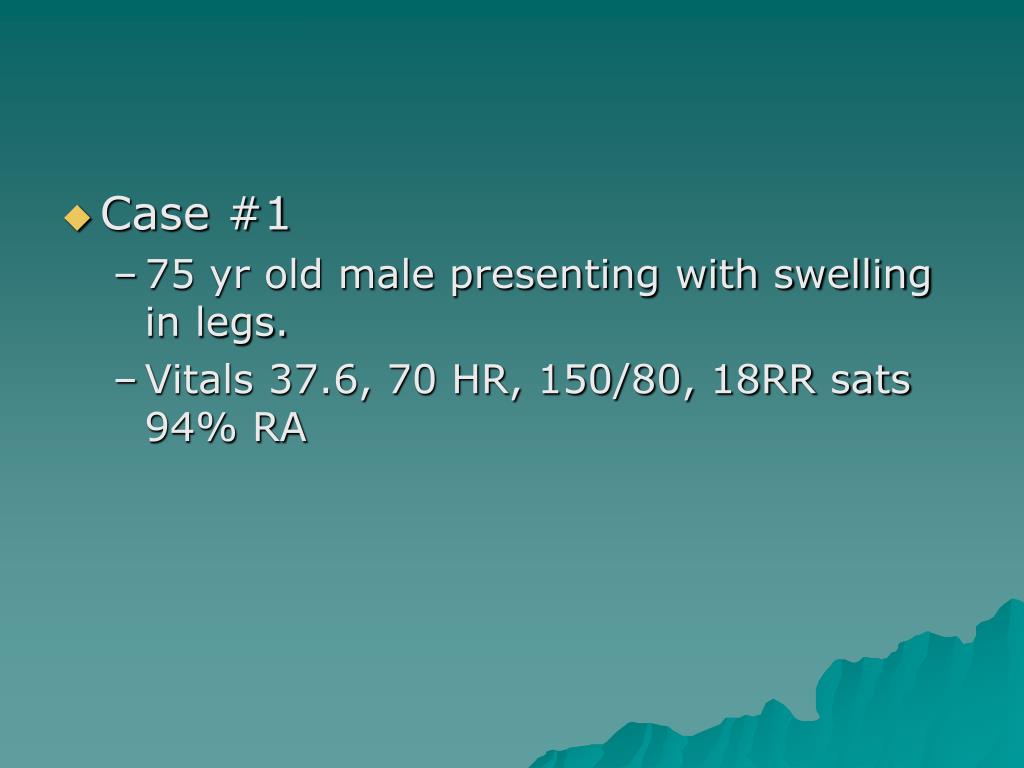

  3. Case #1 • 75 yr old male presenting with swelling in legs. • Vitals 37.6, 70 HR, 150/80, 18RR sats 94% RA

  4. Increased Heart Size • Usually a cardiothoracic ratio of >0.50 • Sensitivity 54% - 79% (Knudsen et al., Fonseca et al) • Specificity 78% - 80% (Knudsen et al., Fonseca et al)

  5. Dr. W. Roentgen • 1895 • 7 weeks of experiments after he discovered the “x” ray to produce the first image.

  6. Case #2 • 75 yr old male with leg swelling and increasing SOB on exertion • Vitals 37.6, 70 HR, 150/80, RR 18 sats 94% RA

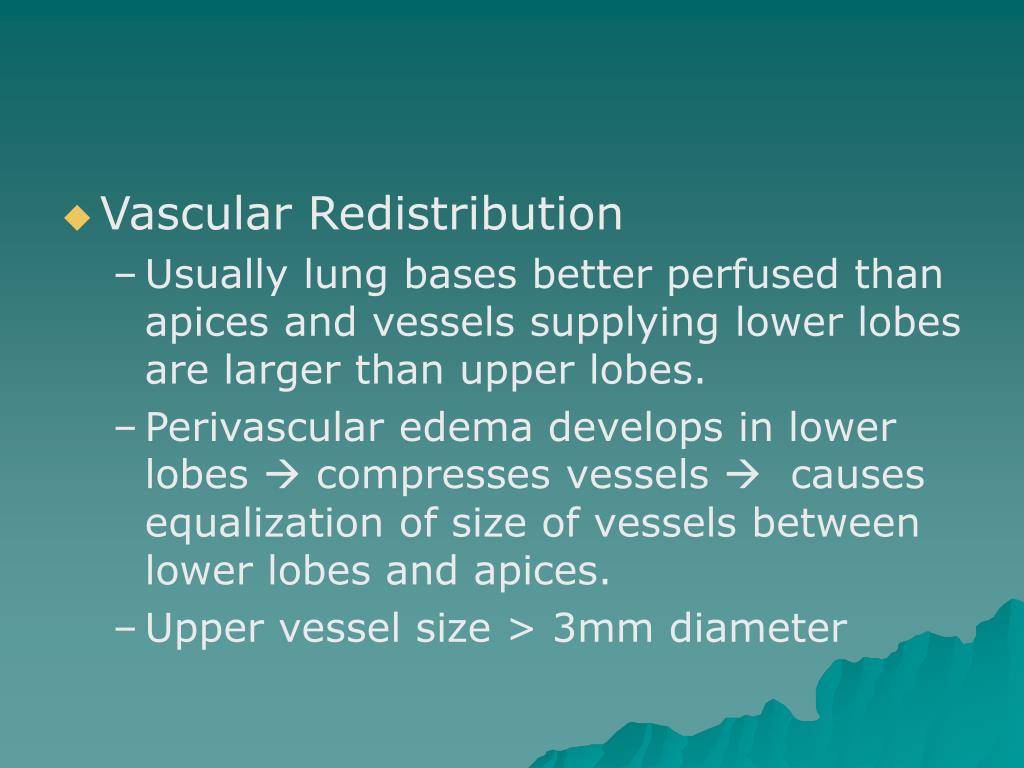

  7. Vascular Redistribution • Usually lung bases better perfused than apices and vessels supplying lower lobes are larger than upper lobes. • Perivascular edema develops in lower lobes  compresses vessels  causes equalization of size of vessels between lower lobes and apices. • Upper vessel size > 3mm diameter

  8. Vascular Redistribution con’t • Increasing pulmonary capillary pressure causes “cephalization of flow” due to shunting to upper lobe vessels. • Flip xray upside down • Poorly sensitive: 41% (as low as 17% in one study) • Specificity: 94 - 96% (Knudsen et al., Fonseca et al)

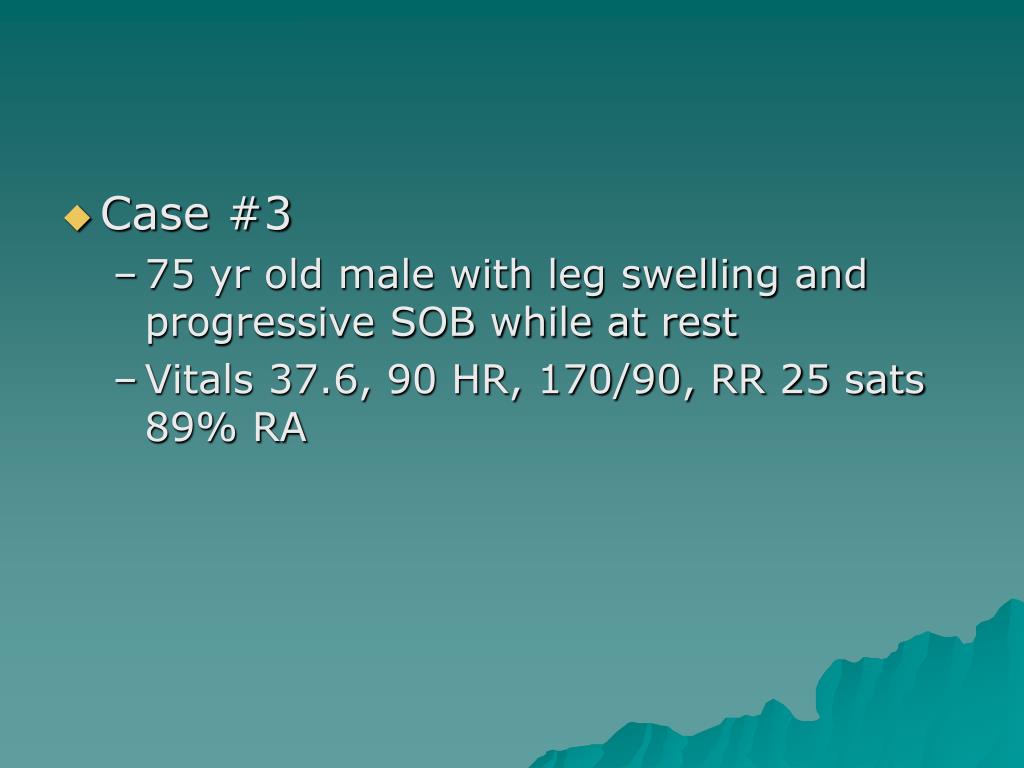

  9. Case #3 • 75 yr old male with leg swelling and progressive SOB while at rest • Vitals 37.6, 90 HR, 170/90, RR 25 sats 89% RA

  10. Interstitial Edema • (1) septal, producing Kerley lines (i.e., sharp, linear densities of interlobular interstitial edema); • (2) perivascular, producing loss of sharpness of the central and peripheral vessels; and • (3) subpleural, producing spindle-shaped accumulations of fluid between the lung and adjacent pleural surface.

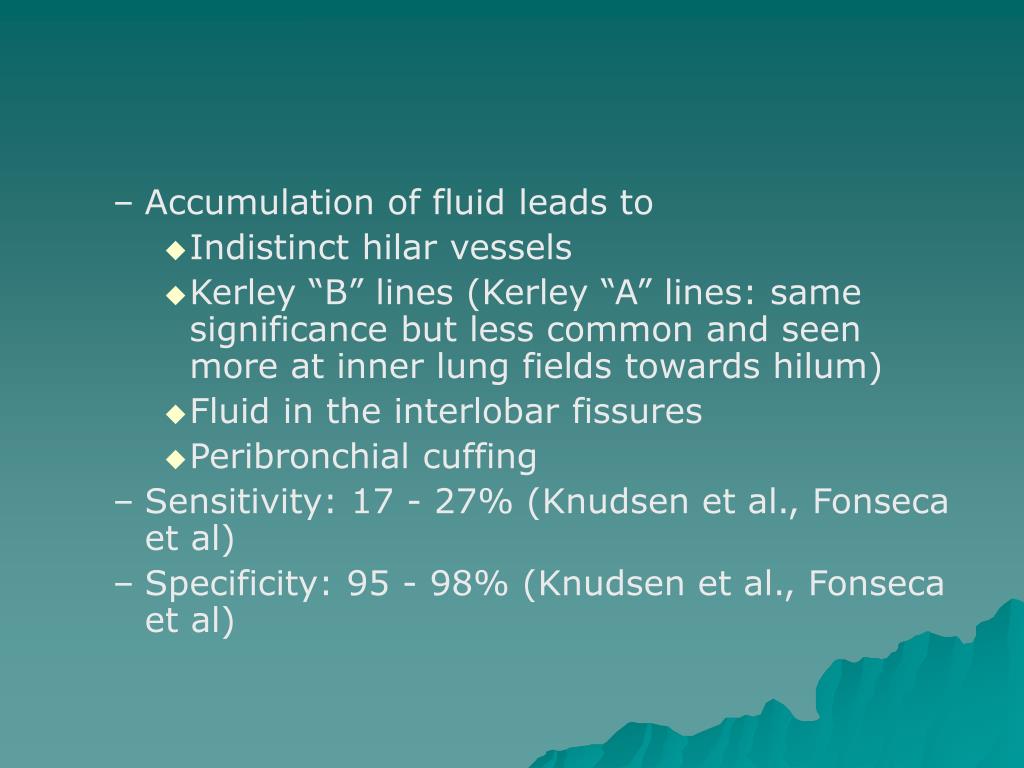

  11. Accumulation of fluid leads to • Indistinct hilar vessels • Kerley “B” lines (Kerley “A” lines: same significance but less common and seen more at inner lung fields towards hilum) • Fluid in the interlobar fissures • Peribronchial cuffing • Sensitivity: 17 - 27% (Knudsen et al., Fonseca et al) • Specificity: 95 - 98% (Knudsen et al., Fonseca et al)

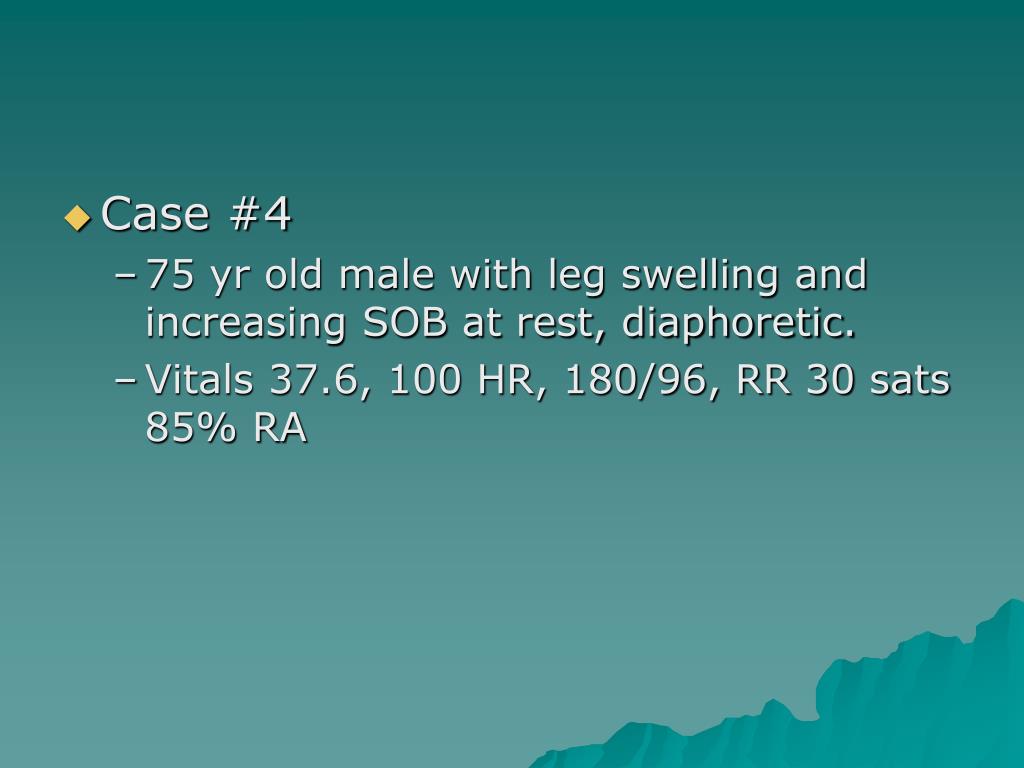

  12. Case #4 • 75 yr old male with leg swelling and increasing SOB at rest, diaphoretic. • Vitals 37.6, 100 HR, 180/96, RR 30 sats 85% RA

  13. Pleural Effusions • Sensitivity: 1.2% - 25% (Knudsen et al., Fonseca et al) • Specificity: 92 - 99% (Knudsen et al., Fonseca et al) • Again seen with higher pulmonary capillary pressures ( > 25 mg Hg) • Commonly seen with patients with chronic heart failure

  14. Case #5 • 75 yr old male with leg swelling, diaphoresis and marked SOB while at rest • Vitals 37.6, 110 HR, 190/100, RR >30 sats 78% RA

  15. Alveolar Edema • Can lead to the “butterfly” or “batwing” appearance commonly described • Sensitivity 1.9% - 6% (Knudsen et al., Fonseca et al) • Specificity: 97 – 99% (Knudsen et al., Fonseca et al)

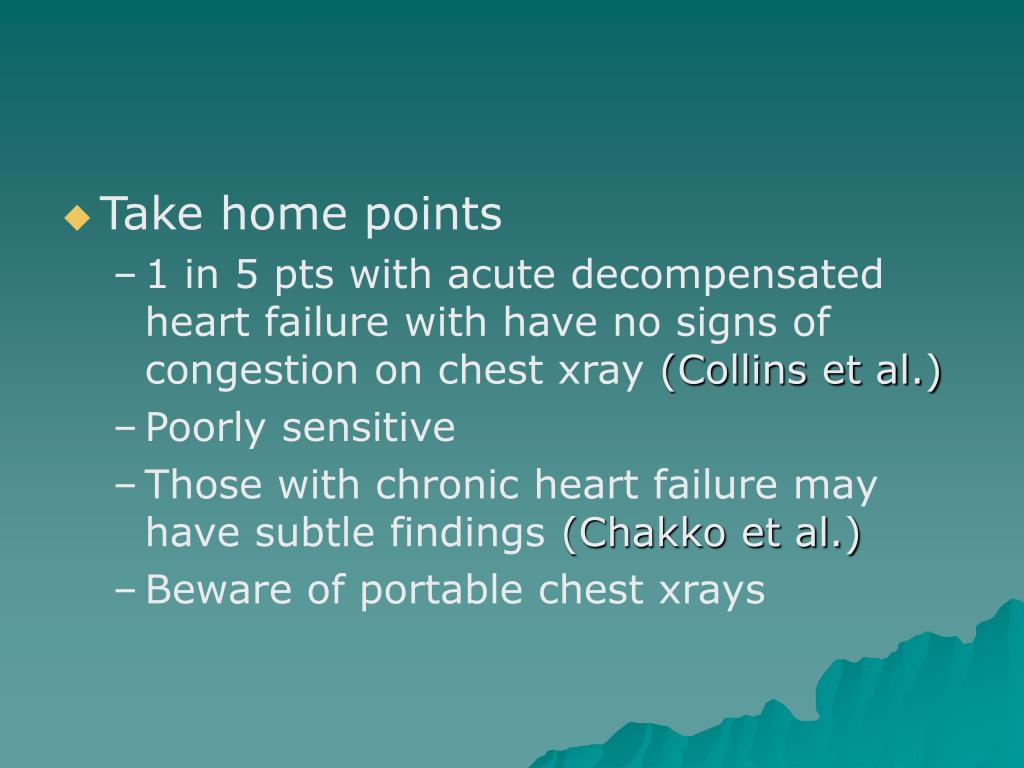

  16. Take home points • 1 in 5 pts with acute decompensated heart failure with have no signs of congestion on chest xray (Collins et al.) • Poorly sensitive • Those with chronic heart failure may have subtle findings (Chakko et al.) • Beware of portable chest xrays
