  1. Air Chapter 31

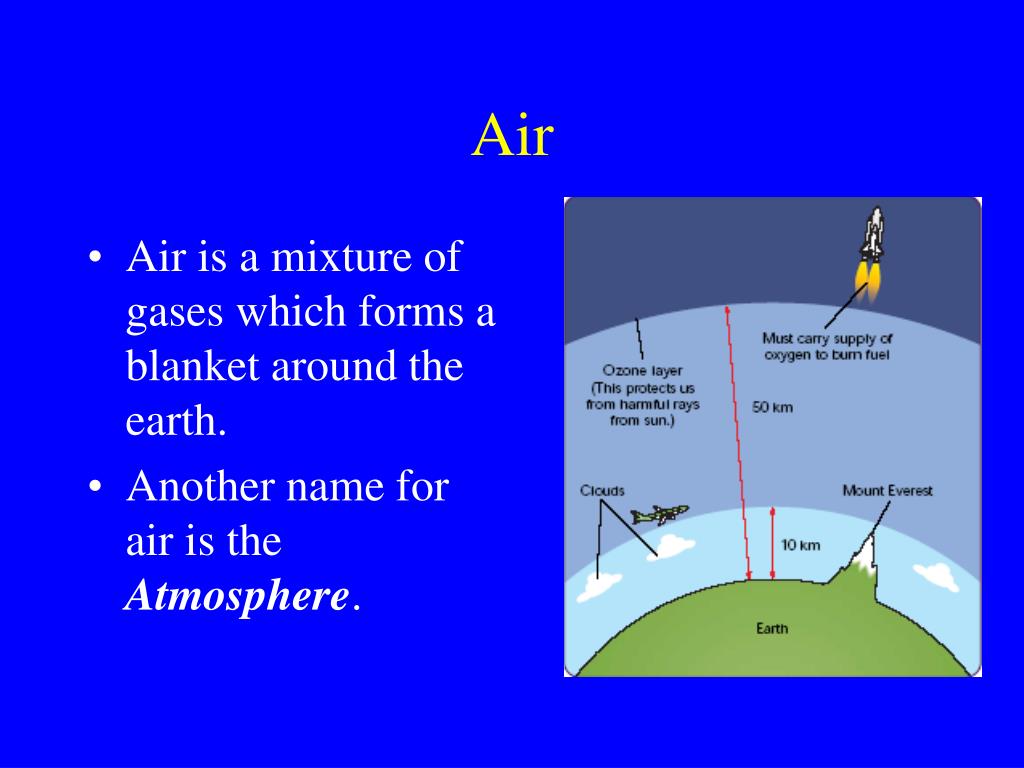

  2. Air • Air is a mixture of gases which forms a blanket around the earth. • Another name for air is the Atmosphere.

  3. Composition of Air The main gases in air are: • Nitrogen 78% • Oxygen 21% • Inert gases and Carbon Dioxide 1%

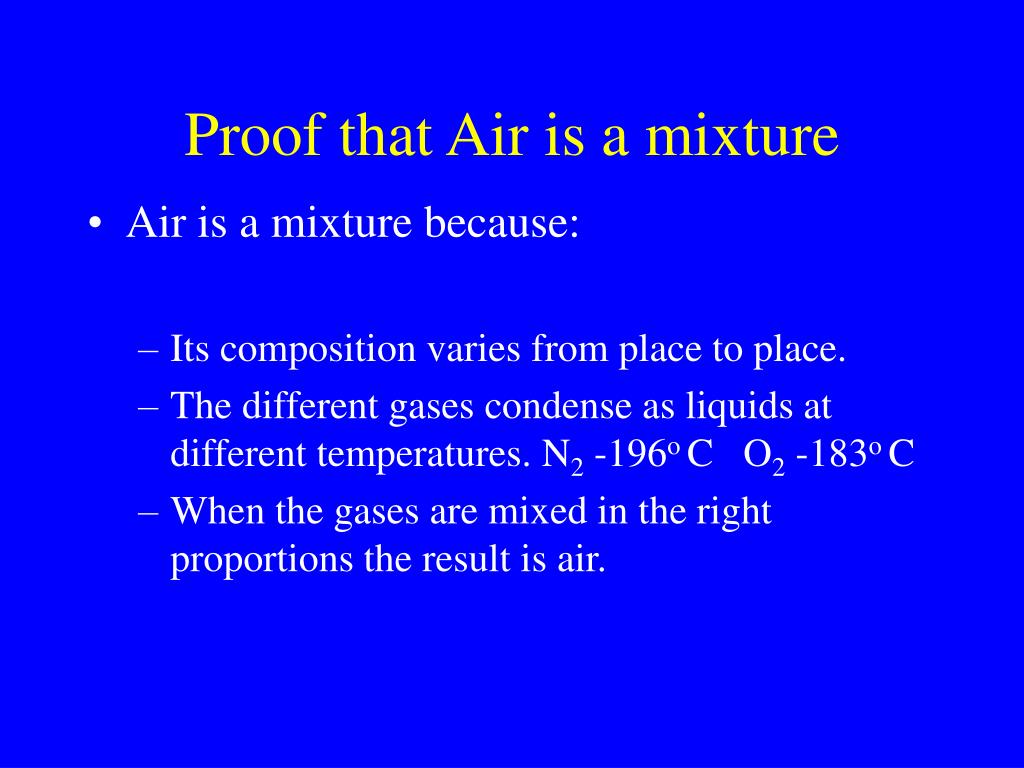

  4. Proof that Air is a mixture • Air is a mixture because: • Its composition varies from place to place. • The different gases condense as liquids at different temperatures. N2 -196o C O2 -183o C • When the gases are mixed in the right proportions the result is air.

  5. Experiment: To measure the % of Oxygen in air 1. Set up apparatus as shown in Diagram. 2. 100 cm3 of air is passed backward and forward over the heated copper.

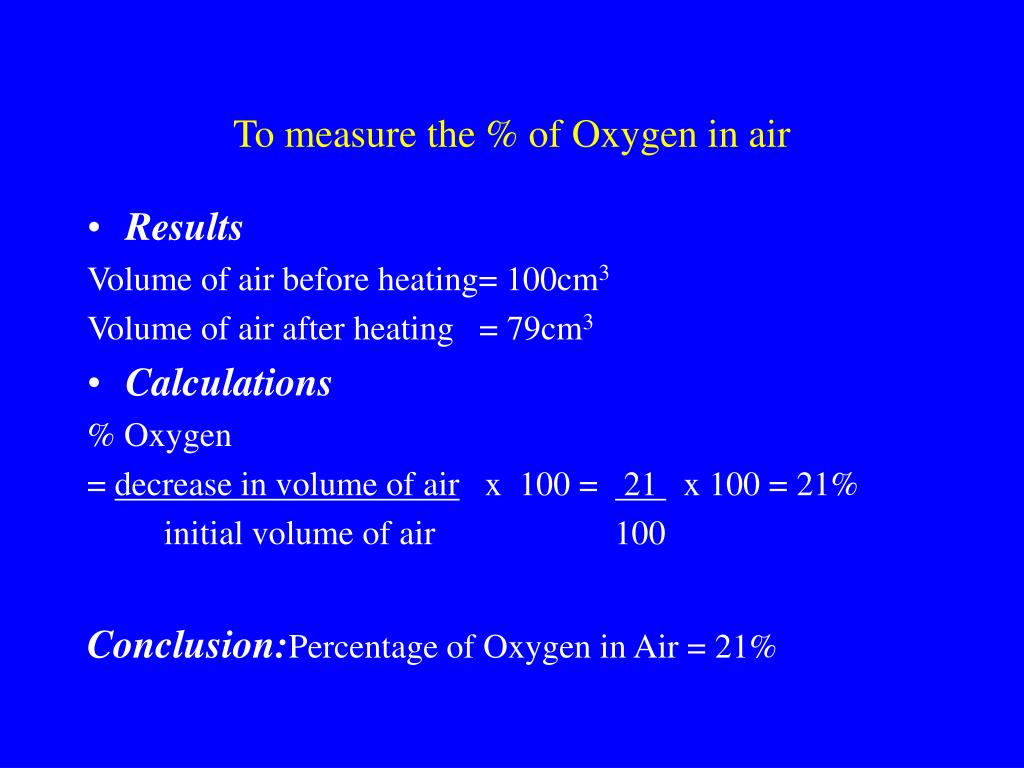

  6. To measure the % of Oxygen in air • Results Volume of air before heating= 100cm3 Volume of air after heating = 79cm3 • Calculations % Oxygen = decrease in volume of air x 100 = 21 x 100 = 21% initial volume of air 100 Conclusion:Percentage of Oxygen in Air = 21%

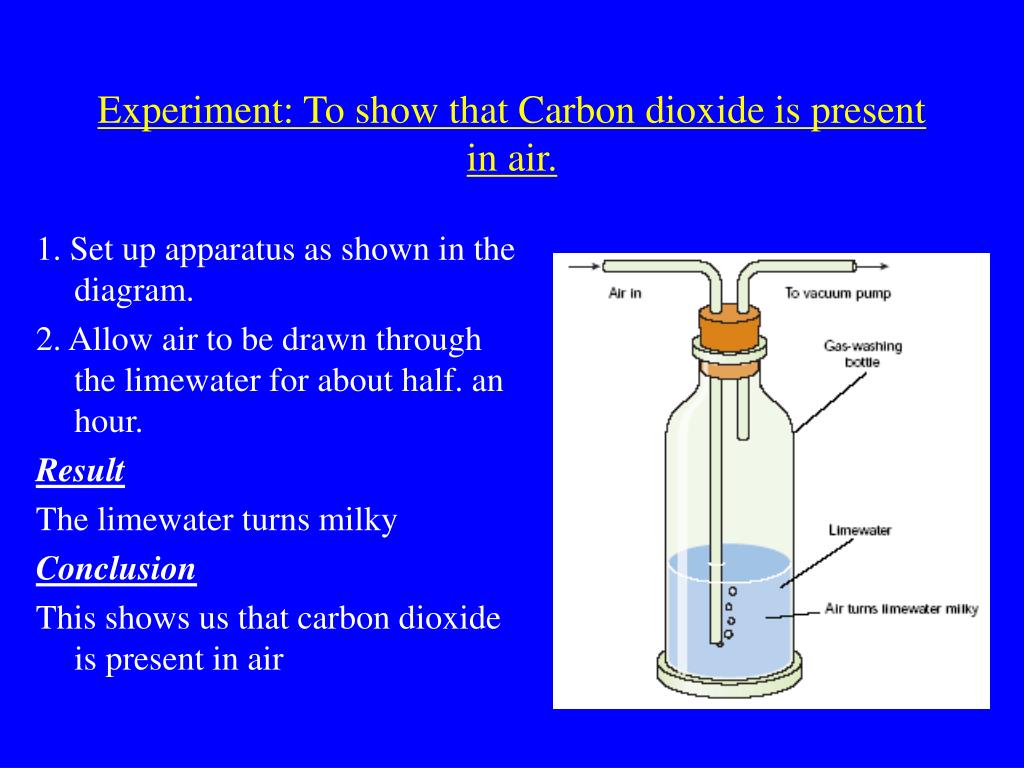

  7. Experiment: To show that Carbon dioxide is present in air. 1. Set up apparatus as shown in the diagram. 2. Allow air to be drawn through the limewater for about half. an hour. Result The limewater turns milky Conclusion This shows us that carbon dioxide is present in air

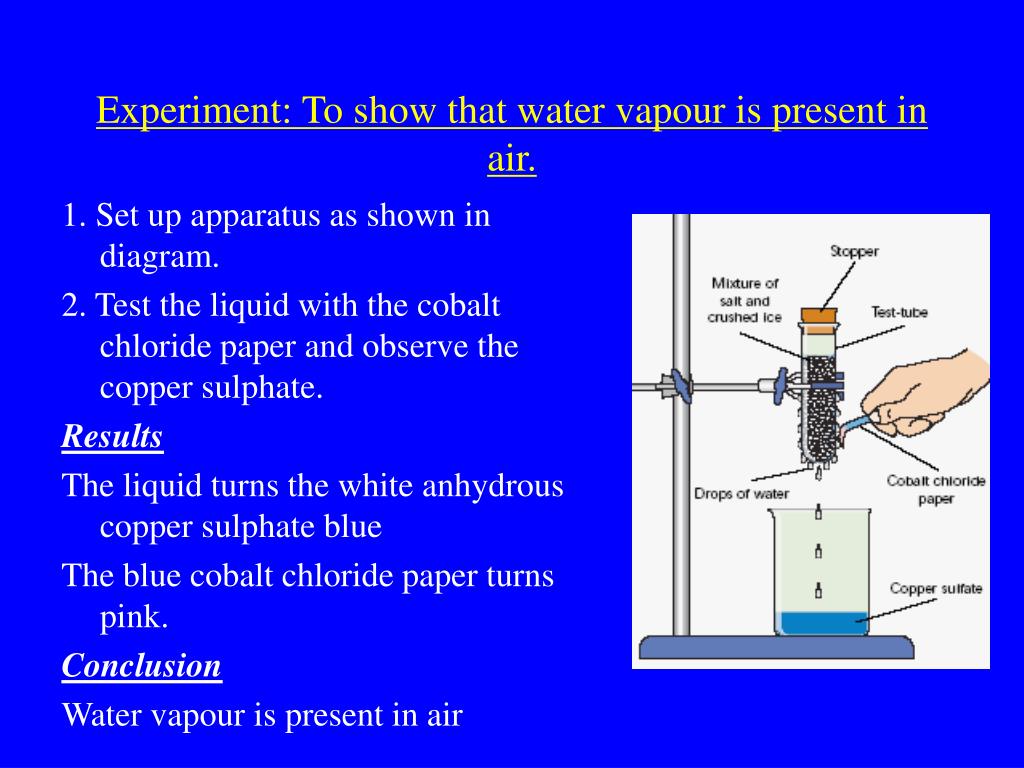

  8. Experiment: To show that water vapour is present in air. 1. Set up apparatus as shown in diagram. 2. Test the liquid with the cobalt chloride paper and observe the copper sulphate. Results The liquid turns the white anhydrous copper sulphate blue The blue cobalt chloride paper turns pink. Conclusion Water vapour is present in air

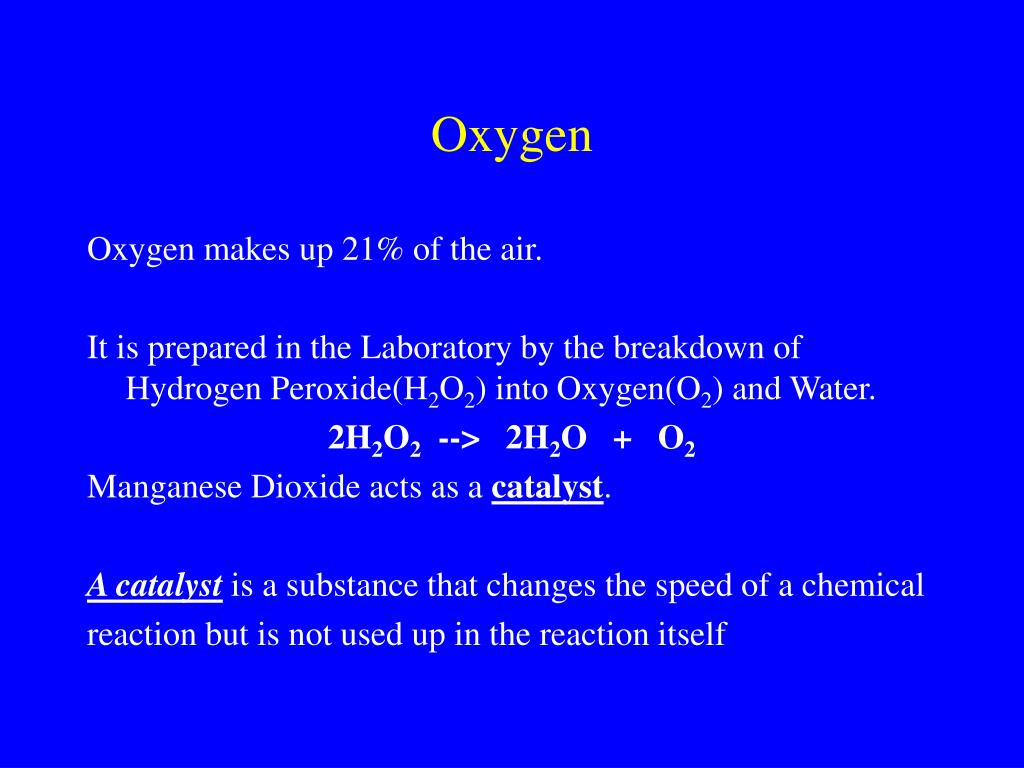

  9. Oxygen Oxygen makes up 21% of the air. It is prepared in the Laboratory by the breakdown of Hydrogen Peroxide(H2O2) into Oxygen(O2) and Water. 2H2O2 --> 2H2O + O2 Manganese Dioxide acts as a catalyst. A catalyst is a substance that changes the speed of a chemical reaction but is not used up in the reaction itself

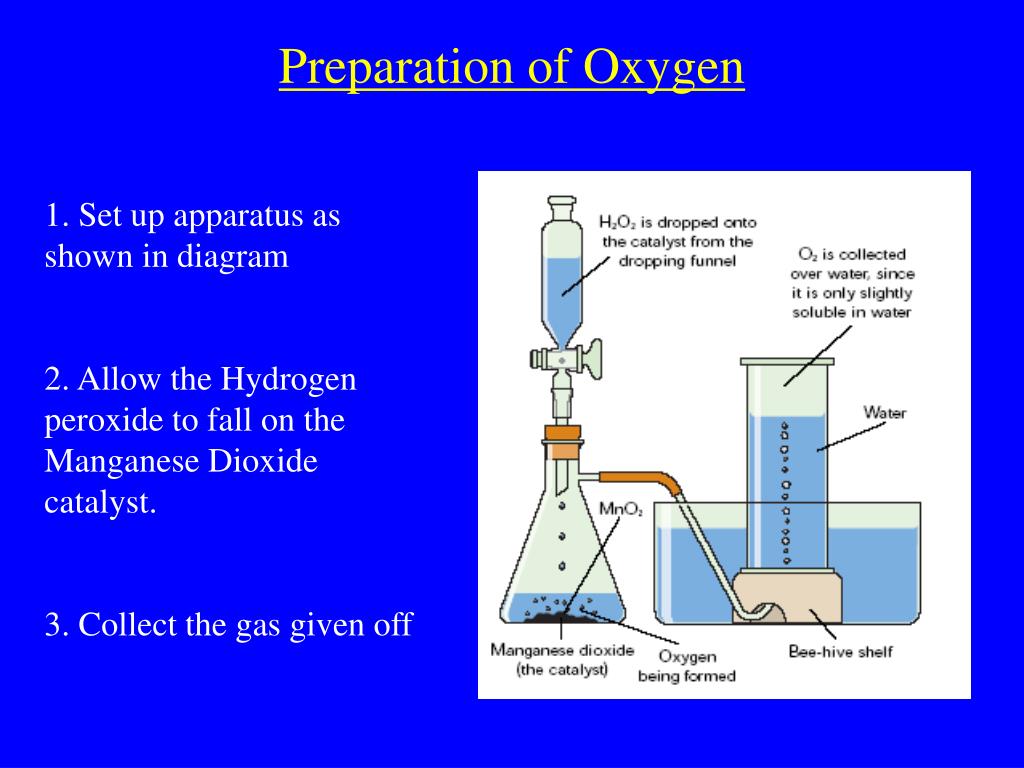

  10. Preparation of Oxygen 1. Set up apparatus as shown in diagram 2. Allow the Hydrogen peroxide to fall on the Manganese Dioxide catalyst. 3. Collect the gas given off

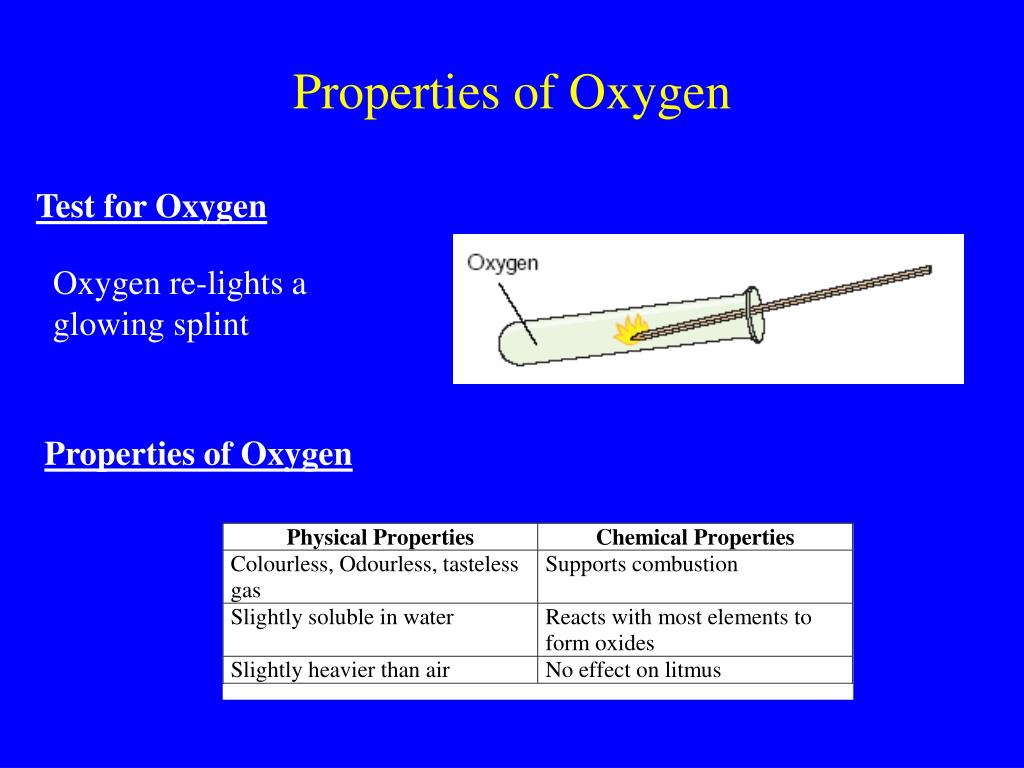

  11. Properties of Oxygen Test for Oxygen Oxygen re-lights a glowing splint Properties of Oxygen

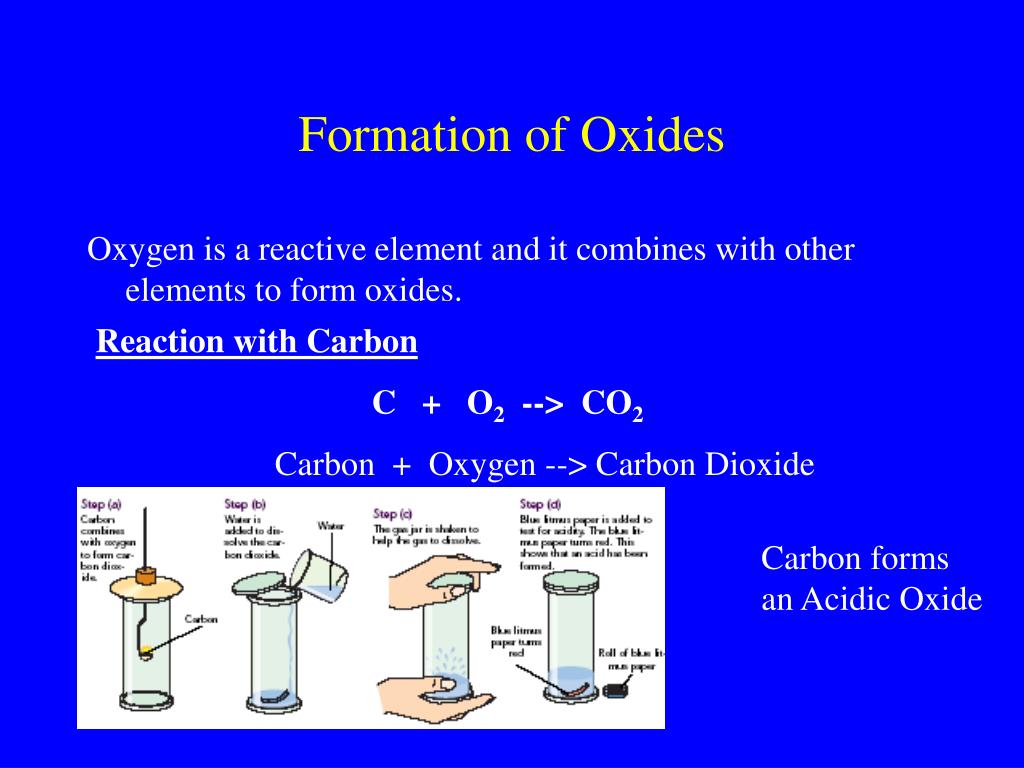

  12. Formation of Oxides Oxygen is a reactive element and it combines with other elements to form oxides. Reaction with Carbon C + O2 --> CO2 Carbon + Oxygen --> Carbon Dioxide Carbon forms an Acidic Oxide

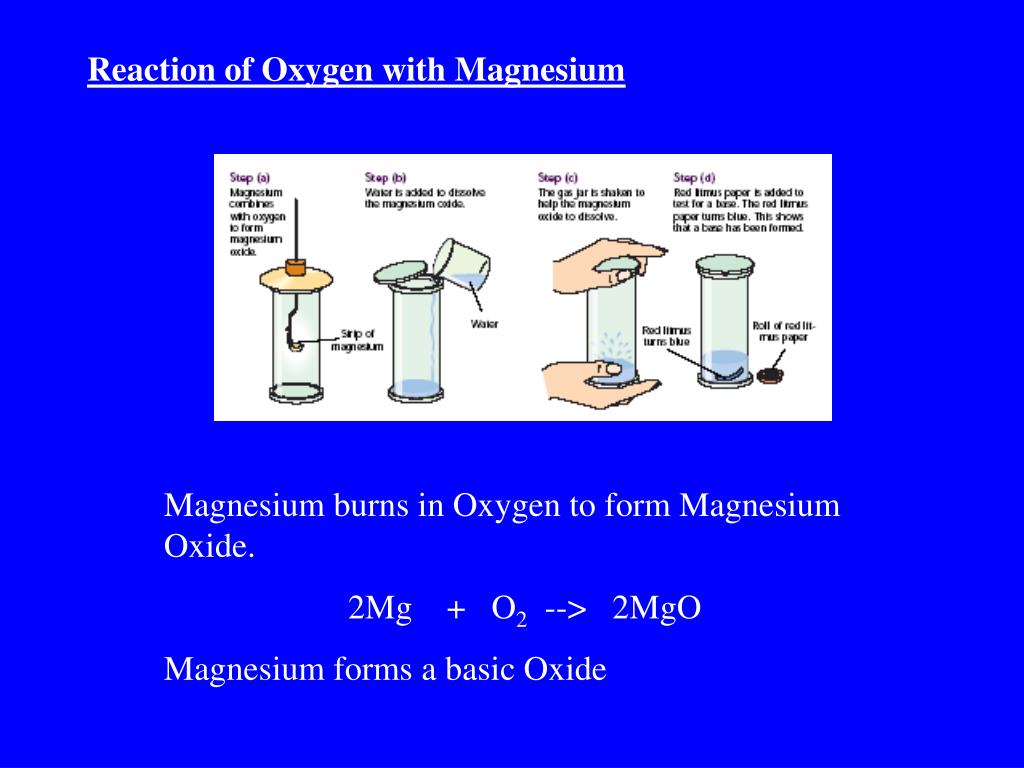

  13. Reaction of Oxygen with Magnesium Magnesium burns in Oxygen to form Magnesium Oxide. 2Mg + O2 --> 2MgO Magnesium forms a basic Oxide

  14. Uses of Oxygen 1. Breathing 2 Welding 3 .Burning 4. Medicine 5. Manufacture of Steel 6. Space-rockets

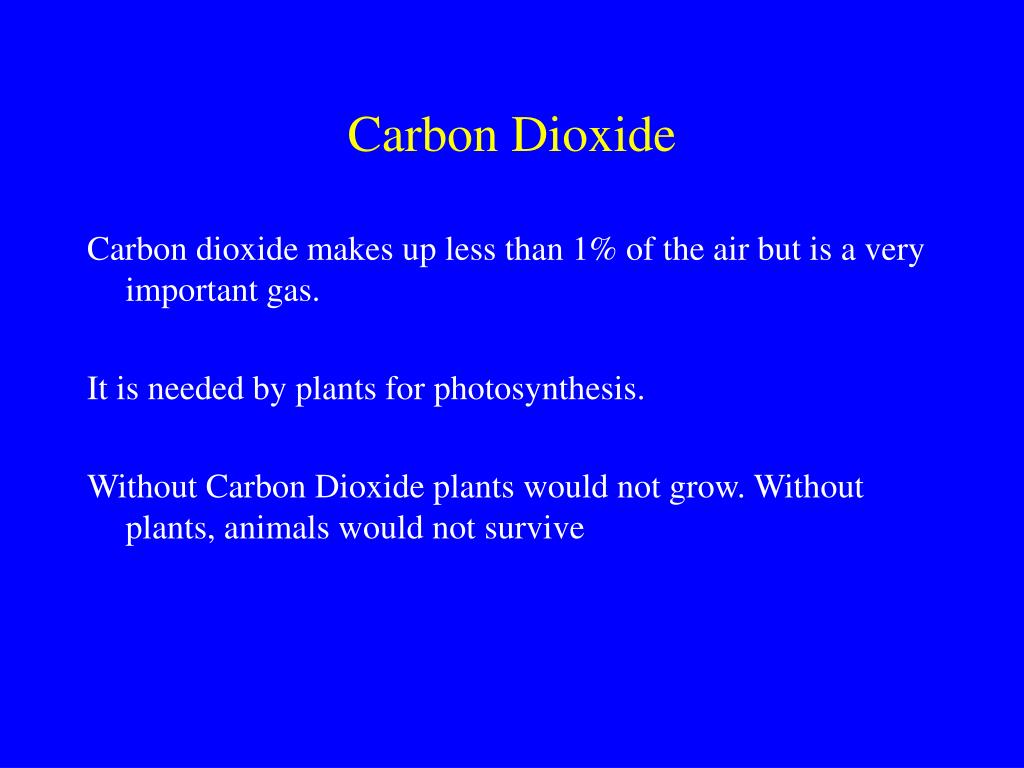

  15. Carbon Dioxide Carbon dioxide makes up less than 1% of the air but is a very important gas. It is needed by plants for photosynthesis. Without Carbon Dioxide plants would not grow. Without plants, animals would not survive

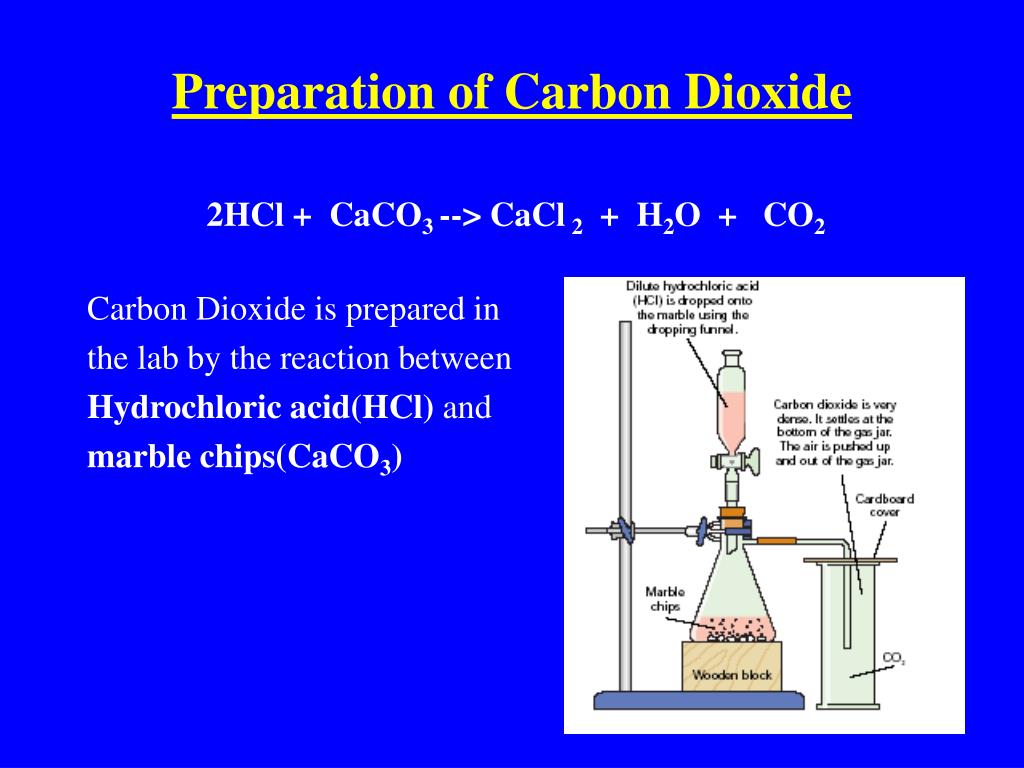

  16. Preparation of Carbon Dioxide 2HCl + CaCO3 --> CaCl 2 + H2O + CO2 Carbon Dioxide is prepared in the lab by the reaction between Hydrochloric acid(HCl) and marble chips(CaCO3)

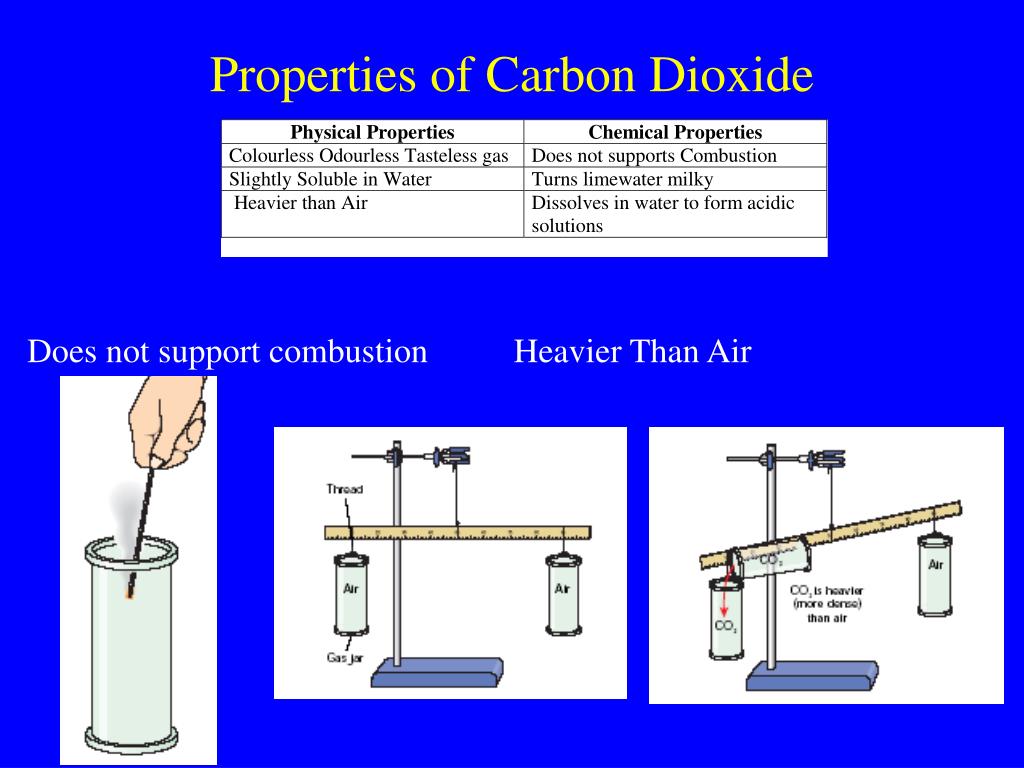

  17. Properties of Carbon Dioxide Does not support combustion Heavier Than Air

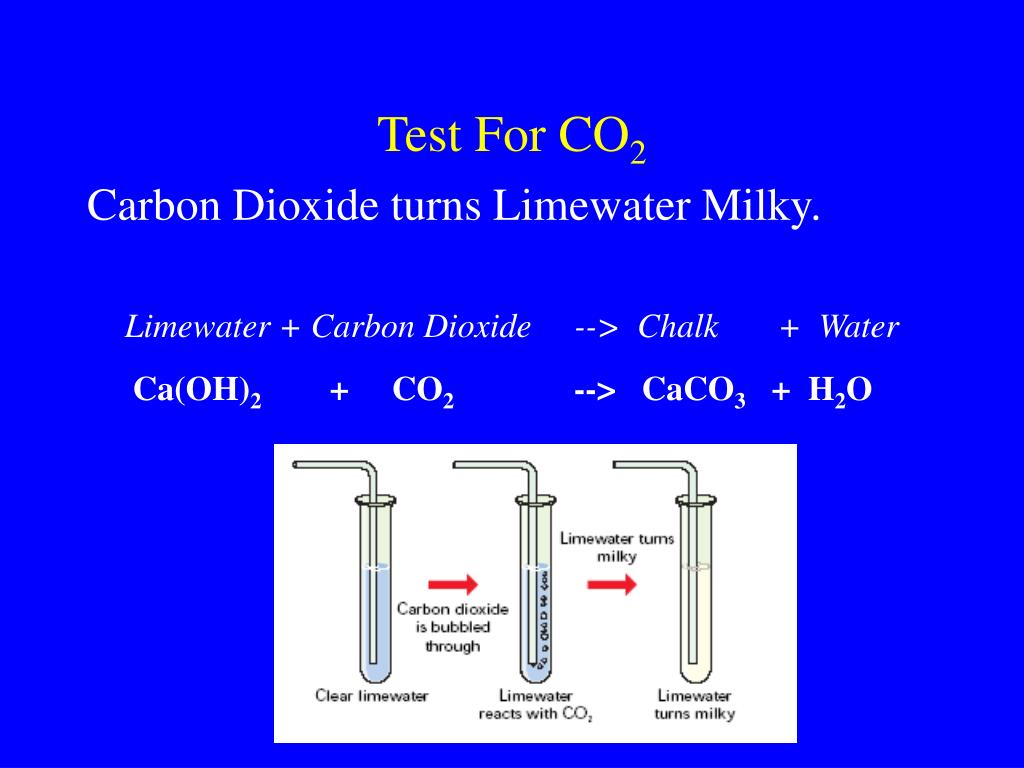

  18. Test For CO2 Carbon Dioxide turns Limewater Milky. Limewater + Carbon Dioxide --> Chalk + Water Ca(OH)2 + CO2 --> CaCO3 + H2O

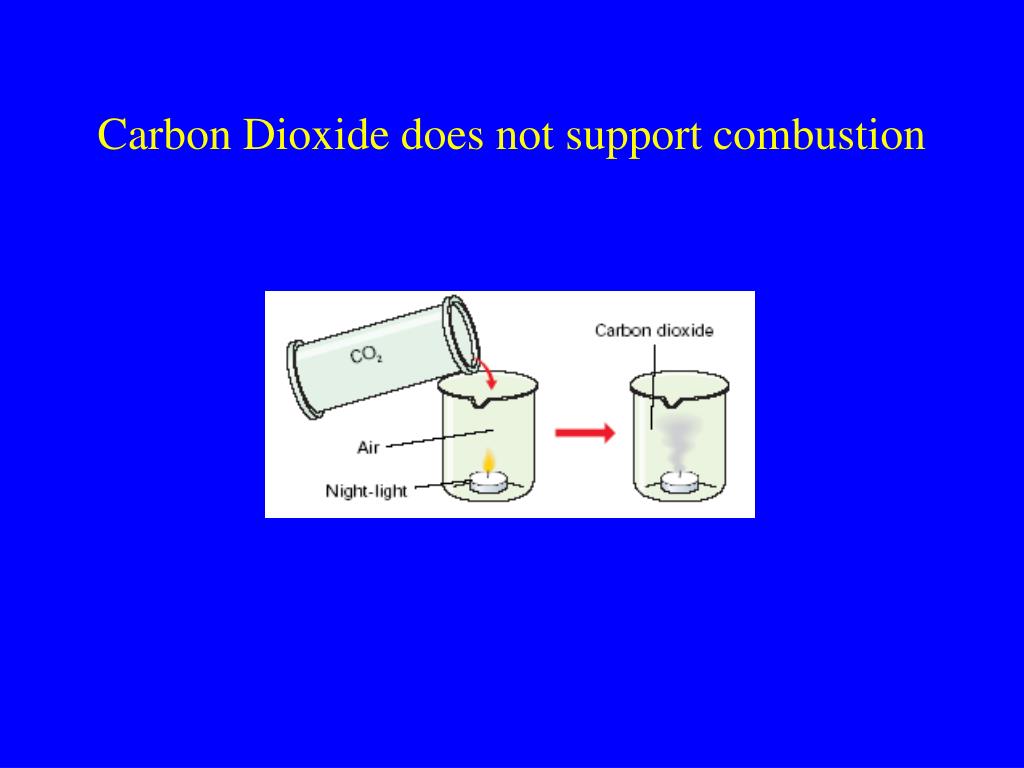

  19. Carbon Dioxide does not support combustion

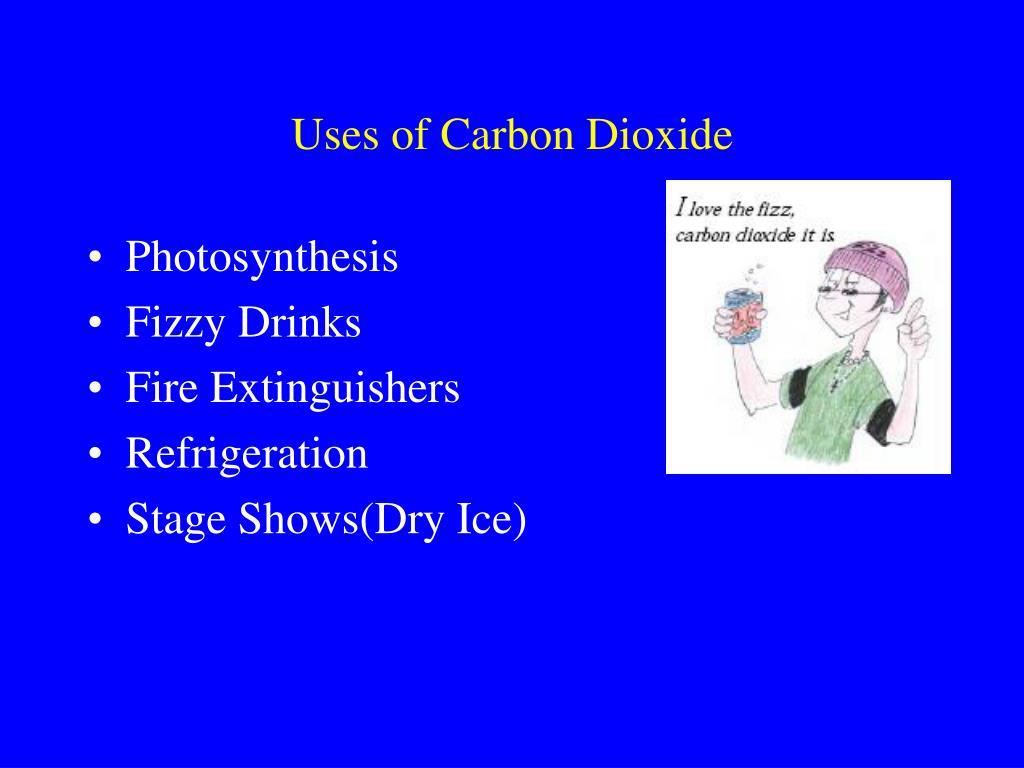

  20. Uses of Carbon Dioxide • Photosynthesis • Fizzy Drinks • Fire Extinguishers • Refrigeration • Stage Shows(Dry Ice)
