  1. Global Predicate Detection • and Event Ordering

  2. Our Problem To compute predicates over the state of a distributed application

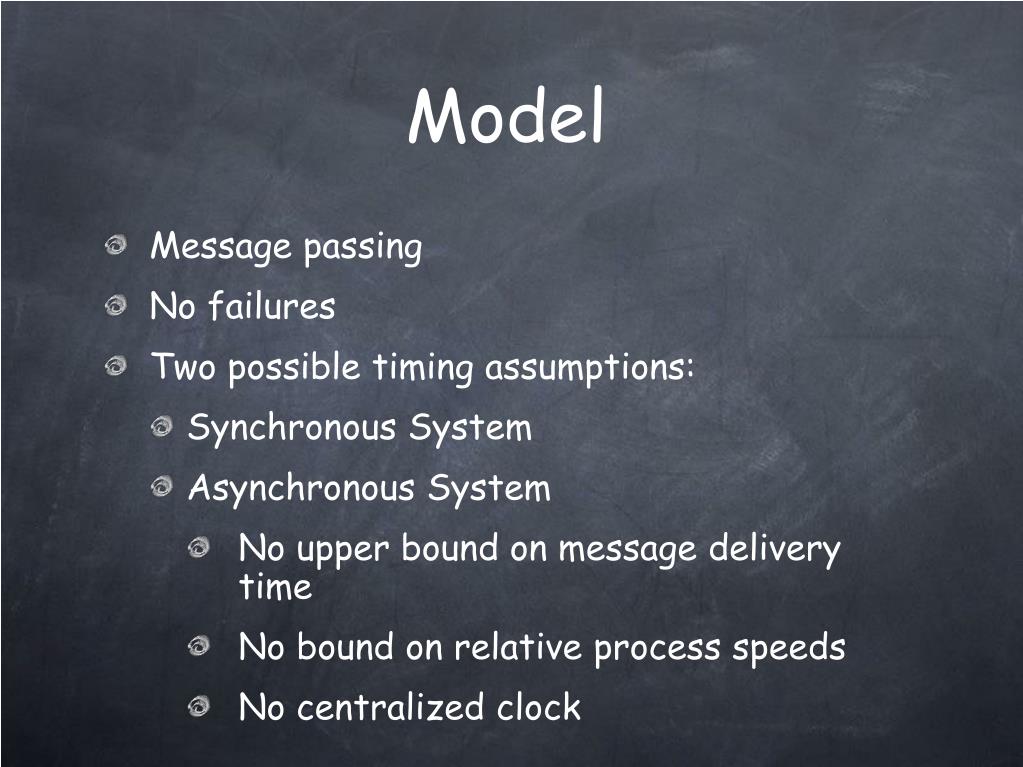

  3. Model • Message passing • No failures • Two possible timing assumptions: • Synchronous System • Asynchronous System • No upper bound on message delivery time • No bound on relative process speeds • No centralized clock

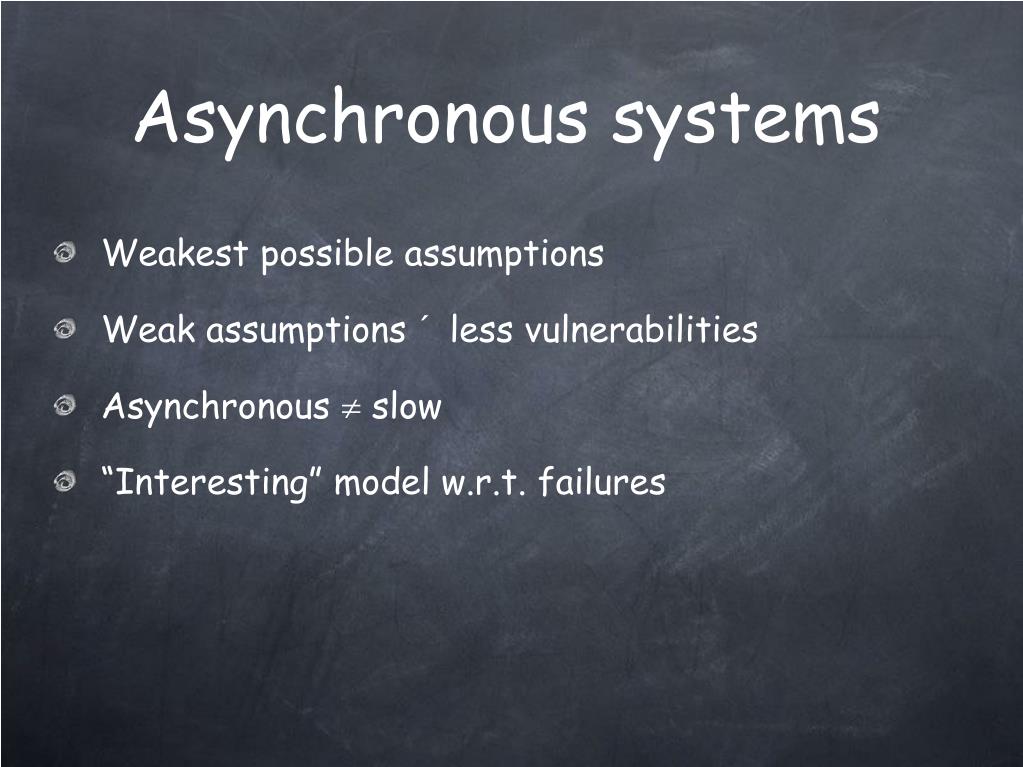

  4. Asynchronous systems • Weakest possible assumptions • Weak assumptions ´ less vulnerabilities • Asynchronous  slow • “Interesting” model w.r.t. failures

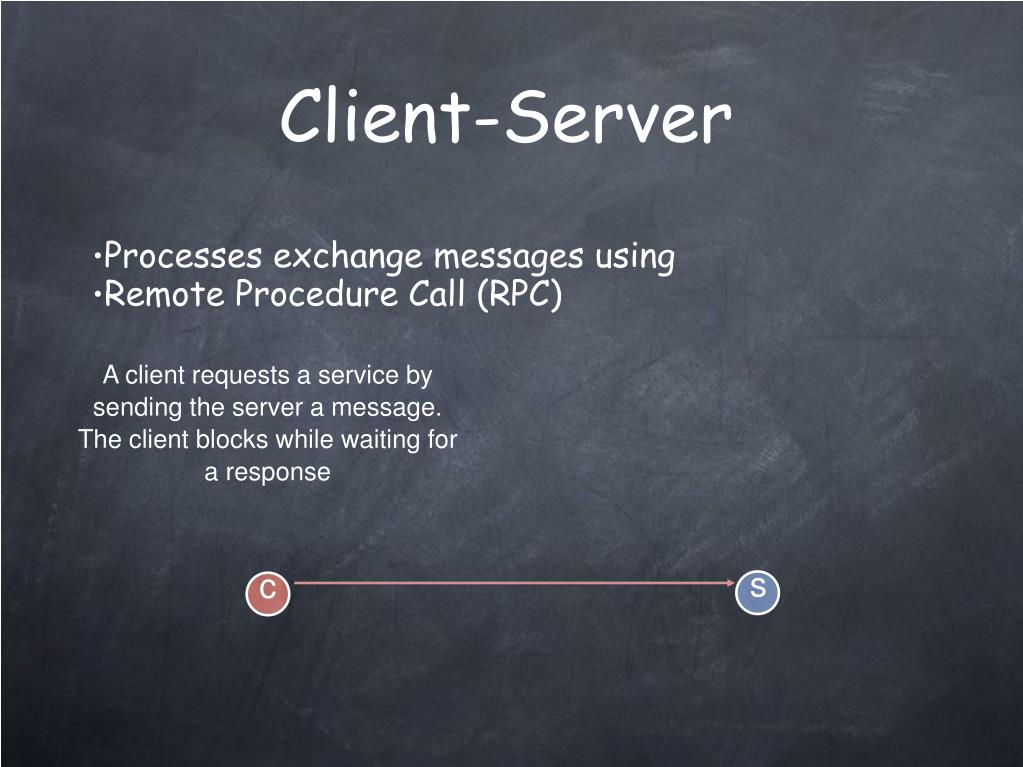

  5. s c Client-Server • Processes exchange messages using • Remote Procedure Call (RPC) A client requests a service by sending the server a message. The client blocks while waiting for a response

  6. #!?%! s c Client-Server • Processes exchange messages using • Remote Procedure Call (RPC) A client requests a service by sending the server a message. The client blocks while waiting for a response The server computes the response (possibly asking other servers) and returns it to the client

  7. Deadlock!

  8. Goal • Design a protocol by which a processor can determine whether a global predicate (say, deadlock) holds

  9. Wait-For Graphs • Draw arrow from pi to pj if pj has received a request but has not responded yet

  10. Wait-For Graphs • Draw arrow from pi to pj if pj has received a request but has not responded yet • Cycle in WFG ) deadlock • Deadlock )¦ cycle in WFG

  11. The protocol • p0 sends a message to p1 p3 • On receipt of p0 ‘s message, pi replies with its state and wait-for info

  12. An execution

  13. An execution

  14. Ghost Deadlock! An execution

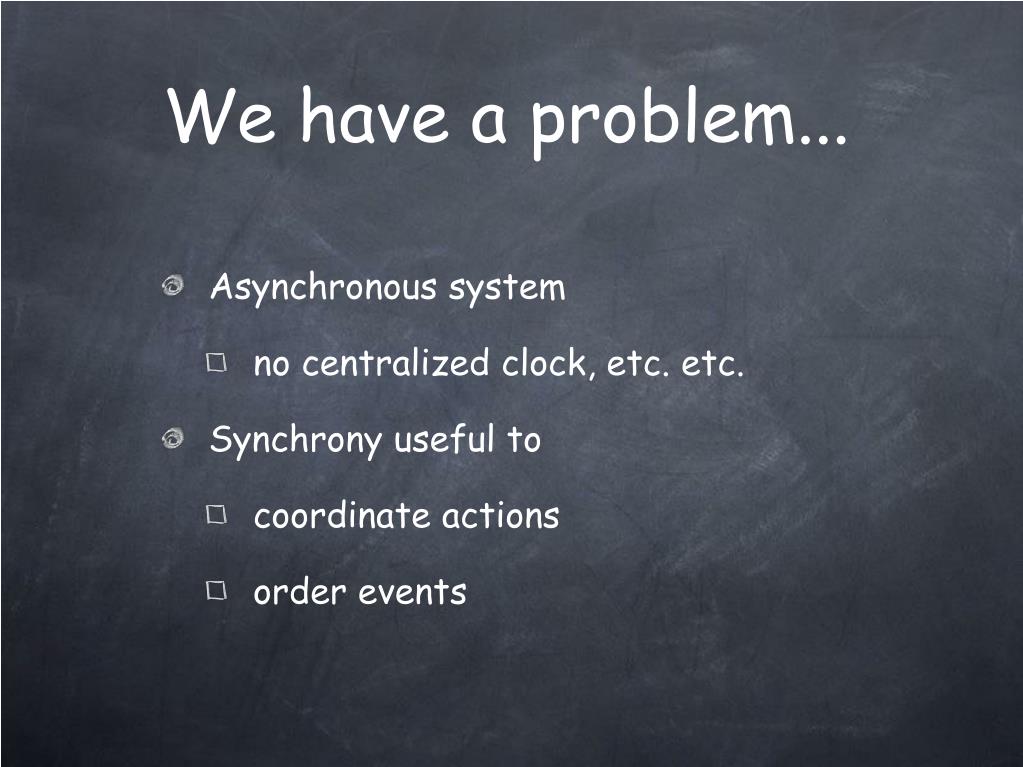

  15. We have a problem... • Asynchronous system • no centralized clock, etc. etc. • Synchrony useful to • coordinate actions • order events

  16. Events and Histories • Processes execute sequences of events • Events can be of 3 types: local, send, and receive • epi is the i-th event of process p • The local historyhp of process p is the sequence of events executed by process • hpk : prefix that contains first k events • hp0 : initial, empty sequence • The historyH is the set hp0 [ hp1 [ … hpn-1 NOTE: In H, local histories are interpreted as sets, rather than sequences, of events

  17. time Ordering events • Observation 1: • Events in a local history are totally ordered

  18. Ordering events • Observation 1: • Events in a local history are totally ordered • Observation 2: • For every message m, send(m) precedes receive(m) time time time

  19. Happened-before(Lamport[1978]) • A binary relation defined over events • if eik,eil2hi and k<l , then eik !eil • if ei=send (m) and ej=receive(m), then ei!ej • if e!e’ and e’!e‘’, then e!e‘’

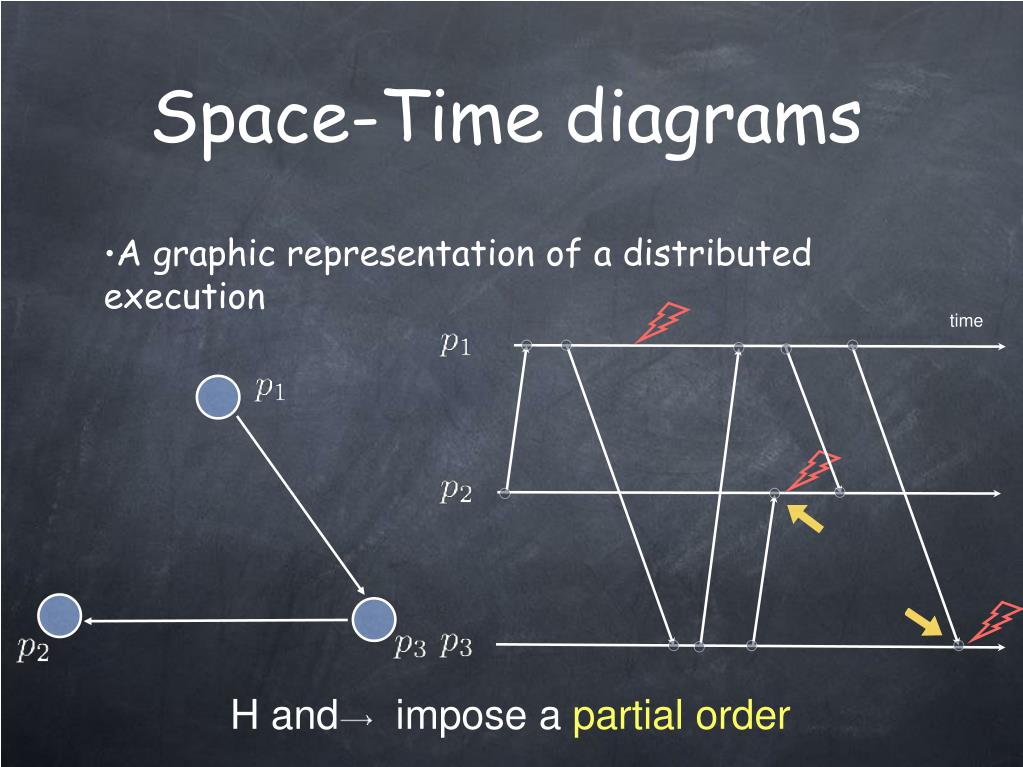

  20. Space-Time diagrams • A graphic representation of a distributed execution time

  21. Space-Time diagrams • A graphic representation of a distributed execution time

  22. Space-Time diagrams • A graphic representation of a distributed execution time

  23. Space-Time diagrams • A graphic representation of a distributed execution time

  24. H and impose a partial order Space-Time diagrams • A graphic representation of a distributed execution time

  25. Space-Time diagrams • A graphic representation of a distributed execution time H and impose a partial order

  26. Space-Time diagrams • A graphic representation of a distributed execution time H and impose a partial order

  27. Space-Time diagrams • A graphic representation of a distributed execution time H and impose a partial order

  28. Runs andConsistent Runs • A run is a total ordering of the events in H that is consistent with the local histories of the processors • Ex: h1,h2, … ,hn is a run • A run is consistent if the total order imposed in the run is an extension of the partial order induced by! • A single distributed computation may correspond to several consistent runs!

  29. Cuts • A cut C is a subset of the global history of H

  30. Cuts • A cut C is a subset of the global history of H • The frontier of C is the set of events

  31. Global states and cuts • The global state of a distributed computation is an tuple of n local states •  = (1 ... n ) • To each cut (1c1, ... ncn) corresponds a global state

  32. Consistent cuts and consistent global states • A cut is consistent if • A consistent global state is one corresponding to a consistent cut

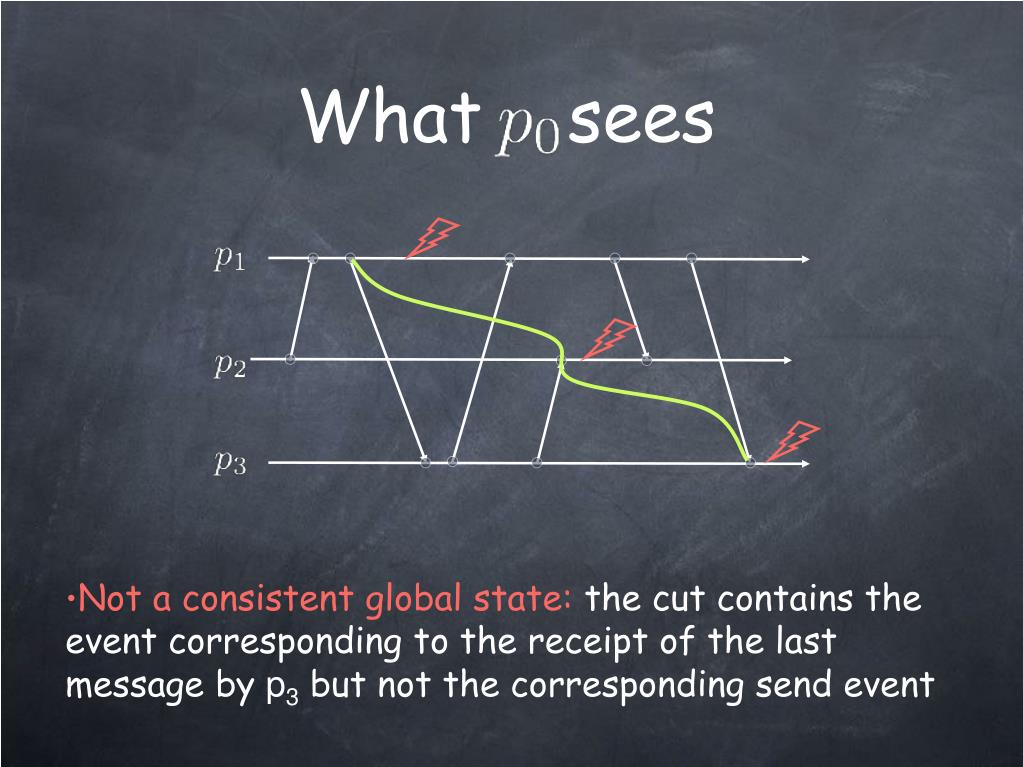

  33. What sees

  34. What sees • Not a consistent global state: the cut contains the event corresponding to the receipt of the last message by p3 but not the corresponding send event

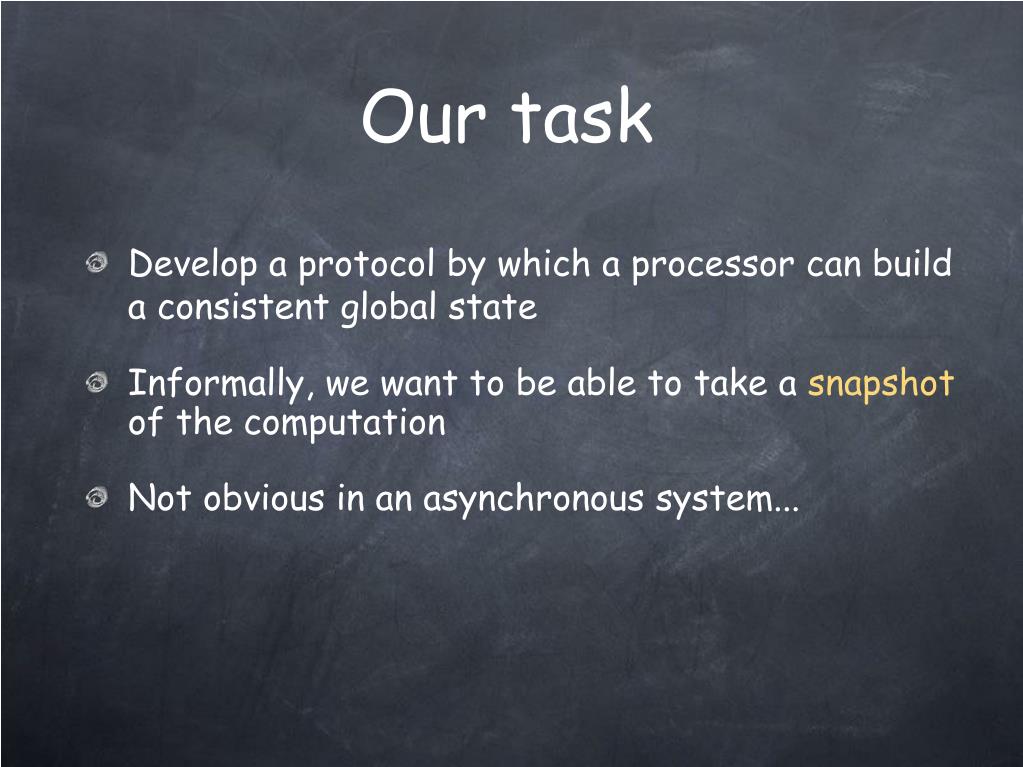

  35. Our task • Develop a protocol by which a processor can build a consistent global state • Informally, we want to be able to take a snapshot of the computation • Not obvious in an asynchronous system...

  36. Our approach • Develop a simple synchronous protocol • Refine protocol as we relax assumptions • Record: • processor states • channel states • Assumptions: • FIFO channels • Each m timestamped with with T(send(m))

  37. Snapshot I • 1. p0 selects tss • 2.p0 sends “take a snapshot at tss” to all processes • 3. when clock of pi reads tssthen • records its local state i • starts recording messages received on each of incoming channels • stops recording a channel when it receives first message with timestamp greater than or equal to tss

  38. Snapshot I • 1. p0 selects tss • 2.p0 sends “take a snapshot at tss” to all processes • 3. when clock of pi reads tssthen • records its local state i • sends an empty message along its outgoing channels • starts recording messages received on each of incoming channels • stops recording a channel when it receives first message with timestamp greater than or equal to tss

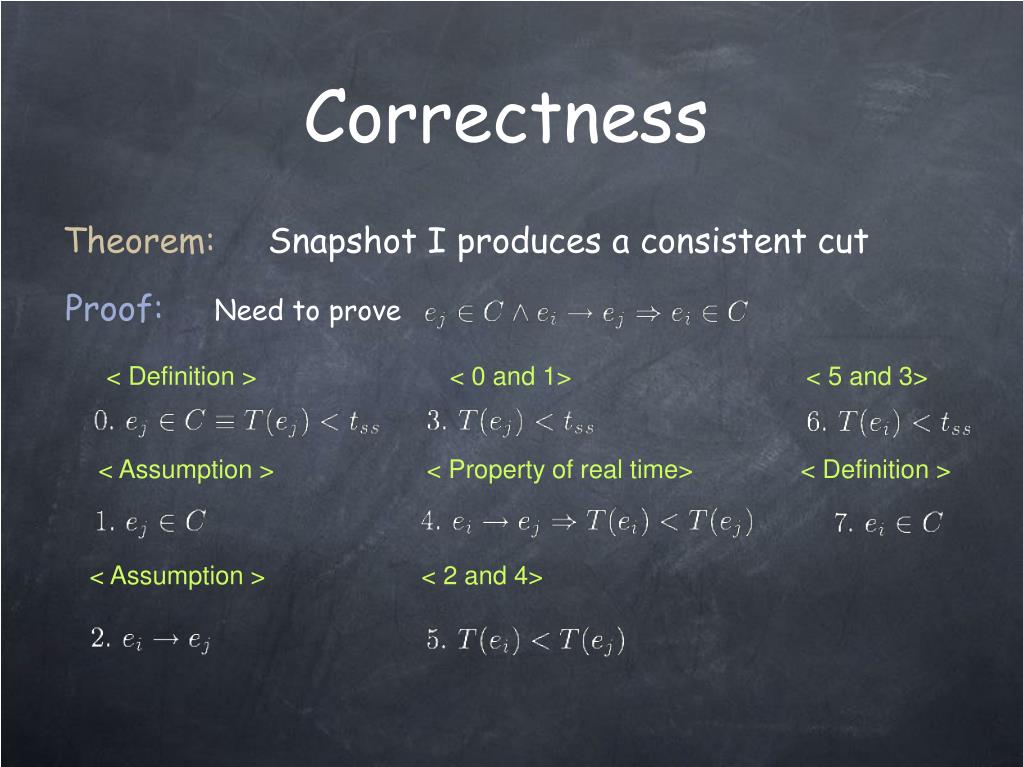

  39. Correctness Theorem:Snapshot I produces a consistent cut Proof: Need to prove < Definition > < 0 and 1> < 5 and 3> < Assumption > < Property of real time> < Definition > < Assumption > < 2 and 4>

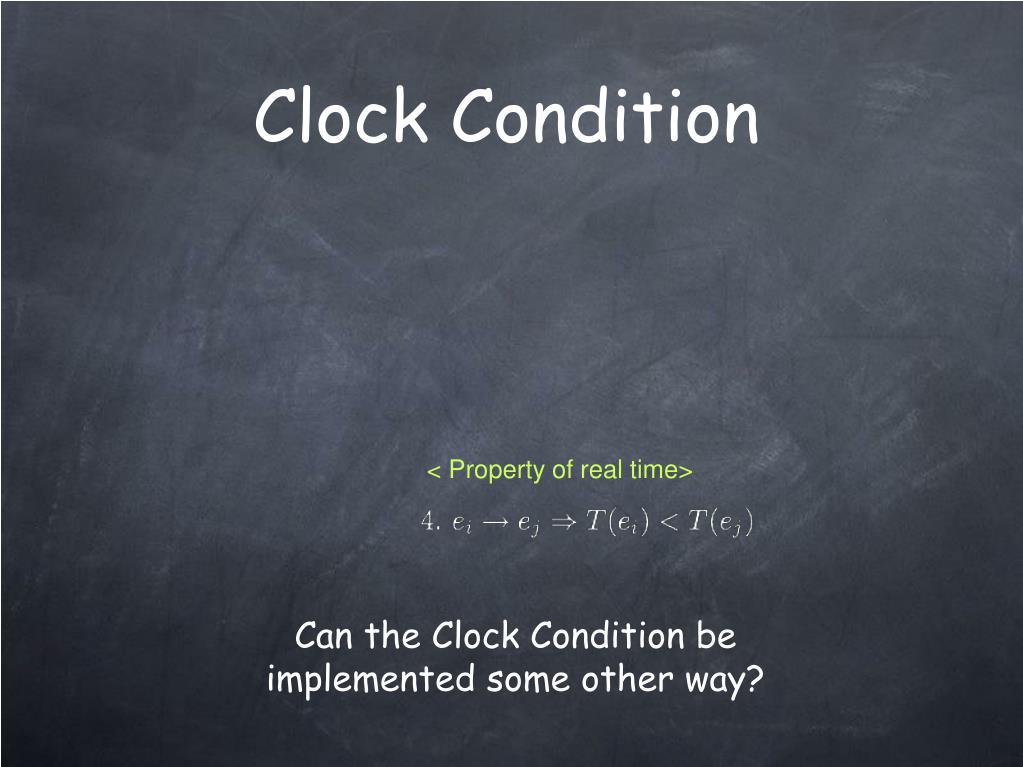

  40. Clock Condition < Property of real time> Can the Clock Condition be implemented some other way?

  41. Lamport Clocks • Each process maintains a local variable LC • LC(e) = value of LC for event e

  42. Increment Rules Timestamp m with

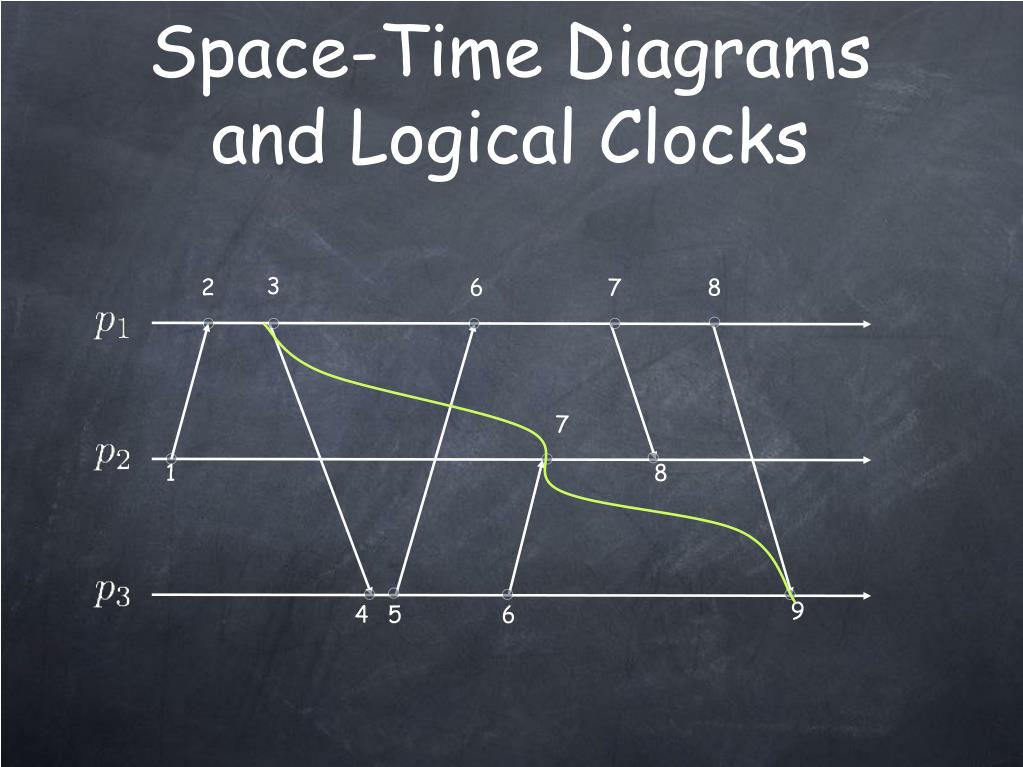

  43. Space-Time Diagrams and Logical Clocks 3 2 6 7 8 7 1 8 9 4 5 6

  44. A subtle problem • whenLC=tdo S • doesn’t make sense for Lamport clocks! • there is no guarantee that LC will ever be t • S is anyway executed after • Fixes: • If e is internal/send and LC = t-2 • execute e and then S • If e = receive(m) Æ (TS(m) ¸ t) Æ (LC · t-1) • put message back in channel • re-enable e; set LC=t-1; execute S

  45. An obvious problem • No tss ! • Choose large enough that it cannot be reached by applying the update rules of logical clocks

  46. An obvious problem • No tss! • Choose large enough that it cannot be reached by applying the update rules of logical clocks • Doing so assumes • upper bound on message delivery time • upper bound relative process speeds • Better relax it

  47. Snapshot II • p0selects  • p0 sends “take a snapshot at tss” to all processes; it waits for all of them to reply and then sets its logical clock to  • when clock of pi reads  then pi • records its local state i • sends an empty message along its outgoing channels • starts recording messages received on each incoming channel • stops recording a channel when receives first message with timestamp greater than or equal to 

  48. empty message: take a snapshot at monitors channels records local state Process does nothing for the protocol during this time! sends empty message: Relaxing synchrony Use empty message to announce snapshot!

  49. Snapshot III • Processor p0 sends itself “take a snapshot “ • when pireceives “take a snapshot” for the first time from pj: • records its local state i • sends “take a snapshot” along its outgoing channels • sets channel from pj to empty • starts recording messages received over each of its other incoming channels • when receives “take a snapshot” beyond the first time from pk: • pi stops recording channel from pk • when pi has received “take a snapshot” on all channels, it sends collected state to p0 and stops.

  50. Snapshots: a perspective • The global state s saved by the snapshot protocol is a consistent global state
