  1. Advantage IBM Storage Jim Latham DS3000/DS4000 Specialist

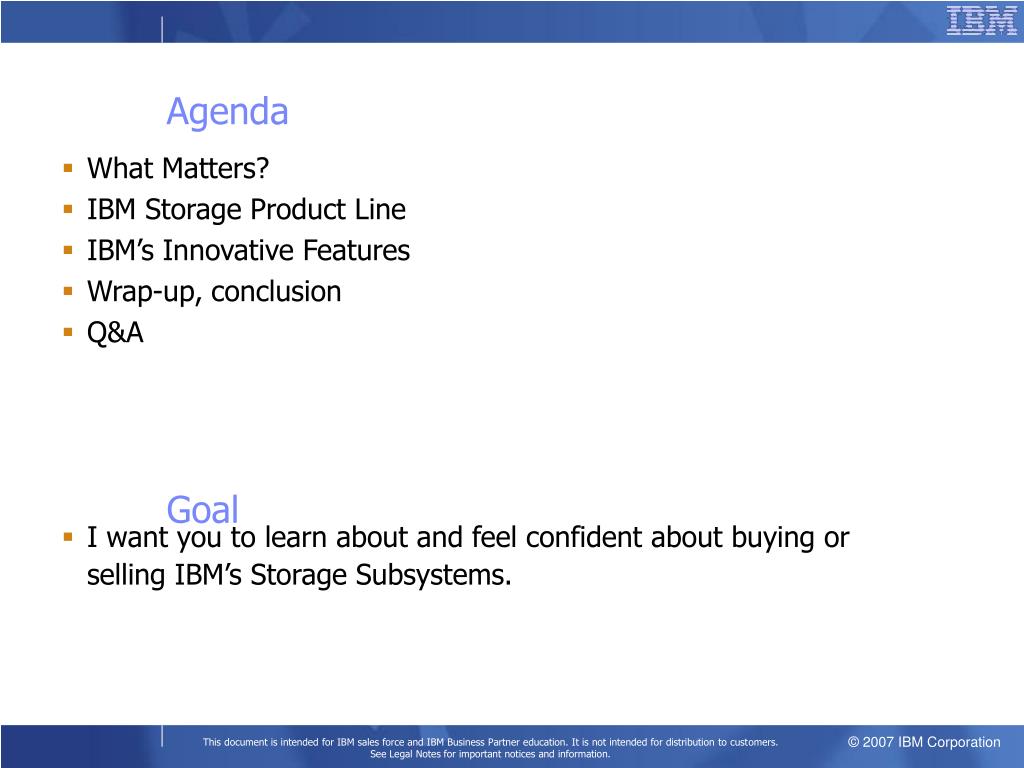

  2. Agenda • What Matters? • IBM Storage Product Line • IBM’s Innovative Features • Wrap-up, conclusion • Q&A • I want you to learn about and feel confident about buying or selling IBM’s Storage Subsystems. Goal

  3. So What Really Matters? We will revisit this later. FYI, I don’t agree 100% with this survey. (Source: Gartner’s Data Quest Tele briefing: Assembling the SMB Storage Puzzle, October 2006)

  4. IBM Disk Storage Portfolio 8 Host Ports 224 Drives 67TB/168TB 4 Host Ports 112 Drives 84TB DS8100DS8300 DS4800 4 Host Ports 48 Drives 14TB DS4200 EXP3000JBOD DS6800 DS3300 DS4700 DS3400 2/6 Host Ports 48 Drives 14TB 4/8 Host Ports 112 Drives 33TB/84TB 4 Host Ports 48 Drives 14TB DS3200 Direct Attach Entry to Midrange SAN High-end SAN

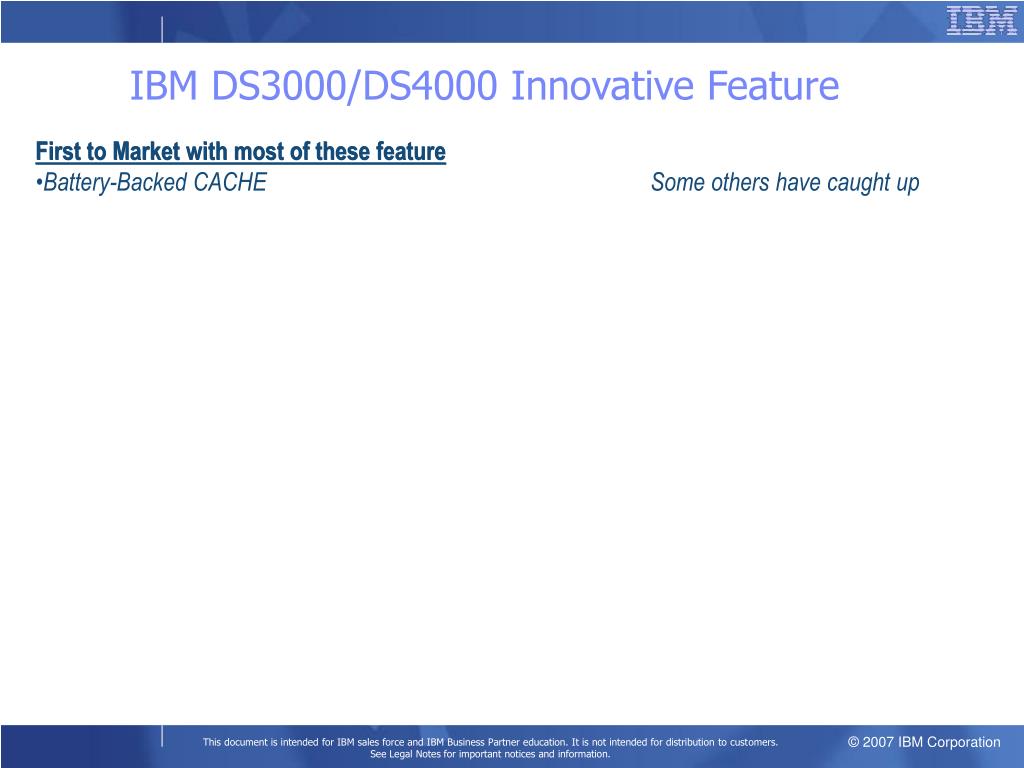

  5. IBM DS3000/DS4000 Innovative Feature First to Market with most of these feature • First to Market with most of these feature • Battery-Backed CACHE Some others have caught up

  6. IBM DS3000/DS4000 Innovative Feature First to Market with most of these feature • First to Market with most of these feature • Battery-Backed CACHE Some others have caught up • 4Gbps architecture, both front-end and back-end Most others have caught up • Hardware RAID parity generation Many others have caught up

  7. IBM DS3000/DS4000 Innovative Feature First to Market with most of these feature • First to Market with most of these feature • Battery-Backed CACHE Some others have caught up • 4Gbps architecture, both front-end and back-end Most others have caught up • Hardware RAID parity generation Many others have caught up • Dynamic CACHE allocation Few others have caught up

  8. Our Method: Controllers Decide and Adjust Several Million Time a Second Their Method: You Decide and Adjust - Read - Write - Write-Mirror CACHE Management

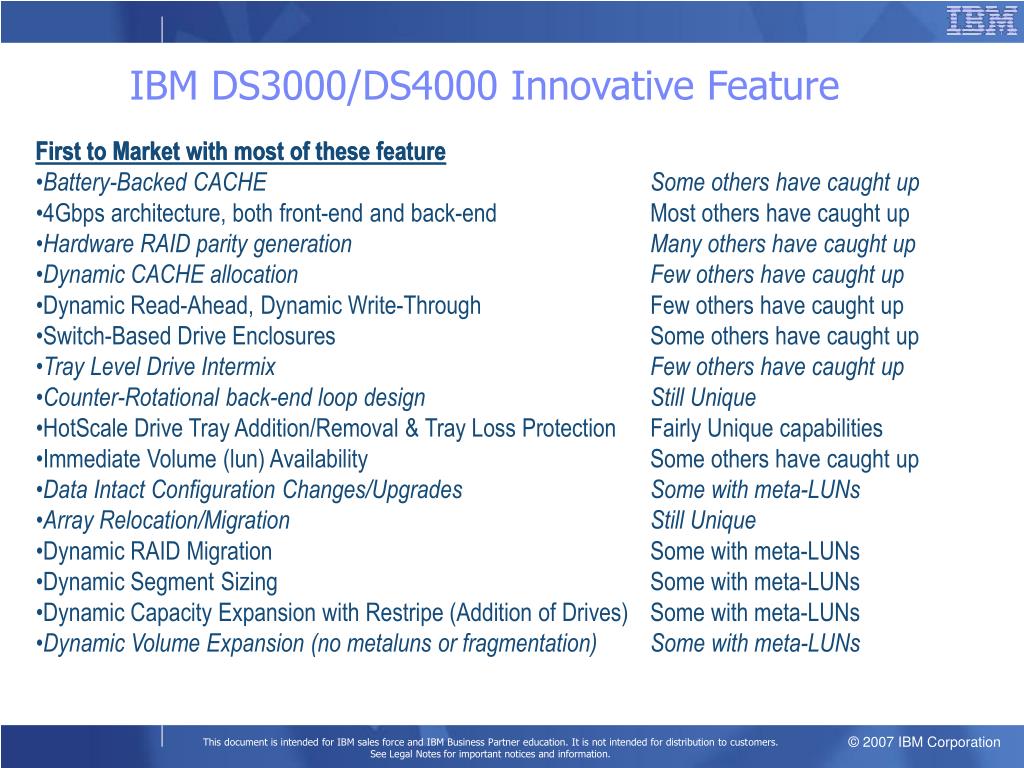

  9. IBM DS3000/DS4000 Innovative Feature First to Market with most of these feature • First to Market with most of these feature • Battery-Backed CACHE Some others have caught up • 4Gbps architecture, both front-end and back-end Most others have caught up • Hardware RAID parity generation Many others have caught up • Dynamic CACHE allocation Few others have caught up • Dynamic Read-Ahead, Dynamic Write-Through Few others have caught up • Switch-Based Drive Enclosures Some others have caught up • Tray Level Drive Intermix Few others have caught up

  10. Competitors Drive Allocation Scheme 3GbpsSATA 4+1RAID5 plus H.S. 4GbpsFC 8+1RAID5 plus H.S.

  11. IBM’s Drive Allocation Scheme with DS4700/EXP810 3GbpsSATA 4+1RAID5 plus H.S. 4GbpsFC 8+1RAID5 plus H.S.

  12. IBM DS3000/DS4000 Innovative Feature First to Market with most of these feature • First to Market with most of these feature • Battery-Backed CACHE Some others have caught up • 4Gbps architecture, both front-end and back-end Most others have caught up • Hardware RAID parity generation Many others have caught up • Dynamic CACHE allocation Few others have caught up • Dynamic Read-Ahead, Dynamic Write-Through Few others have caught up • Switch-Based Drive Enclosures Some others have caught up • Tray Level Drive Intermix Few others have caught up • Counter-Rotational back-end loop design Still Unique • HotScale Drive Tray Addition/Removal & Tray Loss Protection Fairly Unique capabilities

  13. DS3000/DS4000 Back-End Cabling Loop pairs 1 and 3 will run at the same speed Loop pairs 2 and 4 will run at the same speed Loss of a drive module does not sacrifice data availability / integrity

  14. IBM DS3000/DS4000 Innovative Feature First to Market with most of these feature • First to Market with most of these feature • Battery-Backed CACHE Some others have caught up • 4Gbps architecture, both front-end and back-end Most others have caught up • Hardware RAID parity generation Many others have caught up • Dynamic CACHE allocation Few others have caught up • Dynamic Read-Ahead, Dynamic Write-Through Few others have caught up • Switch-Based Drive Enclosures Some others have caught up • Tray Level Drive Intermix Few others have caught up • Counter-Rotational back-end loop design Still Unique • HotScale Drive Tray Addition/Removal & Tray Loss Protection Fairly Unique capabilities • Immediate Volume (lun) Availability Some others have caught up • Data Intact Configuration Changes/Upgrades Some with meta-LUNs

  15. DS4000 Data Containers Allow Storage System Level Reconfiguration & Data Intact Upgrades

  16. IBM DS3000/DS4000 Innovative Feature First to Market with most of these feature • First to Market with most of these feature • Battery-Backed CACHE Some others have caught up • 4Gbps architecture, both front-end and back-end Most others have caught up • Hardware RAID parity generation Many others have caught up • Dynamic CACHE allocation Few others have caught up • Dynamic Read-Ahead, Dynamic Write-Through Few others have caught up • Switch-Based Drive Enclosures Some others have caught up • Tray Level Drive Intermix Few others have caught up • Counter-Rotational back-end loop design Still Unique • HotScale Drive Tray Addition/Removal & Tray Loss Protection Fairly Unique capabilities • Immediate Volume (lun) Availability Some others have caught up • Data Intact Configuration Changes/Upgrades Some with meta-LUNs • Array Relocation/Migration Still Unique

  17. DS4000 Data Containers Allow Intra-System Data Migration Data remains intact

  18. IBM DS3000/DS4000 Innovative Feature First to Market with most of these feature • First to Market with most of these feature • Battery-Backed CACHE Some others have caught up • 4Gbps architecture, both front-end and back-end Most others have caught up • Hardware RAID parity generation Many others have caught up • Dynamic CACHE allocation Few others have caught up • Dynamic Read-Ahead, Dynamic Write-Through Few others have caught up • Switch-Based Drive Enclosures Some others have caught up • Tray Level Drive Intermix Few others have caught up • Counter-Rotational back-end loop design Still Unique • HotScale Drive Tray Addition/Removal & Tray Loss Protection Fairly Unique capabilities • Immediate Volume (lun) Availability Some others have caught up • Data Intact Configuration Changes/Upgrades Some with meta-LUNs • Array Relocation/Migration Still Unique • Dynamic RAID Migration Some with meta-LUNs • Dynamic Segment Sizing Some with meta-LUNs • Dynamic Capacity Expansion with Restripe (Addition of Drives) Some with meta-LUNs • Dynamic Volume Expansion (no metaluns or fragmentation) Some with meta-LUNs

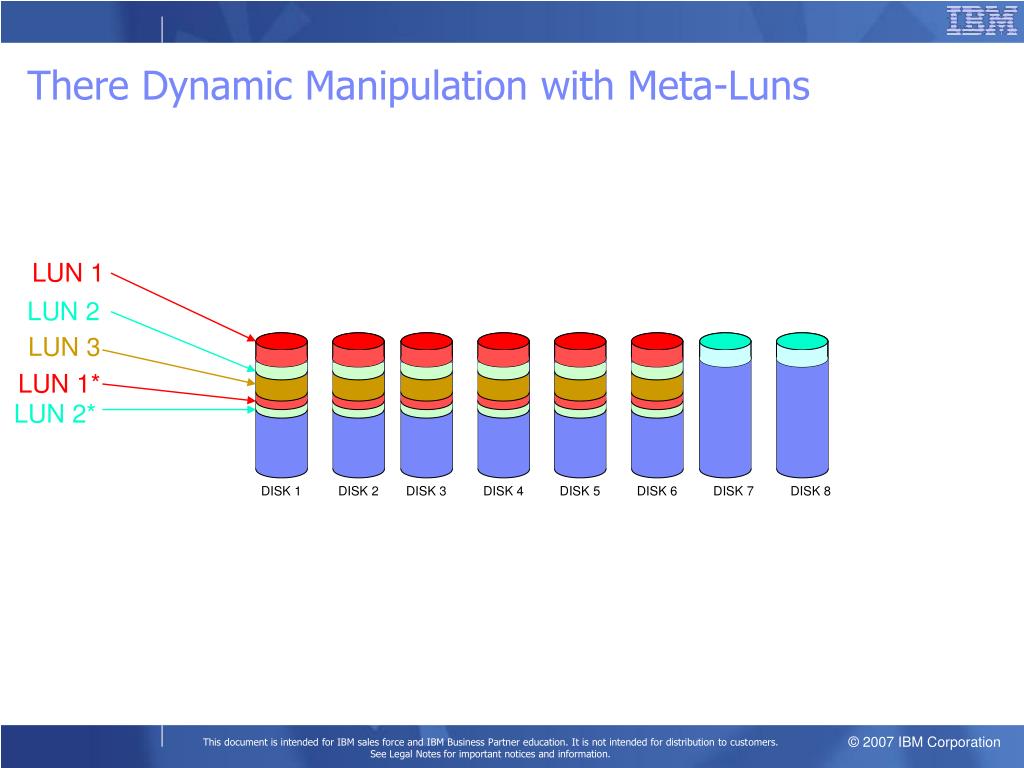

  19. LUN 1 LUN 2 LUN 3 LUN 1* LUN 2* DISK 1 DISK 7 DISK 8 DISK 2 DISK 3 DISK 4 DISK 5 DISK 6 There Dynamic Manipulation with Meta-Luns

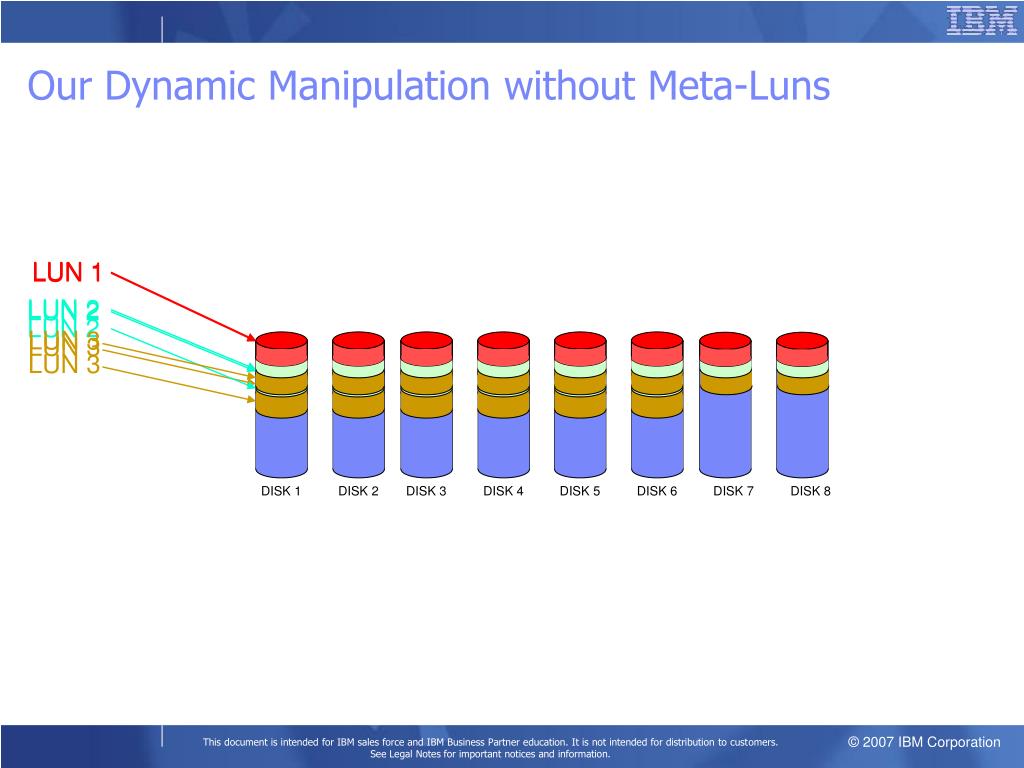

  20. LUN 1 LUN 2 LUN 3 DISK 1 DISK 2 DISK 3 DISK 4 DISK 5 DISK 6 Our Dynamic Manipulation without Meta-Luns

  21. LUN 1 LUN 3 LUN 1 LUN 2 LUN 2 LUN 3 LUN 3 LUN 2 DISK 1 DISK 7 DISK 8 DISK 2 DISK 3 DISK 4 DISK 5 DISK 6 Our Dynamic Manipulation without Meta-Luns

  22. IBM DS3000/DS4000 Innovative Feature First to Market with most of these feature • First to Market with most of these feature • Battery-Backed CACHE Some others have caught up • 4Gbps architecture, both front-end and back-end Most others have caught up • Hardware RAID parity generation Many others have caught up • Dynamic CACHE allocation Few others have caught up • Dynamic Read-Ahead, Dynamic Write-Through Few others have caught up • Switch-Based Drive Enclosures Some others have caught up • Tray Level Drive Intermix Few others have caught up • Counter-Rotational back-end loop design Still Unique • HotScale Drive Tray Addition/Removal & Tray Loss Protection Fairly Unique capabilities • Immediate Volume (lun) Availability Some others have caught up • Data Intact Configuration Changes/Upgrades Some with meta-LUNs • Array Relocation/Migration Still Unique • Dynamic RAID Migration Some with meta-LUNs • Dynamic Segment Sizing Some with meta-LUNs • Dynamic Capacity Expansion with Restripe (Addition of Drives) Some with meta-LUNs • Dynamic Volume Expansion (no metaluns or fragmentation) Some with meta-LUNs • N-Way Remote Mirroring with Dynamic Expansion Still Unique

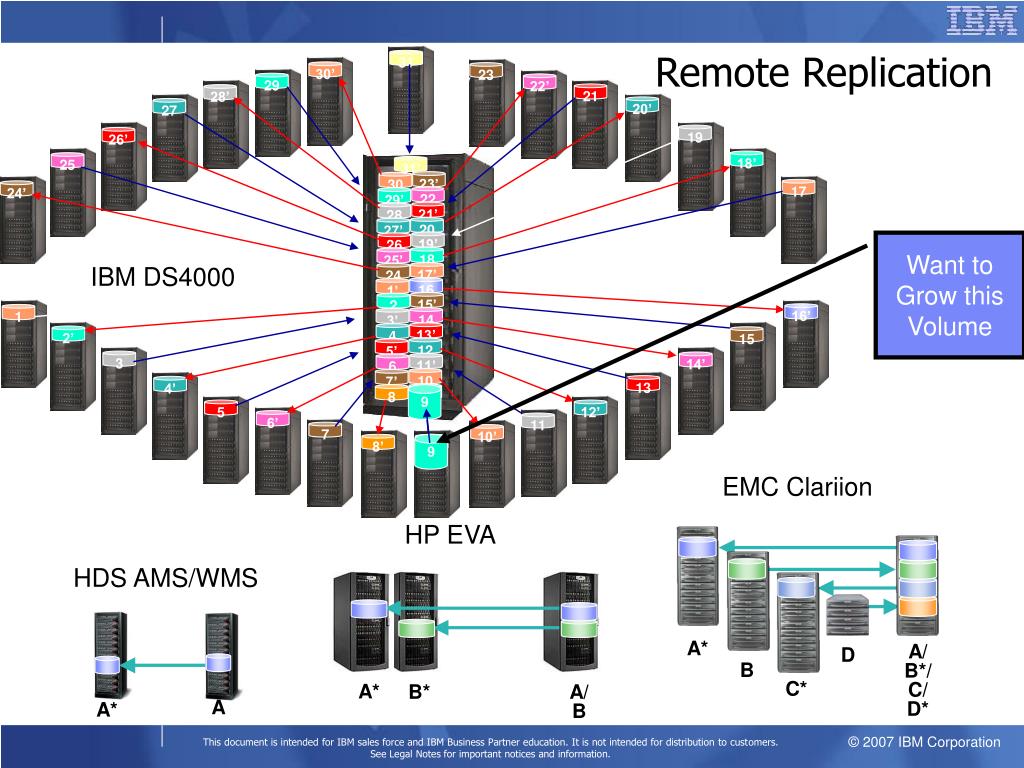

  23. 31 30’ 23 29 22’ 21 28’ 20’ 27 19 26’ 18’ 25 31’ 23’ 30 17 24’ 22 29’ 21’ 28 20 27’ 19’ 26 18 25’ IBM DS4000 A* 17’ 24 A/ B*/C/ D* 16 1’ 15’ 2 16’ 1 14 3’ B 13’ 4 2’ 15 12 5’ 3 14’ 11’ 6 10 7’ C* 13 4’ 9’ 8 A* 5 12’ 6’ 11 7 10’ 8’ 9 D B* A/ B A A* Source AND Remote Target System Remote Replication Want to Grow this Volume 9 9 EMC Clariion HP EVA HDS AMS/WMS

  24. IBM DS3000/DS4000 Innovative Feature First to Market with most of these feature • First to Market with most of these feature • Battery-Backed CACHE Some others have caught up • 4Gbps architecture, both front-end and back-end Most others have caught up • Hardware RAID parity generation Many others have caught up • Dynamic CACHE allocation Few others have caught up • Dynamic Read-Ahead, Dynamic Write-Through Few others have caught up • Switch-Based Drive Enclosures Some others have caught up • Tray Level Drive Intermix Few others have caught up • Counter-Rotational back-end loop design Still Unique • HotScale Drive Tray Addition/Removal & Tray Loss Protection Fairly Unique capabilities • Immediate Volume (lun) Availability Some others have caught up • Data Intact Configuration Changes/Upgrades Some with meta-LUNs • Array Relocation/Migration Still Unique • Dynamic RAID Migration Some with meta-LUNs • Dynamic Segment Sizing Some with meta-LUNs • Dynamic Capacity Expansion with Restripe (Addition of Drives) Some with meta-LUNs • Dynamic Volume Expansion (no metaluns or fragmentation) Some with meta-LUNs • N-Way Remote Mirroring with Dynamic Expansion Still Unique • Enhanced Data Protection Few others have caught up

  25. Enhanced Reliability • Storage controllers implement Proactive Drive Health Monitoring (PFA) • Much more robust implementation when used in addition to the standard SMART technology employed by our competition. • End-to-end error checking on data • Background/Foreground Media Scan – Resolves “Silent” Media Errors • Error-skip algorithm on drive rebuilds. • Multiple concurrent Hot-Spare rebuilds • Striped-mirror implementation of RAID10 (our competitors use mirrored-stripes)

  26. IBM DS3000/DS4000 Innovative Feature First to Market with most of these feature • First to Market with most of these feature • Battery-Backed CACHE Some others have caught up • 4Gbps architecture, both front-end and back-end Most others have caught up • Hardware RAID parity generation Many others have caught up • Dynamic CACHE allocation Few others have caught up • Dynamic Read-Ahead, Dynamic Write-Through Few others have caught up • Switch-Based Drive Enclosures Some others have caught up • Tray Level Drive Intermix Few others have caught up • Counter-Rotational back-end loop design Still Unique • HotScale Drive Tray Addition/Removal & Tray Loss Protection Fairly Unique capabilities • Immediate Volume (lun) Availability Some others have caught up • Data Intact Configuration Changes/Upgrades Some with meta-LUNs • Array Relocation/Migration Still Unique • Dynamic RAID Migration Some with meta-LUNs • Dynamic Segment Sizing Some with meta-LUNs • Dynamic Capacity Expansion with Restripe (Addition of Drives) Some with meta-LUNs • Dynamic Volume Expansion (no metaluns or fragmentation) Some with meta-LUNs • N-Way Remote Mirroring with Dynamic Expansion Still Unique • Enhanced Data Protection Few others have caught up

  27. Conclusion: How do we compare? Price – Didn’t discuss, we’re probably slightly more. Performance – Better Flexibility – Better Ease of Use – Better (can provide demo) ROI/TCO – Didn’t discuss, but were better Where’s the “WOW” factor? How about a storage system that’s “Accident Resistant”?

  28. Example #1Customer Accidentally deletes an Array Set (group of logical drives) that contains critical business data.They have no backup of the data (not good)They have no way to recreate the dataWithout data, they will go out of business.

  29. Quote from integrator:Hi Jim:Just wanted to thank your group in Wichita for the great work in recovering the data from the deleted raid array.I wondered if you know if other vendors like HP, EMC or Hitachi can do this type of recovery on the mid range disks systems they sell? It could be a great selling feature to know that the data is recoverable in a disaster situation.It is great selling disk that has so many features that allow it to excel in so many situations.I want to personally thank the development folks for working on this problem over night so we could recover the customers data. Without the recovery the customer was out of business as the disk copy of the data was the only copy of this core data.We had provided advice about backups of the data and they were awaiting the tape units when the deletion of the raidset occurred. Thanks again.CheersTim MatherDirector Systems and Storage Anisoft Group

  30. Example #2Customer Purchases a storage array from a “new” integrator.New integrator installs and starts to configure the new storage array.Array appears to have old configuration on it. Integrator decides to reinitialize (wipe out) old configuration to start from scratch.Customers existing storage array (that the integrator knew nothing about), is wiped clean. Over two Terabytes of production data is gone.

  31. Outcome #2Original integrator received the panic call from the customer.IBM support was notified, and the case was escalated immediately.Third level support was able to interrogate the storage array and recover the original configuration information. The end result was that the customers storage array was restored back to “pre-accident” condition. No data loss.

  32. So What Really Matters? • Diverse drive support • HotScale • Tray Level Intermix • Dynamic Capacity Expansion • Array Migration • Dynamic Cache Allocation • Dynamic Read-Ahead • Dynamic Write-Through • Dynamic Segment Sizing • Dynamic Capacity Expansion • Contiguous Storage Allocation • Flashcopy, VolumeCopy • VSS Provider • SMrepassist Utility • StorageProven with Everybody • Dynamic Features • HotScale • Failover Drivers • Redundant Power/Cooling • RSM Current Customers, we love ‘em. • StorageManager (with Simulators) • SMI-S • SMcli (Source: Gartner’s Data Quest Tele briefing: Assembling the SMB Storage Puzzle, October 2006)

  33. Thank you for your time! Jim Latham DS3000/DS4000 Specialist Jim.Latham@lsi.com 248-561-7445
