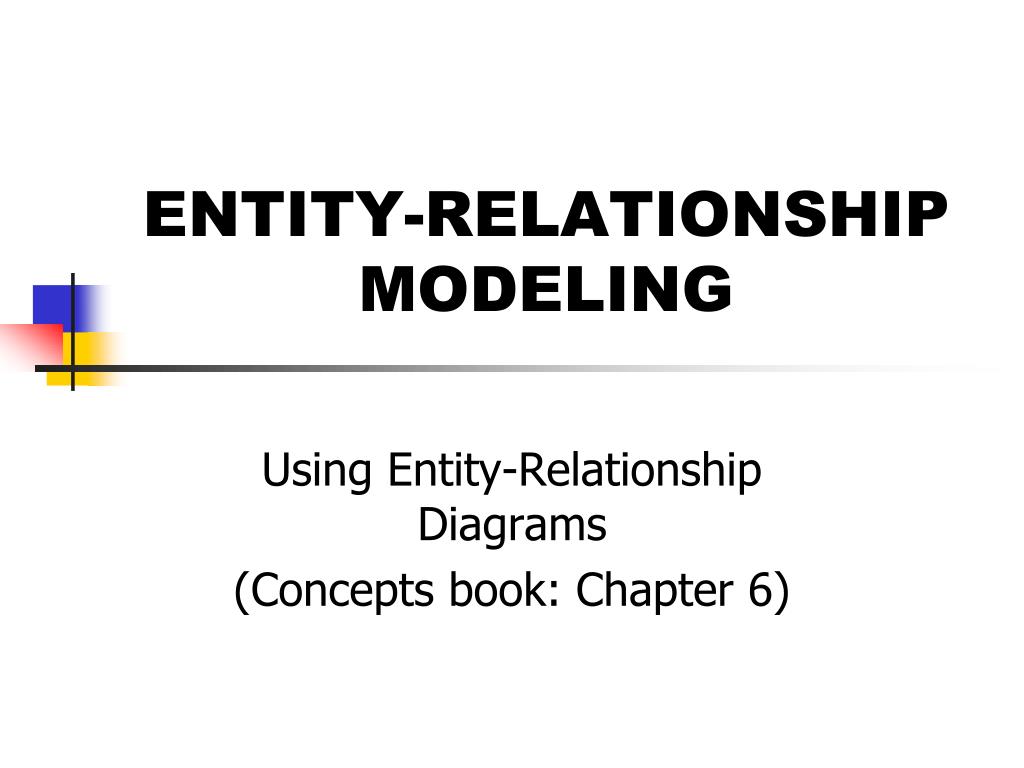

  1. ENTITY-RELATIONSHIP MODELING Using Entity-Relationship Diagrams (Concepts book: Chapter 6)

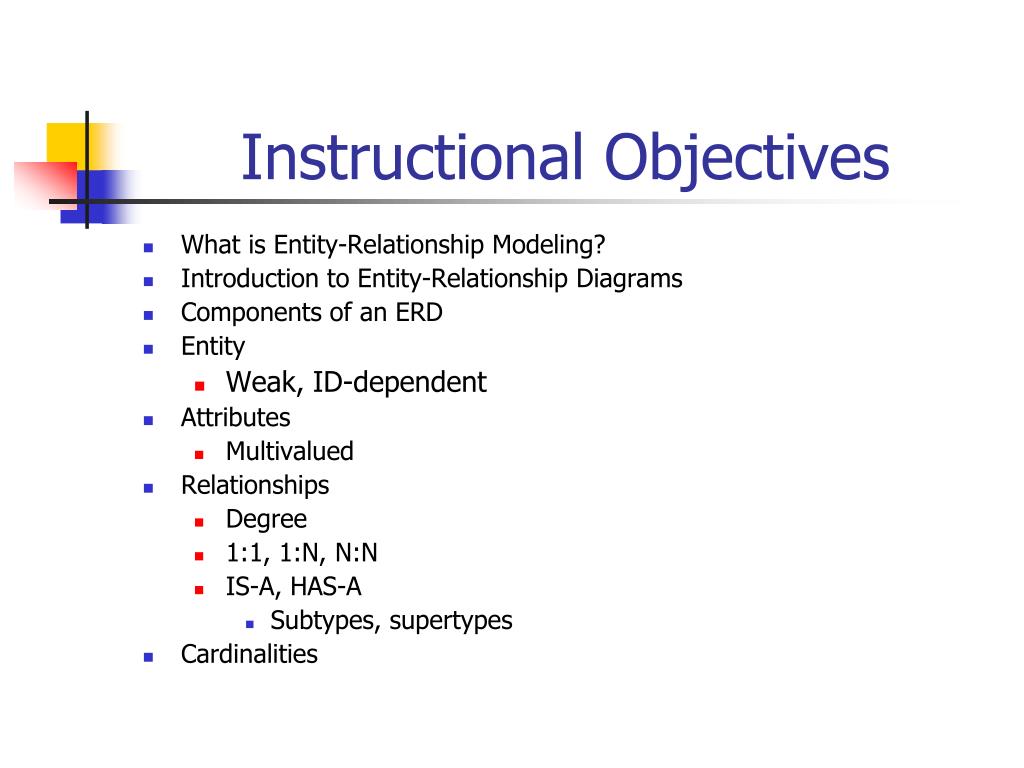

  2. Instructional Objectives • What is Entity-Relationship Modeling? • Introduction to Entity-Relationship Diagrams • Components of an ERD • Entity • Weak, ID-dependent • Attributes • Multivalued • Relationships • Degree • 1:1, 1:N, N:N • IS-A, HAS-A • Subtypes, supertypes • Cardinalities

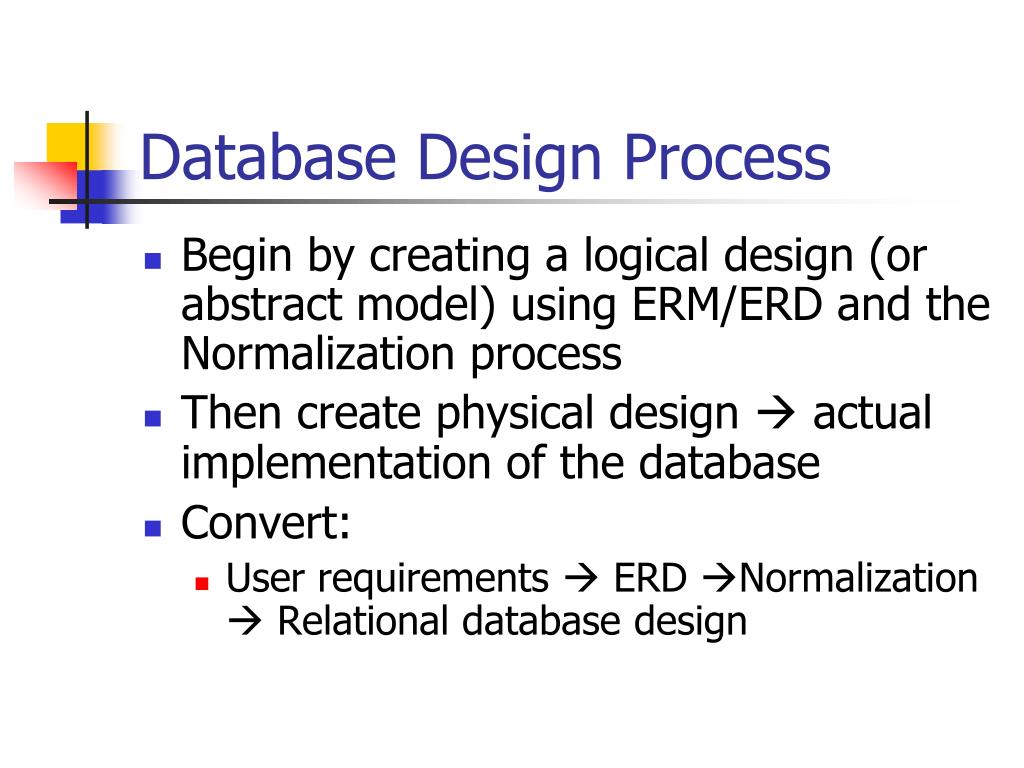

  3. Database Design Process • Begin by creating a logical design (or abstract model) using ERM/ERD and the Normalization process • Then create physical design  actual implementation of the database • Convert: • User requirements  ERD Normalization  Relational database design

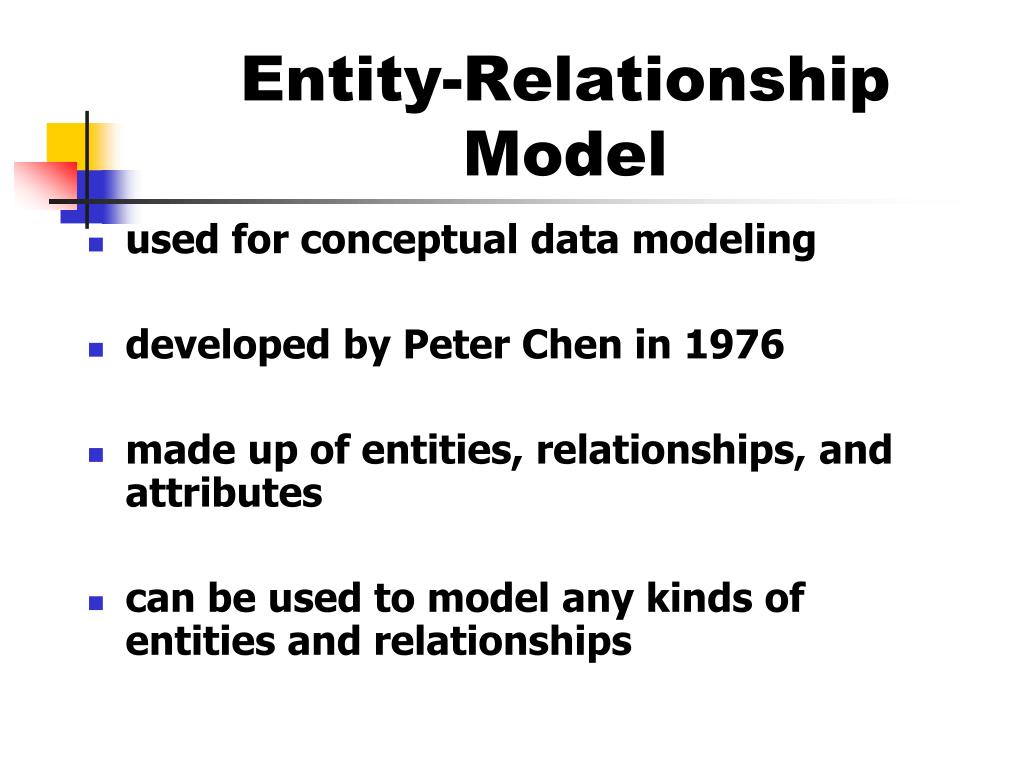

  4. Entity-Relationship Model • used for conceptual data modeling • developed by Peter Chen in 1976 • made up of entities, relationships, and attributes • can be used to model any kinds of entities and relationships

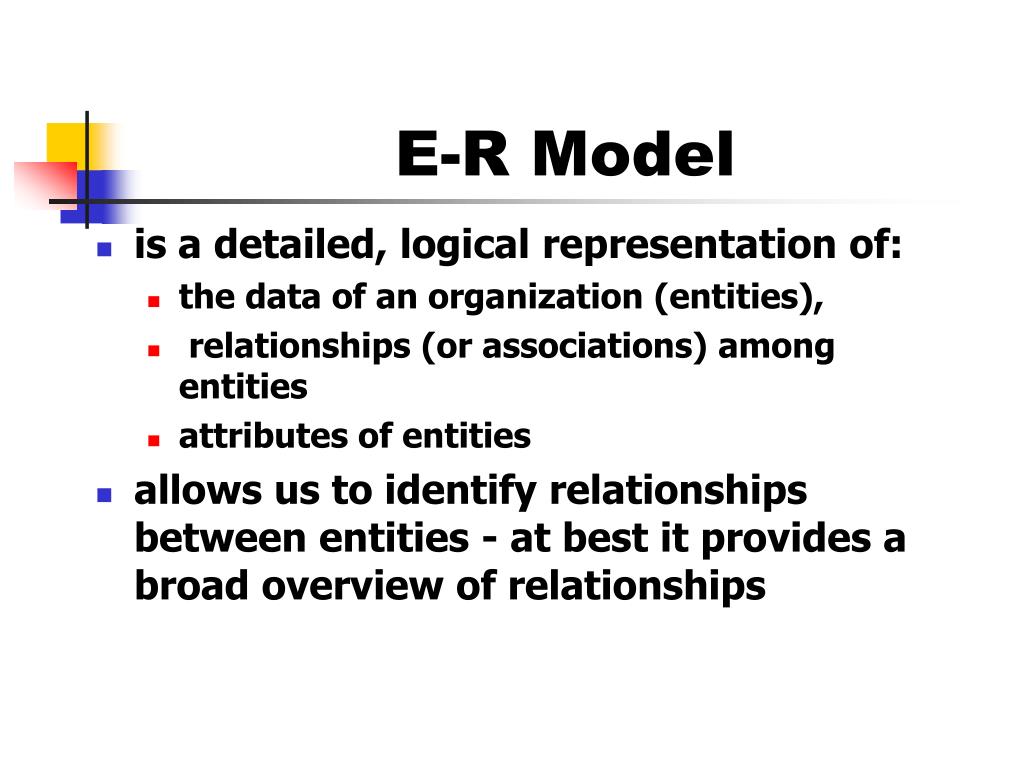

  5. E-R Model • is a detailed, logical representation of: • the data of an organization (entities), • relationships (or associations) among entities • attributes of entities • allows us to identify relationships between entities - at best it provides a broad overview of relationships

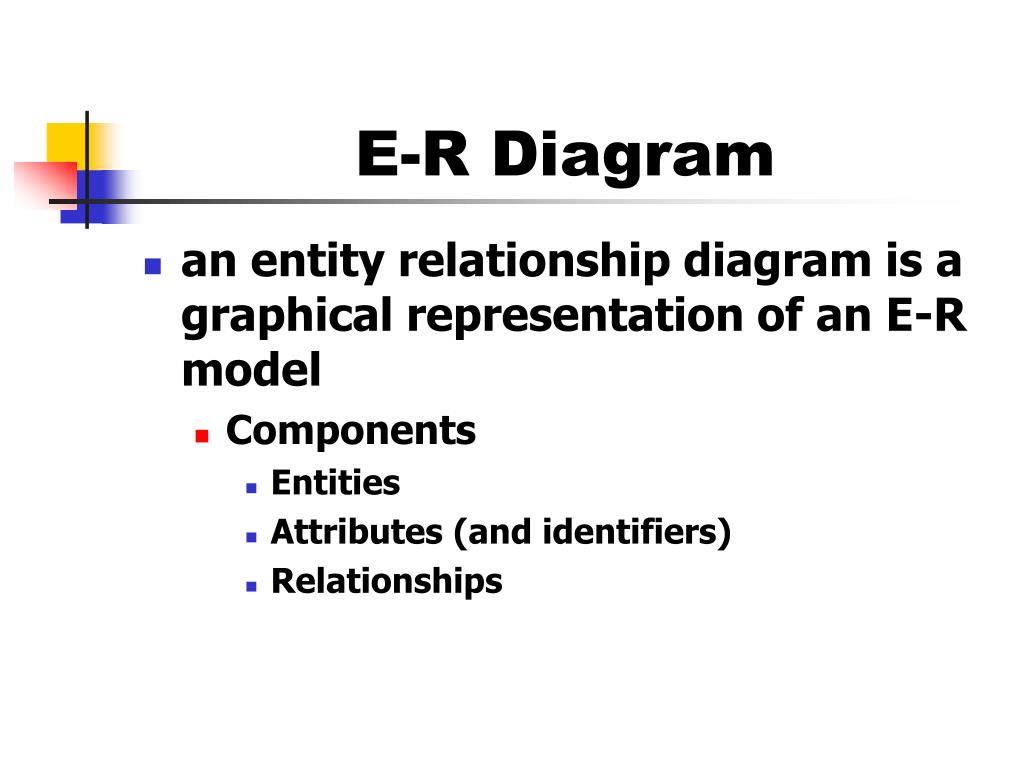

  6. E-R Diagram • an entity relationship diagram is a graphical representation of an E-R model • Components • Entities • Attributes (and identifiers) • Relationships

  7. Entities • What is an entity? • person, place, object, event, or concept about which an organization (or users) want to maintain data about (or track) • Examples: • Person: EMPLOYEE, STUDENT, PATIENT • Place: STATE, REGION, COUNTRY • Object: MACHINE, BUILDING, AUTOMOBILE • Event: SALE, REGISTRATION, RENEWAL • Concept: ACCOUNT, COURSE, WORK CENTER

  8. Entities • need to differentiate between entity type and entity instance • entity type or entity class • entity instance

  9. Entities • Rules: • name of entity is name of relation • attributes of entity are attributes of relation • construct a relation that has all of the entity’s attributes and columns • normalize relations

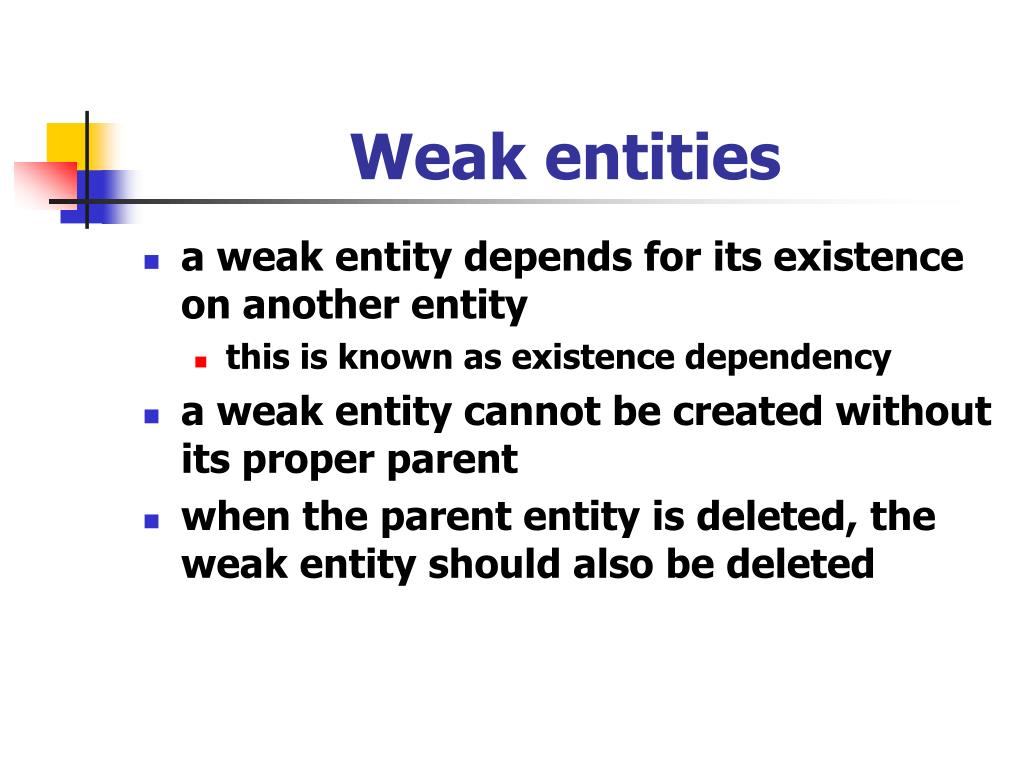

  10. Weak entities • a weak entity depends for its existence on another entity • this is known as existence dependency • a weak entity cannot be created without its proper parent • when the parent entity is deleted, the weak entity should also be deleted

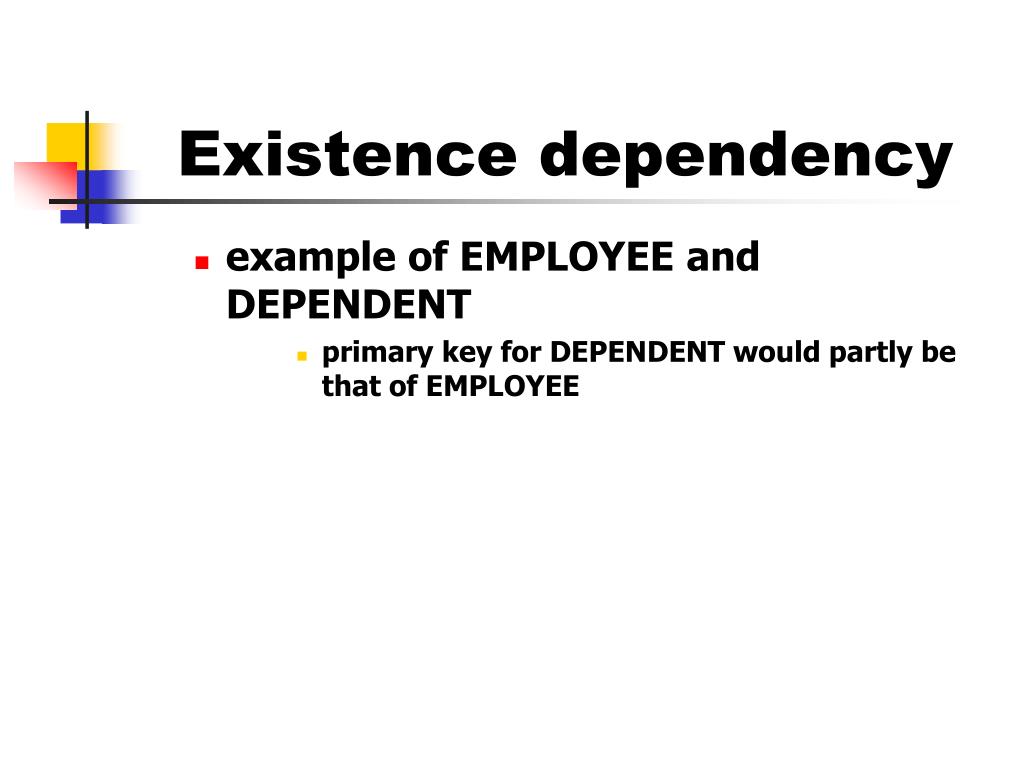

  11. Existence dependency • example of EMPLOYEE and DEPENDENT • primary key for DEPENDENT would partly be that of EMPLOYEE

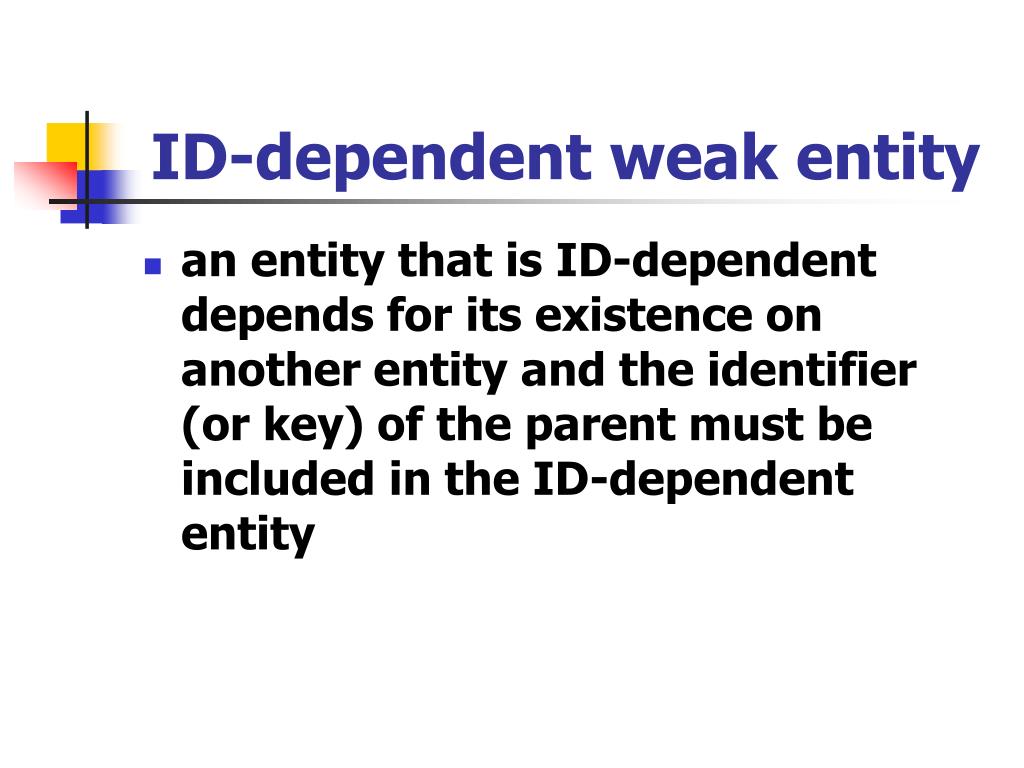

  12. ID-dependent weak entity • an entity that is ID-dependent depends for its existence on another entity and the identifier (or key) of the parent must be included in the ID-dependent entity

  13. ID-dependent weak entity • an ID-dependent entity is a type of a weak entity • BUILDING (BuildingName) • OFFICE (BuildingName, OfficeNum) • OFFICE is ID-dependent on BUILDING • Office can’t exist without a building, and if we just say room 104, doesn’t tell us in what building

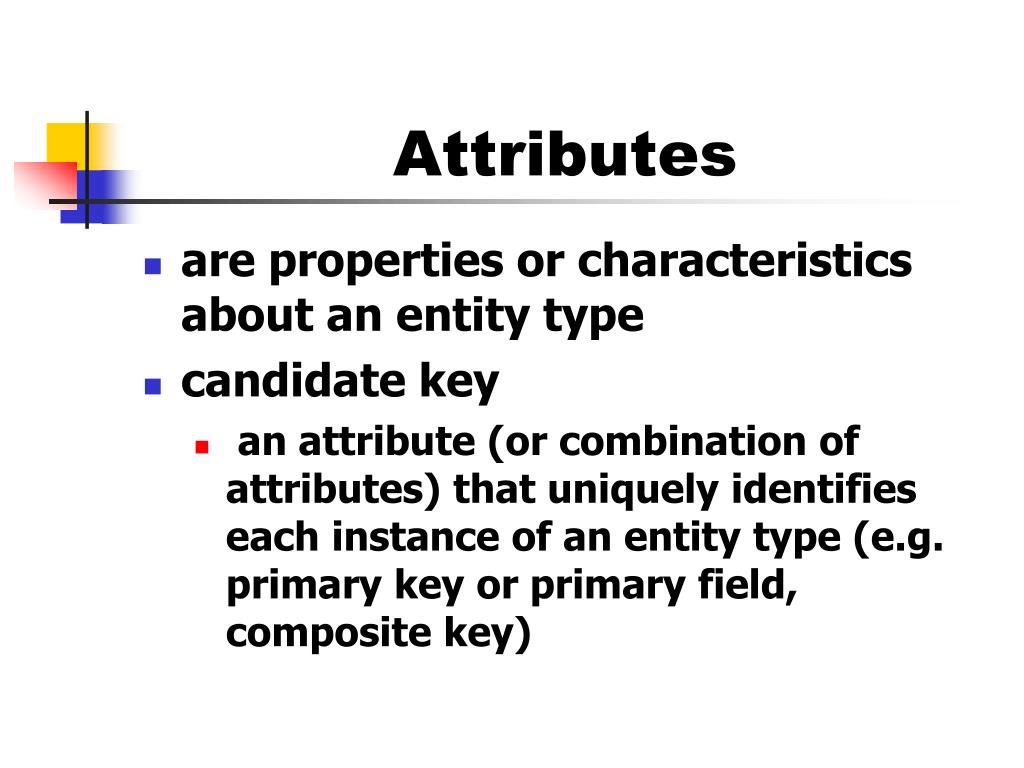

  14. Attributes • are properties or characteristics about an entity type • candidate key • an attribute (or combination of attributes) that uniquely identifies each instance of an entity type (e.g. primary key or primary field, composite key)

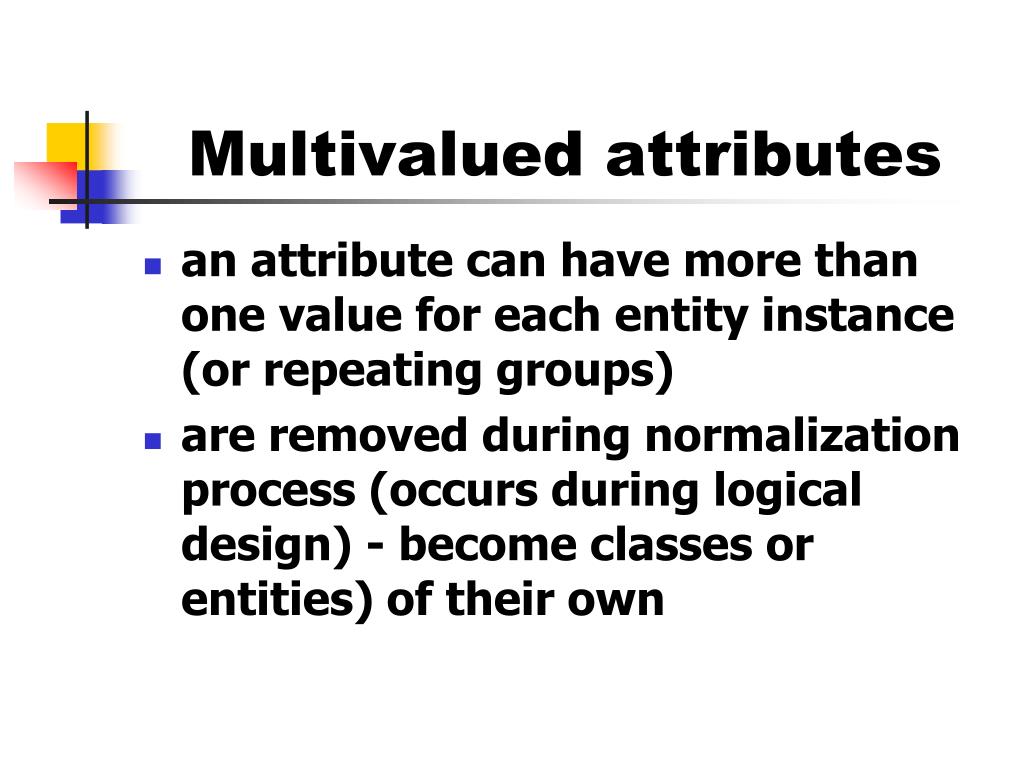

  15. Multivalued attributes • an attribute can have more than one value for each entity instance (or repeating groups) • are removed during normalization process (occurs during logical design) - become classes or entities) of their own

  16. Rules for identifying keys • Choose a key that will not change its value over the life of each instance of an entity type. • Key must have valid values and not be null. • Don’t choose a key whose structure indicates classifications, locations, etc.

  17. Relationships • are an association between instances of one or more entity types of interest to the organization • the degree of the relationship is determined by the number of entity types that participate in a relationship • Degree of relationship can be unary, binary, or ternary • relationships can also be HAS-A or IS-A relationships

  18. Unary relationship • is that of degree 1 • also known as a recursive relationship - a relationship between instances of one entity type • recursive relationships can also be 1:1, 1:M, M:N

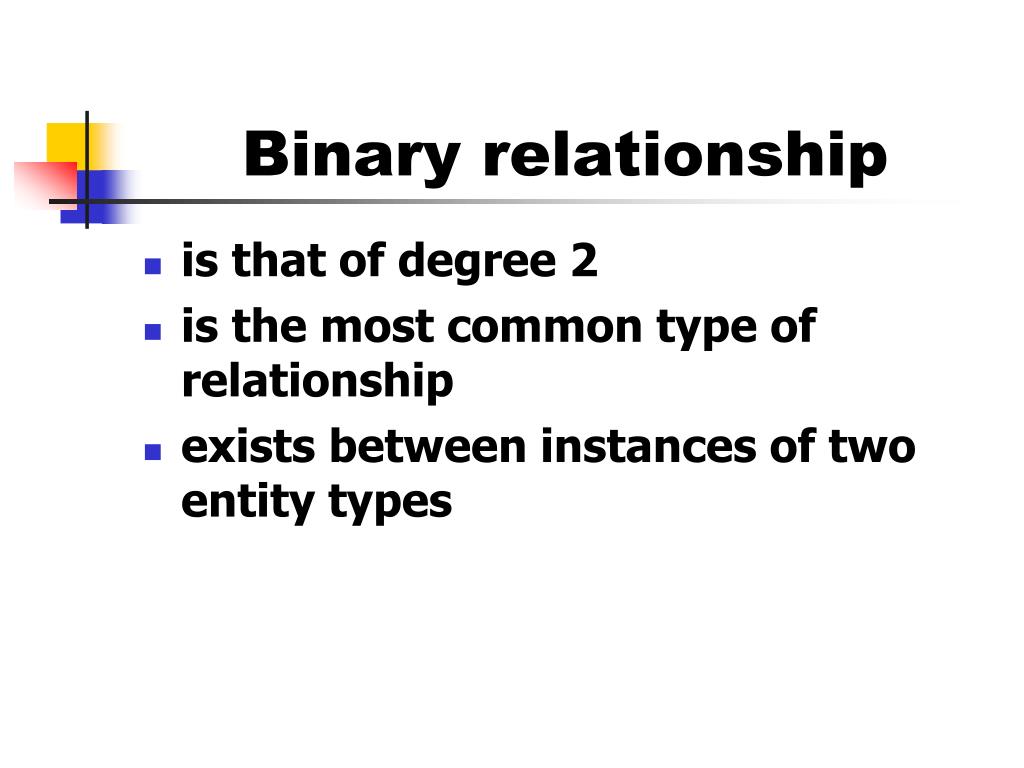

  19. Binary relationship • is that of degree 2 • is the most common type of relationship • exists between instances of two entity types

  20. Ternary relationship • is that of degree 3 • a simultaneous relationship among instances of three entity types

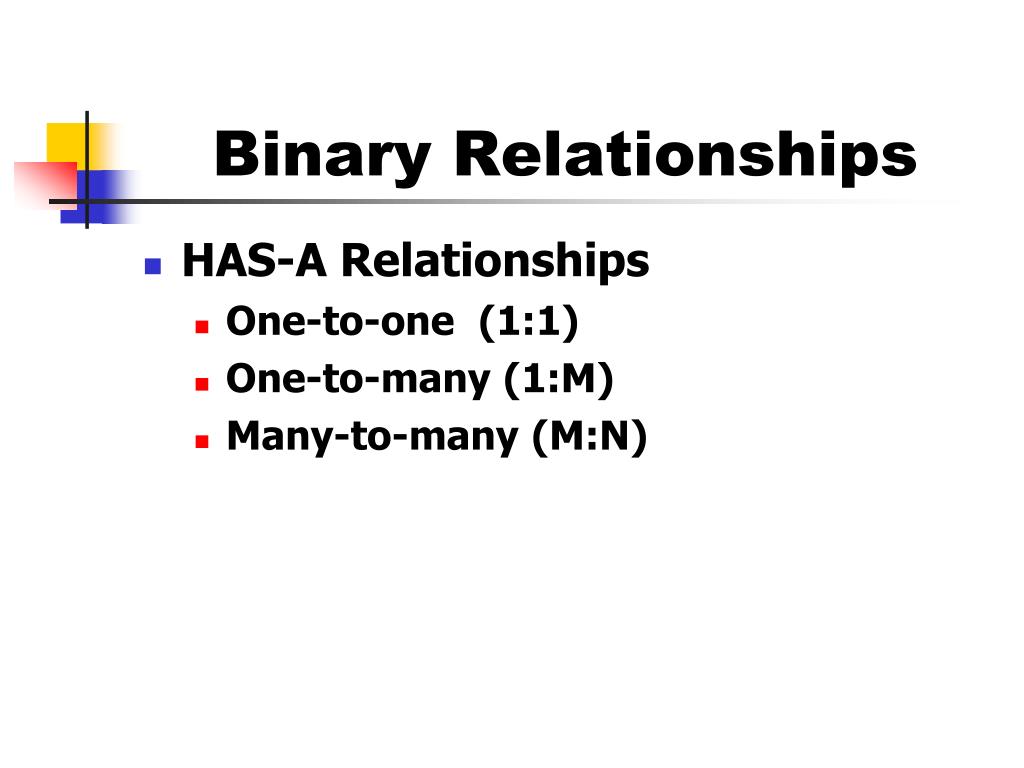

  21. Binary Relationships • HAS-A Relationships • One-to-one (1:1) • One-to-many (1:M) • Many-to-many (M:N)

  22. One-to-One relationship • described as 1:1 • a single-entity instance of one entity type is related to a single entity instance of another type • primary key of one would be foreign key in the other • key of either table can be placed as a foreign key in the other table • example: Employee, Auto

  23. One-to-Many relationship • described as 1:M • a single instance of one entity related to many instances of another entity • parent-child relationship • parent is the one side (primary table) • child is the many side (related table) • place key of parent table in child table

  24. Many-to-Many relationship • described as M:N • many instances of one entity relate to many instances of another entity • must be separated into additional 1:M relations • intersection relation (key would be made up of parent keys)

  25. Cardinalities • cardinality of a relationship is the number of instances of entity B that can be (or must) be associated with each instance of entity A

  26. Cardinalities continued • cardinality can be maximum or minimum • minimum cardinality - minimum # of instances of entity B that may be associated with instance of entity A • maximum cardinality - maximum number of instances (can also be a fixed number such as 5 for example, doesn’t always have to be M)

  27. Cardinalities • minimum cardinality = 0 means optional participation • minimum cardinality = 1 means mandatory participation

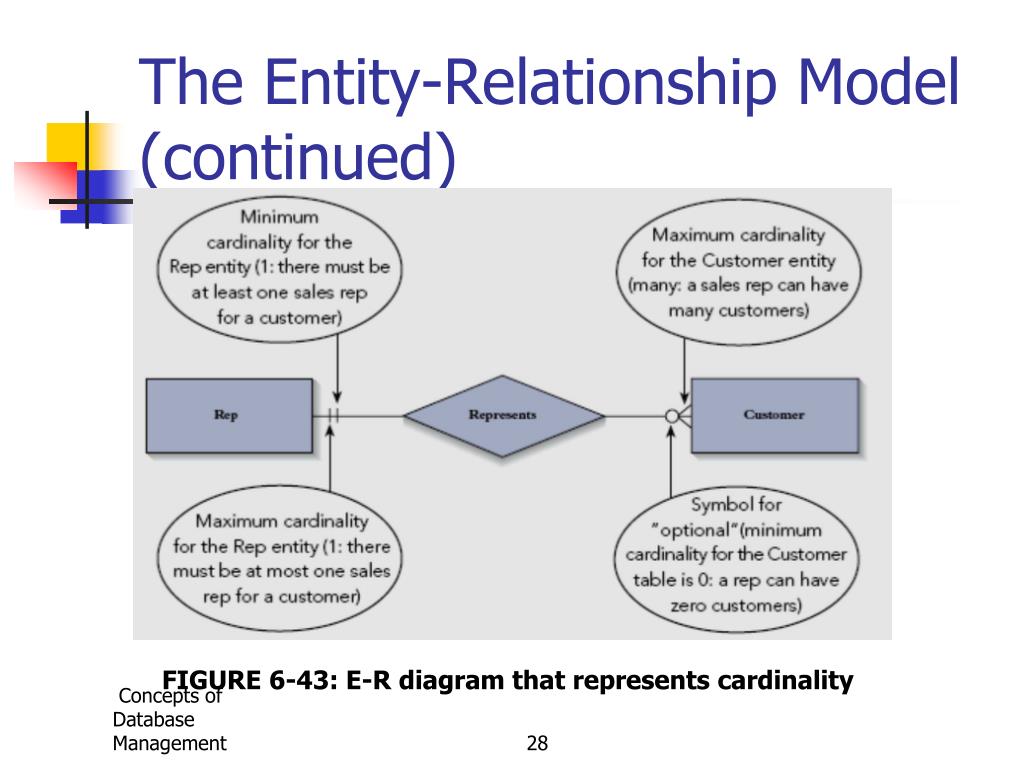

  28. The Entity-Relationship Model (continued) FIGURE 6-43: E-R diagram that represents cardinality Concepts of Database Management

  29. IS-A Relationships • occur among entities that are subtypes of a common logical type (or supertype) • example: Employee can be hourly or salaried • create a relation for each entity • add key of subtype to supertype

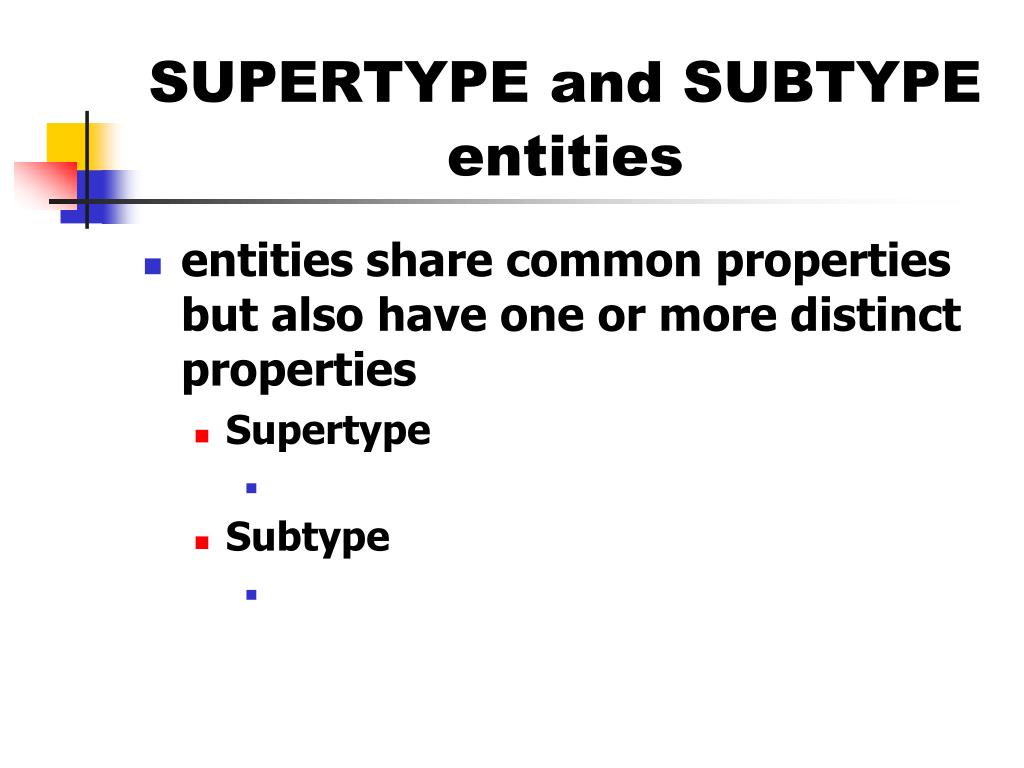

  30. SUPERTYPE and SUBTYPE entities • entities share common properties but also have one or more distinct properties • Supertype • Subtype

  31. Supertype and Subtype • EMPLOYEE (EmpNum, EmpName, EmpAddr, DateHired) • HOURLY (EmpNum, HourlyRate) • SALARIED (EmpNum, AnnualSal, StockOption) • Supertype = Employee • Subtype = Hourly, Salaried

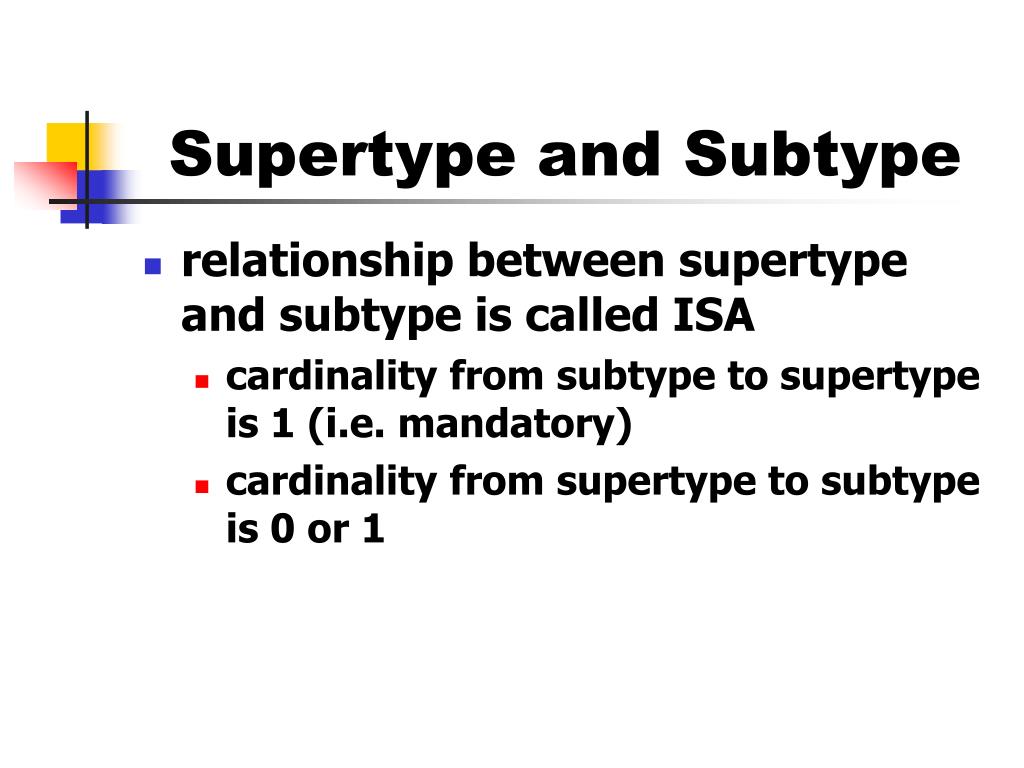

  32. Supertype and Subtype • relationship between supertype and subtype is called ISA • cardinality from subtype to supertype is 1 (i.e. mandatory) • cardinality from supertype to subtype is 0 or 1

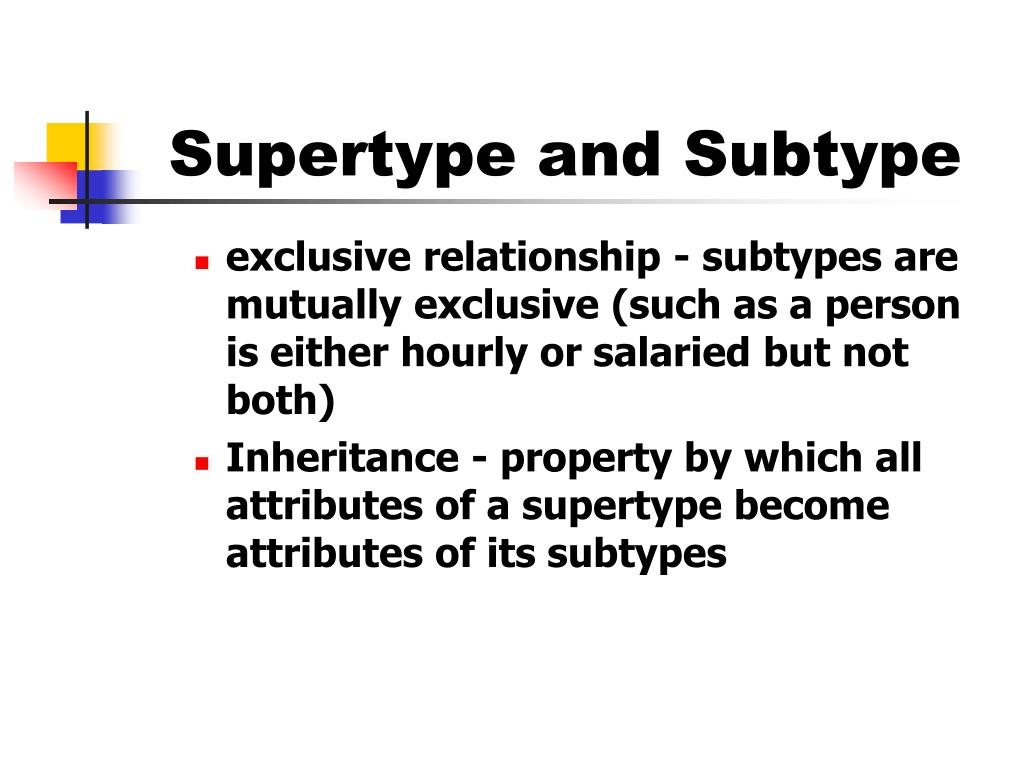

  33. Supertype and Subtype • exclusive relationship - subtypes are mutually exclusive (such as a person is either hourly or salaried but not both) • Inheritance - property by which all attributes of a supertype become attributes of its subtypes
