New and Modified Elements in Flight Planning

This document outlines the new and modified elements in flight planning as per EUROCONTROL guidelines. It focuses on changes to the fields including digits in Field 10 and various flight designators. Key details include updates on specific designators, pressure-related issues, and additional info required for better compliance during flight operations. The examples demonstrate recent modifications, incorporating both specific coding and standards for effective Central Flow Management. These updates are vital for ensuring accurate navigation and communication among air traffic control and aviation operations.

herbert
Télécharger la présentation

New and Modified Elements in Flight Planning

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

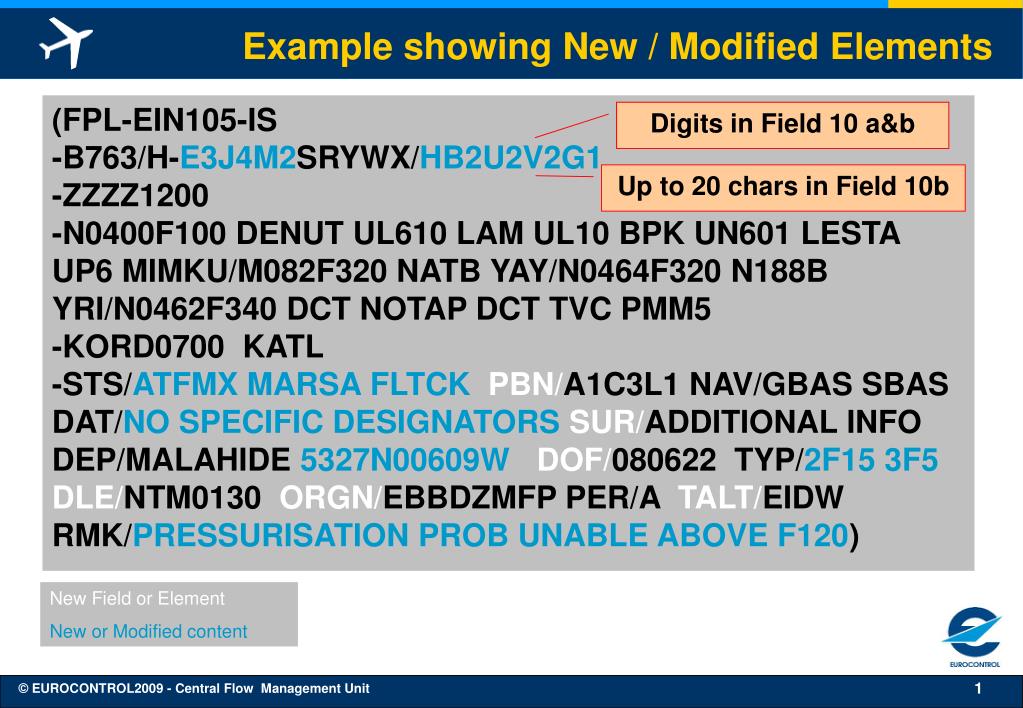

  1. Example showing New / Modified Elements Digits in Field 10 a&b (FPL-EIN105-IS-B763/H-E3J4M2SRYWX/HB2U2V2G1-ZZZZ1200-N0400F100 DENUT UL610 LAM UL10 BPK UN601 LESTA UP6 MIMKU/M082F320 NATB YAY/N0464F320 N188B YRI/N0462F340 DCT NOTAP DCT TVC PMM5-KORD0700 KATL-STS/ATFMX MARSA FLTCKPBN/A1C3L1 NAV/GBAS SBAS DAT/NO SPECIFIC DESIGNATORSSUR/ADDITIONAL INFO DEP/MALAHIDE 5327N00609WDOF/080622 TYP/2F15 3F5DLE/NTM0130 ORGN/EBBDZMFP PER/A TALT/EIDW RMK/PRESSURISATION PROB UNABLE ABOVE F120) Up to 20 chars in Field 10b New Field or Element New or Modified content © EUROCONTROL2009 - Central Flow Management Unit

  2. Examples showing New / Modified Elements (CHG-EIN105-EIDW1200-KORD-DOF/080622-9/E346/H) (CNL-EIN105-EIDW1200-KORD-DOF/080622) (CNL-EIN105-EIDW1200-KORD-0) © EUROCONTROL2009 - Central Flow Management Unit
