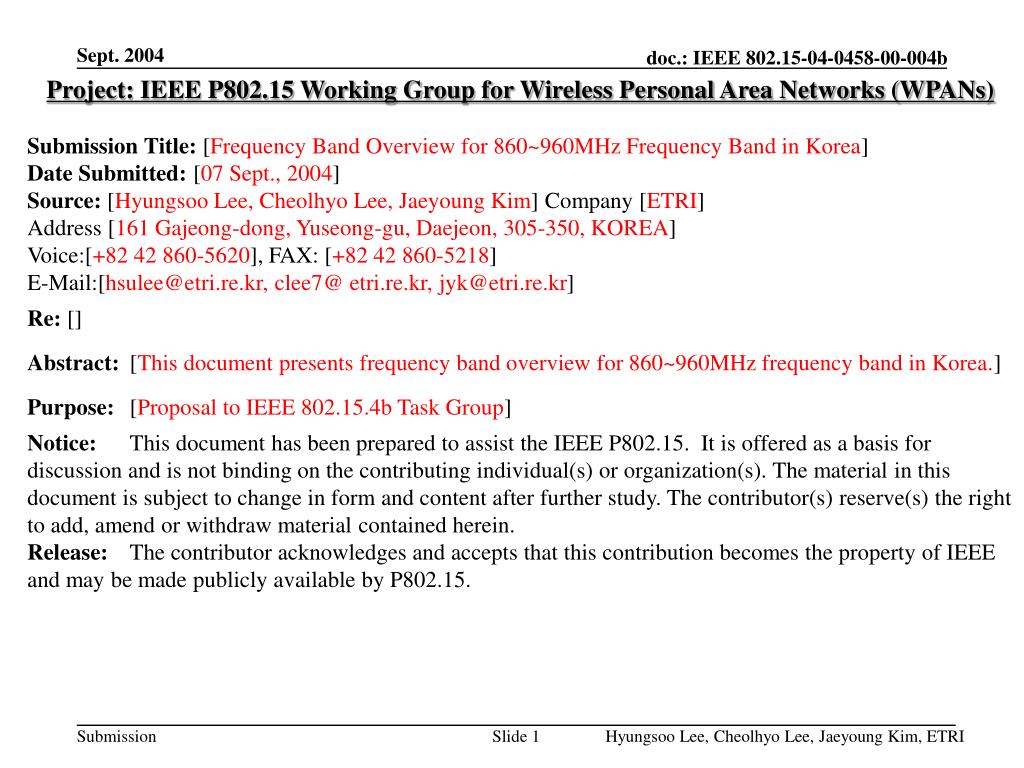

  1. Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [Frequency Band Overview for 860~960MHz Frequency Band in Korea] Date Submitted: [07 Sept.,2004] Source: [Hyungsoo Lee, Cheolhyo Lee, Jaeyoung Kim] Company [ETRI] Address [161 Gajeong-dong, Yuseong-gu, Daejeon, 305-350, KOREA] Voice:[+82 42 860-5620], FAX: [+82 42 860-5218] E-Mail:[hsulee@etri.re.kr, clee7@ etri.re.kr, jyk@etri.re.kr] Re: [] Abstract: [This document presents frequency band overview for 860~960MHz frequency band in Korea.] Purpose: [Proposal to IEEE 802.15.4b Task Group] Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Hyungsoo Lee, Cheolhyo Lee, Jaeyoung Kim, ETRI

  2. Frequency Band Overview for 860~960MHz Frequency Band in Korea Hyungsoo Lee, Cheolhyo Lee, Jaeyoung Kim, ETRI

  3. Safety Service CT-2 Wireless Data Comm. 902 869 898 910 915 924.45 930 940 942 960 TRS Mobile Phone P A G E R Broadcast Relay 894 900 908.5 914 851 866 923.55 928 938 950 952 959 Wireless Data Comm. Airport Comm. Cordless Phone (CT-1) Wireless Microphone Cordless Phone Utilization of 860~960MHz Band in Korea • No ISM band between 860~960MHz in Korea • 868~868.6MHz : Airport Communication Service • 902~928MHz : CT-1, CT-2, Safety Service, Pager • Now CT-2 service returned frequency license Hyungsoo Lee, Cheolhyo Lee, Jaeyoung Kim, ETRI

  4. Usable or Sharable Frequency Band Analysis • Case 1 : Reallocation of unused CT-2 frequency band • Total sharable band : 908.5~914MHz • CT-21) band : 910~914MHz • Use Guard band : 908.5~910MHz • Case 2 : Frequency sharing of Low Power Device • Sharing with Wireless Microphone band : • 928~930MHz and 950~952MHz • Korean Government will assign 908.5~914MHz frequency band to motivate RFID industries in Oct 2004 1) CT-2 : Cordless Telephone (second generation). A type of "public" cordless telephone that is connected by TDMA radio links to nearby, microcell base stations. CT-2 is most often used as a wireless payphone. Receiving calls is not possible. Hyungsoo Lee, Cheolhyo Lee, Jaeyoung Kim, ETRI

  5. RFID System RFID Frequency Band 908.7MHz 913.9MHz Tag P=1W 1 2 3 4 26 27 …… Gr=6dBi fa Reader 914MHz 908.5 200KHz 5.4MHz Review of RFID System Considering in Korea • Frequency band : 908.5~914 MHz • Power of Reader : 1W • 27 channels in RFID band : 200KHz/channel Hyungsoo Lee, Cheolhyo Lee, Jaeyoung Kim, ETRI

  6. Korea 915MHz PHY 908.5~914MHz 2MHz 1.2MHz 906 908 910 912 914 916 918 920 922 924 902MHz CH1 CH10 928MHz Comparison between Frequency Utilization of United States and RFID Frequency of Korea • RFID band in Korea allocate two channels in frequency band of United States Hyungsoo Lee, Cheolhyo Lee, Jaeyoung Kim, ETRI

  7. Summary • Examining two frequency sharing cases in Korea • Sharing with RFID band • Sharing with Wireless Microphone band • Reviewing appropriate method • With United States band(902~928MHz) • With European band (868~868.6MHz) Hyungsoo Lee, Cheolhyo Lee, Jaeyoung Kim, ETRI
