  1. ACTUAL Paper size for A0 = 1189 x 841 mm A1 = 841 x 594 mm A3 = 420 x 297 mm Drawing/ Title Block Size A0 = 1150 x 800 mm A1 = 800 x 550 mm A3 = 400 x 275 mm DRAWING PAPER SIZE

  2. 1. Red 0.3 0.3 2. Yellow - - 3. Green 0.2 0.09 4. Cyan 0.4 0.4 5. Blue 0.7 0.7 6. Magenta 0.5 0.5 7. Black 0.3 0.2 8. Dark Grey 0.13 0.05 9. Gray 0.13 0.05 10. 10 - 255 0.13 0.05 PEN SIZE COLOUR REMARK A0/ A1 A3 Object line Dimension PEN ASSIGNMENT

  3. PEN NO. LAYER OBJECT COLOUR 1. Link Link 4 2. Rc Reinforcement 6 3. Txt Notes 3 4. Cl Center line 8/11 5. Dim Dim & ext. line only 8 6. Cloud Revised cloud 6 Object lines 7. L 7 8. H , grid, Hidden, grid line 8 9. Drawing title Txt 7 STANDARD LAYER

  4. PM/ENGINEER PM/ENGINEER DRAFTSPERSON CHECKING PRINTING PREPARE FOR TENDER NEW DRAWING

  5. SOURCE • Hardcopy • - CD PM/ENGINEER CAD COODINATOR record PRINTING CD PM/ENGINEER HARDCOPY DWG. STAND/FILE STAMPING & RECORD DRAWING IN

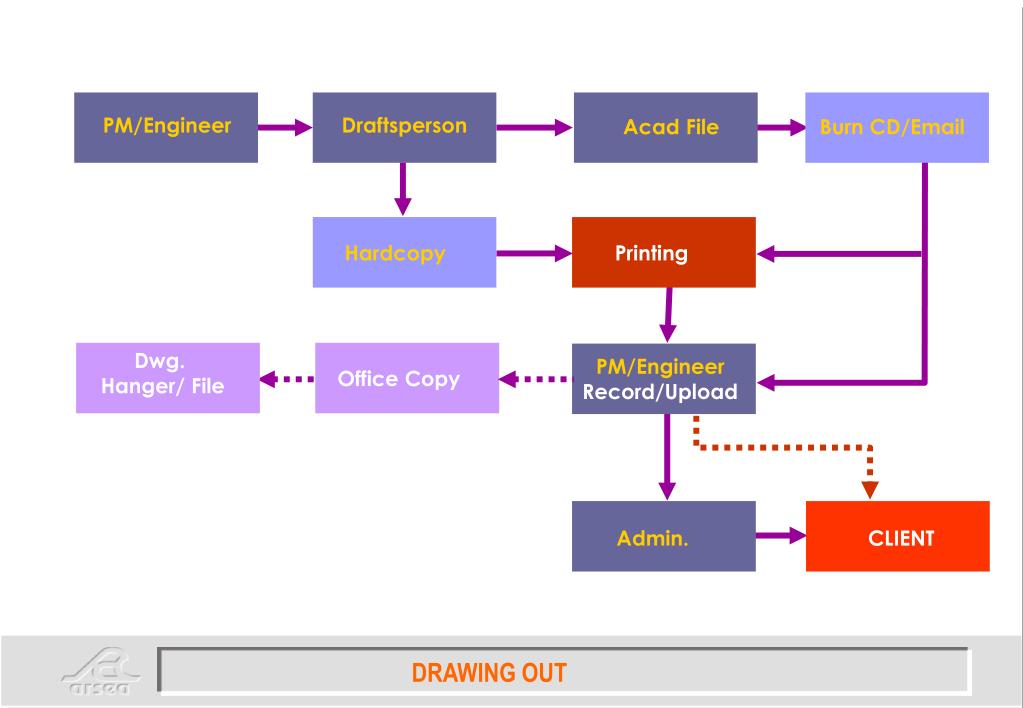

  6. PM/Engineer Draftsperson Acad File Burn CD/Email Hardcopy Printing Dwg. Hanger/ File PM/Engineer Record/Upload Office Copy Admin. CLIENT DRAWING OUT

  7. Drawing size for A0 = 1150 x 800 mm A1 = 800 x 550 mm A3 = 400 x 275 mm Plot Style A0 /A1 = ACE-A1-PS01.ctb A3 = ACE-A3-PS01.ctb DRAWING TITLE BLOCK FOR A1, A0 & A3

  8. Preliminary • 2. Tender • 3. Construction • 4. As built drawing • 5. Authority • = • = • = • = • = P T C AB A DRAWING STATUS

  9. TEXT HEIGHT / WIDTH TEXT STYLE REMARK FONT A3 A0/A1 For Notes Min. font height for A3 = 1mm 1 Romans 2.5/1.0 1.25/ 1.0 For Title 2 Romand 5.0/ 0.8 2.5/ 0.8 3 Romand To suit dwg. condition STANDARD FONT SIZE

  10. Arsea Consulting Engineer Sdn. Bhd. Joint Venture Client Project File Number ACE X&Y LKIM 2005-03 T MH-1001 00 Drawing status Building , Structure or Infra. Code (eg. Market Hall ) Drawing no Amendment DRAWING NUMBER

  11. PC Editing FOLDER 1 REVISED DWG. SUPERCEDED Copy or online Editing Editing Editing Editing Save As R2 Save As R3 Save As R4 Save As R1 DRAWING EDITING
