1. Hyperion: High Volume Stream Archival for Restrospective Querying Peter Desnoyers and Prashant Shenoy University of Massachusetts

2. Packet monitoring with history • Packet monitor: capture and search packet headers • E.g.: Snort, tcpdump, Gigascope • … with history: • Capture, index, and store packet headers • Interactive queries on stored data • Provides new capabilities: • Network forensics: • When was a system compromised? From where? How? • Management: • After-the-fact debugging monitor storage

3. Challenges • Speed • Storage rate, capacity • to store data without loss, retain long enough • Queries • must search millions of packet records • Indexing in real time • for online queries • Commodity hardware 1 gbit/s x 80% ÷ 400 B/pkt = 250,000 pkts/s For each linkmonitored

4. Existing approaches Packet monitoring with history requires a new system. *Niksun NetDetector, Sandstorm NetInterceptor

5. Outline of talk • Introduction and Motivation • Design • Implementation • Results • Conclusions

6. Hyperion Design • Multiple monitor systems • High-speed storage system • Local index • Distributed index for query routing Distributedindex Monitor/capture Index Hyperion node Storage

7. Storage Requirements • Real-time • Writes must keep up or data is lost • Prioritized • Reads shouldn’t interfere with writes • Aging • Old data replaced by new • Stream storage • Different behavior Behavior:Typical app. vs. Hyperion Packet monitoring is different from typical applications

8. 2: C 3: A 4: B Log structured stream storage • Goal: minimize seeks • despite interleaved writes on multiple streams • Log-structured file system minimizes seeks • Interleave writes at advancing frontier • free space collected by segment cleaner disk position C A C A B Write frontier 1: A • But: • General-purpose segment cleaner performs poorly on streams

9. skip Hyperion StreamFS • How to improve on a general-purpose file system? • Rely on application use patterns • Eliminate un-needed features • StreamFS – log structure with no segment cleaner. • No deletes (just over-write) • No fragmentation • No segment cleaning overhead • Operation: • Write fixed-size segment • Advance write frontier to next segment ready for deletion

10. StreamFS Design • Record • Single write, packed into: • Segment • Fixed-size, single stream, interleaved into: • Region • Contains: • Region map • Identifies segments in region • Used when write frontier wraps • Directory • Locate streams on disk record segment region Region map directory Stream_A …

11. StreamFS optimizations New data • Data Retention • Control how much history saved • Lets filesystem make delete decisions • Speed balancing • Worst-case speed set by slowest tracks • Solution: interleave fast and slow sections • Worst-case speed now set by average track Reservation Old data is deleted

12. Local Index • Requirements: • High insertion speed • Interactive query response Index and search mechanisms

13. Signature Keys Records Signature Index • Compress data into signature • Store signature separately • Search signature, not data • Retrieve data itself on match • Signature algorithm: Bloom filter • No false negatives – never misses a result • False positives – extra read overhead

14. Bytes searched Index size Signature index efficiency Overhead = bytes searched • Index size • False positives (data scan) • Concise index: • Index scan cost: low • False positive scans: high • Verbose index: • Index scan cost: high • False positive scans: low

15. Multi-level signature index • Concise index: • Low scan overhead • Verbose index: • Low false positive overhead • Use both • Scan concise index • Check positives in verbose index Concise index Verbose index Data records

16. Distributed Index • Query routing: • Send queries only to nodes holding matches • Use signature index • Index distribution: • Aggregate indexes at cluster head • Route queries through cluster head • Rotate cluster head for load sharing

17. Implementation • Components: • StreamFS • Index • Capture • RPC, query & index distribution • Query API • Linux OS • Python framework RPC, query, index dist. QueryAPI Index StreamFS capture Linux kernel Hyperion components

18. Outline of talk • Introduction and Motivation • Design • Implementation • Results • Conclusions

19. Experimental Setup • Hardware: • Linux cluster • Dual 2.4GHz Xeon CPUs • 1 GB memory • 4 x 10K RPM SCSI disks • Syskonnect SK98xx + U. Cambridge driver • Test data • Packet traces from UMass Internet gateway* • 400 mbit/s, 100k pkt/s *http://traces.cs.umass.edu

20. StreamFS – write performance • Tested configurations: • NetBSD / LFS • Linux / XFS (SGI) • StreamFS • Workload: • multiple streams, rates • Logfile rotation • Used for LFS, XFS • Results: • 50% boost in worst-case throughput • Fast enough to store 1,000,000 packet hdrs/s

21. StreamFS – read/write • Workload: • Continuous writes • Random reads • StreamFS: • sustained write throughput • XFS • throughput collapse StreamFS can handlestream read+write traffic without data loss. XFS cannot.

22. Index Performance • Calculation benchmark: • 250,000 pkts/sec • Query: • 380M packet headers • 26GB data • selective query (1 pkt returned) • Query results: • 13MB data fetched to query 26GB data (1:2000) Data fetched (MB) Index size

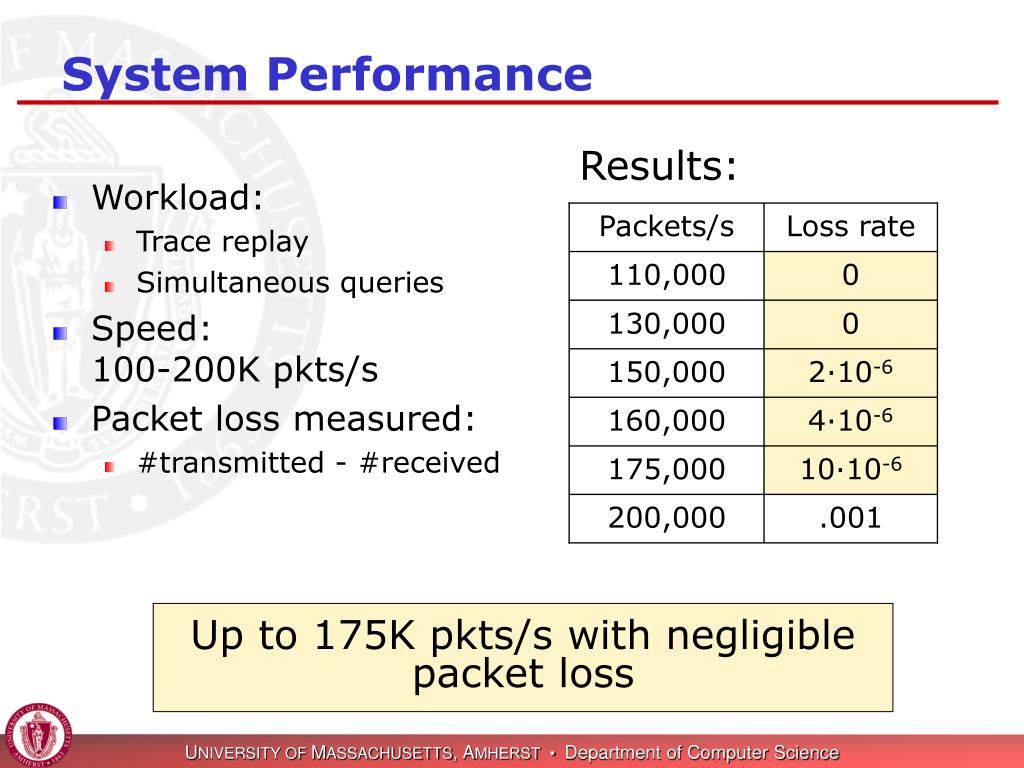

23. Results: Packets/s Loss rate 110,000 0 130,000 0 150,000 2·10-6 160,000 4·10-6 175,000 10·10-6 200,000 .001 System Performance • Workload: • Trace replay • Simultaneous queries • Speed:100-200K pkts/s • Packet loss measured: • #transmitted - #received Up to 175K pkts/s with negligible packet loss

24. Conclusions Hyperion - packet monitoring with retrospective queries Key components: • Storage • 50% improvement over GP file systems • Index • Insert at 250K pkts/sec • Interactive query over 100s of millions of pkts System • Capture, index, and query at 175K pkts/sec

25. Questions Questions?
