  1. Active Directory Group Policy

  2. Group Policy Overview • Successor to NT policies • Much more flexible • Only applies to 2000 workstations • Use old style policies for NT • Used to manage desktop environment • Integrated into Active Directory

  3. What Can Group Policy Manage? • Administrative Templates — registry-based settings • Security settings • Software installation • Scripts • Login, logout, startup, shutdown • Folder redirection • Remote Installation Services • Internet Explorer maintenance

  4. Registry-based Settings • Control over desktop, control panel access, Start Menu and Taskbar, some Windows components, and more… • Generally three settings — Not configured, Enabled, Disabled • Implemented via Administrative Templates • Text file with .adm extension • Extensible • Can create your own • Some programs ship with their own (Office)

  5. Security Policy Settings • Account Policies — password, account, Kerberos • Local Policies — auditing, user rights, security options • Event Log — e.g. maximum size • Restricted Group — group membership • System Services — security and startup settings • Registry — registry key security • File System — file system security • Public Key Policies — encryped data, certificate authorities • IP Security Policies — IP security

  6. Software Installation • Use to install software • Use to upgrade software • Three methods • Assign applications to users • Assign applications to computers • Publish applications to users • Available to users, but not installed unless requested

  7. Script Settings • Assign scripts (login, logout etc.) • Set processing order

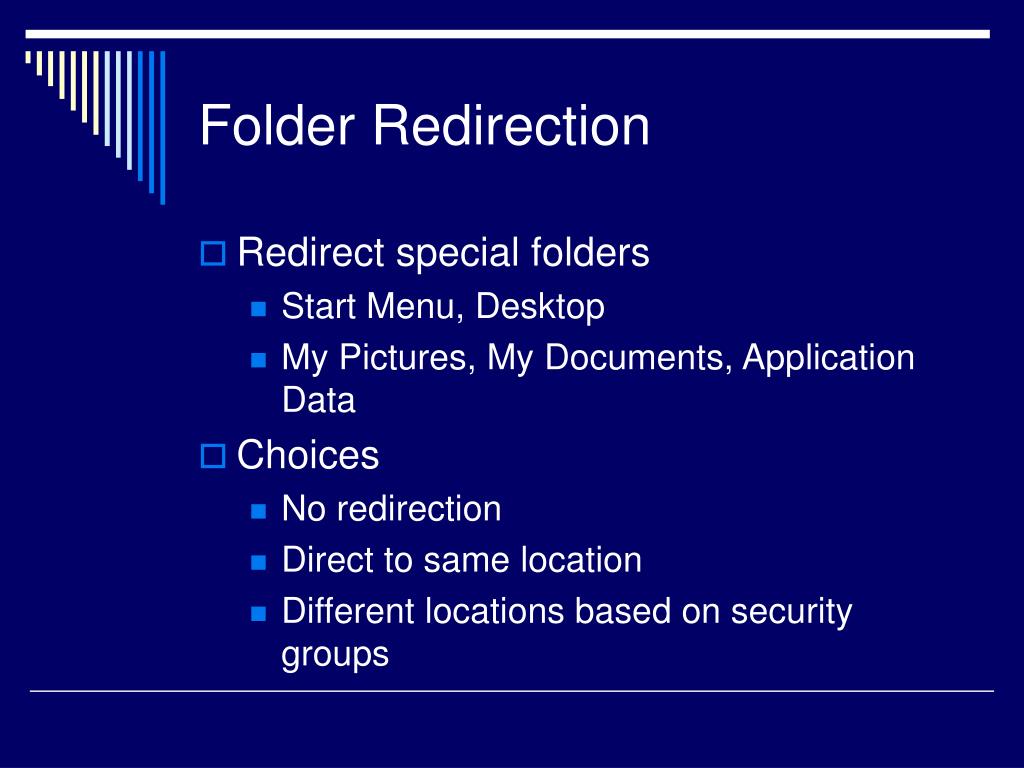

  8. Folder Redirection • Redirect special folders • Start Menu, Desktop • My Pictures, My Documents, Application Data • Choices • No redirection • Direct to same location • Different locations based on security groups

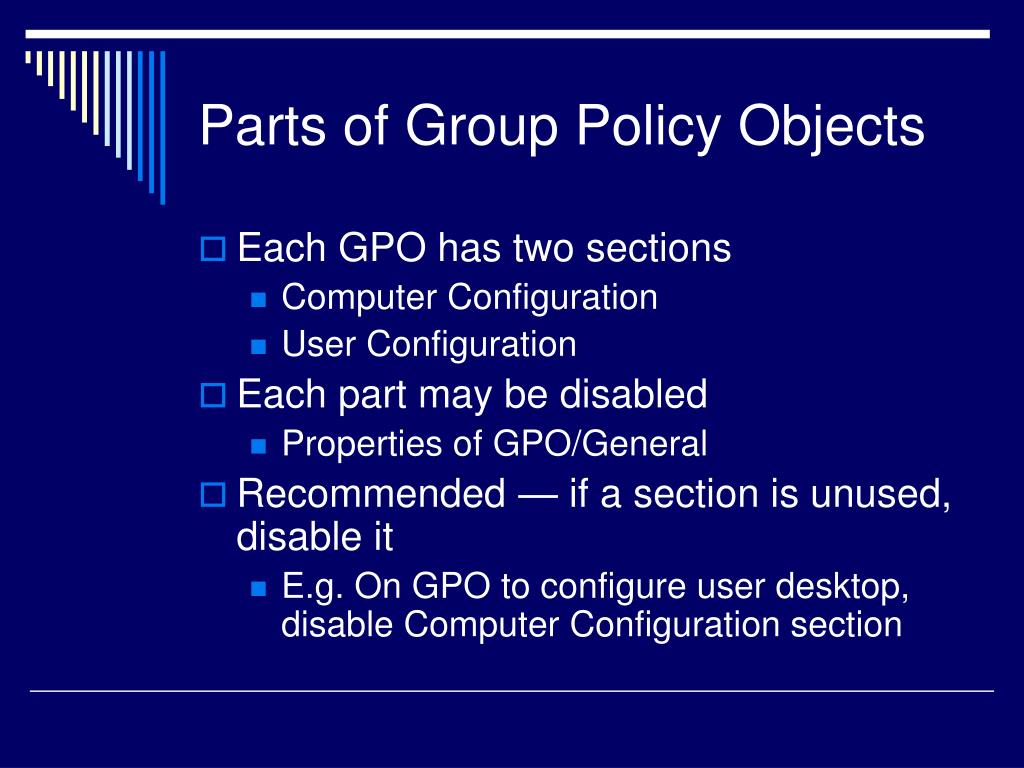

  9. Parts of Group Policy Objects • Each GPO has two sections • Computer Configuration • User Configuration • Each part may be disabled • Properties of GPO/General • Recommended — if a section is unused, disable it • E.g. On GPO to configure user desktop, disable Computer Configuration section

  10. Creating Group Policy Objects • AD Users and Computers • Properties of Domain/OU • Creates new GPO linked to that domain/OU • AD Sites and Services • To create site GPO • Also via MMC Group Policy Snap-in • To create a GPO not linked to a site, domain or OU

  11. How are Group Policy Objects Applied • GPOs may be linked to AD containers • Sites, Domains and Organizational Units (OUs) • Apply to users and computers within container • Objects in child OUs inherit GPO settings from parent OUs, domain and site unless explicitly blocked • No inheritance across domain boundaries • One GPO may be linked to multiple containers • Multiple GPOs may be linked to a container • GPOs are not linked to groups

  12. Modifying GPO Inheritance • Block Inheritance • If enabled on a container, objects in container do not receive any GPO settings from parent containers • No Override • If enabled on a GPO link, inheritance of GPO settings cannot be stopped via block inheritance • NB Applied to link, not the GPO itself

  13. Filtering Group Policy Settings • GPO settings applied to all objects in container • Filter using security groups • Change default GPO permissions • Need Read and Apply GP ACEs to be able to apply a GPO • Need Read and Write GP ACEs to be able to read and modify a GPO

  14. Deleting and Disabling Group Policy Objects • Disabling a GPO • Disable Computer or User sections • Disable both to disable GPO entirely • Also disable using Options button in AD Users and Computers/Container Properties • Deleting a GPO • AD Users and Computers • Will be offered two options • Remove the link from the list — deletes link but not GPO • Remove the link and delete the GPO permanently — deletes GPO

  15. Disabling and Inheriting:— What do the Properties Belong to? • Properties of a given GPO • Disable Computer Configuration Settings • Disable User Configuration Settings • Properties of a given container • Block policy inheritance • Properties of a given link • No override • Disabled: the GPO is not applied to this container

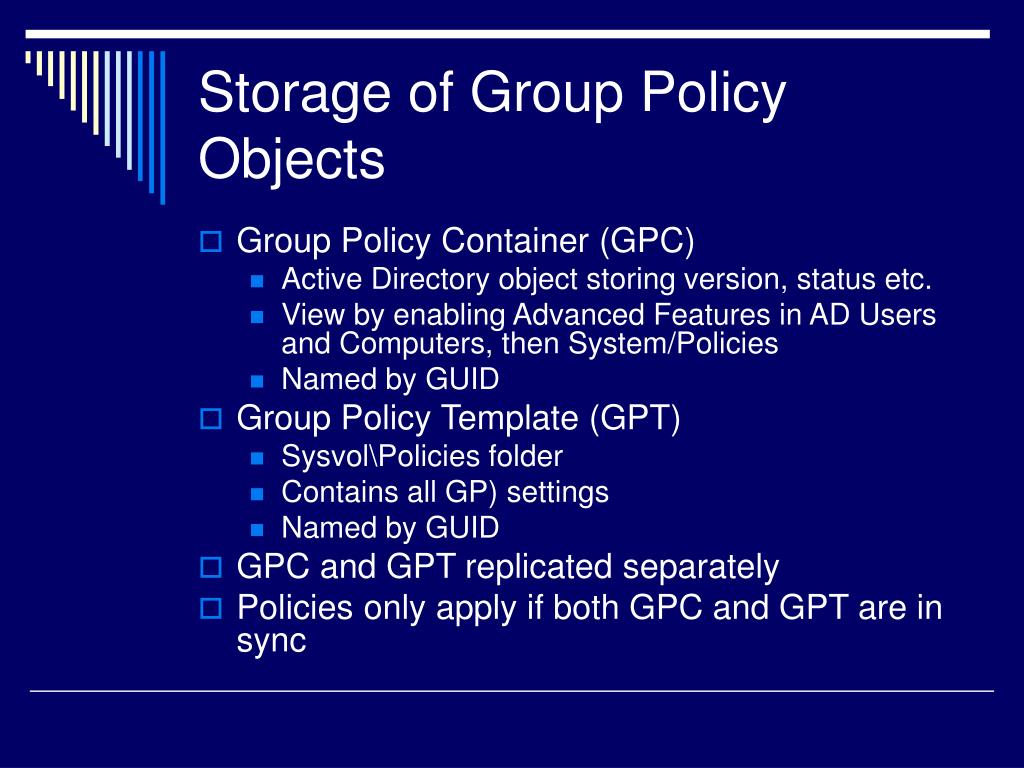

  16. Storage of Group Policy Objects • Group Policy Container (GPC) • Active Directory object storing version, status etc. • View by enabling Advanced Features in AD Users and Computers, then System/Policies • Named by GUID • Group Policy Template (GPT) • Sysvol\Policies folder • Contains all GP) settings • Named by GUID • GPC and GPT replicated separately • Policies only apply if both GPC and GPT are in sync

  17. Storage of Group Policy Settings • Stored in client registry • HKEY_LOCAL_MACHINE (Computer settings) • HKEY_CURRENT_USER (User settings) • Special registry keys used • \Software\Policies (preferred) • \Software\Microsoft\Windows\CurrentVersion\Policies • Removed when GPO no longer applies

  18. Order of GPO Application • Order of application is Site, Domain OU (SDOU) • Multiple OUs — order of application is according to domain hierarchy (start at top of tree and work down) • Multiple GPOs for same OU — processed in reverse order of list of GPOs shown for that OU • I.e. GPO at top of list takes precedence • Order can be changed

  19. When are GP Settings Applied? • Computer settings • On boot • According to periodic refresh cycle • User settings • On user logon • According to periodic refresh cycle • If computer and user settings conflict, computer settings take precedence

  20. Refreshing Group Policy • Default refresh intervals • 2000 professional and member servers — very 90 minutes with randomized 30 minutes offset • Domain controllers — every five minutes • Changed by altering administrative template settings for user or computers • Exception — software installation and folder redirection policies only applied on boot or user logon, not periodically

  21. Conflicts • Where settings for GPO of parent container conflict with those for GPO of child, child container settings win • Where settings from different GPOs linked to same container conflict, settings of GPO highest in list are win • Use Up/Down to change position • Exception — where computer and user settings conflict, computer settings win • Except IP Security and User Rights settings

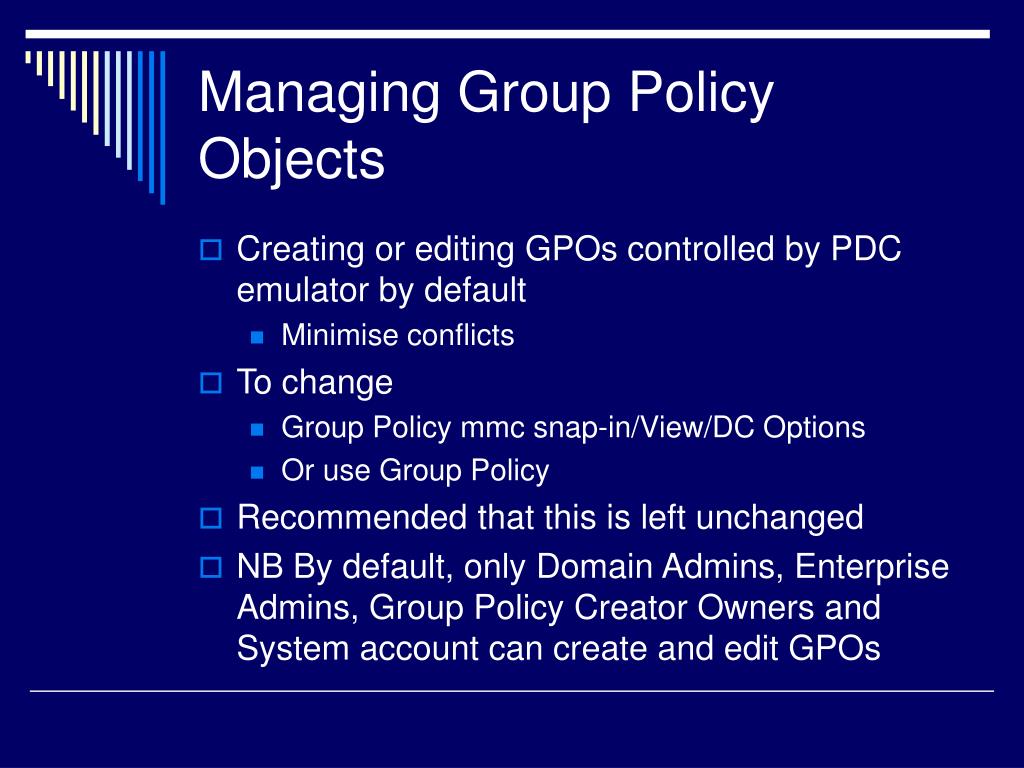

  22. Managing Group Policy Objects • Creating or editing GPOs controlled by PDC emulator by default • Minimise conflicts • To change • Group Policy mmc snap-in/View/DC Options • Or use Group Policy • Recommended that this is left unchanged • NB By default, only Domain Admins, Enterprise Admins, Group Policy Creator Owners and System account can create and edit GPOs

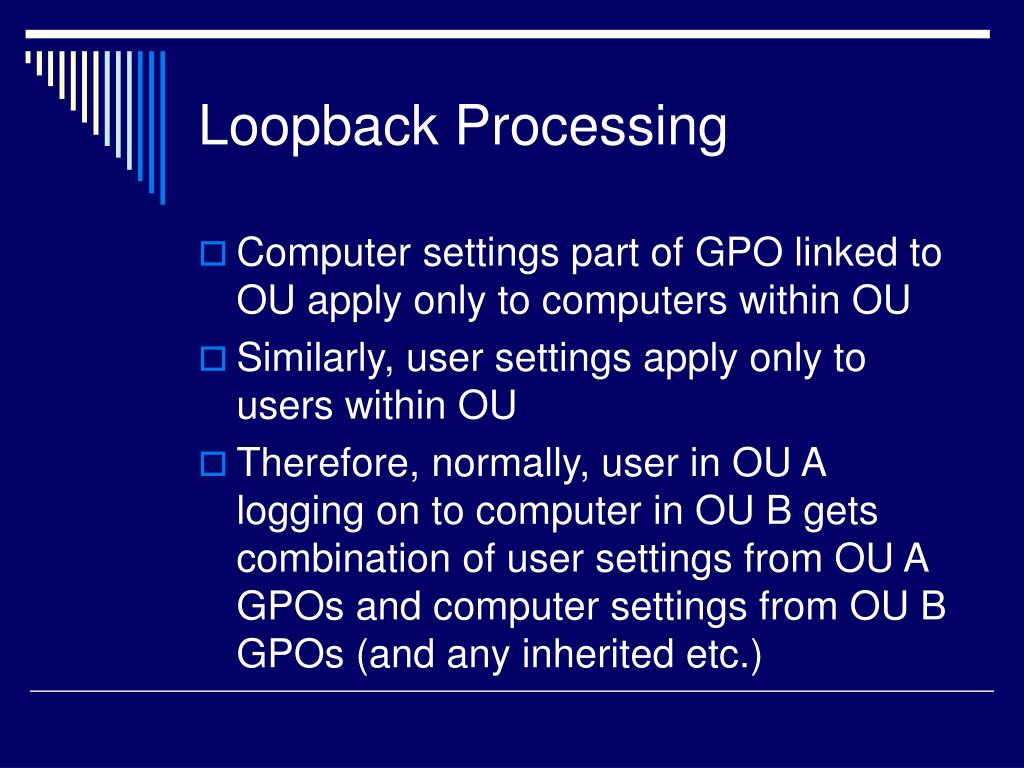

  23. Loopback Processing • Computer settings part of GPO linked to OU apply only to computers within OU • Similarly, user settings apply only to users within OU • Therefore, normally, user in OU A logging on to computer in OU B gets combination of user settings from OU A GPOs and computer settings from OU B GPOs (and any inherited etc.)

  24. Loopback Processing cont. • May want to apply same user settings to any user logging on to a given workstation, regardless of user OU • E.g. classroom, public area workstations • Loopback processing does this • Merge mode applies normal GPOs for user as well (but those from computer take precedence) • Replace mode does not apply normal GPOs for user

  25. Local Group Policy • Computers also have a single Local Group Policy Object (LGPO) • Only supports Security Settings, Administrative Templates and Scripts • Processed before AD GPOs • Block inheritance does not stop its application • Generally unused in an AD setup • Most useful for configuring standalone computers

  26. Delegation • It is possible to delegate responsibility for the following tasks • Managing links • Creating GPOs • Editing GPOs

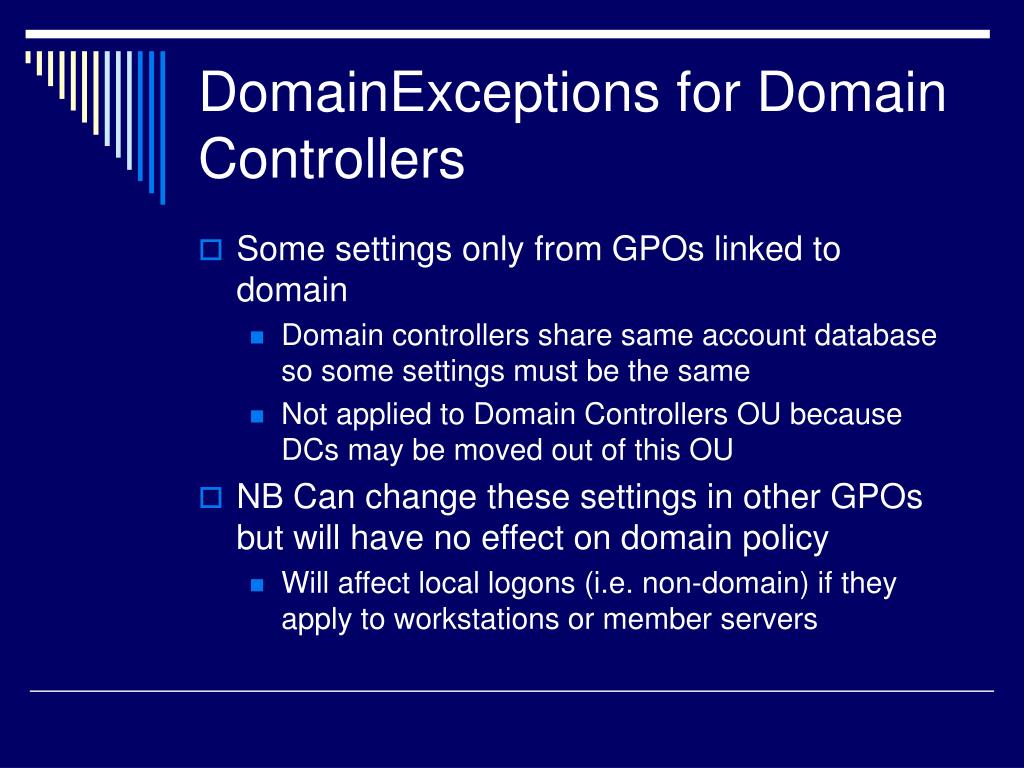

  27. DomainExceptions for Domain Controllers • Some settings only from GPOs linked to domain • Domain controllers share same account database so some settings must be the same • Not applied to Domain Controllers OU because DCs may be moved out of this OU • NB Can change these settings in other GPOs but will have no effect on domain policy • Will affect local logons (i.e. non-domain) if they apply to workstations or member servers

  28. Exceptions for Domain Controllers cont. • Domain-wide settings • All account policies (Computer Configuration/Windows Settings/Security Settings) • I.e. Password, Account lockout and Kerberos policies) • Some settings from Computer Configuration/Windows Settings/Local Policies/Security Options • Automatically log off users when logon time expires • Rename administrator account • Rename guest account

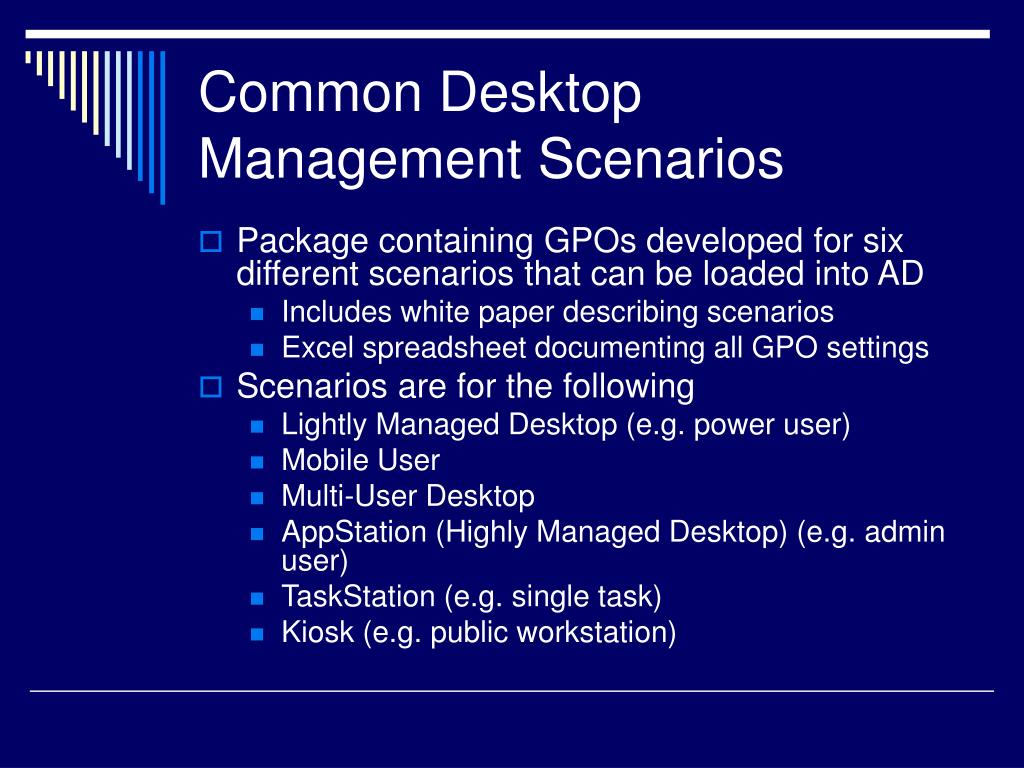

  29. Common Desktop Management Scenarios • Package containing GPOs developed for six different scenarios that can be loaded into AD • Includes white paper describing scenarios • Excel spreadsheet documenting all GPO settings • Scenarios are for the following • Lightly Managed Desktop (e.g. power user) • Mobile User • Multi-User Desktop • AppStation (Highly Managed Desktop) (e.g. admin user) • TaskStation (e.g. single task) • Kiosk (e.g. public workstation)

  30. Common Desktop Management Scenarios • NB Loading GPOs into AD does not mean they take immediate effect • Not linked to any container • Use as starting points • Use Excel spreadsheet to document GPO changes

  31. Common Desktop Management Scenarios • White paper • http://www.microsoft.com/technet/treeview/default.asp?url=/TechNet/prodtechnol/windows2000serv/deploy/grppolsc.asp • All files • http://www.microsoft.com/windows2000/zipdocs/grouppolscen.exe

  32. OU Design Issues • Deep OU structure • Easier to apply GPOs without filtering • More likely to require inheritance modifications • Flat OU structure • More likely to need filtering • Easier to troubleshoot (less inheritance issues)

  33. Number of GPOs Required • Few comprehensive GPOs • Less to manage • Shorter logon times • Many narrowly focussed GPOs • More to manage • Likely to need to more filtering • Increased logon times • In theory, up to 20 GPOs applying to a user should not have major impact on logon times

  34. Recommendations • Disable unused parts of GPO (computer, user settings) • Limit use of inheritance blocking, no override, loopback processing and filtering • Simplifies troubleshooting • Limit total number of GPOs that apply to a user or computer • Improves logon times

  35. Recommendations cont. • Limit the number of admins who can edit GPOs • Test thoroughly before applying to users/computers • Document settings • Use spreadsheets from Common Desktop Management Scenarios package

  36. References • Windows 2000 Group Policy • http://www.microsoft.com/windows2000/docs/grouppolwp.doc • Loopback Processing of Group Policy • http://support.microsoft.com/support/kb/articles/Q231/2/87.ASP • How to Use Group Policy Objects to Deploy SP1 for Windows 2000 • http://support.microsoft.com/support/kb/articles/Q260/3/01.ASP

  37. References • Group Policy Application Rules for Domain Controllers • http://support.microsoft.com/support/kb/articles/Q259/5/76.ASP • Domain Security Policy in Windows 2000 • http://support.microsoft.com/support/kb/articles/Q221/9/30.ASP • Configuring Account Policies in Active Directory • http://support.microsoft.com/support/kb/articles/Q255/5/50.ASP

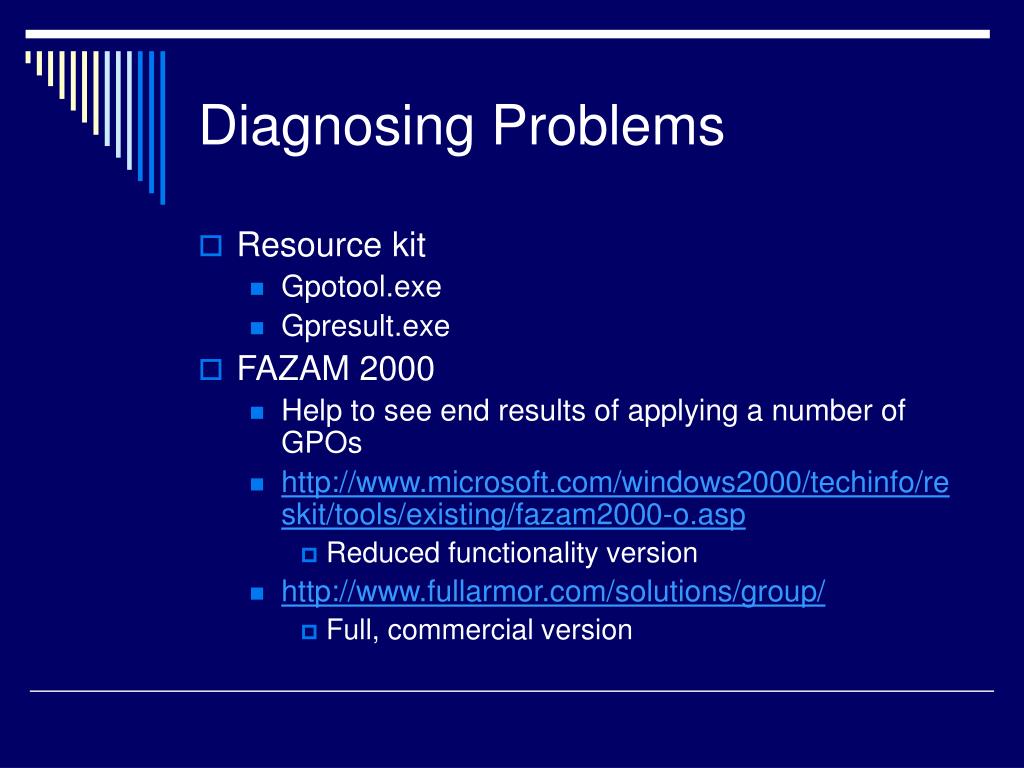

  38. Diagnosing Problems • Resource kit • Gpotool.exe • Gpresult.exe • FAZAM 2000 • Help to see end results of applying a number of GPOs • http://www.microsoft.com/windows2000/techinfo/reskit/tools/existing/fazam2000-o.asp • Reduced functionality version • http://www.fullarmor.com/solutions/group/ • Full, commercial version
