SSB-SC Sideband Filter Method

SSB-SC Sideband Filter Method. cos(( w c - w IF )t). Carrier Filter. USB Filter. LSB Filter. x. x. a(t). e(t). (SSB). cos( w IF t). w c - 2 w IF. w c. w IF. w c - w IF. Minimum Transmitted Bandwidth Zero Carrier Power

hilda-warren
Télécharger la présentation

SSB-SC Sideband Filter Method

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. SSB-SC Sideband Filter Method cos((wc - wIF)t) Carrier Filter USB Filter LSB Filter x x a(t) e(t) (SSB) cos(wIFt) wc - 2wIF wc wIF wc - wIF • Minimum Transmitted Bandwidth • Zero Carrier Power • IF and Carrier oscillators must be phase/frequency locked in both transmitter and receiver

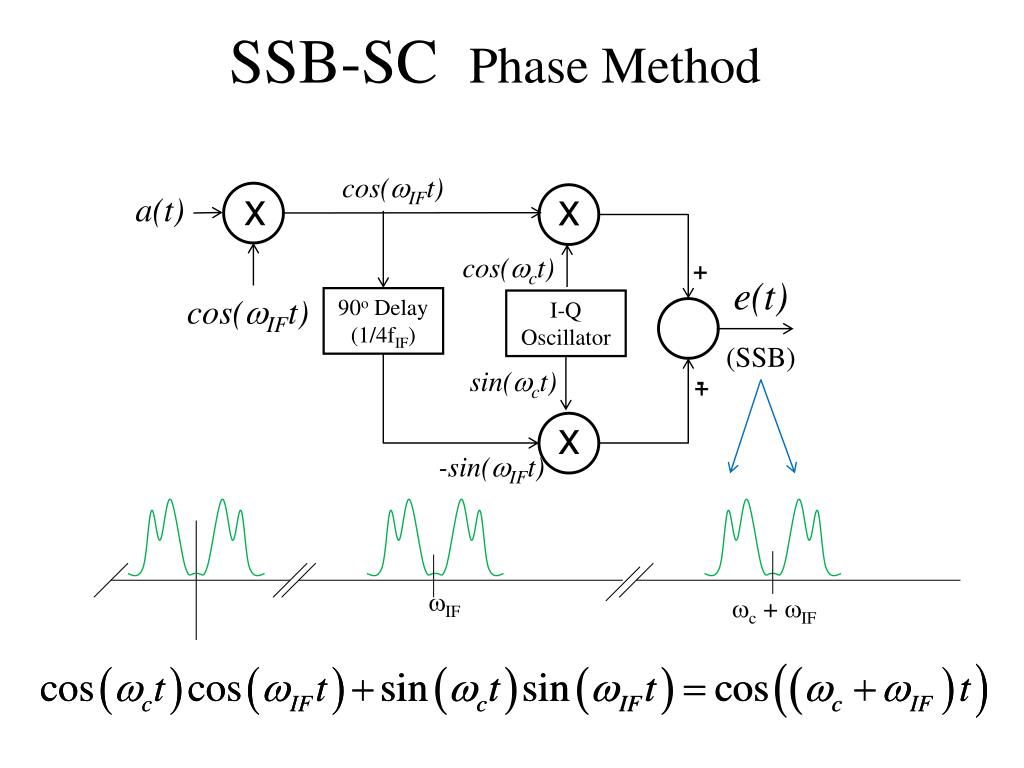

  2. SSB-SC Phase Method cos(wIFt) x x a(t) cos(wct) + e(t) (SSB) cos(wIFt) 90o Delay (1/4fIF) I-Q Oscillator sin(wct) - + x -sin(wIFt) wIF wc + wIF

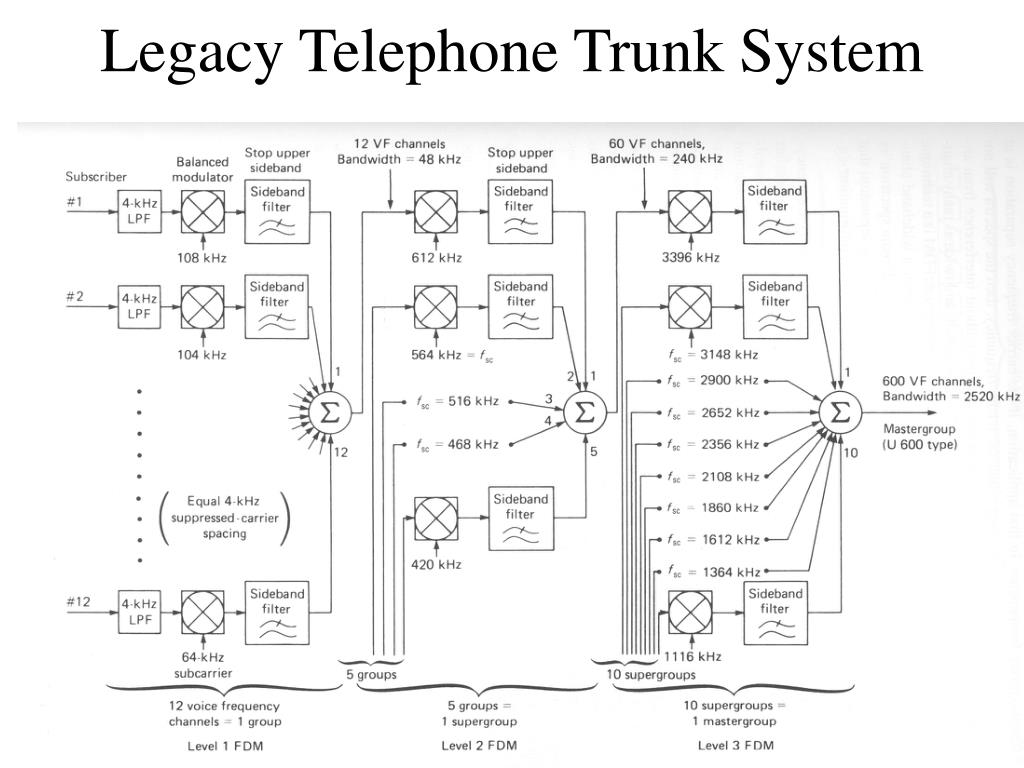

  3. Legacy Telephone Trunk System

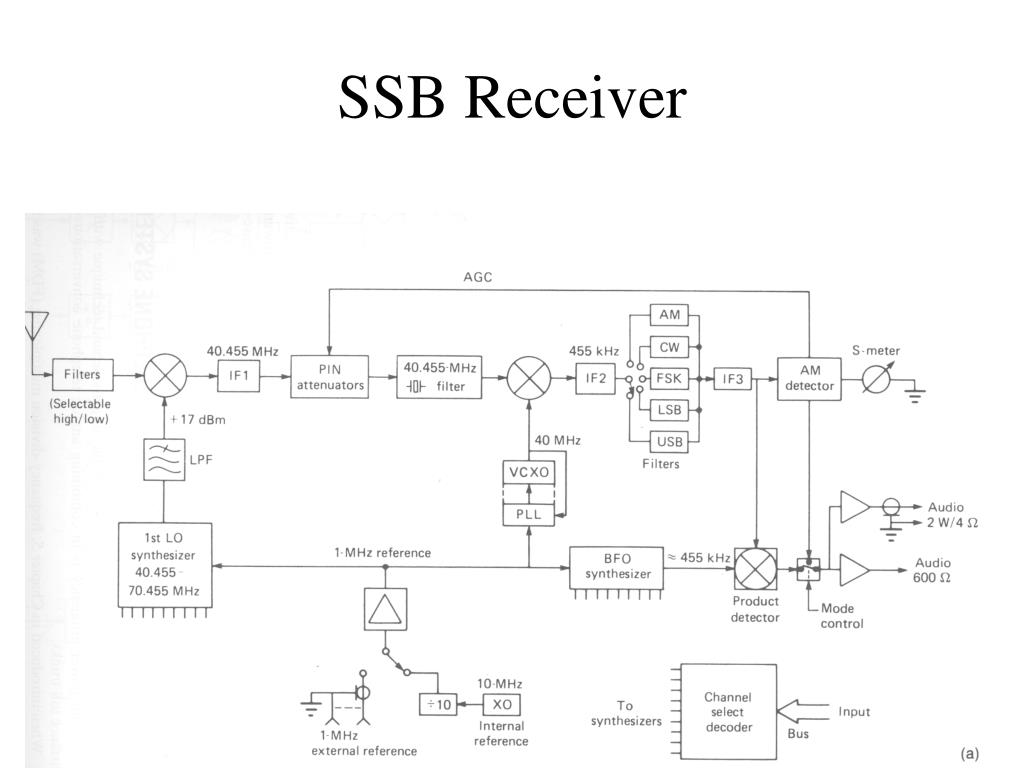

  4. SSB Receiver
