  1. SUSY PAT All Hadronic Default Settings (To Run over sample, HLT Selection is turned off) This takes standard PAT Level One Objects and applies the following Kinematic Cuts for event selection: • Min Missing Et = 0 GeV • Number of Level 1 Jets = 3 Jets • Minimum Et for each of the first three Layer 1 Jets = 30 GeV, 30 GeV, 30 GeV • Max Eta for each of the first three Jets = 1.7, 3.0, 3.0 • Max EM Fraction for each of first three Layer One Jets = 999, 999, 999 • Max Eta for any Layer 1 Jet = 12 • Min Pt for Any Layer 1 Jet = 10.0 GeV

  2. SUSY PAT Default Settings MET Distribution

  3. SUSY PAT No Cuts on Event Selection This takes standard PAT Level One Objects and requires no event selection criteria Total # of Events in sample = 22249 Total # of “Bad” Events = 355 Total # of Events used by Seema = 21894

  4. SUSY PAT No Cuts Entries: 21864 Mean 364.8 RMS 208.6 Entries: 22249 Mean 352.7 RMS 205.1

  5. SUSY PAT All Hadronic Default Settings (To Run over sample, HLT Selection is turned off) This takes standard PAT Level One Objects and applies the following Kinematic Cuts for event selection: • Min Missing Et = 200 GeV • Number of Level 1 Jets = 3 Jets • Minimum Et for each of the first three Layer 1 Jets = 100 GeV, 30 GeV, 30 GeV • Max Eta for each of first three Jets = 1.3, 12.0, 12.0 • Max EM Fraction for each of first three Layer One Jets = 999, 999, 999 • Max Eta for any Layer 1 Jet = 12 • Min Pt for Any Layer 1 Jet = 10.0 GeV

  6. SUSY PAT Kinematic Cuts Entries: 12382 Mean 439.6 RMS 174.4 Entries: 10547 Mean 436.9 RMS 175.2

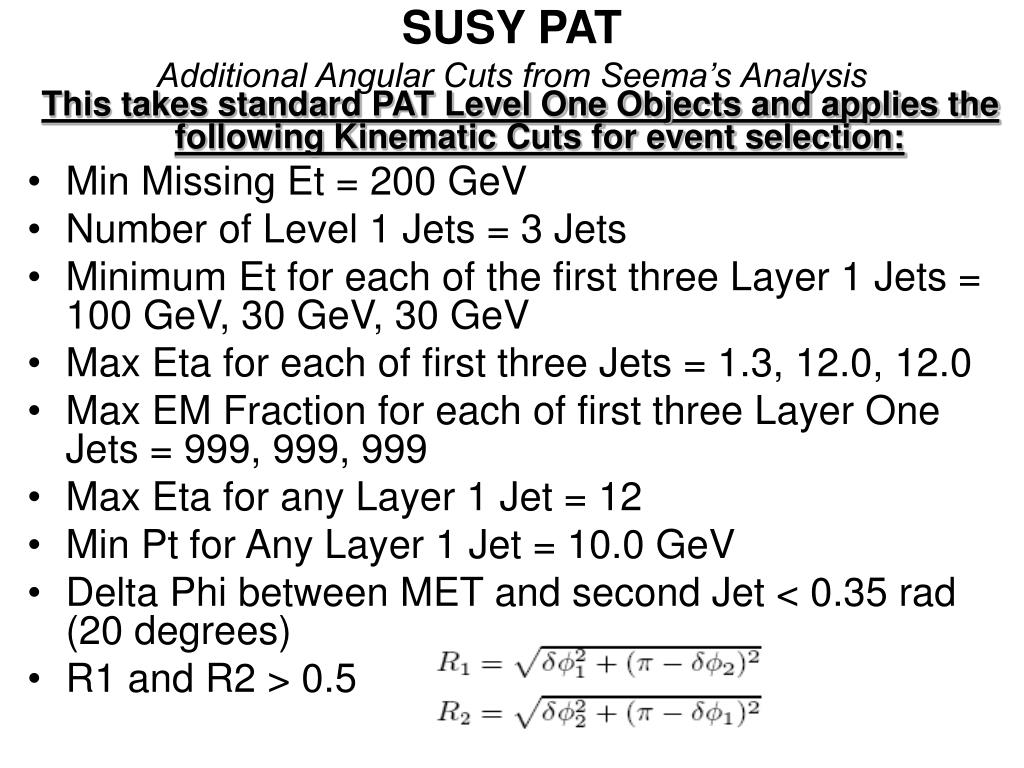

  7. SUSY PAT Additional Angular Cuts from Seema’s Analysis This takes standard PAT Level One Objects and applies the following Kinematic Cuts for event selection: • Min Missing Et = 200 GeV • Number of Level 1 Jets = 3 Jets • Minimum Et for each of the first three Layer 1 Jets = 100 GeV, 30 GeV, 30 GeV • Max Eta for each of first three Jets = 1.3, 12.0, 12.0 • Max EM Fraction for each of first three Layer One Jets = 999, 999, 999 • Max Eta for any Layer 1 Jet = 12 • Min Pt for Any Layer 1 Jet = 10.0 GeV • Delta Phi between MET and second Jet < 0.35 rad (20 degrees) • R1 and R2 > 0.5

  8. Entries: 11381 Mean 442.6 RMS 172.4 Plot coming….running into errors that Frederic is helping with…!
