HLR Number Analysis

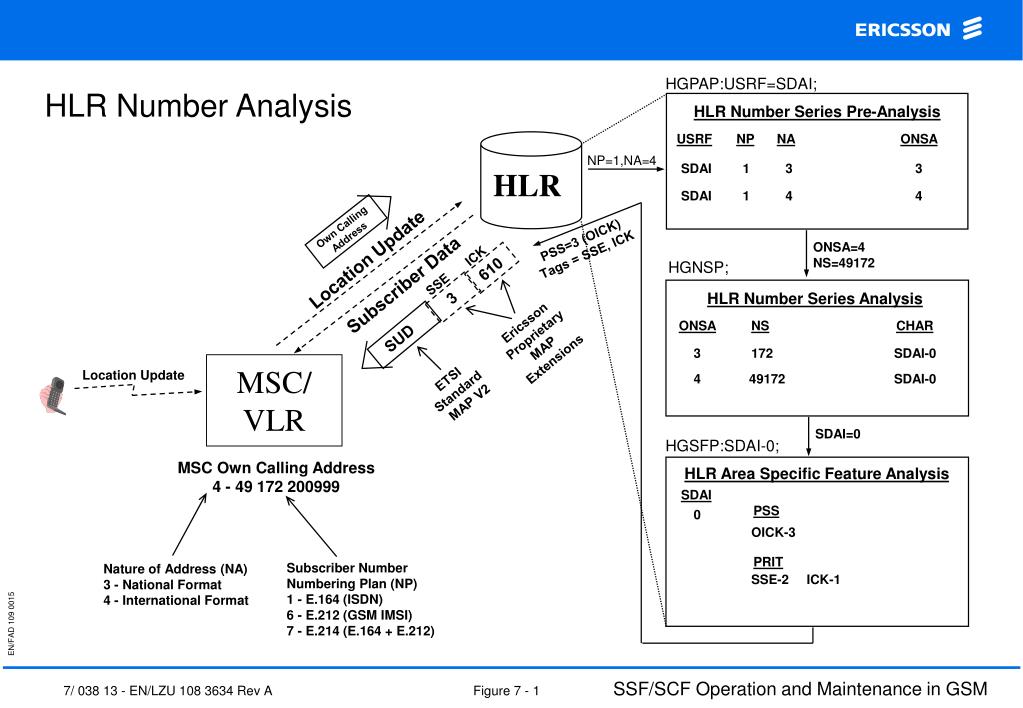

Own Calling Address. HGPAP:USRF=SDAI;. HLR Number Analysis. HLR Number Series Pre-Analysis. USRF. NP. NA. ONSA. NP=1,NA=4. SDAI. 1. 3. 3. HLR. SDAI. 1. 4. 4. PSS=3 (OICK) Tags = SSE, ICK. ONSA=4 NS=49172. ICK. Location Update. HGNSP;. 610. Subscriber Data. SSE. 3.

hiroko
Télécharger la présentation

HLR Number Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Own Calling Address HGPAP:USRF=SDAI; HLR Number Analysis HLR Number Series Pre-Analysis USRF NP NA ONSA NP=1,NA=4 SDAI 1 3 3 HLR SDAI 1 4 4 PSS=3 (OICK) Tags = SSE, ICK ONSA=4 NS=49172 ICK Location Update HGNSP; 610 Subscriber Data SSE 3 HLR Number Series Analysis Ericsson Proprietary MAP Extensions ONSA NS CHAR SUD 3 172 SDAI-0 MSC/ VLR ETSI Standard MAP V2 Location Update 4 49172 SDAI-0 SDAI=0 HGSFP:SDAI-0; MSC Own Calling Address 4 - 49 172 200999 HLR Area Specific Feature Analysis SDAI PSS 0 OICK-3 PRIT Subscriber Number Numbering Plan (NP) 1 - E.164 (ISDN) 6 - E.212 (GSM IMSI) 7 - E.214 (E.164 + E.212) Nature of Address (NA) 3 - National Format 4 - International Format SSE-2 ICK-1

  2. 2 3 1 IST Mobile IN Call Flow MSC/VLR (XSS) SSF SCF INAP MSS MDS imsi VLR Data Remote Operations oick-610 INPM MTA imsi IMSI Analysis IDP inoper-16 DJAM Routes SSI APC Links FNC=5 MIS2=16 Triggering TCS BNR=610 xxx BO=260 SYSTEM ACCESS SCRIPT RE DJAMO TDP IST MIN ISK=IST-610 RC=260 M=3 L=3-28 CC=1 etc. Event Monitoring DJAMI (R=5MIN16) HLS ACCESS SCRIPT SSF Routes OBA BNR RC= 260 R=DJAMO SP=MM1 DP Basic Call Handler DA RA SHRDO IN SERVICE SCRIPTS SHCM RMP CCS COSS TCAP SCCP APC MTP APZ DBS SHINS SHTSO SHTDP SHTDPS SHISTTOTDP SHTSD SHIST SHEXTLIST SHTNS SHEXTRANS
