Indicators for Monitoring LRMPs Dave Daust
Outline • Indicators • Planning/Monitoring Paradigm • Reality 1. Missing Indicators • Reality 2. Missing Targets • Reality 3. Missing Strategies • Reality 4. No Explicit Models • Results and Recommendations
Indicator • Indicate: “To give a sign of” • Storm clouds indicate rain (note uncertainty) • Mileposts indicate progress (note repetitive feedback)

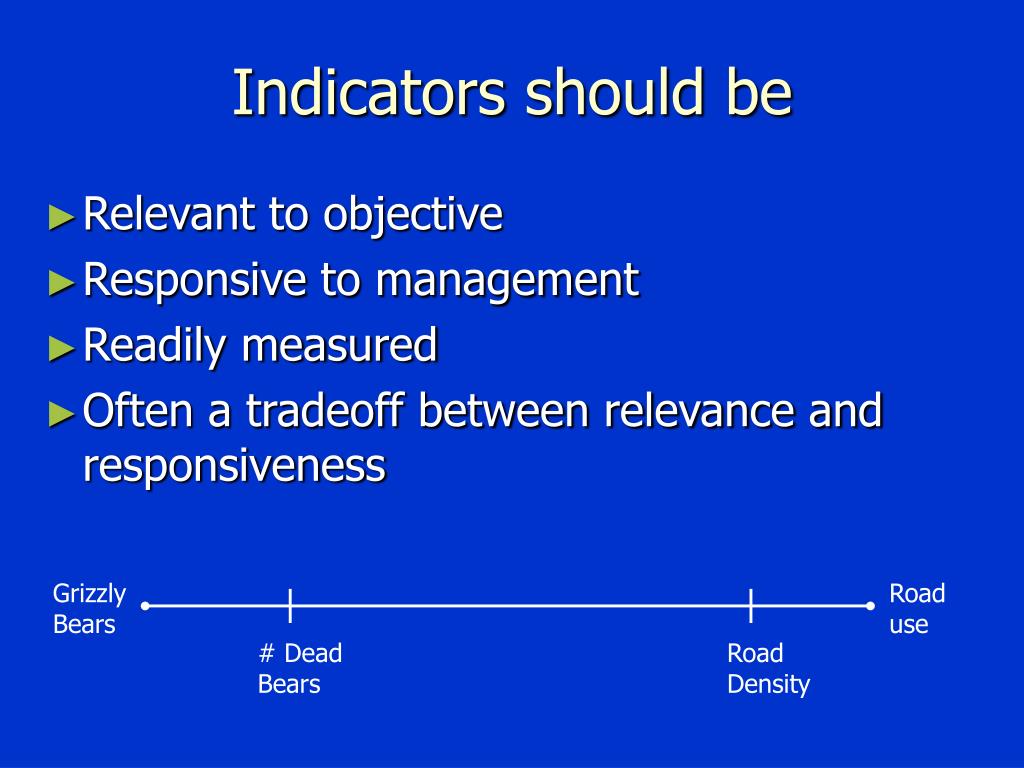

Indicators should be • Relevant to objective • Responsive to management • Readily measured • Often a tradeoff between relevance and responsiveness Grizzly Bears Road use # Dead Bears Road Density

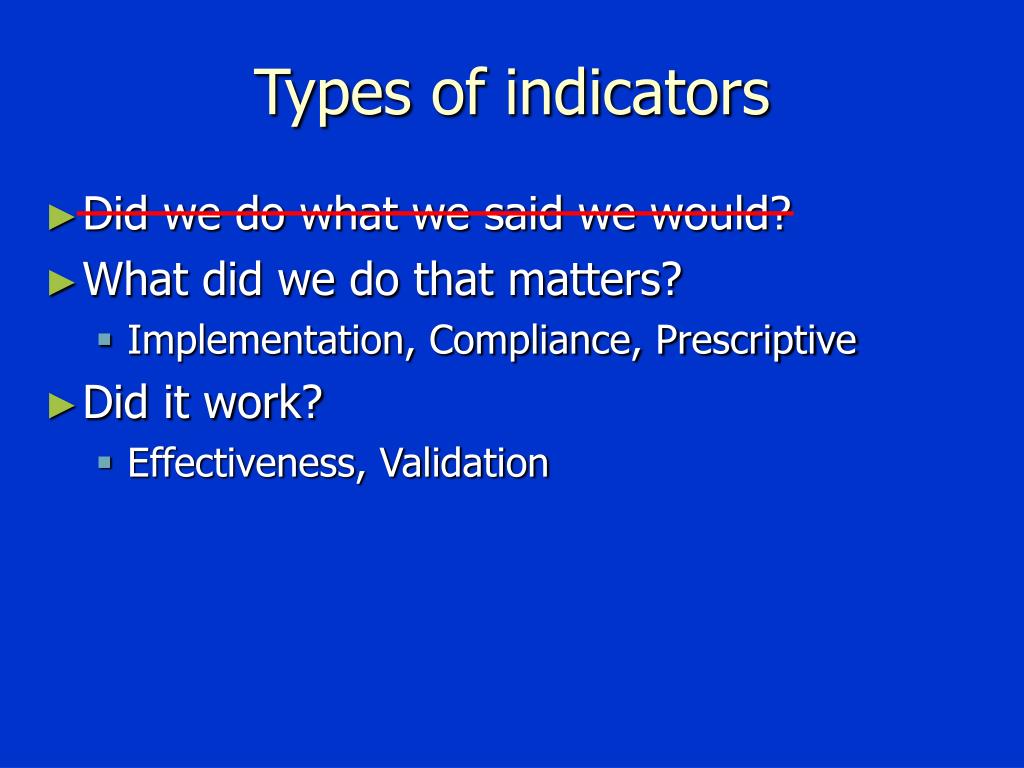

Types of indicators • Did we do what we said we would? • What did we do that matters? • Implementation, Compliance, Prescriptive • Did it work? • Effectiveness, Validation

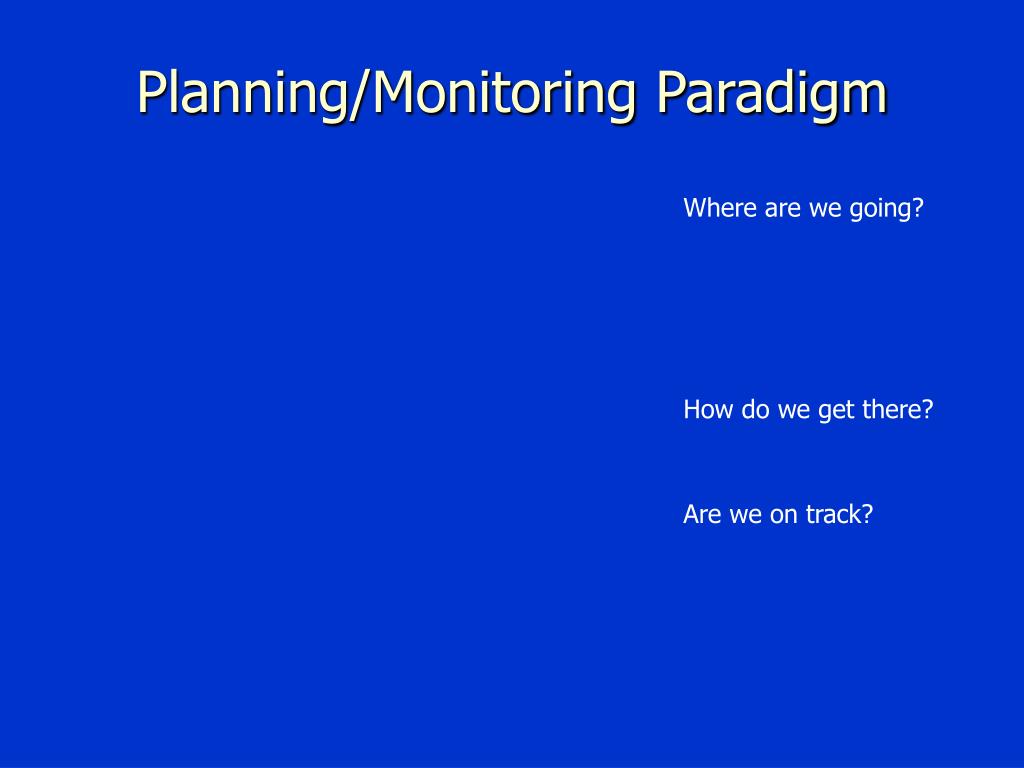

Planning/Monitoring Paradigm Where are we going? How do we get there? Are we on track?

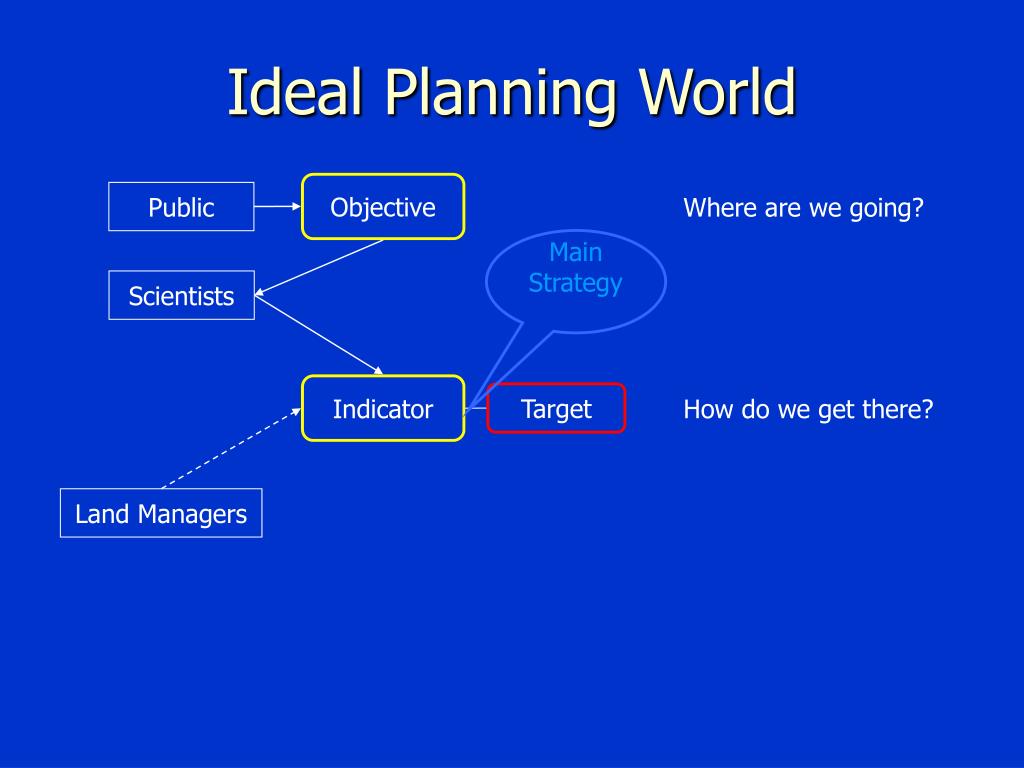

Ideal Planning World Objective Public Where are we going? Main Strategy Scientists Indicator Target How do we get there? Land Managers

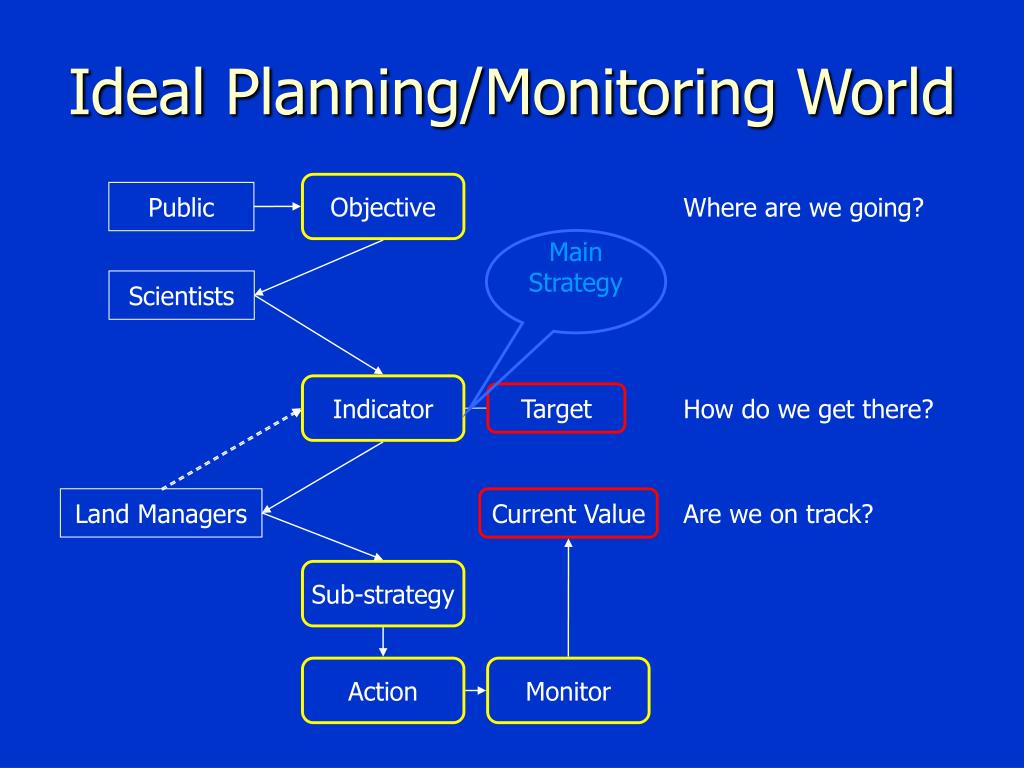

Ideal Planning/Monitoring World Objective Public Where are we going? Main Strategy Scientists Indicator Target How do we get there? Land Managers Current Value Are we on track? Sub-strategy Action Monitor

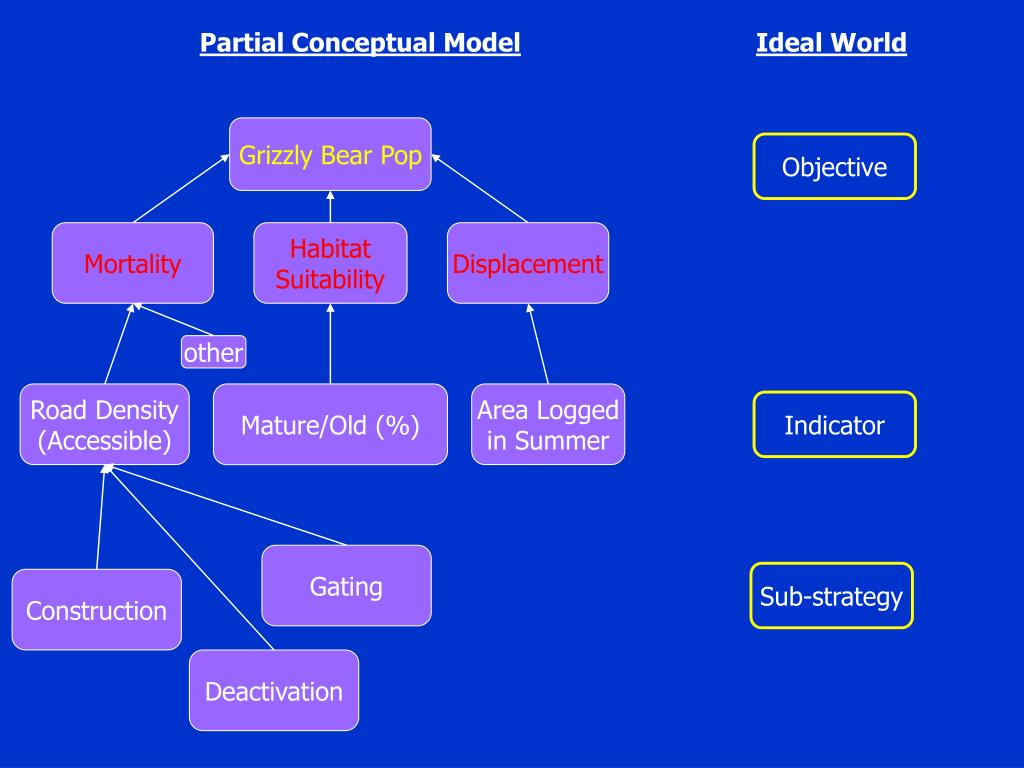

Partial Conceptual Model Ideal World Grizzly Bear Pop Objective Mortality Habitat Suitability Displacement other Road Density (Accessible) Mature/Old (%) Area Logged in Summer Indicator Gating Sub-strategy Construction Deactivation
Reality 1: Missing Indicators Objective Public Where are we going? Scientists Indicator Target How do we get there? Land Managers Current Value Are we on track? Sub-strategy Action Monitor

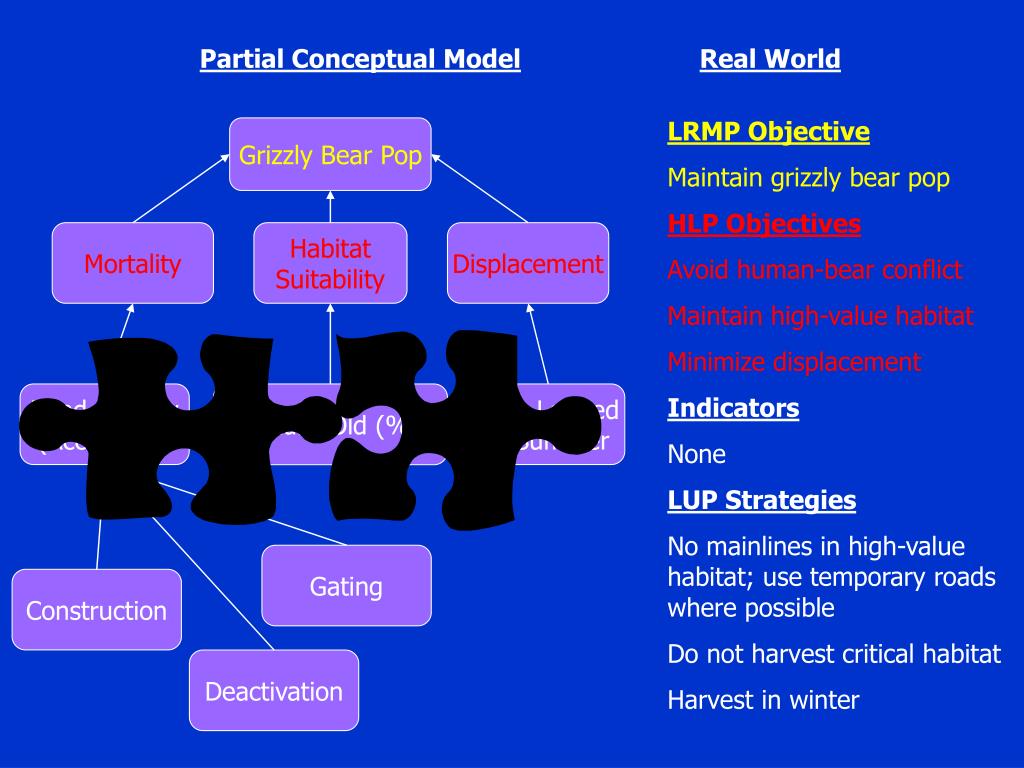

Partial Conceptual Model Real World LRMP Objective Maintain grizzly bear pop HLP Objectives Avoid human-bear conflict Maintain high-value habitat Minimize displacement Indicators None LUP Strategies No mainlines in high-value habitat; use temporary roads where possible Do not harvest critical habitat Harvest in winter Grizzly Bear Pop Mortality Habitat Suitability Displacement Road Density (Accessible) Mature/Old (%) Area Logged in Summer Gating Construction Deactivation

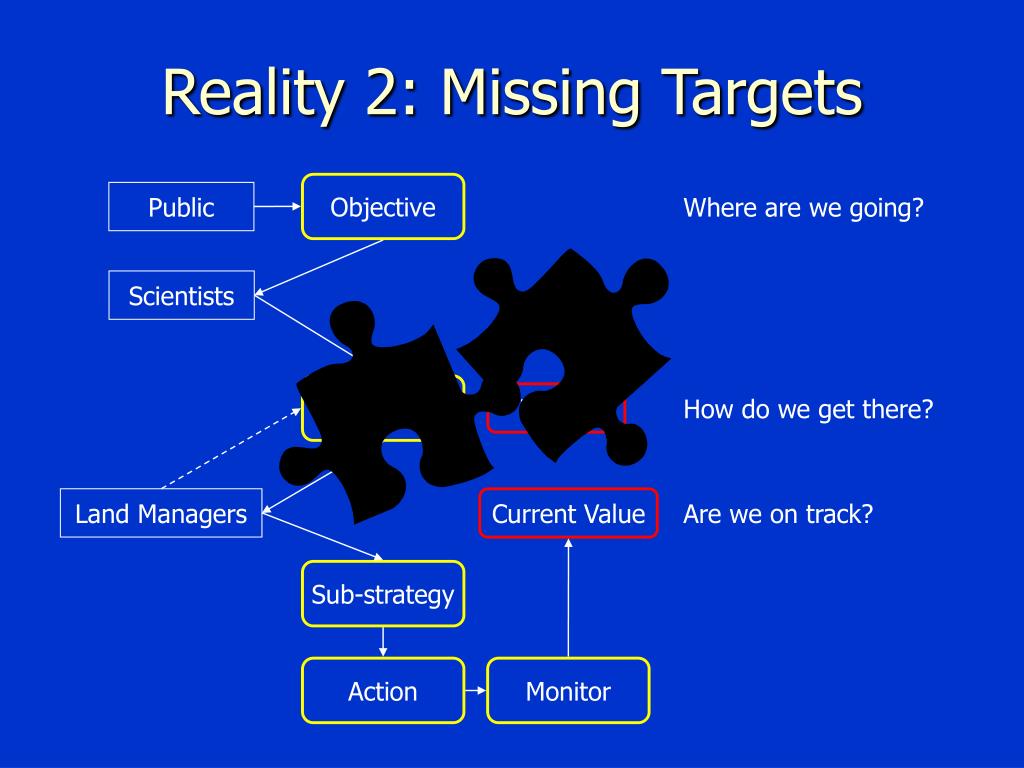

Reality 2: Missing Targets Objective Public Where are we going? Scientists Indicator Target How do we get there? Land Managers Current Value Are we on track? Sub-strategy Action Monitor

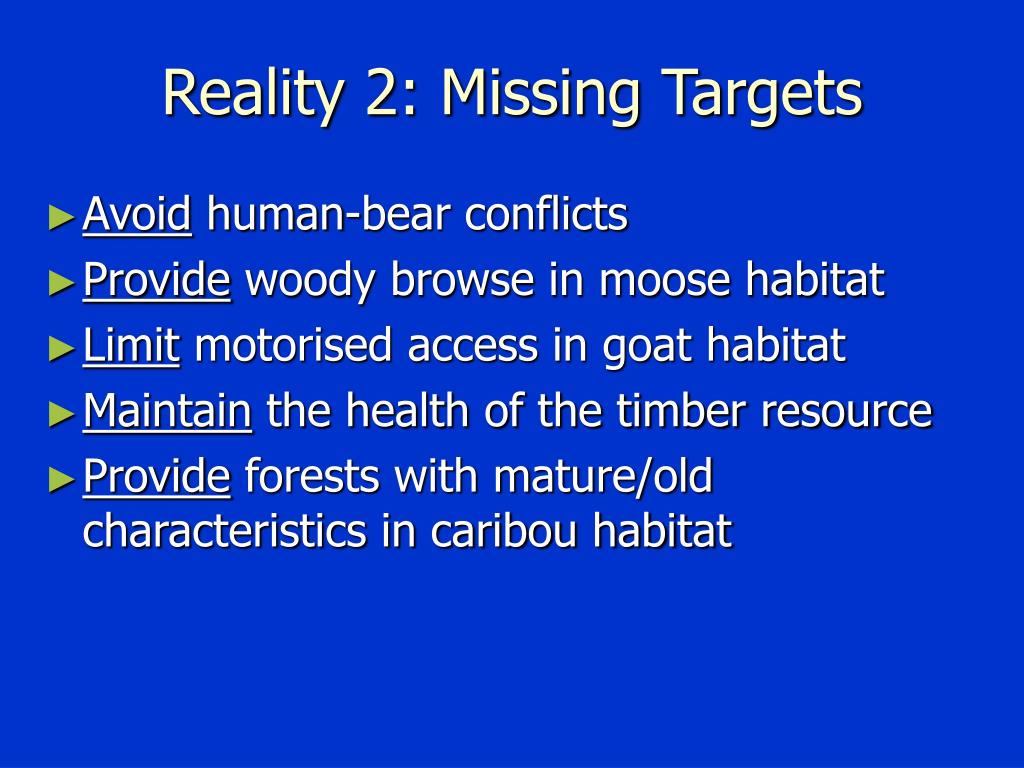

Reality 2: Missing Targets • Avoid human-bear conflicts • Provide woody browse in moose habitat • Limit motorised access in goat habitat • Maintain the health of the timber resource • Provide forests with mature/old characteristics in caribou habitat

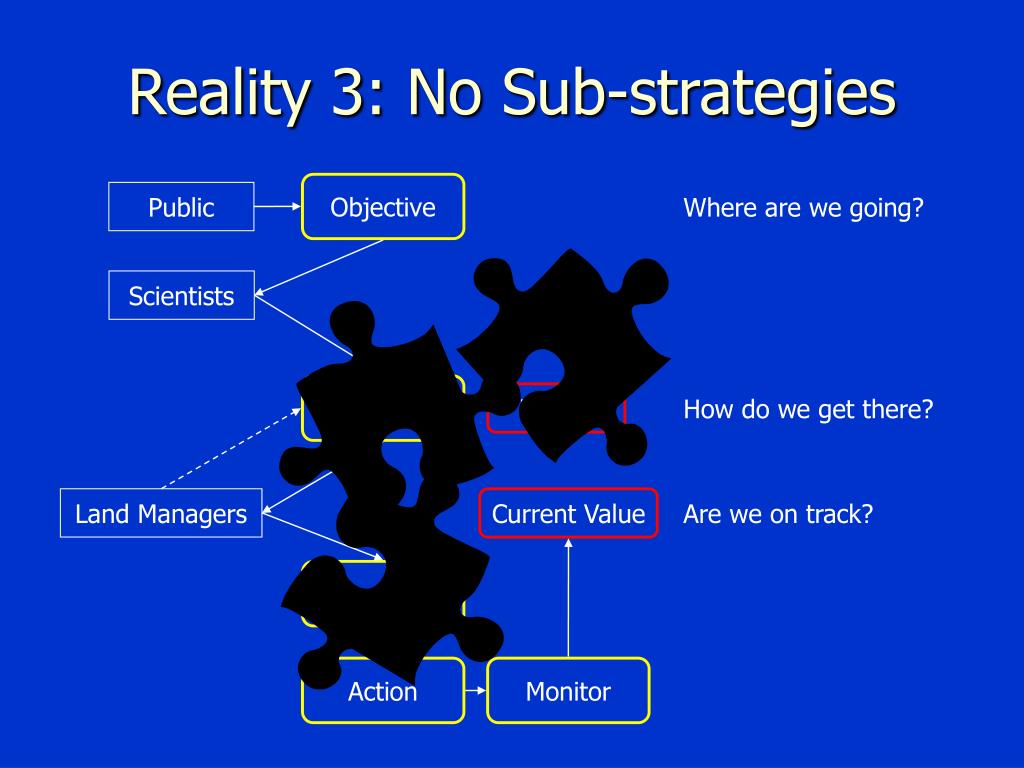

Reality 3: No Sub-strategies Objective Public Where are we going? Scientists Indicator Target How do we get there? Land Managers Current Value Are we on track? Strategy Action Monitor

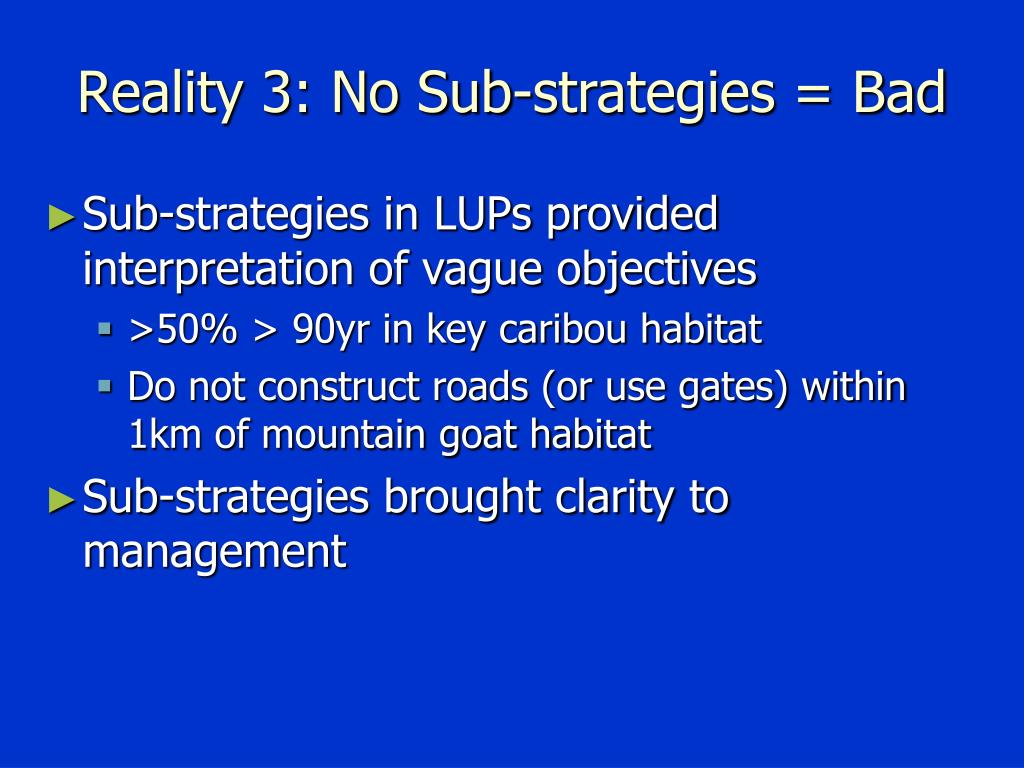

Reality 3: No Sub-strategies = Bad • Sub-strategies in LUPs provided interpretation of vague objectives • >50% > 90yr in key caribou habitat • Do not construct roads (or use gates) within 1km of mountain goat habitat • Sub-strategies brought clarity to management

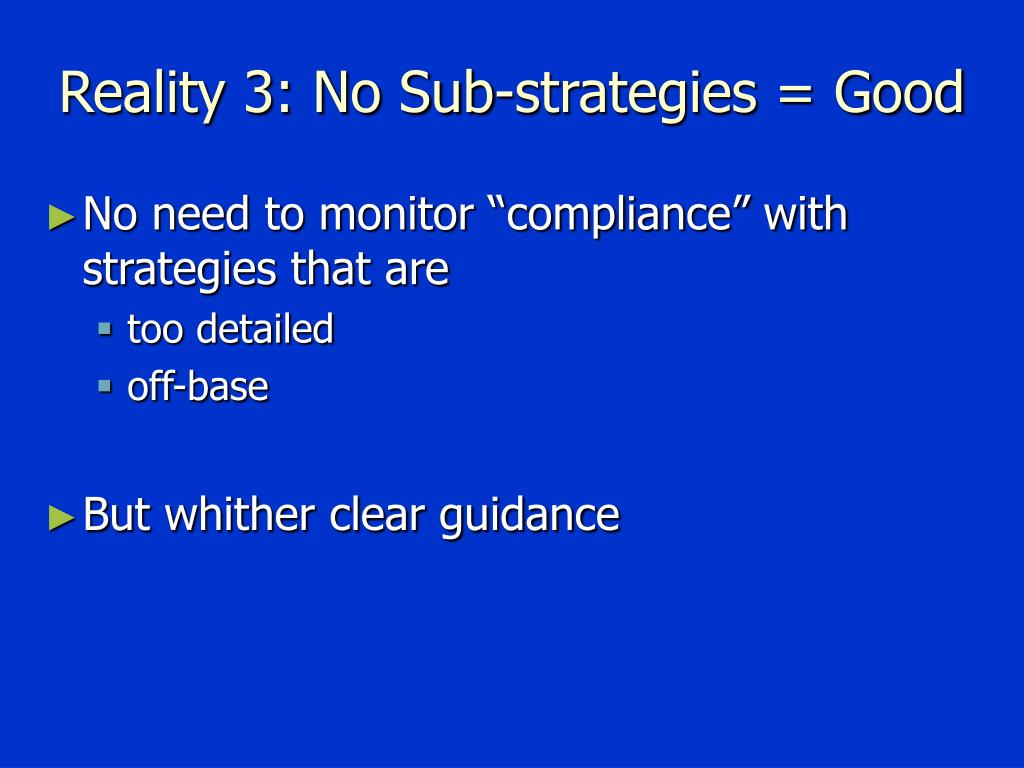

Reality 3: No Sub-strategies = Good • No need to monitor “compliance” with strategies that are • too detailed • off-base • But whither clear guidance

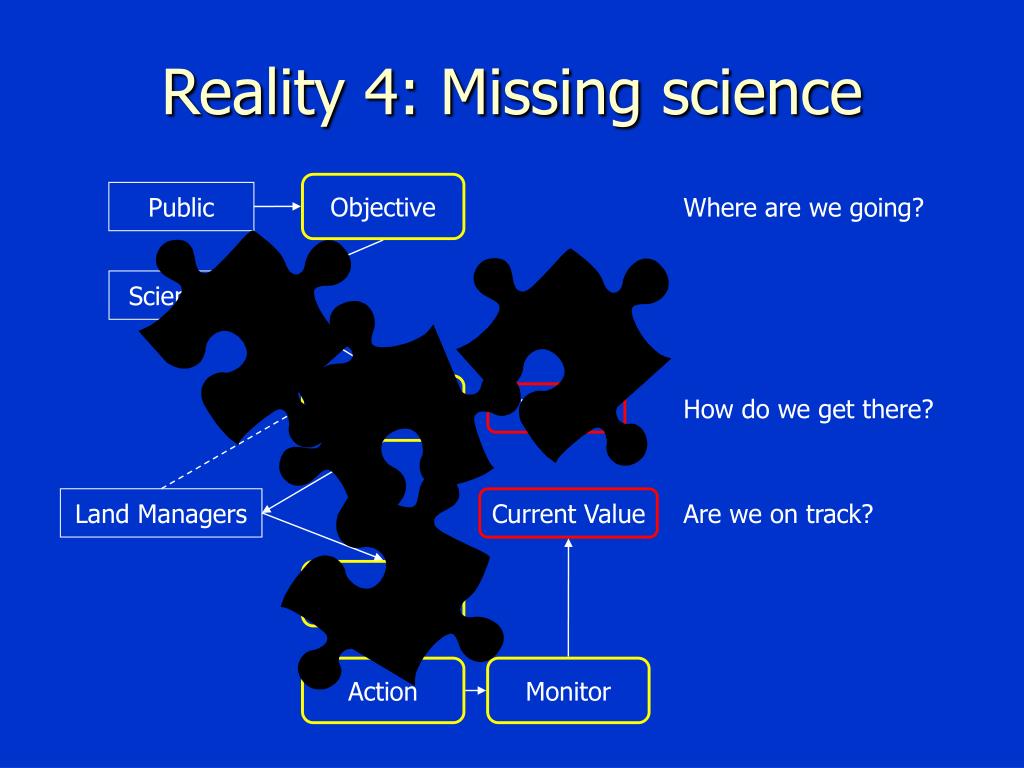

Reality 4: Missing science Objective Public Where are we going? Scientists Indicator Target How do we get there? Land Managers Current Value Are we on track? Strategy Action Monitor

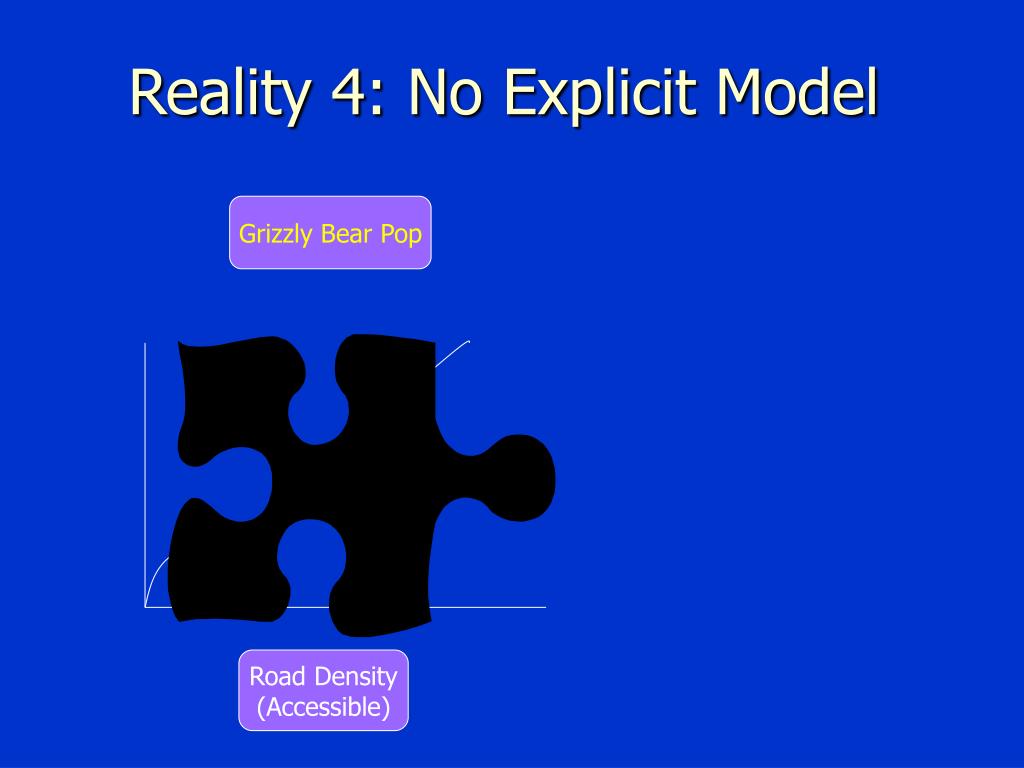

Reality 4: No Explicit Model Grizzly Bear Pop Road Density (Accessible)

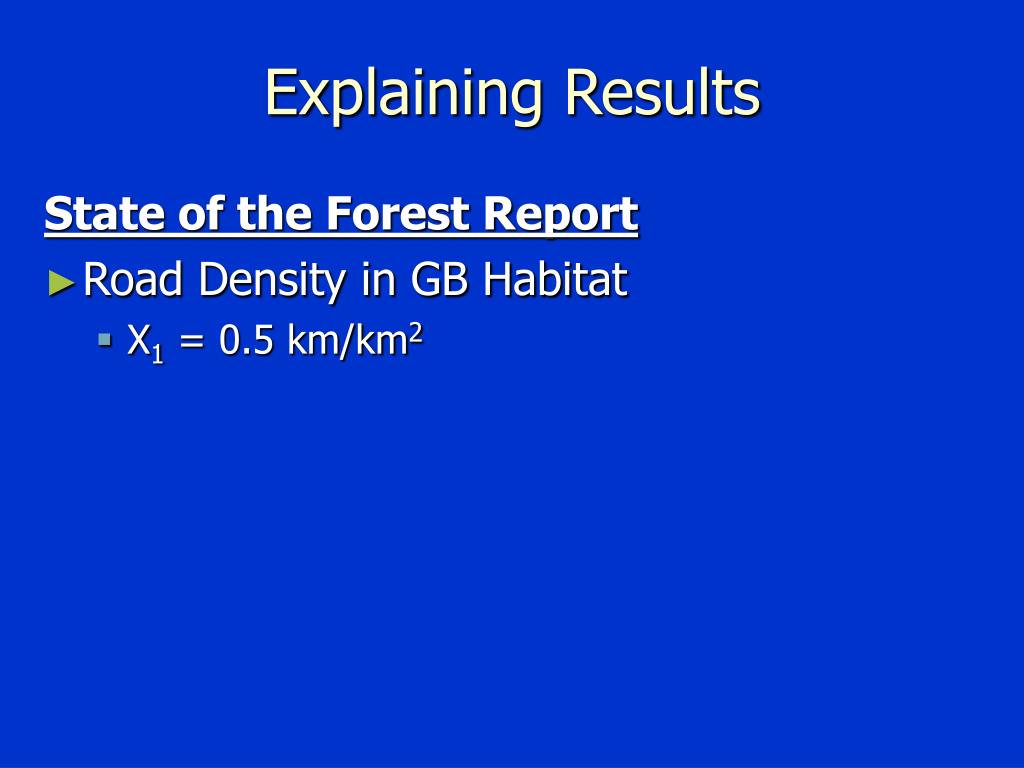

Explaining Results State of the Forest Report • Road Density in GB Habitat • X1 = 0.5 km/km2

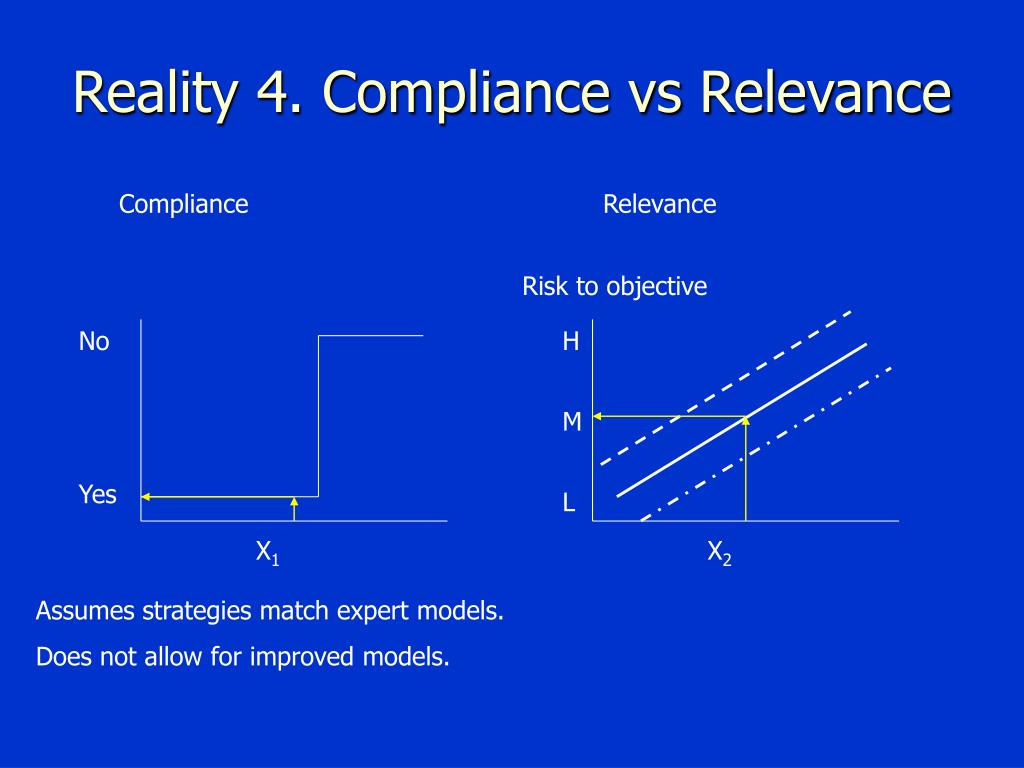

Reality 4. Compliance vs Relevance Compliance Relevance Risk to objective No H M Yes L X1 X2 Assumes strategies match expert models. Does not allow for improved models.
Results: Dave’s indicators Objective Public Where are we going? Sub-objective Scientists Weak Target X Indicator Target Dave et al. How do we get there? Land Managers Where are we now? X Current Value Sub-strategy Monitor Action
Partial Conceptual Model Real World Public Objective Maintain grizzly bear pop Public/Science Objectives Avoid human-bear conflict Maintain high-value habitat Minimize displacement Indicators Dave’s Strategies No mainlines in high-value habitat; use temporary roads where possible Do not harvest critical habitat Harvest in winter Grizzly Bear Pop Mortality Habitat Suitability Displacement # C.O.s2 1 / #planners 1 / analysts Gating Construction Deactivation

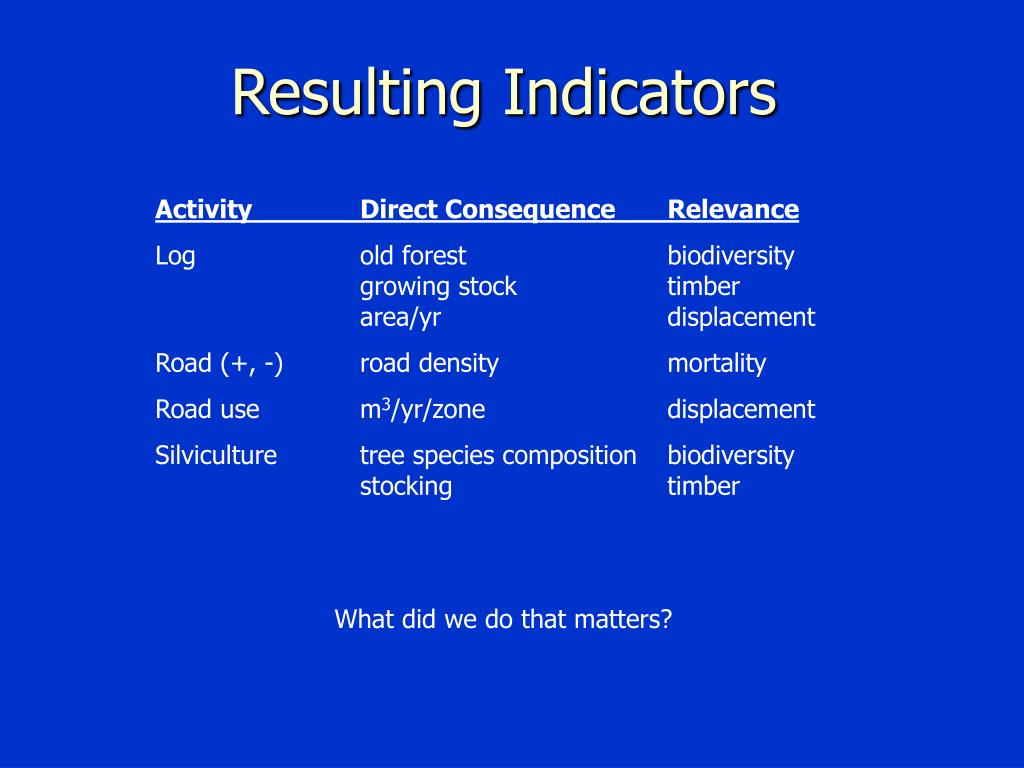

Resulting Indicators Activity Direct Consequence Relevance Log old forest biodiversity growing stock timber area/yr displacement Road (+, -) road density mortality Road use m3/yr/zone displacement Silviculture tree species composition biodiversity stocking timber What did we do that matters?
Recommendations • Align planning/monitoring with knowledge • Develop and document explicit hypotheses (models) • Identify indicators (often key parameters) • Create strategies = indicator + target • Explain current status • Monitor strategies (prescriptive indicators) • Explain consequences = f(models) • Test hypotheses and improve models

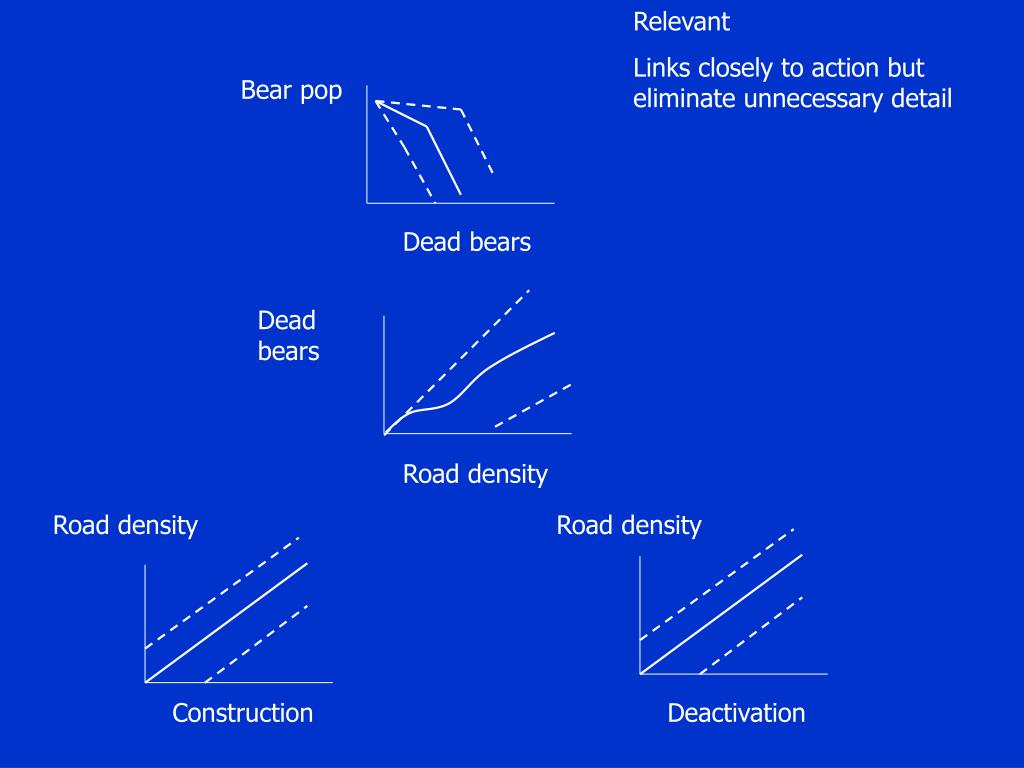

Relevant Links closely to action but eliminate unnecessary detail Bear pop Dead bears Dead bears Road density Road density Road density Construction Deactivation
