Significant Figures

Significant Figures. Rules:. #1 – Nonzero digits are significant 19 311 7862 1,237,983 #2 – Zeros between significant figures are significant 109 5002 6507 1,000,341. Rules. #3 – Final zeros after a decimal are significant 10.0 234.00 2986.000 10000.00

hope-walker
Télécharger la présentation

Significant Figures

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

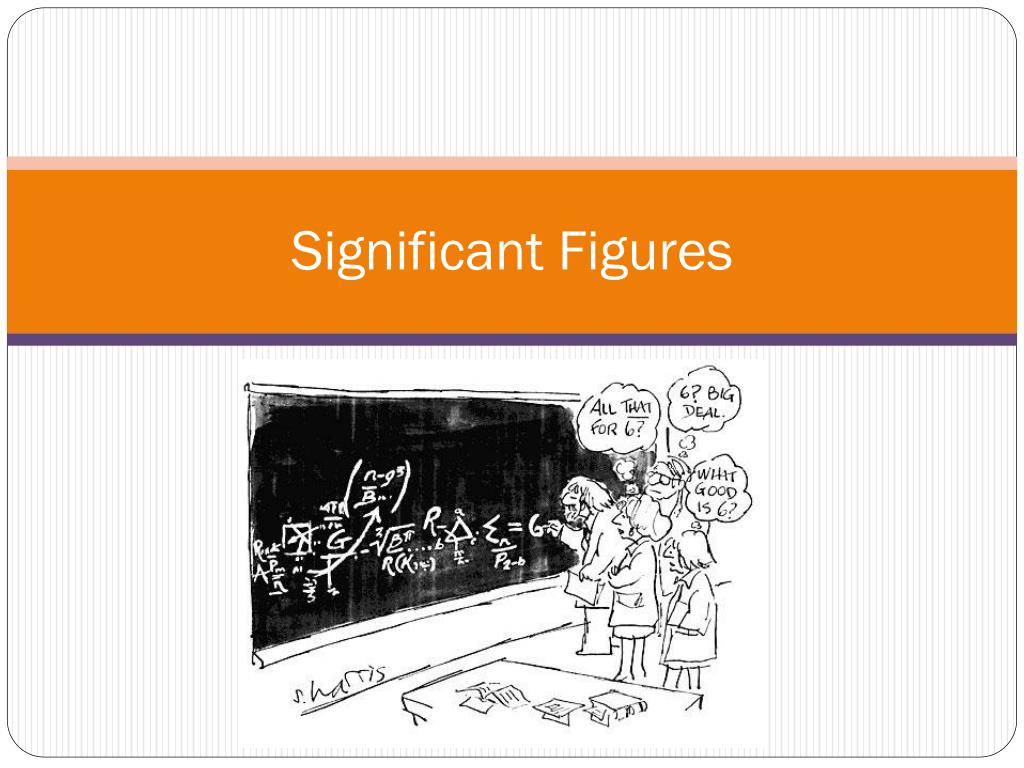

  1. Significant Figures

  2. Rules: • #1 – Nonzero digits are significant • 19 • 311 • 7862 • 1,237,983 • #2 – Zeros between significant figures are significant • 109 • 5002 • 6507 • 1,000,341

  3. Rules • #3 – Final zeros after a decimal are significant • 10.0 • 234.00 • 2986.000 • 10000.00 • #4 – Zeros that are placeholders are NOT significant • 10 • 0.0003 • 350,000 • 0.099

  4. Rounding • When rounding to a specific amount of significant figures: • In scientific notation, all numbers preceding “x10” are significant • 5-9 as next digit: round up • 1-4 as next digit: round down • If you end up with zeros that need to be significant, but are not: • Add a decimal at the end of the number • All previous digits are then significant • 100 rounded to 3 significant digits = 100. • Add a bar over the final significant zero • 100 rounded to 2 significant digits = 100

  5. The Quick Method: • If there is a decimal, count all digits to the right of the first nonzero digit as significant. • 0.00150 • 0.0005 • 10.010 • 10,120.0 • If there is NOT a decimal, count all digits to the left of the first nonzero digit. • 10,000 • 230,450 • 250 • 1,205,375,000
