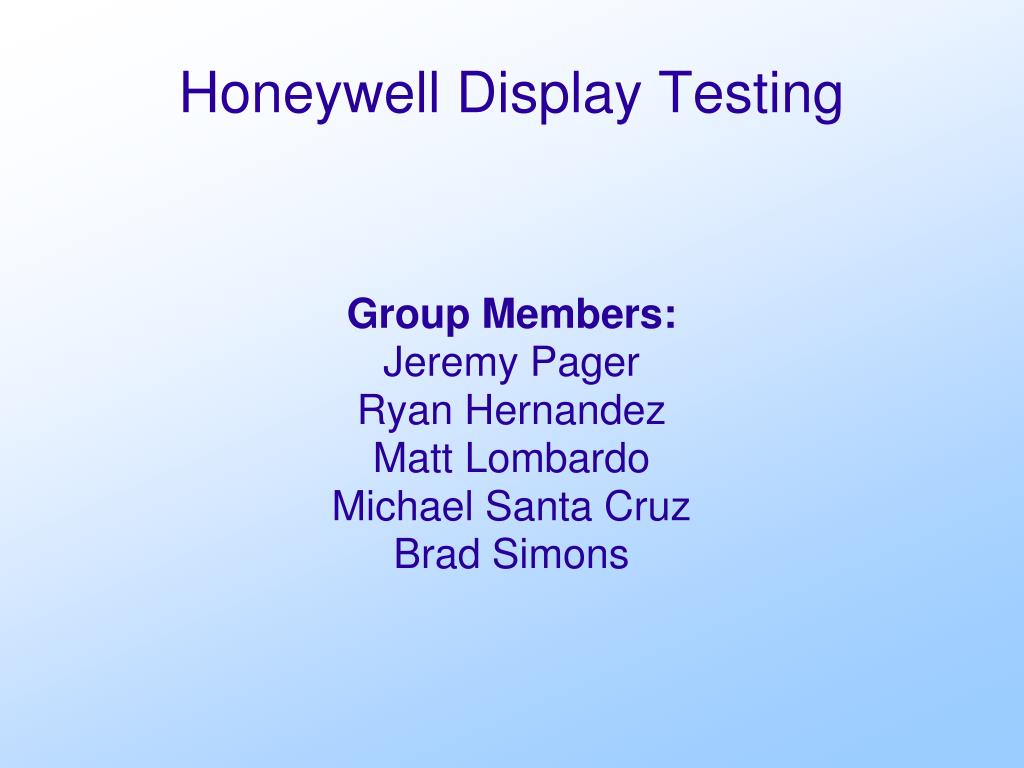

  1. Group Members: Jeremy Pager Ryan Hernandez Matt Lombardo Michael Santa Cruz Brad Simons Honeywell Display Testing

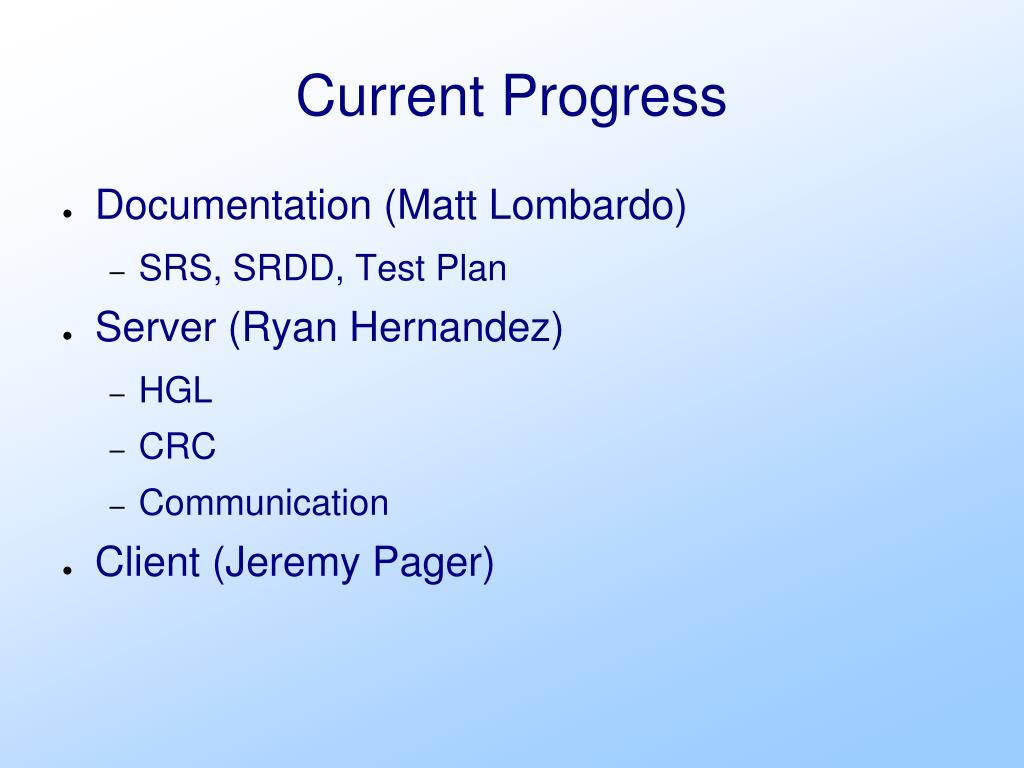

  2. Current Progress • Documentation (Matt Lombardo) • SRS, SRDD, Test Plan • Server (Ryan Hernandez) • HGL • CRC • Communication • Client (Jeremy Pager)

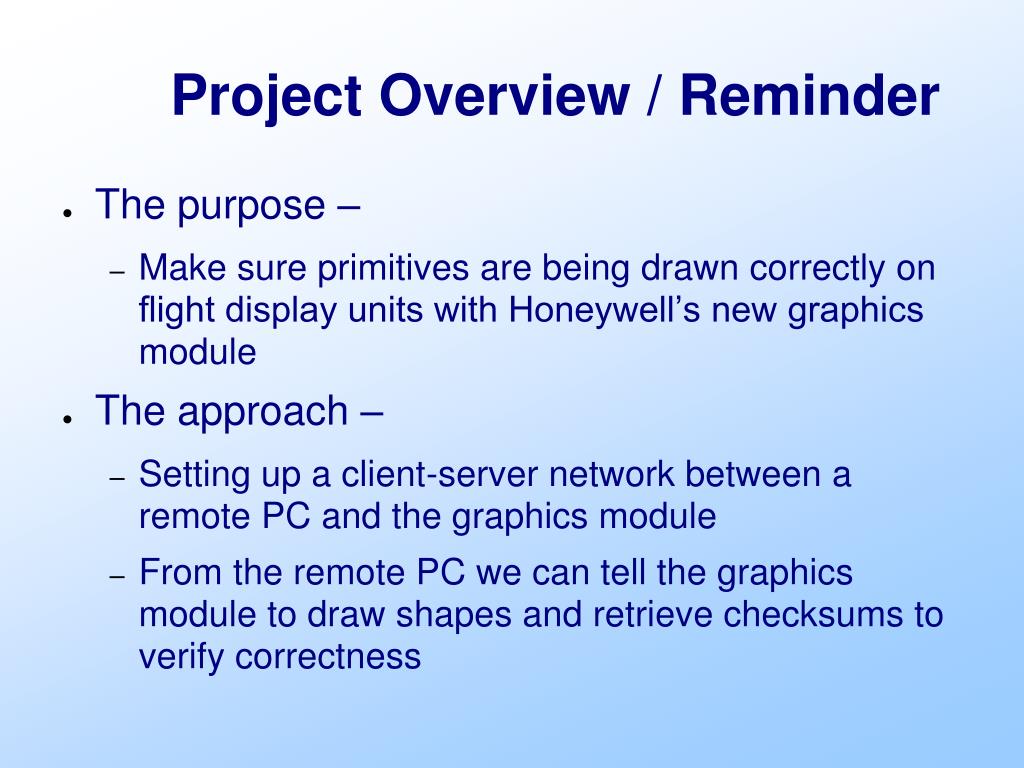

  3. Project Overview / Reminder • The purpose – • Make sure primitives are being drawn correctly on flight display units with Honeywell’s new graphics module • The approach – • Setting up a client-server network between a remote PC and the graphics module • From the remote PC we can tell the graphics module to draw shapes and retrieve checksums to verify correctness

  4. Documentation • Honeywell’s protocol for doing documentation: • Requirements: SRS (System Requirement Specification) • Design: SRDD (System Requirement Design Document) • Testing: Test Plan • Goal: • Lower levels of documentation trace back to higher levels of documentation for requirement verification • Test Plan test cases -> SRDD requirements -> SRS requirements

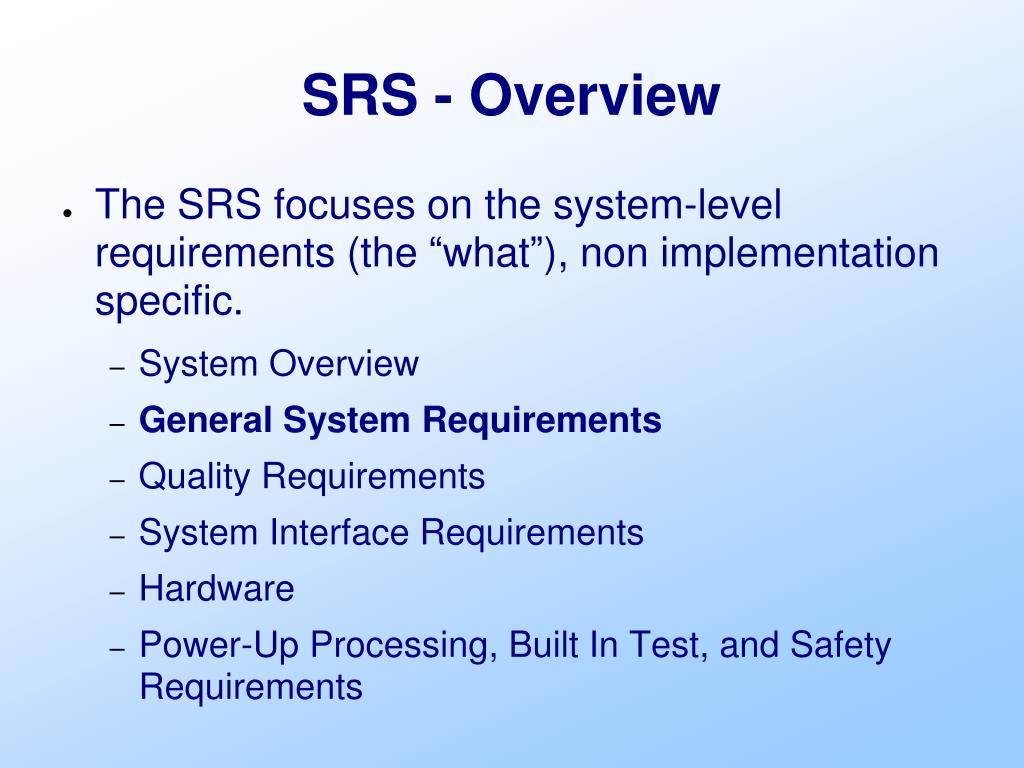

  5. SRS - Overview • The SRS focuses on the system-level requirements (the “what”), non implementation specific. • System Overview • General System Requirements • Quality Requirements • System Interface Requirements • Hardware • Power-Up Processing, Built In Test, and Safety Requirements

  6. SRS – General System Requirements • Main focus of SRS: general system requirements • Provide abstract non implementation specific description of each requirement • Provide test cases for each requirement • Represented by “shall” statements, must be testable • Each “shall” statement has a trace tag

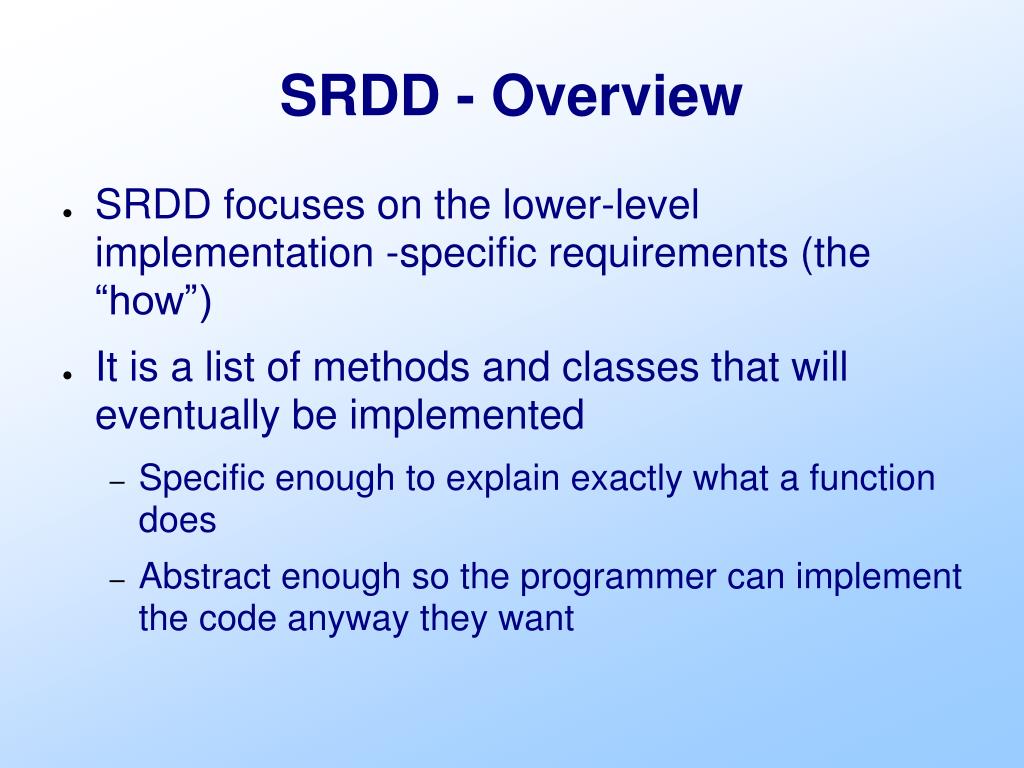

  7. SRDD - Overview • SRDD focuses on the lower-level implementation -specific requirements (the “how”) • It is a list of methods and classes that will eventually be implemented • Specific enough to explain exactly what a function does • Abstract enough so the programmer can implement the code anyway they want

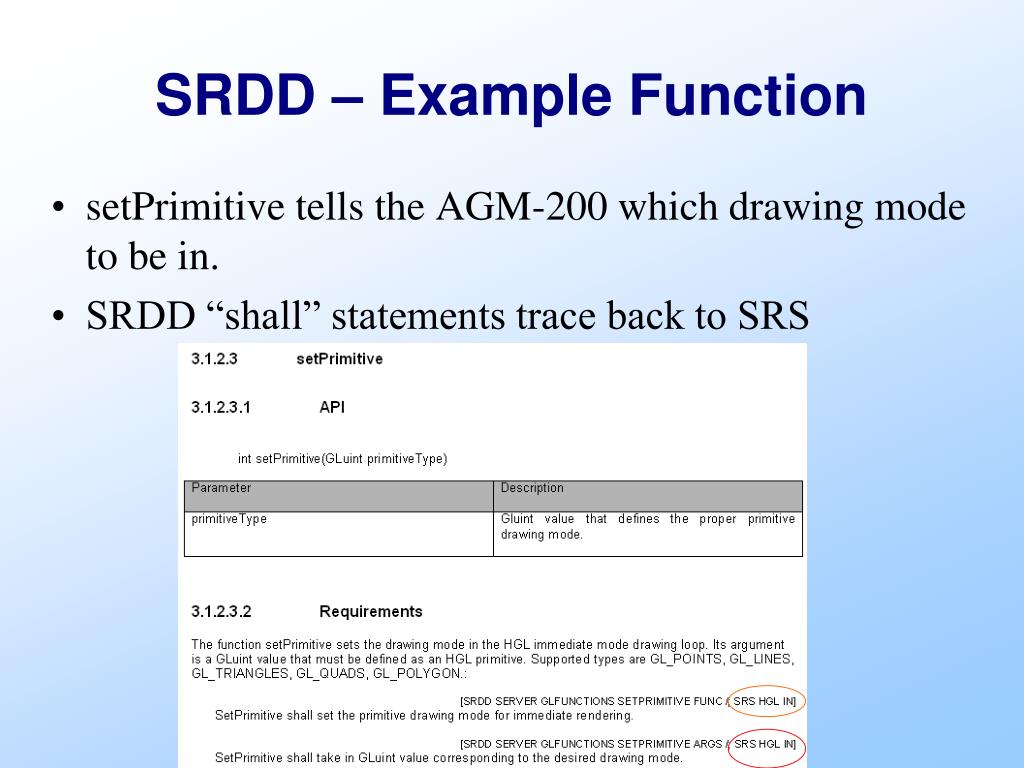

  8. SRDD – Example Function • setPrimitive tells the AGM-200 which drawing mode to be in. • SRDD “shall” statements trace back to SRS

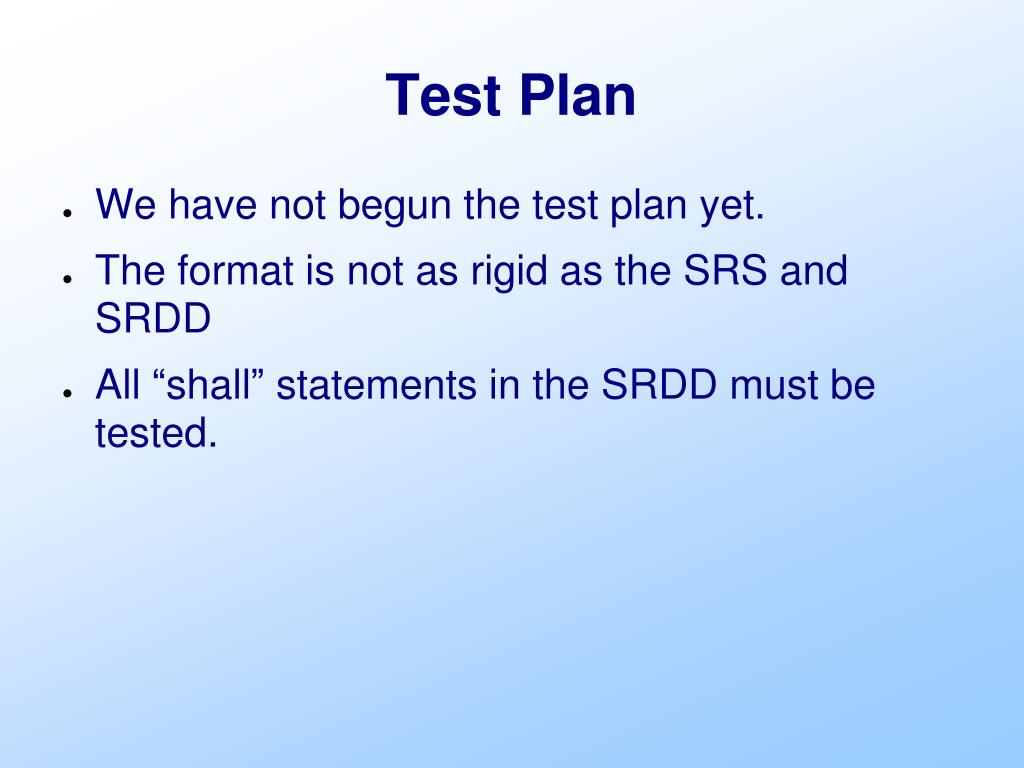

  9. Test Plan • We have not begun the test plan yet. • The format is not as rigid as the SRS and SRDD • All “shall” statements in the SRDD must be tested.

  10. Server – CRC Thread • Two Server Threads • CRC Calculation • Drawing HGL Primitives & Client Communication • Thread Communication • Mailboxes (interrupt driven) • Currently not working • CRC Thread Design • Continuously Calculate CRC • Send envelope reporting change in CRC calc.

  11. Server – HGL Thread • HGL Thread Design • Draw requested HGL primitive • Listen for CRC response • Check for inconsistencies • Report Errors and CRC calculation to client • Current Tasks • Working on dynamically drawing HGL primitives • Thread communication

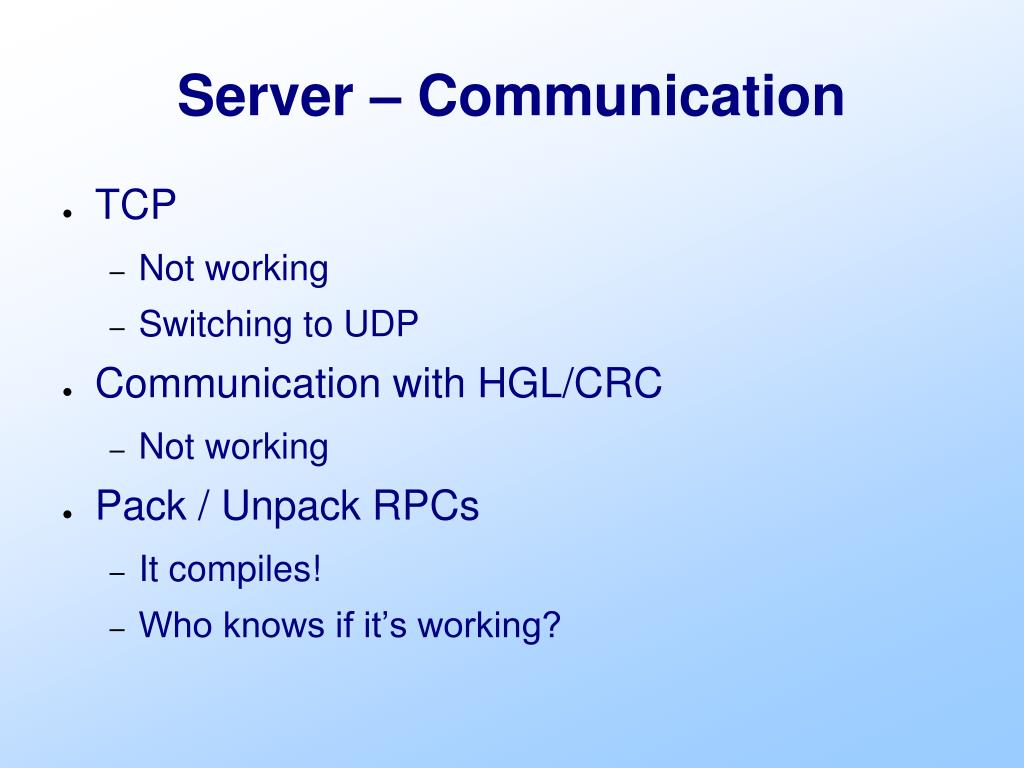

  12. Server – Communication • TCP • Not working • Switching to UDP • Communication with HGL/CRC • Not working • Pack / Unpack RPCs • It compiles! • Who knows if it’s working?

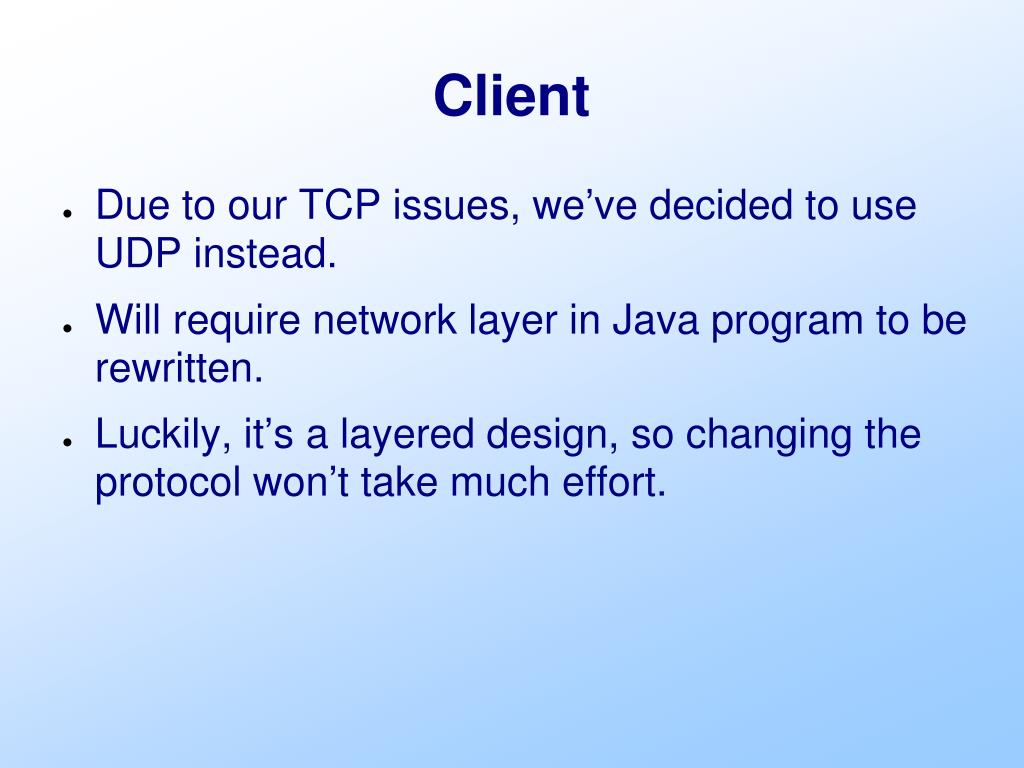

  13. Client • Due to our TCP issues, we’ve decided to use UDP instead. • Will require network layer in Java program to be rewritten. • Luckily, it’s a layered design, so changing the protocol won’t take much effort.

  14. Summary • All our issues are environment related • Visual Studio build path / linking • Setting up the AGM’s process database • Other AGM environmental factors • Last week, we couldn’t get code working that we have seen previously working. • Our mentor: “My project was way easier”
