  1. System Configuration An in-depth guide

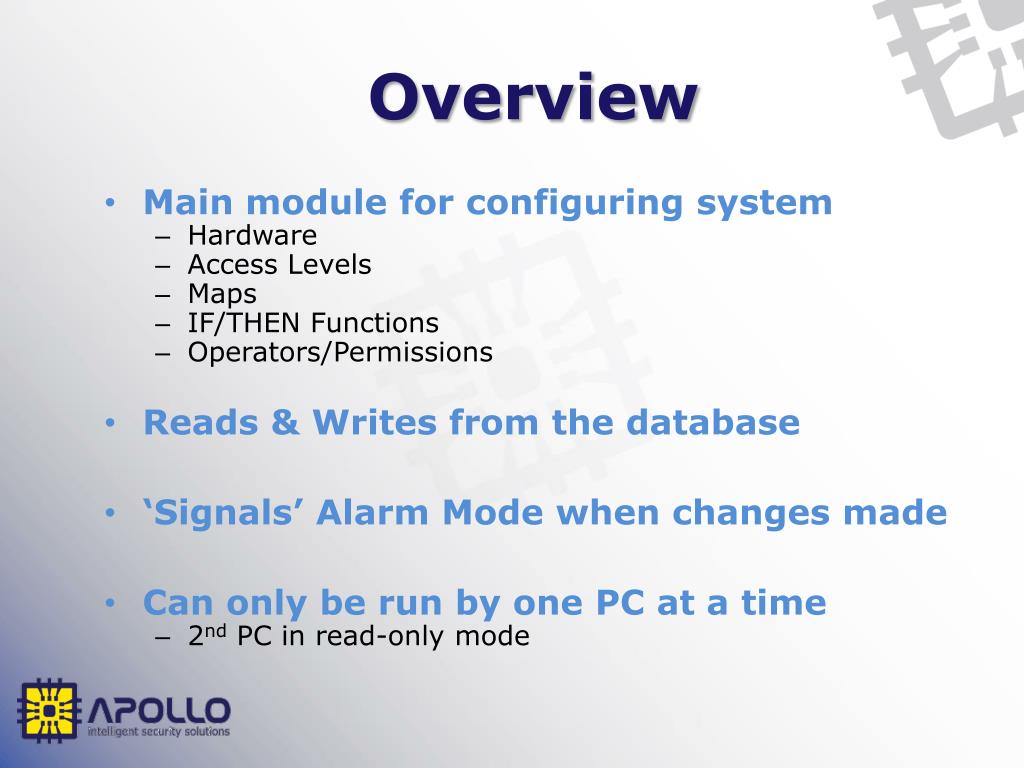

  2. Overview • Main module for configuring system • Hardware • Access Levels • Maps • IF/THEN Functions • Operators/Permissions • Reads & Writes from the database • ‘Signals’ Alarm Mode when changes made • Can only be run by one PC at a time • 2nd PC in read-only mode

  3. Main Screen • Select function from toolbar or menu • Save/Load configuration • Right-click menus

  4. Global Settings • Sets options that apply to whole system • Commonly used: • Max Cards • Save Expiration Date • Six Access Levels • Operator History • Override possibility (per controller)

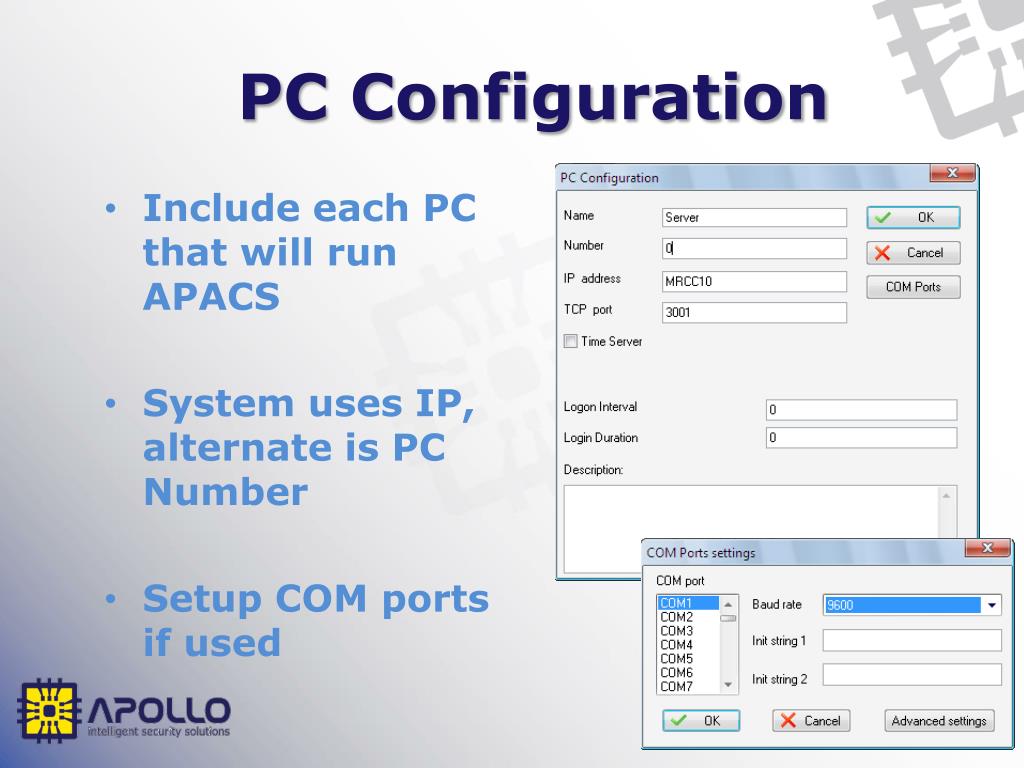

  5. PC Configuration • Include each PC that will run APACS • System uses IP, alternate is PC Number • Setup COM ports if used

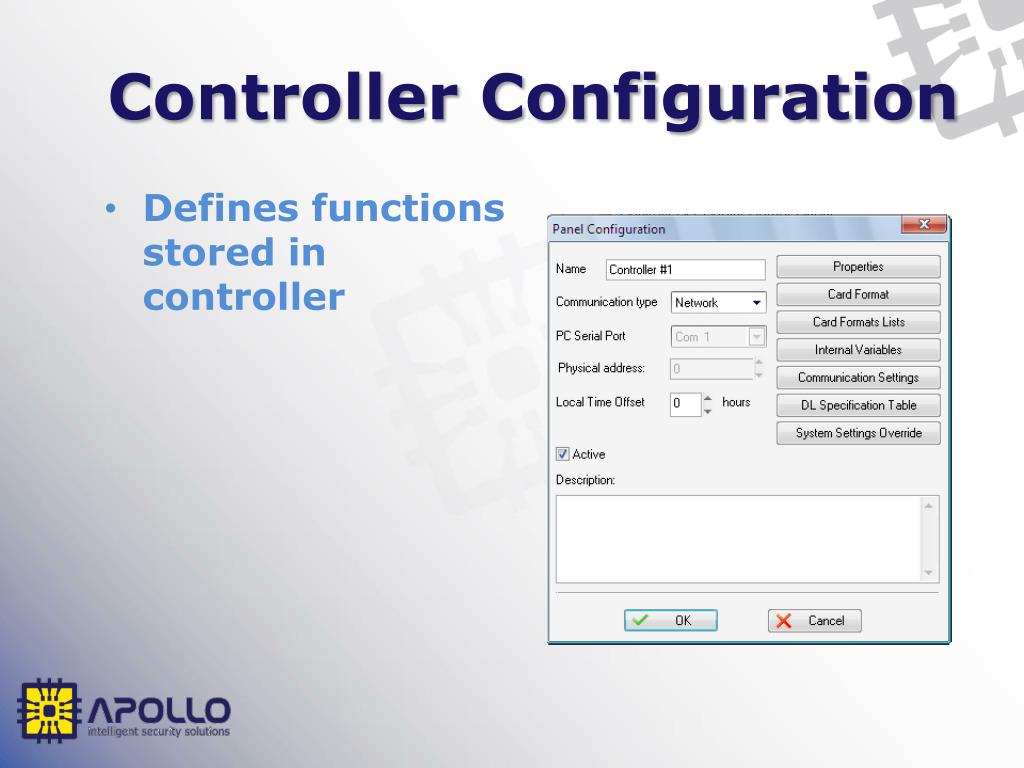

  6. Controller Configuration • Defines functions stored in controller

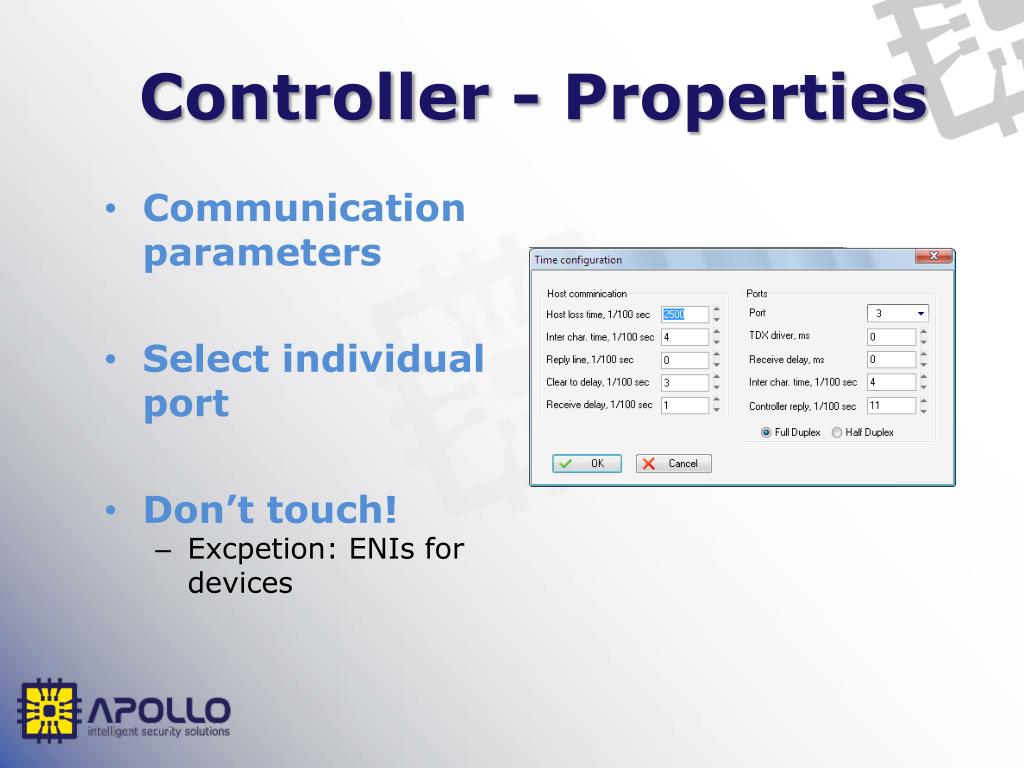

  7. Controller - Properties • Communication parameters • Select individual port • Don’t touch! • Excpetion: ENIs for devices

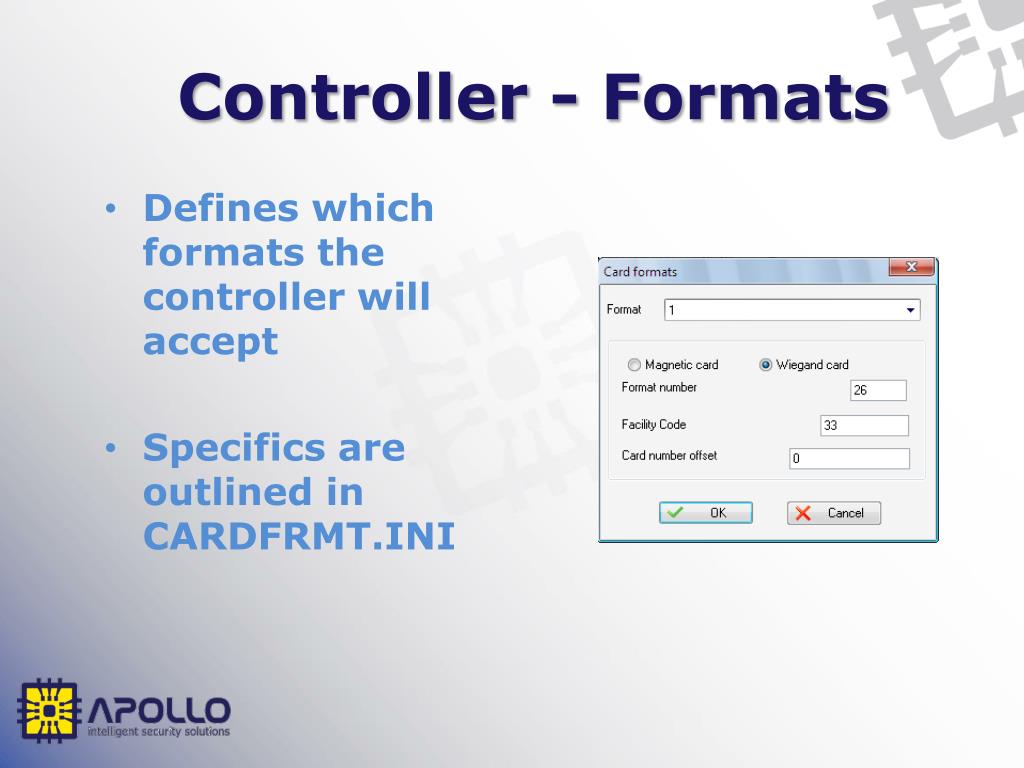

  8. Controller - Formats • Defines which formats the controller will accept • Specifics are outlined in CARDFRMT.INI

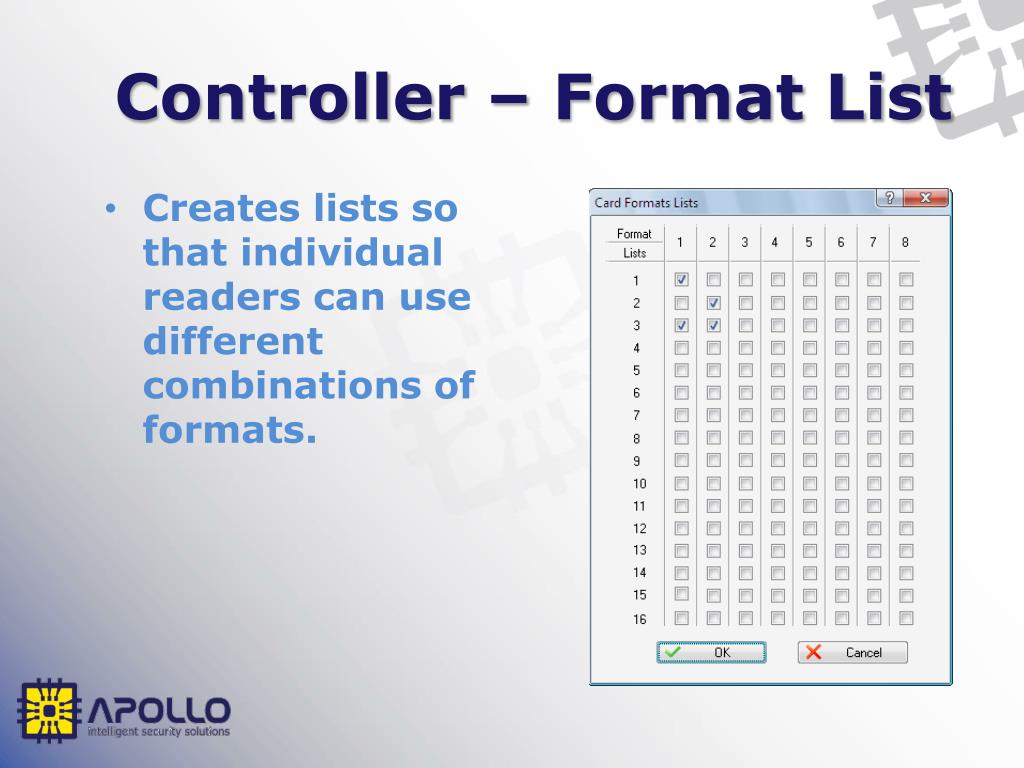

  9. Controller – Format List • Creates lists so that individual readers can use different combinations of formats.

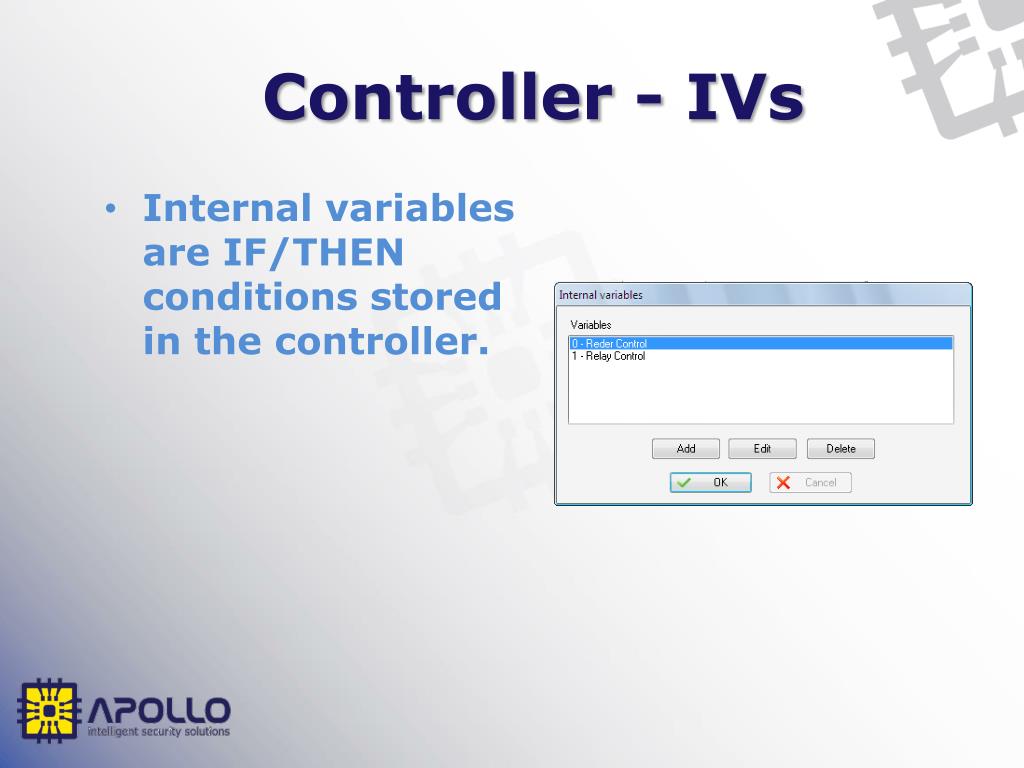

  10. Controller - IVs • Internal variables are IF/THEN conditions stored in the controller.

  11. Controller – Comm • Connection parameters if network connection is used. • Controller-host encryption

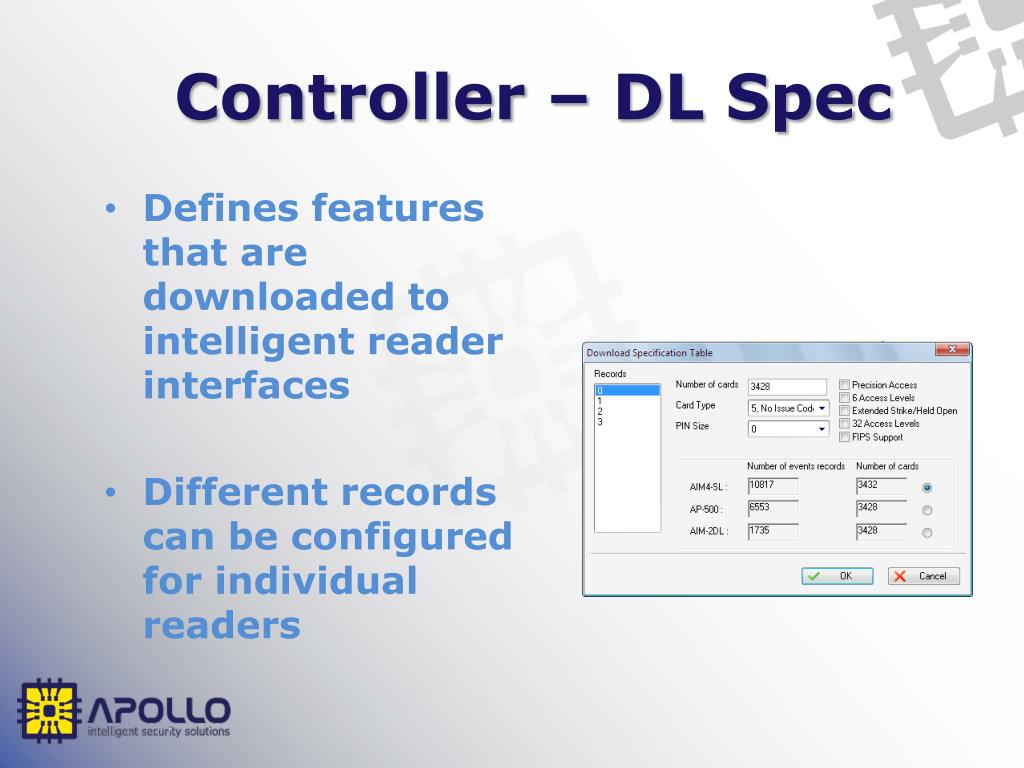

  12. Controller – DL Spec • Defines features that are downloaded to intelligent reader interfaces • Different records can be configured for individual readers

  13. Reader Configuration • Specifies Reader type and address • Strike Timers

  14. Reader-Hardware • Download spec record selection • Card Format List selection • Commands

  15. Reader – TZ Control • Reader state change automatically

  16. Reader – Mode • Online/Offline mode • Timed Anti-passback • Advanced features • Escort

  17. Reader – Commands • Commands from AP-500 or other keypad readers

  18. Reader - Elevator

  19. Reader - Biometric • Integrated biometric readers • Specify connection parameters

  20. Reader – Inputs/Outputs • Each input/output can be set individually • Control/mask time zone • Internal variable

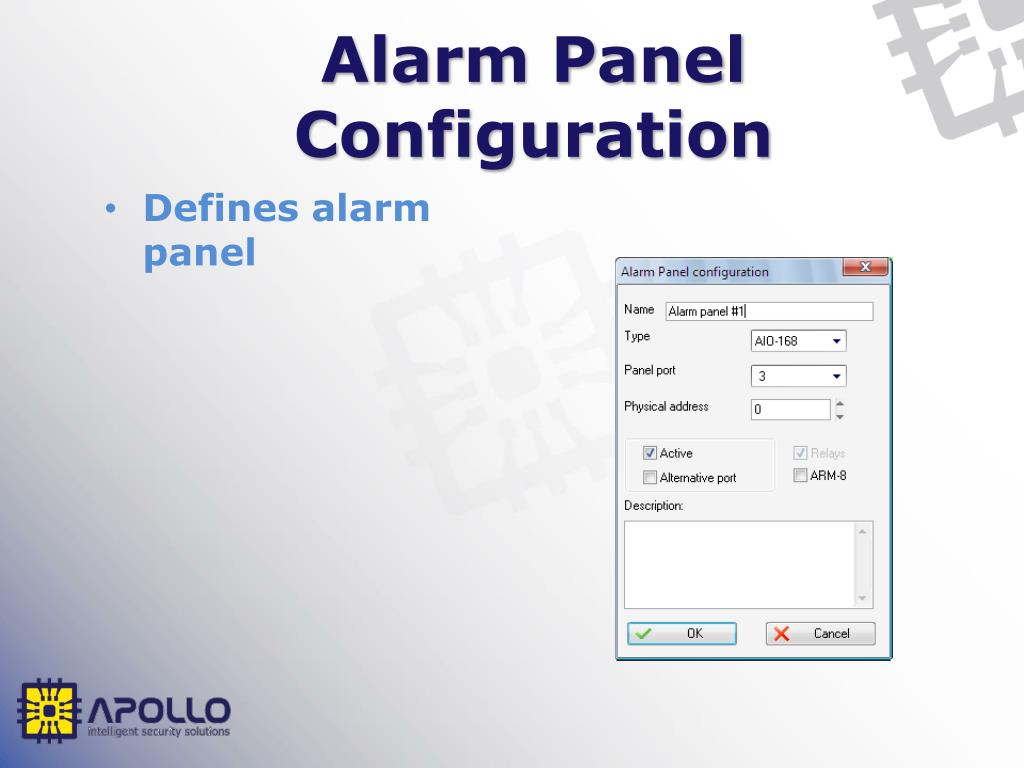

  21. Alarm Panel Configuration • Defines alarm panel

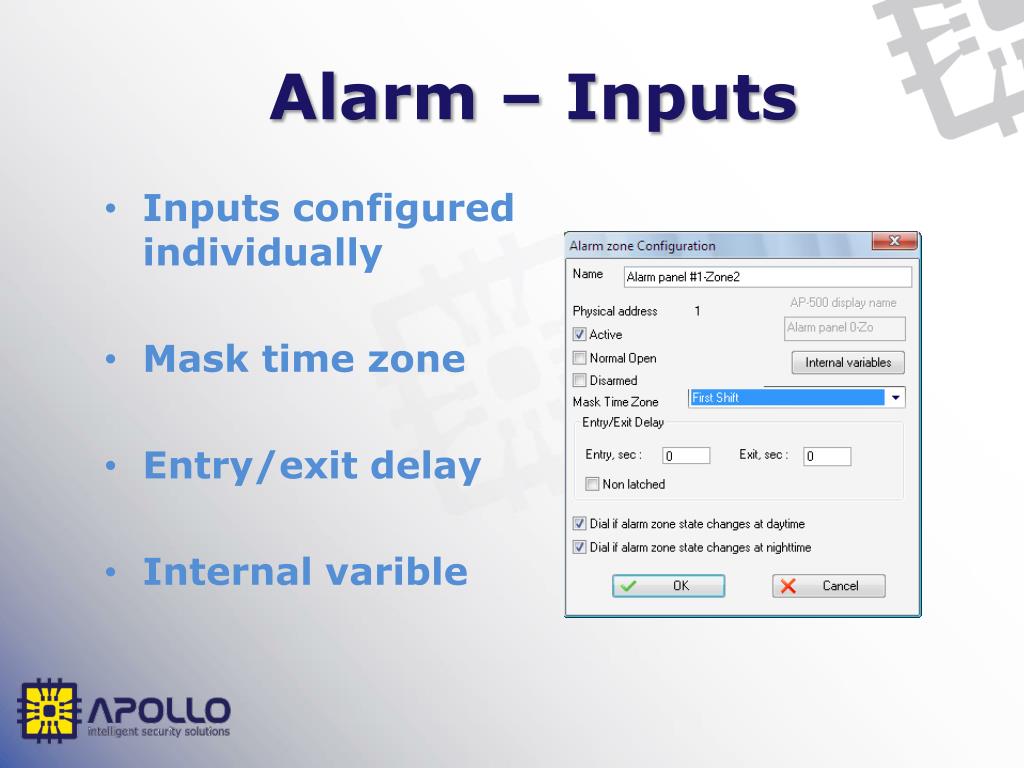

  22. Alarm – Inputs • Inputs configured individually • Mask time zone • Entry/exit delay • Internal varible

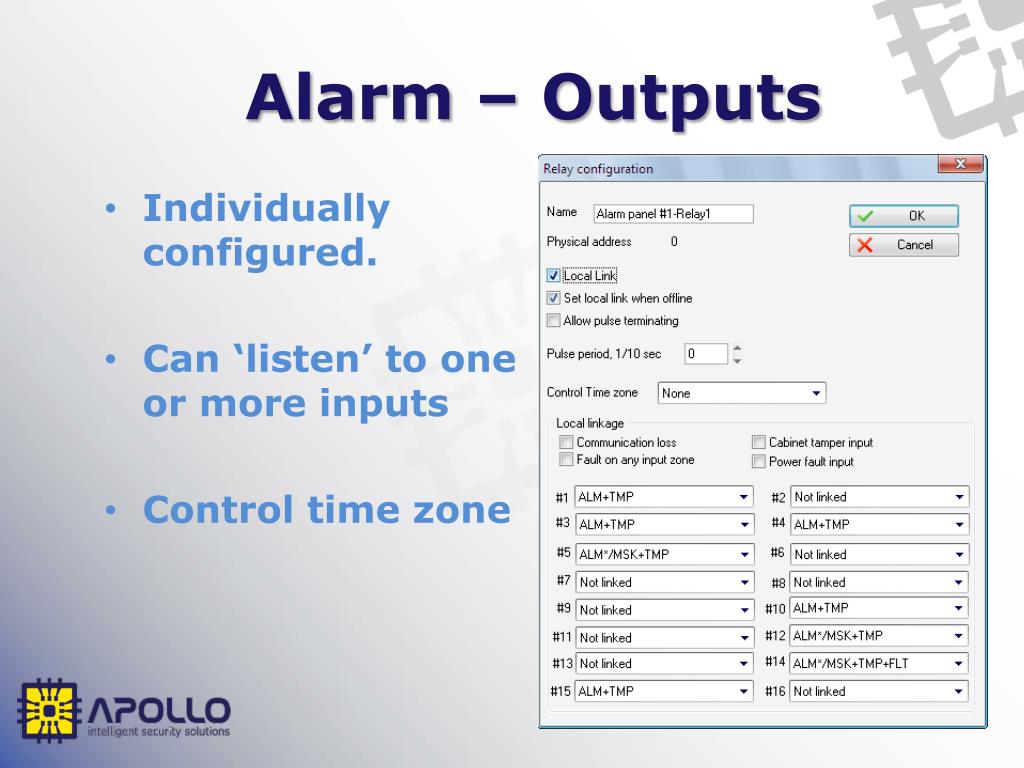

  23. Alarm – Outputs • Individually configured. • Can ‘listen’ to one or more inputs • Control time zone

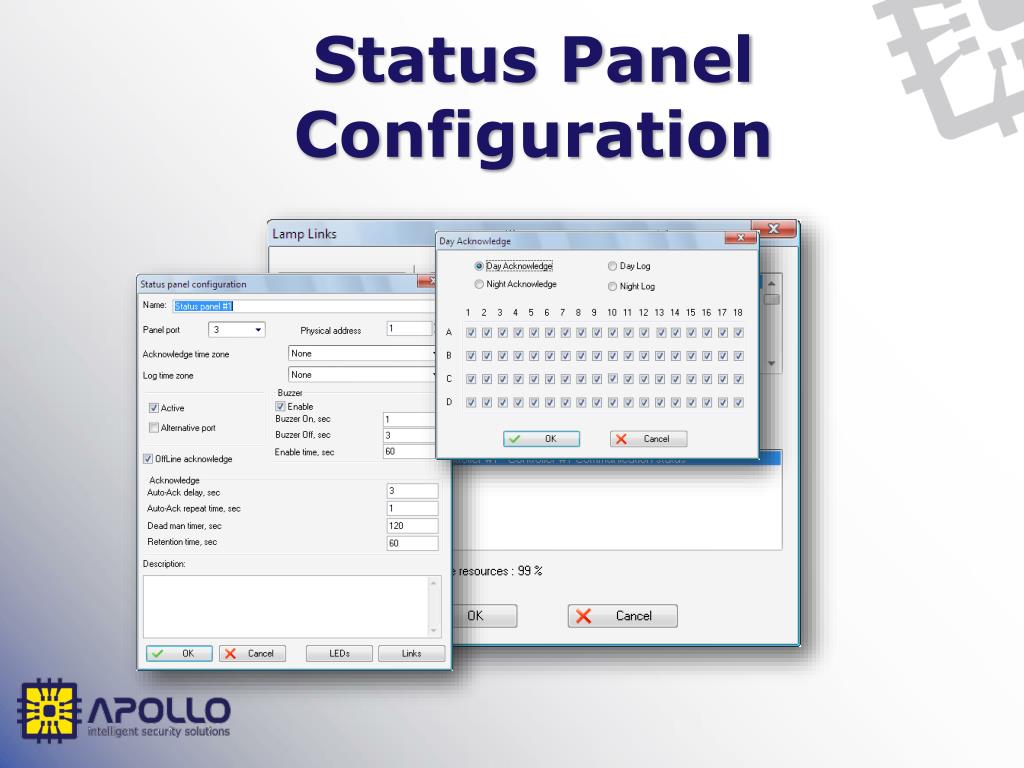

  24. Status Panel Configuration

  25. Object Groups • Four different types • Assist for programming/control

  26. Zone Groups • Group of alarm inputs

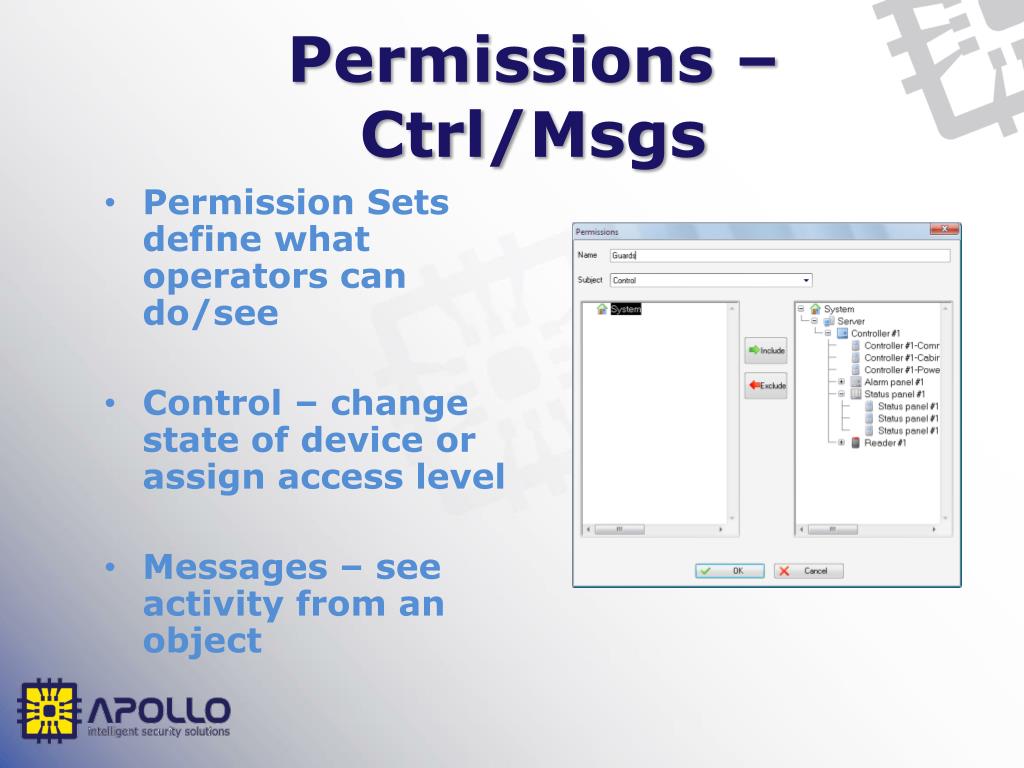

  27. Permissions – Ctrl/Msgs • Permission Sets define what operators can do/see • Control – change state of device or assign access level • Messages – see activity from an object

  28. Permissions • Other permissions define ability to access features or configured options

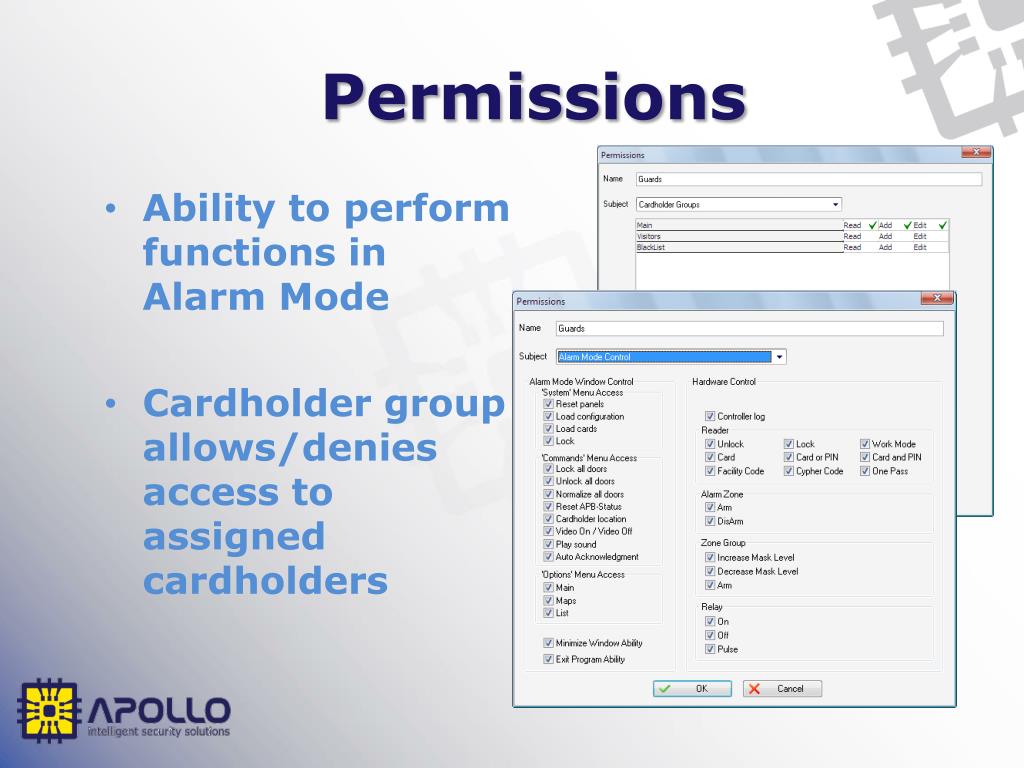

  29. Permissions • Ability to perform functions in Alarm Mode • Cardholder group allows/denies access to assigned cardholders

  30. Permissions • Database section permissions are used to restrict on a table by table basis

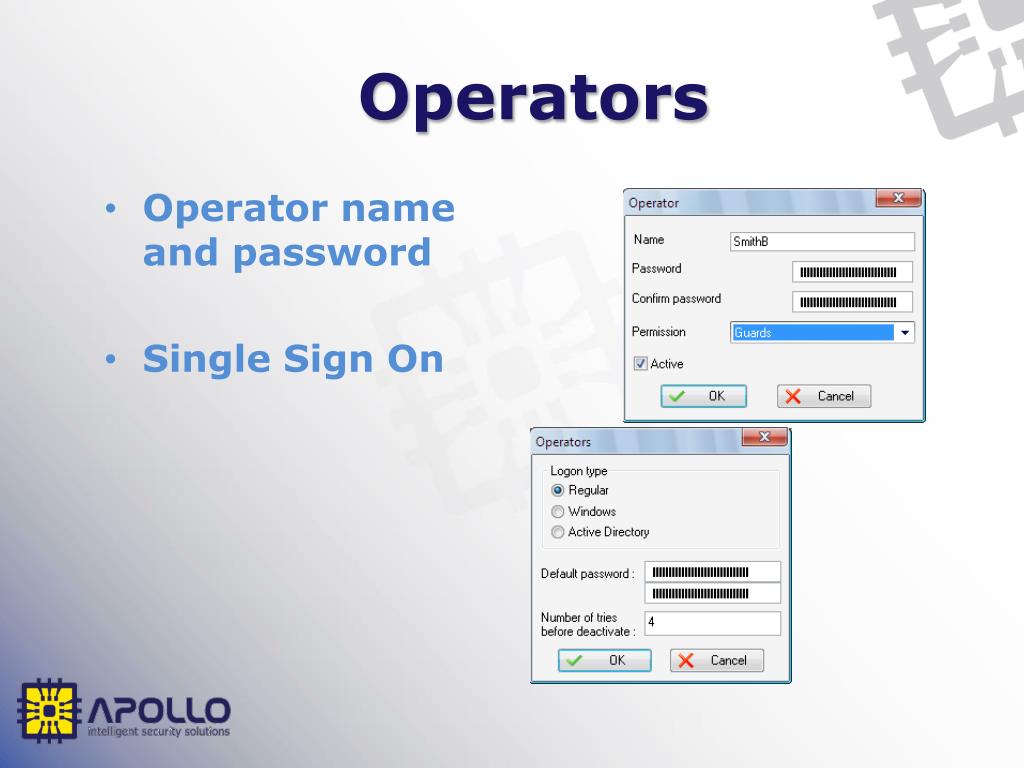

  31. Operators • Operator name and password • Single Sign On

  32. Guard Tour • Ability to use points in the system

  33. Cardholder Templates • Quick entry of cardholders • Define information, access levels, expiration
