Types of bonds

Types of bonds. Ionic-transfer of electrons Covalent-sharing of electrons Metallic-metals lose electrons which ‘float in a sea’ around the cations. Formation of bonds. Atoms will position themselves to achieve lowest possible energy Distance where energy is minimum is bond length

howe
Télécharger la présentation

Types of bonds

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

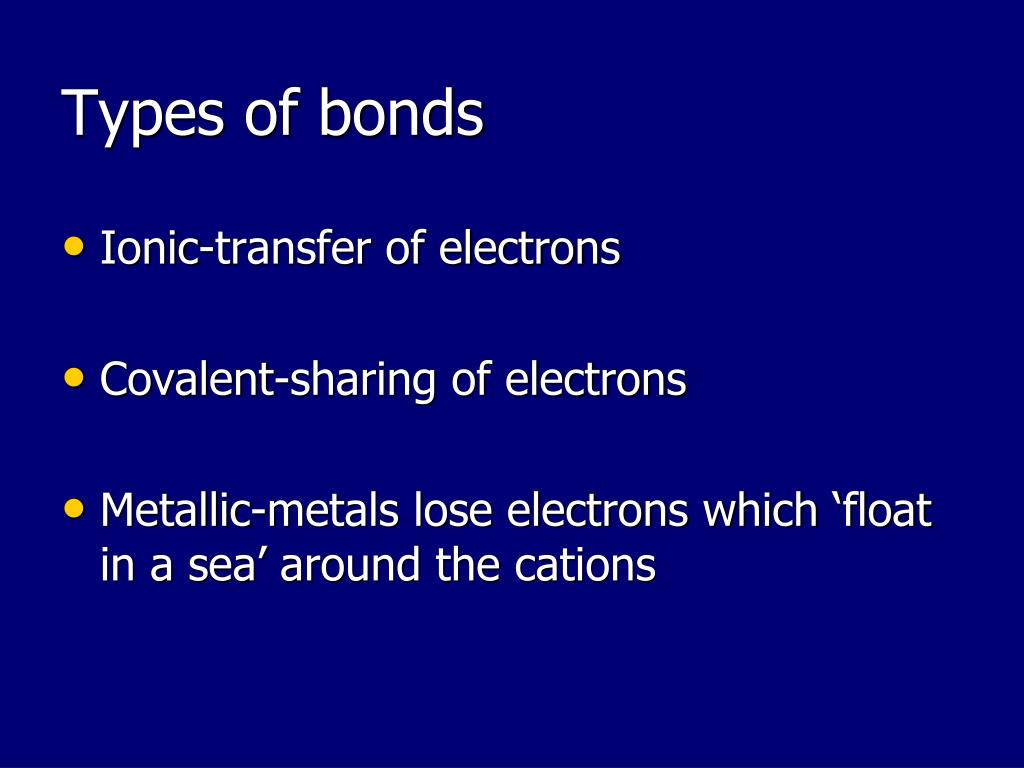

  1. Types of bonds • Ionic-transfer of electrons • Covalent-sharing of electrons • Metallic-metals lose electrons which ‘float in a sea’ around the cations

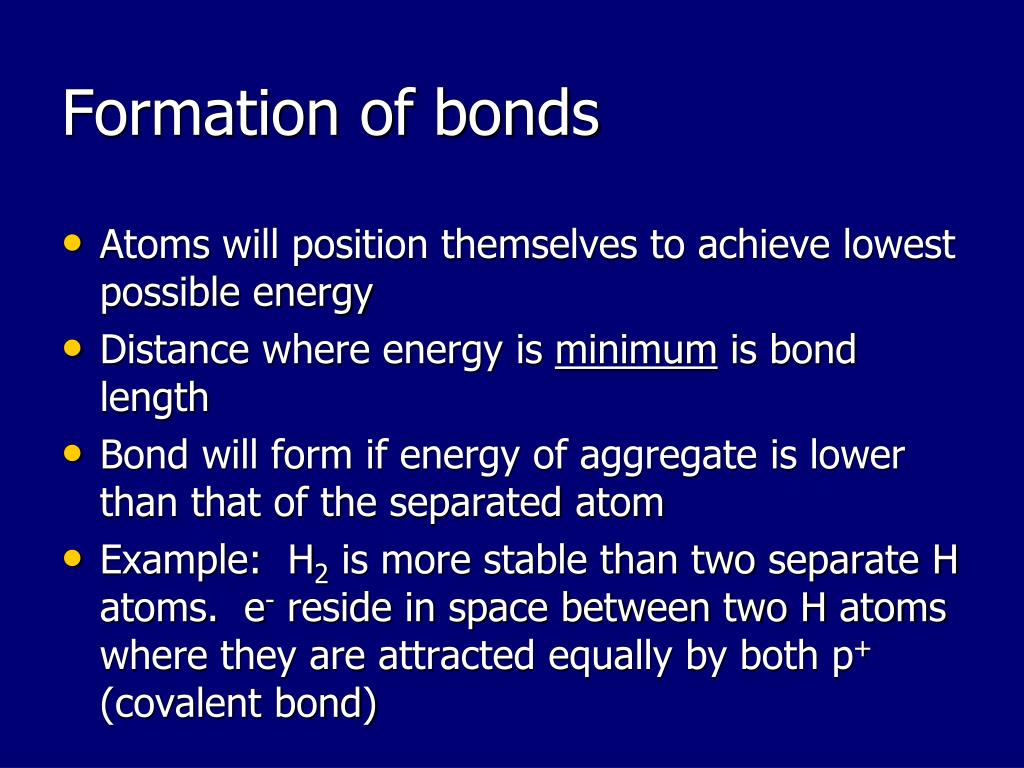

  2. Formation of bonds • Atoms will position themselves to achieve lowest possible energy • Distance where energy is minimum is bond length • Bond will form if energy of aggregate is lower than that of the separated atom • Example: H2 is more stable than two separate H atoms. e- reside in space between two H atoms where they are attracted equally by both p+ (covalent bond)

  3. Ionic Bonds metal + nonmetal lose e- gain e- cation anion + 

  4. Ionic compound properties Most are crystalline solids b/c ions are close together Held together by electrostatic force (attraction between + and – ions) Conduct electric current in molten state High B.P. and M.P. Brittle Soluble in water

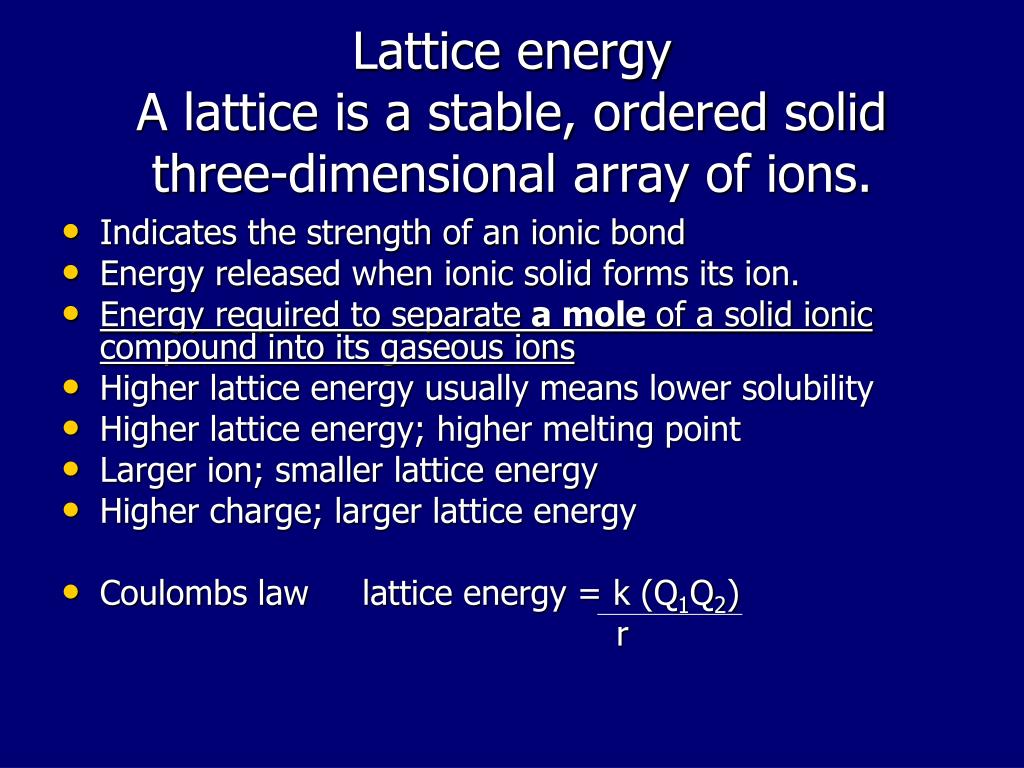

  5. Lattice energyA lattice is a stable, ordered solid three-dimensional array of ions. • Indicates the strength of an ionic bond • Energy released when ionic solid forms its ion. • Energy required to separate a mole of a solid ionic compound into its gaseous ions • Higher lattice energy usually means lower solubility • Higher lattice energy; higher melting point • Larger ion; smaller lattice energy • Higher charge; larger lattice energy • Coulombs law lattice energy = k (Q1Q2) r

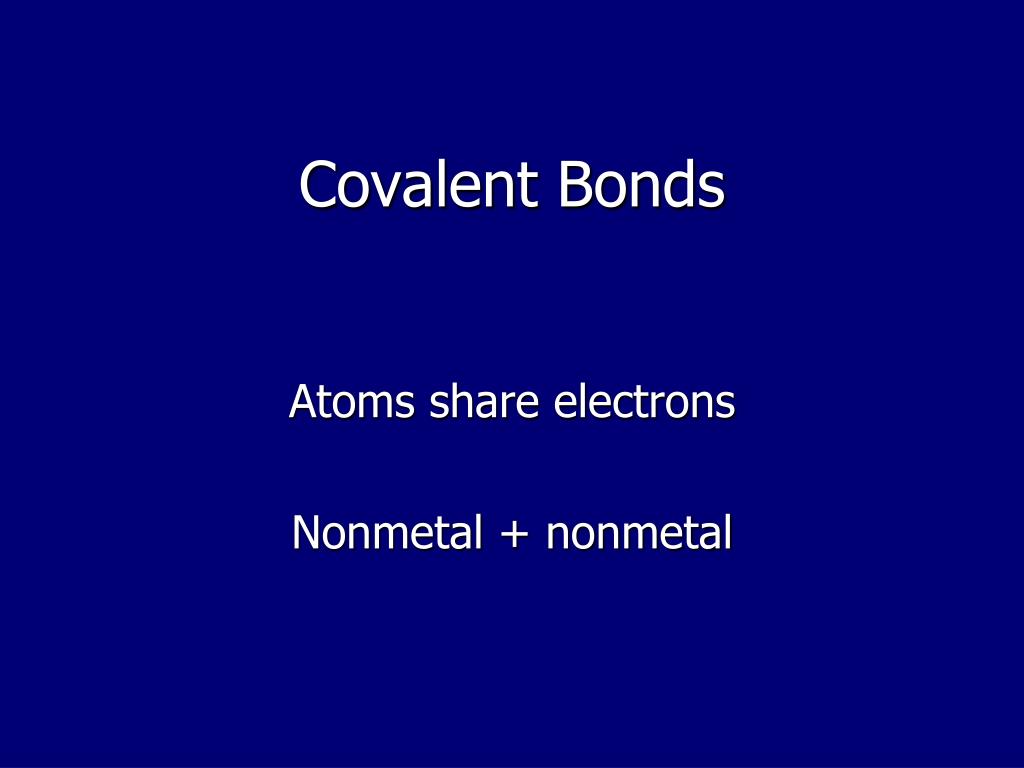

  6. Covalent Bonds Atoms share electrons Nonmetal + nonmetal

  7. Covalent compound properties • Low boiling point • Variable solubility • Do not conduct electricity • Variety of states • Held together by overlap of unfilled orbitals

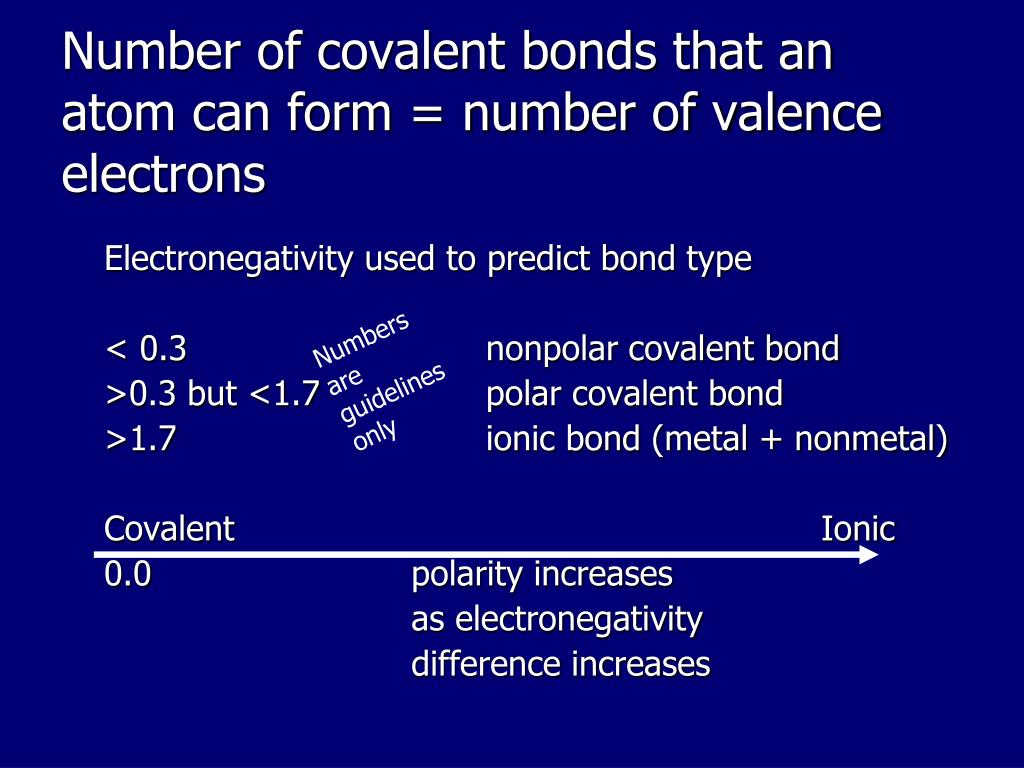

  8. Number of covalent bonds that an atom can form = number of valence electrons Electronegativity used to predict bond type < 0.3 nonpolar covalent bond >0.3 but <1.7 polar covalent bond >1.7 ionic bond (metal + nonmetal) Covalent Ionic 0.0 polarity increases as electronegativity difference increases Numbers are guidelines only

  9. Bond Polarity/ Dipole moment Examples: d- d+ CH4 C = 2.5 H = 2.1 C—H C—H d- d+ NH3 N = 3.0 H = 2.1 N—H N—H d- d+ H2O H = 2.1 O = 3.5 H—O H—O

  10. + + − + + − − − − − − − − − − − − − + + + + − − − − − − − − − − − − − − − + + + + − − − − Metal bondsMetals lose electrons which form a ‘sea’ that floats around the cations. Electron is not associated with any particular cation. Properties of metals directly related to this ‘sea’ • Malleable • ductile • Conduct heat and electricity • Luster (shiny)
